Semiconductor devices - Reliability test method for silicon carbide discrete metal-oxide semiconductor field effect transistors - Part 1: Test method for bias temperature instability

IEC 63275-1:2022 gives a test method to evaluate gate threshold voltage shift of silicon carbide (SiC) power metal-oxide-semiconductor field-effect transistors (MOSFETs) using room temperature readout after applying continuous positive gate-source voltage stress at elevated temperature. The proposed method accepts a certain amount of recovery by allowing large delay times between stress and measurement (up to 10 h).

Dispositifs à semiconducteurs - Méthode d’essai de fiabilité pour les transistors à effet de champ métal-oxyde-semiconducteurs discrets en carbure de silicium - Partie 1: Méthode d’essai pour la mesure de la dérive de la tension de seuil après polarisation électrique en température

L’IEC 63275-1:2022 donne une méthode d’essai pour évaluer le décalage de la tension de seuil de grille des transistors à effet de champ métal-oxyde-semiconducteurs (MOSFET) de puissance en carbure de silicium (SiC) en utilisant un relevé à température ambiante après avoir appliqué une contrainte de tension grille-source positive continue à température élevée. La méthode proposée accepte une certaine quantité de recouvrement en autorisant des décalages importants entre la contrainte et la mesure (jusqu’à 10 h).

General Information

Status
Published
Publication Date
20-Apr-2022
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
21-Apr-2022
Ref Project

Buy Standard

Standard
IEC 63275-1:2022 - Semiconductor devices - Reliability test method for silicon carbide discrete metal-oxide semiconductor field effect transistors - Part 1: Test method for bias temperature instability
English and French language
25 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 63275-1
Edition 1.0 2022-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Semiconductor devices – Reliability test method for silicon carbide discrete
metal‑oxide semiconductor field effect transistors –
Part 1: Test method for bias temperature instability

Dispositifs à semiconducteurs – Méthode d’essai de fiabilité pour les transistors

à effet de champ métal-oxyde-semiconducteurs discrets en carbure de
silicium –
Partie 1: Méthode d’essai pour la mesure de la dérive de la tension de seuil
après polarisation électrique en température
IEC 63275-1:2022-04(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2022 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch

webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 63275-1
Edition 1.0 2022-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Semiconductor devices – Reliability test method for silicon carbide discrete
metal‑oxide semiconductor field effect transistors –
Part 1: Test method for bias temperature instability
Dispositifs à semiconducteurs – Méthode d’essai de fiabilité pour
les transistors à effet de champ métal-oxyde-semiconducteurs discrets en
carbure de
silicium –
Partie 1: Méthode d’essai pour la mesure de la dérive de la tension de seuil
après polarisation électrique en température
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.080.30 ISBN 978-2-8322-1101-5

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

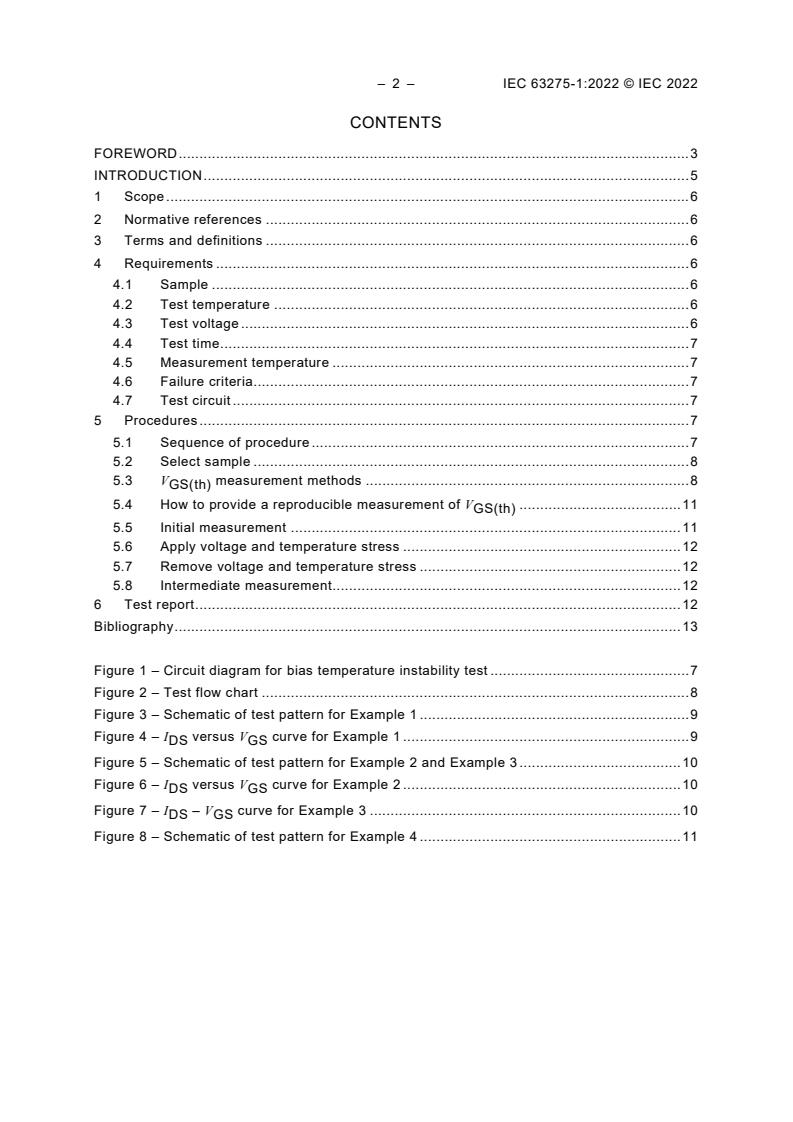

– 2 – IEC 63275-1:2022 © IEC 2022
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 Requirements .................................................................................................................. 6

4.1 Sample ................................................................................................................... 6

4.2 Test temperature .................................................................................................... 6

4.3 Test voltage ............................................................................................................ 6

4.4 Test time ................................................................................................................. 7

4.5 Measurement temperature ...................................................................................... 7

4.6 Failure criteria ......................................................................................................... 7

4.7 Test circuit .............................................................................................................. 7

5 Procedures ...................................................................................................................... 7

5.1 Sequence of procedure ........................................................................................... 7

5.2 Select sample ......................................................................................................... 8

5.3 V measurement methods .............................................................................. 8

GS(th)

5.4 How to provide a reproducible measurement of V ....................................... 11

GS(th)

5.5 Initial measurement .............................................................................................. 11

5.6 Apply voltage and temperature stress ................................................................... 12

5.7 Remove voltage and temperature stress ............................................................... 12

5.8 Intermediate measurement.................................................................................... 12

6 Test report ..................................................................................................................... 12

Bibliography .......................................................................................................................... 13

Figure 1 – Circuit diagram for bias temperature instability test ................................................ 7

Figure 2 – Test flow chart ....................................................................................................... 8

Figure 3 – Schematic of test pattern for Example 1 ................................................................. 9

Figure 4 – I versus V curve for Example 1 ..................................................................... 9

DS GS

Figure 5 – Schematic of test pattern for Example 2 and Example 3 ....................................... 10

Figure 6 – I versus V curve for Example 2 ................................................................... 10

DS GS

Figure 7 – I – V curve for Example 3 ........................................................................... 10

DS GS

Figure 8 – Schematic of test pattern for Example 4 ............................................................... 11

---------------------- Page: 4 ----------------------
IEC 63275-1:2022 © IEC 2022 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
RELIABILITY TEST METHOD FOR SILICON CARBIDE DISCRETE
METAL‑OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTORS –
Part 1: Test method for bias temperature instability
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC 63275-1 has been prepared by IEC technical committee 47: Semiconductor devices. It is

an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
47/2755/FDIS 47/2764/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English.
---------------------- Page: 5 ----------------------
– 4 – IEC 63275-1:2022 © IEC 2022

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

A list of all parts in the IEC 63275 series, published under the general title Semiconductor

devices – Reliability test method for silicon carbide discrete metal‑oxide semiconductor field

effect transistors, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 63275-1:2022 © IEC 2022 – 5 –
INTRODUCTION

One reliability issue for silicon carbide (SiC) metal-oxide-semiconductor field-effect transistors

(MOSFETs) is gate-source threshold voltage shift under gate-source voltage stress.

Gate-source threshold voltage is a key parameter to represent switching characteristics of

MOSFETs. Since the shift value tends to be larger than that of conventional Si based devices,

it is indispensable to establish an International Standard with regard to evaluation of

gate-source threshold voltage shift as a reliability issue.

This document defines the evaluation method of gate-source threshold voltage shift under

continuous temperature and gate-source voltage stress on SiC MOSFETs.
---------------------- Page: 7 ----------------------
– 6 – IEC 63275-1:2022 © IEC 2022
SEMICONDUCTOR DEVICES –
RELIABILITY TEST METHOD FOR SILICON CARBIDE DISCRETE
METAL‑OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTORS –
Part 1: Test method for bias temperature instability
1 Scope

This part of IEC 63275 gives a test method to evaluate gate threshold voltage shift of silicon

carbide (SiC) power metal-oxide-semiconductor field-effect transistors (MOSFETs) using room

temperature readout after applying continuous positive gate-source voltage stress at elevated

temperature. The proposed method accepts a certain amount of recovery by allowing large

delay times between stress and measurement (up to 10 h).
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 60747-8, Semiconductor devices – Discrete devices – Part 8: Field-effect transistors

3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 60747-8 apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Requirements
4.1 Sample

Unless otherwise specified, a minimum of four samples is recommended for each test condition

to evaluate representative behaviour of V drift. When the test method is applied to qualify

GS(th)

reliability of product, the sample size should be defined by taking into consideration

device-to-device deviation of shift value of V and target application of the product.

GS(th)
4.2 Test temperature

The test is performed at the temperature within the maximum rating of the sample.

4.3 Test voltage

The test is performed at the V within the maximum rating of the sample. The tests in this

document treat only positive V stress.
---------------------- Page: 8 ----------------------
IEC 63275-1:2022 © IEC 2022 – 7 –
4.4 Test time

Test time is set individually to reach failure criteria of V or to collect data required to

GS(th)

extrapolate the log time dependence to reach failure criteria V . The time for temperature

GS(th)
ramping and measuring V shall not be added to the stress time.
GS(th)
4.5 Measurement temperature

Measurement is performed at room temperature with a tolerance, e.g. 23 °C ± 2 °C. The

measurement temperature shall be consistent across the evaluation.
4.6 Failure criteria

It is recommended to link the failure criteria to a maximum allowed V drift level that does

GS(th)
not cause the violation of any data sheet specification limit.
4.7 Test circuit

Figure 1 shows the test circuit. VGS, voltage source for the V is the voltage source to apply

V on a sample. VDS, voltage source for the V is the voltage source to apply V on a

GS DS DS
sample for V measurement.
GS(th)
Key
A ammeter to measure drain source current of DUT
DUT device under test sample
VGS voltage source for the V
VDS voltage source for the V
Figure 1 – Circuit diagram for bias temperature instability test
5 Procedures
5.1 Sequence of procedure
The test method evaluates the shift value of V by alternately conducting V
GS(th) GS(th)

measurement and applying temperature and voltage stress on the gate terminal of the sample.

Figure 2 shows the test flow chart.
---------------------- Page: 9 ----------------------
– 8 – IEC 63275-1:2022 © IEC 2022
Figure 2 – Test flow chart
5.2 Select sample
Select and set the sample to the test apparatus.
5.3 V measurement methods
GS(th)
V can be defined by several measurement methods. Examples of V measurement
GS(th) GS(th)
methods are listed below:
a) Example 1: Constant current method 1 (V is measured with constant V .)
GS(th) DS

Figure 3 and Figure 4 show schematics of the sequence of positive bias temperature

instability (PBTI) test and I versus V curve for Example 1, respectively. The procedure

DS GS

of V measurement is that the drain to source current (I ) is measured while sweeping

GS(th) DS

gate to source voltage (V ). The drain to source voltage (V ) is kept constant to flow the

GS DS
I . A threshold current (I ) shall be defined to measure V . V is the V when
DS DS(th) GS(th) GS(th) GS

the I crosses the threshold current during the V sweeping operation. A conditioning

DS GS

pulse is applied prior to measuring the V , as shown in Figure 3. The conditioning

GS(th)
procedure is described in 5.4.
---------------------- Page: 10 ----------------------
IEC 63275-1:2022 © IEC 2022 – 9 –
Figure 3 – Schematic of test pattern for Example 1
Figure 4 – I versus V curve for Example 1
DS GS
b) Example 2: Constant current method 2 (V is measured with V = V .)
GS(th) GS DS

Figure 5 and Figure 6 show schematics of the sequence of PBTI test and I versus V

DS GS

curve for Example 2, respectively. The procedure of V measurement is that the I is

GS(th) DS

measured while sweeping V . The V is kept the same as the V to allow the I to flow.

GS DS GS DS
A threshold current I shall be defined to measure V . V is the V when the
DS(th) GS(th) GS(th) GS

I crosses the I during the V sweeping operation. The I current limit shall be set

DS DS(th) GS DS

to a rated-current value corresponding to a standard scale, such as 250 µA/A (e.g. for a

20 A device, I limit is 5 mA).
---------------------- Page: 11 ----------------------
– 10 – IEC 63275-1:2022 © IEC 2022
Figure 5 – Schematic of test pattern for Example 2 and Example 3
Figure 6 – I versus V curve for Example 2
DS GS
c) Example 3: Extrapolation method
versus V curve for Example 3. I is measured at
Figure 7 shows a schematic of the I
DS GS DS

condition of V = V . V is the X-intercept of the interpolated line of square root of

DS GS GS(th)
I .
Figure 7 – I – V curve for Example 3
DS GS
---------------------- Page: 12 ----------------------
IEC 63275-1:2022 © IEC 2022 – 11 –
d) Example 4: Spot measurement method

Figure 8 shows schematics of sequence of PBTI test for Example 4. The procedure of V

GS(th)

measurement is that the I is measured while applying pulsed V without sweeping V .

DS GS GS
The V is kept either constant or the same as the V to flow the I . A I shall be
DS GS DS DS(th)
defined to measure V . The V is V at the I .
GS(th) GS(th) GS DS(th)
Figure 8 – Schematic of test pattern for Example 4
The V measurement method can be selected by users of this document. The V
GS(th) GS(th)
measurement condition shall be consistent across the evaluation.
5.4 How to provide a reproducible measurement of V
GS(th)

Conditioning is recommended before initial and intermediate V measurement. A positive

GS(th)

V pulse should be applied before measurement as conditioning to evaluate the shift value of

V while avoiding the hysteresis effect that is generated by carrier trapping and de-trapping

GS(th)

into interfacial traps. The conditioning bias of the V should be equal to the soaking/stressing

voltage or less and within the maximum rating of the sample. The voltage level of V pulse

width should be 100 ms [1] . It is recommended to check the conditioning parameters by

ensuring they provide measurement values of V stably. The conditioning bias and the time

GS(th)

delay between conditioning and V measurement shall be consistent across the evaluation.

GS(th)

For more details on how to perform the conditioning prior to measuring the V , refer to [2].

GS(th)
5.5 Initial measurement

Measure the initial value of V of the sample after conditioning. The time delay between

GS(th)
conditioning and initial measurement should be within 10 ms.
____________
Numbers in square brackets refer to the Bibliography.
---------------------- Page: 13 ----------------------
– 12 – IEC 63275-1:2022 © IEC 2022
5.6 Apply voltage and temperature stress

Apply the gate-source voltage and temperature stress on the sample. The voltage of V

voltage source should be reduced to zero before gate stress voltage is applied. Heating up with

or without bias applied should be optional. Whatever the method used, the bias condition during

heating shall be specified in the test report and the time to reach the stress temperature shall

be minimized. If the voltage is applied before, part of the stress is at an undefined temperature.

5.7 Remove voltage and temperature stress

Remove the gate-source voltage and temperature stress on the sample for the intermediate

measurement. Cooling down with or without bias applied should be optional. Whatever the

method used, the bias condition during cooling shall be specified in the test report and the time

to reach the stress temperature shall be minimized. If the voltage is applied with cooling down,

it does avoid recovery to a certain degree, but it also adds some additional stress at an

undefined temperature.
5.8 Intermediate measurement

Intermediate measurements should be performed within 10 h after terminating voltage stress.

During intermediate measurement, measure the intermediate value of V of the sample

GS(th)

after conditioning and evaluate the shift value of V by taking the difference to initial value.

GS(th)

The time delay between conditioning and intermediate measurement is recommended within

10 ms.

Intermediate measurements should be arranged in logarithmic time intervals to evaluate the

drift of V . Characteristics other than V (e.g., R , I , etc.) can be measured during

GS(th) GS(th) on DS
intermediate measurement but it is recommended to measure V always at first.
GS(th)
6 Test report
A test report shall be provided, that includes:
– sample identification;
– test bias condition during heating;
– test temperature;
– test voltage;
– test time;
– test bias condition during cooling;

– pulse condition (width, voltage and negative bias of conditioning if negative bias is applied)

of conditioning pulse before V measurement;
GS(th)
– V measurement method;
GS(th)
– shift value of gate-source threshold voltage;
– other characteristics (R , I , ...).
on DS
---------------------- Page: 14 ----------------------
IEC 63275-1:2022 © IEC 2022 – 13 –
Bibliography

[1] Thomas Aichinger, Gerald Rescher, Gregor Pobegen, "Threshold voltage peculiarities

and bias temperature instabilities of SiC MOSFETs", Microelectron. Reliab. 80 (2018)

68–78

[2] JEDEC JEP183, "Guidelines for measuring the threshold voltage (VT) of SiC MOSFETs",

Version 1.03, (2021)
___________
---------------------- Page: 15 ----------------------
– 14 – IEC 63275-1:2022 © IEC 2022
SOMMAIRE

AVANT-PROPOS .................................................................................................................. 15

INTRODUCTION ................................................................................................................... 17
