IEC 61196-6-4:2018

Coaxial communication cables - Part 6-4: Detail specification for 75-7 type CATV drop cables

IEC 61196-6-4:2018(E) applies to coaxial communication cables described in IEC 61196-6. It specifies the requirements for 75-7 type CATV drop cables. These cables are used in CATV distribution systems, surveillance and control systems, satellite television receiving systems and as bidirectional hybrid fibre coax (HFC). The operating frequency is from 5 MHz to 3 000 MHz.
This part of IEC 61196 is to be used in conjunction with IEC 61196-1:2005 and IEC 61196 6:2009. It determines the layout and style with respect to the model and type.

General Information

• Status: Published
• Publication Date: 11-Jan-2018
• ICS: 33.120.10 - Coaxial cables. Waveguides
• Technical Committee: SC 46A - Coaxial cables
• Drafting Committee: WG 3 - TC 46/SC 46A/WG 3
• Current Stage: DELPUB - Deleted Publication
• Start Date: 27-May-2020
• Completion Date: 29-Mar-2019

Relations

• Revised: IEC 61196-6-4:2020 - Coaxial communication cables - Part 6-4: Detail specification for 75-7 type CATV drop cables
• Effective Date: 05-Sep-2023

Overview

IEC 61196-6-4:2018 is an International Electrotechnical Commission standard that defines the detail specification for 75-7 type CATV drop coaxial cables. It applies to coaxial communication cables described in IEC 61196-6 and is intended to be used together with IEC 61196-1:2005 and IEC 61196-6:2009. The standard covers cable construction, dimensions, electrical and environmental tests, marking and performance requirements for operating frequencies from 5 MHz to 3 000 MHz and nominal impedance 75 Ω.

Key topics and technical requirements

• Cable types and construction
  • Variants: 75-7S (dual shield), 75-7T (tri-shield), 75-7Q (quad-shield); messenger variants available (e.g., 75-7T/M).
  • Core materials: inner conductor (BC = bare copper or CCS = copper-clad steel), foamed PE dielectric, multilayer shields (aluminium/polymeric tape, aluminium alloy wire, tinned copper), sheath materials (PVC, PE, LSZH).
  • Representative dimensions and tolerances are specified (e.g., inner conductor dia. ~1.63 mm, dielectric dia. ~7.11 mm, outer jacket dia. ~10.16–10.34 mm).
• Electrical and transmission parameters
  • Characteristic impedance: 75 Ω ± 3 Ω (measured at 200 MHz).
  • Operating frequency range: 5 MHz – 3 000 MHz.
  • Conductor resistance, insulation resistance (≥ 10 000 MΩ·km), and withstand/spark test voltages are specified.
  • Return loss and attenuation limits (detailed attenuation limits referenced in Annex B).
  • Regularity of impedance / pulse return-loss requirements and measurement procedures (IEC 61196-1-115).
• Shielding and EMC
  • Screening attenuation classes defined per shield type; numerical minimums (for example, dual/tri/quad shield classes with required dB ranges across specified bands).
  • Transfer impedance limits after flex tests (measured according to IEC 62153 and IEC 61196-1-314).
• Environmental and mechanical tests
  • Temperature ranges for different sheath types (PE: −40 °C to 70 °C; PVC and LSZH variants noted).
  • Mechanical tests: minimum bending radius 10 × D, flexure procedures, cold bend, climatic sequence, damp heat, UV stability and thermal ageing with limits on attenuation change (typically ≤ 7%) and physical integrity.
• Identification and marking
  • Cable identification, type naming and marking requirements are covered in Annex A.

Applications and users

IEC 61196-6-4 targets manufacturers, test laboratories, procurement/specification engineers, and installers in sectors such as:

• CATV distribution systems
• Satellite television receiving systems
• Surveillance and control systems
• Bidirectional Hybrid Fibre Coax (HFC) networks

Use this standard when specifying 75-7 CATV drop cables for performance, compliance testing, and procurement.

Related standards

• IEC 61196-1:2005 (generic specification)
• IEC 61196-6:2009 (sectional specification for CATV drop cables)
• Test methods: IEC 61196-1-115, IEC 61196-1-314, IEC 62153-4-3, IEC 62153-4-4

Keywords: IEC 61196-6-4, 75-7 CATV drop cable, coaxial communication cables, 75 Ω coax, shielding, attenuation, HFC, CATV distribution.

Standards Content (Sample)

IEC 61196-6-4 ®
Edition 1.0 2018-01
INTERNATIONAL
STANDARD
Coaxial communication cables –
Part 6-4: Detail specification for 75-7 type CATV drop cables
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61196-6-4 ®
Edition 1.0 2018-01
INTERNATIONAL
STANDARD
Coaxial communication cables –

Part 6-4: Detail specification for 75-7 type CATV drop cables

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.120.10 ISBN 978-2-8322-5262-8

– 2 – IEC 61196-6-4:2018 © IEC 2018

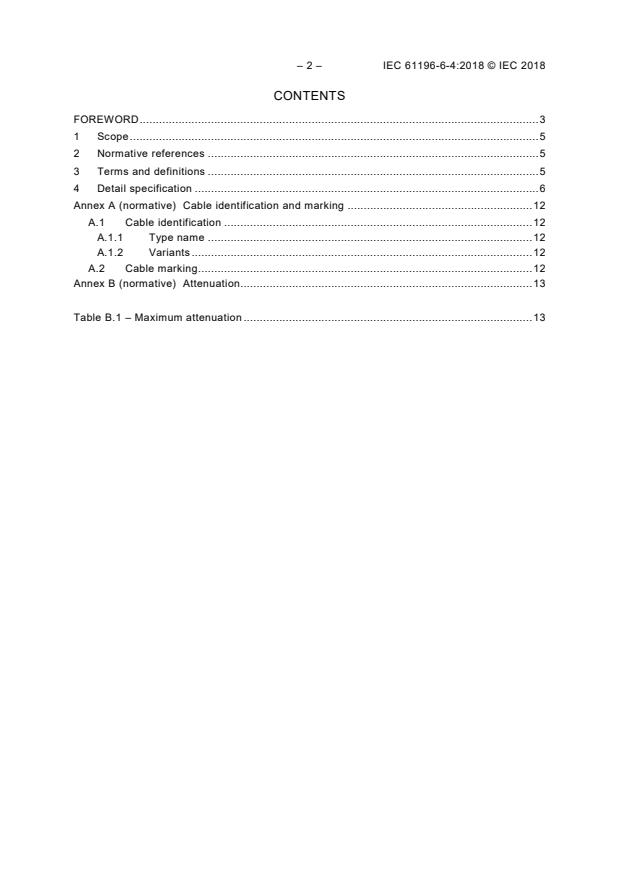

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Detail specification . 6
Annex A (normative) Cable identification and marking . 12
A.1 Cable identification . 12
A.1.1 Type name . 12
A.1.2 Variants . 12
A.2 Cable marking . 12
Annex B (normative) Attenuation. 13

Table B.1 – Maximum attenuation . 13

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COAXIAL COMMUNICATION CABLES –

Part 6-4: Detail specification for 75-7 type CATV drop cables

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61196-6-4 has been prepared by subcommittee 46A: Coaxial
cables, of IEC technical committee 46: Cables, wires, waveguides, RF connectors, RF and
microwave passive components.
The text of this International Standard is based on the following documents:
FDIS Report on voting
46A/1354/FDIS 46A/1360/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This International Standard is to be used in conjunction with IEC 61196-1:2005 and
IEC 61196-6:2009.
– 4 – IEC 61196-6-4:2018 © IEC 2018
A list of all parts in the IEC 61196 series, published under the general title Coaxial
communication cables, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

COAXIAL COMMUNICATION CABLES –

Part 6-4: Detail specification for 75-7 type CATV drop cables

1 Scope
This part of IEC 61196 applies to coaxial communication cables described in IEC 61196-6. It
specifies the requirements for 75-7 type CATV drop cables. These cables are used in CATV
distribution systems, surveillance and control systems, satellite television receiving systems
and as bidirectional hybrid fibre coax (HFC). The operating frequency is from 5 MHz to
3 000 MHz.
This part of IEC 61196 is to be used in conjunction with IEC 61196-1:2005 and
IEC 61196-6:2009. It determines the layout and style with respect to the model and type.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
NOTE Documents which are needed to achieve the tests according to Clause 4, item [8] or item [9], respectively,
are listed in IEC 61196-6.
IEC 61196-1:2005, Coaxial communication cables – Part 1: Generic specification – General,
definitions and requirements
IEC 61196-1-115, Coaxial communication cables – Part 1-115: Electrical test methods – Test
for regularity of impedance (pulse/step function return loss)
IEC 61196-1-314:2015, Coaxial communication cables – Part 1-314: Mechanical test methods
– Test for bending
IEC 61196-6:2009, Coaxial communication cables – Part 6: Sectional specification for CATV
drop cables
IEC 62153-4-3, Metallic communication cable test methods – Part 4-3: Electromagnetic
compatibility (EMC) – Surface transfer impedance – Triaxial method
IEC 62153-4-4, Metallic commu
...
