Fixed capacitors for use in electronic equipment - Part 14-1: Blank detail specification - Fixed capacitors for electromagnetic interference suppression and connection to the supply mains - Assessment level DZ

IEC 60384-14-1:2016 is a blank detail specification. It is a supplementary document to the sectional specification and contains requirements for style, layout and minimum content of detail specifications. In the preparation of detail specifications the content of 1.4 of the sectional specification shall be taken into account. This edition includes the following significant technical changes with respect to the previous edition: The assessment level has been changed to DZ (zero acceptance). The contents is the same as in old IEC 60384-14-3 with editorial changes. IEC 60384-14-3 has been deleted.
This publication is to be read in conjunction with IEC 60384-1:2016.

Condensateurs fixes utilisés dans les équipements électroniques - Partie 14-1: Spécification particulière-cadre - Condensateurs fixes d'antiparasitage et raccordement à l'alimentation - Niveau d'assurance DZ

L'IEC 60384-14-1:2016 est une spécification particulière-cadre. Il est un document annexe à la spécification intermédiaire qui contient des exigences pour le modèle, la disposition et le contenu minimal des spécifications particulières. Lors de la préparation des spécifications particulières, le contenu du 1.4 de la spécification intermédiaire doit être pris en compte. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: Le niveau d'assurance a été modifié en DZ (acceptation zéro). Le contenu est le même que dans l'ancienne version de l'IEC 60384-14-3, avec des modifications d'ordre rédactionnel. L'IEC 60384-14-3 a été supprimée.
Cette publication doit être lue conjointement avec la IEC 60384-1:2016.

General Information

Status
Published
Publication Date
18-Jan-2016
Current Stage
PPUB - Publication issued
Start Date
19-Jan-2016
Completion Date
19-Jan-2016
Ref Project

Buy Standard

Standard
IEC 60384-14-1:2016 - Fixed capacitors for use in electronic equipment - Part 14-1: Blank detail specification - Fixed capacitors for electromagnetic interference suppression and connection to the supply mains - Assessment level DZ
English and French language
29 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

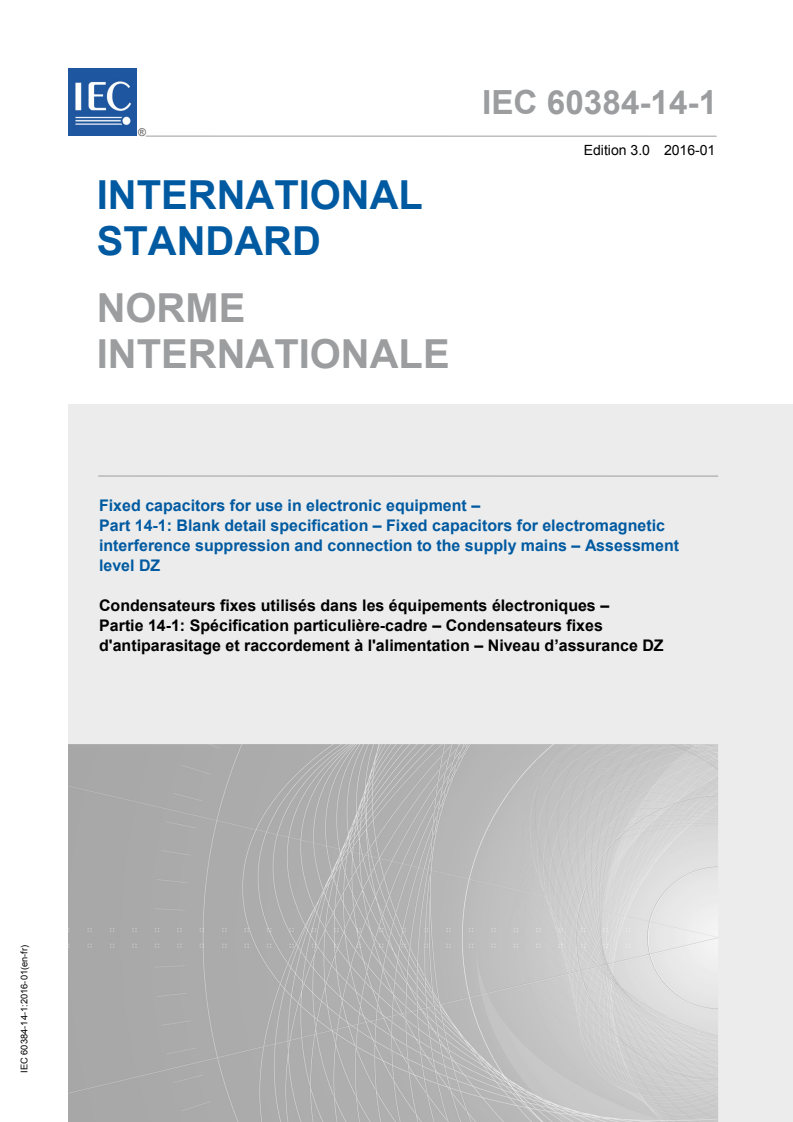

IEC 60384-14-1
Edition 3.0 2016-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –
Part 14-1: Blank detail specification – Fixed capacitors for electromagnetic
interference suppression and connection to the supply mains – Assessment
level DZ
Condensateurs fixes utilisés dans les équipements électroniques –
Partie 14-1: Spécification particulière-cadre – Condensateurs fixes
d'antiparasitage et raccordement à l'alimentation – Niveau d’assurance DZ
IEC 60384-14-1:2016-01(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2016 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC

en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des

comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées

projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------

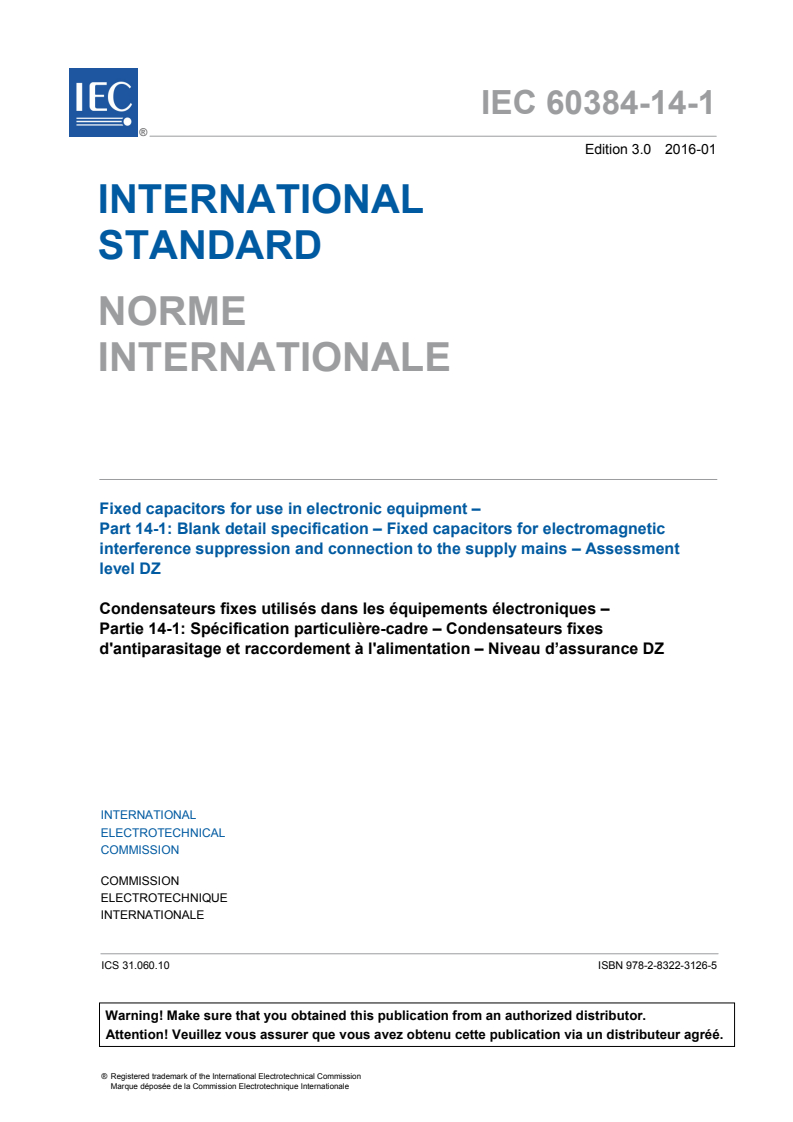

IEC 60384-14-1
Edition 3.0 2016-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –
Part 14-1: Blank detail specification – Fixed capacitors for electromagnetic
interference suppression and connection to the supply mains – Assessment
level DZ
Condensateurs fixes utilisés dans les équipements électroniques –
Partie 14-1: Spécification particulière-cadre – Condensateurs fixes
d'antiparasitage et raccordement à l'alimentation – Niveau d’assurance DZ
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.060.10 ISBN 978-2-8322-3126-5

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

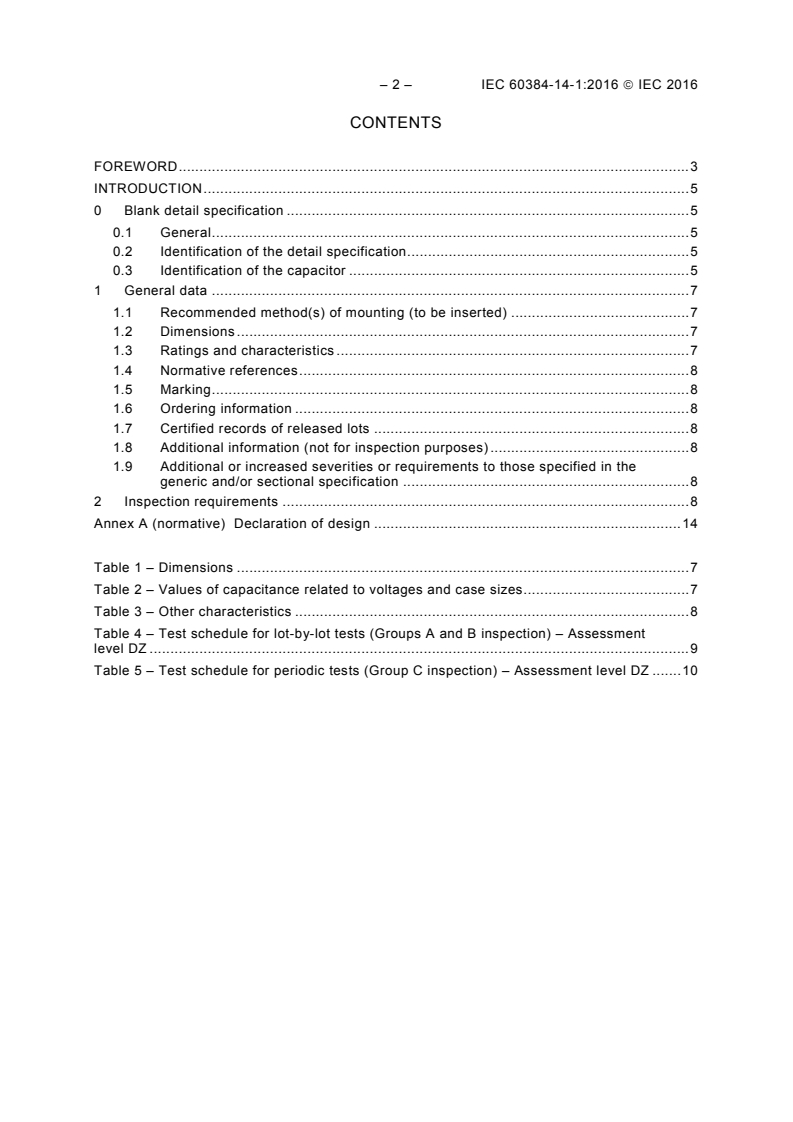

– 2 – IEC 60384-14-1:2016  IEC 2016
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

0 Blank detail specification ................................................................................................. 5

0.1 General ................................................................................................................... 5

0.2 Identification of the detail specification .................................................................... 5

0.3 Identification of the capacitor .................................................................................. 5

1 General data ................................................................................................................... 7

1.1 Recommended method(s) of mounting (to be inserted) ........................................... 7

1.2 Dimensions ............................................................................................................. 7

1.3 Ratings and characteristics ..................................................................................... 7

1.4 Normative references .............................................................................................. 8

1.5 Marking ................................................................................................................... 8

1.6 Ordering information ............................................................................................... 8

1.7 Certified records of released lots ............................................................................ 8

1.8 Additional information (not for inspection purposes) ................................................ 8

1.9 Additional or increased severities or requirements to those specified in the

generic and/or sectional specification ..................................................................... 8

2 Inspection requirements .................................................................................................. 8

Annex A (normative) Declaration of design .......................................................................... 14

Table 1 – Dimensions ............................................................................................................. 7

Table 2 – Values of capacitance related to voltages and case sizes ........................................ 7

Table 3 – Other characteristics ............................................................................................... 8

Table 4 – Test schedule for lot-by-lot tests (Groups A and B inspection) – Assessment

level DZ .................................................................................................................................. 9

Table 5 – Test schedule for periodic tests (Group C inspection) – Assessment level DZ ....... 10

---------------------- Page: 4 ----------------------
IEC 60384-14-1:2016  IEC 2016 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 14-1: Blank detail specification –
Fixed capacitors for electromagnetic interference suppression
and connection to the supply mains – Assessment level DZ
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60384-14-1 has been prepared by IEC technical committee 40:

Capacitors and resistors for electronic equipment.

This third edition cancels and replaces the second edition published in 2005 and constitutes a

technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

The assessment level has been changed to DZ (zero acceptance). The contents is the same

as in old IEC 60384-14-3 with editorial changes. IEC 60384-14-3 has been deleted.

---------------------- Page: 5 ----------------------
– 4 – IEC 60384-14-1:2016  IEC 2016
The text of this standard is based on the following documents:
FDIS Report on voting
40/2421/FDIS 40/2445/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

A list of all parts in the IEC 60384 series, published under the general title Fixed capacitors

for use in electronic equipment, can be found on the IEC website.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

This International Standard is to be used in conjunction with IEC 60384-1:2016.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 60384-14-1:2016  IEC 2016 – 5 –
INTRODUCTION
0 Blank detail specification
0.1 General

This blank detail specification forms the basis for a uniform procedure for a common

international safety mark. It implements the approval schedule for safety tests in

IEC 60384-14, requires a declaration of design for parameters relevant to safety and indicates

conformance tests to be conducted on every lot prior to its release and requalification tests

depending on changes to the declared design.
This specification offers the assessment level DZ (zero defects).

The use of IEC 60384-14-1, may be more appropriate for components manufactured in mass

production, whereas the employment of IEC 60384-14-2 (safety tests only) may be necessary

in those cases where approval and requalification tests contribute considerably to the costs of

the product.

A blank detail specification is a supplementary document to the sectional specification and

contains requirements for style, layout and minimum content of detail specifications. Detail

specifications not complying with these requirements may not be considered as being in

accordance with IEC specifications, nor shall they so be described.

In the preparation of detail specifications the content of 1.4 of the sectional specification shall

be taken into account.
0.2 Identification of the detail specification

The first page of the detail specification should have the layout recommended on the next

page of this blank detail specification. The numbers between square brackets correspond to

the following information which shall be inserted at the position indicated:

[1] The "International Electrotechnical Commission" or the National Standards Organization

under whose authority the detail specification is drafted.

[2] The IEC or National Standards number of the detail specification, date of issue and any

further information required by the national system.

[3] The number and issue number of the IEC, or national, generic, or sectional specification,

as relevant.

[4] If different from the IEC number, the national number of the detail specification, date of

issue and any further information required by the national system, together with any

amendment numbers.
0.3 Identification of the capacitor

[5] A short description of the type of capacitor or range of capacitors. The text should be

suitable for an entry in the IECQ register of approvals.

[6] Information on typical construction (when applicable). The text should be suitable for an

entry in the IECQ register of approvals.

[7] Outline drawing with main dimensions which are of importance for interchangeability

and/or reference to the appropriate national or international documents for outlines.

Alternatively, the drawing may be given in an annex to the detail specification, but [7]

should always contain an illustration of the general outer appearance of the component.

[8] The level(s) of quality assessment covered by the detail specification, as appropriate.

[9] Reference data giving information on the most important properties of the component

which allow comparison between the various component types intended for the same or

similar applications.
---------------------- Page: 7 ----------------------
– 6 – IEC 60384-14-1:2016  IEC 2016
[1] IEC 60384-14-1-XXX [2]
ELECTRONIC COMPONENTS OF ASSESSED
QUALITY IN ACCORDANCE WITH:
IEC 60384-14-1 [4]
IEC 60384-1 [3]
IEC 60384-14
FIXED CAPACITORS FOR
ELECTROMAGNETIC
INTERFERENCE SUPPRESSION AND [5]
CONNECTION TO THE SUPPLY
Outline drawing: [see Table 1]
MAINS (ASSESSMENT LEVEL DZ)
[7]
[first angle projection]
TYPICAL CONSTRUCTION
[6]
(Examples)
[Other shapes are permitted within the dimensions
Class/subclass [8]
given]
For references [1] to [4], see 0.2.
For references [5] to [8], see 0.3.
Information on the availability of components
qualified to this detail specification is given in the [9]
Qualified products list.
For reference [9], see 0.3.
---------------------- Page: 8 ----------------------
IEC 60384-14-1:2016  IEC 2016 – 7 –
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 14-1: Blank detail specification –
Fixed capacitors for electromagnetic interference suppression
and connection to the supply mains – Assessment level DZ
1 General data
1.1 Recommended method(s) of mounting (to be inserted)
See IEC 60384-14:2013, 1.4.2.
1.2 Dimensions
The dimensions are given in Table 1.
Table 1 – Dimensions
Case size Dimensions
reference
L W H L L L …
1 2 3 4

When there is no case size reference, Table 1 may be omitted and the dimensions shall be

given in Table 2, which then becomes Table 1.

The dimensions shall be given as maximum dimensions or as nominal dimensions with a

tolerance.
1.3 Ratings and characteristics
Ratings and characteristics are as listed below.
a) Capacitance range (see Table 2)
b) Tolerance on nominal capacitance
c) Rated voltage (see Table 2)
d) Climatic category
e) Rated temperature
f) Tangent of loss angle
g) Insulation resistance
Table 2 – Values of capacitance related to voltages and case sizes
Rated voltage
Case size Case size Case size Case size
Nominal capacitance
pF and/or nF
---------------------- Page: 9 ----------------------
– 8 – IEC 60384-14-1:2016  IEC 2016
1.4 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

IEC 60384-1:2016, Fixed capacitors for use in electronic equipment – Part 1: Generic

specification

IEC 60384-14:2013, Fixed capacitors for use in electronic equipment – Part 14: Sectional

specification – Fixed capacitors for electromagnetic interference suppression and connection

to the supply mains

IEC 61193-2:2007, Quality assessment systems – Part 2: Selection and use of sampling

plans for inspection of electronic components and packages
1.5 Marking

The marking of the capacitor, if any, and the packaging shall be in accordance with

IEC 60384-14:2013, 1.6.

The details of the marking of the component and packaging shall be given in full in the detail

specification.
1.6 Ordering information

Orders for capacitors covered by this specification shall contain, in clear or in coded form, the

following information:
a) nominal capacitance;
b) tolerance on nominal capacitance;
c) rated voltage;
d) manufacturer's type designation;
e) number and issue reference of the detail specification and style reference.
1.7 Certified records of released lots
Required/not required.
1.8 Additional information (not for inspection purposes)
1.9 Additional or increased severities or requirements to those specified in the
generic and/or sectional specification

Additional or increased requirements should be specified only when essential. They should be

given in Table 3.
Table 3 – Other characteristics

This table is to be used for defining characteristics which are additional to or more

severe than those given in the generic and/or sectional specification.
2 Inspection requirements

For qualification approval the procedures shall be in accordance with IEC 60384-14:2013, 3.4.

---------------------- Page: 10 ----------------------
IEC 60384-14-1:2016  IEC 2016 – 9 –

For quality conformance inspection the test schedule (see Table 4 and Table 5) includes

sampling, periodicity, severities and requirements. The formation of inspection lots is covered

by IEC 60384-14:2013, 3.5.1.
Table 4 – Test schedule for lot-by-lot tests
(Groups A and B inspection) – Assessment level DZ
Subclause number D or ND Conditions of test IL c Performance
a a
and test requirements
b b
Group A1 ND S-4 0
4.1 Visual examination
No visible damage
Any marking shall be legible
and correct
4.1 Dimensions (gauging) As specified in Table 1 of
this specification
Group A2 ND I 0
4.2.2 Capacitance Within specified tolerance
4.2.4 Resistance (if applicable) Within specified tolerance
4.2.3 Tangent of loss angle Frequency: … Hz Within specified limits
(metallized and ceramic
capacitors only)
4.2.1 Voltage proof (Test A) Method:
No permanent breakdown or
flashover
4.2.5 Insulation resistance (Test A) Method: See Table 12
Group B1
D S-3 0
4.5 Solderability (if applicable) Without ageing Methods 1 and 2: good
Method: tinning
Method 3: <3 s

The sampling sizes corresponding to inspection levels should be selected from IEC 61193-2:2007, Table 1.

Subclause numbers of tests and performance requirements as well as the table numbers refer to the sectional

specification, IEC 60384-14:2013, unless specified otherwise.
D = destructive;
ND = non-destructive;
IL = inspection level;
c =acceptance criterion (permitted number of non-conforming items).

The voltage proof test shall be combined with a suitable monitoring method to detect defects in insulation

resistance.
---------------------- Page: 11 ----------------------
– 10 – IEC 60384-14-1:2016  IEC 2016
Table 5 – Test schedule for periodic tests (Group C inspection) –
Assessment level DZ (1 of 4)
a a
Subclause number and test D Conditions of test Sample size and Performance
or acceptance requirements
ND criterion
p n c
Group C1A
D 6 6 0
4.1 Dimensions (detail) See Table 9 and Table 1
of this specification
4.4.1 Initial measurements Capacitance
tan δ (if applicable)
Resistance (if applicable)
4.3 Robustness of Severity: …
termination Visual examination No visible damage
4.4. Resistance to No pre-drying
soldering heat Method: …
4.19 Component solvent Solvent: …
resistance (if Solvent temperature: …
applicable) Method 2
Recovery:
4.4.2 Final measurements Visual examination No visible damage
Capacitance See Table 13
For reference
tan δ (if applicable)
Resistance (if applicable) See Table 13
Group C1B
D 6 12 0
4.5 Solderability (if Without ageing Methods 1 and 2:
applicable) Method: … good tinning
Method 3: <3 s
4.20 Solvent resistance of Solvent: … Marking shall remain
the marking Solvent temperature: … legible
Method 1
Rubbing material: cotton
wool
Recovery: …
4.6 Rapid change of T = lower category
temperature temperature
T = upper category
temperature
Five cycles
Duration: t = 30 min
4.6.1 Inspection Visual examination No visible damage
4.7 Vibration Mounting as in 1.1of this
specification
Severity: …
4.7.2 Inspection Visual examination No visible damage
4.8 Bump Mounting as for 1.1 of this
specification
4.9 Shock Severity: ...
---------------------- Page: 12 ----------------------
IEC 60384-14-1:2016  IEC 2016 – 11 –
Table 5 (2 of 4)
Subclause number D Conditions of test Sample size and Performance
a a
and test or acceptance requirements
ND criterion
p n c
4.8.2 Final measurements Visual examination No visible damage
or Capacitance See 4.8.2 or 4.9.2
4.9.2
tan δ (if applicable)
Specify limit
Resistance (if applicable)
Group C1
D 6 18 0
4.10 Container sealing (if Test Qc or Test Qd, as No evidence of
applicable, if required) applicable leakage
4.11 Climatic sequence
4.11.1 Initial measurements Measurements made in
4.4.2, 4.8.2 or 4.9.2, as
appropriate
4.11.2 Dry heat No measurements
4.11.3 Damp heat, cyclic, first
cycle
4.11.4 Cold No measurements
4.11.5 Damp heat, cyclic, No measurements
remaining cycles
4.11.6 Final measurements Visual examination No visible damage
Any marking shall
be legible
Capacitance See Table 14
Resistance (if applicable) See Table 14
See Table 14
tan δ (if applicable)
Voltage proof See Table 14
Insulation resistance See Table 14
Group C2 D 6 10 0
4.12 Damp heat, steady
state
4.12.1 Initial measurements Capacitance
Resistance (if applicable)
tan δ (metallized capacitors
only)
4.12.2 Test conditions Ceramic capacitors:
half the sample U applied;
other half no voltage applied
Other capacitors:
No voltage applied
---------------------- Page: 13 ----------------------
– 12 – IEC 60384-14-1:2016  IEC 2016
Table 5 (3 of 4)
a a
Subclause number and test D Conditions of test Sample size and Performance
or acceptance requirements
ND criterion
p n c
4.12.3 Final inspection and Visual examination No visible damage
measurements Marking legible
Capacitance See Table 15
Resistance (if applicable) See Table 15
See Table 15
tan δ (if applicable)
Voltage proof See Table 15
Insulation resistance See Table 15
Group C3
X-capacitors 3 12 0
Y-capacitors 3 12 0
Lead-through capacitors 3 6 0
4.13.1 Initial measurements Capacitance
Resistance (if applicable)
tan δ (metallized capacitors
only)
4.13 Impulse voltage 3 impulses, full wave See 4.13.2 and
Peak voltage: see Tables 1 4.13.3
and 2
4.14 Endurance Duration: 1 000 h
Voltage, current and
temperature: see 4.14.3;
4.14.4, 4.14.5 and 4.14.6
4.14.7 Final inspection and Visual examination No visible damage
measurements Marking legible
Capacitance See Table 16
Resistance (if applicable) See Table 16
tan δ (if applicable) See Table 16
Voltage proof See Table 16
Insulation resistance See Table 16
Group C4
D 6 6 0
4.15 Charge and Only for metallized film,
discharge (if metallized paper and
applicable) ceramic capacitors and RC-
units using such capacitors
4.15.1 Initial measurements Group 0 measurements may
be used, provided the
measuring conditions are
the same as required for this
test; in addition, except for
RC-units tan δ shall be
measured
at: 10 kHz for C ≤ 1 µF
1 kHz for C > 1 µF
---------------------- Page: 14 ----------------------
IEC 60384-14-1:2016  IEC 2016 – 13 –
Table 5 (4 of 4)
Subclause number D Conditions of test Sample size and Performance
a a
and test or acceptance requirements
ND criterion
p n c
4.15.3 Final measurements Capacitance See Table 17
See Table 17
tan δ at same frequency as
initial measurement (not for
RC-units)
Resistance (if applicable)
...
