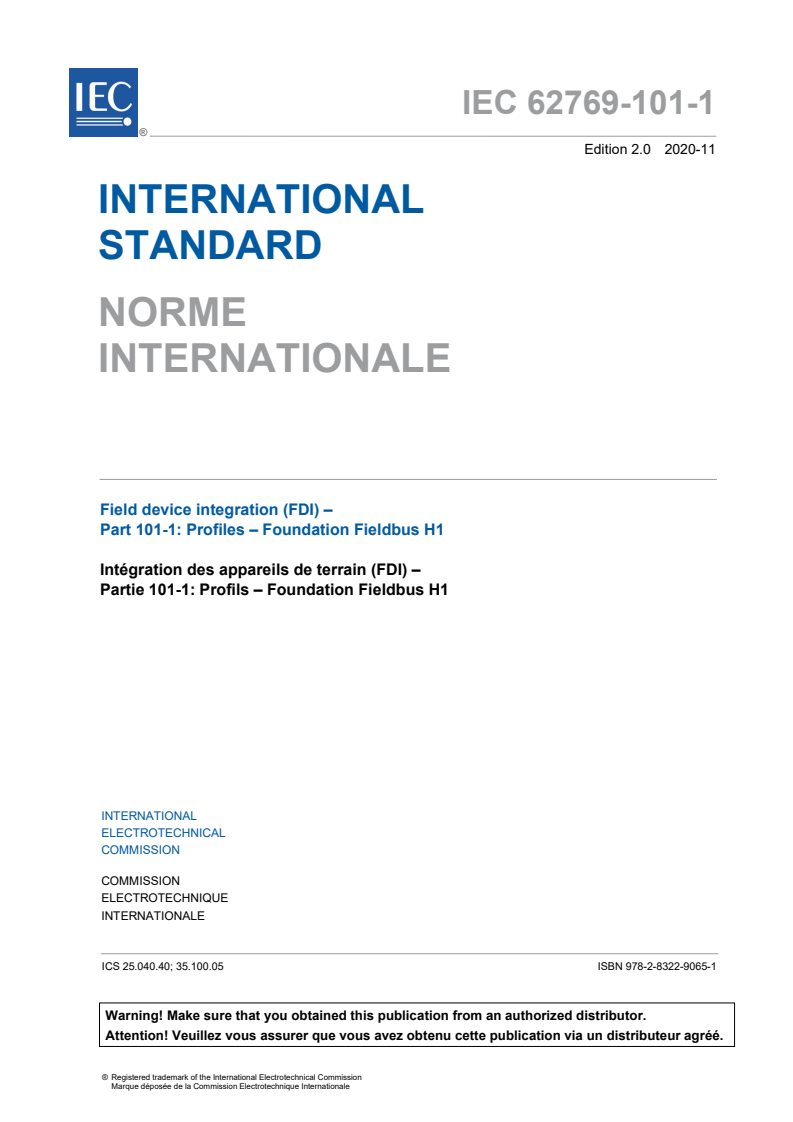

IEC 62769-101-1
Edition 2.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Field device integration (FDI) –
Part 101-1: Profiles – Foundation Fieldbus H1
Intégration des appareils de terrain (FDI) –
Partie 101-1: Profils – Foundation Fieldbus H1
IEC 62769-101-1:2020-11(en-fr)
---------------------- Page: 1 ----------------------

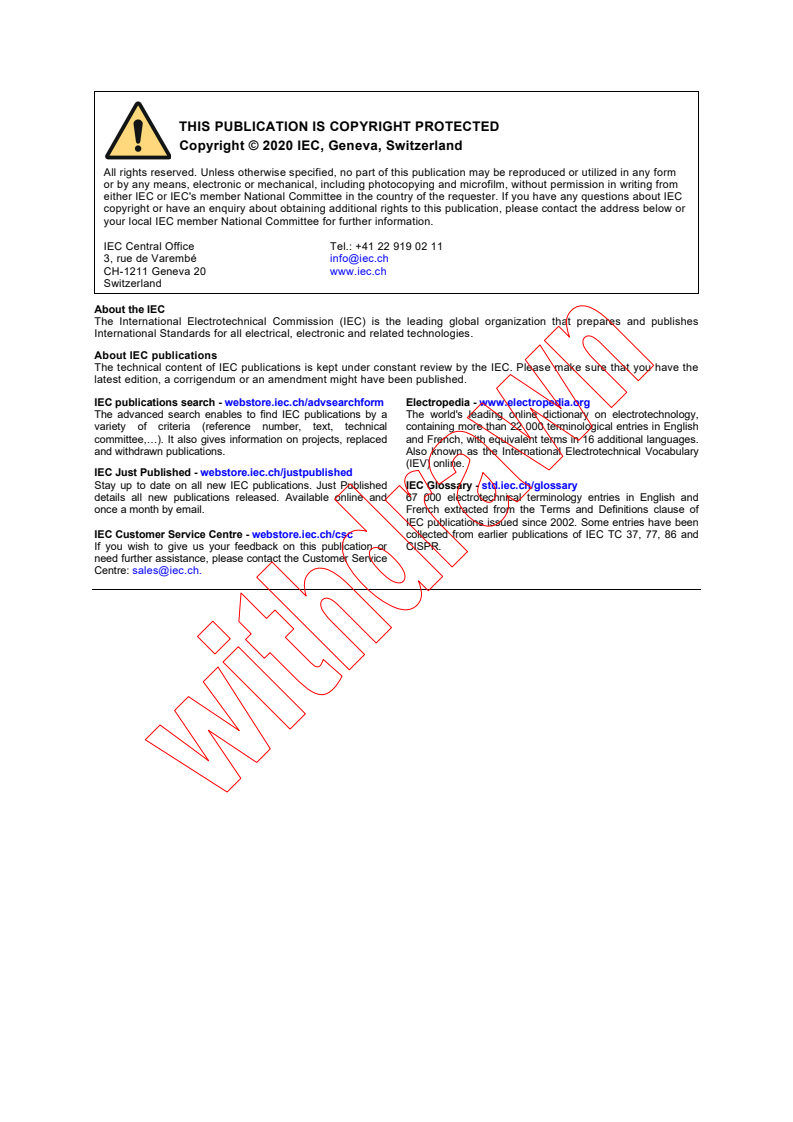

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62769-101-1
Edition 2.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Field device integration (FDI) –
Part 101-1: Profiles – Foundation Fieldbus H1
Intégration des appareils de terrain (FDI) –
Partie 101-1: Profils – Foundation Fieldbus H1
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40; 35.100.05 ISBN 978-2-8322-9065-1

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 62769-101-1:2020 © IEC 2020

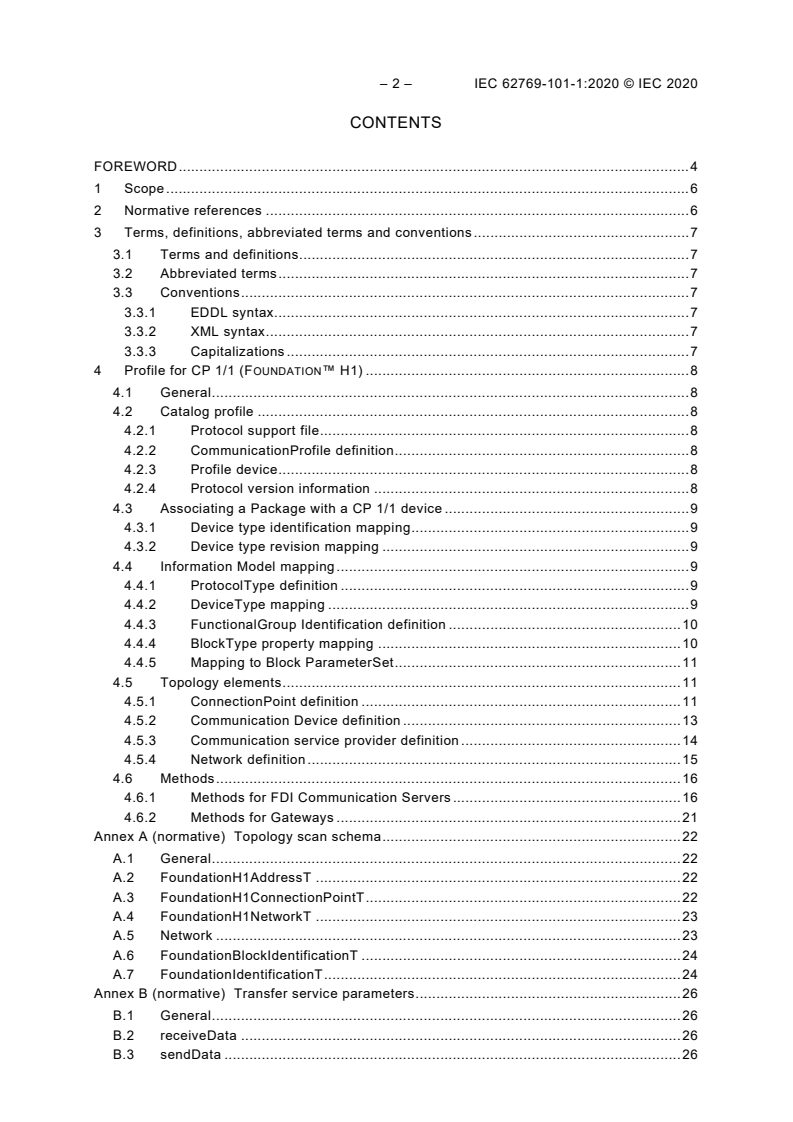

CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions, abbreviated terms and conventions .................................................... 7

3.1 Terms and definitions .............................................................................................. 7

3.2 Abbreviated terms ................................................................................................... 7

3.3 Conventions ............................................................................................................ 7

3.3.1 EDDL syntax.................................................................................................... 7

3.3.2 XML syntax ...................................................................................................... 7

3.3.3 Capitalizations ................................................................................................. 7

4 Profile for CP 1/1 (FOUNDATION™ H1) .............................................................................. 8

4.1 General ................................................................................................................... 8

4.2 Catalog profile ........................................................................................................ 8

4.2.1 Protocol support file ......................................................................................... 8

4.2.2 CommunicationProfile definition ....................................................................... 8

4.2.3 Profile device ................................................................................................... 8

4.2.4 Protocol version information ............................................................................ 8

4.3 Associating a Package with a CP 1/1 device ........................................................... 9

4.3.1 Device type identification mapping ................................................................... 9

4.3.2 Device type revision mapping .......................................................................... 9

4.4 Information Model mapping ..................................................................................... 9

4.4.1 ProtocolType definition .................................................................................... 9

4.4.2 DeviceType mapping ....................................................................................... 9

4.4.3 FunctionalGroup Identification definition ........................................................ 10

4.4.4 BlockType property mapping ......................................................................... 10

4.4.5 Mapping to Block ParameterSet ..................................................................... 11

4.5 Topology elements ................................................................................................ 11

4.5.1 ConnectionPoint definition ............................................................................. 11

4.5.2 Communication Device definition ................................................................... 13

4.5.3 Communication service provider definition ..................................................... 14

4.5.4 Network definition .......................................................................................... 15

4.6 Methods ................................................................................................................ 16

4.6.1 Methods for FDI Communication Servers ....................................................... 16

4.6.2 Methods for Gateways ................................................................................... 21

Annex A (normative) Topology scan schema ........................................................................ 22

A.1 General ................................................................................................................. 22

A.2 FoundationH1AddressT ........................................................................................ 22

A.3 FoundationH1ConnectionPointT ............................................................................ 22

A.4 FoundationH1NetworkT ........................................................................................ 23

A.5 Network ................................................................................................................ 23

A.6 FoundationBlockIdentificationT ............................................................................. 24

A.7 FoundationIdentificationT ...................................................................................... 24

Annex B (normative) Transfer service parameters ................................................................ 26

B.1 General ................................................................................................................. 26

B.2 receiveData .......................................................................................................... 26

B.3 sendData .............................................................................................................. 26

---------------------- Page: 4 ----------------------
IEC 62769-101-1:2020 © IEC 2020 – 3 –

B.4 OperationT ............................................................................................................ 27

B.5 ResponseCodeT ................................................................................................... 27

B.6 TransferResultDataT ............................................................................................. 27

B.7 TransferSendDataT ............................................................................................... 28

Annex C (informative) Communication service arguments for Transfer Method .................... 29

Bibliography .......................................................................................................................... 30

Table 1 – Capability File part .................................................................................................. 8

Table 2 – CommunicationProfile definition .............................................................................. 8

Table 3 – Device type catalog mapping ................................................................................... 9

Table 4 – ProtocolType Foundation_H1 definition ................................................................... 9

Table 5 – Inherited DeviceType Property mapping ................................................................ 10

Table 6 – Identification Parameters ....................................................................................... 10

Table 7 – Inherited BlockType property mapping................................................................... 11

Table 8 – ConnectionPointType ConnectionPoint_Foundation_H1 definition ......................... 11

Table 9 – Communication device ParameterSet definition ..................................................... 14

Table 10 – Method Connect arguments ................................................................................. 16

Table 11 – Method Disconnect arguments ............................................................................ 17

Table 12 – Method Transfer arguments ................................................................................. 18

Table 13 – Method GetPublishedData arguments.................................................................. 19

Table 14 – Method SetAddress arguments ............................................................................ 21

Table A.1 – Attributes of FoundationH1ConnectionPointT ..................................................... 23

Table A.2 – Elements of FoundationH1ConnectionPointT ..................................................... 23

Table A.3 – Elements of FoundationH1NetworkT .................................................................. 23

Table A.4 – Attributes of FoundationBlockIdentificationT....................................................... 24

Table A.5 – Attributes of FoundationIdentificationT ............................................................... 25

Table B.1 – Elements of receiveData .................................................................................... 26

Table B.2 – Enumerations of OperationT .............................................................................. 27

Table B.3 – Attributes of ResponseCodeT ............................................................................ 27

Table B.4 – Attributes of TransferResultDataT ...................................................................... 28

Table B.5 – Attributes of TransferSendDataT ........................................................................ 28

---------------------- Page: 5 ----------------------
– 4 – IEC 62769-101-1:2020 © IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIELD DEVICE INTEGRATION (FDI) –
Part 101-1: Profiles – Foundation Fieldbus H1
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62769-101-1 has been prepared by subcommittee 65E: Devices

and integration in enterprise systems, of IEC technical committee 65: Industrial-process

measurement, control and automation.

This second edition cancels and replaces the first edition published in 2015. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) support for generic protocol extension for faster adoption of other technologies;

b) support for Package developers to build EDDs targeted for today's EDD bases system

under a single development tool.
---------------------- Page: 6 ----------------------
IEC 62769-101-1:2020 © IEC 2020 – 5 –
The text of this International Standard is based on the following documents:
CDV Report on voting
65E/620/CDV 65E/683/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 62769 series, published under the general title Field device

integration (FDI), can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 7 ----------------------
– 6 – IEC 62769-101-1:2020 © IEC 2020
FIELD DEVICE INTEGRATION (FDI) –
Part 101-1: Profiles – Foundation Fieldbus H1
1 Scope
This part of IEC 62769 specifies the IEC 62769 profile for IEC 61784-1_CP 1/1
(FOUNDATION™ Fieldbus H1) .
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 61158-5-9:2014, Industrial communication networks – Fieldbus specifications – Part 5-9:

Application layer service definition – Type 9 elements

IEC 61784-1, Industrial communication networks – Profiles – Part 1: Fieldbus Profiles

IEC 61784-2, Industrial communication networks – Profiles – Part 2: Additional fieldbus

profiles for real-time networks based on ISO/IEC/IEEE 8802-3

IEC 61784-3:2016, Industrial communication networks – Profiles – Part 3: Functional safety

fieldbuses – General rules and profile definitions

IEC 61804 (all parts), Function blocks (FB) for process control and electronic device

description language (EDDL)
IEC 62541-6, OPC unified architecture – Part 6: Mappings
IEC 62541-100:2015, OPC unified architecture – Part 100: Device Interface
IEC 62769-1, Field device integration (FDI) – Part 1: Overview
IEC 62769-2, Field Device Integration (FDI) – Part 2: FDI Client
IEC 62769-4, Field Device Integration (FDI) – Part 4: FDI Packages
IEC 62769-5, Field Device Integration (FDI) – Part 5: FDI Information Model
IEC 62769-6, Field Device Integration (FDI) – Part 6: FDI Technology Mapping
IEC 62769-7, Field Device Integration (FDI) – Part 7: FDI Communication Devices
___________

FOUNDATION™ Fieldbus is the trade name of the non-profit consortium Fieldbus Foundation. This information is

given for the convenience of users of this document and does not constitute an endorsement by IEC of the

trademark holder or any of its products. Compliance does not require use of the trade name. Use of the trade

name requires permission of the trade name holder.
---------------------- Page: 8 ----------------------
IEC 62769-101-1:2020 © IEC 2020 – 7 –
3 Terms, definitions, abbreviated terms and conventions
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 61158-5-9,

IEC 61784-1, IEC 61784-2, IEC 61784-3, IEC 61804 (all parts), IEC 62541-6, IEC 62541-100,

IEC 62769-1, IEC 62769-2, IEC 62769-4, IEC 62769-5, IEC 62769-6, and IEC 62769-7 apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.2 Abbreviated terms
For the purposes of this document, the following abbreviated terms apply:
CFF common file format
CP communication profile (see IEC 61784-1 or IEC 61784-2)
CPF communication profile family (see IEC 61784-1 or IEC 61784-2)
EDD Electronic Device Description (see IEC 61804 (all parts))
FB Function Block
IM Information Model
SMIB System Management Information Base
VFD virtual field device
3.3 Conventions
3.3.1 EDDL syntax

This document specifies content for the EDD component that is part of an FDI Communication

Package. EDDL syntax uses the font Courier New. EDDL syntax is used for method signature,

variable, data structure and component declarations.
3.3.2 XML syntax

XML syntax examples use the font Courier New. The XML syntax is used to describe XML

document schema.
Example
3.3.3 Capitalizations

The IEC 62769 series uses capitalized terms to emphasize that these terms have an FDI

specific meaning.
Some of these terms use an acronym as a prefix for example:
• FDI Client, or
• FDI Server.
Some of these terms are compound terms such as:
• Communication Servers, or
• Profile Package.
---------------------- Page: 9 ----------------------
– 8 – IEC 62769-101-1:2020 © IEC 2020

Parameter names or attributes are concatenated to a single term, where the original terms

start in this term with a capital letter such as:
• ProtocolSupportFile, or
• ProtocolType.

Parameter names or attributes can also be constructed by using an underscore character to

concatenate two or more terms such as:
• PROFILE_ID, or
• Profibus_PA_Network.
4 Profile for CP 1/1 (FOUNDATION™ H1)
4.1 General
This profile specifies the protocol specifics needed for FDI Packages describing

Communication Servers, gateways and devices. Requirements for Direct Access transfer

service parameters are given in Annex B.
4.2 Catalog profile
4.2.1 Protocol support file

Each CP 1/1 FDI Device Package shall contain a capability file. The capability file part is

described in Table 1.
Table 1 – Capability File part
Parameter Description
Content Type: txt/plain
Root Namespace: Not applicable

Source Relationship: http://fdi-cooperation.com/2010/relationships/attachment-protocol

Filename: Use file extension .CFF
4.2.2 CommunicationProfile definition

IEC 62769-4 defines a CommunicationProfileT string type for the Catalog XML schema. Table

2 defines the CP 1/1 specific values for this string.
Table 2 – CommunicationProfile definition
CommunicationProfile Description
foundation_h1 CP 1/1 device type with a Function Block application
4.2.3 Profile device
Not supported in this document.
4.2.4 Protocol version information
IEC 62769-4 defines an element type named InterfaceT for the Catalog XML Schema.

Element type InterfaceT contains an element named Version which is supposed to provide

version information about the applied communication protocol profile. The value follows the

IEC 62769-4 defined version information schema defined in element type VersionT.
---------------------- Page: 10 ----------------------
IEC 62769-101-1:2020 © IEC 2020 – 9 –

The major version part of VersionT shall be set to the ITK_VER parameter. The minor and

builds parts shall be set to 0.
EXAMPLE For ITK_VER 5, the value for InterfaceT is 5.0.0.
4.3 Associating a Package with a CP 1/1 device
4.3.1 Device type identification mapping

CP 1/1 device types are uniquely identified by the parameters MANUFAC_ID, DEVICE_TYPE

and DEV_REV found in the Resource Block. These parameters are used to associate a given

device instance to an FDI Device Package. These parameters are mapped to the FDI Device

Package Catalog according to Table 3.
Table 3 – Device type catalog mapping
Catalog Element CP Mapping
Manufacturer element of InterfaceT (IEC 62769-4) MANUFAC_ID
String format "0xdddd" where dddd is the
MANUFAC_ID number in hexadecimal format.
DeviceModel element of InterfaceT (IEC 62769-4) DEVICE_TYPE
String format "0xdddd" where dddd is the
DEVICE_TYPE number in hexadecimal format.
DeviceRevision element DEV_REV
ListOfSupportedDeviceRevisionsT (IEC 62769-4)
String format "x.0.0" where x is the DEV_REV in
decimal format (no leading zeros).
4.3.2 Device type revision mapping

Each device type is identified according to 4.3.1. A device may also include a parameter

COMPATIBILITY_REV from the Resource Block. This parameter specifies the lowest device

version (DEV_REV) that a new device can replace while maintaining compatibility with a prior

FDI Device Package.
4.4 Information Model mapping
4.4.1 ProtocolType definition
Table 4 defines the ProtocolType used to identify CP 1/1 network communications.
Table 4 – ProtocolType Foundation_H1 definition
Attribute Value
BrowseName Foundation_H1
IsAbstract False
References NodeClass BrowseName DataType TypeDefinition ModellingRule
Inherits the properties of ProtocolType defined in IEC 62541-100.
4.4.2 DeviceType mapping

Each device type inherits the properties of the DeviceType. The mapping of the inherited

properties from the DeviceType is defined in Table 5.
---------------------- Page: 11 ----------------------
– 10 – IEC 62769-101-1:2020 © IEC 2020
Table 5 – Inherited DeviceType Property mapping
Property CP Mapping
SerialNumber DEV_ID (System Management Information Base)
RevisionCounter -1 (not defined)
Manufacturer String obtained from FDI package catalog (ManufacturerName from
PackageT)
Model String obtained from FDI package catalog (Name of DeviceTypeT,
which is a localized name)
DeviceManual entry text string (not supported)
DeviceRevision DEV_REV (Resource Block)
SoftwareRevision SOFTWARE_REV (if available, otherwise empty string)
HardwareRevision HARDWARE_REV (if available, otherwise empty string)
Device manuals are exposed as attachments of the FDI Device Package.
4.4.3 FunctionalGroup Identification definition
As defined in IEC 62541-100, each device representation in the FDI Server hosted

Information Model shall contain a protocol specific FunctionalGroup called Identification. This

FunctionalGroup organizes variables found in the Resource Block of the device type instance.

The FunctionalGroup Identification for CP 1/1 is defined in Table 6.
Table 6 – Identification Parameters
BrowseName DataType Optional/Mandatory
MANUFAC_ID UInt32 Mandatory
DEV_TYPE UInt16 Mandatory
DEV_REV UInt8 Mandatory
HARDWARE_REV String Optional
SOFTWARE_REV String Optional
COMPATIBILITY_REV UInt8 Optional
CAPABILITY_LEV UInt8 Optional
ITK_VER UInt16 Mandatory
SIF_ITK_VER
...
