IEC 60335-2-60:2023
(Main)Household and similar electrical appliances - Safety - Part 2-60: Particular requirements for whirlpool baths and whirlpool spas
Household and similar electrical appliances - Safety - Part 2-60: Particular requirements for whirlpool baths and whirlpool spas
IEC 60335-2-60:2023 deals with the safety of electric whirlpool baths for indoor use and whirlpool spas, for household and similar use, their rated voltage being not more than 250 V for single-phase appliances and 480 V for other appliances, including direct current (DC) supplied appliances and battery-operated appliances. This standard also applies to appliances for circulating air or water in conventional baths. This standard applies to factory-built self-contained whirlpool baths or whirlpool spas in which all controls and components are integral parts of the appliance and are located within or affixed to the whirlpool bath or whirlpool spa structure. Appliances not intended for normal household use but that nevertheless can be a source of danger to the public, such as appliances intended to be used by laymen in hotels, fitness centres and similar places, are within the scope of this standard. As far as is practicable, this standard deals with the common hazards presented by appliances that are encountered by all persons in and around the home. However, in general, it does not take into account:
- persons (including children) whose physical, sensory or mental capabilities; or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction;
- children playing with the appliance.
Attention is drawn to the fact that
- for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements can be necessary;
- in many countries additional requirements are specified by the national health authorities, the national water supply authorities, the national authorities responsible for the protection of labour and similar authorities.
This standard does not apply to
- equipment for water circulation in swimming and motion exercise pools;
- cleaning appliances for swimming pools;
- appliances intended for medical purposes (IEC 60601 series);
- field-engineered, non-self-contained permanently installed whirlpool baths or whirlpool spas custom designed to fit a specific location, being assembled or constructed at the final installation location;
- appliances intended to be used in locations where special conditions prevail, such as the presence of a corrosive or explosive atmosphere (dust, vapour or gas).
This fifth edition cancels and replaces the fourth edition published in 2017. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) alignment with IEC 60335-1:2020;
b) conversion of some notes to normative text (Clause 1, 7.12.1);
c) addition of hyperthermia instructions and installation instructions related to the wiring rules (7.12, 7.12.1);
d) modifications related to IEC 60364-7-702 and transportable whirlpool spas (Clause 1, 5.101, 6.1, 6.2, 7.12.1, 7.15, 13.1, 13.2, 16.1, 16.2, 22.33, 22.107, 25.1);
e) introduction of surface temperature limits (Clause 11);
f) addition of water temperature limit at the suction/return openings (11.8, 11.101);
g) modification to the tests of 19.2 and 19.3 specifying the types of devices that are rendered inoperative.
h) addition of requirement for thermal cut-outs to be trip free (24.101).
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its amendments unless that edition precludes it; in that case, the latest edition that does not preclude it is used. It was established on the basis of the sixth edition (2020) of that standard.
Appareils électrodomestiques et analogues - Sécurité - Partie 2-60: Exigences particulières pour les baignoires et les spas à système de brassage d'eau
L'IEC 60335-2-60:2023 traite de la sécurité des baignoires à système de brassage d'eau électriques destinées à un usage intérieur et des spas à système de brassage d'eau électriques, destinés à un usage domestique et analogue, dont la tension assignée est inférieure ou égale à 250 V pour les appareils monophasés et à 480 V pour les autres appareils, y compris les appareils alimentés en courant continu et les appareils alimentés par batteries. La présente norme s'applique également aux appareils qui assurent une circulation d'air ou d'eau dans les baignoires conventionnelles. La présente norme s'applique aux baignoires à système de brassage d'eau ou aux spas à système de brassage d'eau autonomes et montés en usine dans lesquels tous les dispositifs de commande et composants font partie intégrante de l'appareil et sont installés dans ou fixés à la structure de la baignoire à système de brassage d'eau ou du spa à système de brassage d'eau. Les appareils non destinés à un usage domestique normal, mais qui peuvent néanmoins constituer une source de danger pour le public, tels que les appareils destinés à être utilisés par des usagers non avertis dans des hôtels, des centres de remise en forme et lieux analogues, sont compris dans le domaine d'application de la présente norme. Dans la mesure du possible, la présente norme traite des dangers courants que présentent les appareils et auxquels sont exposés tous les individus situés à l'intérieur et autour de l'habitation. Cependant, elle ne tient en général pas compte:
- des personnes (y compris des enfants) dont les capacités physiques, sensorielles ou mentales; ou le manque d'expérience et de connaissance les empêchent d'utiliser l'appareil en toute sécurité sans surveillance ou instruction;
- des enfants qui jouent avec l'appareil.
L'attention est attirée sur le fait que:
- pour les appareils destinés à être utilisés dans des véhicules ou à bord de navires ou d'avions, des exigences supplémentaires peuvent être nécessaires;
- dans de nombreux pays, des exigences supplémentaires sont spécifiées par les organismes nationaux de la santé, par les organismes nationaux responsables de l'alimentation en eau, par les organismes nationaux responsables de la protection des travailleurs et par des organismes similaires.
La présente norme ne s'applique pas:
- aux matériels de circulation d'eau dans les piscines et dans les bassins pour la pratique d'exercices physiques;
- aux appareils de nettoyage des piscines;
- aux appareils destinés à des usages médicaux (série IEC 60601);
- aux baignoires à système de brassage d'eau ou aux spas à système de brassage d'eau installés à demeure, non autonomes et montés sur site, conçus spécialement pour un emplacement spécifique, qui sont assemblés ou construits sur le site d'installation final;
- aux appareils destinés à être utilisés dans des locaux qui présentent des conditions particulières, telles que la présence d'une atmosphère corrosive ou explosive (poussière, vapeur ou gaz).
Cette cinquième édition annule et remplace la quatrième édition parue en 2017. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) le texte a été aligné sur l'IEC 60335-1:2020;
b) certaines notes ont été converties en texte normatif (Article 1, 7.12.1);
c) des instructions relatives à l'hyperthermie et des instructions relatives aux règles d'installation ont été ajoutées (7.12, 7.12.1);
d) des modifications relatives à l'IEC 60364-7-702 et aux spas à système de brassage d'eau transportables ont été apportées (Article 1, 5.101, 6.1, 6.2, 7.12.1, 7.15, 13.1, 13.2, 16.1, 16.2, 22.33, 22.107, 25.1);
e) des limites de température de surface ont été ajoutées (Article 11);
f) une limite de température de l'eau au niveau des ouvertures d'aspiration/de retour a été ajoutée (11.8, 11.101);
g) les essais du 19.2 et du 19.3 ont été modifiés pour spécifier les types de di
General Information
Relations
Buy Standard
Standards Content (Sample)

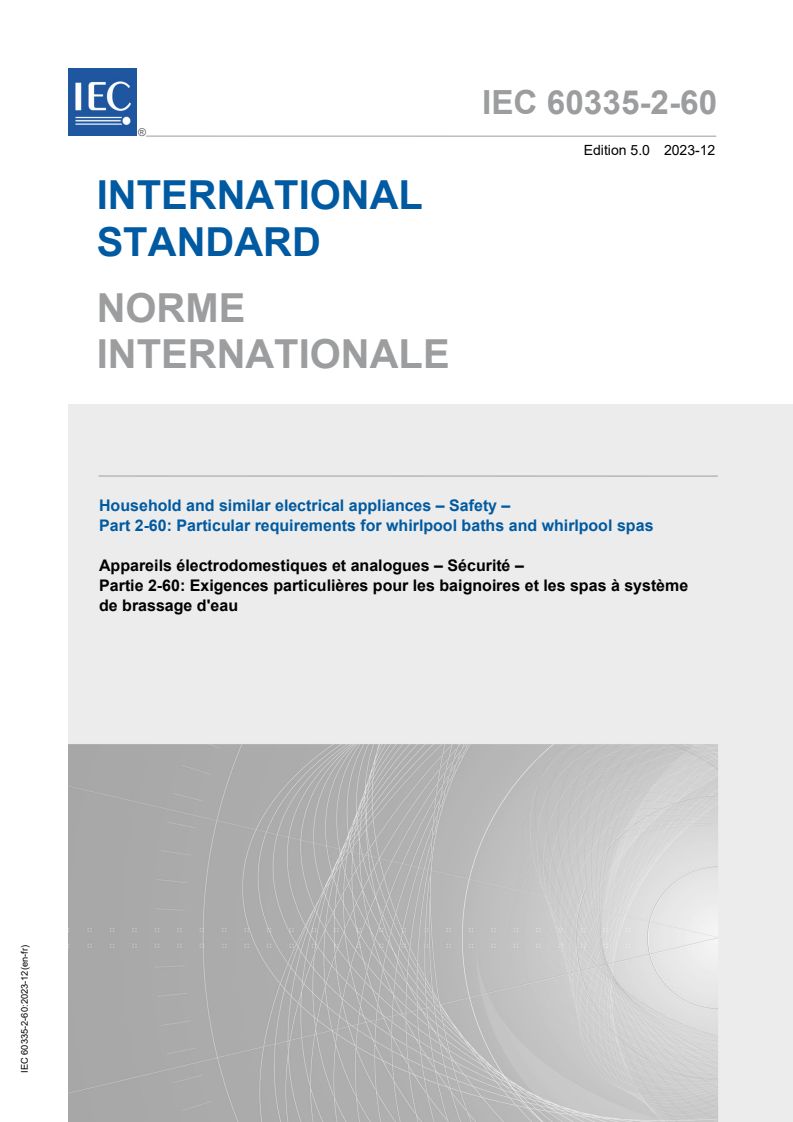

IEC 60335-2-60 ®
Edition 5.0 2023-12
COMMENTED VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –
Part 2-60: Particular requirements for whirlpool baths and whirlpool spas

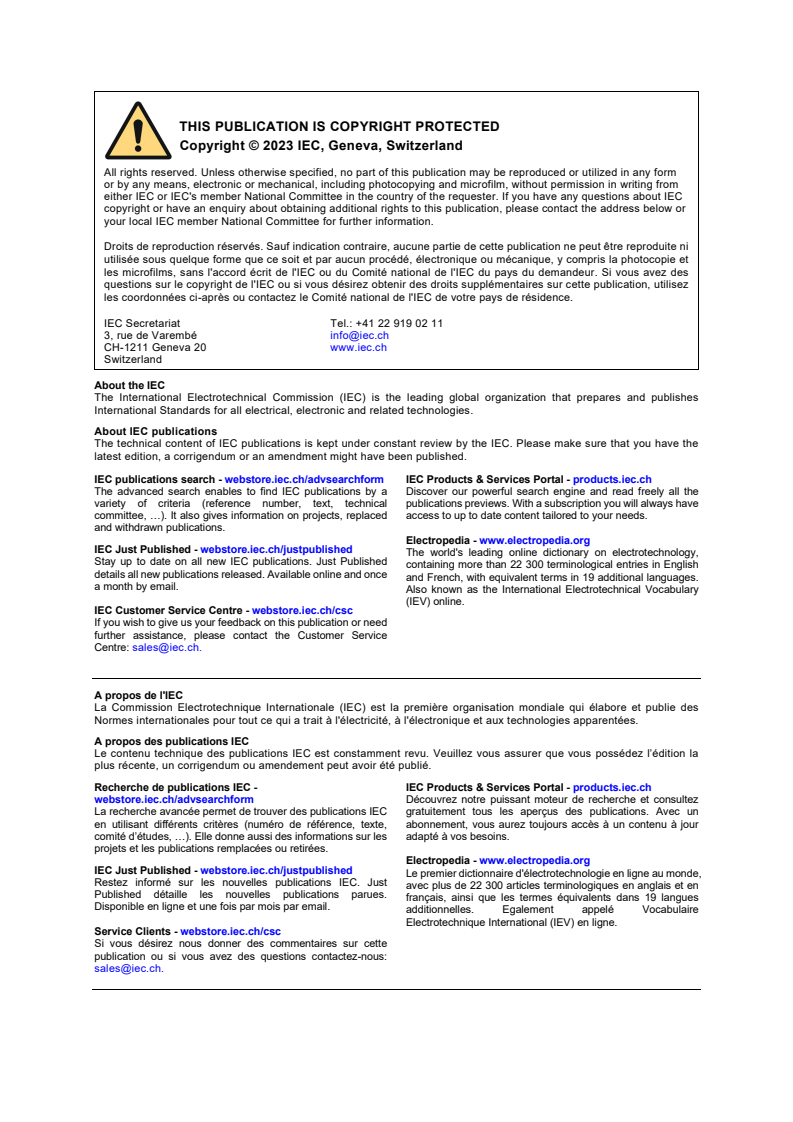

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a
Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.

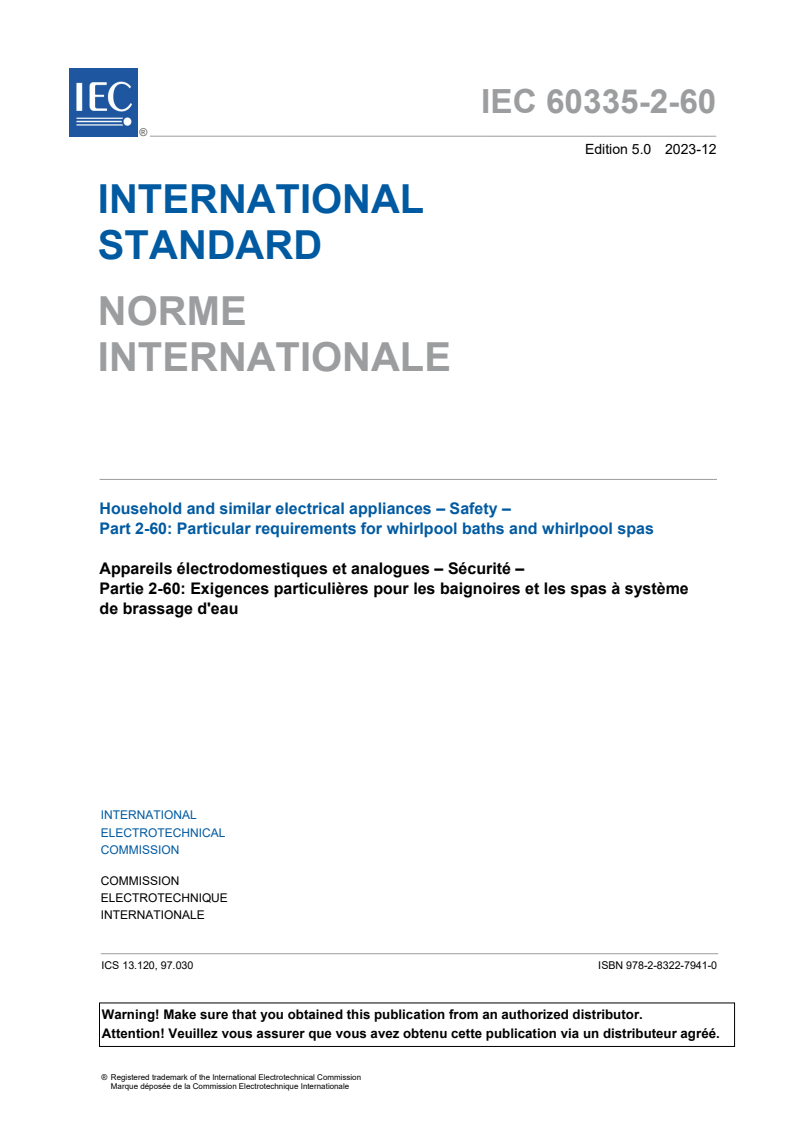

IEC 60335-2-60 ®
Edition 5.0 2023-12
COMMENTED VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –
Part 2-60: Particular requirements for whirlpool baths and whirlpool spas
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.120, 97.030 ISBN 978-2-8322-8049-2
– 2 – IEC 60335-2-60:2023 CMV © IEC 2023
CONTENTS
FOREWORD .4
INTRODUCTION .7
1 Scope .8
2 Normative references .9
3 Terms and definitions .9
4 General requirement . 10
5 General conditions for the tests . 10
6 Classification . 10
7 Marking and instructions . 11
8 Protection against access to live parts . 12
9 Starting of motor-operated appliances . 12
10 Power input and current . 12
11 Heating . 12
12 Void Charging of metal-ion batteries . 14
13 Leakage current and electric strength at operating temperature . 14
14 Transient overvoltages . 14
15 Moisture resistance . 14
16 Leakage current and electric strength . 15
17 Overload protection of transformers and associated circuits . 15
18 Endurance . 15
19 Abnormal operation . 15
20 Stability and mechanical hazards . 16
21 Mechanical strength . 16
22 Construction . 16
23 Internal wiring . 18
24 Components . 18
25 Supply connection and external flexible cords . 19
26 Terminals for external conductors . 19
27 Provision for earthing . 19
28 Screws and connections . 19
29 Clearances, creepage distances and solid insulation . 19
30 Resistance to heat and fire . 20
31 Resistance to rusting. 20
32 Radiation, toxicity and similar hazards . 20
Annexes . 22
Bibliography . 23
List of comments . 24
Figure 101 – Installation zone dimensions for transportable whirlpool spas . 20
Figure 102 – Probe for measuring surface temperatures . 21
Table 101 – Maximum temperature rises for specified external accessible surfaces
under normal operating conditions . 13
– 4 – IEC 60335-2-60:2023 CMV © IEC 2023
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-60: Particular requirements for whirlpool baths
and whirlpool spas
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
This commented version (CMV) of the official standard IEC 60335-2-60:2023 edition 5.0
allows the user to identify the changes made to the previous IEC 60335-2-60:2017
edition 4.0. Furthermore, comments from IEC TC 61 experts are provided to explain the
reasons of the most relevant changes, or to clarify any part of the content.
A vertical bar appears in the margin wherever a change has been made. Additions are in
green text, deletions are in strikethrough red text. Experts' comments are identified by a
blue-background number. Mouse over a number to display a pop-up note with the
comment.
This publication contains the CMV and the official standard. The full list of comments is
available at the end of the CMV.
IEC 60335-2-60 has been prepared by IEC technical committee 61: Safety of household and
similar electrical appliances. It is an International Standard.
This fifth edition cancels and replaces the fourth edition published in 2017. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) alignment with IEC 60335-1:2020;
b) conversion of some notes to normative text (Clause 1, 7.12.1);
c) addition of hyperthermia instructions and installation instructions related to the wiring rules
(7.12, 7.12.1);
d) modifications related to IEC 60364-7-702 and transportable whirlpool spas (Clause 1, 5.101,
6.1, 6.2, 7.12.1, 7.15, 13.1, 13.2, 16.1, 16.2, 22.33, 22.107, 25.1);
e) introduction of surface temperature limits (Clause 11);
f) addition of water temperature limit at the suction/return openings (11.8, 11.101);
g) modification to the tests of 19.2 and 19.3 specifying the types of devices that are rendered
inoperative.
h) addition of requirement for thermal cut-outs to be trip free (24.101).
The text of this International Standard is based on the following documents:
Draft Report on voting
61/7009/FDIS 61/7085/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed
...
IEC 60335-2-60 ®
Edition 5.0 2023-12
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This extended version of IEC 60335-2-60:2023 includes the content of the references made to
IEC 60335-1:2020
Household and similar electrical appliances – Safety –
Part 2-60: Particular requirements for whirlpool baths and whirlpool spas
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 60335-2-60 ®
Edition 5.0 2023-12
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This extended version of IEC 60335-2-60:2023 includes the content of the references made to
IEC 60335-1:2020
Household and similar electrical appliances – Safety –
Part 2-60: Particular requirements for whirlpool baths and whirlpool spas
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.120, 97.030 ISBN 978-2-8322-8050-8
IEC 60335-1:2020/ISH1:2021 – 1 –
© IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60335-1
Edition 6.0 2020-09
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –
Part 1: General requirements
INTERPRETATION SHEET 1
This interpretation sheet has been prepared by IEC technical committee 61: Safety of
household and similar electrical appliances.
The text of this Interpretation Sheet is based on the following documents:
Draft Report on voting
61/5999/DISH 61/6009/RVDISH
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
___________
INTRODUCTION
Edition 6 of IEC 60335-1:2020 defines and introduces requirements for a detachable
power supply part of an appliance. In the document, 24.2 prohibits the use of a power
supply in a flexible cord.
QUESTION:
Does Subclause 24.2 prohibit the use of a detachable power supply part?
ANSWER
No, a "detachable power supply part" is a defined term and is not captured by the term
"power supply" as used in Subclause 24.2.
NOTE A detachable power supply part is captured by the defined term when the output of the power supply
part is detachable from the class III construction part of the appliance at:
– the power supply part, or
– the class III construction part of the appliance.
However, the supply cord (if any) does not have to be detachable from the detachable power supply part.
ICS 13.120; 97.030
IEC 60335-1:2020-09/ISH1:2021-11(en)
– 2 – IEC 60335-2-60:2023 EXV © IEC 2023
CONTENTS
FOREWORD . 6
INTRODUCTION . 9
1 Scope . 10
2 Normative references . 11
3 Terms and definitions . 16
4 General requirement . 27
5 General conditions for the tests . 27
6 Classification . 32
7 Marking and instructions . 32
8 Protection against access to live parts . 41
9 Starting of motor-operated appliances . 43
10 Power input and current . 44
11 Heating . 46
12 Charging of metal-ion batteries . 52
13 Leakage current and electric strength at operating temperature . 53
14 Transient overvoltages . 56
15 Moisture resistance . 57
16 Leakage current and electric strength . 60
17 Overload protection of transformers and associated circuits . 62
18 Endurance . 62
19 Abnormal operation . 62
20 Stability and mechanical hazards . 73
21 Mechanical strength . 74
22 Construction . 76
23 Internal wiring . 91
24 Components . 93
25 Supply connection and external flexible cords . 98
26 Terminals for external conductors . 106
27 Provision for earthing . 108
28 Screws and connections . 110
29 Clearances, creepage distances and solid insulation . 112
30 Resistance to heat and fire . 121
31 Resistance to rusting . 125
32 Radiation, toxicity and similar hazards . 125
Annex A (informative) Routine tests . 140
Annex B (normative) Battery-operated appliances, separable batteries and detachable
batteries for battery-operated appliances . 142
Annex C (normative) Ageing test on motors . 163
Annex D (normative) Thermal motor protectors . 164
Annex E (normative) Needle-flame test . 165
Annex F (normative) Capacitors . 166
Annex G (normative) Safety isolating transformers . 168
Annex H (normative) Switches . 169
Annex I (normative) Motors having basic insulation that is inadequate for the rated
voltage of the appliance . 171
Annex J (normative) Coated printed circuit boards . 173
Annex K (informative) Overvoltage categories . 174
Annex L (informative) Guidance for the measurement of clearances and creepage
distances . 175
Annex M (informative) Pollution degree . 178
Annex N (normative) Proof tracking test . 179
Annex O (informative) Selection and sequence of the tests of Clause 30 . 180
Annex P (informative) Guidance for the application of this standard to appliances
used in tropical climates . 185
Annex Q (informative) Sequence of tests for the evaluation of electronic circuits . 187
Annex R (normative) Software evaluation . 190
Annex S (informative) Guidance for the application of this standard on measurement
of power input and current based on the requirements of 10.1 and 10.2 concerning the
representative period . 204
Annex T (normative) UV-C radiation effect on non-metallic materials . 205
Annex U (normative) Appliances intended for remote communication through public
networks . 208
Bibliography . 212
Index of defined terms . 214
Figure 1 – Circuit diagram for leakage current measurement at operating temperature
for single-phase connection of class II appliances and for parts of class ll construction . 126
Figure 2 – Circuit diagram for leakage current measurement at operating temperature
for single-phase connection of other than class II appliances or parts of class ll
construction . 127
Figure 3 – Circuit diagram for leakage current measurement at operating temperature
for three-phase with neutral class II appliances and for parts of class ll construction . 128
Figure 4 – Circuit diagram for leakage current measurement at operating temperature
for three-phase with neutral appliances other than those of class II or parts of class ll
construction . 129
Figure 5 – Small part . 130
Figure 6 – Example of an electronic circuit with low-power points . 130
Figure 7 – Test finger nail . 131
Figure 8 – Flexing test apparatus . 132
Figure 9 – Constructions of cord anchorages . 133
Figure 10 – An example of parts of an earthing terminal . 134
Figure 11 – Examples of clearances . 135
Figure 12 – Example of the placement of the cylinder .
...
IEC 60335-2-60 ®
Edition 5.0 2023-12
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This extended version of IEC 60335-2-60:2023 includes the content of the references made to
IEC 60335-1:2020
Household and similar electrical appliances – Safety –
Part 2-60: Particular requirements for whirlpool baths and whirlpool spas
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 60335-2-60 ®
Edition 5.0 2023-12
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This extended version of IEC 60335-2-60:2023 includes the content of the references made to
IEC 60335-1:2020
Household and similar electrical appliances – Safety –
Part 2-60: Particular requirements for whirlpool baths and whirlpool spas
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.120, 97.030 ISBN 978-2-8322-8050-8
IEC 60335-1:2020/ISH1:2021 – 1 –
© IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60335-1
Edition 6.0 2020-09
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –
Part 1: General requirements
INTERPRETATION SHEET 1
This interpretation sheet has been prepared by IEC technical committee 61: Safety of
household and similar electrical appliances.
The text of this Interpretation Sheet is based on the following documents:
Draft Report on voting
61/5999/DISH 61/6009/RVDISH
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
___________
INTRODUCTION
Edition 6 of IEC 60335-1:2020 defines and introduces requirements for a detachable
power supply part of an appliance. In the document, 24.2 prohibits the use of a power
supply in a flexible cord.
QUESTION:
Does Subclause 24.2 prohibit the use of a detachable power supply part?
ANSWER
No, a "detachable power supply part" is a defined term and is not captured by the term
"power supply" as used in Subclause 24.2.
NOTE A detachable power supply part is captured by the defined term when the output of the power supply
part is detachable from the class III construction part of the appliance at:
– the power supply part, or
– the class III construction part of the appliance.
However, the supply cord (if any) does not have to be detachable from the detachable power supply part.
ICS 13.120; 97.030
IEC 60335-1:2020-09/ISH1:2021-11(en)
– 2 – IEC 60335-2-60:2023 EXV © IEC 2023
CONTENTS
FOREWORD . 6
INTRODUCTION . 9
1 Scope . 10
2 Normative references . 11
3 Terms and definitions . 16
4 General requirement . 27
5 General conditions for the tests . 27
6 Classification . 32
7 Marking and instructions . 32
8 Protection against access to live parts . 41
9 Starting of motor-operated appliances . 43
10 Power input and current . 44
11 Heating . 46
12 Charging of metal-ion batteries . 52
13 Leakage current and electric strength at operating temperature . 53
14 Transient overvoltages . 56
15 Moisture resistance . 57
16 Leakage current and electric strength . 60
17 Overload protection of transformers and associated circuits . 62
18 Endurance . 62
19 Abnormal operation . 62
20 Stability and mechanical hazards . 73
21 Mechanical strength . 74
22 Construction . 76
23 Internal wiring . 91
24 Components . 93
25 Supply connection and external flexible cords . 98
26 Terminals for external conductors . 106
27 Provision for earthing . 108
28 Screws and connections . 110
29 Clearances, creepage distances and solid insulation . 112
30 Resistance to heat and fire . 121
31 Resistance to rusting . 125
32 Radiation, toxicity and similar hazards . 125
Annex A (informative) Routine tests . 140
Annex B (normative) Battery-operated appliances, separable batteries and detachable
batteries for battery-operated appliances . 142
Annex C (normative) Ageing test on motors . 163
Annex D (normative) Thermal motor protectors . 164
Annex E (normative) Needle-flame test . 165
Annex F (normative) Capacitors . 166
Annex G (normative) Safety isolating transformers . 168
Annex H (normative) Switches . 169
Annex I (normative) Motors having basic insulation that is inadequate for the rated
voltage of the appliance . 171
Annex J (normative) Coated printed circuit boards . 173
Annex K (informative) Overvoltage categories . 174
Annex L (informative) Guidance for the measurement of clearances and creepage
distances . 175
Annex M (informative) Pollution degree . 178
Annex N (normative) Proof tracking test . 179
Annex O (informative) Selection and sequence of the tests of Clause 30 . 180
Annex P (informative) Guidance for the application of this standard to appliances
used in tropical climates . 185
Annex Q (informative) Sequence of tests for the evaluation of electronic circuits . 187
Annex R (normative) Software evaluation . 190
Annex S (informative) Guidance for the application of this standard on measurement
of power input and current based on the requirements of 10.1 and 10.2 concerning the
representative period . 204
Annex T (normative) UV-C radiation effect on non-metallic materials . 205
Annex U (normative) Appliances intended for remote communication through public
networks . 208
Bibliography . 212
Index of defined terms . 214
Figure 1 – Circuit diagram for leakage current measurement at operating temperature
for single-phase connection of class II appliances and for parts of class ll construction . 126
Figure 2 – Circuit diagram for leakage current measurement at operating temperature
for single-phase connection of other than class II appliances or parts of class ll
construction . 127
Figure 3 – Circuit diagram for leakage current measurement at operating temperature
for three-phase with neutral class II appliances and for parts of class ll construction . 128
Figure 4 – Circuit diagram for leakage current measurement at operating temperature
for three-phase with neutral appliances other than those of class II or parts of class ll
construction . 129
Figure 5 – Small part . 130
Figure 6 – Example of an electronic circuit with low-power points . 130
Figure 7 – Test finger nail . 131
Figure 8 – Flexing test apparatus . 132
Figure 9 – Constructions of cord anchorages . 133
Figure 10 – An example of parts of an earthing terminal . 134
Figure 11 – Examples of clearances . 135
Figure 12 – Example of the placement of the cylinder .
...
IEC 60335-2-60 ®
Edition 5.0 2023-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-60: Particular requirements for whirlpool baths and whirlpool spas
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-60: Exigences particulières pour les baignoires et les spas à système
de brassage d'eau
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur les adapté à vos besoins.
projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 300 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 19 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60335-2-60 ®
Edition 5.0 2023-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-60: Particular requirements for whirlpool baths and whirlpool spas
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-60: Exigences particulières pour les baignoires et les spas à système
de brassage d'eau
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120, 97.030 ISBN 978-2-8322-7941-0
– 2 – IEC 60335-2-60:2023 © IEC 2023
CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 8
3 Terms and definitions . 8
4 General requirement . 9
5 General conditions for the tests . 9
6 Classification . 9
7 Marking and instructions . 9
8 Protection against access to live parts . 11
9 Starting of motor-operated appliances . 11
10 Power input and current . 11
11 Heating . 11
12 Charging of metal-ion batteries . 12
13 Leakage current and electric strength at operating temperature . 12
14 Transient overvoltages . 13
15 Moisture resistance . 13
16 Leakage current and electric strength . 13
17 Overload protection of transformers and associated circuits . 14
18 Endurance . 14
19 Abnormal operation . 14
20 Stability and mechanical hazards . 15
21 Mechanical strength . 15
22 Construction . 15
23 Internal wiring . 17
24 Components . 17
25 Supply connection and external flexible cords . 17
26 Terminals for external conductors . 18
27 Provision for earthing . 18
28 Screws and connections . 18
29 Clearances, creepage distances and solid insulation . 18
30 Resistance to heat and fire . 18
31 Resistance to rusting . 18
32 Radiation, toxicity and similar hazards . 18
Annexes . 20
Bibliography . 21
Figure 101 – Installation zone dimensions for transportable whirlpool spas . 19
Figure 102 – Probe for measuring surface temperatures . 19
Table 101 – Maximum temperature rises for specified external accessible surfaces
under normal operating conditions . 12
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-60: Particular requirements for whirlpool baths
and whirlpool spas
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may b
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
