Household electric instantaneous water heaters - Methods for measuring the performance - Part 2-2: Efficiency of single point of use electric instantaneous water heaters

IEC 63159-2-2:2021 This document applies to open outlet, single point-of-use, electric instantaneous water heaters intended for household or similar use, for showering purposes without downstream mixing.
This document only specifies tests for the assessment of energy efficiency.
This document does not apply to electrical instantaneous water heaters covered by other parts of this series of standards.
This International Standard is to be used in conjunction with IEC 63159-1:2021.

Chauffe-eau instantanés électrodomestiques - Méthodes de mesure de l’aptitude à la fonction - Partie 2-2: Rendement des chauffe-eau instantanés électriques à un seul point d'utilisation

L'IEC 63159-2-2:2021 s'applique aux chauffe-eau instantanés électriques à écoulement libre et à un seul point d'utilisation destinés à un usage domestique ou analogue, pour les besoins des douches sans mélange aval.
Le présent document spécifie uniquement les essais pour l'évaluation du rendement énergétique.
Le présent document ne s'applique pas aux chauffe-eau instantanés électriques couverts par d'autres parties de cette série de normes.
La présente Norme internationale doit être utilisée conjointement avec l'IEC 63159-1:2021.

General Information

Status
Published
Publication Date
20-Oct-2021
Current Stage
PPUB - Publication issued
Completion Date
21-Oct-2021
Ref Project

Buy Standard

Standard
IEC 63159-2-2:2021 - Household electric instantaneous water heaters - Methods for measuring the performance - Part 2-2: Efficiency of single point of use electric instantaneous water heaters
English and French language
21 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

IEC 63159-2-2
Edition 1.0 2021-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household electric instantaneous water heaters – Methods for measuring the
performance –
Part 2-2: Efficiency of single point of use electric instantaneous water heaters
Chauffe-eau instantanés électrodomestiques – Méthodes de mesure de
l'aptitude à la fonction –
Partie 2-2: Rendement des chauffe-eau instantanés électriques à un seul point
d'utilisation
IEC 63159-2-2:2021-10(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch

webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

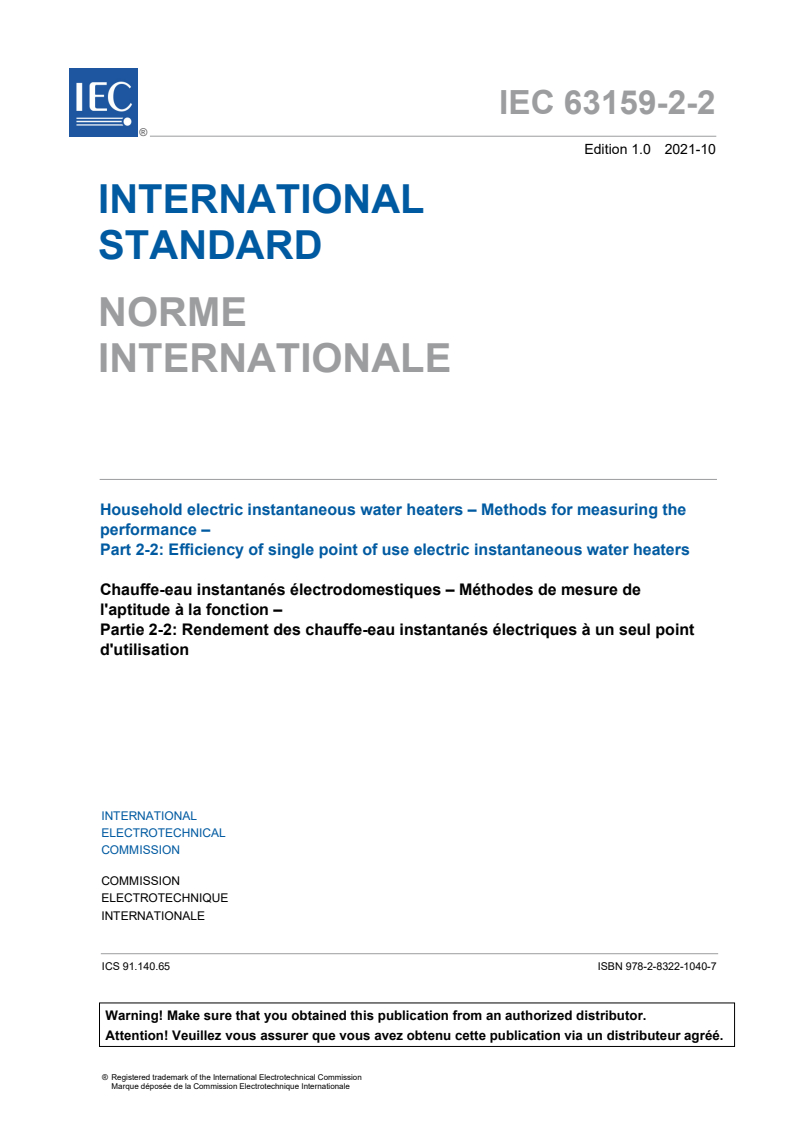

IEC 63159-2-2
Edition 1.0 2021-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household electric instantaneous water heaters – Methods for measuring the
performance –

Part 2-2: Efficiency of single point of use electric instantaneous water heaters

Chauffe-eau instantanés électrodomestiques – Méthodes de mesure de
l'aptitude à la fonction –
Partie 2-2: Rendement des chauffe-eau instantanés électriques à un seul point
d'utilisation
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 91.140.65 ISBN 978-2-8322-1040-7

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

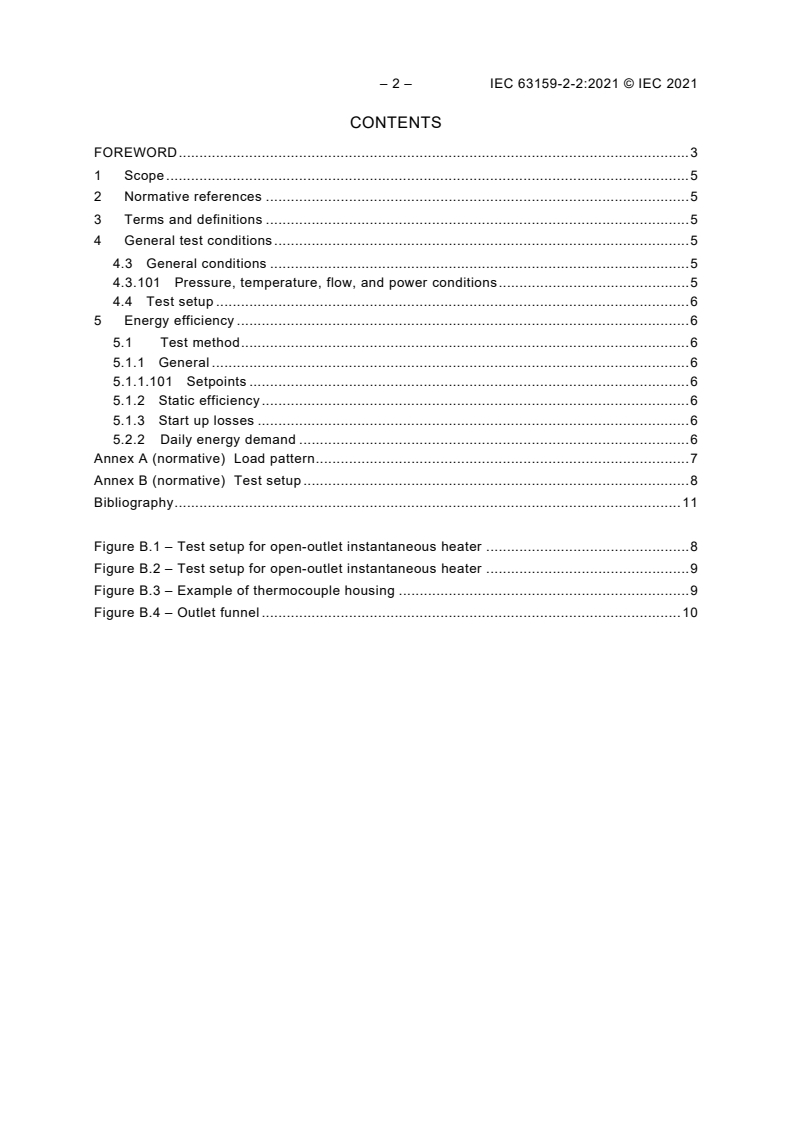

– 2 – IEC 63159-2-2:2021 © IEC 2021
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

4 General test conditions .................................................................................................... 5

4.3 General conditions ..................................................................................................... 5

4.3.101 Pressure, temperature, flow, and power conditions .............................................. 5

4.4 Test setup .................................................................................................................. 6

5 Energy efficiency ............................................................................................................. 6

5.1 Test method ............................................................................................................ 6

5.1.1 General ................................................................................................................... 6

5.1.1.101 Setpoints .......................................................................................................... 6

5.1.2 Static efficiency ....................................................................................................... 6

5.1.3 Start up losses ........................................................................................................ 6

5.2.2 Daily energy demand .............................................................................................. 6

Annex A (normative) Load pattern .......................................................................................... 7

Annex B (normative) Test setup ............................................................................................. 8

Bibliography .......................................................................................................................... 11

Figure B.1 – Test setup for open-outlet instantaneous heater ................................................. 8

Figure B.2 – Test setup for open-outlet instantaneous heater ................................................. 9

Figure B.3 – Example of thermocouple housing ...................................................................... 9

Figure B.4 – Outlet funnel ..................................................................................................... 10

---------------------- Page: 4 ----------------------
IEC 63159-2-2:2021 © IEC 2021 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD ELECTRIC INSTANTANEOUS WATER HEATERS –
METHODS FOR MEASURING THE PERFORMANCE –
Part 2-2: Efficiency of single point of use electric
instantaneous water heaters
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 63159-2-2 has been prepared by subcommittee 59C: Electrical

heating appliances for household and similar purposes, of IEC technical committee 59:

Performance of household and similar electrical appliances.
The text of this International Standard is based on the following documents:
Draft Report on voting
59C/269/FDIS 59C/273/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English.
---------------------- Page: 5 ----------------------
– 4 – IEC 63159-2-2:2021 © IEC 2021

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.
This International Standard is to be used in conjunction with IEC 63159-1:2021.

This standard supplements or modifies the corresponding clauses in IEC 63159-1. When a

particular subclause of IEC 63159-1 is not mentioned in this standard, that subclause is

applicable as far as reasonable. Where this standard states "addition", "modification" or

"replacement", the relevant requirements, test specifications or explanatory matter in

IEC 63159-1 should be adapted accordingly.

Subclauses or figures that are additional to those in IEC 63159-1 are numbered starting from

101. Additional annexes are lettered AA, BB, etc.

A list of all the parts in the IEC 63159 series, published under the general title Household

electric instantaneous water heaters – Methods for measuring the performance, can be found

on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 63159-2-2:2021 © IEC 2021 – 5 –
HOUSEHOLD ELECTRIC INSTANTANEOUS WATER HEATERS –
METHODS FOR MEASURING THE PERFORMANCE –
Part 2-2: Efficiency of single point of use electric
instantaneous water heaters
1 Scope
This clause of IEC 63159-1:2021 is applicable except as follows.
Addition:

This document applies to open outlet, single point-of-use, electric instantaneous water heaters

intended for household or similar use, for showering purposes without downstream mixing.

This document only specifies tests for the assessment of energy efficiency.

This document does not apply to electrical instantaneous water heaters covered by other parts

of this series of standards.
2 Normative references
This clause of IEC 63159-1:2021 is applicable with the following exception:
Addition:

IEC 63159-1:2021, Household electric instantaneous water heaters – Methods for measuring

the performance – Part 1: General aspects
3 Terms and definitions
This clause of IEC 63159-1:2021 is applicable.
4 General test conditions
This clause of IEC 63159-1:2021 is applicable except as follows.
4.3 General conditions
Addition:
4.3.101 Pressure, temperature, flow, and power conditions

Pressure, temperature, and flow measurements should be maintained during testing to the

tolerance detailed in Table 1. Any deviations from these tolerances will result an invalid test.

All tests shall be performed at maximum power setting.
---------------------- Page: 7 ----------------------
– 6 – IEC 63159-2-2:2021 © IEC 2021
4.4 Test setup
Replacement:

The appliance shall be fixed in accordance with the installation instructions, except that the

shower hose shall be connected. Products covered by this document are only to be tested to

the XS load pattern detailed in Annex A, Table A.1.
The measurement setup shall correspond to Annex B.
5 Energy efficiency
This clause of IEC 63159-1:2021 is applicable except as follows.
5.1 Test method
5.1.1 General
Addition:

It is allowable to decrease the time between draw offs in order to accelerate the load pattern

detailed in Annex A, as long as it can be demonstrated that results are not affected.

Addition:
5.1.1.101 Setpoints

The appliance shall be set to achieve minimum flow (f) as specified in Annex A for all efficiency

tests. This can be increased if the appliance is unable to operate continuously and the flow rate

used recorded. This flow rate is used for all individual draw offs within the prescribed load

pattern.
5.1.2 Static efficiency
Addition:

The loss adjustment for semiconductor power switches of open outlet electronic instantaneous

water heaters is not applicable for this type of appliance.
5.1.3 Start up losses
Replacement:
The start up loss Q is the total energy in kWh that is consum
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
