Classification of environmental conditions - Part 2-3: Environmental conditions appearing in nature - Air pressure

IEC 60721-2-3:2013 presents a selection of different values of air pressure appearing in nature. It is intended to be used as part of the background material when selecting appropriate severities of air pressure for product applications, which products are liable to be exposed during storage, transportation and use. This second edition cancels and replaces the first edition, published in 1987, and constitutes a technical revision. The main changes with regard to the previous edition are as follows:
- removal of figures for decreasing cooling efficiency for altitude;
- simplification of Table 1;
- additional formula for calculating air pressure from altitude.

Classification des conditions d'environnement - Partie 2-3: Conditions d'environnement présentes dans la nature - Pression atmosphérique

La CEI 60721-2-3:2013 présente une sélection des différentes valeurs de la pression atmosphérique présentes dans la nature. Elle est destinée à fournir une partie des informations de base lors du choix des sévérités de pression atmosphérique appropriées pour l'utilisation des produits, auxquelles les produits sont susceptibles d'être exposés pendant leur stockage, leur transport et leur utilisation. Cette deuxième édition annule et remplace la première édition, parue en 1987, dont elle constitue une révision technique. Les modifications principales par rapport à l'édition précédente sont les suivantes:
- suppression de valeurs pour la diminution d'efficacité de refroidissement pour l'altitude;
- simplification du Tableau 1;
- ajout d'une formule pour le calcul de la pression atmosphérique à partir de l'altitude.

General Information

Status
Published
Publication Date
18-Jun-2013
Current Stage
PPUB - Publication issued
Start Date
19-Jun-2013
Completion Date
19-Jun-2013
Ref Project

Buy Standard

Standard
IEC 60721-2-3:2013 - Classification of environmental conditions - Part 2-3: Environmental conditions appearing in nature - Air pressure
English and French language
16 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

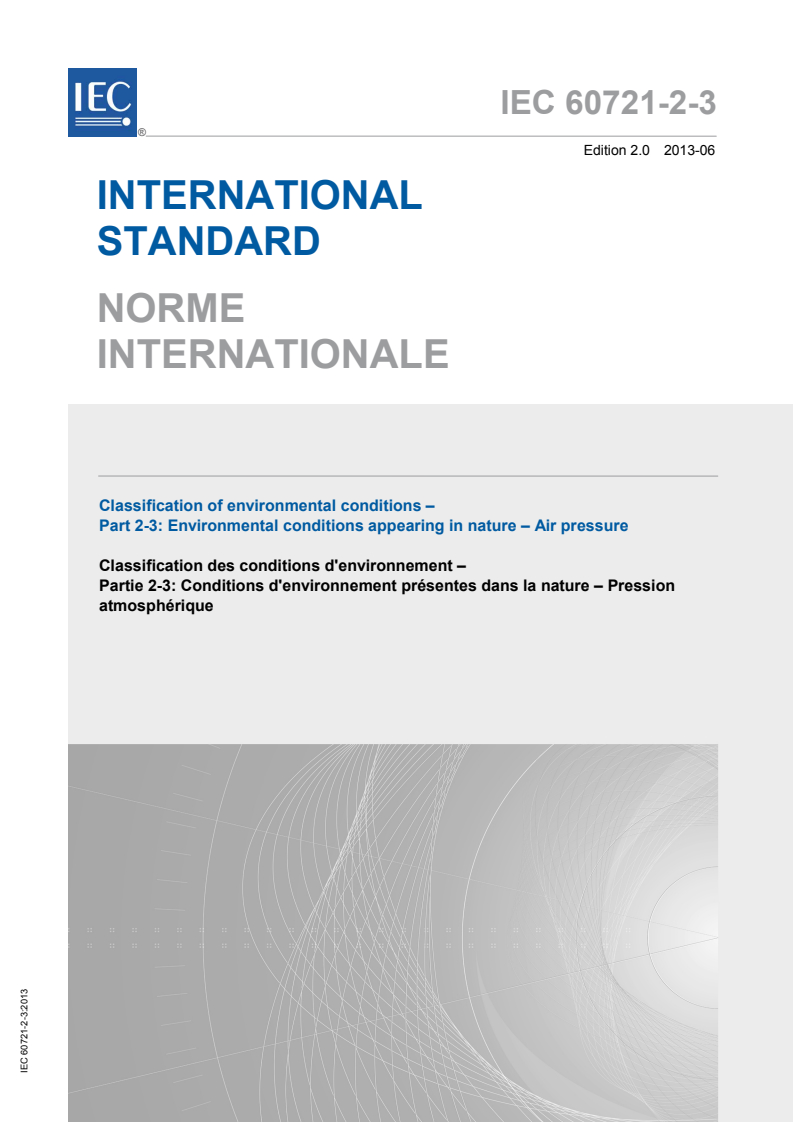

IEC 60721-2-3
Edition 2.0 2013-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Classification of environmental conditions –
Part 2-3: Environmental conditions appearing in nature – Air pressure
Classification des conditions d'environnement –
Partie 2-3: Conditions d'environnement présentes dans la nature – Pression
atmosphérique
IEC 60721-2-3:2013
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2013 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester.

If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni

utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les

microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
Useful links:

IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org

The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and

by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and

committee,…). definitions in English and French, with equivalent terms in

It also gives information on projects, replaced and additional languages. Also known as the International

withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc

Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication

details all new publications released. Available on-line and or need further assistance, please contact the

also once a month by email. Customer Service Centre: csc@iec.ch.
A propos de la CEI

La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI

Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez

l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
Liens utiles:

Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org

La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes

publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000

référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que

Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.

publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique

International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.

Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur

Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions

contactez-nous: csc@iec.ch.
---------------------- Page: 2 ----------------------

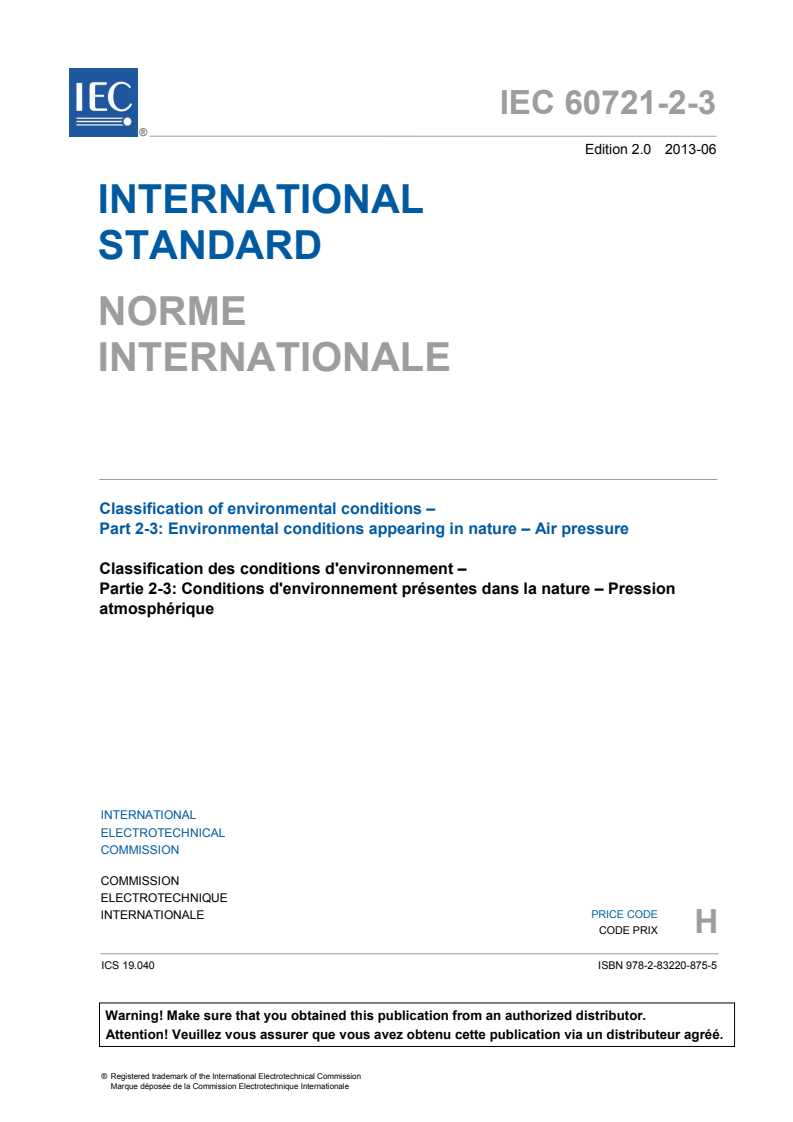

IEC 60721-2-3
Edition 2.0 2013-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Classification of environmental conditions –
Part 2-3: Environmental conditions appearing in nature – Air pressure
Classification des conditions d'environnement –
Partie 2-3: Conditions d'environnement présentes dans la nature – Pression
atmosphérique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX H
ICS 19.040 ISBN 978-2-83220-875-5

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

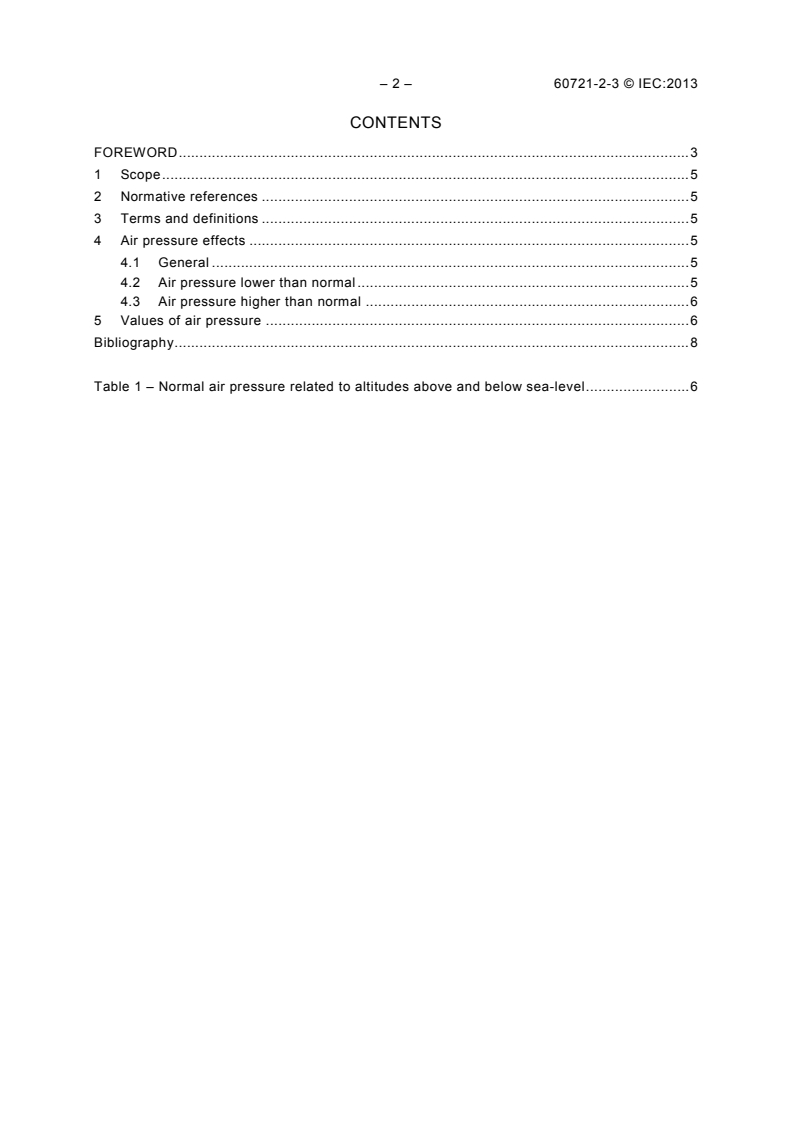

– 2 – 60721-2-3 © IEC:2013
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope ............................................................................................................................... 5

2 Normative references ....................................................................................................... 5

3 Terms and definitions ....................................................................................................... 5

4 Air pressure effects .......................................................................................................... 5

4.1 General ................................................................................................................... 5

4.2 Air pressure lower than normal ................................................................................ 5

4.3 Air pressure higher than normal .............................................................................. 6

5 Values of air pressure ...................................................................................................... 6

Bibliography ............................................................................................................................ 8

Table 1 – Normal air pressure related to altitudes above and below sea-level ......................... 6

---------------------- Page: 4 ----------------------
60721-2-3 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CLASSIFICATION OF ENVIRONMENTAL CONDITIONS –
Part 2-3: Environmental conditions appearing in nature –
Air pressure
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60721-2-3 has been prepared by IEC technical committee 104:

Environmental conditions, classification and methods of test.

This second edition cancels and replaces the first edition, published in 1987, and constitutes

a technical revision.
The main changes with regard to the previous edition are as follows:
– removal of figures for decreasing cooling efficiency for altitude;
– simplification of Table 1;
– additional formula for calculating air pressure from altitude.
---------------------- Page: 5 ----------------------
– 4 – 60721-2-3 © IEC:2013
The text of this standard is based on the following documents:
FDIS Report on voting
104/611/FDIS 104/615/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60068 series, under the general title Classification of

environmental conditions, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
60721-2-3 © IEC:2013 – 5 –
CLASSIFICATION OF ENVIRONMENTAL CONDITIONS –
Part 2-3: Environmental conditions appearing in nature –
Air pressure
1 Scope

This part of IEC 60721 presents a selection of different values of air pressure appearing in

nature. It is intended to be used as part of the background material when selecting

appropriate severities of air pressure for product applications, which products are liable to be

exposed during storage, transportation and use.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

IEC 60721-1, Classification of environmental conditions – Part 1: Environmental parameters

and their severities
3 Terms and definitions
Terms and definitions are defined, in context, throughout the present standard.
4 Air pressure effects
4.1 General

When selecting severities of the parameter air pressure for product application, the values

given in IEC 60721-1 should be applied.

Air pressure can affect products in various ways, the most important of which are as follows:

4.2 Air pressure lower than normal

Low air pressure occurring at altitudes above sea-level can affect products as follows:

– leakage of gases or fluids from gasket-sealed containers;
– rupture of pressurized containers;
– change of physical and chemical properties of low density materials;

– erratic operation or malfunction of equipment from arcing or corona as the breakdown

voltage between two electrodes in air decreases with pressure (the breakdown voltage of

air in a uniform electric field depends on the product of the gas pressure and the electrode

spacing for a given electrode shape and material (Paschen's law));
– decreased efficiency of heat dissipation by convection and conduction in air;

– acceleration of effects due essentially to temperature, for example volatilization of

plasticizers, evaporation of lubricants, etc.
---------------------- Page: 7 ----------------------
– 6 – 60721-2-3 © IEC:2013
4.3 Air pressure higher than normal

High air pressure occurring in natural depressions and mines can have a mechanical effect on

sealed containers.
5 Values of air pressure

The normal value of air pressure at mean sea level is 101,325 kPa. Depending on meteo-

rological conditions, air press
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
