IEC 61196-11-1:2022

Coaxial communication cables - Part 11-1: Blank detail specification for semi-rigid cables with polyethylene (PE) dielectric

IEC 61196-11-1:2022 applies to coaxial communication cables described in IEC 61196-11. It specifies the layout and style for detail specifications for semi-rigid coaxial communication cables with polyethylene (PE) dielectric. Semi-rigid coaxial communication cables with polyethylene (PE) dielectric are widely used in the interconnection between wireless communication equipment and antenna, as well as RF and microwave electronic equipment, broadcast television, microwave relay, navigation, etc.
This part of IEC 61196 is used in conjunction with IEC 61196-1 and IEC 61196-11, which determines the layout and style for detail specifications, based on the blank detail specification. This second edition cancels and replaces the first edition published in 2016.This edition includes the following significant technical changes with respect to the previous edition: a. engineering information: Maximum tensile force and average power introduced, b. electrical, environmental and mechanical characteristics more detailed,
c. requirements for “Content of toxic and harmful substances” introduced.

General Information

• Status: Published
• Publication Date: 15-Mar-2022
• ICS: 33.120.10 - Coaxial cables. Waveguides
• Technical Committee: SC 46A - Coaxial cables
• Drafting Committee: WG 3 - TC 46/SC 46A/WG 3
• Current Stage: PPUB - Publication issued
• Start Date: 11-Apr-2022
• Completion Date: 16-Mar-2022

Relations

• Revises: IEC 61196-11-1:2016 - Coaxial communication cables - Part 11-1: Blank detail specification for semi-rigid cables with polyethylene (PE) dielectric
• Effective Date: 05-Sep-2023

Standards Content (Sample)

IEC 61196-11-1 ®
Edition 2.0 2022-03
INTERNATIONAL
STANDARD
Coaxial communication cables –
Part 11-1: Blank detail specification for semi-rigid cables with polyethylene (PE)
dielectric
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61196-11-1 ®
Edition 2.0 2022-03
INTERNATIONAL
STANDARD
Coaxial communication cables –

Part 11-1: Blank detail specification for semi-rigid cables with polyethylene (PE)

dielectric
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.120.10 ISBN 978-2-8322-1087-0

– 2 – IEC 61196-11-1:2022 © IEC 2022

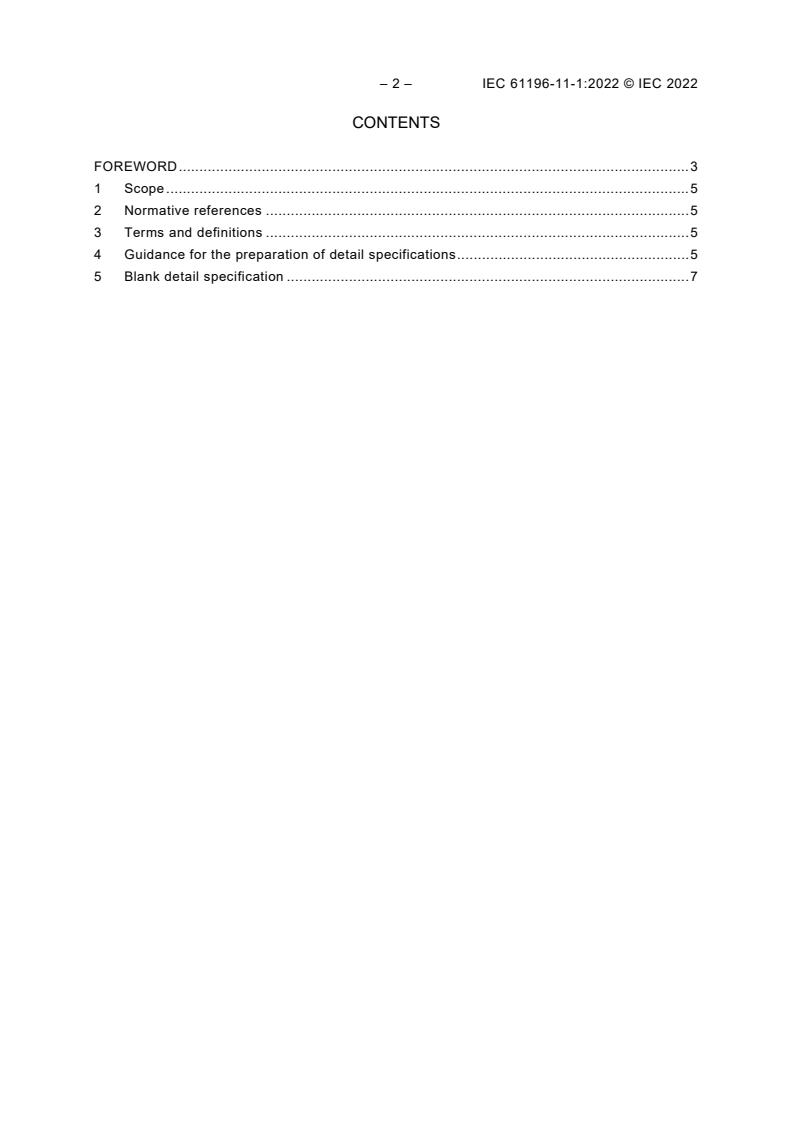

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Guidance for the preparation of detail specifications . 5
5 Blank detail specification . 7

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COAXIAL COMMUNICATION CABLES –

Part 11-1: Blank detail specification for semi-rigid cables
with polyethylene (PE) dielectric

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 61196-11-1 has been prepared by subcommittee 46A: Coaxial cables, of IEC technical
committee 46: Cables, wires, waveguides, RF connectors, RF and microwave passive
components and accessories. It is an International Standard.
This second edition cancels and replaces the first edition published in 2016. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Item [8], engineering information: Maximum tensile force and average power introduced,
b) Item [9], electrical, environmental and mechanical characteristics more detailed,
c) Item [9], requirements for “Content of toxic and harmful substances” introduced.

– 4 – IEC 61196-11-1:2022 © IEC 2022
The text of this International Standard is based on the following documents:
Draft Report on voting
46A/1552/FDIS 46A/1560/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts of the IEC 61196 series, under the general title: Coaxial communication cables,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
COAXIAL COMMUNICATION CABLES –

Part 11-1: Blank detail specification for semi-rigid cables
with polyethylene (PE) dielectric

1 Scope
This part of IEC 61196 applies to coaxial communication cables described in IEC 61196-11. It
specifies the layout and style for detail specifications for semi-rigid coaxial communication
cables with polyethylene (PE) dielectric. Semi-rigid coaxial communication cables with
polyethylene (PE) dielectric are widely used in the interconnection between wireless
communication equipment and antenna, as well as RF and microwave electronic equipment,
broadcast television, microwave relay, navigation, etc.
This part of IEC 61196 is used in conjunction with IEC 61196-1 and IEC 61196-11, which
determines the layout and style for detail specifications, based on the blank detail specification.
It is prepared by a national organization, a manufacturer, or a user.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
...
