Specifications for particular types of winding wires - Part 80: Polyvinyl acetal enamelled rectangular copper wire, class 120, with a bonding layer

IEC 60317-80: 2019 specifies the requirements of enamelled rectangular copper winding wire of class 120 with a dual coating. The underlying coating is based on polyvinyl acetal resin, which can be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. The second coating is a bonding layer based on a thermoplastic or thermosetting resin. NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to enhance certain performance or application characteristics. The range of nominal conductor dimensions covered by this document is:
width: min. 2,00 mm max. 16,00 mm;
thickness: min. 0,80 mm max. 5,60 mm.
Wires of grade 1 and grade 2 are included in this specification and apply to the complete range of conductors. The specified combinations of nominal width and thickness as well as the specified ratio width/thickness are given in IEC 60317-0-2:2019.
Keywords: insulated wires used for windings

Spécifications pour types particuliers de fils de bobinage - Partie 80: Fil de section rectangulaire en cuivre émaillé avec acétal de polyvinyle, classe 120, avec une couche adhérente

IEC 60317-80:2019 spécifie les exigences relatives aux fils de bobinage de section rectangulaire en cuivre émaillé de classe 120 avec un double revêtement. La sous-couche est à base de résine acétal de polyvinyle, qui peut être modifiée sous réserve de conserver l'identité chimique de la résine initiale et de répondre à toutes les exigences spécifiées pour le fil. La deuxième couche est une couche adhérente à base de résine thermoplastique ou thermodurcissable. NOTE Une résine modifiée est une résine qui a subi une modification chimique, ou qui contient un ou plusieurs additifs pour améliorer les résultats obtenus ou les caractéristiques d'utilisation. La gamme des dimensions nominales des conducteurs couverte par le présent document est:
largeur: min. 2,00 mm max. 16,00 mm;
épaisseur: min. 0,80 mm max. 5,60 mm.
Les fils de grade 1 et de grade 2 sont compris dans la présente spécification et s'appliquent à la gamme complète des conducteurs. Les combinaisons spécifiées de largeur et d'épaisseur nominales ainsi que le rapport largeur/épaisseur spécifié sont indiqués dans l'IEC 60317-0-2:2019.
Mots clés : fils isolés utilisés pour les enroulements

General Information

Status
Published
Publication Date
20-Aug-2019
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
21-Aug-2019
Ref Project

Buy Standard

Standard
IEC 60317-80:2019 - Specifications for particular types of winding wires - Part 80: Polyvinyl acetal enamelled rectangular copper wire, class 120, with a bonding layer
English and French language
20 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

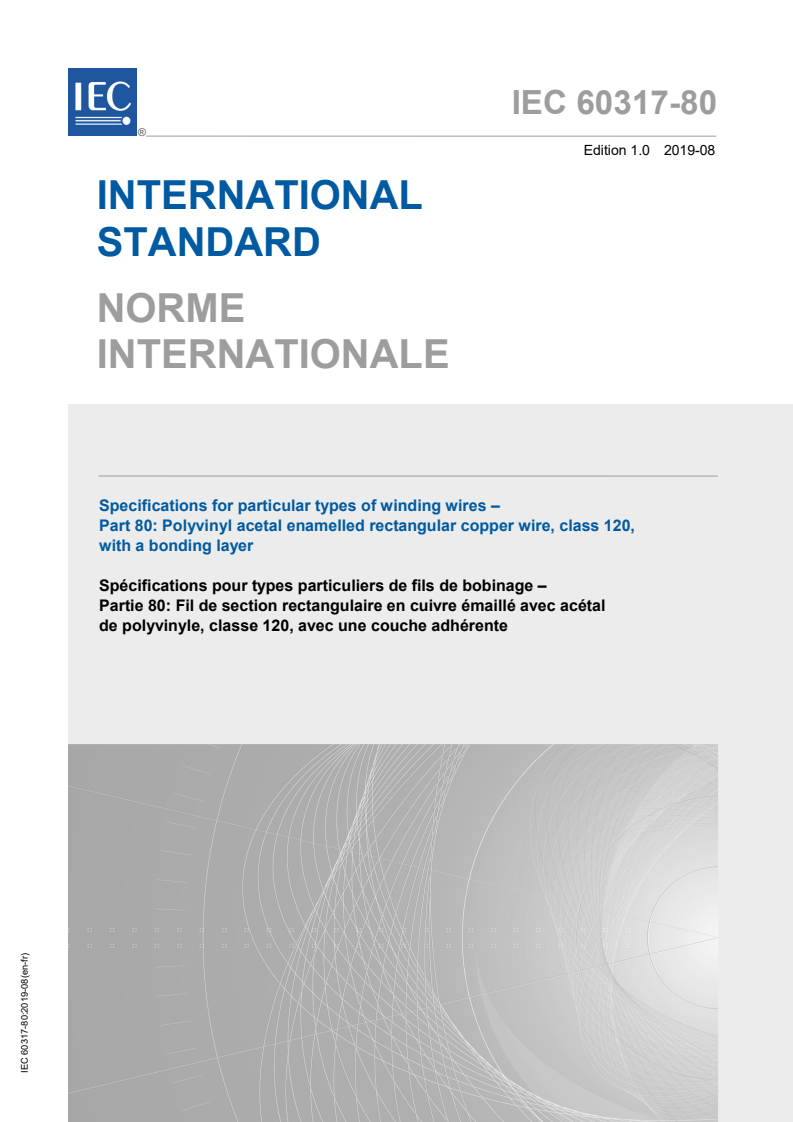

IEC 60317-80
Edition 1.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 80: Polyvinyl acetal enamelled rectangular copper wire, class 120,
with a bonding layer
Spécifications pour types particuliers de fils de bobinage –
Partie 80: Fil de section rectangulaire en cuivre émaillé avec acétal
de polyvinyle, classe 120, avec une couche adhérente
IEC 60317-80:2019-08(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 60317-80
Edition 1.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 80: Polyvinyl acetal enamelled rectangular copper wire, class 120,
with a bonding layer
Spécifications pour types particuliers de fils de bobinage –
Partie 80: Fil de section rectangulaire en cuivre émaillé avec acétal
de polyvinyle, classe 120, avec une couche adhérente
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.10 ISBN 978-2-8322-7309-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 60317-80:2019 © IEC 2019

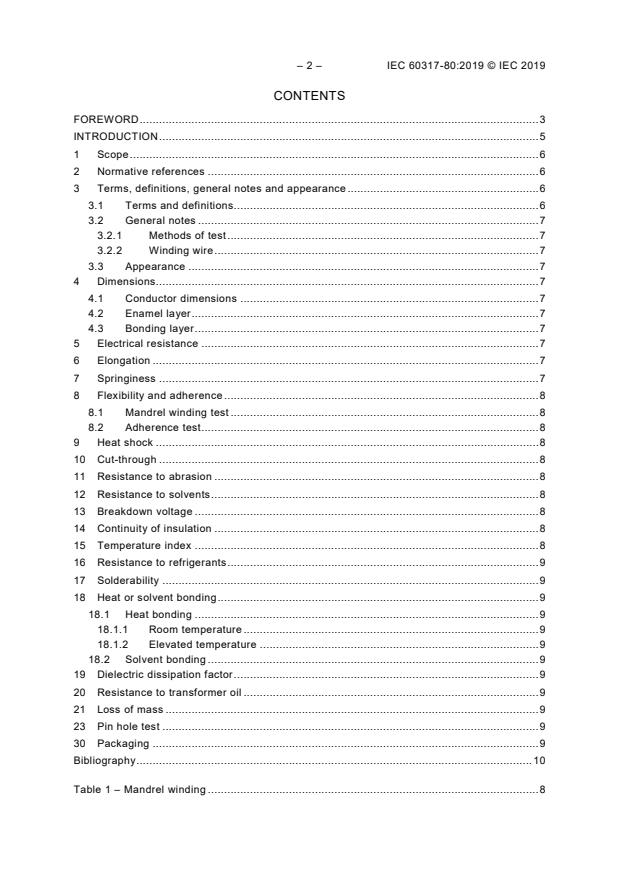

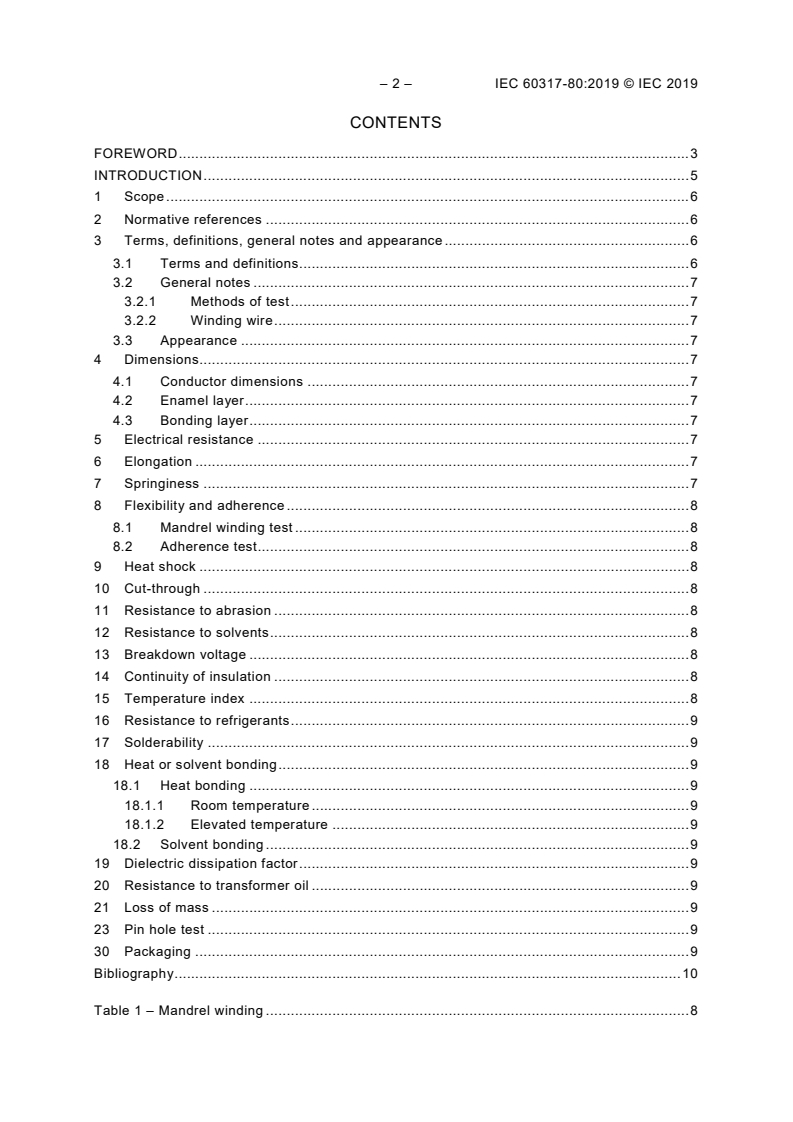

CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions, general notes and appearance ........................................................... 6

3.1 Terms and definitions .............................................................................................. 6

3.2 General notes ......................................................................................................... 7

3.2.1 Methods of test ................................................................................................ 7

3.2.2 Winding wire .................................................................................................... 7

3.3 Appearance ............................................................................................................ 7

4 Dimensions...................................................................................................................... 7

4.1 Conductor dimensions ............................................................................................ 7

4.2 Enamel layer ........................................................................................................... 7

4.3 Bonding layer .......................................................................................................... 7

5 Electrical resistance ........................................................................................................ 7

6 Elongation ....................................................................................................................... 7

7 Springiness ..................................................................................................................... 7

8 Flexibility and adherence ................................................................................................. 8

8.1 Mandrel winding test ............................................................................................... 8

8.2 Adherence test ........................................................................................................ 8

9 Heat shock ...................................................................................................................... 8

10 Cut-through ..................................................................................................................... 8

11 Resistance to abrasion .................................................................................................... 8

12 Resistance to solvents ..................................................................................................... 8

13 Breakdown voltage .......................................................................................................... 8

14 Continuity of insulation .................................................................................................... 8

15 Temperature index .......................................................................................................... 8

16 Resistance to refrigerants ................................................................................................ 9

17 Solderability .................................................................................................................... 9

18 Heat or solvent bonding ................................................................................................... 9

18.1 Heat bonding .......................................................................................................... 9

18.1.1 Room temperature ........................................................................................... 9

18.1.2 Elevated temperature ...................................................................................... 9

18.2 Solvent bonding ...................................................................................................... 9

19 Dielectric dissipation factor .............................................................................................. 9

20 Resistance to transformer oil ........................................................................................... 9

21 Loss of mass ................................................................................................................... 9

23 Pin hole test .................................................................................................................... 9

30 Packaging ....................................................................................................................... 9

Bibliography .......................................................................................................................... 10

Table 1 – Mandrel winding ...................................................................................................... 8

---------------------- Page: 4 ----------------------
IEC 60317-80:2019 © IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –
Part 80: Polyvinyl acetal enamelled rectangular copper wire,
class 120, with a bonding layer
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60317-80 has been prepared by IEC technical committee 55:

Winding wires.
The text of this International Standard is based on the following documents:
FDIS Report on voting
55/1790/FDIS 55/1802/RVD

Full information on the voting for the approval of this International Standard can be found in the

report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

This International Standard is to be read in conjunction with IEC 60317-0-2:2019.

---------------------- Page: 5 ----------------------
– 4 – IEC 60317-80:2019 © IEC 2019

A list of all parts in the IEC 60317 series, published under the general title Specifications for

particular types of winding wires, can be found on the IEC website.

The numbering of clauses in this standard is not continuous from Clauses 21 through 30 in

order to reserve space for possible future wire requirements prior to those for wire packaging.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 60317-80:2019 © IEC 2019 – 5 –
INTRODUCTION

This part of IEC 60317 forms an element of a series of standards which deals with insulated

wires used for windings in electrical equipment. It is composed of the following series:

1) Winding wires – Test methods (IEC 60851 series);
2) Specifications for particular types of winding wires (IEC 60317 series);
3) Packaging of winding wires (IEC 60264 series).
---------------------- Page: 7 ----------------------
– 6 – IEC 60317-80:2019 © IEC 2019
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –
Part 80: Polyvinyl acetal enamelled rectangular copper wire,
class 120, with a bonding layer
1 Scope

This part of IEC 60317 specifies the requirements of enamelled rectangular copper winding wire

of class 120 with a dual coating. The underlying coating is based on polyvinyl acetal resin,

which can be modified providing it retains the chemical identity of the original resin and meets

all specified wire requirements. The second coating is a bonding layer based on a thermoplastic

or thermosetting resin.

NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to

enhance certain performance or application characteristics.
The range of nominal conductor dimensions covered by this document is:
– width: min. 2,00 mm max. 16,00 mm;
– thickness: min. 0,80 mm max. 5,60 mm.

Wires of grade 1 and grade 2 are included in this specification and apply to the complete range

of conductors.

The specified combinations of nominal width and thickness as well as the specified ratio

width/thickness are given in IEC 60317-0-2:2019.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 60317-0-2:2019 , Specifications for particular types of winding wires – Part 0-2: General

requirements – Enamelled rectangular copper wire
IEC 60851-4:2016, Winding wires – Test methods – Part 4: Chemical properties
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 60317-0-2:2019 apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
___________
Under preparation. Stage at the time of publication: IEC CDV 60317-0-2:2019.
---------------------- Page: 8 ----------------------
IEC 60317-80:2019 © IEC 2019 – 7 –
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.2 General notes
3.2.1 Methods of test

Subclause 3.2.1 of IEC 60317-0-2:2019 applies. In case of inconsistencies between IEC 60317-

0-2:2019 and this part of IEC 60317, this document IEC 60317-80 shall prevail.
3.2.2 Winding wire

Class 120 is a thermal class that requires a minimum temperature index of 120 and a heat

shock temperature of at least 155 °C.

The temperature in degrees Celsius corresponding to the temperature index is not necessarily

that at which it is recommended that the wire be operated and this will depend on many factors,

including the type of equipment involved.
3.3 Appearance
Subclause 3.3 of IEC 60317-0-2:2019 applies.
4 Dimensions
4.1 Conductor dimensions
Subclause 4.1 of IEC 60317-0-2:2019 applies.
4.2 Enamel layer
Subclause 4.2 of IEC 60317-0-2:2019 applies.
4.3 Bonding layer
Clause 4.4.2 of IEC 60317-0-2:2019 applies.
5 Electrical resistance
Clause 5 of IEC 60317-0-2:2019 applies.
6 Elongation
Clause 6 of IEC 60317-0-2:2019 applies.

NOTE When the value of the proof strength of the copper is specified between minimum and maximum limits, the

requirements are agreed upon between the purchaser and supplier. The description of the term “proof strength” and

the method of determination are given in ISO 6892-1:2016.
7 Springiness
Clause 7 of IEC 60317-0-2:2019 applies.
---------------------- Page: 9 ----------------------
– 8 – IEC 60317-80:20
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
