IEC 60335-2-7:2008

Household and similar electrical appliances - Safety - Part 2-7: Particular requirements for washing machines

IEC 60335-2-7:2008 deals with the safety of electric washing machines for household and similar use, that are intended for washing clothes and textiles, their rated voltage being not more than 250 V for single-phase appliances and 480 V for other appliances. This standard also deals with the safety of electric washing machines for household and similar use employing an electrolyte instead of detergent. Additional requirements for these appliances are given in Annex CC.
  IEC 60335-2-7:2008 is also available as IEC Standards+ 60335-2-7:2008 which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.

Appareils électrodomestiques et analogues - Sécurité - Partie 2-7: Règles particulières pour les machines à laver le linge

IEC 60335-2-7:2008 traite de la sécurité des machines à laver le linge électriques pour usages domestiques et analogues destinées à laver des vêtements et des textiles, dont la tension assignée n'est pas supérieure à 250 V pour les appareils monophasés et à 480 V pour les autres appareils. La présente norme traite également de la sécurité des machines à laver le linge électriques pour usages domestiques et analogues employant un électrolyte à la place d'un détergent. Les exigences complémentaires pour ces appareils sont données à l'Annexe CC.
  IEC 60335-2-7:2008 est disponible sous forme de IEC Standards+ 60335-2-7:2008 qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.

General Information

• Status: Published
• Publication Date: 22-Jun-2008
• ICS: 13.120 - Domestic safety
• ICS: 97.060 - Laundry appliances
• Technical Committee: TC 61 - Safety of household and similar electrical appliances
• Current Stage: DELPUB - Deleted Publication
• Start Date: 14-May-2019
• Completion Date: 15-Dec-2017

Relations

• Amended By: IEC 60335-2-7:2008/AMD1:2011 - Amendment 1 - Household and similar electrical appliances - Safety - Part 2-7: Particular requirements for washing machines
• Effective Date: 05-Sep-2023
• Amended By: IEC 60335-2-7:2008/AMD2:2016 - Amendment 2 - Household and similar electrical appliances - Safety - Part 2-7: Particular requirements for washing machines
• Effective Date: 05-Sep-2023
• Revised: IEC 60335-2-7:2019 - Household and similar electrical appliances - Safety - Part 2-7: Particular requirements for washing machines
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-7:2002 - Household and similar electrical appliances - Safety - Part 2-7: Particular requirements for washing machines
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-7:2002/AMD1:2004 - Amendment 1 - Household and similar electrical appliances - Safety - Part 2-7: Particular requirements for washing machines
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-7:2002/AMD2:2006 - Amendment 2 - Household and similar electrical appliances - Safety - Part 2-7: Particular requirements for washing machines
• Effective Date: 05-Sep-2023

IEC 60335-2-7:2008 – Safety Standard for Household Washing Machines

Overview

IEC 60335-2-7:2008 is an international safety standard published by the International Electrotechnical Commission (IEC) focused on electric washing machines for household and similar use. It applies to appliances designed for washing clothes and textiles with rated voltages up to 250 V for single-phase and up to 480 V for other appliances. The standard addresses critical safety aspects to protect users, operators, and property from electrical and mechanical hazards associated with these washers. It also includes provisions for washing machines using electrolytes instead of detergents, enhancing its relevance to innovative cleaning technologies.

This standard complements IEC 60335-1, which covers the general safety requirements for household electrical appliances, by specifying detailed conditions, tests, and construction requirements specific to washing machines. IEC 60335-2-7 ensures compliance with modern safety practices and supports manufacturers in producing safe, reliable washing machines.

Key Topics

• Scope and Application
  Covers electric washing machines intended for household use, including models operating up to 250 V (single-phase) or 480 V (other). Applies to traditional detergent-based machines and those using electrolytes (Annex CC).
• General Requirements and Testing Methods
  Details comprehensive testing procedures addressing motor operation, power input, current draw, moisture resistance, leakage current, and endurance under abnormal and prolonged conditions.
• Electrical Safety Measures
  Specific guidelines to protect against access to live parts, transient overvoltages, and leakage currents at operating temperatures. Includes overload protection for transformers and circuitry.
• Mechanical and Construction Safety
  Requirements ensure stability, mechanical strength, protection against mechanical hazards, and the durability of components such as elastomeric parts (Annex BB). Includes accessibility provisions for mechanical release mechanisms.
• Markings and Instructions
  Mandatory markings on appliances and safe operation instructions designed to inform consumers and maintain safety throughout the product lifespan.
• Special Provisions for Innovative Technologies
  Annex CC introduces safety requirements for washing machines that employ electrolytes instead of detergent, an emerging sustainable cleaning method.
• Software Evaluation
  Annex R sets normative methods for evaluating software control functions, reflecting the increasing integration of digital controls in modern appliances.

Applications

IEC 60335-2-7:2008 is essential for:

• Manufacturers of household and commercial washing machines to ensure product compliance with international safety requirements.
• Certification and Testing Laboratories conducting compliance tests and safety assessments based on accepted international norms.
• Regulatory Authorities incorporating IEC standards into national safety certification programs to protect consumers and enhance product reliability.
• Design Engineers integrating safety considerations from electrical, mechanical, and user-interaction perspectives during the development of new washing machine models.
• Sustainability Experts evaluating washing machines that use detergent-free, electrolyte-based cleaning technologies for safer and more eco-friendly operation.

Related Standards

• IEC 60335-1 – General safety requirements for household and similar electrical appliances.
• IEC 60436 – International standards on detergent and rinsing agents for washing machines (referenced in Annex AA).
• ISO 1817 – Ageing test methods for elastomeric parts used in washing machines (referenced in Annex BB).
• IEC 60335 series – Comprehensive safety standards addressing various household electrical appliances.

Practical Value

Compliance with IEC 60335-2-7:2008 ensures washing machines are designed and tested to minimize risks of electrical shock, mechanical injury, fire, and other hazards. This standard supports manufacturers in maintaining high-quality, safe appliance production that meets global market requirements. It also assists testing bodies in delivering consistent and reliable conformity assessments, aiding consumer confidence and facilitating international trade.

By following IEC 60335-2-7, stakeholders promote safer washing machine operation in homes and similar environments, addressing traditional and future-oriented washing technologies. Its detailed testing requirements and annexes provide a robust framework to guide innovation without compromising safety.

---

Keywords: IEC 60335-2-7, washing machine safety standard, IEC household appliances, washing machine electrical safety, electrolyte washing machines, washing machine testing, appliance safety regulations, IEC safety requirements, detergent-free washers.

Standards Content (Sample)

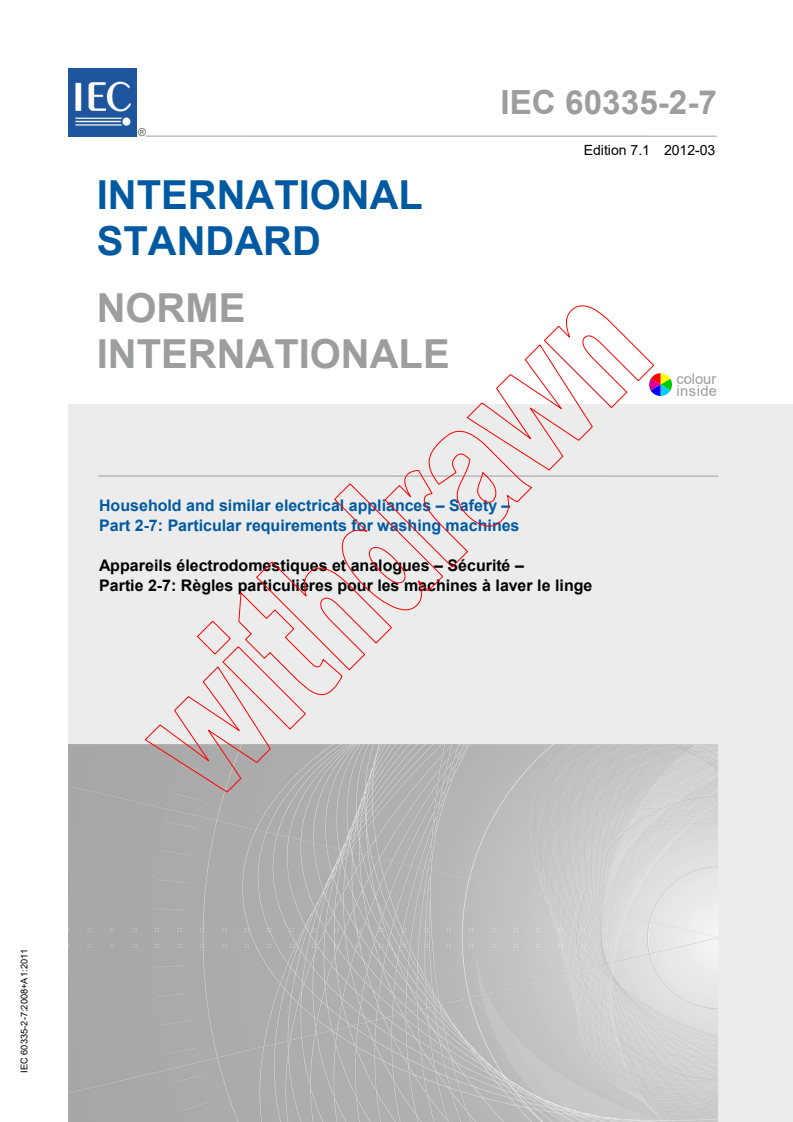

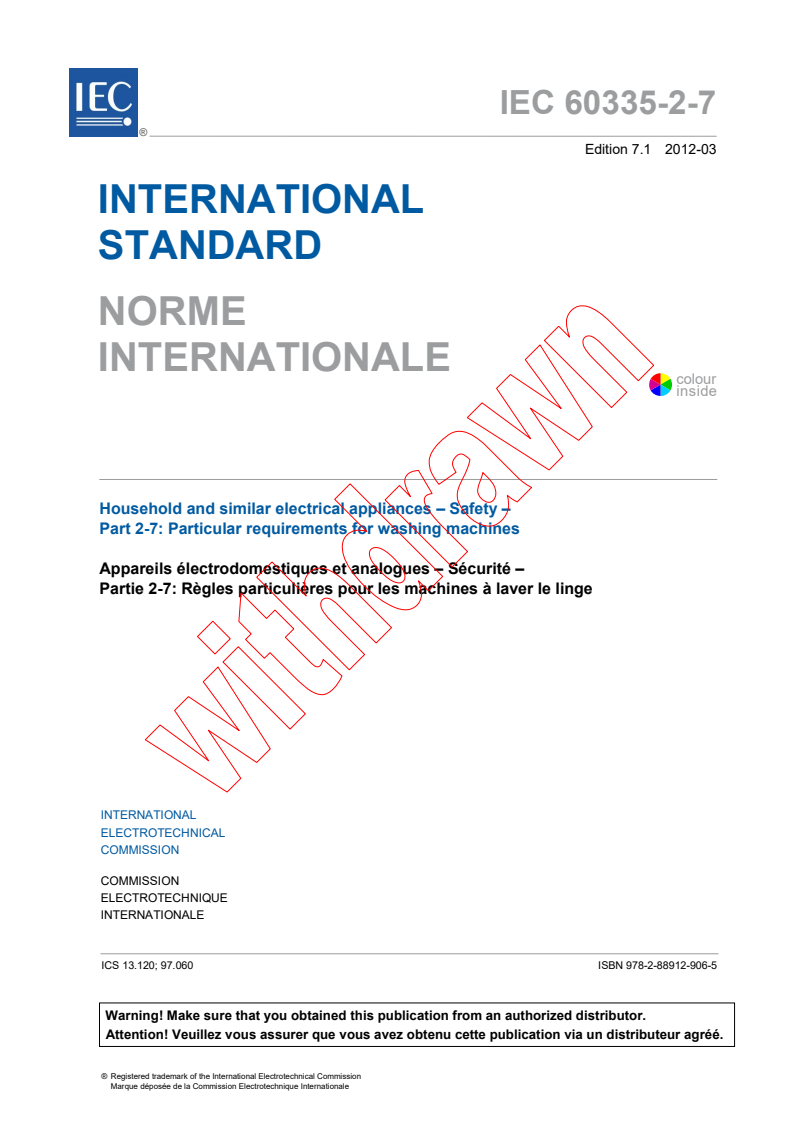

IEC 60335-2-7 CEI 60335-2-7
(Edition 7.1 – 2012) (Édition 7.1 – 2012)

HOUSEHOLD AND SIMILAR ELECTRICAL APPAREILS ÉLECTRODOMESTIQUES ET

APPLIANCES – SAFETY – ANALOGUES – SÉCURITÉ –

Part 2-7: Particular requirements for washing Partie 2-7: Règles particulières pour les machines à

machines laver le linge
CO RRI G E NDUM 1
20.104 Delete the existing fifth paragraph 20.104 Supprimer le cinquième alinéa
("After the note, add the following new existant ("Après la Note, ajouter le nouvel
paragraph:"). alinéa suivant:").
Move the sixth paragraph ("If the Déplacer le sixième alinéa ("Si le circuit
electronic circuit is programmable…the électronique est programmable…aux
relevant requirements of Annex R.") and exigences pertinentes de l'Annex R.") et le
place it after the Note. placer après la Note.

20.105 Replace the deleted first 20.105 Remplacer le premier alinéa
paragraph, including the two dashed supprimé, y compri
...

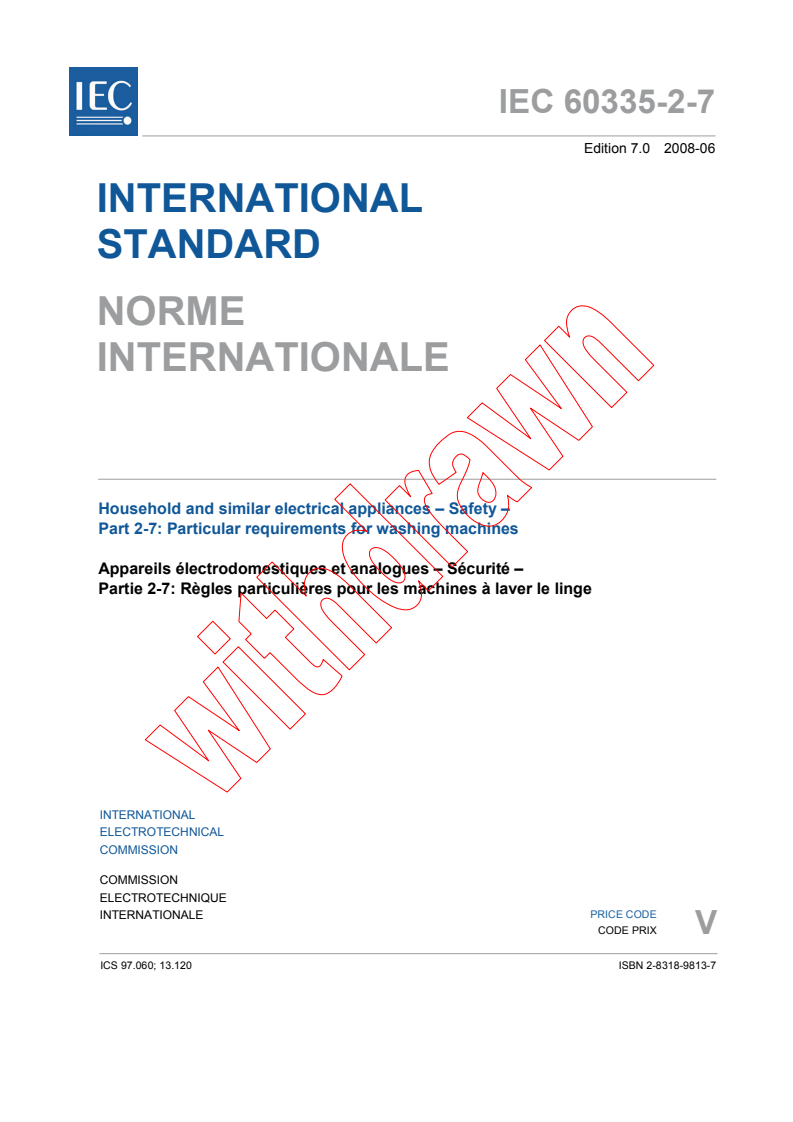

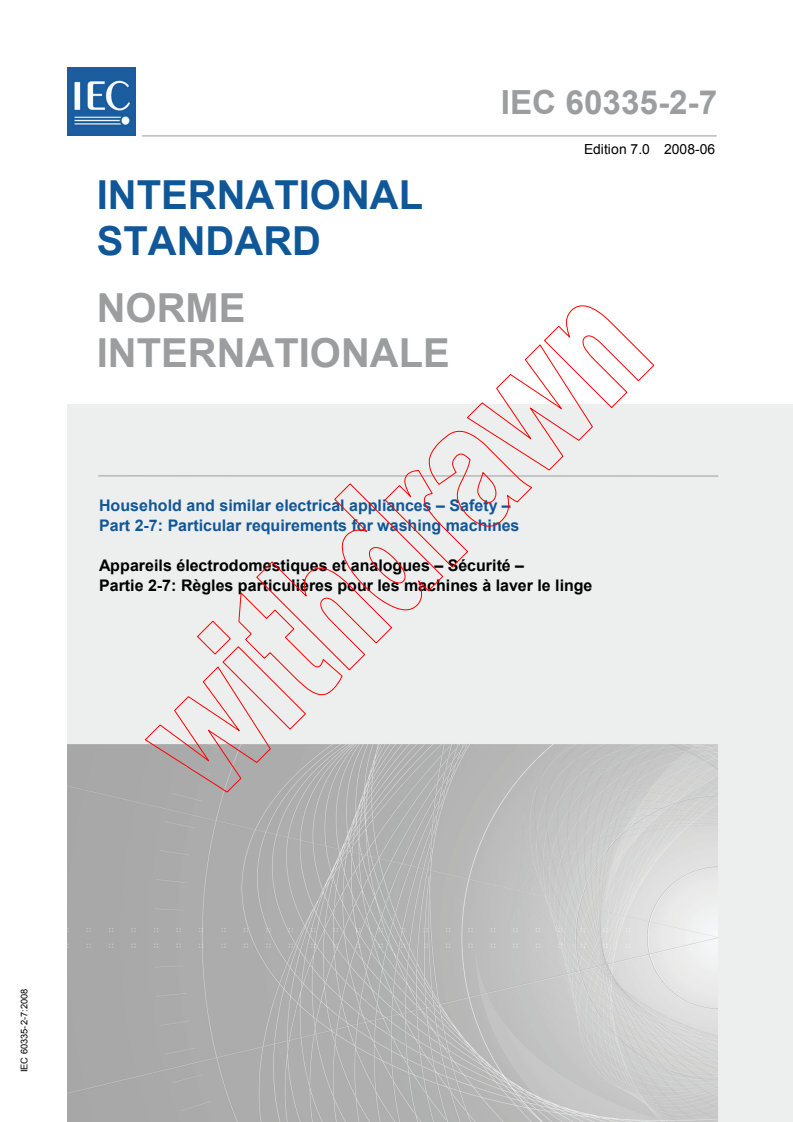

IEC 60335-2-7
Edition 7.0 2008-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-7: Particular requirements for washing machines

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-7: Règles particulières pour les machines à laver le linge

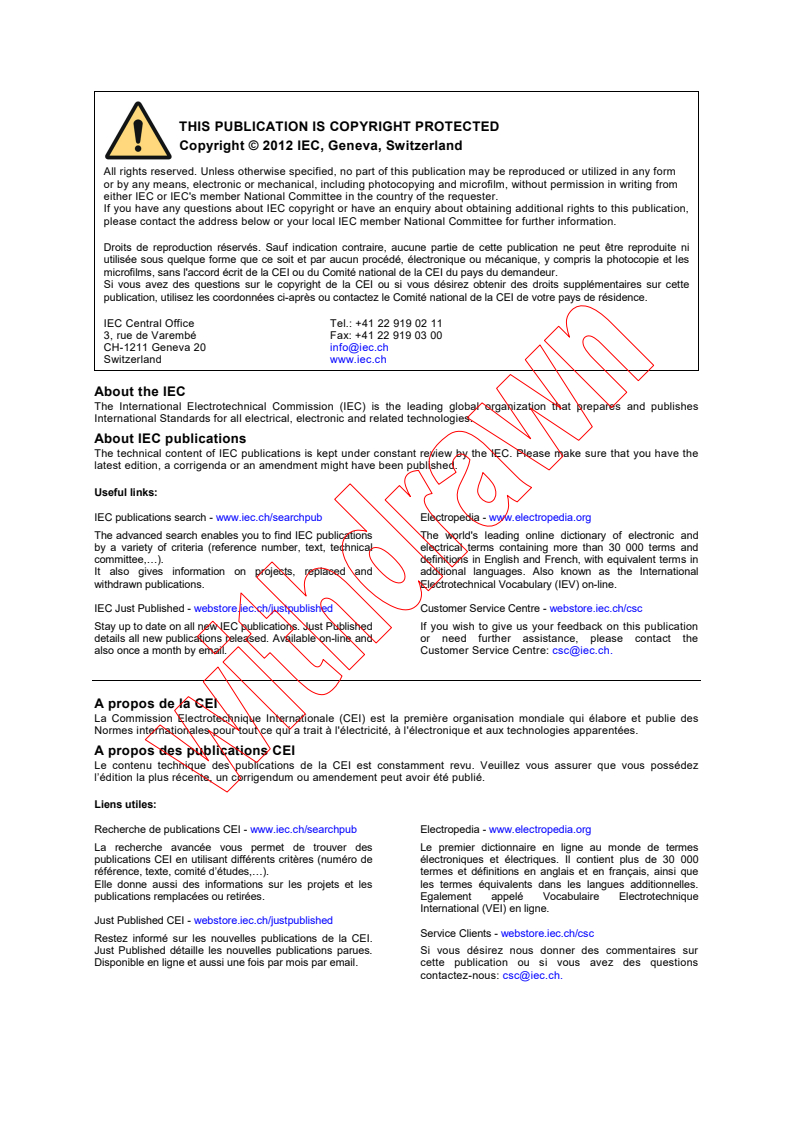

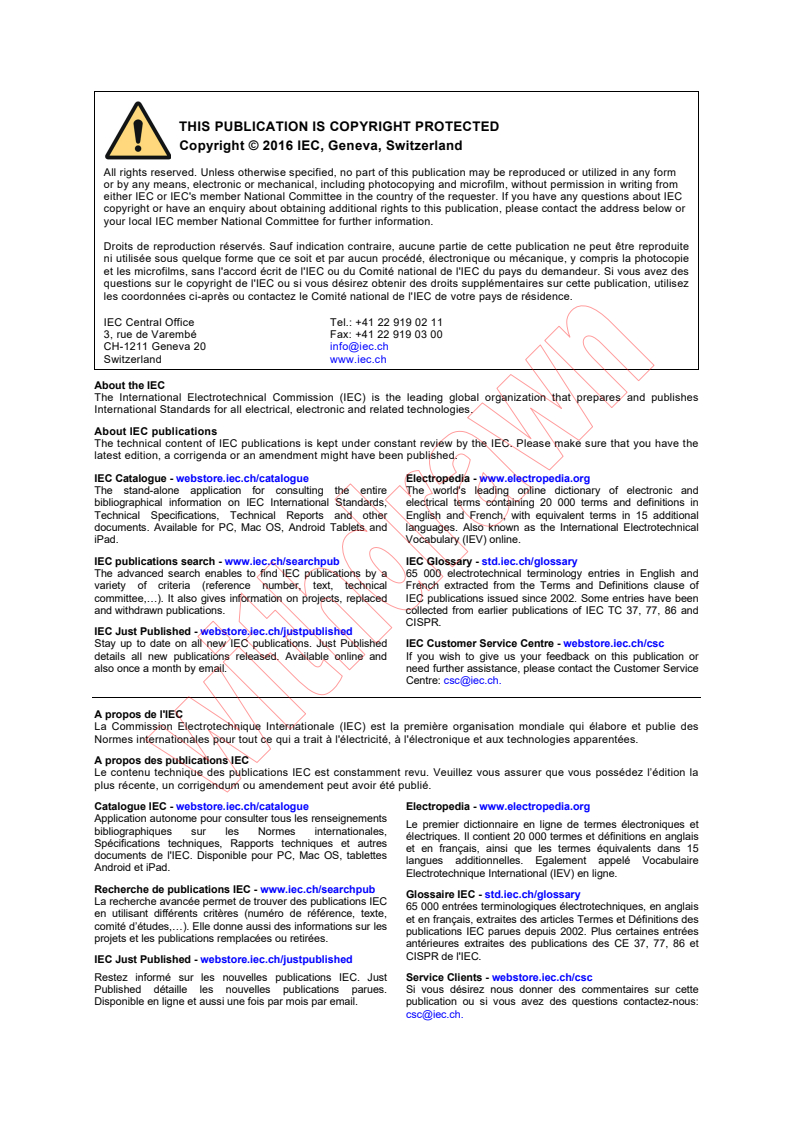

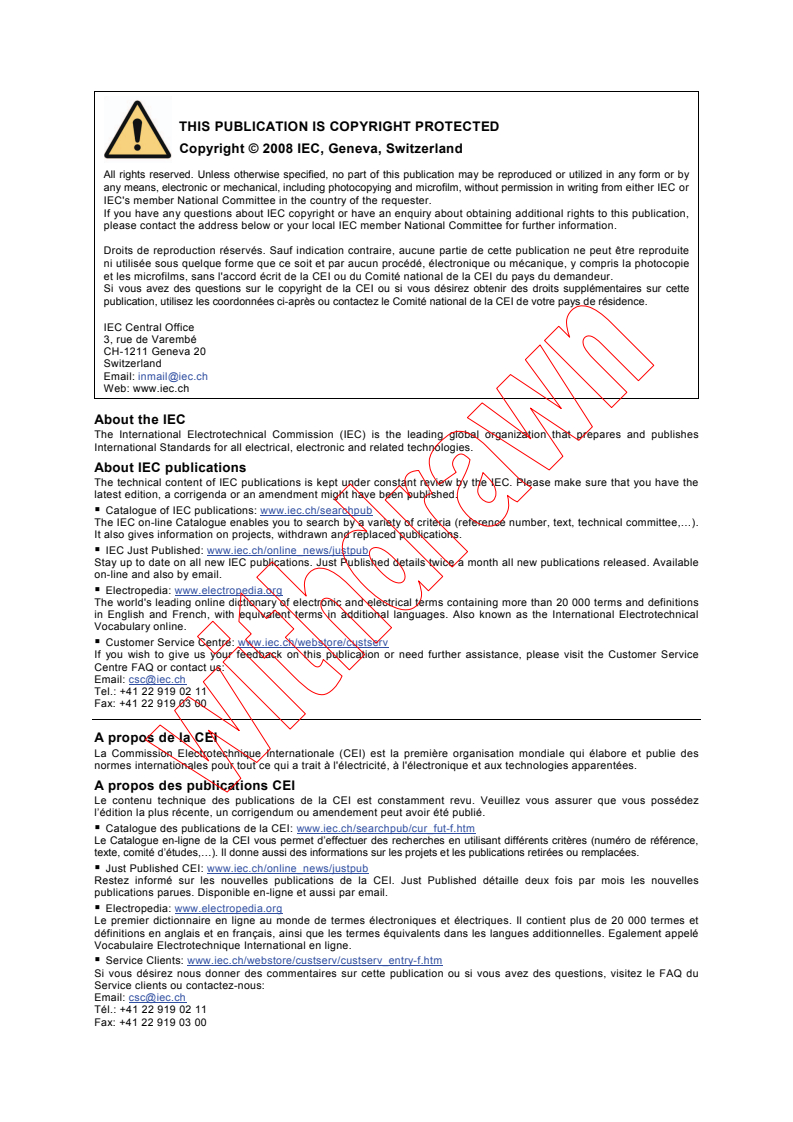

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by

any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or

IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 60335-2-7
Edition 7.0 2008-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-7: Particular requirements for washing machines

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-7: Règles particulières pour les machines à laver le linge

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
V
CODE PRIX
ICS 97.060; 13.120 ISBN 2-8318-9813-7

– 2 – 60335-2-7 © IEC:2008

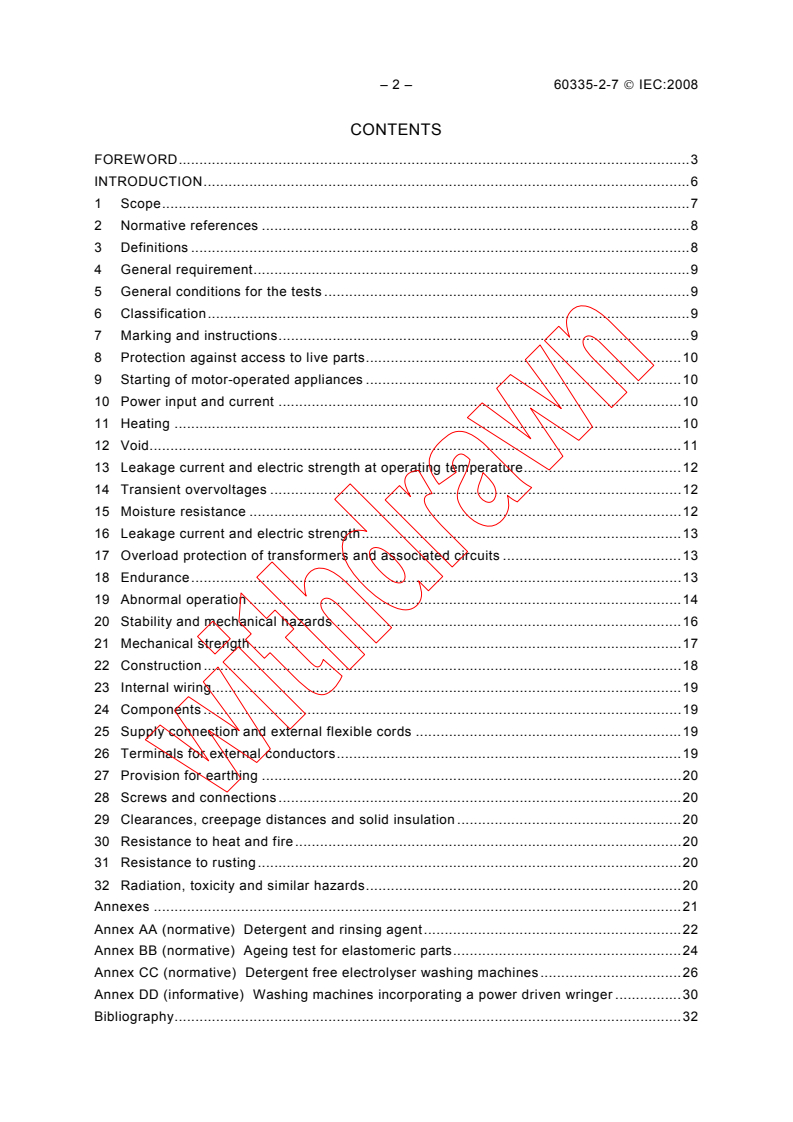

CONTENTS
FOREWORD.3

INTRODUCTION.6

1 Scope.7

2 Normative references .8

3 Definitions .8

4 General requirement.9

5 General conditions for the tests .9

6 Classification.9
7 Marking and instructions.9
8 Protection against access to live parts.10
9 Starting of motor-operated appliances .10
10 Power input and current .10
11 Heating .10
12 Void.11
13 Leakage current and electric strength at operating temperature.12
14 Transient overvoltages .12
15 Moisture resistance .12
16 Leakage current and electric strength.13
17 Overload protection of transformers and associated circuits .13
18 Endurance.13
19 Abnormal operation .14
20 Stability and mechanical hazards .16
21 Mechanical strength .17
22 Construction .18
23 Internal wiring.19
24 Components .19
25 Supply connection and external flexible cords .19
26 Terminals for external conductors.19
27 Provision for earthing .20

28 Screws and connections .20
29 Clearances, creepage distances and solid insulation .20
30 Resistance to heat and fire.20
31 Resistance to rusting.20
32 Radiation, toxicity and similar hazards.20
Annexes .
Annex AA (normative) Detergent and rinsing agent.22
Annex BB (normative) Ageing test for elastomeric parts.24
Annex CC (normative) Detergent free electrolyser washing machines.26
Annex DD (informative) Washing machines incorporating a power driven wringer .30
Bibliography.32

60335-2-7 © IEC:2008 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-7: Particular requirements for washing machines

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60335 has been prepared by IEC technical committee
61: Safety of household and similar electrical appliances.
This seventh edition cancels and replaces the sixth edition published in 2002 and its
Amendment 1 (2004) and Amendment 2 (2006). It constitutes a technical revision.

– 4 – 60335-2-7 © IEC:2008
The principal changes in this edition as compared with the sixth edition of IEC 60335-2-7 are
as follows (minor changes are not listed):

– the text of some notes in the identified subclauses has been converted to normative text

(3.1.9, 5.7, 10.1, 10.2, 11.7, 18.101, 19.101, 20.101, 20.103, 22.6, 22.101, 22.103,

22.104, 23.101, AA.1, AA.2 and Clause 4 of Annex BB);

– the spillage test has been made applicable to all washing machines (15.2);

– additional requirements concerning the accessibility of mechanical release mechanisms
have been added (22.105);
– requirements for washing machines employing an electrolyte, instead of detergent, have

been introduced in Annex CC;
– the requirements for power driven wringers have been moved to informative Annex DD.
The text of this standard is based on the following documents:
FDIS Report on voting
61/3564/FDIS 61/3653/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric washing
machines.
NOTE 2 The following annexes contain provisions suitably modified from other IEC or ISO standards.
Annex AA Detergent and rinsing agent IEC 60436 and IEC 60456
Annex BB Ageing test for elastomeric parts ISO 1817
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.

NOTE 3 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 4 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.

60335-2-7 © IEC:2008 – 5 –
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.

The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 5 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.
The following differences exist in the countries indicated below.
– 3.1.9: Different size cloths are used. The initial water temperature for machines without heating elements and
without a wringer is 71 °C (USA).
– 6.1: Class 01 appliances are allowed (China and Japan).
– 6.2: IPX0 appliances are allowed (Canada and USA).
– 11.7: The test durations are different (USA).
– 15.101: The test is different (USA).
– 19.7: Appliances without a programmer are operated until steady conditions are established (USA).
– 19.101: A redundant set of contacts is not required (USA).
– 22.6: The test is different (USA).
– 22.101: The test is carried out at twice the permissible inlet pressure or 2,0 MPa, whichever is higher (Norway).
– 22.101: The test is not carried out (USA).
– Annex AA: The detergent and rinsing agent are different (USA).
– Annex BB: Different tests are carried out (USA).

– 6 – 60335-2-7 © IEC:2008
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
NOTE 1 For example, if appliances within the scope of this Part 2
– have a separate spin container for water extraction, IEC 60335-2-4 is also applicable as far as is reasonable;
– have a drying function, IEC 60335-2-11 is also applicable is applicable as far as is reasonable.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 2 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 3 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.

An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
60335-2-7 © IEC:2008 – 7 –
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-7: Particular requirements for washing machines

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric washing machines for household
and similar use, that are intended for washing clothes and textiles, their rated voltage being
not more than 250 V for single-phase appliances and 480 V for other appliances.
This standard also deals with the safety of electric washing machines for household and
similar use employing an electrolyte instead of detergent. Additional requirements for these
appliances are given in Annex CC.
NOTE 101 Guidance is given in Annex DD for requirements that may be used to ensure an acceptable level of
protection against electrical and thermal hazards for washing machines fitted with a power driven wringer.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as appliances intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard.
NOTE 102 Examples of such appliances are washing machines for communal use in blocks of flats or in
launderettes.
As far as is practicable, this standard deals with the common hazards presented by washing
machines that are encountered by all persons in and around the home. However, in general, it
does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 103 Attention is drawn to the fact that

– for washing machines intended to be used in vehicles or on board ships or aircraft, additional requirements
may be necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar
authorities.
NOTE 104 This standard does not apply to
– washing machines intended exclusively for industrial purposes (ISO 10472-2);
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).

– 8 – 60335-2-7 © IEC:2008
2 Normative references
This clause of Part 1 is applicable except as follows.

Addition:
IEC 60456, Clothes washing machines for household use – Methods for measuring the

performance
IEC 60730-2-12:2005, Automatic electrical controls for household and similar use – Part 2:

Particular requirements for electrically operated door locks
ISO 1817:2005, Rubber, vulcanized – Determination of the effect of liquids
3 Definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions
The appliance is filled with dry textile material having a mass equal to the maximum mass
stated in the instructions, and with the maximum quantity of water for which it is constructed.
However, if the power input or current is higher when only 50 % of the textile material is used,
the appliance is operated with this load instead if this gives more unfavourable conditions
than the full load during the test of Clause 11.
NOTE 101 For some appliances incorporating a programmer, using the 50 % reduced load may result in automatic
selection of a reduced wash programme.
The temperature of the water is
– 65 C ± 5 °C for appliances without heating elements;
– 15 °C ± 5 °C for appliances without heating elements and intended for connection to the
cold water supply only;
– 15 °C ± 5 °C for other appliances.
If the appliance does not incorporate a programmer, the water is heated to 90 °C ± 5 °C or as
high as the construction will allow if lower, before starting the first washing period.

The textile material consists of pre-washed double-hemmed cotton sheets having dimensions
2 2
approximately 700 mm × 700 mm and a specific mass between 140 g/m and 175 g/m in the
dry condition.
For impeller type washing machines, if the textile material does not move properly during
operation,
– the quantity of textile material may be reduced until the maximum power input of the motor
is attained, or
– a textile material comprising pre-washed double-hemmed cotton sheets, having
dimensions of approximately 900 mm × 900 mm and a mass between 90 g/m and
110 g/m in the dry condition, may be used.
However, for impeller type washing machines, in case of doubt, the test is carried out using
the reduced quantity of textile material.

60335-2-7 © IEC:2008 – 9 –
4 General requirement
This clause of Part 1 is applicable.

5 General conditions for the tests

This clause of Part 1 is applicable except as follows.

5.2 Addition:
The relevant tests of 21.101, 21.102 and 22.104 shall be carried out on the same appliance
as that used for the test of Clause 18.
5.3 Addition:
The test of 15.101 is carried out before the test of 15.3.
The relevant tests of 21.101 and 21.102 are carried out before the test of Clause 18. The test
of 22.104 is carried out after the test of Clause 18.
5.7 Addition:
Doubt is considered to exist if the temperature of the water is within 6 K of the boiling point
and the difference between the temperature rise of the relevant part and the limit specified
does not exceed 25 K minus the room temperature.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances shall be of class I, class II or class III.
6.2 Addition:
Appliances shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
Appliances without automatic water level control shall be marked with the maximum water
level.
Appliances not intended for connection to the hot water supply and not provided with heating
elements shall be marked with the substance of the following:
CAUTION: Do not connect to the hot water supply.

– 10 – 60335-2-7 © IEC:2008
7.10 Addition:
If the off position is only indicated by letters, the word "off" shall be used.

7.12 Addition:
The instructions shall specify the maximum mass of dry cloth in kilograms to be used in the

appliance.
7.12.1 Addition:
For washing machines having ventilation openings in the base, the installation instructions
shall state that the openings must not be obstructed by a carpet.
7.15 Addition:
The caution relating to connection to the hot water supply shall be on the appliance at its
point of attachment to the water supply.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable except as follows.
10.1 Addition:
The selected representative period is the period, such as filling with water, washing, rinsing,
water extraction, spinning or braking, during which the power input is the highest.
10.2 Addition:
The selected representative period is the period, such as filling with water, washing, rinsing,
water extraction, spinning or braking, during which the current is the highest.
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Appliances incorporating a programmer are operated for three cycles with the programme that
results in highest temperature rises, with a rest period of 4 min between cycles.

60335-2-7 © IEC:2008 – 11 –
Other appliances are operated for three cycles, with a rest period of 4 min between cycles.
Each cycle consists of the following operations:

– for appliances without means for water washing;

extraction and for washing machines with

a hand-operated wringer,
– for appliances having a single drum for  washing followed by water extraction;

washing and water extraction,
– for appliances having separate drums for washing and water extraction separated by

washing and water extraction that cannot an additional 4 min rest period;

be used simultaneously,
– for appliances having separate drums for washing together with water extraction so
washing and water extraction that can be that the operations terminate simultaneously;
used simultaneously,
– for appliances having a single drum for
washing, water extraction and drying
• that allow the same quantity of textile washing followed by water extraction,
material to be washed and dried in the followed by drying;
drum,
• that, according to the instructions, washing followed by water extraction followed
only allow a portion of the washed by two drying periods, with an additional rest
textile material to be dried in the period of 4 min before each drying period. In
drum, this case only two cycles of operation are
carried out.
For appliances incorporating a timer, the washing period, the water extraction period and the
drying period are equal to the maximum period allowed by the timer.
For appliances without a timer,
– the washing period has a duration of
• 6 min, for washing machines of the continuously rotating impeller type,
• 18 min, for washing machines of the agitator type,
• 25 min for washing machines of the drum type, unless a longer period is stated in the
instructions;
– the water extraction period has a duration of 5 min.
The rest period, including any braking time, has a duration of 4 min.

After the specified sequence of operation, discharge pumps that are driven by a separate
motor and switched on and off manually, are subjected to three operating periods separated
by rest periods of 4 min. Each operating period is equal to 1,5 times the period necessary to
empty the appliance when filled to the maximum normal water level. The outlet of the water
discharge pipe is 900 mm above the floor.
12 Void
– 12 – 60335-2-7 © IEC:2008
13 Leakage current and electric strength at operating temperature

This clause of Part 1 is applicable except as follows.

13.2 Modification:
For stationary class I appliances, the leakage current shall not exceed 3,5 mA, or 1 mA/kW

of rated power input with a limit of 5 mA, whichever is greater.

14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.2 Replacement:
Appliances shall be constructed so that spillage of liquid in normal use does not affect their
electrical insulation even if an inlet valve fails to close.
Compliance is checked by the following test.
Appliances with type X attachment, except those having a specially prepared cord, are fitted
with the lightest permissible type of flexible cord of the smallest cross-sectional area specified
in Table 13.
Appliances intended to be filled with water by the user are completely filled with water
containing approximately 1 % NaCl. A further quantity of this solution equal to 15 % of the
capacity of the appliance or 0,25 l, whichever is greater, is poured in steadily over a period of
1 min.
Other appliances are operated until the maximum water level is reached, and 5 g of the
detergent specified in Annex AA is added for each litre of water in the appliance. The inlet
valve is held open and the filling is continued for 15 min after first evidence of overflow or
until the inflow is automatically stopped by other means.
For appliances that are loaded from the front, the door is then opened if this can be achieved
manually and without damage to the door interlock system.
For all appliances, 0,5 l of water containing approximately 1 % NaCl and 0,6 % of rinsing
agent, as specified in Annex AA, is poured over the top of the appliance, the controls being
placed in the on position. The controls are then operated through their working range, this
operation being repeated after a period of 5 min.
The appliance shall then withstand the electric strength test of 16.3 and inspection shall show
that there is no trace of water on insulation that could result in a reduction of clearances or
creepage distances below the values specified in Clause 29.

60335-2-7 © IEC:2008 – 13 –
15.101 Appliances shall be constructed so that foaming does not affect electrical insulation.

Compliance is checked by the following test that is carried out immediately after that of 15.2.

The appliance is operated under the conditions specified in Clause 11 but for one complete

cycle with the programme that results in the longest period of operation. Twice the quantity

of detergent necessary for normal washing is added, the composition of which is specified in

Annex AA.
For appliances incorporating a detergent dispenser, the solution is added manually at the

point in the cycle when it would normally be dispensed automatically. For other appliances,

the solution is added before starting the cycle.
The appliance shall then withstand the electric strength test of 16.3.
The appliance is kept in a test room having a normal atmosphere for 24 h before being
subjected to the test of 15.3.
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is replaced by the following.
18.101 Appliances shall be constructed so that the lid or door interlock withstands the
stresses to which it may be exposed in normal use.
Compliance is checked by the following test.
The lid or door is opened as in normal use and the force applied to the handle, or actuating
means of the release mechanism, is measured. The force required to close the lid or door is
also measured.
The lid or door is then subjected to 10 000 cycles of opening and closing. For the first 6 000
cycles, the appliance is supplied at rated voltage and operated so that the interlock
mechanism is energized and de-energized each cycle. For the last 4 000 cycles, the
appliance is not connected to the supply mains. For appliances having a drying function, the
total number of cycles is increased to 13 000, the first 9 000 cycles being carried out with the
interlock mechanism energized and de-energized each cycle.
If the interlock complies with IEC 60730-2-12, the appliance is not connected to the supply
mains during this test. If the interlock operates more than once during normal operation, it is
operated for this number of times during each cycle.
Lids are opened each time by approximately 45° and doors by 90°, the speed of opening
being approximately 1,5 m/s. The force applied to open the lid or door is twice the measured
opening force, with a minimum of 50 N and a maximum of 200 N.

– 14 – 60335-2-7 © IEC:2008
Doors are closed at a speed of approximately 1,5 m/s, the force applied being five times the

measured closing force, with a minimum of 50 N and a maximum of 200 N. Lids are allowed to

close under their own weight but if they fail to latch, a force of five times the measured closing

force is applied, with a minimum of 50 N and a maximum of 200 N.

After the tests, compliance with the relevant requirements of 20.103 to 20.105 shall not be

impaired.
18.102 The braking mechanism of appliances having a lid that can be opened during the

water extraction period shall withstand the stresses to which they may be exposed in normal

use.
Compliance is checked by the following test.
The appliance is supplied at 1,06 times rated voltage and operated under normal operation
until the motor has reached its highest speed. The lid is then fully opened. The test is
repeated after the drum has been at rest for a period long enough to ensure that the
appliance does not attain an excessive temperature.
The test is carried out 1 000 times, the textile material being re-saturated with water at least
every 250 times.
After the test, the appliance shall be fit for further use and compliance with this standard shall
not be impaired.
NOTE Forced cooling may be used to prevent excessive temperatures and to shorten the test.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Addition:
For appliances incorporating a programmer or a timer, the tests of 19.2 and 19.3 are replaced
by the test of 19.101.
The test of 19.7 is not carried out on motors driving moving parts of an oscillating agitator.
Appliances not intended for connection to the hot water supply and not provided with heating
elements are also subjected to the test of 19.102.

19.2 Addition:
Restricted heat dissipation is obtained without water in the appliance or with just sufficient
water to cover the heating elements, whichever is the more unfavourable.
19.7 Addition:
Appliances without a programmer or timer are operated for 5 min.
19.9 Not applicable.
60335-2-7 © IEC:2008 – 15 –
19.13 Addition:
The textile material shall not ignite and shall not show any charring or glowing.

NOTE 101 Light brown colouring of the textile material or slight emission of smoke is ignored.

During the tests of 19.101 and 19.102, the temperature of windings shall not exceed the

values specified in Table 8.
The appliance shall comply with the appropriate requirements of 20.103 to 20.105 if it can still

be operated.
19.101 The appliance is supplied at rated voltage and operated under normal operation.
Any fault condition or unexpected operation that may be applied in normal use is introduced.
The fault conditions and unexpected operations to be applied are:
– the programmer stopping in any position;
– disconnection and reconnection of one or more phases of the supply during any part of the
programme;
– open-circuiting or short-circuiting of components;
– failure of a magnetic valve;
– failure or blocking the mechanical parts of a water-level switch. This fault condition is not
applied if
• the cross-sectional area of the tube supplying the air chamber is greater than 500 mm
with a minimum dimension of 10 mm,
• the outlet of the chamber is at least 20 mm above the highest water level, and
• the tube connecting the air chamber to the water-level switch is fixed so that there is no
likelihood of bending or pinching;
– puncture of the capillary tube of a thermostat.
If operation without water in the appliance is a more unfavourable condition for starting any
programme, the tests with that programme are carried out with the water valve closed. This
valve is not closed after the programme has started to operate.
NOTE The fault condition with
– the automatic filling device held open is covered by 15.2;

– thermal controls short-circuited is covered by 19.4;
– motor capacitors short-circuited or open-circuited is covered by 19.7;
– the failure of door interlocks is covered by 24.1.4.
19.102 Appliances not intended for connection to the hot water supply and not provided with
heating elements are operated under the conditions of Clause 11, except that they are
supplied at rated voltage and filled with water at a temperature of 65 °C ± 5 °C.

– 16 – 60335-2-7 © IEC:2008
20 Stability and mechanical hazards

This clause of Part 1 is applicable except as follows.

20.1 Modification:
The appliance is empty or filled as specified for normal operation, whichever is more

unfavourable. Doors and lids are closed and any castors turned to the most unfavourable

position.
20.101 Washing machines of the drum type that are loaded from the top through an opening
with a hinged lid shall incorporate an interlock that de-energizes the motor before the lid
opening exceeds 50 mm.
If a removable or sliding lid is provided, the motor shall be de-energized as soon as the lid is
removed or displaced and it shall not be possible to start the motor unless the lid is in the
closed position.
The interlock shall be constructed so that unexpected operation of the appliance is unlikely
unless the lid is in the closed position.
Compliance is checked by inspection, by measurement and by the following test.
Test probe B of IEC 61032 is applied in order to try and release any interlock that is needed
to comply with the requirement. The interlock shall not release.
20.102 Appliances shall not be adversely affected by an unbalanced load.
Compliance is checked by the following test.
The appliance is placed on a horizontal support and a load having a mass of 0,2 kg or 10 % of
the maximum mass of the cloth specified in the instructions, whichever is greater, is fixed to
the inside wall of the drum half-way along its length.
The appliance is supplied at rated voltage and operated during the water extraction period.
The test is carried out four times, the load being moved each time through an angle of 90°
around the wall of the drum.
The appliance shall not overturn and the drum shall not hit other parts except the enclosure.
After the test, the appliance shall be fit for further use.

20.103 For washing machines of the drum type that are loaded from the front or from the
top, the door or lid shall be interlocked so that the appliance can only be operated when the
door or lid is in the closed position.
Compliance is checked by inspection, by manual test and by the following test.
Test probe B of IEC 61032 is applied in order to try and release any interlock that is needed
to comply with the requirement. The interlock shall not release.
20.104 It shall not be possible to open the lid or door of the appliance while the drum speed
exceeds 60 r/min if the drum has a rotational kinetic energy exceeding 1 500 J, or a maximum
peripheral speed exceeding
– 20 m/s, for drums that
...

IEC 60335-2-7 ®
Edition 7.2 2016-04
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-7: Particular requirements for washing machines

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-7: Règles particulières pour les machines à laver le linge

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC
65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte,
et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les
publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées.
antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 60335-2-7 ®
Edition 7.2 2016-04
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –

Part 2-7: Particular requirements for washing machines

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-7: Règles particulières pour les machines à laver le linge

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120, 97.060 ISBN 978-2-8322-3334-4

IEC 60335-2-7 ®
Edition 7.2 2016-04
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-7: Particular requirements for washing machines

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-7: Règles particulières pour les machines à laver le linge

– 2 – IEC 60335-2-7:2008+AMD1:2001
+AMD2:2016 CSV  IEC 2016
CONTENTS
FOREWORD. 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 8
3 Terms and definitions . 8
4 General requirement . 9
5 General conditions for the tests . 9
6 Classification . 9
7 Marking and instructions . 9
8 Protection against access to live parts . 10
9 Starting of motor-operated appliances . 10
10 Power input and current . 10
11 Heating . 11
12 Void . 12
13 Leakage current and electric strength at operating temperature . 12
14 Transient overvoltages . 12
15 Moisture resistance . 12
16 Leakage current and electric strength . 13
17 Overload protection of transformers and associated circuits . 13
18 Endurance . 13
19 Abnormal operation . 14
20 Stability and mechanical hazards . 16
21 Mechanical strength . 18
22 Construction . 19
23 Internal wiring . 21
24 Components . 21
25 Supply connection and external flexible cords . 21
26 Terminals for external conductors . 21
27 Provision for earthing. 21
28 Screws and connections . 21
29 Clearances, creepage distances and solid insulation . 21
30 Resistance to heat and fire . 22
31 Resistance to rusting . 22
32 Radiation, toxicity and similar hazards . 22
Annexes . 23
Annex R (normative) Software evaluation . 24
Annex AA (normative) Detergent and rinsing agent . 25
Annex BB (normative) Ageing test for elastomeric parts . 27
Annex CC (normative) Detergent free electrolyser washing machines . 29
Annex DD (informative) Washing machines incorporating a power driven wringer . 33
Bibliography . 35

+AMD2:2016 CSV  IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-7: Particular requirements for washing machines
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendments has been prepared
for user convenience.
IEC 60335-2-7 edition 7.2 contains the seventh edition (2008-06) [documents 61/3564/FDIS and
61/3653/RVD], its amendment 1 (2011-12) [documents 61/4279/FDIS and 61/4302/RVD] and its
amendment 2 (2016-04) [documents 61/5106/FDIS and 61/5137/RVD].
In this Redline version, a vertical line in the margin shows where the technical content is
modified by amendments 1 and 2. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in this publication.

– 4 – IEC 60335-2-7:2008+AMD1:2001
+AMD2:2016 CSV  IEC 2016
This part of International Standard IEC 60335 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
The principal changes in this edition as compared with the sixth edition of IEC 60335-2-7 are
as follows (minor changes are not listed):
– the text of some notes in the identified subclauses has been converted to normative text
(3.1.9, 5.7, 10.1, 10.2, 11.7, 18.101, 19.101, 20.101, 20.103, 22.6, 22.101, 22.103,
22.104, 23.101, AA.1, AA.2 and Clause 4 of Annex BB);
– the spillage test has been made applicable to all washing machines (15.2);
– additional requirements concerning the accessibility of mechanical release mechanisms
have been added (22.105);
– requirements for washing machines employing an electrolyte, instead of detergent, have
been introduced in Annex CC;
– the requirements for power driven wringers have been moved to informative Annex DD.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric washing
machines.
NOTE 2 The following annexes contain provisions suitably modified from other IEC or ISO standards.
Annex AA Detergent and rinsing agent IEC 60436 and IEC 60456
Annex BB Ageing test for elastomeric parts ISO 1817
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 3 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 4 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
NOTE 5 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

+AMD2:2016 CSV  IEC 2016
The following differences exist in the countries indicated below.
– 3.1.9: Different size cloths are used. The initial water temperature for machines without heating elements and
without a wringer is 71 °C (USA).
– 6.1: Class 01 appliances are allowed (China and Japan).
– 6.2: IPX0 appliances are allowed (Canada and USA).
– 11.7: The test durations are different (USA).
– 15.101: The test is different (USA).
– 19.7: Appliances without a programmer are operated until steady conditions are established (USA).
– 19.101: A redundant set of contacts is not required (USA).
– 22.6: The test is different (USA).
– 22.101: The test is carried out at twice the permissible inlet pressure or 2,0 MPa, whichever is higher (Norway).
– 22.101: The test is not carried out (USA).
– Annex AA: The detergent and rinsing agent are different (USA).
– Annex BB: Different tests are carried out (USA).
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 6 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of the amendment 1 be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

– 6 – IEC 60335-2-7:2008+AMD1:2001
+AMD2:2016 CSV  IEC 2016
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
NOTE 1 For example, if appliances within the scope of this Part 2
– have a separate spin container for water extraction, IEC 60335-2-4 is also applicable as far as is reasonable;
– have a drying function, IEC 60335-2-11 is also applicable is applicable as far as is reasonable.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 2 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 3 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
+AMD2:2016 CSV  IEC 2016
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-7: Particular requirements for washing machines

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric washing machines for household
and similar use, that are intended for washing clothes and textiles, their rated voltage being
not more than 250 V for single-phase appliances and 480 V for other appliances.
This standard also deals with the safety of electric washing machines for household and
similar use employing an electrolyte instead of detergent. Additional requirements for these
appliances are given in Annex CC.
NOTE 101 Guidance is given in Annex DD for requirements that may be used to ensure an acceptable level of
protection against electrical and thermal hazards for washing machines fitted with a power driven wringer.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as appliances intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard.
NOTE 102 Examples of such appliances are washing machines for communal use in blocks of flats or in
launderettes.
As far as is practicable, this standard deals with the common hazards presented by washing
machines that are encountered by all persons in and around the home. However, in general, it
does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 103 Attention is drawn to the fact that
– for washing machines intended to be used in vehicles or on board ships or aircraft, additional requirements
may be necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar
authorities.
NOTE 104 This standard does not apply to
– washing machines intended exclusively for industrial purposes (ISO 10472-2);
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).

– 8 – IEC 60335-2-7:2008+AMD1:2001
+AMD2:2016 CSV  IEC 2016
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60456, Clothes washing machines for household use – Methods for measuring the
performance
IEC 60730-2-12:2005, Automatic electrical controls for household and similar use – Part 2:
Particular requirements for electrically operated door locks
ISO 1817:2005 2015, Rubber, vulcanized or thermoplastic – Determination of the effect of
liquids
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions
The appliance is filled with dry textile material having a mass equal to the maximum mass
stated in the instructions, and with the maximum quantity of water for which it is constructed.
However, if the power input or current is higher when only 50 % of the textile material is used,
the appliance is operated with this load instead if this gives more unfavourable conditions
than the full load during the test of Clause 11.
NOTE 101 For some appliances incorporating a programmer, using the 50 % reduced load may result in automatic
selection of a reduced wash programme.
The temperature of the water is
– 65 C ± 5 °C for appliances without heating elements;
– 15 °C ± 5 °C for appliances without heating elements and intended for connection to the
cold water supply only;
– 15 °C ± 5 °C for other appliances.
If the appliance does not incorporate a programmer, the water is heated to 90 °C ± 5 °C or as
high as the construction will allow if lower, before starting the first washing period.
The textile material consists of pre-washed double-hemmed cotton sheets having dimensions
2 2
approximately 700 mm × 700 mm and a specific mass between 140 g/m and 175 g/m in the
dry condition.
For impeller type washing machines, if the textile material does not move properly during
operation,
– the quantity of textile material may be reduced until the maximum power input of the motor
is attained, or
– a textile material comprising pre-washed double-hemmed cotton sheets, having
dimensions of approximately 900 mm × 900 mm and a mass between 90 g/m and
110 g/m in the dry condition, may be used.
However, for impeller type washing machines, in case of doubt, the test is carried out using
the reduced quantity of textile material.

+AMD2:2016 CSV  IEC 2016
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
The relevant tests of 21.101, 21.102 and 22.104 shall be carried out on the same appliance
as that used for the test of Clause 18.
5.3 Addition:
The test of 15.101 is carried out before the test of 15.3.
The relevant tests of 21.101 and 21.102 are carried out before the test of Clause 18. The test
of 22.104 is carried out after the test of Clause 18.
5.7 Addition:
Doubt is considered to exist if the temperature of the water is within 6 K of the boiling point
and the difference between the temperature rise of the relevant part and the limit specified
does not exceed 25 K minus the room temperature.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances shall be of class I, class II or class III.
6.2 Addition:
Appliances shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
Appliances without automatic water level control shall be marked with the maximum water
level.
Appliances not intended for connection to the hot water supply and not provided with heating
elements shall be marked with the substance of the following:
CAUTION: Do not connect to the hot water supply.
7.10 Addition:
– 10 – IEC 60335-2-7:2008+AMD1:2001
+AMD2:2016 CSV  IEC 2016
If the off position is only indicated by letters, the word "off" shall be used.
7.12 Addition:
The instructions shall specify the maximum mass of dry cloth in kilograms to be used in the
appliance.
The instructions shall include the substance of the following:
This appliance is intended to be used in household and similar applications such as:
− staff kitchen areas in shops, offices and other working environments;
− farm houses;
− by clients in hotels, motels and other residential type environments;
− bed and breakfast type environments;
− areas for communal use in blocks of flats or in launderettes.
If the manufacturer wants to limit the use of the appliance to less than the above, this shall be
clearly stated in the instructions.
7.12.1 Addition:
For washing machines having ventilation openings in the base, the installation instructions
shall state that the openings must not be obstructed by a carpet.
7.15 Addition:
The caution relating to connection to the hot water supply shall be on the appliance at its
point of attachment to the water supply.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable except as follows.
10.1 Addition:
The selected representative period is the period, such as filling with water, washing, rinsing,
water extraction, spinning or braking, during which the power input is the highest.
10.2 Addition:
The selected representative period is the period, such as filling with water, washing, rinsing,
water extraction, spinning or braking, during which the current is the highest.

+AMD2:2016 CSV  IEC 2016
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Appliances incorporating a programmer are operated for three cycles with the programme that
results in highest temperature rises, with a rest period of 4 min between cycles.
Other appliances are operated for three cycles, with a rest period of 4 min between cycles.
Each cycle consists of the following operations:
– for appliances without means for water washing;
extraction and for washing machines with
a hand-operated wringer,
– for appliances having a single drum for  washing followed by water extraction;
washing and water extraction,
– for appliances having separate drums for washing and water extraction separated by
washing and water extraction that cannot an additional 4 min rest period;
be used simultaneously,
– for appliances having separate drums for washing together with water extraction so
washing and water extraction that can be that the operations terminate simultaneously;
used simultaneously,
– for appliances having a single drum for
washing, water extraction and drying
• that allow the same quantity of textile washing followed by water extraction,
material to be washed and dried in the followed by drying;
drum,
• that, according to the instructions, washing followed by water extraction followed
only allow a portion of the washed by two drying periods, with an additional rest
textile material to be dried in the period of 4 min before each drying period. In
drum, this case only two cycles of operation are
carried out.
For appliances incorporating a timer, the washing period, the water extraction period and the
drying period are equal to the maximum period allowed by the timer.
For appliances without a timer,
– the washing period has a duration of
• 6 min, for washing machines of the continuously rotating impeller type,
• 18 min, for washing machines of the agitator type,
• 25 min for washing machines of the drum type, unless a longer period is stated in the
instructions;
– the water extraction period has a duration of 5 min.
The rest period, including any braking time, has a duration of 4 min.
After the specified sequence of operation, discharge pumps that are driven by a separate
motor and switched on and off manually, are subjected to three operating periods separated
by rest periods of 4 min. Each operating period is equal to 1,5 times the period necessary to
empty the appliance when filled to the maximum normal water level. The outlet of the water
discharge pipe is 900 mm above the floor.

– 12 – IEC 60335-2-7:2008+AMD1:2001
+AMD2:2016 CSV  IEC 2016
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable except as follows.
13.2 Modification:
For stationary class I appliances, the leakage current shall not exceed 3,5 mA, or 1 mA/kW
of rated power input with a limit of 5 mA, whichever is greater.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.2 Replacement:
Appliances shall be constructed so that spillage of liquid in normal use does not affect their
electrical insulation even if an inlet valve fails to close.
Compliance is checked by the following test.
Appliances with type X attachment, except those having a specially prepared cord, are fitted
with the lightest permissible type of flexible cord of the smallest cross-sectional area specified
in Table 13.
Appliances intended to be filled with water by the user are completely filled with water
containing approximately 1 % NaCl. A further quantity of this solution equal to 15 % of the
capacity of the appliance or 0,25 l, whichever is greater, is poured in steadily over a period of
1 min.
Other appliances are operated until the maximum water level is reached, and 5 g of the
detergent specified in Annex AA is added for each litre of water in the appliance. The inlet
valve is held open and the filling is continued for 15 min after first evidence of overflow or
until the inflow is automatically stopped by other means.
For appliances that are loaded from the front, the door is then opened if this can be achieved
manually and without damage to the door interlock system.
For all appliances, 0,5 l of water containing approximately 1 % NaCl and 0,6 % of rinsing
agent, as specified in Annex AA, is poured over the top of the appliance, the controls being
placed in the on position. The controls are then operated through their working range, this
operation being repeated after a period of 5 min.
The appliance shall then withstand the electric strength test of 16.3 and inspection shall show
that there is no trace of water on insulation that could result in a reduction of clearances or
creepage distances below the values specified in Clause 29.
15.101 Appliances shall be constructed so that foaming does not affect electrical insulation.
Compliance is checked by the following test that is carried out immediately after that of 15.2.

+AMD2:2016 CSV  IEC 2016
The appliance is operated under the conditions specified in Clause 11 but for one complete
cycle with the programme that results in the longest period of operation. Twice the quantity
of detergent necessary for normal washing is added, the composition of which is specified in
Annex AA.
The appliance is operated under the conditions specified in Clause 11 but at rated voltage for
one complete cycle with the programme that results in the longest period of operation. A
quantity of detergent necessary to cause foaming is added. The composition of the detergent
is specified in Annex AA.
For appliances incorporating a detergent dispenser, the solution is added manually at the
point in the cycle when it would normally be dispensed automatically. For other appliances,
the solution is added before starting the cycle.
The appliance shall then withstand the electric strength test of 16.3.
The appliance is kept in a test room having a normal atmosphere for 24 h before being
subjected to the test of 15.3.
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is replaced by the following.
18.101 Appliances shall be constructed so that the lid or door interlock withstands the
stresses to which it may be exposed in normal use.
Compliance is checked by the following test.
The lid or door is opened as in normal use and the force applied to the handle, or actuating
means of the release mechanism, is measured. The force required to close the lid or door is
also measured.
The lid or door is then subjected to 10 000 cycles of opening and closing. For the first 6 000
cycles, the appliance is supplied at rated voltage and operated so that the interlock
mechanism is energized and de-energized each cycle. For the last 4 000 cycles, the
appliance is not connected to the supply mains. For appliances having a drying function, the
total number of cycles is increased to 13 000, the first 9 000 cycles being carried out with the
interlock mechanism energized and de-energized each cycle.
If the interlock complies with IEC 60730-2-12, the appliance is not connected to the supply
mains during this test. If the interlock operates more than once during normal operation, it is
operated for this number of times during each cycle.
Lids are opened each time by approximately 45° and doors by 90°, the speed of opening
being approximately 1,5 m/s. The force applied to open the lid or door is twice the measured
opening force, with a minimum of 50 N and a maximum of 200 N.

– 14 – IEC 60335-2-7:2008+AMD1:2001
+AMD2:2016 CSV  IEC 2016
Doors are closed at a speed of approximately 1,5 m/s, the force applied being five times the
measured closing force, with a minimum of 50 N and a maximum of 200 N. Lids are allowed to
close under their own weight but if they fail to latch, a force of five times the measured closing
force is applied, with a minimum of 50 N and a maximum of 200 N.
After the tests, compliance with the relevant requirements of 20.103 to 20.105 shall not be
impaired.
18.102 The braking mechanism of appliances having a lid that can be opened during the
water extraction period shall withstand the stresses to which they may be exposed in normal
use.
Compliance is checked by the following test.
The appliance is supplied at 1,06 times rated voltage and operated under normal operation
until the motor has reached its highest speed. The lid is then fully opened. The test is
repeated after the drum has been at rest for a period long enough to ensure that the
appliance does not attain an excessive temperature.
The test is carried out 1 000 times, the textile material being re-saturated with water at least
every 250 times.
After the test, the appliance shall be fit for further use and compliance with this standard shall
not be impaired.
NOTE Forced cooling may be used to prevent excessive temperatures and to shorten the test.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Addition:
For appliances incorporating a programmer or a timer, the tests of 19.2 and 19.3 are replaced
by the test of 19.101.
The test of 19.7 is not carried out on motors driving moving parts of an oscillating agitator.
Appliances not intended for connection to the hot water supply and not provided with heating
elements are also subjected to the test of 19.102.
19.2 Addition:
Restricted heat dissipation is obtained without water in the appliance or with just sufficient
water to cover the heating elements, whichever is the more unfavourable.
19.7 Addition:
Appliances without a programmer or timer are operated for 5 min.
19.9 Not applicable. Addition:
The running overload test is carried out on appliances that have overload protective devices
incorporating electronic circuits to protect the windings of the drum motor. However, the test
is not carried out if the protective device senses the winding temperature directly.

+AMD2:2016 CSV  IEC 2016
NOTE Measuring winding resistance or winding current is not directly measuring the winding temperature.
The appliance is operated under the conditions of Clause 11 for one cycle. The load is then
increased so that the current through the motor windings is raised by 10 %. The appliance is
operated again for the same cycle, the supply voltage being maintained a
...

IEC 60335-2-7 ®
Edition 7.1 2012-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-7: Particular requirements for washing machines

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-7: Règles particulières pour les machines à laver le linge

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les

microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].
IEC 60335-2-7 ®
Edition 7.1 2012-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –

Part 2-7: Particular requirements for washing machines

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-7: Règles particulières pour les machines à laver le linge

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX CM
ICS 13.120; 97.060 ISBN 978-2-88912-906-5

– 2 – 60335-2-7  IEC:2008+A1:2011

CONTENTS
FOREWORD . 3

INTRODUCTION . 6

1 Scope . 7

2 Normative references . 8

3 Terms and definitions . 8

4 General requirement . 9

5 General conditions for the tests . 9

6 Classification . 9
7 Marking and instructions . 9
8 Protection against access to live parts . 10
9 Starting of motor-operated appliances . 10
10 Power input and current . 10
11 Heating . 10
12 Void. 11
13 Leakage current and electric strength at operating temperature . 12
14 Transient overvoltages . 12
15 Moisture resistance . 12
16 Leakage current and electric strength . 13
17 Overload protection of transformers and associated circuits . 13
18 Endurance . 13
19 Abnormal operation . 14
20 Stability and mechanical hazards . 16
21 Mechanical strength . 18
22 Construction . 18
23 Internal wiring . 20
24 Components . 20
25 Supply connection and external flexible cords . 21
26 Terminals for external conductors . 21
27 Provision for earthing . 21

28 Screws and connections . 21
29 Clearances, creepage distances and solid insulation . 21
30 Resistance to heat and fire . 21
31 Resistance to rusting . 21
32 Radiation, toxicity and similar hazards . 21
Annexes . 22
Annex R (normative) Software evaluation . 23
Annex AA (normative) Detergent and rinsing agent . 24
Annex BB (normative) Ageing test for elastomeric parts . 26
Annex CC (normative) Detergent free electrolyser washing machines . 28
Annex DD (informative) Washing machines incorporating a power driven wringer . 32
Bibliography . 34

60335-2-7  IEC:2008+A1:2011 – 3 –

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-7: Particular requirements for washing machines

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This consolidated version of IEC 60335-2-7 consists of the seventh edition (2008)
[documents 61/3564/FDIS and 61/3653/RVD] and its amendment 1 (2011) [documents
61/4279/FDIS and 61/4302/RVD]. It bears the edition number 7.1.
The technical content is therefore identical to the base edition and its amendment and
has been prepared for user convenience. A vertical line in the margin shows where the
base publication has been modified by amendment 1. Additions and deletions are
displayed in red, with deletions being struck through.

– 4 – 60335-2-7  IEC:2008+A1:2011

This part of International Standard IEC 60335 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.

The principal changes in this edition as compared with the sixth edition of IEC 60335-2-7 are
as follows (minor changes are not listed):

– the text of some notes in the identified subclauses has been converted to normative text

(3.1.9, 5.7, 10.1, 10.2, 11.7, 18.101, 19.101, 20.101, 20.103, 22.6, 22.101, 22.103,

22.104, 23.101, AA.1, AA.2 and Clause 4 of Annex BB);

– the spillage test has been made applicable to all washing machines (15.2);

– additional requirements concerning the accessibility of mechanical release mechanisms
have been added (22.105);
– requirements for washing machines employing an electrolyte, instead of detergent, have
been introduced in Annex CC;
– the requirements for power driven wringers have been moved to informative Annex DD.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric washing
machines.
NOTE 2 The following annexes contain provisions suitably modified from other IEC or ISO standards.
Annex AA Detergent and rinsing agent IEC 60436 and IEC 60456
Annex BB Ageing test for elastomeric parts ISO 1817
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 3 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.

NOTE 4 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
NOTE 5 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

60335-2-7  IEC:2008+A1:2011 – 5 –

The following differences exist in the countries indicated below.

– 3.1.9: Different size cloths are used. The initial water temperature for machines without heating elements and
without a wringer is 71 °C (USA).

– 6.1: Class 01 appliances are allowed (China and Japan).

– 6.2: IPX0 appliances are allowed (Canada and USA).

– 11.7: The test durations are different (USA).

– 15.101: The test is different (USA).

– 19.7: Appliances without a programmer are operated until steady conditions are established (USA).

– 19.101: A redundant set of contacts is not required (USA).
– 22.6: The test is different (USA).
– 22.101: The test is carried out at twice the permissible inlet pressure or 2,0 MPa, whichever is higher (Norway).
– 22.101: The test is not carried out (USA).
– Annex AA: The detergent and rinsing agent are different (USA).
– Annex BB: Different tests are carried out (USA).
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 6 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of the amendment 1 be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.
The contents of the corrigendum of September 2012 have been included in this copy.

IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

– 6 – 60335-2-7  IEC:2008+A1:2011

INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
NOTE 1 For example, if appliances within the scope of this Part 2
– have a separate spin container for water extraction, IEC 60335-2-4 is also applicable as far as is reasonable;
– have a drying function, IEC 60335-2-11 is also applicable is applicable as far as is reasonable.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 2 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 3 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.

An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
60335-2-7  IEC:2008+A1:2011 – 7 –

HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-7: Particular requirements for washing machines

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric washing machines for household
and similar use, that are intended for washing clothes and textiles, their rated voltage being
not more than 250 V for single-phase appliances and 480 V for other appliances.
This standard also deals with the safety of electric washing machines for household and
similar use employing an electrolyte instead of detergent. Additional requirements for these
appliances are given in Annex CC.
NOTE 101 Guidance is given in Annex DD for requirements that may be used to ensure an acceptable level of
protection against electrical and thermal hazards for washing machines fitted with a power driven wringer.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as appliances intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard.
NOTE 102 Examples of such appliances are washing machines for communal use in blocks of flats or in
launderettes.
As far as is practicable, this standard deals with the common hazards presented by washing
machines that are encountered by all persons in and around the home. However, in general, it
does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 103 Attention is drawn to the fact that

– for washing machines intended to be used in vehicles or on board ships or aircraft, additional requirements
may be necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar
authorities.
NOTE 104 This standard does not apply to
– washing machines intended exclusively for industrial purposes (ISO 10472-2);
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).

– 8 – 60335-2-7  IEC:2008+A1:2011

2 Normative references
This clause of Part 1 is applicable except as follows.

Addition:
IEC 60456, Clothes washing machines for household use – Methods for measuring the

performance
IEC 60730-2-12:2005, Automatic electrical controls for household and similar use – Part 2:

Particular requirements for electrically operated door locks
ISO 1817:2005, Rubber, vulcanized – Determination of the effect of liquids
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions
The appliance is filled with dry textile material having a mass equal to the maximum mass
stated in the instructions, and with the maximum quantity of water for which it is constructed.
However, if the power input or current is higher when only 50 % of the textile material is used,
the appliance is operated with this load instead if this gives more unfavourable conditions
than the full load during the test of Clause 11.
NOTE 101 For some appliances incorporating a programmer, using the 50 % reduced load may result in automatic
selection of a reduced wash programme.
The temperature of the water is
– 65 C ± 5 °C for appliances without heating elements;
– 15 °C ± 5 °C for appliances without heating elements and intended for connection to the
cold water supply only;
– 15 °C ± 5 °C for other appliances.
If the appliance does not incorporate a programmer, the water is heated to 90 °C ± 5 °C or as
high as the construction will allow if lower, before starting the first washing period.

The textile material consists of pre-washed double-hemmed cotton sheets having dimensions
2 2
approximately 700 mm × 700 mm and a specific mass between 140 g/m and 175 g/m in the
dry condition.
For impeller type washing machines, if the textile material does not move properly during
operation,
– the quantity of textile material may be reduced until the maximum power input of the motor
is attained, or
– a textile material comprising pre-washed double-hemmed cotton sheets, having
dimensions of approximately 900 mm × 900 mm and a mass between 90 g/m and
110 g/m in the dry condition, may be used.
However, for impeller type washing machines, in case of doubt, the test is carried out using
the reduced quantity of textile material.

60335-2-7  IEC:2008+A1:2011 – 9 –

4 General requirement
This clause of Part 1 is applicable.

5 General conditions for the tests

This clause of Part 1 is applicable except as follows.

5.2 Addition:
The relevant tests of 21.101, 21.102 and 22.104 shall be carried out on the same appliance
as that used for the test of Clause 18.
5.3 Addition:
The test of 15.101 is carried out before the test of 15.3.
The relevant tests of 21.101 and 21.102 are carried out before the test of Clause 18. The test
of 22.104 is carried out after the test of Clause 18.
5.7 Addition:
Doubt is considered to exist if the temperature of the water is within 6 K of the boiling point
and the difference between the temperature rise of the relevant part and the limit specified
does not exceed 25 K minus the room temperature.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances shall be of class I, class II or class III.
6.2 Addition:
Appliances shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
Appliances without automatic water level control shall be marked with the maximum water
level.
Appliances not intended for connection to the hot water supply and not provided with heating
elements shall be marked with the substance of the following:
CAUTION: Do not connect to the hot water supply.

– 10 – 60335-2-7  IEC:2008+A1:2011

7.10 Addition:
If the off position is only indicated by letters, the word "off" shall be used.

7.12 Addition:
The instructions shall specify the maximum mass of dry cloth in kilograms to be used in the

appliance.
7.12.1 Addition:
For washing machines having ventilation openings in the base, the installation instructions
shall state that the openings must not be obstructed by a carpet.
7.15 Addition:
The caution relating to connection to the hot water supply shall be on the appliance at its
point of attachment to the water supply.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable except as follows.
10.1 Addition:
The selected representative period is the period, such as filling with water, washing, rinsing,
water extraction, spinning or braking, during which the power input is the highest.
10.2 Addition:
The selected representative period is the period, such as filling with water, washing, rinsing,
water extraction, spinning or braking, during which the current is the highest.
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Appliances incorporating a programmer are operated for three cycles with the programme that
results in highest temperature rises, with a rest period of 4 min between cycles.

60335-2-7  IEC:2008+A1:2011 – 11 –

Other appliances are operated for three cycles, with a rest period of 4 min between cycles.
Each cycle consists of the following operations:

– for appliances without means for water washing;

extraction and for washing machines with

a hand-operated wringer,
– for appliances having a single drum for  washing followed by water extraction;

washing and water extraction,
– for appliances having separate drums for washing and water extraction separated by

washing and water extraction that cannot an additional 4 min rest period;

be used simultaneously,
– for appliances having separate drums for washing together with water extraction so
washing and water extraction that can be that the operations terminate simultaneously;
used simultaneously,
– for appliances having a single drum for
washing, water extraction and drying
• that allow the same quantity of textile washing followed by water extraction,
material to be washed and dried in the followed by drying;
drum,
• that, according to the instructions, washing followed by water extraction followed
only allow a portion of the washed by two drying periods, with an additional rest
textile material to be dried in the period of 4 min before each drying period. In
drum, this case only two cycles of operation are
carried out.
For appliances incorporating a timer, the washing period, the water extraction period and the
drying period are equal to the maximum period allowed by the timer.
For appliances without a timer,
– the washing period has a duration of
• 6 min, for washing machines of the continuously rotating impeller type,
• 18 min, for washing machines of the agitator type,
• 25 min for washing machines of the drum type, unless a longer period is stated in the
instructions;
– the water extraction period has a duration of 5 min.
The rest period, including any braking time, has a duration of 4 min.

After the specified sequence of operation, discharge pumps that are driven by a separate
motor and switched on and off manually, are subjected to three operating periods separated
by rest periods of 4 min. Each operating period is equal to 1,5 times the period necessary to
empty the appliance when filled to the maximum normal water level. The outlet of the water
discharge pipe is 900 mm above the floor.
12 Void
– 12 – 60335-2-7  IEC:2008+A1:2011

13 Leakage current and electric strength at operating temperature

This clause of Part 1 is applicable except as follows.

13.2 Modification:
For stationary class I appliances, the leakage current shall not exceed 3,5 mA, or 1 mA/kW

of rated power input with a limit of 5 mA, whichever is greater.

14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.2 Replacement:
Appliances shall be constructed so that spillage of liquid in normal use does not affect their
electrical insulation even if an inlet valve fails to close.
Compliance is checked by the following test.
Appliances with type X attachment, except those having a specially prepared cord, are fitted
with the lightest permissible type of flexible cord of the smallest cross-sectional area specified
in Table 13.
Appliances intended to be filled with water by the user are completely filled with water
containing approximately 1 % NaCl. A further quantity of this solution equal to 15 % of the
capacity of the appliance or 0,25 l, whichever is greater, is poured in steadily over a period of
1 min.
Other appliances are operated until the maximum water level is reached, and 5 g of the
detergent specified in Annex AA is added for each litre of water in the appliance. The inlet
valve is held open and the filling is continued for 15 min after first evidence of overflow or
until the inflow is automatically stopped by other means.
For appliances that are loaded from the front, the door is then opened if this can be achieved
manually and without damage to the door interlock system.
For all appliances, 0,5 l of water containing approximately 1 % NaCl and 0,6 % of rinsing
agent, as specified in Annex AA, is poured over the top of the appliance, the controls being
placed in the on position. The controls are then operated through their working range, this
operation being repeated after a period of 5 min.
The appliance shall then withstand the electric strength test of 16.3 and inspection shall show
that there is no trace of water on insulation that could result in a reduction of clearances or
creepage distances below the values specified in Clause 29.

60335-2-7  IEC:2008+A1:2011 – 13 –

15.101 Appliances shall be constructed so that foaming does not affect electrical insulation.

Compliance is checked by the following test that is carried out immediately after that of 15.2.

The appliance is operated under the conditions specified in Clause 11 but for one complete

cycle with the programme that results in the longest period of operation. Twice the quantity

of detergent necessary for normal washing is added, the composition of which is specified in

Annex AA.
The appliance is operated under the conditions specified in Clause 11 but at rated voltage for

one complete cycle with the programme that results in the longest period of operation. A

quantity of detergent necessary to cause foaming is added. The composition of the detergent
is specified in Annex AA.
For appliances incorporating a detergent dispenser, the solution is added manually at the
point in the cycle when it would normally be dispensed automatically. For other appliances,
the solution is added before starting the cycle.
The appliance shall then withstand the electric strength test of 16.3.
The appliance is kept in a test room having a normal atmosphere for 24 h before being
subjected to the test of 15.3.
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is replaced by the following.
18.101 Appliances shall be constructed so that the lid or door interlock withstands the
stresses to which it may be exposed in normal use.
Compliance is checked by the following test.

The lid or door is opened as in normal use and the force applied to the handle, or actuating
means of the release mechanism, is measured. The force required to close the lid or door is
also measured.
The lid or door is then subjected to 10 000 cycles of opening and closing. For the first 6 000
cycles, the appliance is supplied at rated voltage and operated so that the interlock
mechanism is energized and de-energized each cycle. For the last 4 000 cycles, the
appliance is not connected to the supply mains. For appliances having a drying function, the
total number of cycles is increased to 13 000, the first 9 000 cycles being carried out with the
interlock mechanism energized and de-energized each cycle.
If the interlock complies with IEC 60730-2-12, the appliance is not connected to the supply
mains during this test. If the interlock operates more than once during normal operation, it is
operated for this number of times during each cycle.

– 14 – 60335-2-7  IEC:2008+A1:2011

Lids are opened each time by approximately 45° and doors by 90°, the speed of opening

being approximately 1,5 m/s. The force applied to open the lid or door is twice the measured

opening force, with a minimum of 50 N and a maximum of 200 N.

Doors are closed at a speed of approximately 1,5 m/s, the force applied being five times the

measured closing force, with a minimum of 50 N and a maximum of 200 N. Lids are allowed to

close under their own weight but if they fail to latch, a force of five times the measured closing

force is applied, with a minimum of 50 N and a maximum of 200 N.

After the tests, compliance with the relevant requirements of 20.103 to 20.105 shall not be

impaired.
18.102 The braking mechanism of appliances having a lid that can be opened during the
water extraction period shall withstand the stresses to which they may be exposed in normal
use.
Compliance is checked by the following test.
The appliance is supplied at 1,06 times rated voltage and operated under normal operation
until the motor has reached its highest speed. The lid is then fully opened. The test is
repeated after the drum has been at rest for a period long enough to ensure that the
appliance does not attain an excessive temperature.
The test is carried out 1 000 times, the textile material being re-saturated with water at least
every 250 times.
After the test, the appliance shall be fit for further use and compliance with this standard shall
not be impaired.
NOTE Forced cooling may be used to prevent excessive temperatures and to shorten the test.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Addition:
For appliances incorporating a programmer or a timer, the tests of 19.2 and 19.3 are replaced
by the test of 19.101.
The test of 19.7 is not carried out on motors driving moving parts of an oscillating agitator.
Appliances not intended for connection to the hot water supply and not provided with heating
elements are also subjected to the test of 19.102.
19.2 Addition:
Restricted heat dissipation is obtained without water in the appliance or with just sufficient
water to cover the heating elements, whichever is the more unfavourable.
19.7 Addition:
Appliances without a programmer or timer are operated for 5 min.

60335-2-7  IEC:2008+A1:2011 – 15 –

19.9 Not applicable. Addition:

The running overload test is carried out on appliances that have overload protective devices
incorporating electronic circuits to protect the windings of the drum motor. However, the test
is not carried out if the protective device senses the winding temperature directly.

NOTE Measuring winding resistance or winding current is not directly measuring the winding temperature.

The appliance is operated under the conditions of Clause 11 for one cycle. The load is then
increased so that the current through the motor windings is raised by 10 %. The appliance is
operated again for the same cycle, the supply voltage being maintained at its original value.

The load is again increased and the test is repeated until the protective device incorporating

the electronic circuit operates or the motor stalls.
19.13 Addition:
The textile material shall not ignite and shall not show any charring or glowing.
NOTE 101 Light brown colouring of the textile material or slight emission of smoke is ignored.
During the tests of 19.101 and 19.102, the temperature of windings shall not exceed the
values specified in Table 8.
The appliance shall comply with the appropriate requirements of 20.103 to 20.105 if it can still
be operated.
19.101 The appliance is supplied at rated voltage and operated under normal operation.
Any fault condition or unexpected operation that may be applied in normal use is introduced.
The fault conditions and unexpected operations to be applied are:
– the programmer stopping in any position;
– disconnection and reconnection of one or more phases of the supply during any part of the
programme;
– open-circuiting or short-circuiting of components;
– failure of a magnetic valve;
– failure or blocking the mechanical parts of a water-level switch. This fault condition is not
applied if
• the cross-sectional area of the tube supplying the air chamber is greater than 500 mm

with a minimum dimension of 10 mm,
• the outlet of the chamber is at least 20 mm above the highest water level, and
• the tube connecting the air chamber to the water-level switch is fixed so that there is no
likelihood of bending or pinching;
– puncture of the capillary tube of a thermostat.
If operation without water in the appliance is a more unfavourable condition for starting any
programme, the tests with that programme are carried out with the water valve closed. This
valve is not closed after the programme has started to operate.
NOTE The fault condition with
– the automatic filling device held open is covered by 15.2;
– thermal controls short-circuited is covered by 19.4;
– motor capacitors short-circuited or open-circuited is covered by 19.7;

– 16 – 60335-2-
...

IEC 60335-2-7
Edition 7.0 2008-06
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –
Part 2-7: Particular requirements for washing machines

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-7: Règles particulières pour les machines à laver le linge

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by

any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or

IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
 Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
 Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
 Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
 Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 60335-2-7
Edition 7.0 2008-06
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –
Part 2-7: Particular requirements for washing machines

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-7: Règles particulières pour les machines à laver le linge

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 97.060; 13.120 ISBN 2-8318-9831-5

IEC 60335-2-7
Edition 7.0 2008-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-7: Particular requirements for washing machines

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-7: Règles particulières pour les machines à laver le linge

– 2 – 60335-2-7 © IEC:2008
CONTENTS
FOREWORD.3

INTRODUCTION.6

1 Scope.7

2 Normative references .8

3 Definitions .8

4 General requirement.9

5 General conditions for the tests .9

6 Classification.9
7 Marking and instructions.9
8 Protection against access to live parts.10
9 Starting of motor-operated appliances .10
10 Power input and current .10
11 Heating .10
12 Void.11
13 Leakage current and electric strength at operating temperature.12
14 Transient overvoltages .12
15 Moisture resistance .12
16 Leakage current and electric strength.13
17 Overload protection of transformers and associated circuits .13
18 Endurance.13
19 Abnormal operation .14
20 Stability and mechanical hazards .16
21 Mechanical strength .17
22 Construction .18
23 Internal wiring.19
24 Components .19
25 Supply connection and external flexible cords .19
26 Terminals for external conductors.19
27 Provision for earthing .20

28 Screws and connections .20
29 Clearances, creepage distances and solid insulation .20
30 Resistance to heat and fire.20
31 Resistance to rusting.20
32 Radiation, toxicity and similar hazards.20

Annexes .21
Annex AA (normative) Detergent and rinsing agent.22
Annex BB (normative) Ageing test for elastomeric parts.24
Annex CC (normative) Detergent free electrolyser washing machines.26
Annex DD (informative) Washing machines incorporating a power driven wringer .30
Bibliography.32

60335-2-7 © IEC:2008 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-7: Particular requirements for washing machines

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60335 has been prepared by IEC technical committee
61: Safety of household and similar electrical appliances.
This seventh edition cancels and replaces the sixth edition published in 2002 and its
Amendment 1 (2004) and Amendment 2 (2006). It constitutes a technical revision.

– 4 – 60335-2-7 © IEC:2008
The principal changes in this edition as compared with the sixth edition of IEC 60335-2-7 are
as follows (minor changes are not listed):

– the text of some notes in the identified subclauses has been converted to normative text

(3.1.9, 5.7, 10.1, 10.2, 11.7, 18.101, 19.101, 20.101, 20.103, 22.6, 22.101, 22.103,

22.104, 23.101, AA.1, AA.2 and Clause 4 of Annex BB);

– the spillage test has been made applicable to all washing machines (15.2);

– additional requirements concerning the accessibility of mechanical release mechanisms
have been added (22.105);
– requirements for washing machines employing an electrolyte, instead of detergent, have

been introduced in Annex CC;
– the requirements for power driven wringers have been moved to informative Annex DD.
The text of this standard is based on the following documents:
FDIS Report on voting
61/3564/FDIS 61/3653/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric washing
machines.
NOTE 2 The following annexes contain provisions suitably modified from other IEC or ISO standards.
Annex AA Detergent and rinsing agent IEC 60436 and IEC 60456
Annex BB Ageing test for elastomeric parts ISO 1817
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.

NOTE 3 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 4 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.

60335-2-7 © IEC:2008 – 5 –
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.

The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 5 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.
The following differences exist in the countries indicated below.
– 3.1.9: Different size cloths are used. The initial water temperature for machines without heating elements and
without a wringer is 71 °C (USA).
– 6.1: Class 01 appliances are allowed (China and Japan).
– 6.2: IPX0 appliances are allowed (Canada and USA).
– 11.7: The test durations are different (USA).
– 15.101: The test is different (USA).
– 19.7: Appliances without a programmer are operated until steady conditions are established (USA).
– 19.101: A redundant set of contacts is not required (USA).
– 22.6: The test is different (USA).
– 22.101: The test is carried out at twice the permissible inlet pressure or 2,0 MPa, whichever is higher (Norway).
– 22.101: The test is not carried out (USA).
– Annex AA: The detergent and rinsing agent are different (USA).
– Annex BB: Different tests are carried out (USA).

– 6 – 60335-2-7 © IEC:2008
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
NOTE 1 For example, if appliances within the scope of this Part 2
– have a separate spin container for water extraction, IEC 60335-2-4 is also applicable as far as is reasonable;
– have a drying function, IEC 60335-2-11 is also applicable is applicable as far as is reasonable.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 2 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 3 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.

An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
60335-2-7 © IEC:2008 – 7 –
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-7: Particular requirements for washing machines

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric washing machines for household
and similar use, that are intended for washing clothes and textiles, their rated voltage being
not more than 250 V for single-phase appliances and 480 V for other appliances.
This standard also deals with the safety of electric washing machines for household and
similar use employing an electrolyte instead of detergent. Additional requirements for these
appliances are given in Annex CC.
NOTE 101 Guidance is given in Annex DD for requirements that may be used to ensure an acceptable level of
protection against electrical and thermal hazards for washing machines fitted with a power driven wringer.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as appliances intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard.
NOTE 102 Examples of such appliances are washing machines for communal use in blocks of flats or in
launderettes.
As far as is practicable, this standard deals with the common hazards presented by washing
machines that are encountered by all persons in and around the home. However, in general, it
does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 103 Attention is drawn to the fact that

– for washing machines intended to be used in vehicles or on board ships or aircraft, additional requirements
may be necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar
authorities.
NOTE 104 This standard does not apply to
– washing machines intended exclusively for industrial purposes (ISO 10472-2);
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).

– 8 – 60335-2-7 © IEC:2008
2 Normative references
This clause of Part 1 is applicable except as follows.

Addition:
IEC 60456, Clothes washing machines for household use – Methods for measuring the

performance
IEC 60730-2-12:2005, Automatic electrical controls for household and similar use – Part 2:

Particular requirements for electrically operated door locks
ISO 1817:2005, Rubber, vulcanized – Determination of the effect of liquids
3 Definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions
The appliance is filled with dry textile material having a mass equal to the maximum mass
stated in the instructions, and with the maximum quantity of water for which it is constructed.
However, if the power input or current is higher when only 50 % of the textile material is used,
the appliance is operated with this load instead if this gives more unfavourable conditions
than the full load during the test of Clause 11.
NOTE 101 For some appliances incorporating a programmer, using the 50 % reduced load may result in automatic
selection of a reduced wash programme.
The temperature of the water is
– 65 C ± 5 °C for appliances without heating elements;
– 15 °C ± 5 °C for appliances without heating elements and intended for connection to the
cold water supply only;
– 15 °C ± 5 °C for other appliances.
If the appliance does not incorporate a programmer, the water is heated to 90 °C ± 5 °C or as
high as the construction will allow if lower, before starting the first washing period.

The textile material consists of pre-washed double-hemmed cotton sheets having dimensions
2 2
approximately 700 mm × 700 mm and a specific mass between 140 g/m and 175 g/m in the
dry condition.
For impeller type washing machines, if the textile material does not move properly during
operation,
– the quantity of textile material may be reduced until the maximum power input of the motor
is attained, or
– a textile material comprising pre-washed double-hemmed cotton sheets, having
dimensions of approximately 900 mm × 900 mm and a mass between 90 g/m and
110 g/m in the dry condition, may be used.
However, for impeller type washing machines, in case of doubt, the test is carried out using
the reduced quantity of textile material.

60335-2-7 © IEC:2008 – 9 –
4 General requirement
This clause of Part 1 is applicable.

5 General conditions for the tests

This clause of Part 1 is applicable except as follows.

5.2 Addition:
The relevant tests of 21.101, 21.102 and 22.104 shall be carried out on the same appliance
as that used for the test of Clause 18.
5.3 Addition:
The test of 15.101 is carried out before the test of 15.3.
The relevant tests of 21.101 and 21.102 are carried out before the test of Clause 18. The test
of 22.104 is carried out after the test of Clause 18.
5.7 Addition:
Doubt is considered to exist if the temperature of the water is within 6 K of the boiling point
and the difference between the temperature rise of the relevant part and the limit specified
does not exceed 25 K minus the room temperature.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances shall be of class I, class II or class III.
6.2 Addition:
Appliances shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
Appliances without automatic water level control shall be marked with the maximum water
level.
Appliances not intended for connection to the hot water supply and not provided with heating
elements shall be marked with the substance of the following:
CAUTION: Do not connect to the hot water supply.

– 10 – 60335-2-7 © IEC:2008
7.10 Addition:
If the off position is only indicated by letters, the word "off" shall be used.

7.12 Addition:
The instructions shall specify the maximum mass of dry cloth in kilograms to be used in the

appliance.
7.12.1 Addition:
For washing machines having ventilation openings in the base, the installation instructions
shall state that the openings must not be obstructed by a carpet.
7.15 Addition:
The caution relating to connection to the hot water supply shall be on the appliance at its
point of attachment to the water supply.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable except as follows.
10.1 Addition:
The selected representative period is the period, such as filling with water, washing, rinsing,
water extraction, spinning or braking, during which the power input is the highest.
10.2 Addition:
The selected representative period is the period, such as filling with water, washing, rinsing,
water extraction, spinning or braking, during which the current is the highest.
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Appliances incorporating a programmer are operated for three cycles with the programme that
results in highest temperature rises, with a rest period of 4 min between cycles.

60335-2-7 © IEC:2008 – 11 –
Other appliances are operated for three cycles, with a rest period of 4 min between cycles.
Each cycle consists of the following operations:

– for appliances without means for water washing;

extraction and for washing machines with

a hand-operated wringer,
– for appliances having a single drum for  washing followed by water extraction;

washing and water extraction,
– for appliances having separate drums for washing and water extraction separated by

washing and water extraction that cannot an additional 4 min rest period;

be used simultaneously,
– for appliances having separate drums for washing together with water extraction so
washing and water extraction that can be that the operations terminate simultaneously;
used simultaneously,
– for appliances having a single drum for
washing, water extraction and drying
• that allow the same quantity of textile washing followed by water extraction,
material to be washed and dried in the followed by drying;
drum,
• that, according to the instructions, washing followed by water extraction followed
only allow a portion of the washed by two drying periods, with an additional rest
textile material to be dried in the period of 4 min before each drying period. In
drum, this case only two cycles of operation are
carried out.
For appliances incorporating a timer, the washing period, the water extraction period and the
drying period are equal to the maximum period allowed by the timer.
For appliances without a timer,
– the washing period has a duration of
• 6 min, for washing machines of the continuously rotating impeller type,
• 18 min, for washing machines of the agitator type,
• 25 min for washing machines of the drum type, unless a longer period is stated in the
instructions;
– the water extraction period has a duration of 5 min.
The rest period, including any braking time, has a duration of 4 min.

After the specified sequence of operation, discharge pumps that are driven by a separate
motor and switched on and off manually, are subjected to three operating periods separated
by rest periods of 4 min. Each operating period is equal to 1,5 times the period necessary to
empty the appliance when filled to the maximum normal water level. The outlet of the water
discharge pipe is 900 mm above the floor.
12 Void
– 12 – 60335-2-7 © IEC:2008
13 Leakage current and electric strength at operating temperature

This clause of Part 1 is applicable except as follows.

13.2 Modification:
For stationary class I appliances, the leakage current shall not exceed 3,5 mA, or 1 mA/kW

of rated power input with a limit of 5 mA, whichever is greater.

14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.2 Replacement:
Appliances shall be constructed so that spillage of liquid in normal use does not affect their
electrical insulation even if an inlet valve fails to close.
Compliance is checked by the following test.
Appliances with type X attachment, except those having a specially prepared cord, are fitted
with the lightest permissible type of flexible cord of the smallest cross-sectional area specified
in Table 13.
Appliances intended to be filled with water by the user are completely filled with water
containing approximately 1 % NaCl. A further quantity of this solution equal to 15 % of the
capacity of the appliance or 0,25 l, whichever is greater, is poured in steadily over a period of
1 min.
Other appliances are operated until the maximum water level is reached, and 5 g of the
detergent specified in Annex AA is added for each litre of water in the appliance. The inlet
valve is held open and the filling is continued for 15 min after first evidence of overflow or
until the inflow is automatically stopped by other means.
For appliances that are loaded from the front, the door is then opened if this can be achieved
manually and without damage to the door interlock system.
For all appliances, 0,5 l of water containing approximately 1 % NaCl and 0,6 % of rinsing
agent, as specified in Annex AA, is poured over the top of the appliance, the controls being
placed in the on position. The controls are then operated through their working range, this
operation being repeated after a period of 5 min.
The appliance shall then withstand the electric strength test of 16.3 and inspection shall show
that there is no trace of water on insulation that could result in a reduction of clearances or
creepage distances below the values specified in Clause 29.

60335-2-7 © IEC:2008 – 13 –
15.101 Appliances shall be constructed so that foaming does not affect electrical insulation.

Compliance is checked by the following test that is carried out immediately after that of 15.2.

The appliance is operated under the conditions specified in Clause 11 but for one complete

cycle with the programme that results in the longest period of operation. Twice the quantity

of detergent necessary for normal washing is added, the composition of which is specified in

Annex AA.
For appliances incorporating a detergent dispenser, the solution is added manually at the

point in the cycle when it would normally be dispensed automatically. For other appliances,

the solution is added before starting the cycle.
The appliance shall then withstand the electric strength test of 16.3.
The appliance is kept in a test room having a normal atmosphere for 24 h before being
subjected to the test of 15.3.
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is replaced by the following.
18.101 Appliances shall be constructed so that the lid or door interlock withstands the
stresses to which it may be exposed in normal use.
Compliance is checked by the following test.
The lid or door is opened as in normal use and the force applied to the handle, or actuating
means of the release mechanism, is measured. The force required to close the lid or door is
also measured.
The lid or door is then subjected to 10 000 cycles of opening and closing. For the first 6 000
cycles, the appliance is supplied at rated voltage and operated so that the interlock
mechanism is energized and de-energized each cycle. For the last 4 000 cycles, the
appliance is not connected to the supply mains. For appliances having a drying function, the
total number of cycles is increased to 13 000, the first 9 000 cycles being carried out with the
interlock mechanism energized and de-energized each cycle.
If the interlock complies with IEC 60730-2-12, the appliance is not connected to the supply
mains during this test. If the interlock operates more than once during normal operation, it is
operated for this number of times during each cycle.
Lids are opened each time by approximately 45° and doors by 90°, the speed of opening
being approximately 1,5 m/s. The force applied to open the lid or door is twice the measured
opening force, with a minimum of 50 N and a maximum of 200 N.

– 14 – 60335-2-7 © IEC:2008
Doors are closed at a speed of approximately 1,5 m/s, the force applied being five times the

measured closing force, with a minimum of 50 N and a maximum of 200 N. Lids are allowed to

close under their own weight but if they fail to latch, a force of five times the measured closing

force is applied, with a minimum of 50 N and a maximum of 200 N.

After the tests, compliance with the relevant requirements of 20.103 to 20.105 shall not be

impaired.
18.102 The braking mechanism of appliances having a lid that can be opened during the

water extraction period shall withstand the stresses to which they may be exposed in normal

use.
Compliance is checked by the following test.
The appliance is supplied at 1,06 times rated voltage and operated under normal operation
until the motor has reached its highest speed. The lid is then fully opened. The test is
repeated after the drum has been at rest for a period long enough to ensure that the
appliance does not attain an excessive temperature.
The test is carried out 1 000 times, the textile material being re-saturated with water at least
every 250 times.
After the test, the appliance shall be fit for further use and compliance with this standard shall
not be impaired.
NOTE Forced cooling may be used to prevent excessive temperatures and to shorten the test.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Addition:
For appliances incorporating a programmer or a timer, the tests of 19.2 and 19.3 are replaced
by the test of 19.101.
The test of 19.7 is not carried out on motors driving moving parts of an oscillating agitator.
Appliances not intended for connection to the hot water supply and not provided with heating
elements are also subjected to the test of 19.102.

19.2 Addition:
Restricted heat dissipation is obtained without water in the appliance or with just sufficient
water to cover the heating elements, whichever is the more unfavourable.
19.7 Addition:
Appliances without a programmer or timer are operated for 5 min.
19.9 Not applicable.
60335-2-7 © IEC:2008 – 15 –
19.13 Addition:
The textile material shall not ignite and shall not show any charring or glowing.

NOTE 101 Light brown colouring of the textile material or slight emission of smoke is ignored.

During the tests of 19.101 and 19.102, the temperature of windings shall not exceed the

values specified in Table 8.
The appliance shall comply with the appropriate requirements of 20.103 to 20.105 if it can still

be operated.
19.101 The appliance is supplied at rated voltage and operated under normal operation.
Any fault condition or unexpected operation that may be applied in normal use is introduced.
The fault conditions and unexpected operations to be applied are:
– the programmer stopping in any position;
– disconnection and reconnection of one or more phases of the supply during any part of the
programme;
– open-circuiting or short-circuiting of components;
– failure of a magnetic valve;
– failure or blocking the mechanical parts of a water-level switch. This fault condition is not
applied if
• the cross-sectional area of the tube supplying the air chamber is greater than 500 mm
with a minimum dimension of 10 mm,
• the outlet of the chamber is at least 20 mm above the highest water level, and
• the tube connecting the air chamber to the water-level switch is fixed so that there is no
likelihood of bending or pinching;
– puncture of the capillary tube of a thermostat.
If operation without water in the appliance is a more unfavourable condition for starting any
programme, the tests with that programme are carried out with the water valve closed. This
valve is not closed after the programme has started to operate.
NOTE The fault condition with
– the automatic filling device held open is covered by 15.2;

– thermal controls short-circuited is covered by 19.4;
– motor capacitors short-circuited or open-circuited is covered by 19.7;
– the failure of door interlocks is covered by 24.1.4.
19.102 Appliances not intended for connection to the hot water supply and not provided with
heating elements are operated under the conditions of Clause 11, except that they are
supplied at rated voltage and filled with water at a temperature of 65 °C ± 5 °C.

– 16 – 60335-2-7 © IEC:2008
20 Stability and mechanical hazards

This clause of Part 1 is applicable except as follows.

20.1 Modification:
The appliance is empty or filled as specified for normal operation, whichever is more

unfavourable. Doors and lids are closed and any castors turned to the most unfavourable

position.
20.101 Washing machines of the drum type that are loaded from the top through an opening
with a hinged lid shall incorporate an interlock that de-energizes the motor before the lid
opening exceeds 50 mm.
If a removable or sliding lid is provided, the motor shall be de-energized as soon as the lid is
removed or displaced and it shall not be possible to start the motor unless the lid is in the
closed position.
The interlock shall be constructed so that unexpected operation of the appliance is unlikely
unless the lid is in the closed position.
Compliance is checked by inspection, by measurement and by the following test.
Test probe B of IEC 61032 is applied in order to try and release any interlock that is needed
to comply with the requirement. The interlock shall not release.
20.102 Appliances shall not be adversely affected by an unbalanced load.
Compliance is checked by the following test.
The appliance is placed on a horizontal support and a load having a mass of 0,2 kg or 10 % of
the maximum mass of the cloth specified in the instructions, whichever is greater, is fixed to
the inside wall of the drum half-way along its length.
The appliance is supplied at rated voltage and operated during the water extraction period.
The test is carried out four times, the load being moved each time through an angle of 90°
around the wall of the drum.
The appliance shall not overturn and the drum shall not hit other parts except the enclosure.
After the test, the appliance shall be fit for further use.

20.103 For washing machines of the drum type that are loaded from the front or from the
top, the door or lid shall be interlocked so that the appliance can only be operated when the
door or lid is in the closed po
...
