IEC 62642-2-73:2015

Alarm systems - Intrusion and hold-up systems - Part 2-73: Intrusion detectors - Glass break detectors (active)

IEC 62642-2-73:2015 defines active surface mounted glass break detectors installed in buildings and provides for security grades 1 to 4 (see IEC 62642-1), specific or non-specific wired or wire-free detectors, and uses environmental classes I to IV (see IEC 62599-1).

Systèmes d'alarme - Systèmes d'alarme contre l'intrusion et les hold-up - Partie 2-73: Détecteurs d'intrusion - Détecteurs de bris de glace (actifs)

L'IEC 62642-2-73:2015 concerne les détecteurs de bris de vitre actifs montés en surface installés dans les bâtiments, décrit les détecteurs câblés ou sans fil spécifiques ou non des grades de protection 1 à 4 (voir l'IEC 62642-1) et utilise les classes d'environnement I à IV (voir l'IEC 62599-1).

General Information

• Status: Published
• Publication Date: 06-Oct-2015
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 13.320 - Alarm and warning systems
• Technical Committee: TC 79 - Alarm and electronic security systems
• Current Stage: PPUB - Publication issued
• Completion Date: 07-Oct-2015

Standards Content (sample)

IEC 62642-2-73
Edition 1.0 2015-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Alarm systems – Intrusion and hold-up systems –
Part 2-73: Intrusion detectors – Glass break detectors (active)
Systèmes d'alarme – Systèmes d'alarme contre l’intrusion et les hold-up –
Partie 2-73: Détecteurs d'intrusion – Détecteurs de bris de glace (actifs)
IEC 62642-2-73:2015-10(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2015 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and

Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15

documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International

iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in

variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions

committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries

and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: [e-mail].
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC

en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et

comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus

projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

[e-mail].
---------------------- Page: 2 ----------------------
IEC 62642-2-73
Edition 1.0 2015-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Alarm systems – Intrusion and hold-up systems –
Part 2-73: Intrusion detectors – Glass break detectors (active)
Systèmes d'alarme – Systèmes d'alarme contre l’intrusion et les hold-up –
Partie 2-73: Détecteurs d'intrusion – Détecteurs de bris de glace (actifs)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.320 ISBN 978-2-8322-2918-7

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

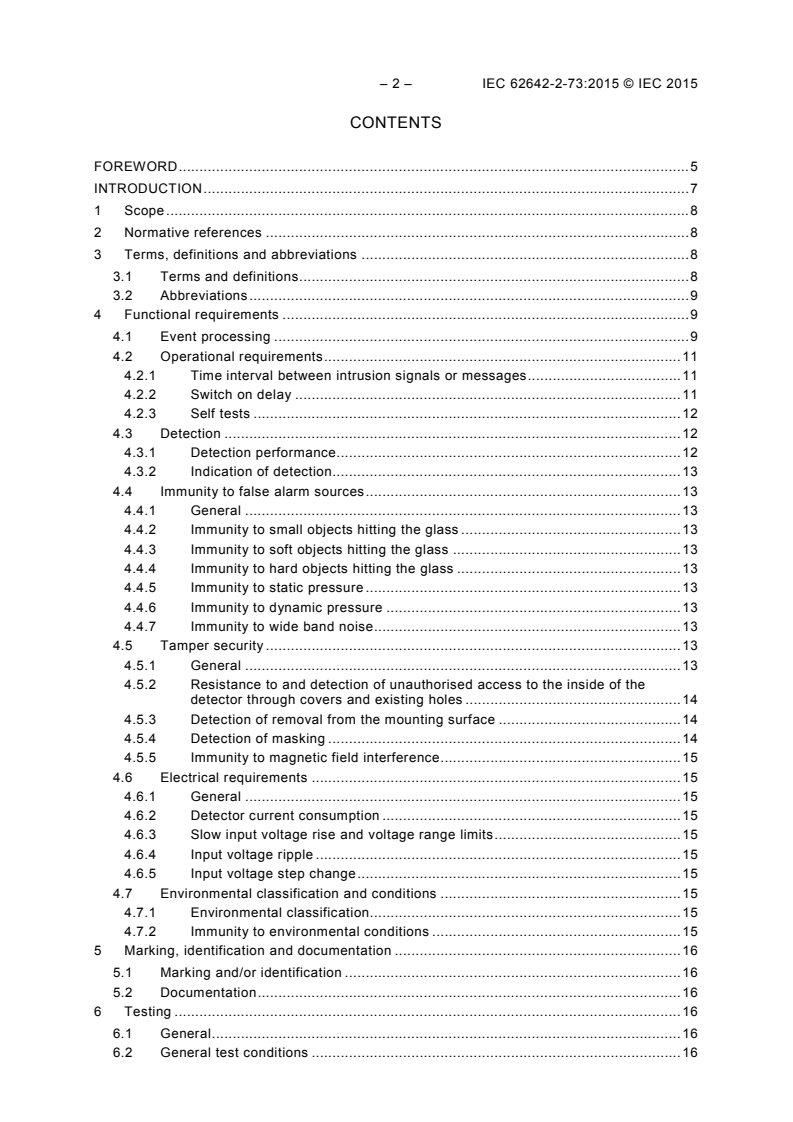

– 2 – IEC 62642-2-73:2015 © IEC 2015
CONTENTS

FOREWORD ........................................................................................................................... 5

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms, definitions and abbreviations ............................................................................... 8

3.1 Terms and definitions .............................................................................................. 8

3.2 Abbreviations .......................................................................................................... 9

4 Functional requirements .................................................................................................. 9

4.1 Event processing .................................................................................................... 9

4.2 Operational requirements ...................................................................................... 11

4.2.1 Time interval between intrusion signals or messages ..................................... 11

4.2.2 Switch on delay ............................................................................................. 11

4.2.3 Self tests ....................................................................................................... 12

4.3 Detection .............................................................................................................. 12

4.3.1 Detection performance................................................................................... 12

4.3.2 Indication of detection.................................................................................... 13

4.4 Immunity to false alarm sources ............................................................................ 13

4.4.1 General ......................................................................................................... 13

4.4.2 Immunity to small objects hitting the glass ..................................................... 13

4.4.3 Immunity to soft objects hitting the glass ....................................................... 13

4.4.4 Immunity to hard objects hitting the glass ...................................................... 13

4.4.5 Immunity to static pressure ............................................................................ 13

4.4.6 Immunity to dynamic pressure ....................................................................... 13

4.4.7 Immunity to wide band noise .......................................................................... 13

4.5 Tamper security .................................................................................................... 13

4.5.1 General ......................................................................................................... 13

4.5.2 Resistance to and detection of unauthorised access to the inside of the

detector through covers and existing holes .................................................... 14

4.5.3 Detection of removal from the mounting surface ............................................ 14

4.5.4 Detection of masking ..................................................................................... 14

4.5.5 Immunity to magnetic field interference .......................................................... 15

4.6 Electrical requirements ......................................................................................... 15

4.6.1 General ......................................................................................................... 15

4.6.2 Detector current consumption ........................................................................ 15

4.6.3 Slow input voltage rise and voltage range limits ............................................. 15

4.6.4 Input voltage ripple ........................................................................................ 15

4.6.5 Input voltage step change .............................................................................. 15

4.7 Environmental classification and conditions .......................................................... 15

4.7.1 Environmental classification........................................................................... 15

4.7.2 Immunity to environmental conditions ............................................................ 15

5 Marking, identification and documentation ..................................................................... 16

5.1 Marking and/or identification ................................................................................. 16

5.2 Documentation ...................................................................................................... 16

6 Testing .......................................................................................................................... 16

6.1 General ................................................................................................................. 16

6.2 General test conditions ......................................................................................... 16

---------------------- Page: 4 ----------------------
IEC 62642-2-73:2015 © IEC 2015 – 3 –

6.2.1 Standard laboratory conditions for testing ...................................................... 16

6.2.2 General detection testing environment and procedures .................................. 17

6.3 Basic detection test ............................................................................................... 17

6.3.1 General ......................................................................................................... 17

6.3.2 Basic test source ........................................................................................... 17

6.3.3 Basic detection test method ........................................................................... 18

6.4 Performance tests ................................................................................................. 18

6.4.1 General ......................................................................................................... 18

6.4.2 Verification of detection performance ............................................................. 18

6.4.3 Hole drilling with a diamond hole saw ............................................................ 19

6.4.4 Glass cutting ................................................................................................. 20

6.5 Switch-on delay, time interval between signals, and indication of detection ........... 20

6.6 Fault condition signals or messages: self tests ..................................................... 20

6.7 Tests of immunity to false alarm sources .............................................................. 21

6.7.1 General ......................................................................................................... 21

6.7.2 Immunity to small objects hitting the glass ..................................................... 21

6.7.3 Immunity to soft objects hitting the glass ....................................................... 22

6.7.4 Immunity to hard objects hitting the glass ...................................................... 22

6.7.5 Immunity to static pressure ............................................................................ 23

6.7.6 Immunity to dynamic pressure ....................................................................... 23

6.7.7 Immunity to wide band noise based using flat steel rulers .............................. 24

6.7.8 Immunity to wide band noise based using IC’s ............................................... 24

6.8 Tamper security .................................................................................................... 25

6.8.1 General ......................................................................................................... 25

6.8.2 Prevention of unauthorised access to the inside of the detector through

covers and existing holes .............................................................................. 25

6.8.3 Detection of removal from the mounting surface ............................................ 25

6.8.4 Resistance to magnetic field interference ...................................................... 25

6.8.5 Detection of masking ..................................................................................... 25

6.9 Electrical tests ...................................................................................................... 26

6.9.1 General ......................................................................................................... 26

6.9.2 Detector current consumption ........................................................................ 26

6.9.3 Slow input voltage change and input voltage range limits .............................. 26

6.9.4 Input voltage ripple ........................................................................................ 27

6.9.5 Input voltage step change .............................................................................. 27

6.9.6 Total loss of power supply ............................................................................. 27

6.10 Environmental classification and conditions .......................................................... 27

6.11 Marking, identification and documentation ............................................................ 29

6.11.1 Marking and/or identification .......................................................................... 29

6.11.2 Documentation .............................................................................................. 29

Annex A (normative) Catalogue of standard glass types ...................................................... 30

Annex B (informative) List of small tools suitable for testing immunity of casing to

attack.................................................................................................................................... 31

Annex C (normative) Dimensions and requirements of a standard test magnet .................... 32

C.1 Reference documents ........................................................................................... 32

C.2 Requirements ....................................................................................................... 32

Annex D (normative) Immunity test: small objects hit sensitivity ........................................... 35

Annex E (normative) Immunity test: soft objects hit sensitivity.............................................. 36

Annex F (normative) Immunity test: hard objects hit sensitivity ............................................ 37

---------------------- Page: 5 ----------------------
– 4 – IEC 62642-2-73:2015 © IEC 2015

Annex G (normative) Immunity test: static pressure sensitivity ............................................. 38

Annex H (normative) Immunity test: dynamic pressure sensitivity......................................... 39

Annex I (normative) General testing matrix .......................................................................... 40

Annex J (normative) Performance test setup and alternative performance test setup ........... 42

J.1 Performance test setup ......................................................................................... 42

J.2 Alternative performance test setup ........................................................................ 43

Annex K (normative) Performance sensitivity test ................................................................ 45

Bibliography .......................................................................................................................... 46

Figure C.1 – Test magnet – Magnet type 1 ........................................................................... 33

Figure C.2 – Test magnet – Magnet type 2 ........................................................................... 34

Figure D.1 – Immunity test setup for small object hit sensitivity ............................................. 35

Figure E.1 – Immunity test setup for soft object hit sensitivity ............................................... 36

Figure F.1 – Immunity test setup for hard object hit sensitivity .............................................. 37

Figure G.1 – Immunity test setup for static pressure sensitivity ............................................. 38

Figure H.1 – Immunity test setup for dynamic pressure sensitivity ......................................... 39

Figure J.1 – Performance test setup ..................................................................................... 42

Figure J.2 – Alternative performance test setup .................................................................... 44

Figure K.1 – Combined sensor element surface mounted glass break detectors test

setup .................................................................................................................................... 45

Figure K.2 – Sender and receiver pair surface mounted glass break detectors test

setup .................................................................................................................................... 45

Table 1 – Events to be processed by grade .......................................................................... 10

Table 2 – Generation of Indication signals or messages........................................................ 11

Table 3 – Performance test requirements .............................................................................. 12

Table 4 – Tamper security requirements ............................................................................... 14

Table 5 – Electrical requirements .......................................................................................... 15

Table 6 – Wide band noise simulation based on flat steel rulers ........................................... 24

Table 7 – Operational tests ................................................................................................... 28

Table 8 – Endurance tests .................................................................................................... 28

Table A.1 – Standard glass types.......................................................................................... 30

Table J.1 – Performance test matrix ...................................................................................... 43

Table J.2 – Alternative performance test matrix .................................................................... 43

---------------------- Page: 6 ----------------------
IEC 62642-2-73:2015 © IEC 2015 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ALARM SYSTEMS – INTRUSION AND HOLD-UP SYSTEMS –
Part 2-73: Intrusion detectors – Glass break detectors (active)
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62642-2-73 has been prepared by IEC technical committee 79:

Alarm and electronic security systems.
This standard is based on EN 50131-2-7-3 (2012) and its IS1 (2014).
The text of this standard is based on the following documents:
FDIS Report on voting
79/513/FDIS 79/529/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 7 ----------------------
– 6 – IEC 62642-2-73:2015 © IEC 2015

A list of all parts in the IEC 62642 series, published under the general title Alarm systems –

Intrusion and hold-up systems, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 8 ----------------------
IEC 62642-2-73:2015 © IEC 2015 – 7 –
INTRODUCTION

This part 2-73 of the IEC 62642 series concerns intrusion and hold-up alarm systems (I&HAS)

installed in buildings. It includes devices that are installed inside or outside of the supervised

premises and mounted in indoor or outdoor environments. The other parts of this series of

standards are as follows:
Part 1 System requirements
Part 2-2 Intrusion detectors – Passive infrared detectors
Part 2-3 Intrusion detectors – Microwave detectors
Part 2-4 Intrusion detectors – Combined passive infrared / Microwave detectors
Part 2-5 Intrusion detectors – Combined passive infrared / Ultrasonic detectors
Part 2-6 Intrusion detectors – Opening contacts (magnetic)
Part 2-71 Intrusion detectors – Glass break detectors (acoustic)
Part 2-72 Intrusion detectors – Glass break detectors (passive)
Part 2-73 Intrusion detectors – Glass break detectors (active)
Part 3 Control and indicating equipment
Part 4 Warning devices

Part 5-3 Interconnections – Requirements for equipment using radio frequency techniques

Part 6 Power supplies
Part 7 Application guidelines
Part 8 Security fog devices/systems
---------------------- Page: 9 ----------------------
– 8 – IEC 62642-2-73:2015 © IEC 2015
ALARM SYSTEMS – INTRUSION AND HOLD-UP SYSTEMS –
Part 2-73: Intrusion detectors – Glass break detectors (active)
1 Scope

This part of IEC 62642 defines active surface mounted glass break detectors installed in

buildings and provides for security grades 1 to 4 (see IEC 62642-1), specific or non-specific

wired or wire-free detectors, and uses environmental classes I to IV (see IEC 62599-1). This

International Standard does not include requirements for active surface mounted glass break

detectors intended for use outdoors.
A detector complies with all the requirements of the specified grade.

Functions additional to the mandatory functions specified in this standard may be included in

the detector, providing they do not adversely influence the correct operation of the mandatory

functions.
This International Standard does not apply to system interconnections.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

IEC 60068-2-52:1984, Basic environmental testing procedures – Part 2: Tests – Test Kb: Salt

mist, cyclic (sodium, chloride solution)
IEC 62599-1, Alarm systems – Part 1: Environmental test methods

IEC 62599-2, Alarm systems – Part 2: Electromagnetic compatibility – Immunity requirements

for components of fire and security alarm systems

IEC 62642-1, Alarm systems – Intrusion and hold-up systems – Part 1: System requirements

3 Terms, definitions and abbreviations

For the purposes of this document, the terms, definitions and abbreviations given in

IEC 62642-1, as well as the following apply.
3.1 Terms and definitions
3.1.1
glass breakage

physical destruction of a glass pane, which allows intrusion to the monitored area, for

example in doors, windows or enclosures
___________

First edition. This edition has been replaced in 1996 by IEC 60068-2-52:1996, Environmental

...
