Household and similar electrical appliances - Safety - Part 2-106: Particular requirements for heated carpets and for heating units for room heating installed under removable floor coverings

IEC 60335-2-106:2021 is available as IEC 60335-2-106:2021 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 60335-2-106:2021 deals with the safety of
- portable heated carpets;
- heated carpets and similar appliances;
- heating units to heat the room in which they are located and that are intended to be installed directly under materials used as a removable floor covering such as carpet, cushion vinyl, or loose laid laminate,
their rated voltage being not more than 250 V for single-phase installations and 480 V for other installations, including direct current (DC) supplied appliances.
Attention is drawn to the fact that
- in many countries different wiring rules apply;
- for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements can be necessary;
- in many countries additional requirements are specified by the national authorities for fire protection, the national authorities for building regulations, the national health authorities, the national authorities responsible for the protection of labour and similar authorities.
This standard does not apply to
- appliances intended exclusively for industrial purposes;
- appliances intended to be used in locations where special conditions prevail, such as the presence of a corrosive or explosive atmosphere (dust, vapour or gas);
- blankets, pads and similar flexible heating appliances (IEC 60335-2-17);
- heated mats and foot warmers with an area not exceeding 0,5 m2 (IEC 60335-2-81);
- flexible sheet heating systems permanently incorporated in the floor of the building structure (IEC 60335-2-96);
- flexible heating elements incorporated in other appliances;
- battery-operated appliances.
This second edition cancels and replaces the first edition published in 2007. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) the text has been aligned with IEC 60335-1:2020;
b) some notes have been converted to normative text (Clause 1, 5.2, 5.3, 5.6, 7.12.1, 7.101, 10.1, 18.101.1, 18.101.2, 18.102.5, 19.1, 19.103, 21.1, 21.104, 21.105, 30.102);
c) requirements for portable heated carpets have been added (Clause 1, 5.2, 5.5, 6.1, 6.2, 7.1, 7.6, 7.12, 7.14, 7.101, 11.8, 15.1, 15.101, 16.1, 16.2, 16.3, 19.101, 19.102. 19.103, 21.105, 21.106, 24.1.5, 24.2, 29.3);
d) requirements for washable portable heated carpets have been added (5.3, 7.1, 7.6, 7.12, 7.14);
e) the test of 30.102 has been updated.
This Part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its amendments unless that edition precludes it; in that case, the latest edition that does not preclude it is used. It was established on the basis of the sixth edition (2020) of that standard.

Appareils électrodomestiques et analogues - Sécurité - Partie 2-106: Exigences particulières pour les tapis chauffants et les unités chauffantes installées sous des revêtements de sol amovibles, pour le chauffage des locaux

IEC 60335-2-106:2021 est disponible sous forme de IEC 60335-2-106:2021 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.L'IEC 60335-2-106:2021 traite de la sécurité des:
- tapis chauffants mobiles;
- tapis chauffants et appareils analogues;
- unités chauffantes destinées à chauffer la pièce dans laquelle elles sont situées et destinées à être installées directement sous des matériaux utilisés comme un revêtement de sol amovible tel qu'un tapis, un revêtement en vinyle ou un stratifié à pose flottante,
dont la tension assignée est inférieure ou égale à 250 V pour les installations monophasées et à 480 V pour les autres installations, y compris les appareils alimentés en courant continu.
L'attention est attirée sur le fait que:
- dans de nombreux pays, des règles d'installation différentes s'appliquent;
- pour les appareils destinés à être utilisés dans des véhicules ou à bord de navires ou d'avions, des exigences supplémentaires peuvent être nécessaires;
- dans de nombreux pays, des exigences supplémentaires sont spécifiées par les organismes nationaux responsables de la protection contre l'incendie, par les organismes nationaux responsables des règlements d'installation, par les organismes nationaux de la santé, par les organismes nationaux responsables de la protection des travailleurs et par des organismes similaires.
La présente norme ne s'applique pas
- aux appareils prévus exclusivement pour des usages industriels;
- aux appareils destinés à être utilisés dans des locaux qui présentent des conditions particulières, telles que la présence d'une atmosphère corrosive ou explosive (poussière, vapeur ou gaz);
- aux couvertures, coussins, vêtements et appareils chauffants souples analogues (IEC 60335-2-17);
- aux chancelières et carpettes chauffantes électriques dont la surface est inférieure ou égale à 0,5 m2 (IEC 60335-2-81);
- aux films souples chauffants intégrés au plancher de la structure des bâtiments (IEC 60335-2-96);
- aux éléments chauffants souples incorporés dans d'autres appareils;
- aux appareils alimentés par batteries.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) alignement du texte sur l'IEC 60335-1:2020;
b) conversion en texte normatif de certaines notes (Article 1, 5.2, 5.3, 5.6, 7.12.1, 7.101, 10.1, 18.101.1, 18.101.2, 18.102.5, 19.1, 19.103, 21.1, 21.104, 21.105, 30.102);
c) ajout d'exigences pour les tapis chauffants mobiles (Article 1, 5.2, 5.5, 6.1, 6.2, 7.1, 7.6, 7.12, 7.14, 7.101, 11.8, 15.1, 15.101, 16.1, 16.2, 16.3, 19.101, 19.102, 19.103, 21.105, 21.106, 24.1.5, 24.2, 29.3);
d) ajout d'exigences pour les tapis chauffants mobiles lavables (5.3, 7.1, 7.6, 7.12, 7.14);
e) mise à jour de l'essai du 30.102.
La présente Partie 2 doit être utilisée conjointement avec la dernière édition de l'IEC 60335-1 et ses amendements, sauf si cette édition l'exclut. Dans ce cas, la dernière édition qui n'exclut pas la présente Partie 2 est utilisée. Elle a été établie sur la base de la sixième édition (2020) de cette norme.

General Information

Status
Published
Publication Date
07-Nov-2021
Current Stage
PPUB - Publication issued
Completion Date
08-Nov-2021
Ref Project

Buy Standard

Standard
IEC 60335-2-106:2021 - Household and similar electrical appliances - Safety - Part 2-106: Particular requirements for heated carpets and for heating units for room heating installed under removable floor coverings
English and French language
89 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60335-2-106
Edition 2.0 2021-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-106: Particular requirements for heated carpets and for heating units for
room heating installed under removable floor coverings
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-106: Exigences particulières pour les tapis chauffants et
les unités chauffantes installées sous des revêtements de sol amovibles, pour
le chauffage des locaux
IEC 60335-2-106:2021-11(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch

webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 60335-2-106
Edition 2.0 2021-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-106: Particular requirements for heated carpets and for heating units for
room heating installed under removable floor coverings
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-106: Exigences particulières pour les tapis chauffants et
les unités chauffantes installées sous des revêtements de sol amovibles, pour
le chauffage des locaux
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.100.10 ISBN 978-2-8322-1043-6

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 60335-2-106:2021 © IEC 2021

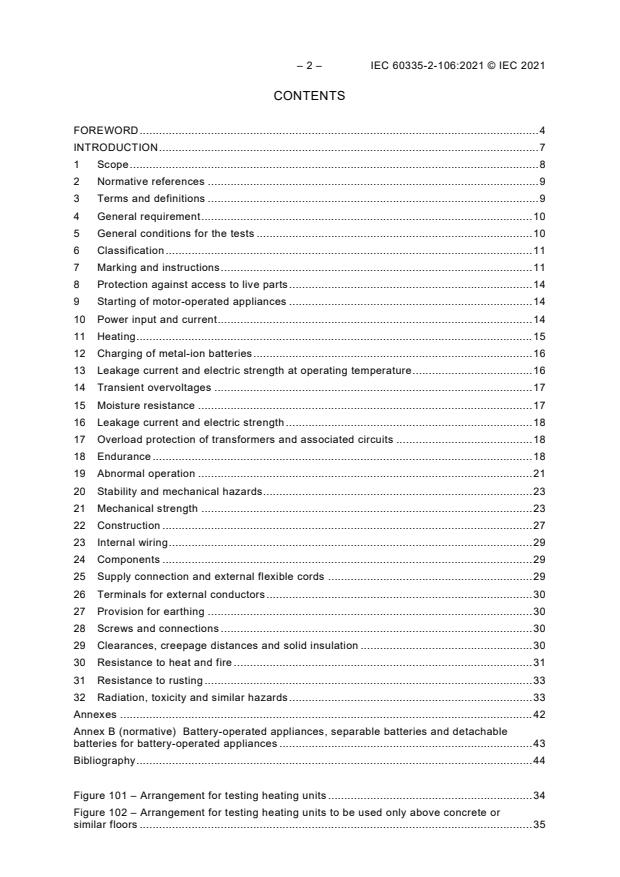

CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 9

3 Terms and definitions ...................................................................................................... 9

4 General requirement ...................................................................................................... 10

5 General conditions for the tests ..................................................................................... 10

6 Classification ................................................................................................................. 11

7 Marking and instructions ................................................................................................ 11

8 Protection against access to live parts ........................................................................... 14

9 Starting of motor-operated appliances ........................................................................... 14

10 Power input and current ................................................................................................. 14

11 Heating .......................................................................................................................... 15

12 Charging of metal-ion batteries ...................................................................................... 16

13 Leakage current and electric strength at operating temperature ..................................... 16

14 Transient overvoltages .................................................................................................. 17

15 Moisture resistance ....................................................................................................... 17

16 Leakage current and electric strength ............................................................................ 18

17 Overload protection of transformers and associated circuits .......................................... 18

18 Endurance ..................................................................................................................... 18

19 Abnormal operation ....................................................................................................... 21

20 Stability and mechanical hazards ................................................................................... 23

21 Mechanical strength ...................................................................................................... 23

22 Construction .................................................................................................................. 27

23 Internal wiring ................................................................................................................ 29

24 Components .................................................................................................................. 29

25 Supply connection and external flexible cords ............................................................... 29

26 Terminals for external conductors .................................................................................. 30

27 Provision for earthing .................................................................................................... 30

28 Screws and connections ................................................................................................ 30

29 Clearances, creepage distances and solid insulation ..................................................... 30

30 Resistance to heat and fire ............................................................................................ 31

31 Resistance to rusting ..................................................................................................... 33

32 Radiation, toxicity and similar hazards ........................................................................... 33

Annexes ............................................................................................................................... 42

Annex B (normative) Battery-operated appliances, separable batteries and detachable

batteries for battery-operated appliances .............................................................................. 43

Bibliography .......................................................................................................................... 44

Figure 101 – Arrangement for testing heating units ............................................................... 34

Figure 102 – Arrangement for testing heating units to be used only above concrete or

similar floors ......................................................................................................................... 35

---------------------- Page: 4 ----------------------
IEC 60335-2-106:2021 © IEC 2021 – 3 –

Figure 103 – Arrangement for measuring leakage current and electric strength of the

flexible part ........................................................................................................................... 36

Figure 104 – Jig for locating the contact needle .................................................................... 37

Figure 105 – Arrangement for the three-thickness fold test ................................................... 38

Figure 106 – Equipment for flexing heating elements and internal wiring .............................. 39

Figure 107 – Equipment for the spark ignition test ................................................................ 40

Figure 108 – Details of the mask ........................................................................................... 41

Table 101 – Maximum temperature rises ............................................................................... 16

---------------------- Page: 5 ----------------------
– 4 – IEC 60335-2-106:2021 © IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-106: Particular requirements for heated carpets and for heating
units for room heating installed under removable floor coverings
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC 60335-2-106 has been prepared by IEC technical committee 61: Safety of household and

similar electrical appliances. It is an International Standard.

This second edition cancels and replaces the first edition published in 2007. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
a) the text has been aligned with IEC 60335-1:2020;

b) some notes have been converted to normative text (Clause 1, 5.2, 5.3, 5.6, 7.12.1, 7.101,

10.1, 18.101.1, 18.101.2, 18.102.5, 19.1, 19.103, 21.1, 21.104, 21.105, 30.102);

c) requirements for portable heated carpets have been added (Clause 1, 5.2, 5.5, 6.1, 6.2, 7.1,

7.6, 7.12, 7.14, 7.101, 11.8, 15.1, 15.101, 16.1, 16.2, 16.3, 19.101, 19.102. 19.103, 21.105,

21.106, 24.1.5, 24.2, 29.3);
---------------------- Page: 6 ----------------------
IEC 60335-2-106:2021 © IEC 2021 – 5 –

d) requirements for washable portable heated carpets have been added (5.3, 7.1, 7.6, 7.12,

7.14);
e) the test of 30.102 has been updated.
The text of this International Standard is based on the following documents:
Draft Report on voting
61/6369/FDIS 61/6419/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

A list of all parts in the IEC 60335 series, published under the general title Household and

similar electrical appliances – Safety, can be found on the IEC website.

This Part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its

amendments unless that edition precludes it; in that case, the latest edition that does not

preclude it is used. It was established on the basis of the sixth edition (2020) of that standard.

NOTE 1 When "Part 1" is mentioned in this standard, it refers to IEC 60335-1.

This Part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to convert

that publication into the IEC standard: Particular requirements for heated carpets and for

heating units for room heating installed under removable floor coverings.

When a particular subclause of Part 1 is not mentioned in this Part 2, that subclause applies as

far as is reasonable. When this standard states "addition", "modification", or "replacement", the

relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:

– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;

– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including

those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.

Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the

associated noun are also in bold.
---------------------- Page: 7 ----------------------
– 6 – IEC 60335-2-106:2021 © IEC 2021

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing

organizations may need a transitional period following publication of a new, amended or revised IEC publication in

which to make products in accordance with the new requirements and to equip themselves for conducting new or

revised tests.

It is the recommendation of the committee that the content of this publication be adopted for implementation nationally

not earlier than 12 months or later than 36 months from the date of publication.
The following differences exist in the countries indicated below.
– 6.1: Class III heating units only are allowed (Finland).

IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it

contains colours which are considered to be useful for the correct understanding of its

contents. Users should therefore print this document using a colour printer.
---------------------- Page: 8 ----------------------
IEC 60335-2-106:2021 © IEC 2021 – 7 –
INTRODUCTION

It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

Guidance documents concerning the application of the safety requirements for appliances can

be accessed via TC 61 supporting documents on the IEC website
https://www.iec.ch/tc61/supportingdocuments

This information is given for the convenience of users of this International Standard and does

not constitute a replacement for the normative text in this standard.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in normal

use taking into account the manufacturer's instructions. It also covers abnormal situations that

can be expected in practice and takes into account the way in which electromagnetic

phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that there

is compatibility with the wiring rules when the appliance is connected to the supply mains.

However, national wiring rules may differ.

If an appliance within the scope of this standard also incorporates functions that are covered

by another Part 2 of IEC 60335, the relevant Part 2 is applied to each function separately, as

far as is reasonable. If applicable, the influence of one function on the other is taken into

account.

When a Part 2 standard does not include additional requirements to cover hazards dealt with

in Part 1, Part 1 applies.

NOTE 1 This means that the technical committees responsible for the Part 2 standards have determined that it is

not necessary to specify particular requirements for the appliance in question over and above the general

requirements.

This standard is a product family standard dealing with the safety of appliances and takes

precedence over horizontal and generic standards covering the same subject.

NOTE 2 Horizontal publications, basic safety publications and group safety publications covering a hazard are not

applicable since they have been taken into consideration when developing the general and particular requirements

for the IEC 60335 series of standards.

An appliance that complies with the text of this standard will not necessarily be considered to

comply with the safety principles of the standard if, when examined and tested, it is found to

have other features that impair the level of safety covered by these requirements.

An appliance employing materials or having forms of construction differing from those detailed

in the requirements of this standard may be examined and tested according to the intent of the

requirements and, if found to be substantially equivalent, may be considered to comply with the

standard.
NOTE 3 Standards dealing with non-safety aspects of household appliances are:
– IEC standards published by TC 59 concerning methods of measuring performance;

– CISPR 11, CISPR 14-1 and relevant IEC 61000-3 series standards concerning electromagnetic emissions;

– CISPR 14-2 concerning electromagnetic immunity;
– IEC standards published by TC 111 concerning environmental matters.
---------------------- Page: 9 ----------------------
– 8 – IEC 60335-2-106:2021 © IEC 2021
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-106: Particular requirements for heated carpets and for heating
units for room heating installed under removable floor coverings
1 Scope
This clause of Part 1 is replaced by the following.
This part of IEC 60335 deals with the safety of
– portable heated carpets;
– heated carpets and similar appliances;

– heating units to heat the room in which they are located and that are intended to be installed

directly under materials used as a removable floor covering such as carpet, cushion vinyl,

or loose laid laminate,

their rated voltage being not more than 250 V for single-phase installations and 480 V for other

installations, including direct current (DC) supplied appliances.
Attention is drawn to the fact that
– in many countries different wiring rules apply;

– for appliances intended to be used in vehicles or on board ships or aircraft, additional

requirements can be necessary;

– in many countries additional requirements are specified by the national authorities for fire

protection, the national authorities for building regulations, the national health authorities,

the national authorities responsible for the protection of labour and similar authorities.

This standard does not apply to
– appliances intended exclusively for industrial purposes;

– appliances intended to be used in locations where special conditions prevail, such as the

presence of a corrosive or explosive atmosphere (dust, vapour or gas);
– blankets, pads and similar flexible heating appliances (IEC 60335-2-17);

– heated mats and foot warmers with an area not exceeding 0,5 m (IEC 60335-2-81);

– flexible sheet heating systems permanently incorporated in the floor of the building structure

(IEC 60335-2-96);
– flexible heating elements incorporated in other appliances;
– battery-operated appliances.
---------------------- Page: 10 ----------------------
IEC 60335-2-106:2021 © IEC 2021 – 9 –
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:

IEC 60884-1:2002, Plugs and socket-outlets for household and similar purposes – Part 1:

General requirements
IEC 60884-1:2002/AMD1:2006
IEC 60884-1:2002/AMD2:2013
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1 Definitions relating to physical characteristics
3.1.9 Replacement:
operation of the appliance under the following conditions:

heating units are installed under a layer of material having a thermal resistance of

approximately 0,1 m · K/W. Heating units, the current of which can vary depending on the

length of the heating element, and those that can supply other heating units are loaded so that

the current marked on the heating element flows through the heating unit.
3.5 Definitions relating to types of appliances
3.5.101
heating unit
heating element equipped with means for connection to the supply
3.5.102
modular heating unit
prefabricated assembly consisting of a heating unit and other materials
3.5.103
controlled appliance

appliance incorporating means in the flexible part for sensing the changes in temperature when

the appliance is operated under normal operation, thus automatically controlling the average

power input
3.5.104
heated carpet

appliance having an area exceeding 0,5 m on which the user's feet or body are placed in order

to warm them
3.6 Definitions relating to parts of an appliance
3.6.101
electrode

conductive part incorporated in a flexible sheet heating element for supplying the heating

material
___________

There exists a consolidated edition 3.2:2013 that includes edition 3 and its Amendment 1 and Amendment 2.

---------------------- Page: 11 ----------------------
– 10 – IEC 60335-2-106:2021 © IEC 2021
3.6.102
flexible part

all layers of material forming the permanent enclosure of the appliance together with the heating

element, thermostats and all other current-carrying parts contained within it, which are

intended to be under or part of the floor covering
Note 1 to entry: The flexible part may be provided with a detachable cover.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:

For laminated heated carpets, an additional appliance is required for the tests of 22.103.

For heating units, two additional appliances are required for the test of 18.102. For heating

units with deposited film or printed circuit heating elements, two additional appliances are

required for the test of 21.102.

For heated carpets that incorporate a wear indicator, such as a colour change, special samples

with the textile layer worn or removed to expose the indicator are required for the tests of

Clauses 11, 13, 18 and Subclauses 19.2, 19.101, 21.101, 21.102, 21.103 and 21.104.

The tests of 21.101 and 21.104 may be carried out on separate appliances.

A 15 m length of heating element or internal wiring is required for the tests of 21.105.

5.3 Addition:

The test of 21.101 may be carried out in conjunction with the conditioning in 18.102.2.

Washable portable heated carpets are laundered twice in accordance with the instructions

before testing is started.
5.5 Addition:
If portable heated carpets
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
