Climatic field data including validation

IEC/TR 62130:2012(E), which is a technical report, provides traceable recommendations from validated field data for updating IEC 60721-2-1.

General Information

Status
Published
Publication Date
17-Sep-2012
Current Stage
PPUB - Publication issued
Start Date
18-Sep-2012
Completion Date
18-Sep-2012
Ref Project

Buy Standard

Technical report
IEC TR 62130:2012 - Climatic field data including validation
English language
30 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC/TR 62130
Edition 1.0 2012-09
TECHNICAL
REPORT
colour
inside
Climatic field data including validation
IEC/TR 62130:2012(E)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2012 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester.

If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
Useful links:

IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org

The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and

by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and

committee,…). definitions in English and French, with equivalent terms in

It also gives information on projects, replaced and additional languages. Also known as the International

withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc

Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication

details all new publications released. Available on-line and or need further assistance, please contact the

also once a month by email. Customer Service Centre: csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC/TR 62130
Edition 1.0 2012-09
TECHNICAL
REPORT
colour
inside
Climatic field data including validation
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
ICS 19.040 ISBN 978-2-83220-342-2

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – TR 62130 © IEC:2012(E)

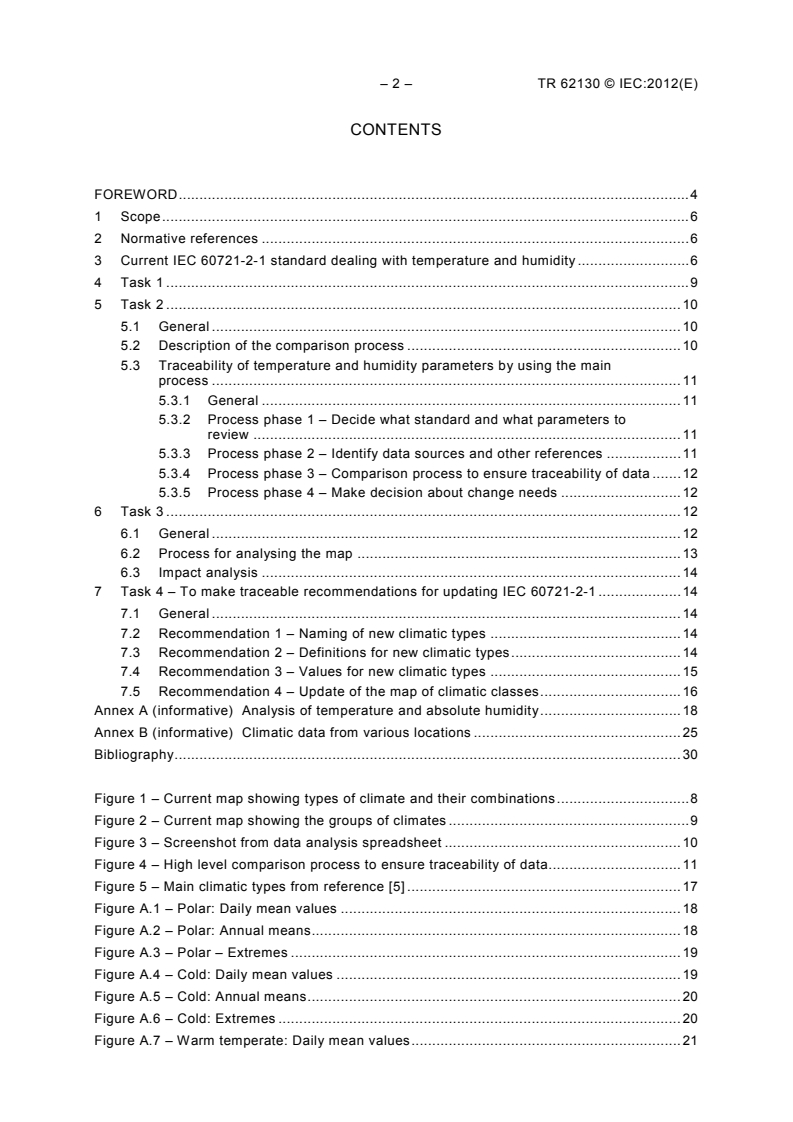

CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope ............................................................................................................................... 6

2 Normative references ....................................................................................................... 6

3 Current IEC 60721-2-1 standard dealing with temperature and humidity ........................... 6

4 Task 1 .............................................................................................................................. 9

5 Task 2 ............................................................................................................................ 10

5.1 General ................................................................................................................. 10

5.2 Description of the comparison process .................................................................. 10

5.3 Traceability of temperature and humidity parameters by using the main

process ................................................................................................................. 11

5.3.1 General ..................................................................................................... 11

5.3.2 Process phase 1 – Decide what standard and what parameters to

review ....................................................................................................... 11

5.3.3 Process phase 2 – Identify data sources and other references .................. 11

5.3.4 Process phase 3 – Comparison process to ensure traceability of data ....... 12

5.3.5 Process phase 4 – Make decision about change needs ............................. 12

6 Task 3 ............................................................................................................................ 12

6.1 General ................................................................................................................. 12

6.2 Process for analysing the map .............................................................................. 13

6.3 Impact analysis ..................................................................................................... 14

7 Task 4 – To make traceable recommendations for updating IEC 60721-2-1 .................... 14

7.1 General ................................................................................................................. 14

7.2 Recommendation 1 – Naming of new climatic types .............................................. 14

7.3 Recommendation 2 – Definitions for new climatic types ......................................... 14

7.4 Recommendation 3 – Values for new climatic types .............................................. 15

7.5 Recommendation 4 – Update of the map of climatic classes .................................. 16

Annex A (informative) Analysis of temperature and absolute humidity .................................. 18

Annex B (informative) Climatic data from various locations .................................................. 25

Bibliography .......................................................................................................................... 30

Figure 1 – Current map showing types of climate and their combinations ................................ 8

Figure 2 – Current map showing the groups of climates .......................................................... 9

Figure 3 – Screenshot from data analysis spreadsheet ......................................................... 10

Figure 4 – High level comparison process to ensure traceability of data................................ 11

Figure 5 – Main climatic types from reference [5] .................................................................. 17

Figure A.1 – Polar: Daily mean values .................................................................................. 18

Figure A.2 – Polar: Annual means ......................................................................................... 18

Figure A.3 – Polar – Extremes .............................................................................................. 19

Figure A.4 – Cold: Daily mean values ................................................................................... 19

Figure A.5 – Cold: Annual means .......................................................................................... 20

Figure A.6 – Cold: Extremes ................................................................................................. 20

Figure A.7 – Warm temperate: Daily mean values ................................................................. 21

---------------------- Page: 4 ----------------------
TR 62130 © IEC:2012(E) – 3 –

Figure A.8 – Warm temperate: Annual means ....................................................................... 21

Figure A.9 – Warm temperate: Extremes............................................................................... 21

Figure A.10 – Arid: Mean daily values ................................................................................... 22

Figure A.11 – Arid: Annual means ......................................................................................... 22

Figure A.12 – Arid: Extremes ................................................................................................ 23

Figure A.13 – Arid: Daily means ............................................................................................ 23

Figure A.14 – Arid: Annual means ......................................................................................... 24

Figure A.15 – Arid: Extremes ................................................................................................ 24

Table 1 – Types of climate by extreme daily mean values from the current standard ............... 7

Table 2 – Types of climate by annual extreme values from the current standard ..................... 7

Table 3 – Types of climate by absolute extreme value from the current standard .................... 8

Table 4 – Process phases and actions in the each phase ..................................................... 11

Table 5 – Recommended climatic types ................................................................................ 14

Table 6 – Definitions for proposed climatic types (reference [6]) ........................................... 15

Table 7 – Types of climate by extreme daily mean values ..................................................... 15

Table 8 – Types of climate by annual extreme values ........................................................... 15

Table 9 – Types of climate by absolute extreme value .......................................................... 16

Table 10 – Cross reference table between different climatic types ........................................ 17

Table B.1 – Data for polar climatic type ................................................................................ 25

Table B.2 – Data for cold climatic type .................................................................................. 26

Table B.3 – Data for temperate climatic type ......................................................................... 27

Table B.4 – Data for arid climatic type .................................................................................. 28

---------------------- Page: 5 ----------------------
– 4 – TR 62130 © IEC:2012(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CLIMATIC FIELD DATA INCLUDING VALIDATION
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. However, a

technical committee may propose the publication of a technical report when it has collected

data of a different kind from that which is normally published as an International Standard, for

example "state of the art".

IEC/TR 62130, which is a technical report, has been prepared by IEC technical committee

104: Environmental conditions, classification and methods of test.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
104/572/DTR 104/577/RVC

Full information on the voting for the approval of this technical report can be found in the

report on voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 6 ----------------------
TR 62130 © IEC:2012(E) – 5 –

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
IMPORTANT – The 'colour inside' logo on the cover page of this publication

indicates that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 7 ----------------------
– 6 – TR 62130 © IEC:2012(E)
CLIMATIC FIELD DATA INCLUDING VALIDATION
1 Scope

IEC/TR 62130, which is a technical report, provides traceable recommendations from

validated field data for updating IEC 60721-2-1.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

IEC 60721-1:1982, Classification of environmental conditions – Part 1: Environmental

parameters and their severities

IEC 60721-2-1:1982, Classification of environmental conditions – Part 2-1: Environmental

conditions appearing in nature – Temperature and humidity
Amendment 1:1987
3 Current IEC 60721-2-1 standard dealing with temperature and humidity

IEC 60721-2-1:1982 and its Amendment 1 (1987) give maps of climatic types with the

following parameters:

– mean value of the annual extreme daily mean values of temperature, humidity and highest

temperature with RH < 95 %;
– mean value of the annual extreme values of temperature, humidity and highest
temperature with RH ≥ 95 %;
– absolute extreme values of temperature, humidity and highest temperature with
RH ≥ 95 %.

Values of parameters and maps of statistical open-air climates in the geographical areas of

the world are given in Tables 1 to 3, and in Figures 1 and 2, respectively.
---------------------- Page: 8 ----------------------
TR 62130 © IEC:2012(E) – 7 –

Table 1 – Types of climate by extreme daily mean values from the current standard

Mean value of the annual extreme daily mean values
of temperature and humidity
Low temperature High temperature Highest Highest absolute
Type of climate
temperature with humidity
RH ≥ 95 %
°C °C °C
g × m
Extremely cold
–55 +26 +18 14
(except Central Antarctic)
Cold –45 +25 +13 12
Cold temperate –29 +29 +18 15
Warm temperate –15 +30 +20 17
Warm dry –10 +35 +23 20
Mild warm dry 0 +35 +24 22
Extremely warm dry +8 +43 +26 24
Warm damp +12 +35 +28 27
Warm damp, equable +17 +33 +31 30
Table 2 – Types of climate by annual extreme values from the current standard
Mean value of the annual extreme values
of temperature and humidity
Low High temperature Highest Highest absolute
Type of climate
temperature temperature with humidity
RH ≥ 95 %
°C °C °C
g × m
Extremely cold
–65 +32 +20 17
(except Central Antarctic)
Cold –50 +32 +20 18
Cold temperate –33 +34 +23 20
Warm temperate –20 +35 +25 22
Warm dry –20 +40 +27 24
Mild warm dry –5 +40 +27 25
Extremely warm dry +3 +55 +28 27
Warm damp +5 +40 +31 30
Warm damp, equable +13 +35 +33 36
---------------------- Page: 9 ----------------------
– 8 – TR 62130 © IEC:2012(E)
Table 3 – Types of climate by absolute extreme value from the current standard
Absolute extreme values
of temperature and humidity
Low High Highest Highest
Type of climate
temperature temperature temperature absolute
humidity
with RH ≥ 95 %
°C °C °C
g × m
Extremely cold
–75 +40 +24 20
(except Central Antarctic)
Cold –60 +40 +27 22
Cold temperate –45 +40 +28 25
Warm temperate –30 +40 +28 25
Warm dry –30 +45 +30 27
Mild warm dry –15 +45 +31 30
Extremely warm dry –10 +60 +31 30
Warm damp 0 +45 +35 36
Warm damp, equable +4 +40 +37 40
IEC 1696/12
Figure 1 – Current map showing types of climate and their combinations
---------------------- Page: 10 ----------------------
TR 62130 © IEC:2012(E) – 9 –
IEC 1697/12
Figure 2 – Current map showing the groups of climates
4 Task 1

The purpose of task 1 is to collect field data and to collate the validated data into a form

suitable for comparison with IEC 60721-2-1.

The field data was collected from two independent main sources. The data was organized,

arranged and analysed using a spreadsheet (Figure 3 and attachment). Annex A shows the

graphical data based on the data in Annex B. The validation process is described in details in

Clauses 5 and 6.
---------------------- Page: 11 ----------------------
– 10 – TR 62130 © IEC:2012(E)
IEC 1698/12
Figure 3 – Screenshot from data analysis spreadsheet
5 Task 2
5.1 General
The purpose of task 2 is to ensure traceability of the comparison process.
5.2 Description of the comparison process

The high level process for updating IEC 60721-2 standards [1] is given in Figure 4. The

process has four main phases. The traceability between measured field data and values given

in the standard can be achieved by following this process. Detailed actions that were carried

out in each phase are given in Table 4. To ensure full traceability, it is crucial that all process

phases are documented and that the sources used can be found in the future.

In Phase 1, it is decided what standards will be reviewed and possibly updated. In Phase 2,

data sources are identified and data is collected with certain attributes. Analysis of data and

comparison to current values in the particular standard takes place in Phase 3. The data

comparison process is a key phase to ensure traceability of data and it can vary depending on

which parameters are in question. This phase is described in detail in Clause 6. The output of

the process (Phase 4) helps the maintenance team decide how a standard should be updated

and/or modified. The decision can also be a proposal to leave the parameters in the standard

as they are.
___________
References in square brackets refer to the Bibliography.
---------------------- Page: 12 ----------------------
TR 62130 © IEC:2012(E) – 11 –
Phase 1 – Phase 2 – Phase 3 – Phase 4 –
Decide standards Identify data Comparison Make decision
and parameters sources and other process to ensure about change
to be reviewed references traceability of data needs
IEC 1699/12
Figure 4 – High level comparison process to ensure traceability of data
Table 4 – Process phases and actions in the each phase
Process phase Actions
Phase 1. Decide what standard Decide what standard will be reviewed
and what parameters will be
Decide what parameters will be reviewed
reviewed
Document decisions

Phase 2. Identify data sources Identify data and other input sources of parameters

Identify the name of data source organization (universities, meteorological
offices or cor
...
