Electricity metering data exchange - The DLMS/COSEM suite - Part 8-4: Communication profiles for narrow-band OFDM PLC PRIME neighbourhood networks

IEC 62056-8-4:2018 specifies DLMS/COSEM communication profiles for narrow-band OFDM power line carrier PRIME neighbourhood networks using the modulation as specified in Recommendation ITU-T G.9904:2012.
Three communication profiles are specified:
• a profile using the IEC 61334-4-32 LLC layer;
• a profile using TCP-UDP/IPv4;
• a profile using TCP-UDP/IPv6.

Échange des données de comptage de l'électricité - La suite DLMS/COSEM - Partie 8-4: Profils de communication pour réseaux de voisinage OFDM PLC PRIME à bande étroite

IEC 62056-8-4:2018 spécifie les profils de communication DLMS/COSEM pour les réseaux de voisinage OFDM utilisant les courants porteurs en ligne PRIME utilisant la modulation conformément à la Recommandation UIT-T G.9904:2012.
Trois profils de communication sont spécifiés:
• un profil utilisant la couche LLC IEC 61334-4-32;
• un profil utilisant TCP-UDP/IPv4;
• un profil utilisant TCP-UDP/IPv6.

General Information

Status
Published
Publication Date
12-Dec-2018
Current Stage
PPUB - Publication issued
Completion Date
13-Dec-2018
Ref Project

Buy Standard

Standard
IEC 62056-8-4:2018 - Electricity metering data exchange - The DLMS/COSEM suite - Part 8-4: Communication profiles for narrow-band OFDM PLC PRIME neighbourhood networks
English and French language
159 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62056-8-4
Edition 1.0 2018-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Electricity metering data exchange – the DLMS/COSEM suite –
Part 8-4: Communication profiles for narrow-band OFDM PLC PRIME
neighbourhood networks
Échange des données de comptage de l'électricité – la suite DLMS/COSEM –
Partie 8-4: Profils de communication pour réseaux de voisinage OFDM PLC
PRIME à bande étroite
IEC 62056-8-4:2018-12(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais

La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des

en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées

comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et

projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc

Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette

Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:

Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62056-8-4
Edition 1.0 2018-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Electricity metering data exchange – the DLMS/COSEM suite –
Part 8-4: Communication profiles for narrow-band OFDM PLC PRIME
neighbourhood networks
Échange des données de comptage de l'électricité – la suite DLMS/COSEM –
Partie 8-4: Profils de communication pour réseaux de voisinage OFDM PLC
PRIME à bande étroite
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220.20; 35.110.01; 91.140.50 ISBN 978-2-8322-6334-1

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

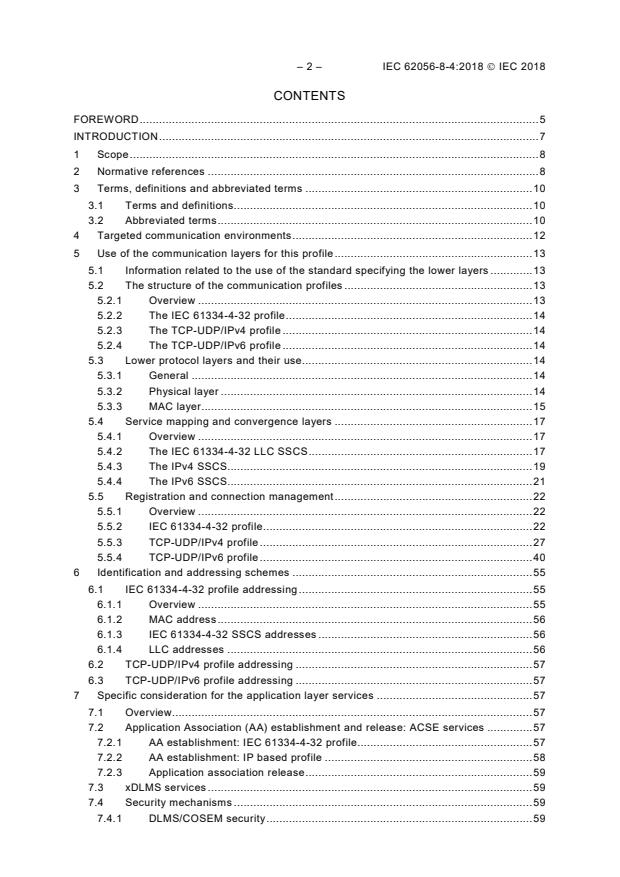

– 2 – IEC 62056-8-4:2018  IEC 2018
CONTENTS

FOREWORD ........................................................................................................................... 5

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms, definitions and abbreviated terms ...................................................................... 10

3.1 Terms and definitions ............................................................................................ 10

3.2 Abbreviated terms ................................................................................................. 10

4 Targeted communication environments .......................................................................... 12

5 Use of the communication layers for this profile ............................................................. 13

5.1 Information related to the use of the standard specifying the lower layers ............. 13

5.2 The structure of the communication profiles .......................................................... 13

5.2.1 Overview ....................................................................................................... 13

5.2.2 The IEC 61334-4-32 profile ............................................................................ 14

5.2.3 The TCP-UDP/IPv4 profile ............................................................................. 14

5.2.4 The TCP-UDP/IPv6 profile ............................................................................. 14

5.3 Lower protocol layers and their use....................................................................... 14

5.3.1 General ......................................................................................................... 14

5.3.2 Physical layer ................................................................................................ 14

5.3.3 MAC layer...................................................................................................... 15

5.4 Service mapping and convergence layers ............................................................. 17

5.4.1 Overview ....................................................................................................... 17

5.4.2 The IEC 61334-4-32 LLC SSCS ..................................................................... 17

5.4.3 The IPv4 SSCS.............................................................................................. 19

5.4.4 The IPv6 SSCS.............................................................................................. 21

5.5 Registration and connection management ............................................................. 22

5.5.1 Overview ....................................................................................................... 22

5.5.2 IEC 61334-4-32 profile ................................................................................... 22

5.5.3 TCP-UDP/IPv4 profile .................................................................................... 27

5.5.4 TCP-UDP/IPv6 profile .................................................................................... 40

6 Identification and addressing schemes .......................................................................... 55

6.1 IEC 61334-4-32 profile addressing ........................................................................ 55

6.1.1 Overview ....................................................................................................... 55

6.1.2 MAC address ................................................................................................. 56

6.1.3 IEC 61334-4-32 SSCS addresses .................................................................. 56

6.1.4 LLC addresses .............................................................................................. 56

6.2 TCP-UDP/IPv4 profile addressing ......................................................................... 57

6.3 TCP-UDP/IPv6 profile addressing ......................................................................... 57

7 Specific consideration for the application layer services ................................................ 57

7.1 Overview............................................................................................................... 57

7.2 Application Association (AA) establishment and release: ACSE services .............. 57

7.2.1 AA establishment: IEC 61334-4-32 profile...................................................... 57

7.2.2 AA establishment: IP based profile ................................................................ 58

7.2.3 Application association release ...................................................................... 59

7.3 xDLMS services .................................................................................................... 59

7.4 Security mechanisms ............................................................................................ 59

7.4.1 DLMS/COSEM security .................................................................................. 59

---------------------- Page: 4 ----------------------
IEC 62056-8-4:2018  IEC 2018 – 3 –

7.4.2 Lower layers security ..................................................................................... 59

7.5 Transferring long application messages ................................................................ 59

7.6 Media access, bandwidth and timing considerations ............................................. 60

7.7 Other considerations ............................................................................................. 60

8 Communication configuration and management ............................................................. 60

9 The COSEM application process ................................................................................... 60

10 Additional considerations for the use of this profile ........................................................ 60

Annex A (informative) Examples .......................................................................................... 61

A.1 Data exchange between two IP communication peers ........................................... 61

A.2 Joining a multicast group ...................................................................................... 63

A.3 PRIME encoding examples ................................................................................... 63

Annex B (normative) New COSEM interfaces classes and OBIS codes ................................ 76

Annex C (informative) IEC 61334-4-32 profile: Error cases during connection

establishment ................................................................................................................ 77

Annex D (normative) Convergence layer constants .............................................................. 78

Bibliography .......................................................................................................................... 79

Figure 1 – Communication architecture ................................................................................. 12

Figure 2 – OFDM PLC PRIME communication profile architectures ....................................... 14

Figure 3 – IEC 61334-4-32 SSCS services ............................................................................ 18

Figure 4 – MSC for Data services in the case of logical name referencing ............................ 19

Figure 5 – IEC 61334-4-32 SSCS ......................................................................................... 22

Figure 6 – MSC for IEC 61334-4-32 SSCS services .............................................................. 26

Figure 7 – IPv4 SSCS services ............................................................................................. 28

Figure A.1 – MSC of IPv4 SSCS services ............................................................................. 62

Figure A.2 – Joining MSC IPv4 profile ................................................................................... 63

Figure C.1 – Error cases during connection establishment .................................................... 77

Table 1 – Result values for SSCS services ........................................................................... 25

Table 2 – AR_REGISTER_S message format ....................................................................... 36

Table 3 – AR_REGISTER B message format ........................................................................ 36

Table 4 – AR_UNREGISTER_S message format .................................................................. 36

Table 5 – AR_MCAST_REG_S message format .................................................................... 36

Table 6 – AR_MCAST_REG_B message format .................................................................... 37

Table 7 – AR_MCAST_UNREG_S message format ............................................................... 37

Table 8 – AR_MCAST_UNREG_B message format ............................................................... 37

Table 9 – AR_LOOKUP_S message format ........................................................................... 38

Table 10 – AR_LOOKUP_B message format ......................................................................... 38

Table 11 – IPv4 packet format without header compression negotiated ................................. 38

Table 12 – IPv4 packet format with VJ header compression .................................................. 39

Table 13 – Connection data sent by the initiator ................................................................... 39

Table 14 – Connection data sent by the responder ............................................................... 40

Table 15 – IPv6 SSCS table entry ......................................................................................... 44

Table 16 – Mapping IPv6 precedence to PRIME MAC priority ............................................... 45

---------------------- Page: 5 ----------------------
– 4 – IEC 62056-8-4:2018  IEC 2018

Table 17 – AR_REGISTERv6_S message format .................................................................. 51

Table 18 – AR_REGISTERv6_B message format .................................................................. 51

Table 19 – AR_UNREGISTERv6_S message format ............................................................. 51

Table 20 – AR_UNREGISTERv6_B message format ............................................................. 52

Table 21 – AR_LOOKUPv6_S message format ..................................................................... 52

Table 22 – AR_LOOKUPv6_B message format ..................................................................... 52

Table 23 – AR_MCAST_REGv6_S message format .............................................................. 53

Table 24 – AR_MCAST_REGv6_B message format .............................................................. 53

Table 25 – AR_MCAST_UNREGv6_B message format ......................................................... 53

Table 26 – IPv6 Packet format without negotiated header compression ................................ 54

Table 27 – UDP/IPv6 Packet format with LOWPAN_IPHC header compression and

LOWPAN_NHC ..................................................................................................................... 54

Table 28 – IPv6 Packet format with LOWPAN_IPHC negotiated header compression ........... 54

Table 29 – IPv6 Connection signalling data sent by the initiator ............................................ 55

Table 30 – IPv6 Connection signalling data sent by the responder ........................................ 55

Table 31 – Client service access point values ....................................................................... 57

Table 32 – Server service access point values ...................................................................... 57

Table 33 – Application associations and data exchange in the IEC 61334-4-32 profile .......... 58

Table D.1 – TYPE value assignment ..................................................................................... 78

---------------------- Page: 6 ----------------------
IEC 62056-8-4:2018  IEC 2018 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRICITY METERING DATA EXCHANGE –
THE DLMS/COSEM SUITE –
Part 8-4: Communication profiles for narrow-band
OFDM PLC PRIME neighbourhood networks
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The International Electrotechnical Commission (IEC) draws attention to the fact that it is claimed that compliance

with this International Standard may involve the use of a maintenance service concerning the stack of protocols on

which the present standard IEC 62056-8-4 is based.

The IEC takes no position concerning the evidence, validity and scope of this maintenance service.

The provider of the maintenance service has assured the IEC that he is willing to provide services under

reasonable and non-discriminatory terms and conditions for applicants throughout the world. In this respect, the

statement of the provider of the maintenance service is registered with the IEC. Information may be obtained from:

PRIME Alliance
2-12, Avenue de la Renaissance
1000, Brussels/ (BE)
www.prime-alliance.org.com

International Standard IEC 62056-8-4 has been prepared by IEC technical committee 13:

Electrical energy measurement and control.
---------------------- Page: 7 ----------------------
– 6 – IEC 62056-8-4:2018  IEC 2018
The text of this standard is based on the following documents:
CDV Report on voting
13/1749/CDV 13/1763/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 62056 series, published under the general title Electricity metering

data exchange – The DLMS/COSEM suite, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 8 ----------------------
IEC 62056-8-4:2018  IEC 2018 – 7 –
INTRODUCTION
As defined in IEC 62056-1-0, the IEC 62056 DLMS/COSEM suite provides specific

communication profile standards for communication media relevant for smart metering.

Such communication profile standards specify how the COSEM data model and the

DLMS/COSEM application layer can be used on the lower, communication media-specific

protocol layers.

Communication profile standards refer to communication standards that are part of the

IEC 62056 DLMS/COSEM suite or to any other open communication standard.
This International Standard specifies DLMS/COSEM communication profiles using

Recommendation ITU-T G.9904:2012 Narrow-band orthogonal frequency division multiplexing

power line communication transceivers for PRIME networks. It applies for devices installed on

the neighbourhood network.

It follows the rules defined in IEC 62056-5-3:2017, Annex A, and in IEC 62056-1-0 and the

IEC TS 62056-1-1 recommendations for its structure.

The communication profile specified in this document is based on the results of the European

OPEN Meter project, Topic Energy 2008.7.1.1, Project no.: 226369, www.openmeter.com, and

has been prepared by the PRIME Alliance Technical Working Group, www.prime-alliance.org.

---------------------- Page: 9 ----------------------
– 8 – IEC 62056-8-4:2018  IEC 2018
ELECTRICITY METERING DATA EXCHANGE –
THE DLMS/COSEM SUITE –
Part 8-4: Communication profiles for narrow-band
OFDM PLC PRIME neighbourhood networks
1 Scope

This part of IEC 62056 specifies DLMS/COSEM communication profiles for narrow-band

OFDM power line carrier PRIME neighbourhood networks using the modulation as specified in

Recommendation ITU-T G.9904:2012.
Three communication profiles are specified:
• a profile using the IEC 61334-4-32 LLC layer;
• a profile using TCP-UDP/IPv4;
• a profile using TCP-UDP/IPv6.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 61334-4-32:1996, Distribution automation using distribution line carrier systems – Part 4:

Data communication protocols – Section 32: Data link layer – Logical link control (LLC)

IEC 61334-4-511:2000, Distribution automation using distribution line carrier systems – Part

4-511: Data communication protocols – Systems management – CIASE protocol

IEC 62056-1-0, Electricity metering data exchange – The DLMS/COSEM suite – Part 1-0:

Smart metering standardization framework

IEC TS 62056-1-1, Electricity metering data exchange – The DLMS/COSEM suite – Part 1-1:

Template for DLMS/COSEM communication profile standards

IEC 62056-4-7:2015, Electricity metering data exchange – The DLMS/COSEM suite – Part 4-

7: DLMS/COSEM transport layer for IP networks

IEC 62056-5-3:2017, Electricity metering data exchange – The DLMS/COSEM suite – Part 5-

3: DLMS/COSEM application layer

IEC 62056-6-1, Electricity metering data exchange – The DLMS/COSEM suite – Part 6-1:

Object identification system (OBIS)

IEC 62056-6-2:2017, Electricity metering data exchange – The DLMS/COSEM suite – Part 6-

2: COSEM interface classes

IEC 62056-9-7:2013, Electricity metering data exchange – The DLMS/COSEM suite – Part 9-

7: Communication profile for TCP-UDP/IP networks
---------------------- Page: 10 ----------------------
IEC 62056-8-4:2018  IEC 2018 – 9 –

Recommendation ITU-T G.9904:2012, Series G: Transmission systems and media, digital

systems and networks Access networks – In premises networks. Narrowband orthogonal

frequency division multiplexing power line communication transceivers for PRIME networks

STD0005 – Internet Protocol
Author: J. Postel
Date: September 1981
Also: RFC0791, RFC0792, RFC0919, RFC0922, RFC0950, RFC1112
Available from: http://www.ietf.org/rfc/rfc0791.txt
STD0006 – User Datagram Protocol
Author: J. Postel
Date: 28 August 1980
Also: RFC 768
Available from: http://www.ietf.org/rfc/rfc0768.txt
STD0007 – Transmission Control Protocol
Author: J. Postel
Date: September 1981
Available from: http://www.ietf.org/rfc/rfc0793.txt
RFC 1144, Compressing TCP/IP Headers for Low Speed serial Link
Author: V. Jabobson
Date: February 1990
Available from https://tools.ietf.org/rfc/rfc1144.txt
RFC 2460, Internet Protocol, Version 6 (IPv6) Specification
Authors: S. Deering, Cisco, R. Hinden Nokia
Date: December 1998
Available from: http
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
