Printed board assemblies - Part 8: Voiding in solder joints of printed board assemblies for use in automotive electronic control units - Best practices

IEC TR 61191-8:2021(E) gives guidelines for dealing with voiding in surface-mount solder joints of printed board assemblies for use in automotive electronics. This technical report focuses exclusively on voids in solder joints connecting packaged electronic or electromechanical components with printed boards (PBs). Voids in other solder joints (e.g. in a joint between a silicon die and a substrate within an electronic component, solder joints of through-hole components, etc.) are not considered. The technical background for the occurrence of voids in solder joints, the potential impact of voiding on printed board assembly reliability and functionality, the investigation of voiding levels in sample- and series-production by use of X‑ray inspection as well as typical voiding levels in different types of solder joints are discussed. Recommendations for the control of voiding in series production are also given. Annex A collects typical voiding levels of components and recommendations for acceptability.

General Information

Status
Published
Publication Date
18-Mar-2021
Current Stage
PPUB - Publication issued
Completion Date
19-Mar-2021
Ref Project

Buy Standard

Technical report
IEC TR 61191-8:2021 - Printed board assemblies - Part 8: Voiding in solder joints of printed board assemblies for use in automotive electronic control units - Best practices
English language
34 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC TR 61191-8
Edition 1.0 2021-03
TECHNICAL
REPORT
colour
inside
Printed board assemblies –

Part 8: Voiding in solder joints of printed board assemblies for use in automotive

electronic control units – Best practices
IEC TR 61191-8:2021-03(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC TR 61191-8
Edition 1.0 2021-03
TECHNICAL
REPORT
colour
inside
Printed board assemblies –

Part 8: Voiding in solder joints of printed board assemblies for use in automotive

electronic control units – Best practices
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.180; 31.190 ISBN 978-2-8322-9575-5

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC TR 61191-8:2021  IEC 2021

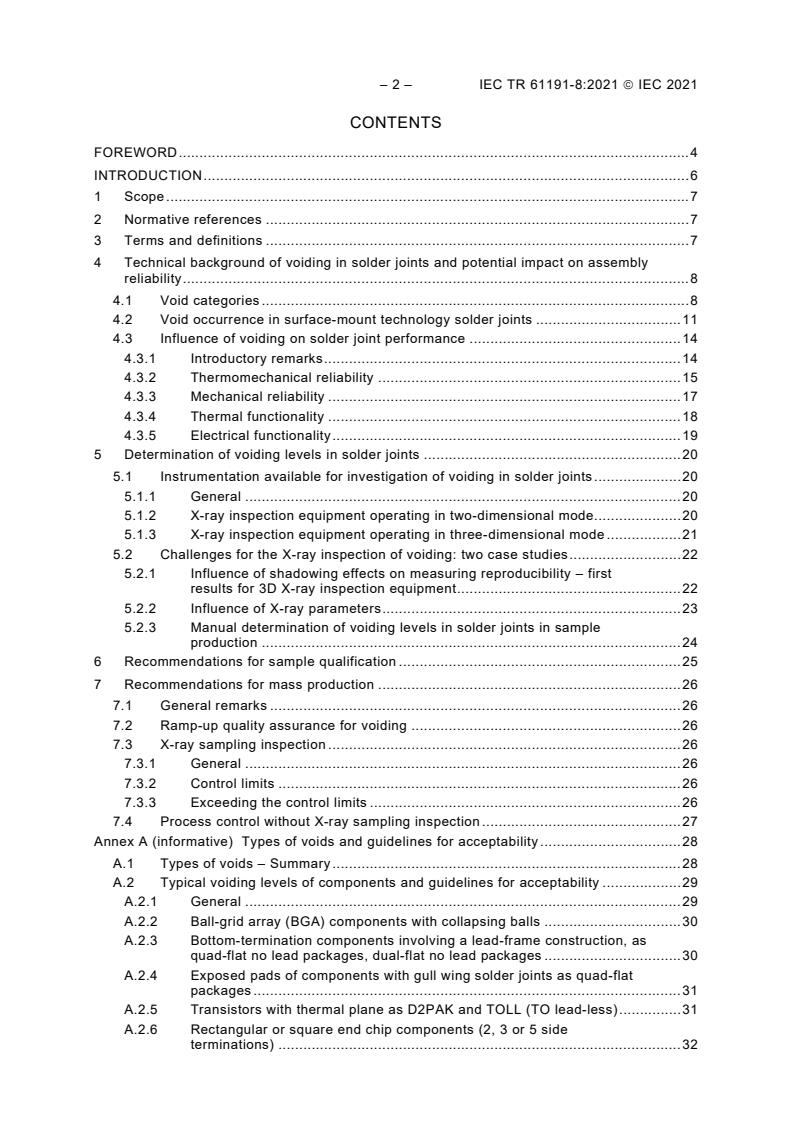

CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 7

4 Technical background of voiding in solder joints and potential impact on assembly

reliability .......................................................................................................................... 8

4.1 Void categories ....................................................................................................... 8

4.2 Void occurrence in surface-mount technology solder joints ................................... 11

4.3 Influence of voiding on solder joint performance ................................................... 14

4.3.1 Introductory remarks ...................................................................................... 14

4.3.2 Thermomechanical reliability ......................................................................... 15

4.3.3 Mechanical reliability ..................................................................................... 17

4.3.4 Thermal functionality ..................................................................................... 18

4.3.5 Electrical functionality .................................................................................... 19

5 Determination of voiding levels in solder joints .............................................................. 20

5.1 Instrumentation available for investigation of voiding in solder joints ..................... 20

5.1.1 General ......................................................................................................... 20

5.1.2 X-ray inspection equipment operating in two-dimensional mode..................... 20

5.1.3 X-ray inspection equipment operating in three-dimensional mode .................. 21

5.2 Challenges for the X-ray inspection of voiding: two case studies ........................... 22

5.2.1 Influence of shadowing effects on measuring reproducibility – first

results for 3D X-ray inspection equipment ...................................................... 22

5.2.2 Influence of X-ray parameters ........................................................................ 23

5.2.3 Manual determination of voiding levels in solder joints in sample

production ..................................................................................................... 24

6 Recommendations for sample qualification .................................................................... 25

7 Recommendations for mass production ......................................................................... 26

7.1 General remarks ................................................................................................... 26

7.2 Ramp-up quality assurance for voiding ................................................................. 26

7.3 X-ray sampling inspection ..................................................................................... 26

7.3.1 General ......................................................................................................... 26

7.3.2 Control limits ................................................................................................. 26

7.3.3 Exceeding the control limits ........................................................................... 26

7.4 Process control without X-ray sampling inspection ................................................ 27

Annex A (informative) Types of voids and guidelines for acceptability .................................. 28

A.1 Types of voids – Summary .................................................................................... 28

A.2 Typical voiding levels of components and guidelines for acceptability ................... 29

A.2.1 General ......................................................................................................... 29

A.2.2 Ball-grid array (BGA) components with collapsing balls ................................. 30

A.2.3 Bottom-termination components involving a lead-frame construction, as

quad-flat no lead packages, dual-flat no lead packages ................................. 30

A.2.4 Exposed pads of components with gull wing solder joints as quad-flat

packages ....................................................................................................... 31

A.2.5 Transistors with thermal plane as D2PAK and TOLL (TO lead-less) ............... 31

A.2.6 Rectangular or square end chip components (2, 3 or 5 side

terminations) ................................................................................................. 32

---------------------- Page: 4 ----------------------
IEC TR 61191-8:2021  IEC 2021 – 3 –

A.2.7 Light-emitting diodes ..................................................................................... 32

A.3 Further components currently under discussion .................................................... 32

A.4 Tabular summary .................................................................................................. 32

Bibliography .......................................................................................................................... 34

Figure 1 – Example of inclusion/macro void ............................................................................ 8

Figure 2 – Example of design induced void ............................................................................. 9

Figure 3 – Example of shrinkage void ..................................................................................... 9

Figure 4 – Example of planar micro voids ............................................................................. 10

Figure 5 – Example of intermetallic voids .............................................................................. 10

Figure 6 – Example of pinholes ............................................................................................. 11

Figure 7 – Example of blowhole voids ................................................................................... 11

Figure 8 – Theoretical model for voiding behaviour of preballed components ........................ 12

Figure 9 – Online X-ray images and trend of void level during melting phase ........................ 13

Figure 10 – Principal influencing parameters affecting solder joint reliability ......................... 14

Figure 11 – Correlation of BGA lifetime with average and maximum void levels .................... 16

Figure 12 – Correlation void level standoff chip resistor 1206 and shear force after TC......... 17

Figure 13 – Sketch of heat transfer with exposed pad solder joints ....................................... 18

Figure 14 – Calculation of void influence within exposed pads on overall R ....................... 19

Figure 15 – Average voiding results for different shadowing conditions ................................. 22

Figure 16 – Gauge reproducibility of void measurement with different shadowing ................. 23

Figure 17 – Void measurement of BGA region with varying X-ray parameters ....................... 24

Table A.1 – Types of voids with indication of root cause, occurrence in automotive

electronic assemblies, detectability, effect on thermomechanical reliability, thermal and

electrical function and overall assessment ............................................................................ 28

Table A.2 – Recommendations for acceptable minimum solder coverage or maximum

void level as well as ranges for process indicators ................................................................ 33

---------------------- Page: 5 ----------------------
– 4 – IEC TR 61191-8:2021  IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PRINTED BOARD ASSEMBLIES –
Part 8: Voiding in solder joints of printed board assemblies
for use in automotive electronic control units – Best practices
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. However, a

technical committee may propose the publication of a technical report when it has collected

data of a different kind from that which is normally published as an International Standard, for

example "state of the art".

IEC TR 61191-8, which is a technical report, has been prepared by IEC technical committee 91:

Electronics assembly technology.
The text of this technical report is based on the following documents:
DTR Report on voting
91/1665/DTR 91/1689/RVDTR

Full information on the voting for the approval of this technical report can be found in the report

on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 6 ----------------------
IEC TR 61191-8:2021  IEC 2021 – 5 –

A list of all parts in the IEC 61191 series, published under the general title Printed board

assemblies, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates

that it contains colours which are considered to be useful for the correct understanding

of its contents. Users should therefore print this document using a colour printer.

---------------------- Page: 7 ----------------------
– 6 – IEC TR 61191-8:2021  IEC 2021
INTRODUCTION

This document applies to electronic and electromechanical automotive printed board

assemblies and describes current best-practices for dealing with voiding in solder joints of

surface-mount components soldered onto printed boards.

This document is an informative document which serves to illustrate the technically feasible

options and to provide a basis for customer and supplier discussions and agreements. It is not

intended to be regarded as a specification or standard.
Related standards are gathered in the bibliography.

This document has been prepared based on material provided by the working group DKE

AK682.0.7 (Assembly and interconnect technology in automotive electronics).
---------------------- Page: 8 ----------------------
IEC TR 61191-8:2021  IEC 2021 – 7 –
PRINTED BOARD ASSEMBLIES –
Part 8: Voiding in solder joints of printed board assemblies
for use in automotive electronic control units – Best practices
1 Scope

This part of IEC 61191 gives guidelines for dealing with voiding in surface-mount solder joints

of printed board assemblies for use in automotive electronics. This technical report focuses

exclusively on voids in solder joints connecting packaged electronic or electromechanical

components with printed boards (PBs). Voids in other solder joints (e.g. in a joint between a

silicon die and a substrate within an electronic component, solder joints of through-hole

components, etc.) are not considered. The technical background for the occurrence of voids in

solder joints, the potential impact of voiding on printed board assembly reliability and

functionality, the investigation of voiding levels in sample- and series-production by use of X-ray

inspection as well as typical voiding levels in different types of solder joints are discussed.

Recommendations for the control of voiding in series production are also given.

Annex A collects typical voiding levels of components and recommendations for acceptability.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 60194, Printed board design, manufacture and assembly – Terms and definitions

3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 60194 and the

following apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
design authority

individual, organization, company, contractually designated authority, or agency responsible for

the design of electrical / electronic hardware, having the authority to define variations or

restrictions to the requirements of applicable standards, i.e., the originator/custodian of the

applicable design standard and the approved or controlled documentation
3.2
manufacturer

individual, organization, or company responsible for the assembly process and verification

operations
---------------------- Page: 9 ----------------------
– 8 – IEC TR 61191-8:2021  IEC 2021
3.3
preballed component
component delivered with solder balls attached, as ball-grid arrays
3.4
solder coverage

ratio of the overlapping area between parallel and wettable surfaces of printed board and

component termination covered with a vertically continuous layer of solder divided by the total

overlapping area between parallel and wettable surfaces of printed board and component

termination

Note 1 to entry: Voids and empty space are not part of the vertically continuous layer of solder and therefore do

not contribute to the solder coverage.
3.5
user
individual, organization, company or agency responsible for the procurement of

electrical/electronic hardware, and having the authority to define any variation or restrictions to

the requirements of applicable standards, i.e., the originator/custodian of the contract detailing

these requirements
4 Technical background of voiding in solder joints and potential impact on
assembly reliability
4.1 Void categories

Different categories of voids exist (see also Annex A). Those are illustrated in Figure 1 to

Figure 7:
a) Inclusions / macro voids (type I)

Voids generated by the evolution of volatiles during the reflow process when the solder is

molten. The sources of volatiles are fluxes and solder paste, absorbed moisture in laminates

or resulting from oxide reduction during the flux reaction. See Figure 1 for an example.

Figure 1 – Example of inclusion/macro void
b) Design induced voids, (type II)

Voids generated due to the presence of microvia(s) in the land pattern (via in pad design).

During reflow, the microvia traps the volatile gases and prevents them from escaping from

the solder joint. See Figure 2 for an example.
---------------------- Page: 10 ----------------------
IEC TR 61191-8:2021  IEC 2021 – 9 –
Figure 2 – Example of design induced void
c) Shrinkage voids (type III)

Voids caused by the reduction in solder volume when the solder is in the process of

solidification from liquid to solid. See Figure 3 for an example.
Figure 3 – Example of shrinkage void
d) Planar micro voids (type IV)

Small voids (typically < 20 µm in diameter) residing substantially at the interface between

PB land or component termination and solder; this type of voiding is sometimes also known

as "champagne voids". See Figure 4 for an example.
---------------------- Page: 11 ----------------------
– 10 – IEC TR 61191-8:2021  IEC 2021
Figure 4 – Example of planar micro voids
e) Intermetallic micro voids (type V)

Voids formed within intermetallic layers, between base metal and component termination,

due to organic impurities in the Cu during electroplating. See Figure 5 for an example.

Figure 5 – Example of intermetallic voids
f) Pinhole micro voids (type VI)

Micron-sized voids within the intermetallic compound (IMC), between the IMC and the PB

Cu land or (rarely) close to the IMC in the solder; these are due to an unstable plating

process, which can lead to chemicals becoming entrapped during the PB fabrication process.

See Figure 6 for an example.
---------------------- Page: 12 ----------------------
IEC TR 61191-8:2021  IEC 2021 – 11 –
Figure 6 – Example of pinholes
g) Blowholes (type VII)

Voids caused by escaping gaseous flux residues, characterized by a hole in the surface of

the solder that is connected with a sub-surface cavity. See Figure 7 for an example.

Figure 7 – Example of blowhole voids
4.2 Void occurrence in surface-mount technology solder joints

Voiding in solder joints is primarily caused by outgassing of entrapped flux volatiles in molten

solder and the presence of oxides and contaminants on the PB and/or component surfaces that

inhibit wetting during the reflow soldering process. Based on the results of most void

investigations, it is generally accepted that the most relevant parameters that influence void

formation are: solder paste flux chemistry, the cleanliness of PB and component surfaces, the

time it takes for the solder powder to coalesce during reflow versus the time it takes for

eliminating the metallization oxide(s), paste type (grain size) and, in combination with paste,

also the temperature profile of the reflow soldering process. Based on the reflow profile, if the

paste coalesces much sooner than the substrate oxide removal at reflow, the flux can adhere

to the surface of the substrate oxide (an immobile phase) and become entrapped in the molten

solder. Consequently, this entrapped flux will serve as an outgassing source and will constantly

release vapour which directly contributes to void formation. The void content also decreases

___________

Reproduced from Aspandiar, R., Voids in Solder Joints, Presentation made at the SMTAI 2006 Conference, with

the permission of the author.
---------------------- Page: 13 ----------------------
– 12 – IEC TR 61191-8:2021  IEC 2021

with increasing solderability. With increasing solderability, the substrate oxide can be cleaned

more readily, hence allowing less opportunity for the flux to be entrapped to form voids.

The quality of the surface finish of PBs such as ImSn, OSP, ENIG, ImAg, also plays an important

role. Organic residues on surfaces or inclusions from chemical processes can have a significant

influence, but if cleanliness and the quality of surface finishes of components and PBs are well

controlled, the effect on voiding should be low.

Component surfaces also have a certain impact on voiding behavior, especially if there are

surface defects like cracks or holes within component terminations in combination with

underlying organic layers. Passing of wettability testing (e.g. IEC 60068-2-58 IEC 60068-2-69,

IEC 61189-5-601, J-STD-002, J-STD-003) is mandatory. But good wettability based on these

tests is not necessarily a sufficient indicator for obtaining low void levels. Currently there is no

sensitive generic test for components which can predict the tendency to voiding with acceptable

accuracy.

Note that some of these parameters are not independent of each other, for example, the reflow

profile needs to be adapted to the solder paste flux to control outgassing during the melting

phase.

An important aspect to be considered to limit void levels is the solder paste volume. For

components with different standoff levels, like gullwing components, the solder volume at the

standoff (this can be, for example, the exposed thermal pads for quad flat packages – QFPs)

must be sufficient to fill the whole gap defined by the standoff level. Otherwise the solder joint

will either not cover the whole wettable area or form large voids. In addition to the total solder

paste volume, the geometry of the stencil apertures also plays a role. In general, separating a

given total volume of solder paste in smaller printed areas tends to reduce voiding levels.

One additional topic to be considered is the non-uniform behaviour of void formation with

different types of components, especially preballed components, area-array components with

solder balls, versus standard SMT components like chip capacitors and QFPs. For standard

solder joints, higher wetting performance of the solder surfaces generally reduces voiding. This

can be explained by a lower chance of flux residues remaining on the PB or termination surfaces

during the soldering process, acting as potential void sources. Another case is the voiding for

area-array components with solder balls. For such components, higher wetting performance

generally results in higher voiding levels. This phenomenon can be explained by a simple model,

as shown in Figure 8.
Figure 8 – Theoretical model for voiding behaviour of preballed components
---------------------- Page: 14 ----------------------
IEC TR 61191-8:2021  IEC 2021 – 13 –

The assumption is that there is some kind of more or less stable “skin” of the BGA ball, which

could be an oxidation layer or some phase separation effect at the ball surface. This “skin” is

stable during the reflow process until it is penetrated by thermal convection, wetting forces or

flux activity. Up to this moment of penetration, all gaseous products forming within the solder

paste pass along the ball and will easily leave the solder joint. As soon as the skin is cracked,

a significant share of rising gases can enter the ball and voids are captured within. The cracking

is accelerated by a higher temperature gradient or higher wetting performance resulting in a

higher final void content of the solder joint.

Since this behaviour of preballed components is different from standard SMT components, a

general void reduction strategy for panels with mixed component spectrum is limited. In these

cases, void reduction for one component can increase void level for others. A reasonable

compromise for the whole assembly needs to be sought.

Similarly, a higher peak temperature typically results in higher voiding levels for preballed

components, whereas the opposite trend is generally found for other SMT components such as

QFPs.

An additional factor for void formation of area-array components is the use of high density

interconnect PB technology. In case of microvia in pad designs, so-called design induced

voiding can occur.

All these findings show that voiding can be reduced to a certain level, but not reduced to zero

with standard convection reflow processes. But if material and process parameters can be kept

stable, the variation of average void level can also be kept under control, since the sensitivity

of void level to process parameters was found to not be very high.
When voiding levels in s
...
