IEC 63171-1:2024

Connectors for electrical and electronic equipment - Part 1: Detail specification for 2-way, shielded or unshielded, free and fixed connectors - Mechanical mating information, pin assignment and additional requirements for Type 1 (copper LC style)

IEC 63171-1:2024 is part of the IEC 63171 series which is a set of International Standards covering shielded or unshielded free and fixed connectors for balanced single-pair data transmission with current carrying capacity.
IEC 63171 is the general requirements and tests part (general specifications) of the whole series. Subsequent parts, such as this Part 1, are product detail specifications of the series IEC 63171 and do not duplicate information given in IEC 63171, but list only additional requirements. Each subsequent part is identified by a type of connector covered with the same number identifying the part. Some parts can describe more embodiments, with different connectors geometries (rectangular, circular), sharing the core element and the relevant features.
This part of IEC 63171 covers two-way, shielded or unshielded, free and fixed connectors known as Type 1, for balanced single-pair data transmission with frequencies up to 600 MHz and with current carrying capacity up to 2,0 A at 60 °C.
It specifies the common dimensions, and provides the mechanical, electrical, signal integrity, and environmental characteristics, the reliability specifications and corresponding tests for these connectors.
For the complete specifications regarding a connector of this series, both the general specification and the relevant detail specification are therefore required.
For the qualification of a connector of this series, both the general specification and the relevant detail specification shall be met.
This second edition cancels and replaces the first edition published in 2020. This edition constitutes a technical revision and includes the following significant technical changes with respect to the previous edition:
* Information on obtaining a license agreement was updated.
* Connector characteristics and test requirements were aligned with IEC 63171:2021 where applicable.
* Added requirements for Polarizing method (5.6.4) and Dynamic stress (5.6.5) to align with IEC 63171:2021.
* Added test group BP - Moisture (6.7.3.4) to align with IEC 63171:2021.

General Information

• Status: Published
• Publication Date: 02-Apr-2024
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• Technical Committee: SC 48B - Electrical connectors
• Current Stage: PPUB - Publication issued
• Start Date: 03-Apr-2024
• Completion Date: 08-Mar-2024

Relations

• Revises: IEC 63171-1:2020 - Connectors for electrical and electronic equipment - Part 1: Detail specification for two-way, shielded or unshielded, free and fixed connectors - Mechanical mating information, pin assignment and additional requirements for Type 1 copper LC style
• Effective Date: 05-Sep-2023

Overview - IEC 63171-1:2024 (Type 1, copper LC style)

IEC 63171-1:2024 is the Part 1 detail specification of the IEC 63171 series covering 2‑way, shielded or unshielded free and fixed connectors for balanced single‑pair data transmission. Known as Type 1 (copper LC style), this international standard defines mechanical mating information, pin assignment, common dimensions and the additional requirements that supplement the series’ general specification (IEC 63171). It applies to connectors supporting frequencies up to 600 MHz and a current carrying capacity of 2.0 A at 60 °C.

Key topics and technical requirements

• Connector scope and interoperability
  • Defines the Type 1 geometry for free (cable‑terminated) and fixed (PCB or bulkhead) connectors and interoperability expectations between mating pairs.
• Mechanical mating information
  • Common dimensions, insertion/withdrawal characteristics, coupling effectiveness and polarizing methods to prevent mis‑mating.
• Pin assignment
  • Standardized contact assignments for balanced single‑pair signalling to ensure consistent wiring and system integration.
• Electrical and signal integrity characteristics
  • Requirements for insertion loss (IL), return loss (RL), propagation delay and balance metrics (TCL, TCTL), plus transfer impedance for shielded variants.
• Environmental, reliability and mechanical tests
  • Test schedules covering mechanical operation, dynamic stress, vibration, moisture (test group BP added in this edition), temperature cycling and contact resistance measurements.
• Current and safety limits
  • Current‑temperature derating guidance and voltage/insulation criteria consistent with the series general specification.
• Edition 2 (2024) updates
  • Alignment with IEC 63171:2021 where applicable, updated licensing information, added polarizing method and dynamic stress requirements, and the new Moisture test group.

Practical applications and who uses this standard

IEC 63171-1 is directly applicable to industries and professionals specifying, designing, manufacturing or testing single‑pair connectors for data and low‑power applications:

• Connector designers and OEMs creating Type 1 LC‑style products
• PCB and cable assembly manufacturers
• Test laboratories and qualification engineers performing conformity testing and reliability verification
• System integrators and procurement teams needing standardized pinouts and mechanical mating data
• Standards and compliance engineers ensuring products meet IEC series requirements

Using IEC 63171-1 together with the IEC 63171 general specification provides the complete technical baseline required for product development, qualification and interoperability.

Related standards

• IEC 63171 (general specification, tests) - mandatory companion document for complete requirements and qualification of IEC 63171 series connectors.
• Other parts of the IEC 63171 series (detail specs for additional connector types) - refer to the IEC catalogue for published parts.

Standards Content (Sample)

IEC 63171-1 ®
Edition 2.0 2024-04
INTERNATIONAL
STANDARD
Connectors for electrical and electronic equipment –
Part 1: Detail specification for 2-way, shielded or unshielded, free and fixed
connectors – Mechanical mating information, pin assignment and additional
requirements for Type 1 (copper LC style)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 63171-1 ®
Edition 2.0 2024-04
INTERNATIONAL
STANDARD
Connectors for electrical and electronic equipment –

Part 1: Detail specification for 2-way, shielded or unshielded, free and fixed

connectors – Mechanical mating information, pin assignment and additional

requirements for Type 1 (copper LC style)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.220.10  ISBN 978-2-8322-8217-5

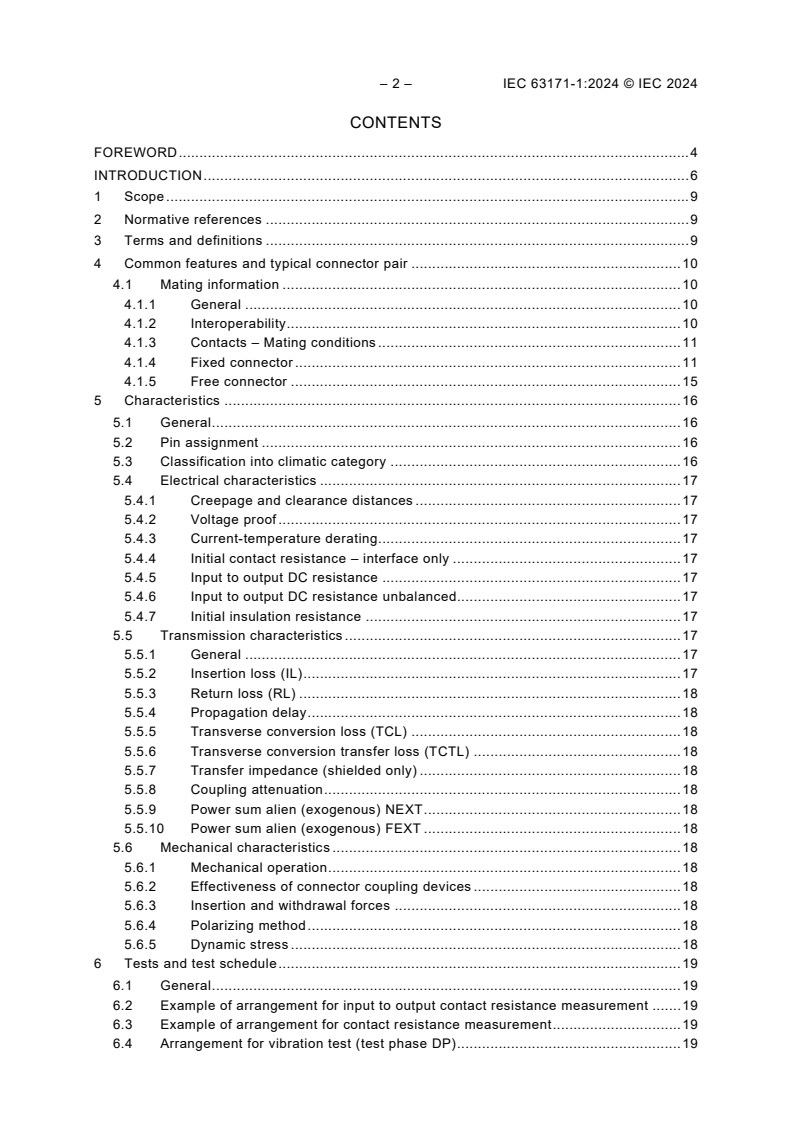

– 2 – IEC 63171-1:2024 © IEC 2024
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 9
4 Common features and typical connector pair . 10
4.1 Mating information . 10
4.1.1 General . 10
4.1.2 Interoperability . 10
4.1.3 Contacts – Mating conditions . 11
4.1.4 Fixed connector . 11
4.1.5 Free connector . 15
5 Characteristics . 16
5.1 General . 16
5.2 Pin assignment . 16
5.3 Classification into climatic category . 16
5.4 Electrical characteristics . 17
5.4.1 Creepage and clearance distances . 17
5.4.2 Voltage proof . 17
5.4.3 Current-temperature derating . 17
5.4.4 Initial contact resistance – interface only . 17
5.4.5 Input to output DC resistance . 17
5.4.6 Input to output DC resistance unbalanced. 17
5.4.7 Initial insulation resistance . 17
5.5 Transmission characteristics . 17
5.5.1 General . 17
5.5.2 Insertion loss (IL) . 17
5.5.3 Return loss (RL) . 18
5.5.4 Propagation delay . 18
5.5.5 Transverse conversion loss (TCL) . 18
5.5.6 Transverse conversion transfer loss (TCTL) . 18
5.5.7 Transfer impedance (shielded only) . 18
5.5.8 Coupling attenuation . 18
5.5.9 Power sum alien (exogenous) NEXT . 18
5.5.10 Power sum alien (exogenous) FEXT . 18
5.6 Mechanical characteristics . 18
5.6.1 Mechanical operation . 18
5.6.2 Effectiveness of connector coupling devices . 18
5.6.3 Insertion and withdrawal forces . 18
5.6.4 Polarizing method . 18
5.6.5 Dynamic stress . 18
6 Tests and test schedule . 19
6.1 General . 19
6.2 Example of arrangement for input to output contact resistance measurement . 19
6.3 Example of arrangement for contact resistance measurement . 19
6.4 Arrangement for vibration test (test phase DP) . 19

6.5 Test procedures and measuring methods . 19
6.6 Preconditioning . 20
6.7 Test schedules . 20
6.7.1 General . 20
6.7.2 Basic (minimum) test schedule . 20
6.7.3 Full test schedule . 20
Bibliography . 21

Figure 1 – Relationships between the IEC 63171 series and its related references . 7
Figure 2 – Connector overview . 8
Figure 3 – Mated fixed and free Type 1 connectors . 11
Figure 4 – Fixed Type 1 connector . 12
Figure 5 – Fixed Type 1 connector pin detail (detail A from Figure 4c) section D-D) . 14
Figure 6 – Free Type 1 connector . 15
Figure 7 – Arrangement for vibration test . 19

Table 1 – Dimensions for Figure 4a), Figure 4b) and Figure 4c) . 13
Table 2 – Dimensions for Figure 5 . 14
Table 3 – Dimensions for Figure 6a) and Figure 6b) . 16
Table 4 – Creepage and clearance distances . 17

– 4 – IEC 63171-1:2024 © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRICAL AND ELECTRONIC EQUIPMENT –

Part 1: Detail specification for 2-way, shielded or unshielded, free and
fixed connectors – Mechanical mating information, pin assignment and
additional requirements for Type 1 (copper LC style)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 63171-1 has been prepared by subcommittee 48B: Electrical connectors, of IEC technical
committee 48: Electrical connectors and mechanical structures for electrical and electronic
equipment. It is an International Standard.
This second edition cancels and replaces the first edition published in 2020. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Information on obtaining a license agreement was updated.
b) Connector characteristics and test requirements were aligned with IEC 63171:2021 where
applicable.
c) Added requirements for Polarizing method (5.6.4) and Dynamic stress (5.6.5) to align with
IEC 63171:2021.
d) Added test group BP – Moisture (6.7.3.4) to align with IEC 63171:2021.
The text of this International Standard is based on the following documents:
Draft Report on voting
48B/3062/FDIS 48B/3083/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
A list of all parts in the IEC 63171 series, published under the general title Connectors for
electrical and electronic equipment, can be found on the IEC website.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by I
...
