Ships and marine technology -- Drainage systems on ships and marine structures

ISO 15749-2:2004 applies to the design of sanitary drain lines in gravity systems (gravity drainage) on ships and marine structures. For planning and basic requirements, ISO 15749-1 is applicable.

Navires et technologie maritime -- Installations de drainage sur navires et structures maritimes

General Information

Status
Published
Publication Date
28-Apr-2004
Current Stage
6060 - International Standard published
Start Date
18-Mar-2004
Completion Date
29-Apr-2004
Ref Project

Buy Standard

Standard
ISO 15749-2:2004 - Ships and marine technology -- Drainage systems on ships and marine structures
English language
9 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 15749-2
First edition
2004-05-01
Ships and marine technology —
Drainage systems on ships and
marine structures —
Part 2:
Sanitary drainage, drain piping for gravity
systems
Navires et technologie maritime — Installations de drainage sur navires
et structures maritimes —
Partie 2: Drainage sanitaire, tuyaux de drainage pour système par
gravité
Reference number
ISO 15749-2:2004(E)
ISO 2004
---------------------- Page: 1 ----------------------
ISO 15749-2:2004(E)

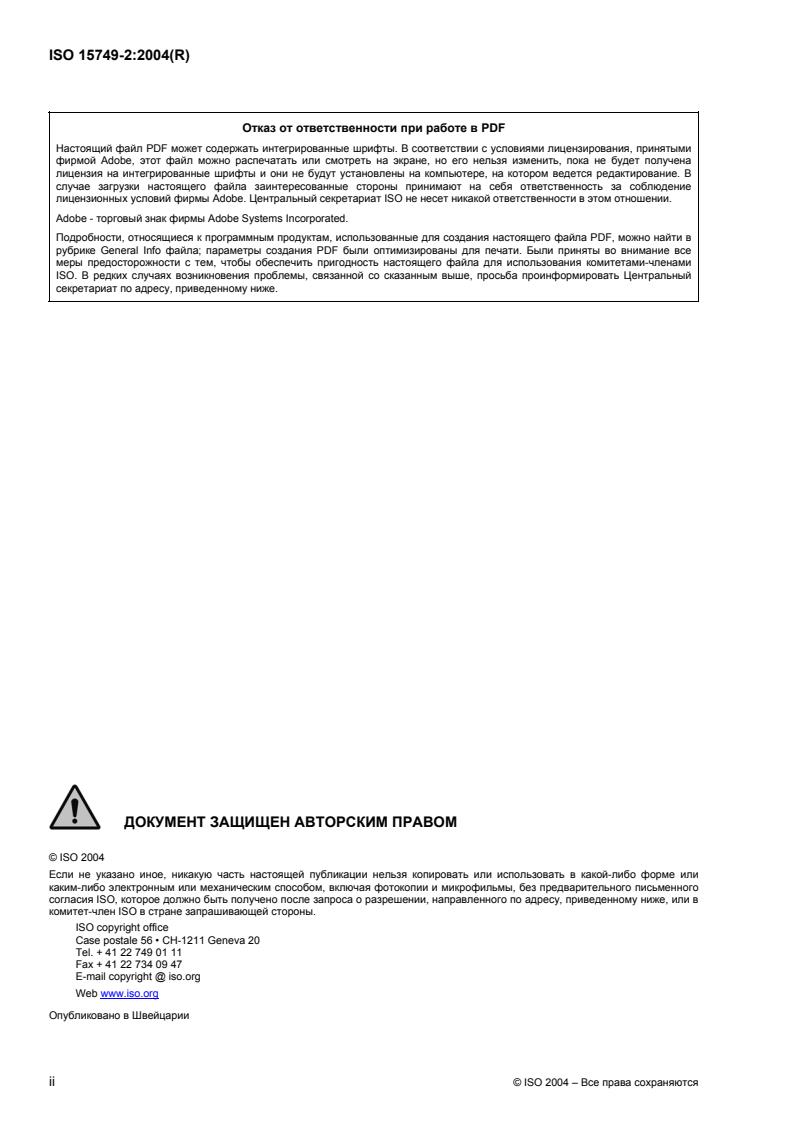

PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

© ISO 2004

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2004 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 15749-2:2004(E)
Contents Page

Foreword............................................................................................................................................................ iv

1 Scope...................................................................................................................................................... 1

2 Normative references ........................................................................................................................... 1

3 Terms and definitions........................................................................................................................... 2

4 Gravity systems .................................................................................................................................... 2

5 Pipes....................................................................................................................................................... 2

6 Laying of drain lines ............................................................................................................................. 4

7 Determination of nominal bores.......................................................................................................... 5

8 Collector tank and sewage treatment plant........................................................................................ 7

9 Testing and operation of pipes............................................................................................................ 7

10 Disposal ................................................................................................................................................. 7

11 Example of wastewater system ........................................................................................................... 8

© ISO 2004 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 15749-2:2004(E)

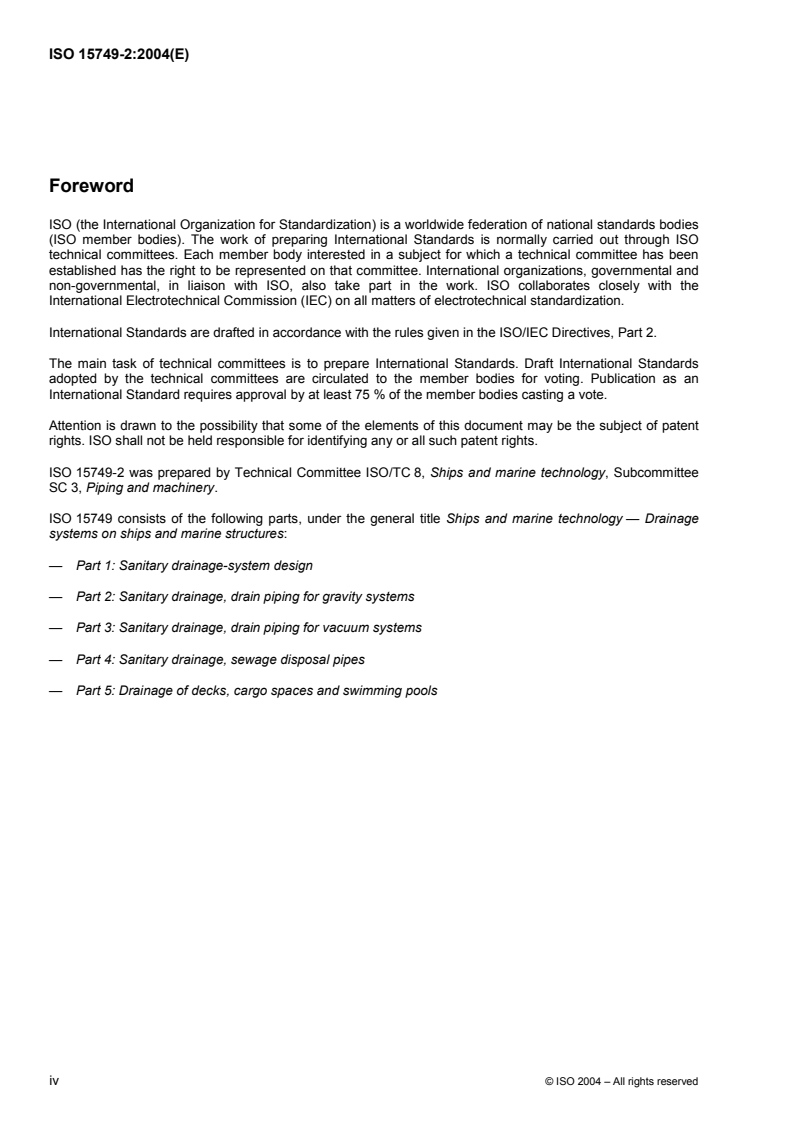

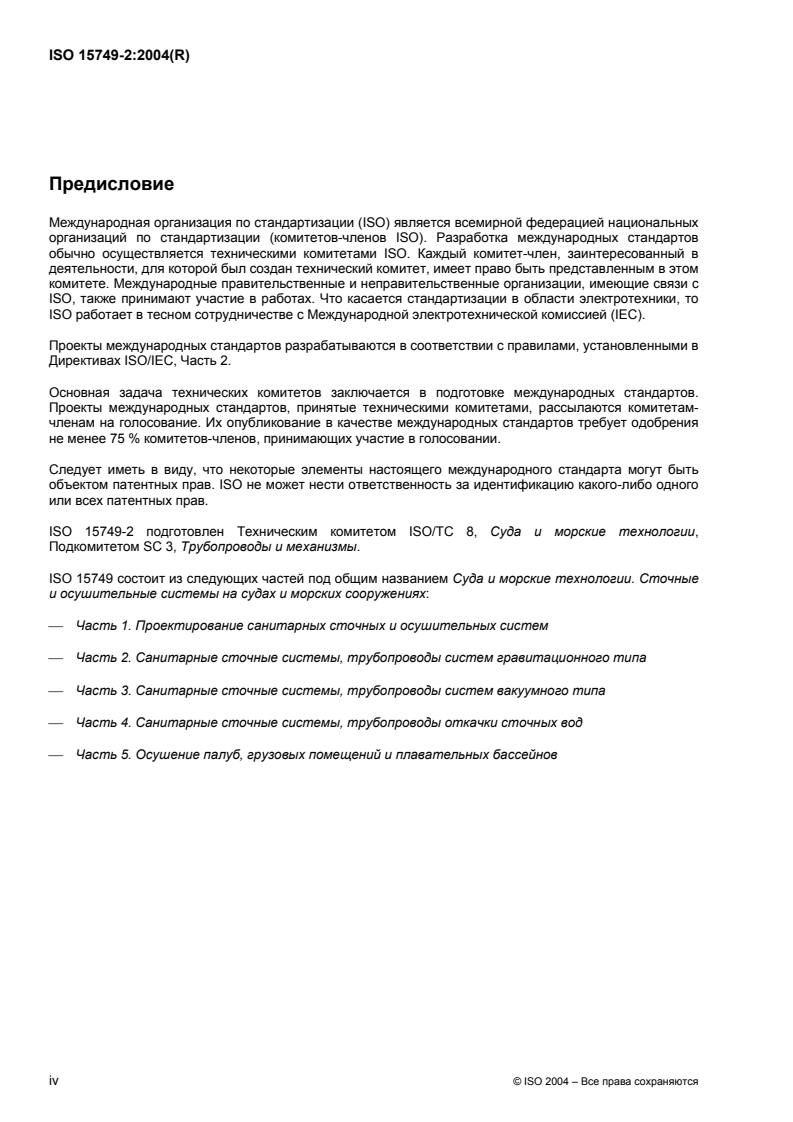

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 15749-2 was prepared by Technical Committee ISO/TC 8, Ships and marine technology, Subcommittee

SC 3, Piping and machinery.

ISO 15749 consists of the following parts, under the general title Ships and marine technology — Drainage

systems on ships and marine structures:
— Part 1: Sanitary drainage-system design
— Part 2: Sanitary drainage, drain piping for gravity systems
— Part 3: Sanitary drainage, drain piping for vacuum systems
— Part 4: Sanitary drainage, sewage disposal pipes
— Part 5: Drainage of decks, cargo spaces and swimming pools
iv © ISO 2004 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 15749-2:2004(E)
Ships and marine technology — Drainage systems on ships
and marine structures —
Part 2:
Sanitary drainage, drain piping for gravity systems
1 Scope

This part of ISO 15749 applies to the design of sanitary drain lines in gravity systems (gravity drainage) on

ships and marine structures.
For planning and basic requirements, see ISO 15749-1.
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

IMO Resolution A.753 (18), Guidelines for the application of plastic pipes on ships

ISO 65, Carbon steel tubes suitable for screwing in accordance with ISO 7-1

ISO 4200, Plain end steel tubes, welded and seamless — General tables of dimensions and masses per unit

length
ISO 7268, Pipe components — Definition of nominal pressure

ISO 9329-1, Seamless steel tubes for pressure purposes — Technical delivery conditions — Part 1: Unalloyed

steels with specific room temperature properties

ISO 9330-1, Welded steel tubes for pressure purposes — Technical delivery conditions — Part 1: Unalloyed

steel tubes with specified room temperature properties

ISO 15749-1, Ships and marine technology — Drainage systems on ships and marine structures — Part 1:

Sanitary drainage-system design

ISO 15749-4, Ships and marine technology — Drainage systems on ships and marine structures — Part 4:

Sanitary drainage, sewage disposal pipes
1) Published by International Maritime Organization, London.

Available from IMO Secretariat, Publications Section, 101-104 Piccadilly, London W1V, United Kingdom.

© ISO 2004 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 15749-2:2004(E)
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 15749-1 apply.

4 Gravity systems
4.1 Description

4.1.1 Drain lines in gravity systems convey wastewater by gravity to a collector tank or sewage treatment

plant.

4.1.2 Wastewater lines downstream of the sewage treatment plant are not part of the gravity system. For

their configuration, ISO 15749-4 applies.

4.1.3 Figure 1 gives an example of a drainage system with drain lines in a gravity system.

4.2 Operating pressure

Pipes in sanitary systems (drain and vent lines) shall be designed such that the operating pressure (internal

pressure) cannot exceed 0,5 bar.
5 Pipes
5.1 General

Depending on the location, the following pipes may be used for gravity drain lines and vent lines:

 steel pipes in accordance with 5.2;

 steel pipes and CuNiFe pipes with spigot and socket joints in accordance with 5.3;

 CuNiFe pipes in accordance with 5.4;

 PVC-U pipes in accordance with 5.5; plastic pipes shall be approved in accordance with

IMO Resolution A.753 (18).
For nominal bores see Table 1.
Table 1 — Nominal bores for drain lines
Nominal bore, NB 32 40 50 65 70 80 100 125 150
Steel and CuNiFe pipes X X X X — X X X X
Spigot and socket pipes — X X — X X X X X
PVC-U pipes X X X X — X X X X
X: NB possible for this type of pipe;
—: NB not possible for this type of pipe.
2) For definitions see ISO 7268.
3) Hereinafter referred to as spigot and socket pipes.
2 © ISO 2004 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 15749-2:2004(E)
5.2 Steel pipes
The following types of pipes are applicable:
 seamless steel pipes in accordance with ISO 4200 and ISO 9329-1, of S 235 JR;
 welded steel pipes in accordance with ISO 4200 and ISO 9330-1, of S 235 JR;
 threaded steel pipes in accordance with ISO 65, of S 185.
For dimensions see Table 2.
Table 2 — Dimensions of steel pipes
Nominal bore, NB
32 40 50 65 80 100 125 150
Outside diameter of pipe d
mm 42,4 48,3 60,3 76,1 88,9 114,3 139,7 168,3
A mm 4,5
Wall thickness s
B mm 6,3 7,1 8 8,8
min
N mm 2,3 2,6 2,9 3,2 3,6 4
NOTE Other minimu
...
