ISO 14520-17:2022
(Main)Gaseous fire-extinguishing systems — Physical properties and system design — Part 17: Halocarbon Blend 55
Gaseous fire-extinguishing systems — Physical properties and system design — Part 17: Halocarbon Blend 55
This document provides specific requirements for gaseous fire-extinguishing systems with respect to the Halocarbon Blend 55 extinguishant. It includes details of physical properties, specification, usage and safety aspects. It also covers systems operating at nominal pressures of 25 bar, 35 bar and 42 bar, superpressurized with nitrogen. This document does not preclude the use of other systems. NOTE 1 bar = 0,1 MPa = 105 Pa; 1 MPa = 1 N/mm2.
Systèmes d'extinction d'incendie utilisant des agents gazeux — Propriétés physiques et conception des systèmes — Partie 17: Mélange d'hydrocarbures halogénés 55
General Information
Buy Standard
Standards Content (Sample)

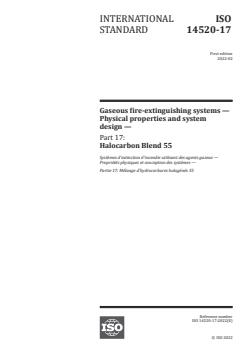

INTERNATIONAL ISO
STANDARD 14520-17
First edition
2022-02
Gaseous fire-extinguishing systems —
Physical properties and system
design —
Part 17:
Halocarbon Blend 55
Systèmes d'extinction d'incendie utilisant des agents gazeux —
Propriétés physiques et conception des systèmes —
Partie 17: Mélange d'hydrocarbures halogénés 55
Reference number
ISO 14520-17:2022(E)
© ISO 2022
---------------------- Page: 1 ----------------------
ISO 14520-17:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
© ISO 2022 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 14520-17:2022(E)

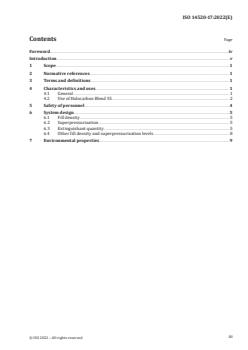

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Characteristics and uses. 1
4.1 General . 1
4.2 Use of Halocarbon Blend 55 . 2
5 Safety of personnel .4
6 System design . 5
6.1 Fill density . 5
6.2 Superpressurization . 5
6.3 Extinguishant quantity . 5
6.4 Other fill density and superpressurization levels . 8
7 Environmental properties . .9
iii
© ISO 2022 – All rights reserved
---------------------- Page: 3 ----------------------
ISO 14520-17:2022(E)

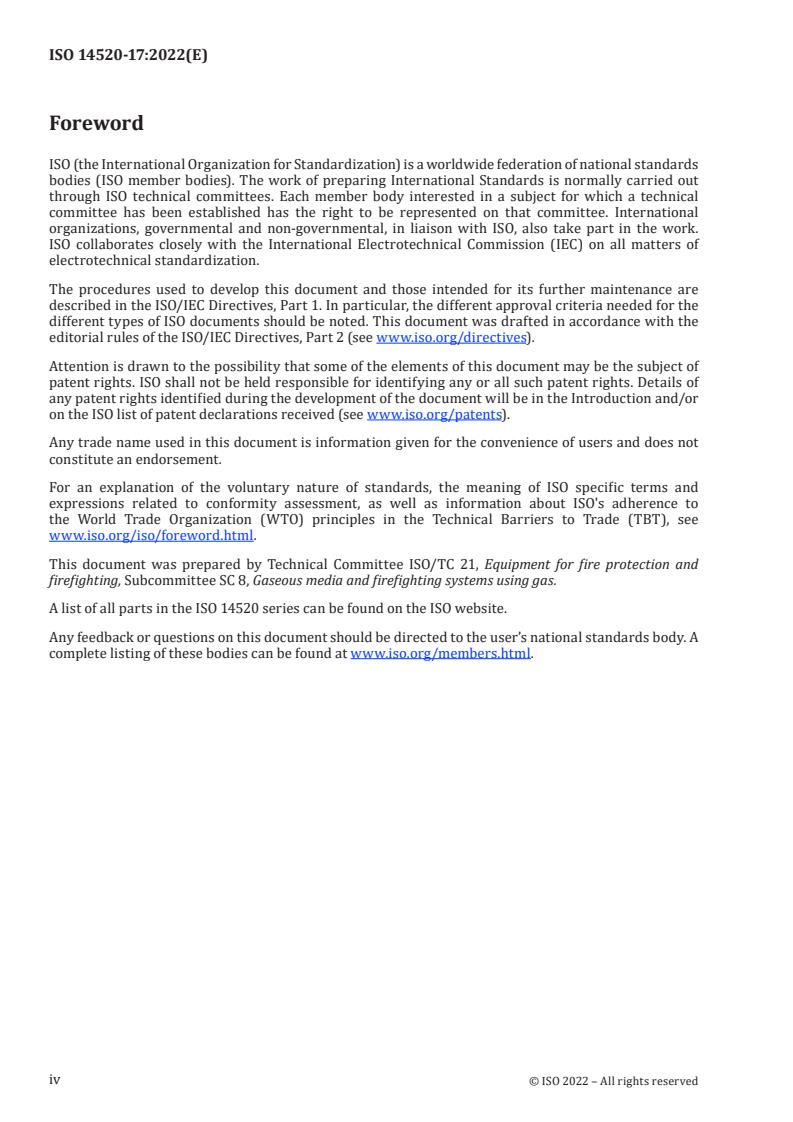

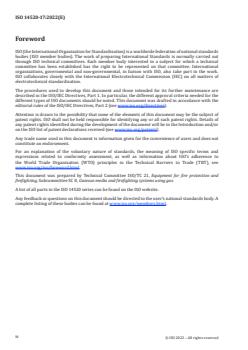

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and
firefighting, Subcommittee SC 8, Gaseous media and firefighting systems using gas.
A list of all parts in the ISO 14520 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
© ISO 2022 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 14520-17:2022(E)
Introduction
The ISO 14520 series consists of the following parts, under the general title Gaseous fire-extinguishing
systems — Physical properties and system design:
— Part 1: General requirements
— Part 2: Withdrawn
— Part 3: Withdrawn
— Part 4: Withdrawn
— Part 5: FK-5-1-12 extinguishant
— Part 6: Withdrawn
— Part 7: Withdrawn
— Part 8: HFC 125 extinguishant
— Part 9: HFC 227ea extinguishant
— Part 10: HFC 23 extinguishant
— Part 11: To be withdrawn
— Part 12: IG-01 extinguishant
— Part 13: IG-100 extinguishant
— Part 14: IG-55 extinguishant
— Part 15: IG-541 extinguishant
— Part 16: Withdrawn
— Part 17 (this document): Halocarbon Blend 55
v
© ISO 2022 – All rights reserved
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 14520-17:2022(E)
Gaseous fire-extinguishing systems — Physical properties
and system design —
Part 17:
Halocarbon Blend 55
1 Scope
This document provides specific requirements for gaseous fire-extinguishing systems with respect to
the Halocarbon Blend 55 extinguishant. It includes details of physical properties, specification, usage
and safety aspects. It also covers systems operating at nominal pressures of 25 bar, 35 bar and 42 bar,
superpressurized with nitrogen. This document does not preclude the use of other systems.
5 2
NOTE 1 bar = 0,1 MPa = 10 Pa; 1 MPa = 1 N/mm .
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
1)
ISO 14520-1:— , Gaseous fire-extinguishing systems — Physical properties and system design — Part 1:
General requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14520-1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Characteristics and uses
4.1 General
Extinguishant Halocarbon Blend 55 shall comply with the specifications shown in Table 1.
Halocarbon Blend 55 [blend of 50 ± 3 % HFO-1233zd(E) and 50 ± 3 % FK-5-1-12 (by mass)] is a colourless,
almost odourless, electrically non-conductive gas, with a density approximately 6,38 times that of air.
Its physical properties are shown in Table 2.
Halocarbon Blend 55 extinguishes fires mainly by physical means, but also by some chemical means.
1) Under preparation. Stage at the time of publication ISO/DIS 14520-1:2022.
1
© ISO 2022 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 14520-17:2022(E)
Table 1 — Specifications for Halocarbon Blend 55
Property Requirement
Purity 99,5 % by mass, min.
−4
Acidity 3 × 10 % by mass, max.
−4
Water content 10 × 10 % by mass, max.
−4
Non-volatile residue 300 × 10 % by mass, max.
Suspended matter or sediment None visible
a
Kinetic dimers of HFP < 5 600 mg/kg
b
Thermodynamic dimer of HFP + HF adduct < 190 mg/kg
a
Kinetic dimers of HFP (CAS 2070-70-4).
b
Thermodynamic dimer of HFP (CAS 1584-03-8) + its HF adduct (CAS 30320-28-6).
Table 2 — Physical properties of Halocarbon Blend 55
Property Units Value
Molecular mass — 184,72
Boiling point at 1,013 bar (absolute) °C 20,7
Freezing point °C -107
Critical temperature °C 159,2
Critical pressure bar (absolute) 28,92
3
Critical volume cm /mol 354,2
3
Critical density kg/m 521,6
Vapour pressure 20 °C bar (absolute) 0,988 0
3
Liquid density 20 °C kg/m 1 431,6
3
Saturated vapour density 20 °C kg/m 6,6
...

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 14520-17
ISO/TC 21/SC 8
Gaseous fire-extinguishing systems —
Secretariat: SA
Physical properties and system
Voting begins on:
2021-11-11 design —
Voting terminates on:
Part 17:
2022-01-06
Halocarbon Blend 55
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 14520-17:2021(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS. © ISO 2021
---------------------- Page: 1 ----------------------
ISO/FDIS 14520-17:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
© ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/FDIS 14520-17:2021(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Characteristics and uses. 1
4.1 General . 1
4.2 Use of Halocarbon Blend 55 . 2
5 Safety of personnel .4
6 System design . 5
6.1 Fill density . 5
6.2 Superpressurization . 5
6.3 Extinguishant quantity . 5
6.4 Other fill density and superpressurization levels . 8
7 Environmental properties . .8
iii
© ISO 2021 – All rights reserved
---------------------- Page: 3 ----------------------
ISO/FDIS 14520-17:2021(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and
firefighting, Subcommittee SC 8, Gaseous media and firefighting systems using gas.
A list of all parts in the ISO 14520 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
© ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/FDIS 14520-17:2021(E)
Introduction
The ISO 14520 series consists of the following parts, under the general title Gaseous fire-extinguishing
systems — Physical properties and system design:
— Part 1: General requirements
— Part 2: Withdrawn
— Part 3: Withdrawn
— Part 4: Withdrawn
— Part 5: FK-5-1-12 extinguishant
— Part 6: Withdrawn
— Part 7: Withdrawn
— Part 8: HFC 125 extinguishant
— Part 9: HFC 227ea extinguishant
— Part 10: HFC 23 extinguishant
— Part 11: HFC 236fa extinguishant
— Part 12: IG-01 extinguishant
— Part 13: IG-100 extinguishant
— Part 14: IG-55 extinguishant
— Part 15: IG-541 extinguishant
— Part 16: Withdrawn
— Part 17 (this document): Halocarbon Blend 55
v
© ISO 2021 – All rights reserved
---------------------- Page: 5 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 14520-17:2021(E)
Gaseous fire-extinguishing systems — Physical properties
and system design —
Part 17:
Halocarbon Blend 55
1 Scope
This document provides specific requirements for gaseous fire-extinguishing systems with respect to
the Halocarbon Blend 55 extinguishant. It includes details of physical properties, specification, usage
and safety aspects. It also covers systems operating at nominal pressures of 25 bar, 35 bar and 42 bar,
superpressurized with nitrogen. This document does not preclude the use of other systems.
5 2
NOTE 1 bar = 0,1 MPa = 10 Pa; 1 MPa = 1 N/mm .
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 14520-1:2015, Gaseous fire-extinguishing systems — Physical properties and system design — Part 1:
General requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14520-1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Characteristics and uses
4.1 General
Extinguishant Halocarbon Blend 55 shall comply with the specifications shown in Table 1.
Halocarbon Blend 55 [blend of 50 ± 3 % HFO-1233zd(E) and 50 ± 3 % FK-5-1-12 (by mass)] is a colourless,
almost odourless, electrically non-conductive gas, with a density approximately 6,38 times that of air.
Its physical properties are shown in Table 2.
Halocarbon Blend 55 extinguishes fires mainly by physical means, but also by some chemical means.
1
© ISO 2021 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/FDIS 14520-17:2021(E)
Table 1 — Specifications for Halocarbon Blend 55
Property Requirement
Purity 99,5 % by mass, min.
−4
Acidity 3 × 10 % by mass, max.
−4
Water content 10 × 10 % by mass, max.
−4
Non-volatile residue 300 × 10 % by mass, max.
Suspended matter or sediment None visible
a
Kinetic dimers of HFP < 5 600 mg/kg
b
Thermodynamic dimer of HFP + HF adduct < 190 mg/kg
a
Kinetic dimers of HFP (CAS 2070-70-4).
b
Thermodynamic dimer of HFP (CAS 1584-03-8) + its HF adduct (CAS 30320-28-6).
Table 2 — Physical properties of Halocarbon Blend 55
Property Units Value
Molecular mass — 184,72
Boiling point at 1,013 bar (absolute) °C 20,7
Freezing point °C -107
Critical temperature °C 159,2
Critical pressure bar (absolute) 28,92
3
Criti
...
