Standards Content (sample)

INTERNATIONAL ISO
STANDARD 14229-7
Second edition
2022-04
Road vehicles — Unified diagnostic
services (UDS) —
Part 7:
UDS on local interconnect network
(UDSonLIN)
Véhicules routiers — Services de diagnostic unifiés (SDU) —
Partie 7: SDU sur l'implémentation LIN (SDUsurLIN)
Reference number
ISO 14229-7:2022(E)
© ISO 2022
---------------------- Page: 1 ----------------------
ISO 14229-7:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on

the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below

or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO 2022 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 14229-7:2022(E)

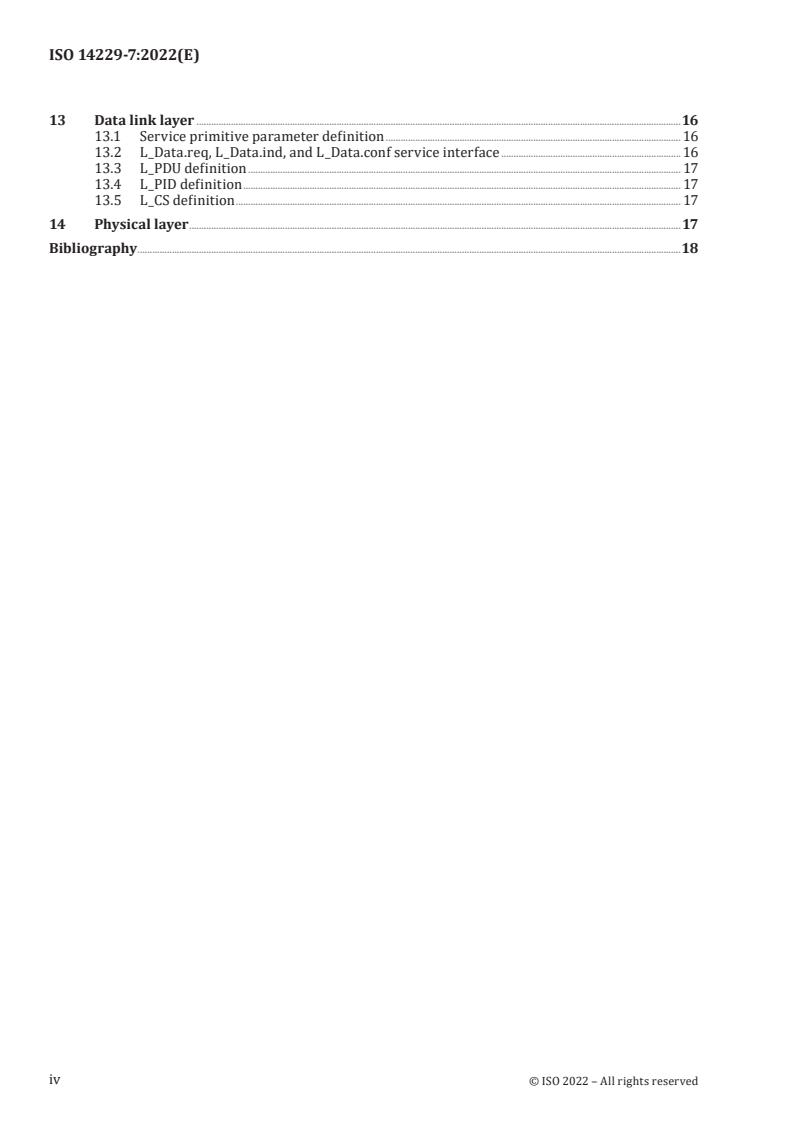

Contents Page

Foreword ..........................................................................................................................................................................................................................................v

Introduction .............................................................................................................................................................................................................................. vi

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ..................................................................................................................................................................................... 1

3 Terms and definitions .................................................................................................................................................................................... 1

4 Symbols and abbreviated terms..........................................................................................................................................................2

4.1 Symbols ......................................................................................................................................................................................................... 2

4.2 Abbreviated terms .............................................................................................................................................................................. 2

5 Conventions ............................................................................................................................................................................................................... 2

6 Service primitive interface definition .......................................................................................................................................... 2

7 Technical requirements ............................................................................................................................................................................... 3

7.1 Overview ...................................................................................................................................................................................................... 3

7.2 Implementation guidelines .......................................................................................................................................................... 4

7.2.1 General ........................................................................................................................................................................................ 4

7.2.2 Definition of diagnostic classes ............................................................................................................................. 4

7.2.3 LIN node requirements ................................................................................................................................................. 5

7.2.4 Signal-based diagnostics ............................................................................................................................................. 6

7.2.5 Tool suite support .............................................................................................................................................................. 7

8 Application layer .................................................................................................................................................................................................. 7

8.1 ISO 14229-1 service primitive parameters ................................................................................................................... 7

8.2 A_Data.req, A_Data.ind, and A_Data.conf service interface ........................................................................... 7

8.3 UDSonLIN services overview .................................................................................................................................................... 7

8.4 A_PDU definition ................................................................................................................................................................................... 9

8.5 A_Length definition............................................................................................................................................................................ 9

8.6 CommunicationControl service UDSonLIN implementation requirements .................................... 9

8.7 ResponseOnEvent service UDSonLIN implementation requirements ............................................... 10

8.8 Timing parameter definition .................................................................................................................................................. 10

9 Presentation layer ...........................................................................................................................................................................................12

10 Session layer ..........................................................................................................................................................................................................12

10.1 Service primitive parameter definition ........................................................................................................................12

10.2 S_Data.req, S_Data.ind, and S_Data.conf service interface ..........................................................................12

11 Transport layer ..................................................................................................................................................................................................12

11.1 General ........................................................................................................................................................................................................12

11.2 Service primitive parameters ................................................................................................................................................ 12

11.3 T_Data.req, T_Data.ind, and T_Data.conf service interface ..........................................................................12

11.4 T_PDU definition ................................................................................................................................................................................13

11.5 LIN transport and network layer interface adaptation .................................................................................. 13

11.5.1 Mapping of data link independent service primitives onto LIN data link-

dependent service primitives .............................................................................................................................. 13

11.5.2 Mapping of T_PDU onto N_PDU ........................................................................................................................... 13

12 Network layer .......................................................................................................................................................................................................14

12.1 Service primitive parameter definition ........................................................................................................................ 14

12.2 N_Data.req, N_Data.ind, and N_Data.conf service interface ....................................................................... 14

12.3 N_PDU definition................................................................................................................................................................................ 14

12.4 N_TAtype service primitive parameter ......................................................................................................................... 15

12.5 LIN responder node requirements .................................................................................................................................... 15

12.6 LIN commander node requirements ................................................................................................................................ 16

12.6.1 Network address requirements ......................................................................................................................... 16

12.6.2 Use of functional addressing ................................................................................................................................ 16

iii
© ISO 2022 – All rights reserved
---------------------- Page: 3 ----------------------
ISO 14229-7:2022(E)

13 Data link layer .....................................................................................................................................................................................................16

13.1 Service primitive parameter definition ........................................................................................................................ 16

13.2 L_Data.req, L_Data.ind, and L_Data.conf service interface ......................................................................... 16

13.3 L_PDU definition ................................................................................................................................................................................ 17

13.4 L_PID definition .................................................................................................................................................................................. 17

13.5 L_CS definition ..................................................................................................................................................................................... 17

14 Physical layer ........................................................................................................................................................................................................17

Bibliography .............................................................................................................................................................................................................................18

© ISO 2022 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 14229-7:2022(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to

the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see

www.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 31,

Data communication.

This second edition cancels and replaces the first edition (ISO 14229-7:2015), which has been technically

revised.
The main changes are as follows:
— restructuration of the document;
— introduction of requirement numbers, names and definitions;

— technical content improvements based on implementation feedback from the automotive industry.

A list of all parts in the ISO 14229 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.
© ISO 2022 – All rights reserved
---------------------- Page: 5 ----------------------
ISO 14229-7:2022(E)
Introduction

The ISO 14229 series has been established in order to define common requirements for diagnostic

systems, whatever the serial data link is.

To achieve this, the ISO 14229 series is based on the Open Systems Interconnection (OSI) Basic Reference

[1] [2]

Model in accordance with ISO/IEC 7498-1 and ISO/IEC 10731 , which structures communication

systems into seven layers. When mapped on this model, the services used by a diagnostic tester (client)

and an electronic control unit (ECU, server) are structured into the following layers:

— application layer (layer 7) specified in ISO 14229-1 and ISO 14229-3 to ISO 14229-8;

— presentation layer (layer 6) specified in ISO 14229-1 and ISO 14229-3 to ISO 14229-8;

— session layer services (layer 5) specified in ISO 14229-2 and ISO 14229-3 to ISO 14229-8.

Figure 1 illustrates the UDSonLIN document and related documents according to the OSI model.

Figure 1 — UDSonLIN document reference according to OSI model
© ISO 2022 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 14229-7:2022(E)
Road vehicles — Unified diagnostic services (UDS) —
Part 7:
UDS on local interconnect network (UDSonLIN)
1 Scope

This document specifies an application profile for the implementation of unified diagnostic services

(UDS) local interconnect network (LIN) in road vehicles (UDSonLIN).

UDSonLIN references ISO 14229-1 and ISO 14229-2 and specifies implementation requirements of the

diagnostic services to be used for diagnostic communication on Local Interconnect Network.

This document includes:

— additional requirements specific to the implementation of UDS on local interconnect network; and

— specific restrictions in the implementation of UDS on local interconnect network.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 14229-1, Road vehicles — Unified diagnostic services (UDS) — Part 1: Application layer

ISO 14229-2, Road vehicles — Unified diagnostic services (UDS) — Part 2: Session layer services

ISO 17987-2, Road vehicles — Local Interconnect Network (LIN) — Part 2: Transport protocol and network

layer services

ISO 17987-3, Road vehicles — Local Interconnect Network (LIN) — Part 3: Protocol specification

ISO 17987-4, Road vehicles — Local Interconnect Network (LIN) — Part 4: Electrical physical layer (EPL)

specification 12 V/24 V
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 14229-1 and ISO 14229-2

apply.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
© ISO 2022 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 14229-7:2022(E)
4 Symbols and abbreviated terms
4.1 Symbols
— empty table cell or feature undefined
t time
t time axis of CAN client
P2_CAN_Client
t time axis of CAN server
P2_CAN_Server
t time axis of LIN commander
P2_LIN_Commander
t time axis of LIN responder
P2_LIN_Responder
t maximum time value of the CAN client
P2_CAN_Client_Max
t maximum time value of the CAN server
P2_CAN_Server_Max
t maximum time value of the LIN commander
P2_LIN_Commander_Max
t maximum time value of the LIN responder
P2_LIN_Responder_Max
4.2 Abbreviated terms
AE address extension
Mtype message type
NAD node address
OSI Open System Interconnection
UDS unified diagnostic services
SA source address
TA target address
5 Conventions
[2]

This document is based on OSI service conventions as specified in ISO/IEC 10731 .

6 Service primitive interface definition

Figure 2 shows the Data.req (request), Data.ind (indication), and Data.conf (confirmation) service

interface.
© ISO 2022 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 14229-7:2022(E)
Key
1 service access point between application and application layer
2 read back from N-layer service provider
t time
Figure 2 — Data.req, Data.ind, and Data.conf service interface
7 Technical requirements
7.1 Overview

Table 1 provides an overview on the technical requirements and their associated requirement number.

Table 1 — Technical requirements overview
OSI#.REQ# Technical requirement title
7 Application layer
7.1 ISO 14229-1 service primitive parameters
7.2 A_Data.req, A_Data.ind, and A_Data.conf service interface
7.3 UDSonLIN – UDSonLIN-specific requirements
7.4 UDSonLIN – No UDSonLIN-specific requirements
7.5 UDSonLIN – A_Length – Definition
7.6 UDSonLIN – A_Length – Message buffer

7.7 UDSonLIN – A_Length – Commander node determines maximum size of receive buffer

7.8 UDSonLIN – CommunicationControl – Activation and de-activation of message type

7.9 UDSonLIN – ResponseOnEvent – ResponseHeader
7.10 UDSonLIN – Request and response message timing parameter values
6 Presentation layer
— No requirement statement in this document
5 Session layer
5.1 UDSonLIN – Service primitive parameter definition
5.2 UDSonLIN – S_Data.req, S_Data.ind, and S_Data.conf service interface
4 Transport layer
© ISO 2022 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 14229-7:2022(E)
Table 1 (continued)
OSI#.REQ# Technical requirement title
4.1 UDSonLIN – Service primitive parameters
4.2 UDSonLIN – T_Data.req, T_Data.ind, and T_Data.conf service interface

4.3 UDSonLIN – Mapping of data link independent service primitives onto LIN data link-dependent

service primitives
4.4 UDSonLIN – Mapping of T_PDU onto N_PDU
3 Network layer
3.1 UDSonLIN – Service primitive parameter definition
3.2 UDSonLIN – N_Data.req, N_Data.ind, and N_Data.conf service interface
3.3 UDSonLIN – N_TAtype service primitive parameter
3.4 UDSonLIN – Same N_TAtype request and associated response message format

3.5 UDSonLIN – Responder node diagnostic class I – No additional network layer requirements

3.6 UDSonLIN – Responder node diagnostic class II – Conform to ISO 17987-2
3.7 UDSonLIN – Responder node diagnostic class II – Fixed node address

3.8 UDSonLIN – Responder node diagnostic class II – Ignore NAD 7E16 as broadcast address

3.9 UDSonLIN – Responder node diagnostic class III – Conform to ISO 17987-2
3.10 UDSonLIN – Responder node diagnostic class III – Fixed node address

3.11 UDSonLIN – Responder node diagnostic class III – Ignore NAD 7E16 as broadcast address

3.12 UDSonLIN – Commander node diagnostic class III – Conform to ISO 17987-2

3.13 UDSonLIN – Commander node diagnostic class III – Usage of NAD assignment in LIN cluster

3.14 UDSonLIN – Commander node diagnostic class III – Assignment of subnet number

2 Data link layer
2.1 UDSonLIN – Service primitive parameter definition
2.2 UDSonLIN – L_Data.req, L_Data.ind, and L_Data.conf service interface
1 Physical layer
— No requirement statement in this document
7.2 Implementation guidelines
7.2.1 General

This clause defines how the diagnostic services, as defined in ISO 14229-1, apply to LIN.

To allow a common implementation of application layer and session layer, this document uses the

session layer protocol as defined in ISO 14229-2 and focuses on necessary modifications and interfaces

to adopt it to the ISO 17987 series.

The subfunction parameter definitions take into account that the most significant bit is used for the

suppressPosRspMsgIndicationBit parameter as defined in ISO 14229-1.

It is the vehicle manufacturer’s responsibility to setup the LIN commander and responder nodes to

exchange UDSonLIN information according to the ISO 17987 series.
7.2.2 Definition of diagnostic classes
7.2.2.1 Overview

Architectural, diagnostic communication performance, and transport protocol needs of responder

nodes are accommodated by dividing diagnostic services functionality into three diagnostic classes.

© ISO 2022 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 14229-7:2022(E)

Therefore, a diagnostic class is assigned to each responder node according to its level of diagnostic

functionality and complexity.
7.2.2.2 Diagnostic class I

Smart and simple devices like intelligent sensors and actuators requiring none or very low amount of

diagnostic functionality. Actuator control, sensor reading, and fault memory handling is done by the

commander node, using signal carrying frames. Therefore, specific diagnostic support for these tasks is

not required. Fault indication is always signal-based.
7.2.2.3 Diagnostic class II

A diagnostic class II responder node is similar to a diagnostic class I responder node, but it provides node

identification support. The extended node identification is normally required by vehicle manufacturers.

Testers or commander nodes use ISO 14229-1 diagnostic services to request the extended node

identification information. Actuator control, sensor reading, and fault memory handling is done by the

commander node, using signal carrying frames. Therefore, specific diagnostic support for these tasks is

not required. Fault indication is always signal-based.
7.2.2.4 Diagnostic class III

Diagnostic class III responder nodes are devices with enhanced application functions typically

performing their own local information processing (e.g. function controllers, local sensor/actuator

loops). The responder nodes execute tasks beyond the basic sensor/actuator functionality and,

therefore, require extended diagnostic support. Direct actuator control and raw sensor data are

often not exchanged with the commander node and, therefore, not included in signal carrying frames.

ISO 14229-1 diagnostic services for I/O control, sensor value reading, and parameter configuration

(beyond node configuration) are required.

Diagnostic class III responder nodes have internal fault memory, along with associated reading and

clearing services. Optionally, reprogramming (flash/NVRAM reprogramming) of the responder node is

possible. This requires an implementation of a boot loader and necessary diagnostic services to unlock

the device initiate downloads and transfer data, etc.

The primary difference between diagnostic class II and diagnostic class III is the distribution of

diagnostic capabilities between the LIN commander node and the LIN responder node for diagnostic

class II while for a diagnostic class III LIN responder node, no diagnostic application features of the LIN

responder node are implemented in the LIN commander node.
7.2.3 LIN node requirements
7.2.3.1 Commander node requirements
7.2.3.1.1 Commander message routing

The commander node usually is a high-performance ECU and, in most implementations, supports the

ISO 14229-1 diagnostic services. The commander node and the external test equipment are connected

through a backbone network (e.g. ISO 11898 series). The commander node shall receive all diagnostic

requests addressed to the responder nodes from the backbone network and route them to the

appropriate LIN cluster(s). Responses from the responder nodes shall be routed back to the backbone

network through the commander node.

All diagnostic request and response messages addressed to the responder nodes can be routed in

the network layer (i.e. no application layer routing). The commander node shall implement the LIN

transport protocol (see ISO 17987-2) as well as the transport protocols used on the backbone network

(e.g. ISO 15765-2).
© ISO 2022 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 14229-7:2022(E)
7.2.3.1.2 Commander node fault management, sensor reading, I/O control

Diagnostic class I and diagnostic class II responder nodes (see ISO 17987-3) provide signal-based

fault information and sensor, I/O access through signal carrying frames. The LIN commander node is

responsible to handle the responder nodes signal based faults and handle the associated DTCs. The LIN

commander node serves UDS requests directly to the client/tester and acts as a diagnostic application

layer gateway. UDS services provide access to the sensor/actuator signals on the LIN network.

Diagnostic class III responder nodes (see ISO 17987-3) are independent diagnostic entities. The LIN

commander node does not implement diagnostic services for the diagnostic capabilities of its diagnostic

class III responder nodes.
7.2.3.2 Responder node requirements

Responder nodes are typically electronic devices that are not involved in a complex data communication.

Also, their need of distributing diagnostic data is low. Responder nodes transmit simple diagnostic

information such as error indications in signal carrying frames.

Node configuration can be performed by the commander node independently while diagnostic services

are always routed on request from external or internal test equipment. Both cases use the same node

address (NAD) and transport protocol with the exception that configuration is always performed

through SingleFrames (SF). Only responder nodes have an NAD. The NAD is also used as the source

address in a diagnostic responder response frame.

NOTE There is a one-to-many mapping between a physical node and a logical node and it is addressed using

the NAD.
7.2.4 Signal-based diagnostics
7.2.4.1 Responder implementation

Signal-based diagnostics are implemented by responder nodes (diagnostic class I and II), which do not

implement a fault memory and the diagnostic protocol to directly access this fault memory from an

external test tool.
There are two types of failure transmission through signal carrying frames.

a) Type 1 failure information is periodically transmitted and encoded into an existing signal (e.g.

upper values of signal range used to indicate specific failure conditions) by the responder node.

A type 1 failure use case-specific and defined by vehicle manufacturers and is not part of this

document.

b) Type 2 failure information is not periodically transmitted for components which do not generate

a signal that is periodically transmitted (e.g. responder node internal failure). Additional signal-

based failure transmission shall be implemented for type 2 failures (i.e. if a responder node is

capable of locally detecting faults which are not transmitted through the associated signal in signal

carrying frames already).

Each responder node shall transmit the failure status information that is monitored by the responder

node to the commander node through signal carrying frames. The status information shall contain the

current failure status of the responder nodes' components. A signal shall support the following states:

— no test result available, default, initialization value;
— test result: failed;
— test result: passed.

If a responder node implements more than one independent function, a status signal can be assigned to

each function. In this case, only the failing function could be disabled by the application.

© ISO 2022 – All rights reserved
---------------------- Page: 12 ----------------------
ISO 14229-7:2022(E)
The fault state signals are set in the status management of
...
