INTERNATIONAL ISO
STANDARD 1116
Second edition
1999-07-15
Micrographics — 16 mm and 35 mm
microfilm spools and reels —
Specifications
Micrographie — Bobines d'approvisionnement et de lecture pour microfilms
de 16 mm et 35 mm — Spécifications
Reference number
ISO 1116:1999(E)
---------------------- Page: 1 ----------------------
ISO 1116:1999(E)

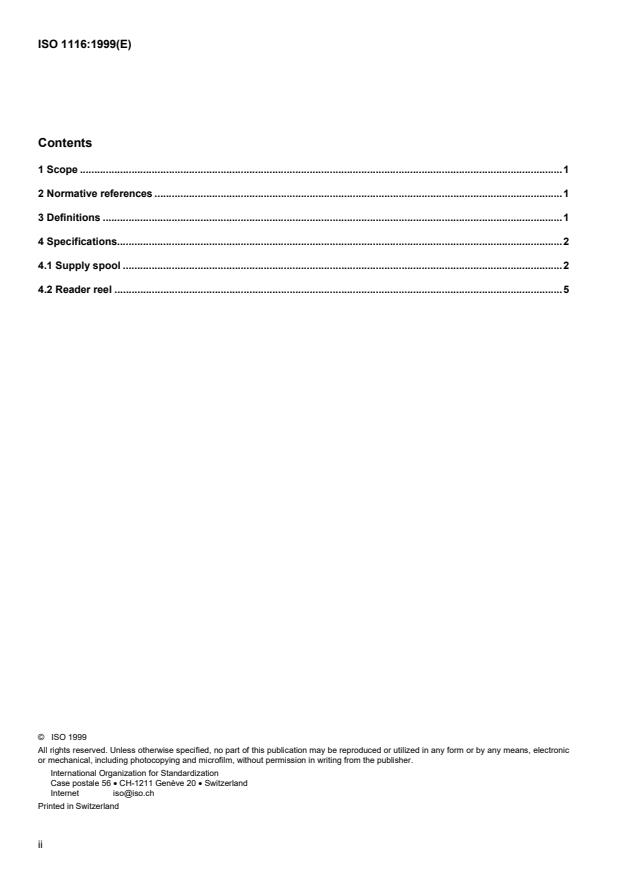

Contents

1 Scope ........................................................................................................................................................................1

2 Normative references ..............................................................................................................................................1

3 Definitions ................................................................................................................................................................1

4 Specifications...........................................................................................................................................................2

4.1 Supply spool .........................................................................................................................................................2

4.2 Reader reel ............................................................................................................................................................5

© ISO 1999

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic

or mechanical, including photocopying and microfilm, without permission in writing from the publisher.

International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet iso@iso.ch
Printed in Switzerland
---------------------- Page: 2 ----------------------
© ISO
ISO 1116:1999(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO

member bodies). The work of preparing International Standards is normally carried out through ISO technical

committees. Each member body interested in a subject for which a technical committee has been established has

the right to be represented on that committee. International organizations, governmental and non-governmental, in

liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical

Commission (IEC) on all matters of electrotechnical standardization.

Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.

Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.

International Standard ISO 1116 was prepared by Technical Committee ISO/TC 171, Document imaging

applications, Subcommittee SC 2, Application issues.

This second edition cancels and replaces the first edition (ISO 1116:1975). Specifications relating to unexposed and

to imaged microfilms have been excluded in this edition, since they are now dealt with in other specific standards.

Minor technical changes have been made to take into account the spools and reels now on the market.

iii
---------------------- Page: 3 ----------------------
INTERNATIONAL STANDARD © ISO ISO 1116:1999(E)
Micrographics — 16 mm and 35 mm microfilm spools and
reels — Specifications
1 Scope

This International Standard specifies the dimensions of 16 mm and 35 mm microfilm supply spools and reader

reels.

Spools and reels that are an integral component of a cartridge, cassette, or magazine used in microfilm-recording or

microfilm-reading equipment are not covered by this standard.
2 Normative references

The following normative documents contain provisions which, through reference in this text, constitute provisions of

this International Standard. For dated references, subsequent amendments to, or revisions of, any of these

publications do not apply. However, parties to agreements based on this International Standard are encouraged to

investigate the possibility of applying the most recent editions of the normative documents indicated below. For

undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC

maintain registers of currently valid International Standards.

ISO 1019:1982, Cinematography — Spools, daylight loading type for 16 mm motion-picture cameras —

Dimensions.

ISO 3042:1992, Cinematography — Labelling of containers for raw-stock motion-picture films and magnetic films —

Minimum information specifications.

ISO 3047:1982, Cinematography — Spool, daylight loading type, for 35 mm motion-picture cameras (capacity

30 m - 100 ft) — Dimensions.
ISO 6148:1993, Photography — Film dimensions — Micrographics.
ISO 6196-4:1998, Micrographics — Vocabulary — Part 4: Materials and packaging.

ISO 6199:1991, Micrographics — Microfilming of documents on 16 mm and 35 mm silver-gelatin type microfilm —

Operating procedures.

ISO 7761-1:— , Micrographics — Single-core cartridge for 16 mm processed microfilm — Dimensions and

operational constraints — Part 1: Open-type cartridge.

ISO 10214:1991, Photography — Processed photographic materials — Filing enclosures for storage.

3 Definitions

For the purposes of this International Standard, the definitions given in ISO 6196-4 apply.

1) To be published.
---------------------- Page: 4 ----------------------
© ISO
ISO 1116:1999(E)
4 Specifications
4.1 Supply spool
4.1.1 Dimensions

The dimensions of the supply spool shall conform to the values in Figures 1 and 2 and Tables 1, 2, and 3.

Figure 1 — Metal spool
---------------------- Page: 5 ----------------------
© ISO
ISO 1116:1999(E)
Figure 2 — Plastic spool
Table 1 — Dimensions common to 16 mm and 35 mm spools
Dimensions in millimetres
Dimension
1,00
A 7,60
0,40
B 3,10
0,05
C 8,05
0
D 5,46 min.
E 32,00 – 0,50
K 25,40 min.
P 0,50 max.
S 0,75 min. (width x H (length))
U 8,15 – 0,15
0
V 11,20
-0,20
See Figure 1 and Figure 2.
---------------------- Page: 6 ----------------------
© ISO
ISO 1116:1999(E)
Table 2 — Dimensions common to 16 mm spools only
Dimensions in millimetres
Dimension
16,23 – 0,18
H 16,00 min.
J and J 18,50
-0,40
0
M and M 92,00
-1,00
See Figure 1 and Figure 2.
It is recognized that many existing spools do not meet t
...
