Standards Content (sample)

INTERNATIONAL ISO/IEC
STANDARD 14754
First edition
1999-06-01
Information technology — Pen-Based
Interfaces — Common gestures for Text
Editing with Pen-Based Systems
Technologies de l'information — Interfaces basées sur une plume —
Mouvements courants en édition de texte avec les systèmes basés sur
une plume
Reference number
ISO/IEC 14754:1999(E)
---------------------- Page: 1 ----------------------
ISO/IEC 14754:1999(E)

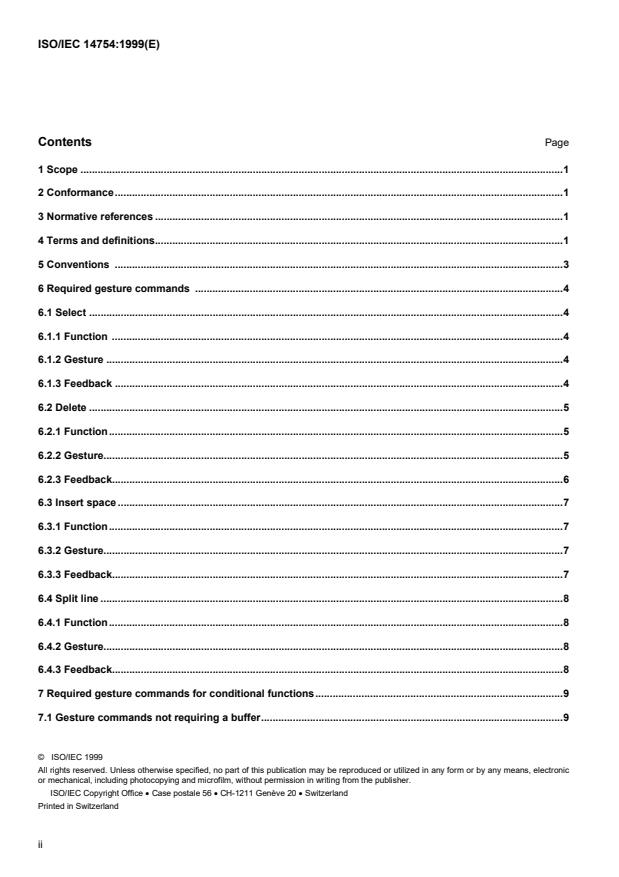

Contents Page

1 Scope ........................................................................................................................................................................1

2 Conformance............................................................................................................................................................1

3 Normative references ..............................................................................................................................................1

4 Terms and definitions..............................................................................................................................................1

5 Conventions ............................................................................................................................................................3

6 Required gesture commands ................................................................................................................................4

6.1 Select .....................................................................................................................................................................4

6.1.1 Function .............................................................................................................................................................4

6.1.2 Gesture ...............................................................................................................................................................4

6.1.3 Feedback ............................................................................................................................................................4

6.2 Delete .....................................................................................................................................................................5

6.2.1 Function..............................................................................................................................................................5

6.2.2 Gesture................................................................................................................................................................5

6.2.3 Feedback.............................................................................................................................................................6

6.3 Insert space ...........................................................................................................................................................7

6.3.1 Function..............................................................................................................................................................7

6.3.2 Gesture................................................................................................................................................................7

6.3.3 Feedback.............................................................................................................................................................7

6.4 Split line .................................................................................................................................................................8

6.4.1 Function..............................................................................................................................................................8

6.4.2 Gesture................................................................................................................................................................8

6.4.3 Feedback.............................................................................................................................................................8

7 Required gesture commands for conditional functions......................................................................................9

7.1 Gesture commands not requiring a buffer.........................................................................................................9

© ISO/IEC 1999

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic

or mechanical, including photocopying and microfilm, without permission in writing from the publisher.

ISO/IEC Copyright Office � Case postale 56 � CH-1211 Genève 20 � Switzerland
Printed in Switzerland
---------------------- Page: 2 ----------------------
© ISO/IEC
ISO/IEC 14754:1999(E)

7.1.1 Move....................................................................................................................................................................9

7.1.1.1 Function...........................................................................................................................................................9

7.1.1.2 Gesture ............................................................................................................................................................9

7.1.1.3 Feedback .........................................................................................................................................................9

7.1.2 Copy ..................................................................................................................................................................10

7.1.2.1 Function.........................................................................................................................................................10

7.1.2.2 Gesture ..........................................................................................................................................................10

7.1.2.3 Feedback .......................................................................................................................................................10

7.2 Gesture commands requiring a buffer .............................................................................................................11

7.2.1 Cut .....................................................................................................................................................................11

7.2.1.1 Function.........................................................................................................................................................11

7.2.1.2 Gesture ..........................................................................................................................................................11

7.2.1.3 Feedback .......................................................................................................................................................11

7.2.2 Copy to buffer ..................................................................................................................................................12

7.2.2.1 Function.........................................................................................................................................................12

7.2.2.2 Gesture ..........................................................................................................................................................12

7.2.2.3 Feedback .......................................................................................................................................................12

7.2.3 Paste .................................................................................................................................................................13

7.2.3.1 Function.........................................................................................................................................................13

7.2.3.2 Gesture ..........................................................................................................................................................13

7.2.3.3 Feedback .......................................................................................................................................................13

8 Conditionally required gesture commands for required functions..................................................................14

8.1 Scroll ....................................................................................................................................................................14

8.1.1 Function............................................................................................................................................................14

8.1.2 Gesture .............................................................................................................................................................14

8.1.3 Feedback ..........................................................................................................................................................14

8.2 Undo.....................................................................................................................................................................15

8.2.1 Function............................................................................................................................................................15

8.2.2 Gesture .............................................................................................................................................................15

8.2.3 Feedback ..........................................................................................................................................................15

iii
---------------------- Page: 3 ----------------------
© ISO/IEC
ISO/IEC 14754:1999(E)

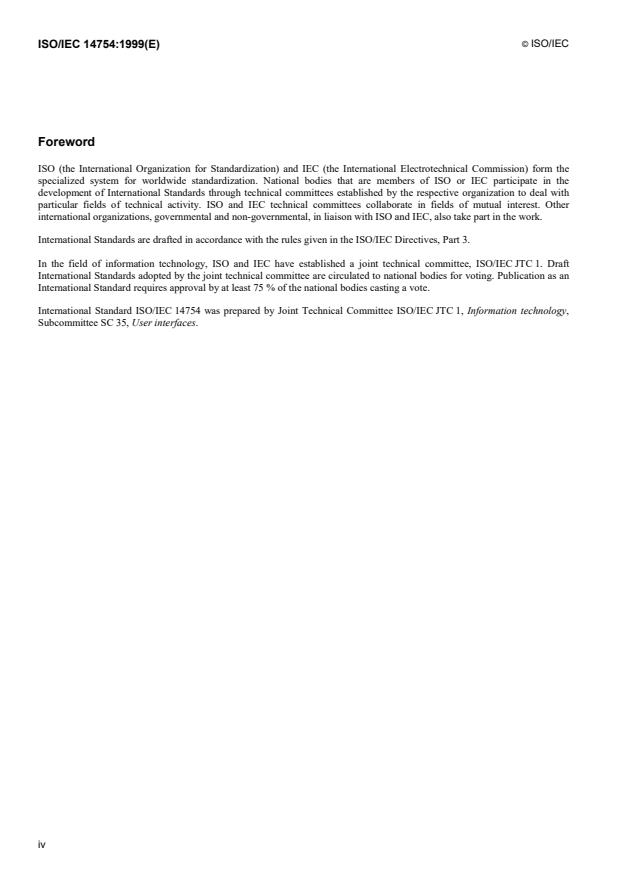

Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission) form the

specialized system for worldwide standardization. National bodies that are members of ISO or IEC participate in the

development of International Standards through technical committees established by the respective organization to deal with

particular fields of technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other

international organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.

In the field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1. Draft

International Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the national bodies casting a vote.

International Standard ISO/IEC 14754 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,

Subcommittee SC 35, User interfaces.
---------------------- Page: 4 ----------------------
© ISO/IEC
ISO/IEC 14754:1999(E)
Introduction

Many systems using pen input mode have been produced. These systems recognize gestures as commands, unfortunately these

gestures vary from one system to another. In particular, the gestures conventionally used to make changes to the layout and

content of text differ across systems.

This International Standard specifies a set of basic gestures which will enable the user to operate a system regardless of its

country of origin or specific manufacturer. The advantage of these gestures lies in the fact that the indication of a location and

the indication of an action to be performed on the object at that location can both be carried out simultaneously. The gestures

chosen to indicate such functions are the most commonly used. These are essentially the kind of gestures covered by this

International Standard. This International Standard consists of 8 clauses and covers commands for two types of required

functions and also some optional functions.
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD © ISO/IEC ISO/IEC 14754:1999(E)
Information technology — Pen-Based Interfaces —
Common gestures for Text Editing with Pen-Based Systems
1 Scope

This International Standard defines the basic gesture commands for text editing with pen-based systems and defines the user

actions required to have the system execute these commands. The feedback to the user when a gesture command has been

correctly recognized is also defined. This International Standard does not define the user actions necessary for the input of

characters.
2 Conformance

A system conforms to this International Standard if it conforms to clauses 6, 7 and 8.

3 Normative references
There are no International Standards referenced.
4 Terms and definitions

For the purposes of this International Standard, the following definitions apply.

4.1
action point
point on the digitizer display where a gesture command will be executed
4.2
digitizer
device which can detect the position touched by the pen
4.3
end point
final point of the stroke drawn by the pen
---------------------- Page: 6 ----------------------
© ISO/IEC
ISO/IEC 14754:1999(E)
4.4
gesture

one or a sequence of actions and strokes made by a user upon the digitizer that invokes a gesture command

4.5
gesture command

instruction to the system resulting from a gesture input by the user, e.g. Select, Move, Delete

4.6
lift-off
action in which the user lifts the pen off the active digitizer surface
4.7
pause

action where the user keeps the pen stationary for a certain time after touchdown

4.8
pen-based system

system consisting of a pen and digitizer which can detect the position touched by the pen and with which the user can input the

data or commands using the pen
4.9
segment

part of a stroke made by moving the pen in a straight line without changing direction

4.10
selected text
continuous character string that the user has selected
4.11
start point
first point of a stroke drawn by the pen
4.12
stroke

continuous movement of the pen across the digitizer surface starting with a touchdownandendingat a lift-off

---------------------- Page: 7 ----------------------
© ISO/IEC
ISO/IEC 14754:1999(E)
4.13
tap

to touch the digitizer briefly, typically less than one second, with the pen and then lift-off in approximately the same position

4.14
text area
area where the text is displayed and the user can input gestures
4.15
touchdown
action in which the user touches the active surface of the digitizer with a pen
4.16
visible trail

path of the pen temporarily displayed by the digitizer until completion of the stroke

5 Conventions

For the purposes of this International Standard, the following conventions apply to the diagrams in clauses 6, 7 and 8.

Start point
Touchdown and pause
Tap and touchdown
Stroke with a visible trail on the screen
Stroke without a visible trail on the screen
Direction of the stroke
Area of selection
---------------------- Page: 8 ----------------------
© ISO/IEC
ISO/IEC 14754:1999(E)
6 Required gesture commands
Systems
...
