ISO 1954:2013

Plywood - Tolerances on dimensions

ISO 1954:2013 specifies dimensional tolerances of plywood panels (length, width, thickness) and tolerances for edge straightness and squareness.

Contreplaqué — Tolérances sur dimensions

General Information

• Status: Published
• Publication Date: 03-Nov-2013
• ICS: 79.060.10 - Plywood
• Technical Committee: ISO/TC 89/SC 3 - Plywood
• Drafting Committee: ISO/TC 89/SC 3 - Plywood
• Current Stage: 9093 - International Standard confirmed
• Start Date: 06-Nov-2025
• Completion Date: 13-Dec-2025

Relations

• Revises: ISO 1954:1999 - Plywood - Tolerances on dimensions
• Effective Date: 03-Dec-2011

Overview

ISO 1954:2013 - "Plywood - Tolerances on dimensions" defines the dimensional tolerances for plywood panels, covering length, width, thickness, edge straightness, and squareness. It establishes how measurements are made and the reference moisture content for which tolerances apply. This edition replaces ISO 1954:1999 with technical revisions to key clauses.

Key topics and requirements

• Reference moisture content: Dimensional tolerances apply at a reference moisture content of (10 ± 2) %; moisture is to be measured per ISO 16979.
• Measurement methods: Dimensions, straightness and squareness are measured in accordance with ISO 9426.
• Length and width tolerances: Specified as ±1.5 mm per metre, with a maximum permitted deviation of ±3.5 mm.
• Thickness tolerances: Detailed numeric tolerances are provided in Table 1 of the standard and vary by nominal panel thickness and surface finish. Tolerances are different for unsanded / touch-sanded / scraped panels versus sanded panels; in general, thicker panels have larger allowable variations and sanded panels have tighter nominal thickness tolerances.
• Edge straightness: Tolerance is 1 mm per metre.
• Squareness: Tolerance is 1 mm per metre.
• Application caveats: Unless otherwise agreed in contract or other applicable standards, the tolerances in clauses 4.2–4.5 apply. Some specialized plywood products or uses may require narrower tolerances.

Applications and who uses this standard

ISO 1954:2013 is essential for stakeholders involved in plywood production, procurement, testing and use:

• Plywood manufacturers - to set production and quality-control limits.
• Quality assurance and testing laboratories - for checking compliance using ISO 9426 and ISO 16979 measurement methods.
• Buyers and specifiers in construction, cabinetry, furniture, marine and transportation industries - to define acceptable dimensional variation in contracts and material specifications.
• Importers/exporters and compliance officers - to ensure products meet international dimensional tolerances.
• Standards committees and product developers - as a baseline reference for developing tighter product-specific tolerances.

Related standards

• ISO 9426 - Wood‑based panels: Determination of dimensions of panels (measurement methods referenced by ISO 1954).
• ISO 16979 - Wood‑based panels: Determination of moisture content (used to establish the reference moisture state).

Keywords: ISO 1954:2013, plywood tolerances, dimensional tolerances, plywood thickness tolerances, edge straightness, squareness, moisture content, ISO 9426, ISO 16979.

Standards Content (Sample)

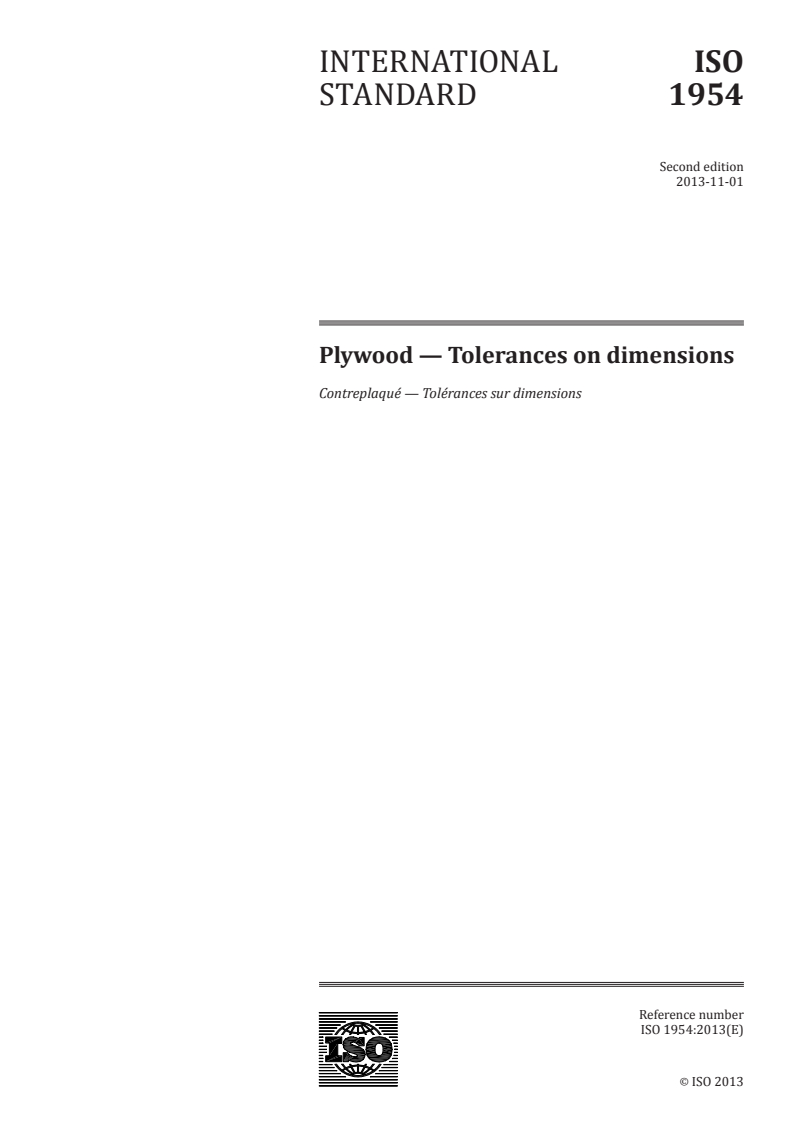

INTERNATIONAL ISO
STANDARD 1954
Second edition
2013-11-01
Plywood — Tolerances on dimensions
Contreplaqué — Tolérances sur dimensions
Reference number
©
ISO 2013
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

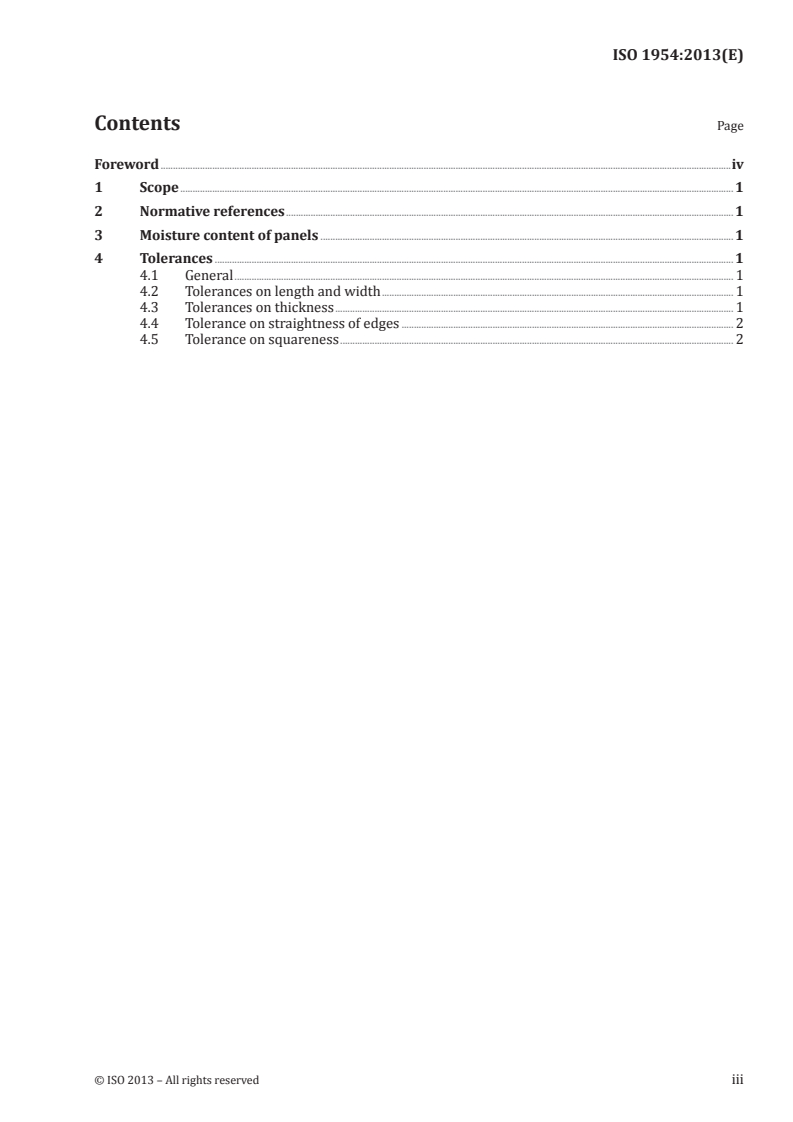

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Moisture content of panels . 1
4 Tolerances . 1
4.1 General . 1
4.2 Tolerances on length and width . 1
4.3 Tolerances on thickness . 1
4.4 Tolerance on straightness of edges . 2
4.5 Tolerance on squareness . 2
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should b
...
