INTERNATIONAL STANDARD ISO/IEC 13249-5:2001
TECHNICAL CORRIGENDUM 1
Published 2003-08-15
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION • МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ • ORGANISATION INTERNATIONALE DE NORMALISATION
INTERNATIONAL ELECTROTECHNICAL COMMISSION • МЕЖДУНАРОДНАЯ ЭЛЕКТРОТЕХНИЧЕСКАЯ КОМИССИЯ • COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
Information technology — Database languages — SQL
multimedia and application packages —
Part 5:
Still Image
TECHNICAL CORRIGENDUM 1
Technologies de l'information — Langages de bases de données — Multimédia SQL et paquetages
d'application —
Partie 5: Image fixe
RECTIFICATIF TECHNIQUE 1
Technical Corrigendum 1 to ISO/IEC 13249-5:2001 was prepared by Joint Technical Committee ISO/IEC
JTC 1, Information technology, Subcommittee SC 32, Data management and interchange.
Statement of purpose of rationale:
A statement indicating the rationale for each change to ISO/IEC 13249-5:2001(E) is included. This is to inform
the users of that standard as to the reason why it was judged necessary to change the original wording. In
many cases the reason is editorial or to clarify the wording; in some cases it is to correct an error or an
omission in the original wording.
Notes on numbering:
Where this Corrigendum introduces new Definitional Rules and Descriptions, the new rules have been
numbered as follows:
Rules inserted between, for example, Rules 7) and 8) are numbered 7.1), 7.2), etc. [or 7) a.1), 7) a.2),
etc.]. Those inserted before Rule 1) are numbered 0.1), 0.2), etc.
Where this Corrigendum introduces new Subclauses, the new subclauses have been numbered as follows:
Subclauses inserted between, for example, Subclause 4.3.2 and 4.3.3 are numbered 4.3.2a, 4.3.2b, etc.
Those inserted before, for example, 4.3.1 are numbered 4.3.0, 4.3.0a, etc.
ICS 35.060 Ref. No. ISO/IEC 13249-5:2001/Cor.1:2003(E)
© ISO/IEC 2003 – All rights reserved
Published in Switzerland
---------------------- Page: 1 ----------------------
ISO/IEC 13249-5:2001/Cor.1:2003(E)

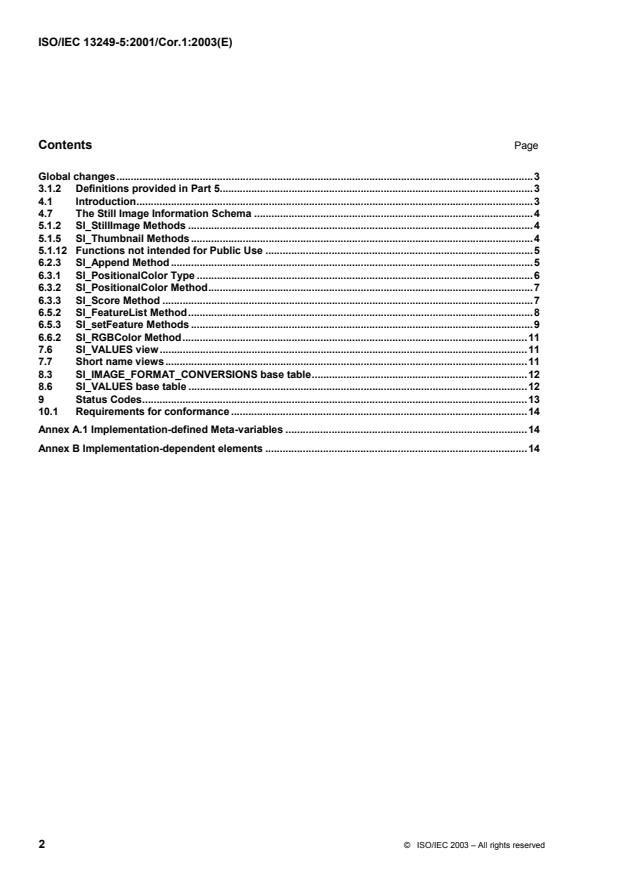

Contents Page
Global changes.3
3.1.2 Definitions provided in Part 5.3
4.1 Introduction.3
4.7 The Still Image Information Schema .4
5.1.2 SI_StillImage Methods.4
5.1.5 SI_Thumbnail Methods.4
5.1.12 Functions not intended for Public Use .5
6.2.3 SI_Append Method.5
6.3.1 SI_PositionalColor Type.6
6.3.2 SI_PositionalColor Method.7
6.3.3 SI_Score Method.7
6.5.2 SI_FeatureList Method.8
6.5.3 SI_setFeature Methods.9
6.6.2 SI_RGBColor Method.11
7.6 SI_VALUES view.11
7.7 Short name views.11
8.3 SI_IMAGE_FORMAT_CONVERSIONS base table.12
8.6 SI_VALUES base table .12
9 Status Codes.13
10.1 Requirements for conformance .14
Annex A.1 Implementation-defined Meta-variables .14
Annex B Implementation-dependent elements .14
2 © ISO/IEC 2003 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 13249-5:2001/Cor.1:2003(E)
Global changes
1. Rationale: Align function names to use consistent naming conventions.
Globally replace all the functions names listed as "Old Function Names" in the following table with
corresponding function names listed as "New Functions Name".
Old Function Name New Function Name
SI_getThumbnail SI_getThmbnl
SI_fndAverageColor SI_findAvgClr
SI_mkAverageColor SI_mkAvgClr
SI_ScoreByAvrgClr SI_ScoreByAvgClr
SI_findColorHstgrm SI_findClrHstgr
SI_mkColorHistogrm SI_mkClrHstgr
SI_arrayClrHstgrm SI_arrayClrHstgr
SI_appendClrHstgrm SI_appendClrHstgr
SI_findPositColor SI_findPstnlClr
SI_ScoreByPositClr SI_ScoreByPstnlClr
SI_mkFeatureList SI_mkFtrList
SI_setAvgClrFtrW SI_setAvgClrFtr
SI_setClrHstgrFtrW SI_setClrHstgrFtr
SI_setPstnlClrFtrW SI_setPstnlClrFtr
SI_setTextureFtrW SI_setTextureFtr
SI_mkRGBColor SI_mkRGBClr
3.1.2 Definitions provided in Part 5
1. Rational: The term "most significant color" was missing in the list of defined terms.
Add the following definition:
3.1.2.7a
most significant color
a color with the highest frequency in a color histogram
4.1 Introduction
1. Rationale: Remove requirement for supported formats to be able to derive features from images with that
format.
Replace the sentence directly before NOTE 4 with:
An image format is a format supported by an implementation (for short: a supported format) if the
implementation is able to derive the inherent image characteristics from the raw image.
© ISO/IEC 2003 – All rights reserved 3
---------------------- Page: 3 ----------------------

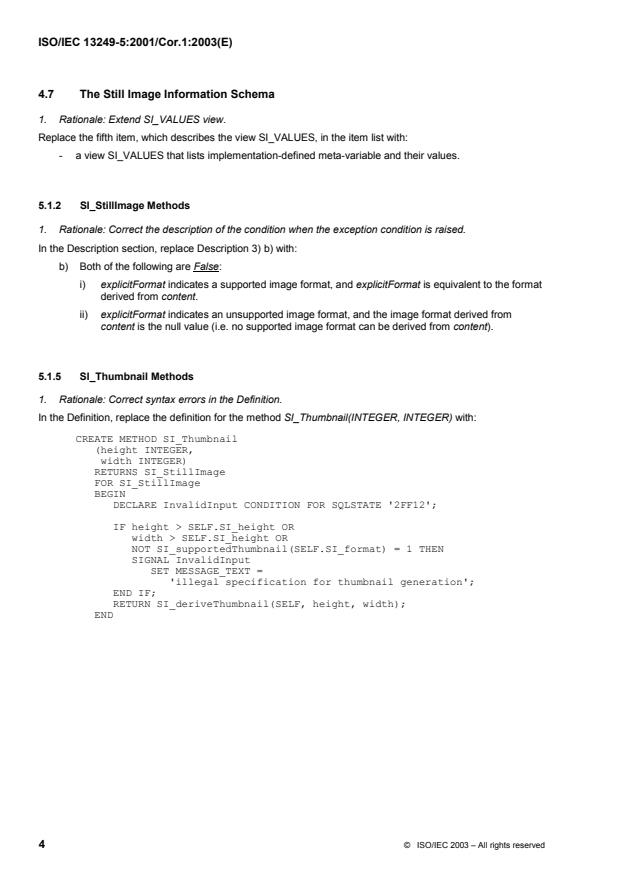

ISO/IEC 13249-5:2001/Cor.1:2003(E)
4.7 The Still Image Information Schema
1. Rationale: Extend SI_VALUES view.
Replace the fifth item, which describes the view SI_VALUES, in the item list with:
- a view SI_VALUES that lists implementation-defined meta-variable and their values.
5.1.2 SI_StillImage Methods
1. Rationale: Correct the description of the condition when the exception condition is raised.
In the Description section, replace Description 3) b) with:
b) Both of the following are False:
i) explicitFormat indicates a supported image format, and explicitFormat is equivalent to the format
derived from content.
ii) explicitFormat indicates an unsupported image format, and the image format derived from
content is the null value (i.e. no supported image format can be derived from content).
5.1.5 SI_Thumbnail Methods
1. Rationale: Correct syntax errors in the Definition.
In the Definition, replace the definition for the method SI_Thumbnail(INTEGER, INTEGER) with:
CREATE METHOD SI_Thumbnail
(height INTEGER,
width INTEGER)
RETURNS SI_StillImage
FOR SI_StillImage
BEGIN
DECLARE InvalidInput CONDITION FOR SQLSTATE '2FF12';
IF height > SELF.SI_height OR
width > SELF.SI_height OR
NOT SI_supportedThumbnail(SELF.SI_format) = 1 THEN
SIGNAL InvalidInput
SET MESSAGE_TEXT =
'illegal specification for thumbnail generation';
END IF;
RETURN SI_deriveThumbnail(SELF, height, width);
END
4 © ISO/IEC 2003 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 13249-5:2001/Cor.1:2003(E)
5.1.12 Functions not intended for Public Use
1. Rationale: Correct a syntax error in the Definition.
Replace the definition of the function SI_supportedThumbnail with:
CREATE FUNCTION SI_supportedThumbnail
(sourceFormat CHARACTER VARYING(SI_MaxFormatLength))
RETURNS INTEGER
LANGUAGE SQL
DETERMINISTIC
CONTAINS SQL
CALLED ON NULL INPUT
RETURN
CASE
WHEN EXISTS(
SELECT *
FROM SI_INFORMTN_SCHEMA.SI_THUMBNAIL_FORMATS
WHERE TRIM(BOTH ' ' FROM SI_FORMAT) =
TRIM(BOTH ' ' FROM sourceFormat)
) THEN 1
ELSE 0
END
2. Rationale: Correct minor errors in the Description section.
Replace Description 8) with:
8) The function SI_deriveThumbnail(SI_StillImage, INTEGER, INTEGER):
a) This function takes the following input parameters:
i) an SI_StillImage value image,
ii) an INTEGER value height,
iii) an INTEGER value width.
b) This function derives and returns a thumbnail of its parameter image. If a thumbnail cannot be
derived from image then the result ret is the null value. Otherwise, ret returns a thumbnail with
the specified height and width. The format of the thumbnail ret.SI_format is the same as the
format of the still image image.
3. Rationale: Correct minor errors in the Description section.
Replace Description 9) with:
9) The function SI_supportedThumbnail(CHARACTER VARYING):
a) This function takes the following input parameter:
i) a CHARACTER VARYING value sourceFormat.
b) If the view SI_THUMBNAIL_FORMATS of the information schema SI_INFORMTN_SCHEMA
contains a row whose SI_FORMAT column value is equivalent to sourceFormat, then the result
of this function is 1 (one); i.e. a thumbnail can be derived from an image whose format indication
equals sourceFormat. Otherwise, the result is 0 (zero); i.e. a thumbnail cannot be derived from
an image whose format indication equals sourceFormat.
6.2.3 SI_Append Method
1. Rationale: Correct parameter name in the Definition.
Replace the Definition with:
CREATE METHOD SI_Append
(color SI_Color,
© ISO/IEC 2003 – All rights reserved 5
---------------------- Page: 5 ----------------------
ISO/IEC 13249-5:2001/Cor.1:2003(E)
frequency DOUBLE PRECISION)
RETURNS SI_ColorHistogram
FOR SI_ColorHistogram
BEGIN
DECLARE InvalidInput CONDITION FOR SQLSTATE '2FF03';
IF CARDINALITY(SELF.SI_ColorsList) = SI_MaxHistogramLength OR
color IS NULL OR
frequency IS NULL OR
frequency < 0.0 OR frequency > 100.0 THEN
SIGNAL InvalidInput
SET MESSAGE_TEXT =
'incorrect color histogram feature specification';
END IF;
SET SELF.SI_ColorsList =
SELF.SI_ColorsList || ARRAY[color];
SET SELF.SI_FrequenciesList =
SELF.SI_FrequenciesList || ARRAY[frequency];
RETURN SELF;
END
6.3.1 SI_PositionalColor Type
1. Rationale: Use the most significant color instead of the average color for the positional color feature.
Replace the Definition with:
CREATE TYPE SI_PositionalColor
AS (
SI_ColorPositions SI_Color ARRAY[SI_NumberSections]
)
INSTANTIABLE
NOT FINAL
CONSTRUCTOR METHOD SI_PositionalColor
(sourceImage SI_StillImage)
RETURNS SI_PositionalColor
SELF AS RESULT
LANGUAGE SQL
DETERMINISTIC
CONTAINS SQL
CALLED ON NULL INPUT,
METHOD SI_Score
(image SI_StillImage)
RETURNS DOUBLE PRECISION
LANGUAGE SQL
DETERMINISTIC
CONTAINS SQL
RETURNS NULL ON NULL INPUT
2. Rationale: Use the most significant color instead of the average color for the positional color feature.
Replace the Description 2) with:
2) The SI_PositionalColor type represents lists of SI_Color values using the attribute:
a) an SI_Color ARRAY value SI_ColorPositions.
6 © ISO/IEC 2003 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/IEC 13249-5:2001/Cor.1:2003(E)
3. Rationale: Use the most significant color instead of the average color for the positional color feature.
Replace the Description 3) with:
3) The attribute SI_ColorPositions is not for public use. There are no GRANT statements granting
EXECUTE privilege on the observer and mutator functions for the attribute SI_ColorPositions.
6.3.2 SI_PositionalColor Method
1. Rationale: Use the most significant color instead of the average color for the positional color feature.
Replace the Description 3) with:
3) The method SI_PositionalColor(SI_StillImage) derives an SI_PositionalColor value from the
parameter sourceImage. To that end, sourceImage is effectively divided into n by m rectangles, and
for each rectangle, the most significant color value is determined. The array, thus computed, of color
values which represent most significant colors is the SI_ColorPositions value of the returned
SI_PositionalColor value. Further details on the relationship between sourceImage and the resulting
SI_PositionalColor value, such as the values n and m, are implementation-dependent.
NOTE 1 The color histograms, from which the color values representing the most significant color for each
rectangle are derived, are determined as described in Description 3) in Subclause 7, 6.2.2, "SI_ColorHistogram
Methods", for the method SI_ColorHistogram(SI_StillImage).
6.3.3 SI_Score Method
1. Rationale: Use the most significant color instead of the average color for the positional color feature.
Replace the Description 2) with:
2) The method SI_Score(SI_StillImage) returns a value greater than or equal to 0 (zero). For scoring an
image, that image is effectively divided into n by m rectangles, such that the product of n and m
equals SI_NumberSections. The lower the returned value, the better the n by m most significant
colors of image are characterized by the most significant colors represented by the SI_PositionalColor
value used for scoring image.
NOTE 2 The way in which image is divided into SI_NumberSections of rectangles is implementation-
dependent, as well n and m itself. However, the division shall be performed in the same fashion for the
SI_Score method and the method SI_PositionalColor(SI_StillImage).
Case:
a) If SELF or image or image.SI_content is the null value, or if the positional color feature is not
supported for image, then the null value is returned.
b) Otherwise, the exact relationship between the values of SI_PositionalColor, SI_StillImage and
the result of SI_Score(SI_StillImage) is implementation-dependent.
© ISO/IEC 2003 – All rights reserved 7
---------------------- Page: 7 ----------------------
