ISO 27668-2:2009
(Main)Gel ink ball pens and refills — Part 2: Documentary use (DOC)
Gel ink ball pens and refills — Part 2: Documentary use (DOC)
ISO 27668-2:2009 establishes minimum quality requirements for gel ink ball pens (refillable or non‑refillable) and refills for documentary use. Basic requirements for gel ink ball pens for general use are given in ISO 27668-1.
Stylos à bille à encre gel et recharges — Partie 2: Utilisation documentaire (DOC)
General Information
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 27668-2
First edition
2009-02-01
Gel ink ball pens and refills —
Part 2:
Documentary use (DOC)
Stylos à bille à encre gel et recharges —
Partie 2: Utilisation documentaire (DOC)
Reference number
ISO 27668-2:2009(E)
©
ISO 2009
---------------------- Page: 1 ----------------------
ISO 27668-2:2009(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
COPYRIGHT PROTECTED DOCUMENT
© ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 27668-2:2009(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
ISO 27668-2 was prepared by Technical Committee ISO/TC 10, Technical product documentation.
ISO 27668 consists of the following parts, under the general title Gel ink ball pens and refills:
⎯ Part 1: General use
⎯ Part 2: Documentary use (DOC)
© ISO 2009 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 27668-2:2009(E)

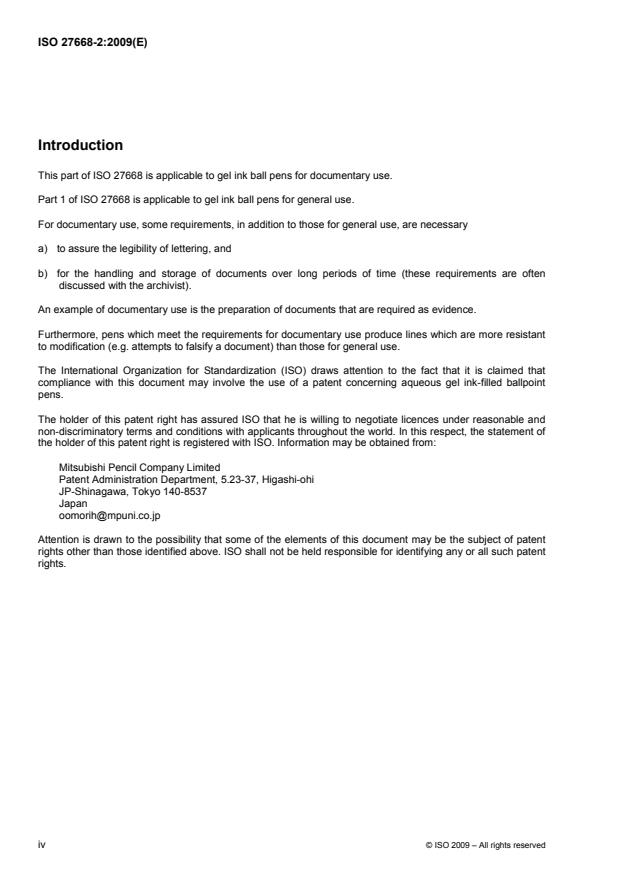

Introduction
This part of ISO 27668 is applicable to gel ink ball pens for documentary use.
Part 1 of ISO 27668 is applicable to gel ink ball pens for general use.
For documentary use, some requirements, in addition to those for general use, are necessary
a) to assure the legibility of lettering, and
b) for the handling and storage of documents over long periods of time (these requirements are often
discussed with the archivist).
An example of documentary use is the preparation of documents that are required as evidence.
Furthermore, pens which meet the requirements for documentary use produce lines which are more resistant
to modification (e.g. attempts to falsify a document) than those for general use.
The International Organization for Standardization (ISO) draws attention to the fact that it is claimed that
compliance with this document may involve the use of a patent concerning aqueous gel ink-filled ballpoint
pens.
The holder of this patent right has assured ISO that he is willing to negotiate licences under reasonable and
non-discriminatory terms and conditions with applicants throughout the world. In this respect, the statement of
the holder of this patent right is registered with ISO. Information may be obtained from:
Mitsubishi Pencil Company Limited
Patent Administration Department, 5.23-37, Higashi-ohi
JP-Shinagawa, Tokyo 140-8537
Japan
oomorih@mpuni.co.jp
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights other than those identified above. ISO shall not be held responsible for identifying any or all such patent
rights.
iv © ISO 2009 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 27668-2:2009(E)
Gel ink ball pens and refills —
Part 2:
Documentary use (DOC)
1 Scope
This part of ISO 27668 establishes minimum quality requirements for gel ink ball pens (refillable or
non-refillable) and refills for documentary use.
Basic requirements for gel ink ball pens for general use are given in ISO 27668-1.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 105-A02, Textiles — Tests for colour fastness — Part A02: Grey scale for assessing change in colour
ISO 105-B02, Textiles — Tests for colour fastness — Part B02: Colour fastness to artificial light: Xenon arc
fading lamp test
ISO 27668-1:2009, Gel ink ball pens and refills — Part 1: General use
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 27668-1 apply.
4 Requirements
4.1 General requirements
See the general requirements given in ISO 27668-1:2009 (4.1 to 4.3.4, 4.3.7 and 4.3.8).
4.2 Erasure resistance
The surface of the testing paper shall show clear evidence of damage before the line is rendered invisible
when tested as specified in 6.2.1.
4.3 Ethanol resistance
The line shall remain visible when tested as specified in 6.2.2.
© ISO 2009 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 27668-2:2009(E)
4.4 Hydrochloric
...
