ISO 9735-7:2002

Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 7: Security rules for batch EDI (confidentiality)

This part of ISO 9735 for batch EDIFACT security addresses message/package level, group level and interchange level security for confidentiality in accordance with established security mechanisms.

Échange de données informatisé pour l'administration, le commerce et le transport (EDIFACT) — Règles de syntaxe au niveau de l'application (numéro de version de syntaxe: 4, numéro d'édition de syntaxe: 1) — Partie 7: Règles de sécurité pour l'EDI par lots (confidentialité)

Elektronska menjava podatkov (-računalniška-) v administraciji (upravi), trgovini in transportu (prevozništvu) EDIFACT - Pravila sintakse za uporabniški nivo (izvedbena oblika sintakse: 4, zaporedna št. izdaje 1) Sedmi del: varnostna pravila za šaržno EDI (elektronsko menjavanje podatkov) (zaupnost)

General Information

• Status: Published
• Publication Date: 03-Jul-2002
• ICS: 35.240.60 - IT applications in transport
• ICS: 35.240.63 - IT applications in trade
• Technical Committee: ISO/TC 154 - Processes, data elements and documents in commerce, industry and administration
• Drafting Committee: ISO/TC 154 - Processes, data elements and documents in commerce, industry and administration
• Current Stage: 9093 - International Standard confirmed
• Completion Date: 05-Jun-2019
• Ref Project: OSIST ISO 9735-7:2004 - Electronic data interchange for administration, commerce and transport (EDIFACT) -- Application level syntax rules (Syntax version number: 4, Syntax release number: 1) -- Part 7: Security rules for batch EDI (confidentiality)

Relations

• Revises: ISO 9735-7:1999 - Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4) — Part 7: Security rules for batch EDI (confidentiality)
• Effective Date: 15-Apr-2008
• Consolidated By: ISO/TS 16403-1:2012 - Electronic fee collection — Evaluation of equipment for conformity to ISO/TS 17575-4 — Part 1: Test suite structure and test purposes
• Effective Date: 06-Jun-2022

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 9735-7
Second edition
2002-07-01


Electronic data interchange for
administration, commerce and transport
(EDIFACT) — Application level syntax rules
(Syntax version number: 4, Syntax release
number: 1) —
Part 7:
Security rules for batch EDI (confidentiality)
Échange de données informatisé pour l'administration, le commerce et le
transport (EDIFACT) — Règles de syntaxe au niveau de l'application
(numéro de version de syntaxe: 4, numéro d'édition de syntaxe: 1) —
Partie 7: Règles de sécurité pour l'EDI par lots (confidentialité)




Reference number
ISO 9735-7:2002(E)
©
 ISO 2002

---------------------- Page: 1 ----------------------
ISO 9735-7:2002(E)

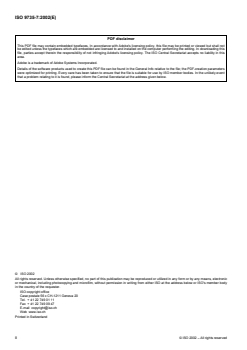

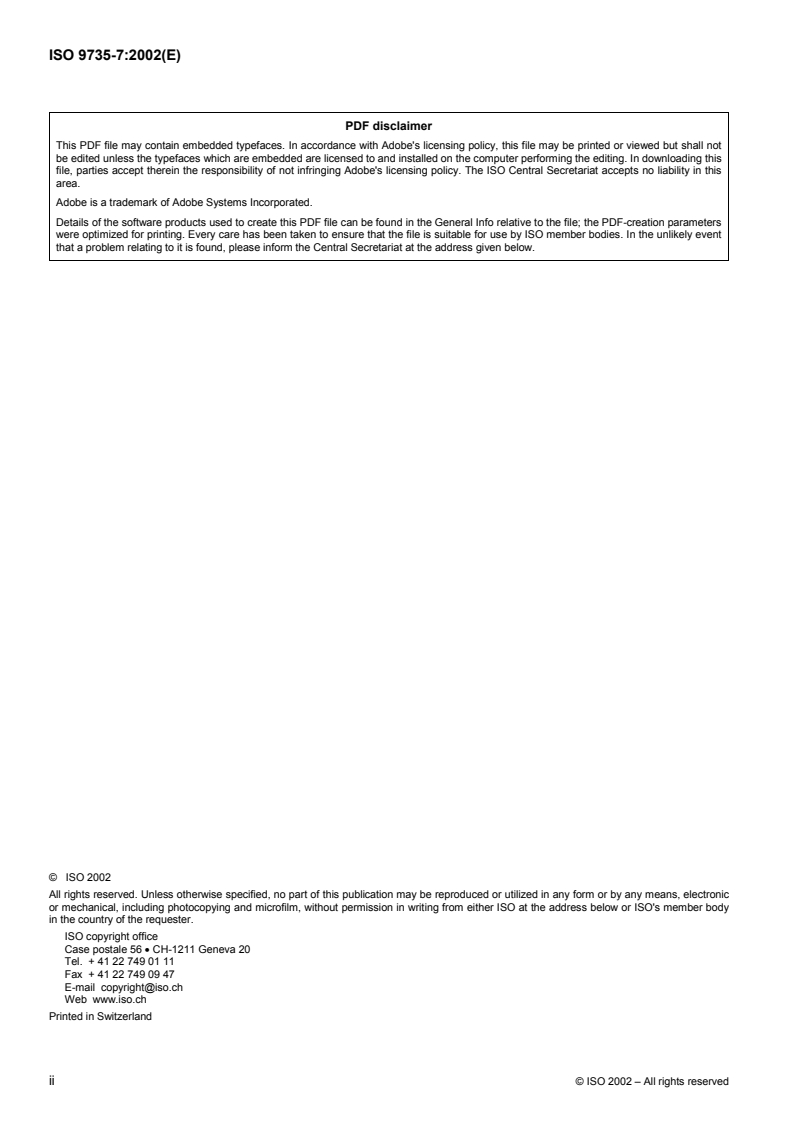

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2002
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.ch
Printed in Switzerland

ii © ISO 2002 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 9735-7:2002(E)

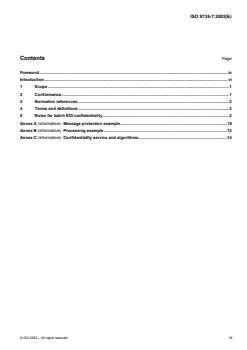

Contents Page
Foreword.iv
Introduction.vi
1 Scope .1
2 Conformance.1
3 Normative references.2
4 Terms and definitions .2
5 Rules for batch EDI confidentiality.2
Annex A (informative) Message protection example.10
Annex B (informative) Processing example .12
Annex C (informative) Confidentiality service and algorithms.14

© ISO 2002 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 9735-7:2002(E)

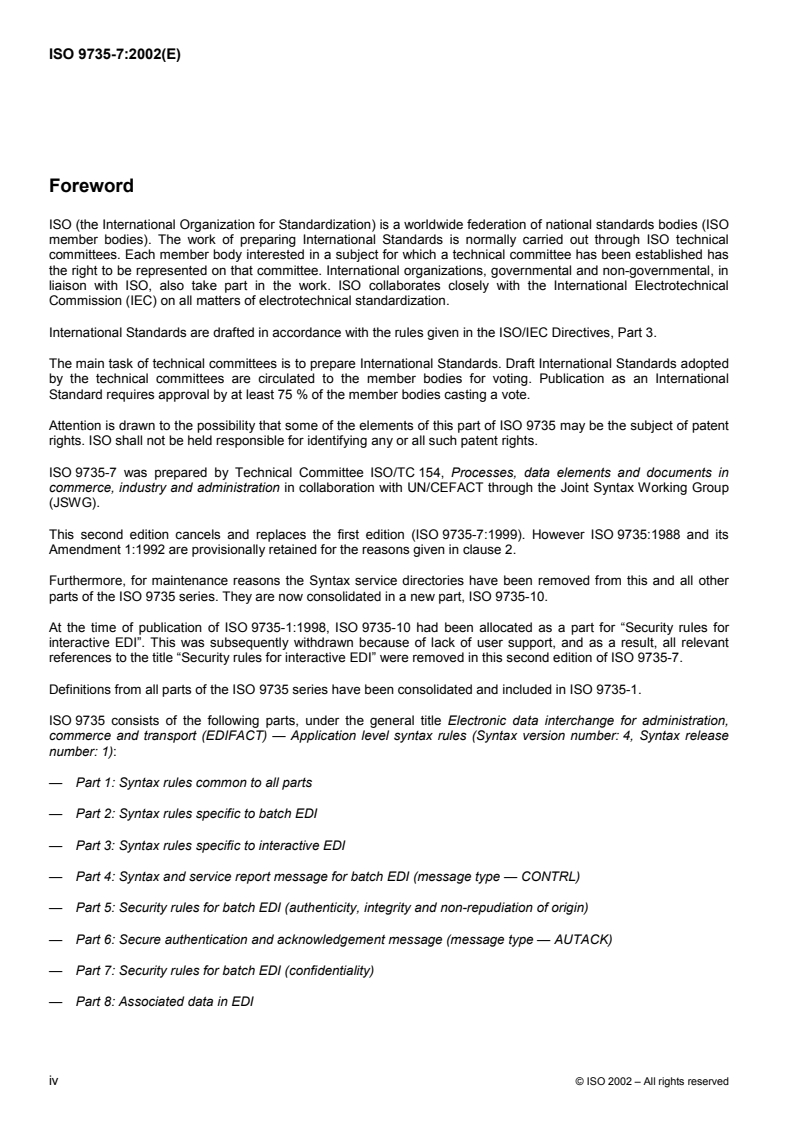

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
The main task of technical committees is to prepare International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 9735 may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 9735-7 was prepared by Technical Committee ISO/TC 154, Processes, data elements and documents in
commerce, industry and administration in collaboration with UN/CEFACT through the Joint Syntax Working Group
(JSWG).
This second edition cancels and replaces the first edition (ISO 9735-7:1999). However ISO 9735:1988 and its
Amendment 1:1992 are provisionally retained for the reasons given in clause 2.
Furthermore, for maintenance reasons the Syntax service directories have been removed from this and all other
parts of the ISO 9735 series. They are now consolidated in a new part, ISO 9735-10.
At the time of publication of ISO 9735-1:1998, ISO 9735-10 had been allocated as a part for “Security rules for
interactive EDI”. This was subsequently withdrawn because of lack of user support, and as a result, all relevant
references to the title “Security rules for interactive EDI” were removed in this second edition of ISO 9735-7.
Definitions from all parts of the ISO 9735 series have been consolidated and included in ISO 9735-1.
ISO 9735 consists of the following parts, under the general title Electronic data interchange for administration,
commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release
number: 1):
— Part 1: Syntax rules common to all parts
— Part 2: Syntax rules specific to batch EDI
— Part 3: Syntax rules specific to interactive EDI
— Part 4: Syntax and service report message for batch EDI (message type — CONTRL)
— Part 5: Security rules for batch EDI (authenticity, integrity and non-repudiation of origin)
— Part 6: Secure authentication and acknowledgement message (message type — AUTACK)
— Part 7: Security rules for batch EDI (confidentiality)
— Part 8: Associated data in EDI
iv © ISO 2002 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 9735-7:2002(E)
— Part 9: Security key and certificate management message (message type — KEYMAN)
— Part 10: Syntax service directories
Further parts may be added in the future.
Annexes A to C of this part of ISO 9735 are for information only.
© ISO 2002 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 9735-7:2002(E)
Introduction
This part of ISO 9735 includes the rules at the application level for the structuring of data in the interchange of
electronic messages in an open environment, based on the requirements of either batch or interactive processing.
These rules have been agreed by the United Nations Economic Commission for Europe (UN/ECE) as syntax rules
for Electronic Data Interchange for Administration, Commerce and Transport (EDIFACT) and are part of the United
Nations Trade Data Interchange Directory (UNTDID) which also includes both batch and interactive Message
Design Guidelines.
This part of ISO 9735 may be used in any application, but messages using these rules may only be referred to as
EDIFACT messages if they comply with other guidelines, rules and directories in the UNTDID. For UN/EDIFACT,
messages shall comply with the message design rules for batch or interactive usage as applicable. These rules are
maintained in the UNTDID.
Communications specifications and protocols are outside the scope of this part of ISO 9735.
This is a new part, which has been added to ISO 9735. It provides an optional capability of applying confidentiality
to an EDIFACT structure, i. e. message, package, group or interchange.
vi © ISO 2002 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 9735-7:2002(E)

Electronic data interchange for administration, commerce and
transport (EDIFACT) — Application level syntax rules (Syntax
version number: 4, Syntax release number: 1) —
Part 7:
Security rules for batch EDI (confidentiality)
1 Scope
This part of ISO 9735 for batch EDIFACT security addresses message/package level, group level and interchange
level security for confidentiality in accordance with established security mechanisms.
2 Conformance
Whereas this part shall use a version number of “4” in the mandatory data element 0002 (Syntax version number),
and shall use a release number of “01” in the conditional data element 0076 (Syntax release number), each of
which appear in the segment UNB (Interchange header), interchanges continuing to use the syntax defined in the
earlier published versions shall use the following Syntax version numbers, in order to differentiate them from each
other and from this part:
 ISO 9735:1988 — Syntax version number: 1
 ISO 9735:1988 (amended and reprinted in 1990) — Syntax version number: 2
 ISO 9735:1988 and its Amendment 1:1992 — Syntax version number: 3
 ISO 9735:1998 — Syntax version number: 4
Conformance to a standard means that all of its requirements, including all options, are supported. If all options are
not supported, any claim of conformance shall include a statement which identifies those options to which
conformance is claimed.
Data that is interchanged is in conformance if the structure and representation of the data conforms to the syntax
rules specified in this part of ISO 9735.
Devices supporting this part of ISO 9735 are in conformance when they are capable of creating and/or interpreting
the data structured and represented in conformance with the standard.
Conformance to this part shall include conformance to parts 1, 2, 5 and 10 of ISO 9735.
When identified in this part of ISO 9735, provisions defined in related standards shall form part of the conformance
criteria.
© ISO 2002 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 9735-7:2002(E)
3 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this part of ISO 9735. For dated references, subsequent amendments to, or revisions of, any of these publications
do not apply. However, parties to agreements based on this part of ISO 9735 are encouraged to investigate the
possibility of applying the most recent editions of the normative documents indicated below. For undated
references, the latest edition of the normative document referred to applies. Members of ISO and IEC maintain
registers of currently valid International Standards.
ISO 9735-1:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) —
Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 1: Syntax rules
common to all parts
ISO 9735-2:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) —
Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 2: Syntax rules specific
to batch EDI
ISO 9735-5:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) —
Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 5: Security rules for
batch EDI (authenticity, integrity and non-repudiation of origin)
ISO 9735-10:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) —
Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 10: Syntax service
directories
ISO/IEC 10181-5:1996, Information technology — Open Systems Interconnection — Security frameworks for open
systems: Confidentiality framework
4 Terms and definitions
For the purposes of this part of ISO 9735, the terms and definitions given in ISO 9735-1 apply.
5 Rules for batch EDI confidentiality
5.1 EDIFACT confidentiality
5.1.1 General
The security threats relevant to EDIFACT data transfer and the security services which address them are described
in ISO 9735-5:2002, annexes A and B.
This clause describes the solution to provide EDIFACT structures with the security service of confidentiality.
Confidentiality of an EDIFACT structure (message, package, group or interchange) shall be provided by encrypting
the message body, object, messages/packages or messages/packages/groups respectively, together with any
other security header and trailer segment groups, using an appropriate cryptographic algorithm. This encrypted
data may be filtered for use with restricted capability telecommunication networks.
5.1.2 Batch EDI confidentiality
5.1.2.1 Interchange confidentiality
Figure 1 represents the structure of one interchange secured with confidentiality. The service string advice (UNA),
the interchange header segment (UNB) and the interchange trailer segment (UNZ) are unaffected by the
encryption.
2 © ISO 2002 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 9735-7:2002(E)
If compression is applied it shall be applied before encryption.
The encryption, compression and filter algorithm and parameters are specified in the security header segment
group.


Figure 1 — Structure of an interchange whose contents [message(s)/package(s) or group(s)] have been
encrypted (schematic)

5.1.2.2 Group confidentiality
Figure 2 represents the structure of an interchange containing one encrypted group, which has also been secured
for other security services. The group header segment (UNG) and the group trailer segment (UNE) are not affected
by the encryption.
If compression is applied it shall be applied before encryption.
The encryption, compression and filter algorithm and parameters are specified in the security header segment
group.
© ISO 2002 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO 9735-7:2002(E)

Figure 2 — Structure of an interchange containing one group whose contents (group body and associated
security header and trailer segment groups) have been encrypted (schematic)

5.1.2.3 Message confidentiality
Figure 3 represents the structure of an interchange containing one encrypted message, which has also been
secured for another security service. The message header segment (UNH) and message trailer segment (UNT) are
not affected by the encryption.
If compression is applied it shall be applied before encryption.
The encryption, compression and filter algorithm and parameters are specified in the security header segment
group.
4 © ISO 2002 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 9735-7:2002(E)

Figure 3 — Structure of an interchange containing one message whose contents (message body and
associated security header and trailer segment groups) have been encrypted (schematic)

5.1.2.4 Package confidentiality
Figure 4 represents the structure of an interchange containing one encrypted package, which has also been
secured for another security service. The package header segment (UNO) and package trailer segment (UNP) are
not affected by the encryption.
If compression is applied, it shall be applied before encryption.
The encryption, compression and filter algorithm and parameters are specified in the security header segment
group.
© ISO 2002 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO 9735-7:2002(E)

Figure 4 — Structure of an interchange containing one package whose contents (object and associated
security header and trailer segment groups) have been encrypted (schematic)

5.1.3 Data encryption header and trailer segment structure
Table 1 — Security header and trailer segment groups segment table
TAG Name S R
───── Segment Group 1 ──────────────── C 99 ────────┐
USH Security Header M 1     │
USA Security Algorithm C 3     │
───── Segment Group 2 ──────────────── C 2 ────┐  │
USC Certificate M 1   │  │
USA Security Algorithm C 3   │  │
USR Security Result C 1 ────┴───┘

USD Data Encryption Header M 1

Encrypted data

USU Data Encryption Trailer M 1

───── Segment Group n ──────────────── C 99 ────────┐
UST Security Trailer M 1     │
USR Security Result C 1 ────────┘
NOTE The segments USH, USA, USC, USR and UST are specified in ISO 9735-10. They are not described further in this
part of ISO 9735.
6 © ISO 2002 – All rights reserved

---------------------- Page: 12 ----------------------
ISO 9735-7:2002(E)
5.1.4 Data segment clarification
Segment Group 1: USH-USA-SG2 (security header segment group)
A group of segments identifying the security service and security mechanisms applied and containing the data
necessary to carry out the validation calculations.
There shall be only one security header segment group for confidentiality.
USH, Security header
A segment specifying the security service of confidentiality applied to the EDIFACT structure in which the
segment is included (as defined in ISO 9735-5).
USA, Security algorithm
A segment identifying a security algorithm, the technical usage made of it, and containing the technical
parameters required. This shall be the algorithm(s) applied on the message body, object,
messages/packages or messages/packages/groups. These algorithm(s) shall be owner symmetric, owner
compressing or owner compression integrity.
Asymmetric algorithms shall not be referred to directly in this USA segment within segment group 1 but may
appear only within segment group 2, triggered by a USC segment.
If compression is applied to the data before encryption, an occurrence of USA is used to specify the
algorithm and optional mode of operation. Additional parameters, such as initial directory tree, may be
specified as parameter value within this USA segment.
If compression is applied and the compression algorithm used does not contain built-in integrity verification,
occurrence of an USA segment may be used to specify this. The integrity verification value is calculated over
the compressed text before encryption. Location (i.e. octet offset) of the integrity verification value within the
compressed data may be specified as a parameter value. The size (in octets of bits) of the integrity
verification value is given indirectly by the integrity verification algorithm used.
Segment Group 2: USC-USA-USR (certificate group)
A group of segments containing the data necessary to validate the security methods applied to the EDIFACT
structure, when asymmetric algorithms are used (as defined in ISO 9735-5).
USC, Certificate
A segment containing the credentials of the certificate owner and identifying the certification authority which
has generated the certificate (as defined in ISO 9735-5).
USA, Security algorithm
A segment identifying a security algorithm, the technical usage made of it, and containing the technical
parameters required (as defined in ISO 9735-5).
USR, Security result
A segment containing the result of the security functions applied to the certificate by the certification authority
(as defined in ISO 9735-5).
USD, Data encryption header
This segment specifies the size in octets of bits of the compressed (optional), encrypted and filtered (optional) data.
A reference number used to identify the encrypted EDIFACT structure may be specified. If a reference number is
present, the same reference number in both the USD and USU segment shall be used.
If padding is applied before encryption, the number of padded octets of bits may be specified.
© ISO 2002 – All rights reserved 7

---------------------- Page: 13 ----------------------
ISO 9735-7:2002(E)
Encrypted data
This part contains the encrypted data encrypted using the algorithms and mechanisms specified in the security
header segment group.
USU, Data encryption trailer
This segment specifies the size in octets of bits of the compressed (optional), encrypted and filtered (optional) data.
A reference number used to identify the encrypted EDIFACT structure may be specified. If a reference number is
present, the same reference number in both the USD and USU segment shall be used.
Segment Group n: UST-USR (security trailer segment group)
A
...

OSIST ISO 9735-7:2004SLOVENSKImaj 2004
PREDSTANDARDElektronska menjava podatkov (-računalniška-) v administraciji (upravi), trgovini in transportu (prevozništvu) EDIFACT
- Pravila sintakse za uporabniški nivo (izvedbena oblika sintakse: 4, zaporedna št. izdaje 1) Sedmi del: varnostna pravila za šaržno EDI (elektronsko menjavanje podatkov) (zaupnost)Electronic data interchange for administration,
commerce and transport (EDIFACT) - Application
level syntax rules (Syntax version number: 4,
Syntax release number: 1) - Part 7: Security rules
for batch EDI (confidentiality)©
Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljenoReferenčna številkaOSIST ISO 9735-7:2004(en)ICS35.240.60







Reference numberISO 9735-7:2002(E)© ISO 2002
INTERNATIONAL STANDARD ISO9735-7Second edition2002-07-01Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 7: Security rules for batch EDI (confidentiality)Échange de données informatisé pour l'administration, le commerce et le transport (EDIFACT) — Règles de syntaxe au niveau de l'application (numéro de version de syntaxe: 4, numéro d'édition de syntaxe: 1) — Partie 7: Règles de sécurité pour l'EDI par lots (confidentialité)



ISO 9735-7:2002(E) PDF disclaimer This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this area. Adobe is a trademark of Adobe Systems Incorporated. Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
©
ISO 2002 All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body in the country of the requester. ISO copyright office Case postale 56 • CH-1211 Geneva 20 Tel.
+ 41 22 749 01 11 Fax
+ 41 22 749 09 47 E-mail
[e-mail] Web
www.iso.ch Printed in Switzerland
ii © ISO 2002 – All rights reserved



ISO 9735-7:2002(E) © ISO 2002 – All rights reserved iii Contents Page Foreword.iv Introduction.vi 1 Scope.1 2 Conformance.1 3 Normative references.2 4 Terms and definitions.2 5 Rules for batch EDI confidentiality.2 Annex A (informative)
Message protection example.10 Annex B (informative)
Processing example.12 Annex C (informative)
Confidentiality service and algorithms.14



ISO 9735-7:2002(E) iv © ISO 2002 – All rights reserved
Foreword ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO member bodies). The work of preparing International Standards is normally carried out through ISO technical committees. Each member body interested in a subject for which a technical committee has been established has the right to be represented on that committee. International organizations, governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization. International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3. The main task of technical committees is to prepare International Standards. Draft International Standards adopted by the technical committees are circulated to the member bodies for voting. Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote. Attention is drawn to the possibility that some of the elements of this part of ISO 9735 may be the subject of patent rights. ISO shall not be held responsible for identifying any or all such patent rights. ISO 9735-7 was prepared by Technical Committee ISO/TC 154, Processes, data elements and documents in commerce, industry and administration in collaboration with UN/CEFACT through the Joint Syntax Working Group (JSWG). This second edition cancels and replaces the first edition (ISO 9735-7:1999). However ISO 9735:1988 and its Amendment 1:1992 are provisionally retained for the reasons given in clause 2. Furthermore, for maintenance reasons the Syntax service directories have been removed from this and all other parts of the ISO 9735 series. They are now consolidated in a new part, ISO 9735-10. At the time of publication of ISO 9735-1:1998, ISO 9735-10 had been allocated as a part for “Security rules for interactive EDI”. This was subsequently withdrawn because of lack of user support, and as a result, all relevant references to the title “Security rules for interactive EDI” were removed in this second edition of ISO 9735-7. Definitions from all parts of the ISO 9735 series have been consolidated and included in ISO 9735-1. ISO 9735 consists of the following parts, under the general title Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release number: 1): — Part 1: Syntax rules common to all parts — Part 2: Syntax rules specific to batch EDI — Part 3: Syntax rules specific to interactive EDI — Part 4: Syntax and service report message for batch EDI (message type — CONTRL) — Part 5: Security rules for batch EDI (authenticity, integrity and non-repudiation of origin) — Part 6: Secure authentication and acknowledgement message (message type — AUTACK) — Part 7: Security rules for batch EDI (confidentiality) — Part 8: Associated data in EDI



ISO 9735-7:2002(E) © ISO 2002 – All rights reserved v — Part 9: Security key and certificate management message (message type — KEYMAN) — Part 10: Syntax service directories Further parts may be added in the future. Annexes A to C of this part of ISO 9735 are for information only.



ISO 9735-7:2002(E) vi © ISO 2002 – All rights reserved
