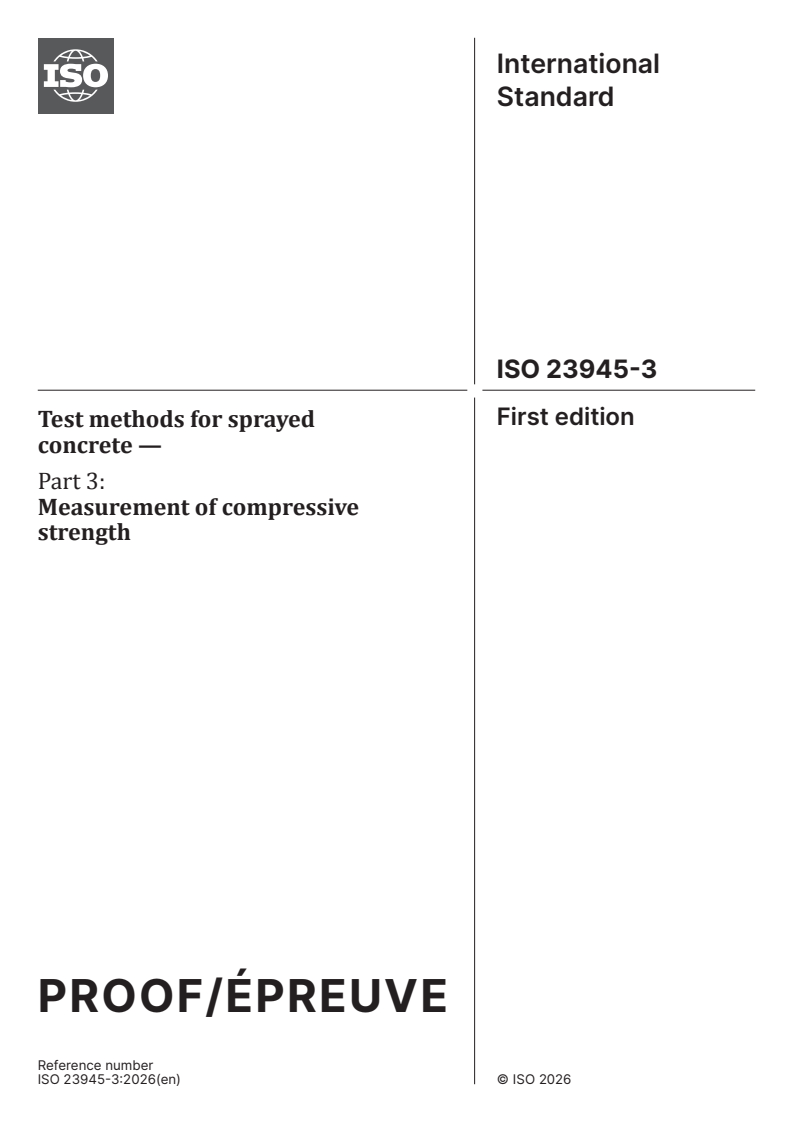

Standard
First edition
Test methods for sprayed
concrete —
Part 3:
Measurement of compressive
strength
PROOF/ÉPREUVE
Reference number
© ISO 2026

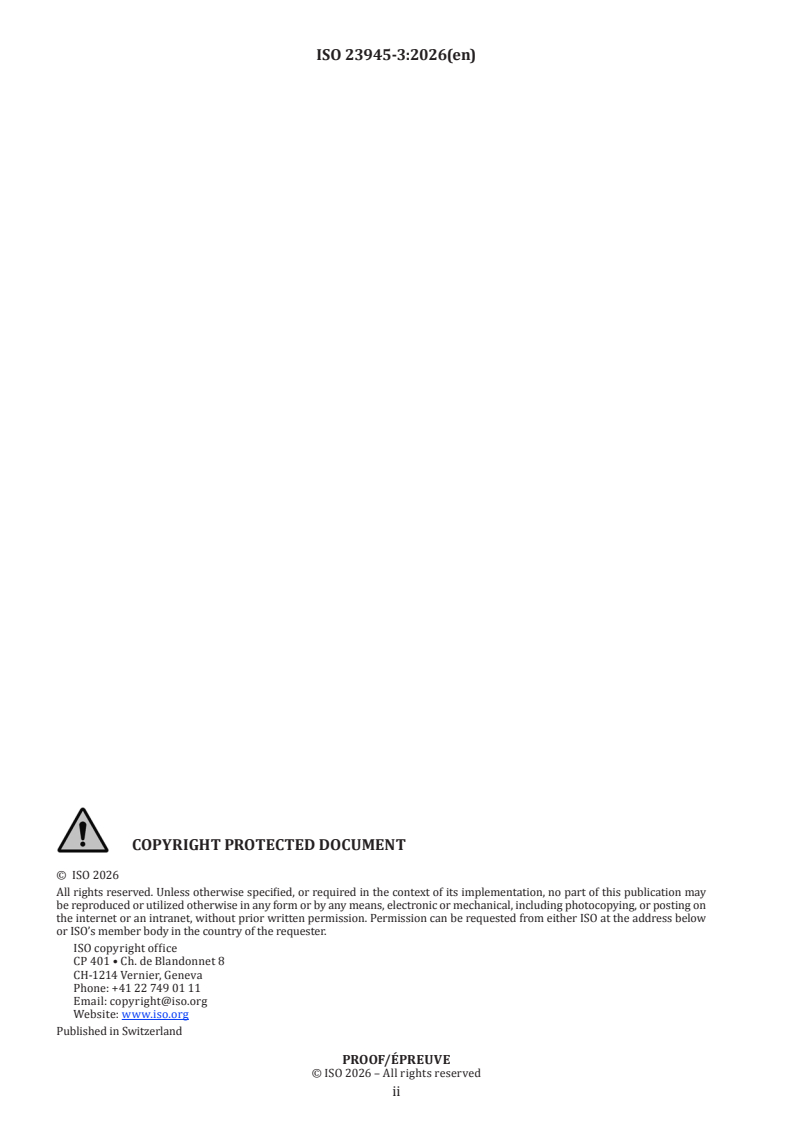

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
PROOF/ÉPREUVE
ii

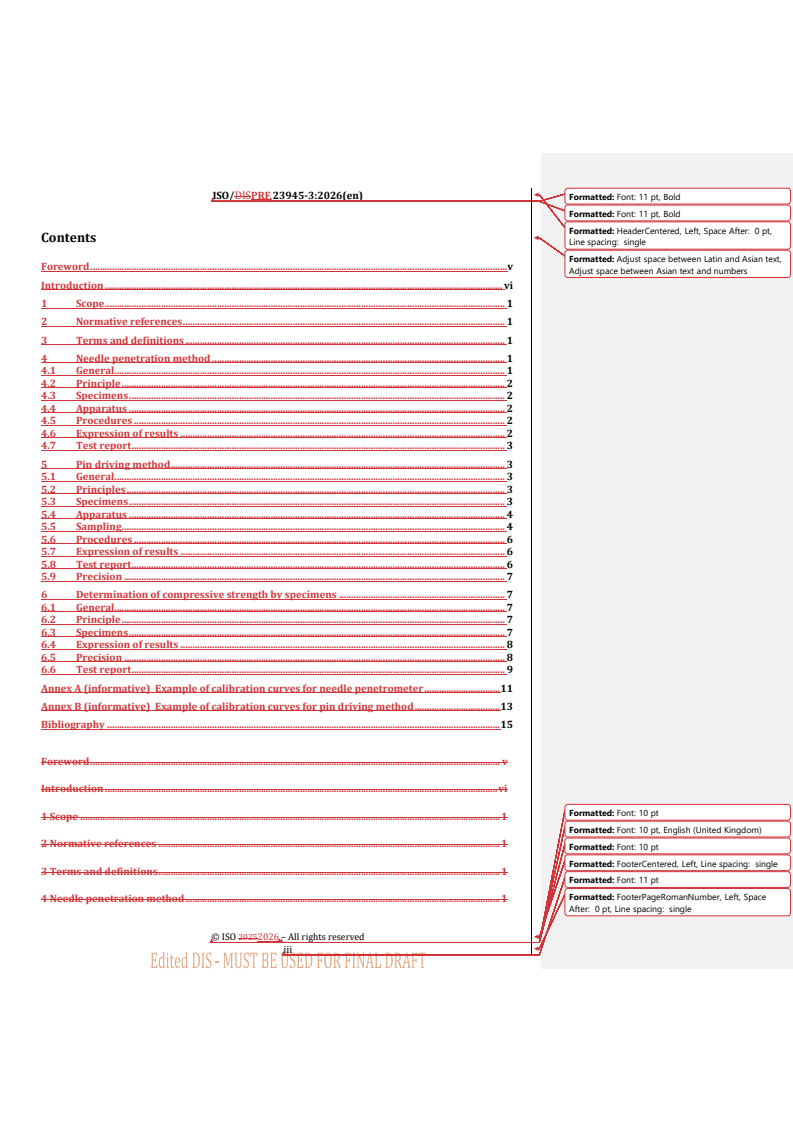

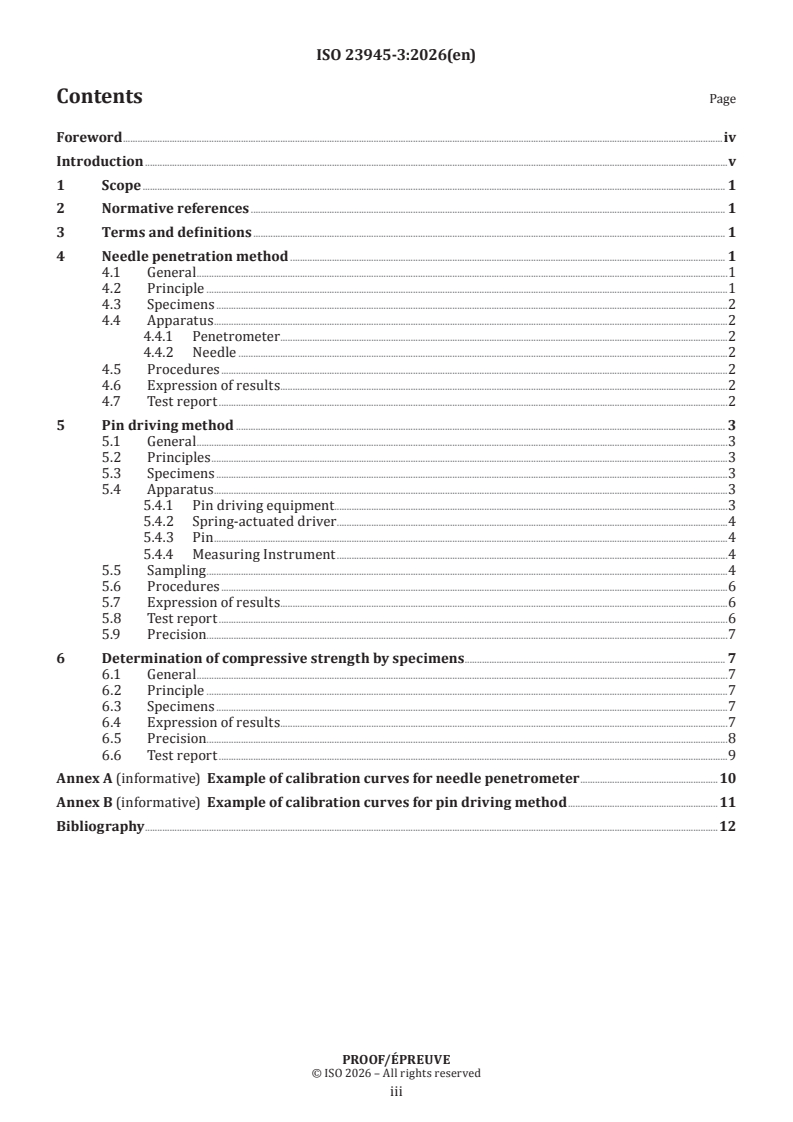

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Needle penetration method . 1
4.1 General .1
4.2 Principle .1
4.3 Specimens .2
4.4 Apparatus .2
4.4.1 Penetrometer .2
4.4.2 Needle .2
4.5 Procedures .2
4.6 Expression of results . .2
4.7 Test report .2
5 Pin driving method . 3
5.1 General .3
5.2 Principles .3
5.3 Specimens .3
5.4 Apparatus .3
5.4.1 Pin driving equipment . .3
5.4.2 Spring-actuated driver .4
5.4.3 Pin .4
5.4.4 Measuring Instrument .4
5.5 Sampling .4
5.6 Procedures .6
5.7 Expression of results .6
5.8 Test report .6
5.9 Precision . . .7
6 Determination of compressive strength by specimens . 7
6.1 General .7
6.2 Principle .7
6.3 Specimens .7
6.4 Expression of results . .7
6.5 Precision . . .8
6.6 Test report .9
Annex A (informative) Example of calibration curves for needle penetrometer .10
Annex B (informative) Example of calibration curves for pin driving method .11
Bibliography .12
PROOF/ÉPREUVE
iii

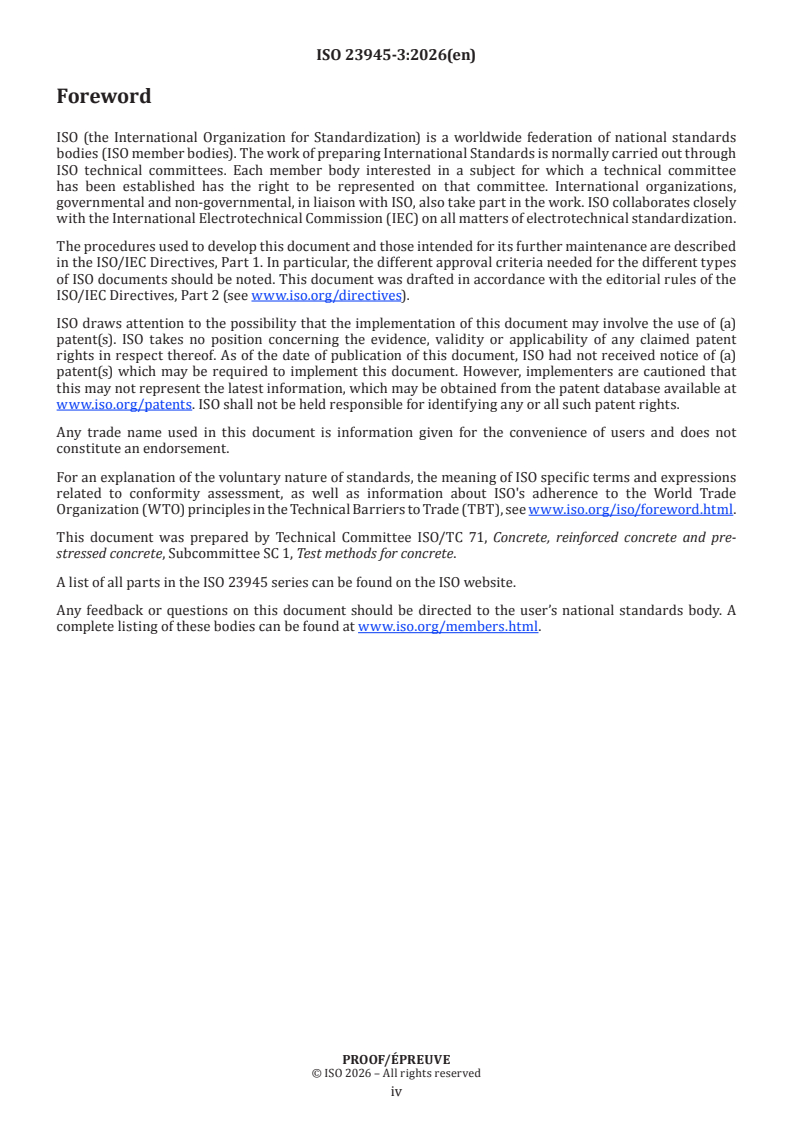

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 71, Concrete, reinforced concrete and pre-
stressed concrete, Subcommittee SC 1, Test methods for concrete.
A list of all parts in the ISO 23945 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
PROOF/ÉPREUVE
iv
Introduction
Sprayed concrete is widely used for the stabilization of structures in a very short time and for concrete
applications without using moulds. In addition to being ideal for ground support in tunnelling and mining,
sprayed concrete is also used in repairs, restoration, new constructions and many other fields.
The requirements for properties, test methods, standards and specifications for the spray forming process
of concrete are different from those of cast forming concrete. This document is intended to provide a
normative test method for sprayed concrete.
This document is applied under various climatic and geographical conditions, various levels of protection
and under different established regional traditions and experiences. Consequently, this document includes
conditions for tests covering standard, tropical and subtropical region environments.
This document is intended for use with other parts of the ISO 23945 series which provide requirements
associated with the level of quality specified and the methods to be employed for the execution of sprayed
concrete.
PROOF/ÉPREUVE
v
International Standard ISO 23945-3:2026(en)
Test methods for sprayed concrete —
Part 3:
Measurement of compressive strength
1 Scope
This document specifies the test methods for measurement and determination of the compressive strength
of sprayed concrete at different age, from young hardened to long term hardened sprayed concrete. The test
methods could be applied to measure compressive strength of sprayed concrete in the range of 0,2 MPa to
100 MPa. The specimens of hardened sprayed concrete are extracted from either an in-situ element or a test
panel.
This document does not purport to address all of the safety concerns, if any, associated with its use.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 23945-2, Test Methods for Sprayed Concrete —Part 2: Sampling fresh and hardened concrete
ISO 1920-3, Testing of concrete — Part 3: Making and curing test specimens
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Needle penetration method
4.1 General
This part specifies the method from which an estimate of the in-situ compressive strength of young hardened
sprayed concrete can be made in the range of 0,2 MPa to 1,5 MPa.
4.2 Principle
Needle penetration method is used to measure the force required to push a needle of specified dimensions
to penetrate into the sprayed concrete to a depth of 15 mm +/- 2 mm. A penetrometer indicates the resisting
force, through compression of a calibrated spring from which an estimated compressive strength can be
derived from a calibration curve provided by the producer of the test equipment.
PROOF/ÉPREUVE
4.3 Specimens
The thickness of the sprayed concrete layer shall be not less than 100 mm for testing.
The specimens for test shall be prepared according to ISO 23945-2.
No special test specimen is required for test of in-situ structures. The testing procedure can be used for
measurements at any location without advance preparation.
4.4 Apparatus
4.4.1 Penetrometer
The penetrometer shall be capable of driving the needle into the surface and recording the force required to
an accuracy of 10 N. The penetrometer shall be provided with a certified calibration curve, able to correlate
readings to estimated compressive strength. An example of calibration curves is shown in Annex A.
4.4.2 Needle
The needle shall be with a diameter of 3 mm ± 0,1 mm and a tip with a taper angle of 60° ± 5°, the needle
length shall be more than 15 mm.
4.5 Procedures
4.5.1 Record time and place of completion of spraying and start of testing.
4.5.2 Ensure the force indicator is set to zero.
4.5.3 Apply the device perpendicularly to the surface of the sprayed concrete layer and steadily push in
the needle to a depth of 15 mm in a single continuous movement. If this is prevented, for instance because of
a large aggregate particle or reinforcement, then discontinue the test and repeat in an adjacent location.
4.5.4 Read the resistance force from the scale, record the value on the protocol form and return indicator
to original position.
4.5.5 Clean the needle if necessary.
4.5.6 Repeat the test ten times as quickly as possible (and within 1 min for strengths below 0,5 MPa) in an
area representative of the sprayed region.
4.5.7 Record the time at which the testing is finished (on protocol form).
4.6 Expression of results
Calculate the mean resistance force from the 10 measurements.
The estimated compressive strength is derived from the man
...

Formatted
...
Style Definition
...
Style Definition
...
