Determination of particle size distribution -- Electrical sensing zone method

This document specifies the measurement of the size distribution of particles dispersed in an electrolyte solution using the electrical sensing zone method. This can include biologics such as cells, but also industrial particles such as carbon, cement, ceramic powders, metal powders, pigments and polymer powders. The method measures pulse heights and their relationship to particle volumes or diameters, and is applicable over the range (implementation dependant) from approximately 0,5 μm tο above 1 mm. This document does not address the specific requirements of the measurement of specific materials.

Détermination de la distribution granulométrique -- Méthode de détection de zones électrosensibles

General Information

Status
Published
Publication Date
17-Mar-2021
Current Stage
5060 - Close of voting Proof returned by Secretariat
Start Date
16-Feb-2021
Completion Date
16-Feb-2021
Ref Project

RELATIONS

Buy Standard

Standard
ISO 13319-1:2021 - Determination of particle size distribution -- Electrical sensing zone method
English language
34 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
ISO/PRF 13319-1:Version 30-jan-2021 - Determination of particle size distribution -- Electrical sensing zone method
English language
34 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 13319-1
First edition
2021-03
Determination of particle size
distribution — Electrical sensing zone
method —
Part 1:
Aperture/orifice tube method
Détermination de la distribution granulométrique — Méthode de
détection de zones électrosensibles —
Partie 1: Méthode d'ouverture/d'orifice du tube
Reference number
ISO 13319-1:2021(E)
ISO 2021
---------------------- Page: 1 ----------------------
ISO 13319-1:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 13319-1:2021(E)
Contents Page

Foreword ..........................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Symbols .......................................................................................................................................................................................................................... 2

5 Principle ........................................................................................................................................................................................................................ 3

6 General operation ............................................................................................................................................................................................... 4

6.1 Response ...................................................................................................................................................................................................... 4

6.2 Size limits ..................................................................................................................................................................................................... 5

6.3 Effect of coincident particle passage .................................................................................................................................... 5

6.4 Dead time ..................................................................................................................................................................................................... 6

6.5 Analysis volume ..................................................................................................................................................................................... 7

7 Repeatability and reproducibility of counts ............................................................................................................................ 7

7.1 Instrument repeatability ................................................................................................................................................................ 7

7.2 Method reproducibility/intermediate precision ....................................................................................................... 8

8 Operational procedures ................................................................................................................................................................................ 8

8.1 General ........................................................................................................................................................................................................... 8

8.2 Instrument location ............................................................................................................................................................................ 8

8.3 Linearity of the aperture/amplifier system ................................................................................................................... 8

8.4 Linearity of the counting system ............................................................................................................................................. 8

8.5 Choice of electrolyte solution ..................................................................................................................................................... 8

8.5.1 General...................................................................................................................................................................................... 8

8.5.2 Special considerations for small apertures (D < 50 µm) ............................................................... 9

8.5.3 Special considerations for large apertures (D > 400 µm) ............................................................ 9

8.6 Preparation of electrolyte solution ........................................................................................................................................ 9

8.7 Recommended sampling, sample splitting, sample preparation and dispersion ......................... 9

8.7.1 General...................................................................................................................................................................................... 9

8.7.2 Method 1: Using a paste ..........................................................................................................................................10

8.7.3 Method 2: Alternative method applicable to low-density particles of less

than 50 µm .........................................................................................................................................................................10

8.7.4 Suspensions and emulsions ................................................................................................................................11

8.7.5 Verification of the dispersion .............................................................................................................................11

8.8 Choice of aperture(s) and analysis volume(s) ..........................................................................................................11

8.9 Clearing an aperture blockage ................................................................................................................................................11

8.10 Stability of dispersion ....................................................................................................................................................................12

8.11 Calibration ...............................................................................................................................................................................................12

8.11.1 General...................................................................................................................................................................................12

8.11.2 Calibration procedure — microsphere calibration .........................................................................13

9 Analysis .......................................................................................................................................................................................................................13

10 Calculation of results ....................................................................................................................................................................................13

11 Instrument qualification ...........................................................................................................................................................................14

11.1 General ........................................................................................................................................................................................................14

11.2 Report ..........................................................................................................................................................................................................14

Annex A (informative) Derivation of maximum count number to limit coincidence ......................................15

Annex B (informative) Fishbone diagram for method development ...............................................................................17

Annex C (informative) Calibration and control of frequently used apertures .......................................................19

Annex D (informative) Mass integration method for calibration and mass balance.......................................20

Annex E (informative) Calibration for the measurement of porous and conductive particles .............26

© ISO 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 13319-1:2021(E)

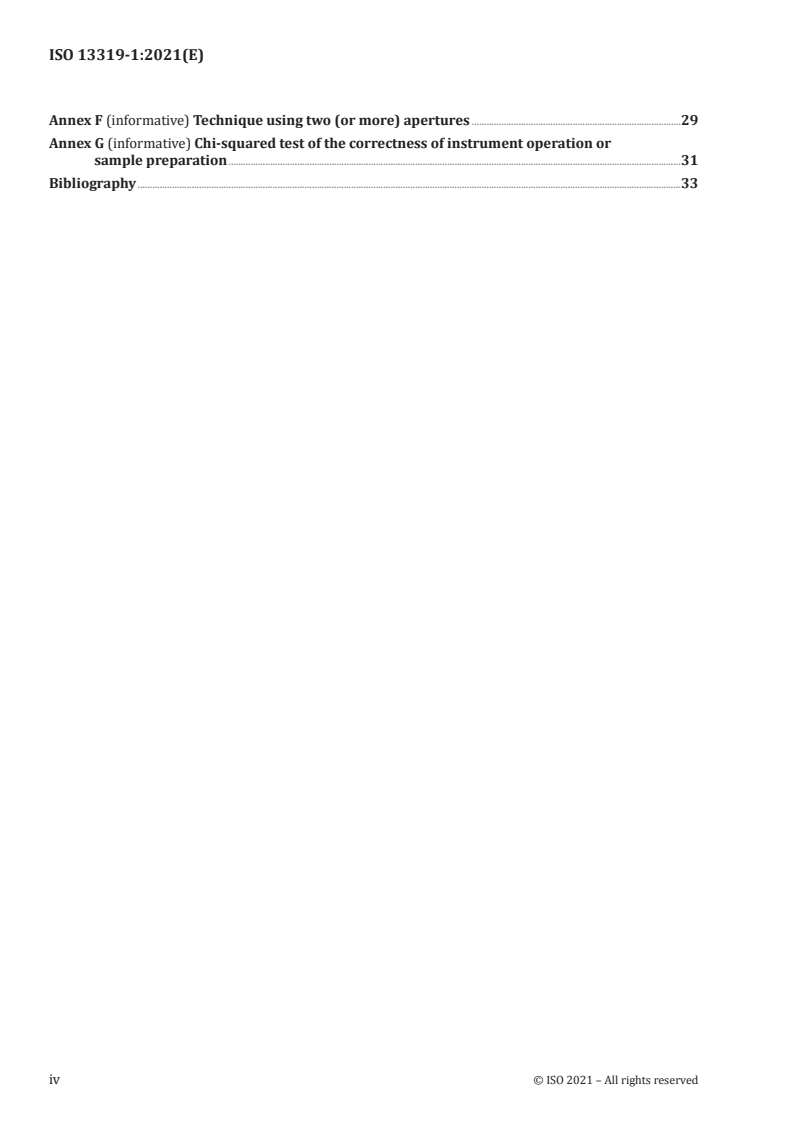

Annex F (informative) Technique using two (or more) apertures .....................................................................................29

Annex G (informative) Chi-squared test of the correctness of instrument operation or

sample preparation ........................................................................................................................................................................................31

Bibliography .............................................................................................................................................................................................................................33

iv © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 13319-1:2021(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 24, Particle characterization including

sieving, Subcommittee SC 4, Particle characterization.

This first edition of ISO 13319-1 cancels and replaces ISO 13319:2007, which has been technically

revised. The main changes compared to the previous edition are as follows:
— a general update to reflect the needs of modern quality assurance;
— the section on repeatability and inter system variation has been expanded;

— many instruments of this type are under strict controls within the pharmaceutical and related

industries, therefore a new annex has been prepared with details of the factors which should be

considered when developing a validated method in this arena;

— Clause 10 now gives details of the exact parameters which should be reported, in order to present

the method and the key parameters of the result.
A list of all parts in the ISO 13319 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2021 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 13319-1:2021(E)
Determination of particle size distribution — Electrical
sensing zone method —
Part 1:
Aperture/orifice tube method
1 Scope

This document specifies the measurement of the size distribution of particles dispersed in an

electrolyte solution using the electrical sensing zone method. This can include biologics such as cells,

but also industrial particles such as carbon, cement, ceramic powders, metal powders, pigments and

polymer powders. The method measures pulse heights and their relationship to particle volumes or

diameters, and is applicable over the range (implementation dependant) from approximately 0,5 μm tο

above 1 mm. This document does not address the specific requirements of the measurement of specific

materials.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
dead time

time during which the electronics are not able to detect particles due to the signal processing of a

previous pulse
3.2
aperture
small diameter hole through which suspension is drawn
3.3
sensing zone

volume of electrolyte solution within, and around, the aperture in which a particle is detected

3.4
analysis volume
volume of suspension that is analysed
3.5
size bin
size interval to distinguish particle size for size distribution measurement
© ISO 2021 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 13319-1:2021(E)
3.6
envelope size
external size of a particle as seen in a microscope
3.7
envelope volume

volume of the envelope given by the three-dimensional boundary of the particle to the surrounding

medium
3.8
effective density

density of a porous particle where open pores are filled with liquid and closed pores are not (so included

in the density)
4 Symbols
For the purposes of this document, the following symbols apply.
A amplitude of the most frequent pulse
A amplitude of the electrical pulse generated by an arbitrary particle
D aperture diameter
d certified mean diameter of the microspheres used for primary calibration
d mean diameter of the sieved fraction as determined using microscopy
micr
d mean diameter of the sieved fraction as determined using the ESZ instrument
ESZ
df degrees of freedom
d particle diameter at the lower boundary of a size interval or channel
d modal diameter of a certified particle size reference material
d reference diameter of the microspheres
ref
d particle diameter at the upper boundary of a size interval or channel
f response factor
resp
K calibration constant of diameter

K arbitrary calibration constant of diameter of any value to start the mass calibration procedure

m mass of sample

M mass balance, percentage of particles accounted for in a measurement in comparison to input

particle mass
M mass of particles measured by the instrument

n number used to signify the maximum of an integral be it channel number [in Formula (D.1)] or

number of repeat measurements [in Formulae (G.1) and (G.2)]
n counted particle number

N mean of a Poisson distribution, used to describe the temporal spread of counts within a size bin

2 © ISO 2021 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 13319-1:2021(E)
N count for 5 % coincidence
total number of counts across all size intervals
ΔN number of counts in a size interval i
mean of particles in counts N (i = 1, 2, 3…n)
p significance level of statistical test
V analysis volume
V volume of electrolyte solution in which a mass, m is dispersed
arithmetic mean volume for a particular size interval i
x diameter of a sphere with volume equivalent to that of the particle
x maximum particle size that can be obtained on a specific aperture
max
x minimum particle size that can be obtained on a specific aperture
min

ρ immersed density/effective density (solid density including eventual closed pores, but excluding

open pores within the particles)
χ chi-squared statistical distribution
5 Principle

A dilute suspension of particles dispersed in an electrolyte solution is stirred to provide a homogeneous

mixture and is drawn through an aperture in an insulating wall. An electric current applied across

two electrodes, placed on each side of the aperture, enables the particles to be sensed by the electrical

impedance changes as they pass through the aperture. The impedance pulses generated by particle

passage are amplified and digitally captured, and the pulse height and shape are analysed, yielding

particle count data. The pulse height is regarded directly proportional to particle volume. After

employing a calibration factor, a distribution of the number of particles against the volume-equivalent

diameter is obtained. The size range of particles to be measured depends upon the size of the aperture.

Conventionally, particles having a size greater than around 0,5 µm are measured by the technique. A

schematic of the instrumentation is given in Figure 1.
© ISO 2021 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 13319-1:2021(E)
Key
1 volumetric metering device 7 output
2 valve 8 stirred suspension of particles in electrolyte solution
3 pulse amplifier 9 aperture

4 oscilloscope pulse display 10 counter start/stop triggered by the volumetric device

5 counting circuit 11 electrodes
6 pulse-height analyser

Figure 1 — Diagram illustrating the principle of the electrical sensing zone orifice/tube method

6 General operation
6.1 Response

The response (i.e. the electrical pulse height generated when a particle passes through the aperture)

has been found both experimentally and theoretically to be proportional to the particle volume if

[1]-[3]

the particles are spherical . This has also been shown to be true for particles of other shapes;

[4]

however, the constant of proportionality (i.e. the instrument’s calibration constant) may be different .

In general, particles should have a low conductivity with respect to the electrolyte solution, but

[5] [6]

particles with high conductivity can be measured e.g. metals , carbon , silicon and many types of

[7],[8]

cells and organisms, such as blood cells . For porous particles, the response may vary with the

[9],[10]

porosity . Recommendations for the measurement of conducting particles and porous particles

are given in Annex E.
4 © ISO 2021 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 13319-1:2021(E)

As the response is proportional to the volume of particles, the pulse amplitude provides a relative scale

of particle volumes. By calibration, this scale may be converted to spherical diameter. The calibration

constant based on diameter may be calculated by Formula (1):
K = (1)
The size, x, of any particle can be calculated by Formula (2):
xK=⋅ A (2)
d x

Typical apertures have a length to diameter ratio of 0,75. This causes some variation in the electrical

field within the aperture, which leads in turn to some deviations in the particle sizes measured. This

can be countered by increasing the aperture length.
6.2 Size limits

The lower size limit of the electrical sensing zone method is generally considered to be restricted

only by thermal and electronic noise. It is normally stated to be about 0,6 µm but, under favourable

conditions, 0,4 µm is possible. There is no theoretical upper size limit, and for particles having a density

similar to that of the electrolyte solution, the largest aperture available (normally 2 000 µm) may be

used. The practical upper size limit is about 1 200 µm, limited by particle density.

The size range for a single aperture is related to the aperture diameter, D. The response has been

found to depend linearly in volume on D, within about 5 % under optimum conditions, over a range

from 0,015 D to 0,8 D (i.e. 1,5 µm to 80 µm for a 100 µm aperture) although the aperture may become

prone to blockage at particle sizes below the maximum size where the particles are non-spherical. In

practice, the lower limitation is due to thermal and electronic noise and the upper limitation is due to

non-spherical particles passing through the aperture. This restricts the operating range to be within

2 % to 60 % of the aperture size. This size range can be extended by using two or more apertures (see

Annex F). In practice, this procedure can be avoided by the careful selection of the diameter of one

aperture, to achieve an acceptable range.

Sedimentation of particles becomes important when the particles are large and have a high density (for

example, 100 µm quartz particles have a sedimentation rate in water of about 1 cm/s). Large apertures

are available, up to 2 000 µm. In such applications, the viscosity and the density of the electrolyte

solution should be increased, for example, by addition of glycerol or sucrose, in order to prevent particle

sedimentation and to increase the possibility of keeping the particles in homogeneous suspension.

The homogeneity may be checked by repeated analyses at a range of stirrer speeds. The results of this

should be compared to establish the lowest stirrer speed at which recovery of the largest particles is

maintained.
6.3 Effect of coincident particle passage

Ideal data would result if all particles traversed the aperture singly and, thus, would produce single

pulses. However, the opportunity exists, especially at increased concentrations, that two or more

particles arrive in the sensing zone more or less together, which would result in a complex pulse.

Several possibilities exist, i.e (a) two particles pass the sensing zone at the same time, leading to a

pulse height equal to the sum of both pulse heights, and to a loss of counts; (b) two particles pass the

sensing zone at slightly different times but within the same measurement period of the larger particle,

leading to the same pulse height for the larger particle but a distorted pulse shape, and to a loss of

counts; (c) two particles, which are individually too small for measurement but have together sufficient

volume, pass the sensing zone at the same time, leading to an extra pulse of measurable height, and to

an increase of counts. This occurrence is named coincidence. Its effects will distort the size distribution

obtained but can be minimized by using low particle concentrations. The probability of coincidence

may be described by a Poisson distribution (see Annex A). Table 1 shows counts per millilitre for the

© ISO 2021 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO 13319-1:2021(E)

coincidence probability to be 5 % as well as the corresponding analysis volumes to count 100 000

particles.

Table 1 — Counts for 5 % coincidence probability and analysis volumes for 100 000 counts

Aperture diameter Maximum counts for 5 % Analysis volume for
a 5 b
coincidence 10 counts
N V
5 % a
#/ml ml
1 000 5,0E + 01 2 000
560 2,8E + 02 351
400 7,8E + 02 128
280 2,3E + 03 44
200 6,3E + 03 16
140 1,8E + 04 5,5
100 5,0E + 04 2
70 1,5E + 05 0,69
50 4,0E + 05 0,25
30 1,0E + 06 5,4E - 02
20 6,3E + 06 1,6E - 02
10 5,0E + 07 2,0E - 03
a 10 3
Calculated using formula N = 5·10 /D particles per ml.
5 %
Use pro rata values for other analysis volumes and count numbers.

Counts per millilitre should always be less than these quoted values. Since particle size distributions

should not be a function of concentration, the effect of coincidence can be tested by obtaining a

distribution at one concentration and comparing it with that obtained when the concentration is halved.

In such a test, repeat such dilutions until the reduction in count in a channel with the largest number

decreases in proportion to the dilution. This should always be done when analysing very narrow size

distributions, as this is where the effect of coincidence is most noticeable.
6.4 Dead time

In instruments using digital pulse processing routines, the signal is scanned at high frequency.

Information on pulse parameters, such as maximum pulse height, maximum pulse width, mid-pulse

height, mid-pulse width and pulse area is stored for subsequent analysis. In this case, analogue-to-

digital conversion of the pulse with storage of the size value for the pulse is not performed in real time

and dead time losses are avoided.

To minimize the effect of dead time, the analyser should be used with the lower threshold set to exclude

thermal and electronic noise, as indicated at A in Figure 2. Additionally, the concentration of particles

should be maintained below 5 % coincidence levels.
6 © ISO 2021 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 13319-1:2021(E)
Key
X channels
Y counts

NOTE Counts at channels below A are noise counts. True particle counts are at the higher channels.

Figure 2 — Typical results
6.5 Analysis volume
The analysis volume should be chosen based on the following requirements:
a) allow a representative sample of the suspension;

b) allow a sufficient number of particles to be counted and measured in relation to the required

quality of the size distribution; and

c) have sufficient precision for the number of particles to be counted if particle concentration is of

interest.
Typical values of the analysis volume are given in Table 1.

Table 1 shows that the analysis volumes become excessive for counting this particle number when

the aperture diameter becomes greater than 140 µm. Then, counting less particles means that less

information on the size distribution will become available, so consideration should be taken into taking

a representative sample.
7 Repeatability and reproducibility of counts
7.1 Instrument repeatability

In a correctly performed analysis, the number of counts in a size interval is a random variable which

follows a Poisson distribution. In this, the variance is equal to the expected (mean) value. This indicates

that the standard deviation of a number of counts, n , with mean, N , approximates to N . Both the

c c

variance and the standard deviation can be used in statistical tests on the correctness of instrument

operation or sample preparation. The statistical chi-squared test can be used to test whether obtained

© ISO 2021 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO 13319-1:2021(E)

data follows a Poisson distribution or not. In this, the apparent and the theoretical variance for a given

number of measurements and a given probability are related. An example is given in Annex G. This

statistical test can be performed on single size intervals, groups of size intervals, or on the total

particle count.
7.2 Method reproducibility/intermediate precision

The reproducibility and intermediate precision will be influenced by several factors (in addition to

those dealt with in 7.1). They are covered in detail in Clause 8, specifically in 8.3, 8.4 and 8.11.

8 Operational procedures
8.1 General

A summary of all the key factors that can influence the quality of the final result is given in Annex B.

This could be used as the basis for setting a method in accordance with the theory of “quality by design”,

where the variance (or lack of variance) of these factors on the final result is considered as part of

method development and validation and a control structure is put in place for the critical parameters.

8.2 Instrument location

The instrument should be sited in a clean environment that is free from electrical interference and

vibration. If organic solvents are to be used, the area should be well ventilated.

8.3 Linearity of the aperture/amplifier syst
...

INTERNATIONAL ISO
STANDARD 13319-1
First edition
Determination of particle size
distribution — Electrical sensing zone
method —
Part 1:
Aperture/orifice tube method
Détermination de la distribution granulométrique — Méthode de
détection de zones électrosensibles —
Partie 1: Méthode d'ouverture/d'orifice du tube
PROOF/ÉPREUVE
Reference number
ISO 13319-1:2021(E)
ISO 2021
---------------------- Page: 1 ----------------------
ISO 13319-1:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii PROOF/ÉPREUVE © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 13319-1:2021(E)
Contents Page

Foreword ..........................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Symbols .......................................................................................................................................................................................................................... 2

5 Principle ........................................................................................................................................................................................................................ 3

6 General operation ............................................................................................................................................................................................... 4

6.1 Response ...................................................................................................................................................................................................... 4

6.2 Size limits ..................................................................................................................................................................................................... 5

6.3 Effect of coincident particle passage .................................................................................................................................... 5

6.4 Dead time ..................................................................................................................................................................................................... 6

6.5 Analysis volume ..................................................................................................................................................................................... 7

7 Repeatability and reproducibility of counts ............................................................................................................................ 7

7.1 Instrument repeatability ................................................................................................................................................................ 7

7.2 Method reproducibility/intermediate precision ....................................................................................................... 8

8 Operational procedures ................................................................................................................................................................................ 8

8.1 General ........................................................................................................................................................................................................... 8

8.2 Instrument location ............................................................................................................................................................................ 8

8.3 Linearity of the aperture/amplifier system ................................................................................................................... 8

8.4 Linearity of the counting system ............................................................................................................................................. 8

8.5 Choice of electrolyte solution ..................................................................................................................................................... 8

8.5.1 General...................................................................................................................................................................................... 8

8.5.2 Special considerations for small apertures (D < 50 µm) ............................................................... 9

8.5.3 Special considerations for large apertures (D > 400 µm) ............................................................ 9

8.6 Preparation of electrolyte solution ........................................................................................................................................ 9

8.7 Recommended sampling, sample splitting, sample preparation and dispersion ......................... 9

8.7.1 General...................................................................................................................................................................................... 9

8.7.2 Method 1: Using a paste ..........................................................................................................................................10

8.7.3 Method 2: Alternative method applicable to low-density particles of less

than 50 µm .........................................................................................................................................................................10

8.7.4 Suspensions and emulsions ................................................................................................................................11

8.7.5 Verification of the dispersion .............................................................................................................................11

8.8 Choice of aperture(s) and analysis volume(s) ..........................................................................................................11

8.9 Clearing an aperture blockage ................................................................................................................................................11

8.10 Stability of dispersion ....................................................................................................................................................................12

8.11 Calibration ...............................................................................................................................................................................................12

8.11.1 General...................................................................................................................................................................................12

8.11.2 Calibration procedure — microsphere calibration .........................................................................13

9 Analysis .......................................................................................................................................................................................................................13

10 Calculation of results ....................................................................................................................................................................................13

11 Instrument qualification ...........................................................................................................................................................................14

11.1 General ........................................................................................................................................................................................................14

11.2 Report ..........................................................................................................................................................................................................14

Annex A (informative) Derivation of maximum count number to limit coincidence ......................................15

Annex B (informative) Fishbone diagram for method development ...............................................................................17

Annex C (informative) Calibration and control of frequently used apertures .......................................................19

Annex D (informative) Mass integration method for calibration and mass balance.......................................20

Annex E (informative) Calibration for the measurement of porous and conductive particles .............26

© ISO 2021 – All rights reserved PROOF/ÉPREUVE iii
---------------------- Page: 3 ----------------------
ISO 13319-1:2021(E)

Annex F (informative) Technique using two (or more) apertures .....................................................................................29

Annex G (informative) Chi-squared test of the correctness of instrument operation or

sample preparation ........................................................................................................................................................................................31

Bibliography .............................................................................................................................................................................................................................33

iv PROOF/ÉPREUVE © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 13319-1:2021(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 24 Particle characterization including

sieving, Subcommittee SC 4, Particle characterization.

This first edition of ISO 13319-1 cancels and replaces ISO 13319:2007, which has been technically

revised. The main changes compared to the previous edition are as follows:
— a general update to reflect the needs of modern quality assurance;
— the section on repeatability and inter system variation has been expanded;

— many instruments of this type are under strict controls within the pharmaceutical and related

industries, therefore a new annex has been prepared with details of the factors which should be

considered when developing a validated method in this arena;

— Clause 10 now gives details of the exact parameters which should be reported, in order to present

the method and the key parameters of the result.
A list of all parts in the ISO 13319 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2021 – All rights reserved PROOF/ÉPREUVE v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 13319-1:2021(E)
Determination of particle size distribution — Electrical
sensing zone method —
Part 1:
Aperture/orifice tube method
1 Scope

This document specifies the measurement of the size distribution of particles dispersed in an

electrolyte solution using the electrical sensing zone method. This can include biologics such as cells,

but also industrial particles such as carbon, cement, ceramic powders, metal powders, pigments and

polymer powders. The method measures pulse heights and their relationship to particle volumes or

diameters, and is applicable over the range (implementation dependant) from approximately 0,5 μm tο

above 1 mm. This document does not address the specific requirements of the measurement of specific

materials.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
dead time

time during which the electronics are not able to detect particles due to the signal processing of a

previous pulse
3.2
aperture
small diameter hole through which suspension is drawn
3.3
sensing zone

volume of electrolyte solution within, and around, the aperture in which a particle is detected

3.4
analysis volume
volume of suspension that is analysed
3.5
size bin
size interval to distinguish particle size for size distribution measurement
© ISO 2021 – All rights reserved PROOF/ÉPREUVE 1
---------------------- Page: 6 ----------------------
ISO 13319-1:2021(E)
3.6
envelope size
external size of a particle as seen in a microscope
3.7
envelope volume

volume of the envelope given by the three-dimensional boundary of the particle to the surrounding

medium
3.8
effective density

density of a porous particle where open pores are filled with liquid and closed pores are not (so included

in the density)
4 Symbols
For the purposes of this document, the following symbols apply.
A amplitude of the most frequent pulse
A amplitude of the electrical pulse generated by an arbitrary particle
D aperture diameter
d certified mean diameter of the microspheres used for primary calibration
d mean diameter of the sieved fraction as determined using microscopy
micr
d mean diameter of the sieved fraction as determined using the ESZ instrument
ESZ
df degrees of freedom
d particle diameter at the lower boundary of a size interval or channel
d modal diameter of a certified particle size reference material
d reference diameter of the microspheres
ref
d particle diameter at the upper boundary of a size interval or channel
f response factor
resp
K calibration constant of diameter

K arbitrary calibration constant of diameter of any value to start the mass calibration procedure

m mass of sample

M mass balance, percentage of particles accounted for in a measurement in comparison to input

particle mass
M mass of particles measured by the instrument

n number used to signify the maximum of an integral be it channel number [(in Formula (D.1)] or

number of repeat measurements [in Formulae (G.1) and (G.2)]
n counted particle number

N mean of a Poisson distribution, used to describe the temporal spread of counts within a size bin

2 PROOF/ÉPREUVE © ISO 2021 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 13319-1:2021(E)
N count for 5 % coincidence
total number of counts across all size intervals
ΔN number of counts in a size interval i
mean of particles in counts N (i = 1, 2, 3…n)
p significance level of statistical test
V analysis volume
V volume of electrolyte solution in which a mass, m is dispersed
arithmetic mean volume for a particular size interval i
x diameter of a sphere with volume equivalent to that of the particle
x maximum particle size that can be obtained on a specific aperture
max
x minimum particle size that can be obtained on a specific aperture
min

ρ immersed density/effective density (solid density including eventual closed pores, but excluding

open pores within the particles)
χ chi-squared statistical distribution
5 Principle

A dilute suspension of particles dispersed in an electrolyte solution is stirred to provide a homogeneous

mixture and is drawn through an aperture in an insulating wall. An electric current applied across

two electrodes, placed on each side of the aperture, enables the particles to be sensed by the electrical

impedance changes as they pass through the aperture. The impedance pulses generated by particle

passage are amplified and digitally captured, and the pulse height and shape is analysed, yielding

particle count data. The pulse height is regarded directly proportional to particle volume. After

employing a calibration factor, a distribution of the number of particles against the volume-equivalent

diameter is obtained. The size range of particles to be measured depends upon the size of the aperture.

Conventionally, particles having a size greater than around 0,5 µm are measured by the technique. A

schematic of the instrumentation is given in Figure 1.
© ISO 2021 – All rights reserved PROOF/ÉPREUVE 3
---------------------- Page: 8 ----------------------
ISO 13319-1:2021(E)
Key
1 volumetric metering device 7 output
2 valve 8 stirred suspension of particles in electrolyte solution
3 pulse amplifier 9 aperture

4 oscilloscope pulse display 10 counter start/stop triggered by the volumetric device

5 counting circuit 11 electrodes
6 pulse-height analyser

Figure 1 — Diagram illustrating the principle of the electrical sensing zone orifice/tube method

6 General operation
6.1 Response

The response (i.e. the electrical pulse height generated when a particle passes through the aperture)

has been found both experimentally and theoretically to be proportional to the particle volume if

[1]-[3]

the particles are spherical . This has also been shown to be true for particles of other shapes;

[4]

however, the constant of proportionality (i.e. the instrument’s calibration constant) may be different .

In general, particles should have a low conductivity with respect to the electrolyte solution, but

[5] [6]

particles with high conductivity can be measured e.g. metals , carbon , silicon and many types of

[7],[8]

cells and organisms, such as blood cells . For porous particles, the response may vary with the

[9],[10]

porosity . Recommendations for the measurement of conducting particles and porous particles

are given in Annex D.
4 PROOF/ÉPREUVE © ISO 2021 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 13319-1:2021(E)

As the response is proportional to the volume of particles, the pulse amplitude provides a relative scale

of particle volumes. By calibration, this scale may be converted to spherical diameter. The calibration

constant based on diameter may be calculated by Formula (1):
K = (1)
The size, x, of any particle can be calculated by Formula (2):
xK=⋅ A (2)
d x

Typical apertures have a length to diameter ratio of 0,75. This causes some variation in the electrical

field within the aperture, which leads in turn to some deviations in the particle sizes measured. This

can be countered by increasing the aperture length.
6.2 Size limits

The lower size limit of the electrical sensing zone method is generally considered to be restricted

only by thermal and electronic noise. It is normally stated to be about 0,6 µm but, under favourable

conditions, 0,4 µm is possible. There is no theoretical upper size limit, and for particles having a density

similar to that of the electrolyte solution, the largest aperture available (normally 2 000 µm) may be

used. The practical upper size limit is about 1 200 µm, limited by particle density.

The size range for a single aperture is related to the aperture diameter, D. The response has been

found to depend linearly in volume on D, within about 5 % under optimum conditions, over a range

from 0,015 D to 0,8 D (i.e. 1,5 µm to 80 µm for a 100 µm aperture) although the aperture may become

prone to blockage at particle sizes below the maximum size where the particles are non-spherical. In

practice, the lower limitation is due to thermal and electronic noise and the upper limitation is due to

non-spherical particles passing through the aperture. This restricts the operating range to be within

2 % to 60 % of the aperture size. This size range can be extended by using two or more apertures (see

Annex B). In practice, this procedure can be avoided by the careful selection of the diameter of one

aperture, to achieve an acceptable range.

Sedimentation of particles becomes important when the particles are large and have a high density (for

example, 100 µm quartz particles have a sedimentation rate in water of about 1 cm/s). Large apertures

are available, up to 2 000 µm. In such applications, the viscosity and the density of the electrolyte

solution should be increased, for example, by addition of glycerol or sucrose, in order to prevent particle

sedimentation and to increase the possibility of keeping the particles in homogeneous suspension.

The homogeneity may be checked by repeated analyses at a range of stirrer speeds. The results of this

should be compared to establish the lowest stirrer speed at which recovery of the largest particles is

maintained.
6.3 Effect of coincident particle passage

Ideal data would result if all particles traversed the aperture singly and, thus, would produce single

pulses. However the opportunity exists, especially at increased concentrations, that two or more

particles arrive in the sensing zone more or less together, which would result in a complex pulse.

Several possibilities exist, i.e (a) two particles pass the sensing zone at the same time, leading to a

pulse height equal to the sum of both pulse heights, and to a loss of counts; (b) two particles pass the

sensing zone at slightly different times but within the same measurement period of the larger particle,

leading to the same pulse height for the larger particle but a distorted pulse shape, and to a loss of

counts; (c) two particles, which are individually too small for measurement but have together sufficient

volume, pass the sensing zone at the same time, leading to an extra pulse of measurable height, and to

an increase of counts. This occurrence is named coincidence. Its effects will distort the size distribution

obtained but can be minimized by using low particle concentrations. The probability of coincidence

may be described by a Poisson distribution (see Annex A). Table 1 shows counts per millilitre for the

© ISO 2021 – All rights reserved PROOF/ÉPREUVE 5
---------------------- Page: 10 ----------------------
ISO 13319-1:2021(E)

coincidence probability to be 5 % as well as the corresponding analysis volumes to count 100 000

particles.

Table 1 — Counts for 5 % coincidence probability and analysis volumes for 100 000 counts

Aperture diameter Maximum counts for 5 % Analysis volume for
a 5 b
coincidence 10 counts
N V
5 % a
#/ml ml
1 000 5,0E + 01 2 000
560 2,8E + 02 351
400 7,8E + 02 128
280 2,3E + 03 44
200 6,3E + 03 16
140 1,8E + 04 5,5
100 5,0E + 04 2
70 1,5E + 05 0,69
50 4,0E + 05 0,25
30 1,0E + 06 5,4E - 02
20 6,3E + 06 1,6E - 02
10 5,0E + 07 2,0E - 03
a 10 3
Calculated using formula N = 5·10 /D particles per ml.
5 %
Use pro rata values for other analysis volumes and count numbers.

Counts per millilitre should always be less than these quoted values. Since particle size distributions

should not be a function of concentration, the effect of coincidence can be tested by obtaining a

distribution at one concentration and comparing it with that obtained when the concentration is halved.

In such a test, repeat such dilutions until the reduction in count in a channel with the largest number

decreases in proportion to the dilution. This should always be done when analysing very narrow size

distributions, as this is where the effect of coincidence is most noticeable.
6.4 Dead time

In instruments using digital pulse processing routines, the signal is scanned at high frequency.

Information on pulse parameters, such as maximum pulse height, maximum pulse width, mid-pulse

height, mid-pulse width and pulse area is stored for subsequent analysis. In this case, analogue-to-

digital conversion of the pulse with storage of the size value for the pulse is not performed in real time

and dead time losses are avoided.

To minimize the effect of dead time, the analyser should be used with the lower threshold set to exclude

thermal and electronic noise, as indicated at A in Figure 2. Additionally, the concentration of particles

should be maintained below 5 % coincidence levels.
6 PROOF/ÉPREUVE © ISO 2021 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 13319-1:2021(E)
Key
X channels
Y counts

NOTE Counts at channels below A are noise counts. True particle counts are at the higher channels.

Figure 2 — Typical results
6.5 Analysis volume
The analysis volume should be chosen based on the following requirements:
a) allow a representative sample of the suspension;

b) allow a sufficient number of particles to be counted and measured in relation to the required

quality of the size distribution; and

c) have sufficient precision for the number of particles to be counted if particle concentration is of

interest.
Typical values of the analysis volume are given in Table 1.

Table 1 shows that the analysis volumes become excessive for counting this particle number when

the aperture diameter becomes greater than 140 µm. Then, counting less particles means that less

information on the size distribution will become available, so consideration should be taken into taking

a representative sample.
7 Repeatability and reproducibility of counts
7.1 Instrument repeatability

In a correctly performed analysis, the number of counts in a size interval is a random variable which

follows a Poisson distribution. In this, the variance is equal to the expected (mean) value. This indicates

that the standard deviation of a number of counts, n , with mean, N , approximates to N . Both the

c c c

variance and the standard deviation can be used in statistical tests on the correctness of instrument

operation or sample preparation. The statistical chi-squared test can be used to test whether obtained

© ISO 2021 – All rights reserved PROOF/ÉPREUVE 7
---------------------- Page: 12 ----------------------
ISO 13319-1:2021(E)

data follows a Poisson distribution or not. In this, the apparent and the theoretical variance for a given

number of measurements and a given probability are related. An example is given in Annex G. This

statistical test can be performed on single size intervals, groups of size intervals, or on the total

particle count.
7.2 Method reproducibility/intermediate precision

The reproducibility and intermediate precision will be influenced by several factors (in addition to

those dealt with in 7.1). They are covered in detail in Clause 8, specifically in 8.3, 8.4 and 8.11.

8 Operational procedures
8.1 General

A summary of all the key factors that can influence the quality of the final result is given in Annex A.

This could be used as the basis for setting a method in accordance with the theory of “quality by design”,

where the variance (or lack of variance) of these factors on the final result is considered as part of

method development and validation and a control structure is put in place for the critical parameters.

8.2 Instrument location

The instrument should be sited in a clean environment that is free from electrica

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
