ISO 20766-11:2020

Road vehicles - Liquefied petroleum gas (LPG) fuel systems components - Part 11: Manual shut-off valve

This document specifies general information regarding the manual shut off valve component of liquefied petroleum gas fuel, intended for use on the types of motor vehicles as defined in ISO 3833. It provides general design principles and specifies requirements for instructions and marking. It also specifies test requirements for the manual shut off valve. This document is applicable to vehicles (mono-fuel, bi-fuel or dual-fuel applications) using gaseous fuels in accordance with ISO 9162. It is not applicable to the following: a) fuel containers; b) stationary gas engines; c) container mounting hardware; d) electronic fuel management; e) refuelling receptacles. NOTE 1 It is recognized that miscellaneous components not specifically addressed herein can be examined for compliance with the criteria of any applicable part of ISO 20766, including testing to the appropriate functional tests. NOTE 2 All references to pressure in this document are considered gauge pressures unless otherwise specified. NOTE 3 This document applies to devices which have a service pressure in the range of 110 kPa (Butane rich at 20 °C) and 840 kPa (Propane at 20 °C), hereinafter referred to in this document. Other service pressures can be accommodated by adjusting the pressure by the appropriate factor (ratio).

Véhicules routiers — Équipements pour véhicules utilisant le gaz de pétrole liquéfié (GPL) comme combustible — Partie 11: Vanne d’arrêt à commande manuelle

General Information

• Status: Published
• Publication Date: 14-Jan-2020
• ICS: 43.060.40 - Fuel systems
• Technical Committee: ISO/TC 22/SC 41 - Specific aspects for gaseous fuels
• Drafting Committee: ISO/TC 22/SC 41/WG 6 - Fuel system components and refuelling connector for vehicles propelled by Liquefied Petroleum Gas (LPG)
• Current Stage: 9060 - Close of review
• Completion Date: 02-Sep-2030

Overview

ISO 20766-11:2020 specifies requirements for the manual shut-off valve used in road vehicle liquefied petroleum gas (LPG) fuel systems. It covers general design principles, required markings and instructions, and specific test procedures to verify mechanical integrity and leak-tight performance. The standard applies to LPG-powered vehicles (mono‑fuel, bi‑fuel and dual‑fuel) defined by ISO 3833 and to devices with service pressures in the range of 110 kPa to 840 kPa (adjustable for other pressures by ratio).

Key topics and requirements

• Scope and applicability
  • For LPG fuel system manual shut-off valves on motor vehicles; excludes fuel containers, stationary engines, container mounting hardware, electronic fuel management and refuelling receptacles.
• Marking and identification
  • Must allow traceability: manufacturer/agent name, model/part number and working pressure (or working pressure/temperature range).
  • Recommended additional markings: flow direction, flow capacity, fuel type, certification symbol, approval number, serial/date code and reference to this document.
• Construction and assembly
  • Components must meet general provisions in ISO 20766‑1 and ISO 20766‑2 and be assembled to ensure safe LPG service.
• Test requirements
  • Hydrostatic strength: test at 2.5 × working pressure per ISO 20766‑2.
  • Leakage: verified at specified temperatures (e.g., cold, ambient, high) and pressure factors as tabulated in the standard (including low-pressure and overpressure checks).
  • Continued operation (durability): valve body filled with n‑hexane, outlet plugged; inlet subjected to 3 000 kPa or WP (whichever is greater) and cycled at a rate not faster than 10 cycles/min. Valve must remain leak‑proof after 10 000 cycles.
  • Additional applicable tests may include excess torque resistance, bending moment, corrosion, vibration, material compatibility, temperature cycling and exposure to automotive fluids as referenced.

Applications and users

• Who uses ISO 20766-11: vehicle OEMs, LPG component manufacturers, safety and compliance engineers, test laboratories, certification bodies and aftermarket installers.
• Practical value: ensures manual shut-off valves reliably isolate LPG flow, resist pressure and environmental stresses, and carry required identification for traceability and type approval. Useful for design validation, type approval testing and supplier quality control.

Related standards

• ISO 20766-1 - General requirements and definitions for LPG fuel system components
• ISO 20766-2 - Performance and general test methods
• ISO 3833 - Road vehicle types, terms and definitions
• ISO 9162 - Specifications for liquefied petroleum gases

Keywords: ISO 20766-11, LPG manual shut-off valve, road vehicles, LPG fuel systems components, hydrostatic strength, leakage testing, continued operation, vehicle safety standard.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 20766-11
First edition
2020-01
Road vehicles — Liquefied petroleum
gas (LPG) fuel systems components —
Part 11:
Manual shut-off valve
Véhicules routiers — Équipements pour véhicules utilisant le gaz de
pétrole liquéfié (GPL) comme combustible —
Partie 11: Vanne d’arrêt à commande manuelle
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

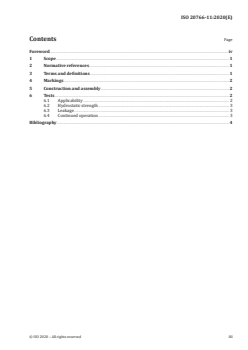

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Markings . 2
5 Construction and assembly . 2
6 Tests . 2
6.1 Applicability . 2
6.2 Hydrostatic strength . 3
6.3 Leakage . 3
6.4 Continued operation . 3
Bibliography . 4
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 41,
Specific aspects for gaseous fuels.
A list of all parts in the ISO 20766 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved

INTERNATIONAL STAND
...
