ISO/DIS 4586-6

High-pressure decorative laminates (HPL, HPDL) -- Sheets based on thermosetting resins (usually called laminates)

Stratifiés décoratifs haute pression (HPL, HPDL) -- Plaques à base de résines thermodurcissables (communément appelées stratifiés)

Standards Content (sample)

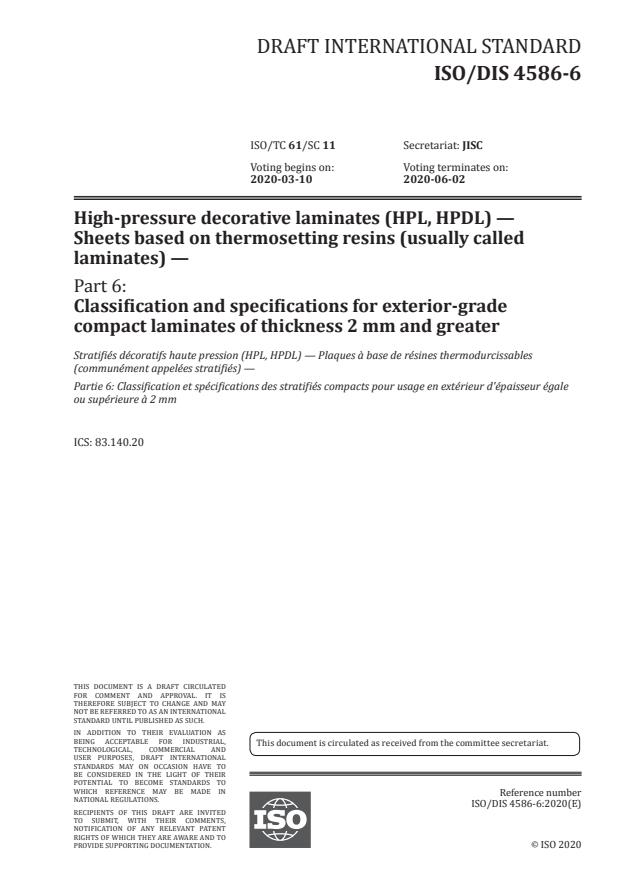

DRAFT INTERNATIONAL STANDARD
ISO/DIS 4586-6
ISO/TC 61/SC 11 Secretariat: JISC
Voting begins on: Voting terminates on:
2020-03-10 2020-06-02
High-pressure decorative laminates (HPL, HPDL) —
Sheets based on thermosetting resins (usually called
laminates) —
Part 6:
Classification and specifications for exterior-grade
compact laminates of thickness 2 mm and greater

Stratifiés décoratifs haute pression (HPL, HPDL) — Plaques à base de résines thermodurcissables

(communément appelées stratifiés) —

Partie 6: Classification et spécifications des stratifiés compacts pour usage en extérieur d'épaisseur égale

ou supérieure à 2 mm
ICS: 83.140.20
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
This document is circulated as received from the committee secretariat.
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 4586-6:2020(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION. ISO 2020
---------------------- Page: 1 ----------------------
ISO/DIS 4586-6:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/DIS 4586-6:2020(E)

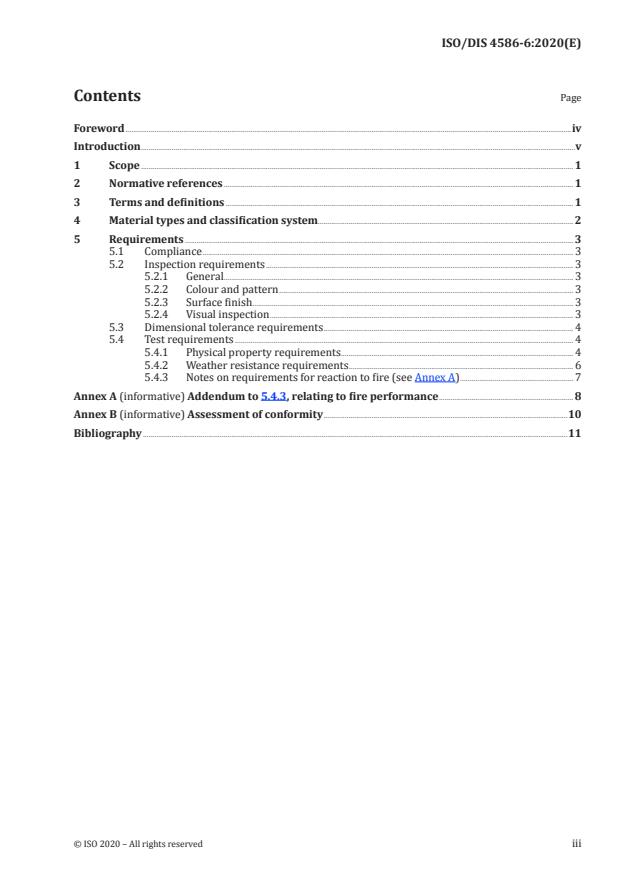

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Material types and classification system..................................................................................................................................... 2

5 Requirements .......................................................................................................................................................................................................... 3

5.1 Compliance ................................................................................................................................................................................................. 3

5.2 Inspection requirements ................................................................................................................................................................ 3

5.2.1 General...................................................................................................................................................................................... 3

5.2.2 Colour and pattern ......................................................................................................................................................... 3

5.2.3 Surface finish ....................................................................................................................................................................... 3

5.2.4 Visual inspection .............................................................................................................................................................. 3

5.3 Dimensional tolerance requirements .................................................................................................................................. 4

5.4 Test requirements ................................................................................................................................................................................ 4

5.4.1 Physical property requirements ......................................................................................................................... 4

5.4.2 Weather resistance requirements..................................................................................................................... 6

5.4.3 Notes on requirements for reaction to fire (see Annex A) ........................................................... 7

Annex A (informative) Addendum to 5.4.3, relating to fire performance ...................................................................... 8

Annex B (informative) Assessment of conformity ...............................................................................................................................10

Bibliography .............................................................................................................................................................................................................................11

© ISO 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/DIS 4586-6:2020(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following

URL: www .iso .org/ iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 11,

Products.

This second edition cancels and replaces the first edition (ISO 4586-6:2015), which has been technically

revised.
The main changes compared to the previous edition are as follows:
— correction of errors due to typographical, formatting, and omission issues.
A list of all parts in the ISO 4586 series can be found on the ISO website.
iv © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/DIS 4586-6:2020(E)
Introduction

Exterior-grade compact laminates are characterized by their high tensile strength, high impact

resistance, thermal shock resistance, and resistance to weather and corrosion. They are available in a

variety of decorative colours, with high resistance to colour change and aging in outdoor applications.

When they are self-supporting exterior-grade compact laminates are ready for installation, and only

require cutting to size, drilling, etc. to suit the application.

In an effort to harmonize ISO 4586 with other high-pressure decorative laminate standards,

multiple methods may be published that demonstrate similar properties. In these instances, the

same test method title is given and is annotated as either “Method A” or “Method B”. This is the case

in the following tests: Edge squareness — 8/9, Dry heat — 17/18 Dimensional stability at elevated

temperatures — 19/20, Dimensional stability at ambient temperature — 21/22, Staining — 30/31,

Lightfastness — 32/33, Formability — 36/37, and Blistering — 38/39. In these instances, either

method may be utilized in testing. Compliance to both methods is not required. While these tests are

similar they are by no means identical and results of one method do not necessarily correspond to the

results of the accompanying test. In these situations, it is intended that the documentation in specific

parts of ISO 4586 for performance requirements be consulted. Each specific method has performance

requirements particular to that method for individual grades of high-pressure decorative laminate.

This document has been harmonized with EN 438-6 whenever possible.
© ISO 2020 – All rights reserved v
---------------------- Page: 5 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 4586-6:2020(E)
High-pressure decorative laminates (HPL, HPDL) —
Sheets based on thermosetting resins (usually called
laminates) —
Part 6:
Classification and specifications for exterior-grade
compact laminates of thickness 2 mm and greater
1 Scope

This document applies to exterior-grade compact laminates of thickness 2 mm and greater. It specifies

requirements for standard and flame-retardant laminates intended for use under outdoor weather

conditions such as direct sunlight, rain, and frost. Two levels of performance are specified; one for

moderate exterior conditions, and the other for severe exterior conditions.
ISO 4586-2 specifies the methods of test relevant to this document.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 178, Plastics — Determination of flexural properties

ISO 527-2, Plastics — Determination of tensile properties — Part 2: Test conditions for moulding and

extrusion plastics

ISO 1183-1, Plastics — Methods for determining the density of non-cellular plastics — Part 1: Immersion

method, liquid pycnometer method and titration method

ISO 4586-2:2018, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins

(usually called laminates) — Part 2: Determination of properties
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at https:// www .electropedia .org/
— ISO Online browsing platform: available at https:// www .iso .org/ obp
© ISO 2020 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/DIS 4586-6:2020(E)
3.1
high-pressure decorative laminate
HPL
HPDL

sheet consisting of layers of cellulosic fibrous material (normally paper) impregnated with

thermosetting resins and bonded together by the high pressure process (3.2)

Note 1 to entry: This is a general definition of high-pressure decorative laminate(s). More specific product

definitions can be found in ISO 4586-3 to ISO 4586-8.

Note 2 to entry: The surface layer(s) on one or both sides, having decorative colours or designs, are typically

impregnated with melamine based resins. The core layers are typically impregnated with phenolic based resins.

Note 3 to entry: The back of the sheet(s) may be made suitable for adhesive bonding to a substrate.

3.2
high-pressure process

simultaneous application of heat (temperature ≥ 120 °C) and high specific pressure (≥ 5 MPa), to

provide flowing and subsequent curing of the thermosetting resins to obtain a homogeneous non-

porous material with increased density (≥ 1,35 g/cm ), and with the required surface finish

3.3
surface layer

upper decorative layer consisting in one or more sheets of fibrous material (usually paper) impregnated

with aminoplastic thermosetting resins (usually melamine based resins) or other curable resins or

other decorative design surfaces such as metal foils, wood-veneers, and textiles, etc. which are not

necessarily treated with thermosetting resin
3.4
core layer

fibrous material (usually paper) impregnated with thermosetting resins (usually phenolic based resins)

or other curable resins, possibly reinforced by metal layer(s) or metal mesh(es) and others which are

not necessarily treated with thermosetting resin
4 Material types and classification system

Exterior-grade compact laminates are defined using the three letter classification system shown in

Table 1.
Table 1 — Classification system
First letter Second letter Third letter
E (Exterior grade) G (Moderate use) S (Standard grade)
or D (Severe use) or F (Flame-retardant
...
