ISO 4586-1:2018
(Main)High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins (usually called laminates) — Part 1: Introduction and general information
High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins (usually called laminates) — Part 1: Introduction and general information
This document is applicable to high-pressure decorative laminates (HPL, HPDL) as defined in Clause 3. This document gives an overview of the ISO 4586 series, and provides guidance in the selection and application of test methods and specifications contained in ISO 4586‑2 to ISO 4586‑8.
Stratifiés décoratifs haute pression (HPL, HPDL) — Plaques à base de résines thermodurcissables (communément appelées stratifiés) — Partie 1: Introduction et informations générales
General Information
Relations
Buy Standard
Standards Content (Sample)
© ISO 2016 – All rights reserved
ISO/TC 61/SC 11
Deleted: 06
Date: 2018‐07
Deleted: /PRF
ISO 4586-1:2018(E)
ISO/TC 61/SC 11/WG 2
Secretariat: JISC
High-pressure decorative laminates (HPL, HPDL) — Sheets based on
thermosetting resins (usually called laminates) — Part 1: Introduction and
general information
Stratifiés décoratifs haute pression (HPL, HPDL) — Plaques à base de résines
thermodurcissables (communément appelées stratifiés) — Partie 1: Introduction et
informations générales
Document type: International Standard
Document subtype:
Document stage: (40) Enquiry
Document language: E
D:\temp\macroserver\DOC2PDFRGB\DOC2PDFRGB.lacroix@13422_66\C072959e_trackchanges.doc
STD Version 2.8f
---------------------- Page: 1 ----------------------
ISO 4586-1:2018(E) Deleted: /PRF

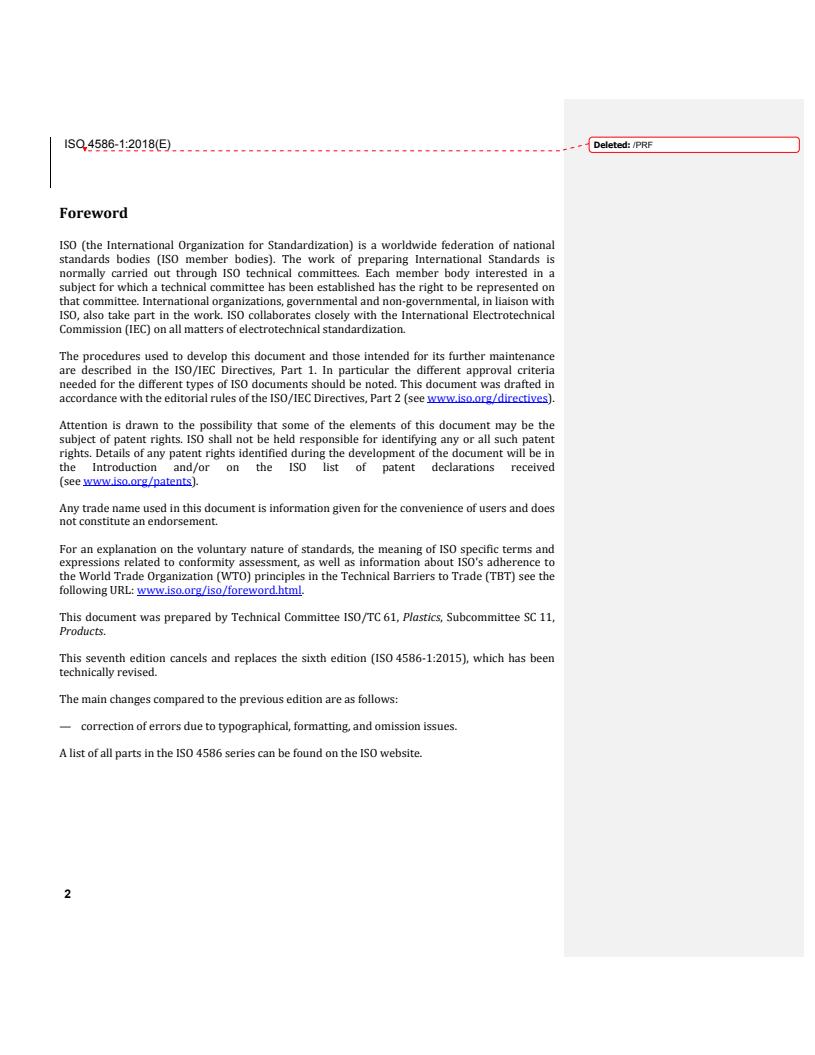

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national
standards bodies (ISO member bodies). The work of preparing International Standards is
normally carried out through ISO technical committees. Each member body interested in a
subject for which a technical committee has been established has the right to be represented on
that committee. International organizations, governmental and non‐governmental, in liaison with
ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance
are described in the ISO/IEC Directives, Part 1. In particular the different approval criteria
needed for the different types of ISO documents should be noted. This document was drafted in
accordance with the editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights. ISO shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in
the Introduction and/or on the ISO list of patent declarations received
(see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does
not constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the
following URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 11,
Products.
This seventh edition cancels and replaces the sixth edition (ISO 4586‐1:2015), which has been
technically revised.
The main changes compared to the previous edition are as follows:
— correction of errors due to typographical, formatting, and omission issues.
A list of all parts in the ISO 4586 series can be found on the ISO website.
2
---------------------- Page: 2 ----------------------
ISO 4586-1:2018(E) Deleted: /PRF
Introduction
This document has been harmonized with EN 438‐1 whenever possible.
3
---------------------- Page: 3 ----------------------
Deleted: /PRF
INTERNATIONAL STANDARD ISO 4586‐1:2018(E)
High-pressure decorative laminates (HPL, HPDL) — Sheets
based on thermosetting resins (usually called laminates) —
Part 1: Introduction and general information
1 Scope
This document is applicable to high‐pressure decorative laminates (HPL, HPDL) as defined in Clause 3.
This document gives an overview of the ISO 4586 series, and provides guidance in the selection and
application of test methods and specifications contained in ISO 4586‐2 to ISO 4586‐8.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 4586‐2, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(Usually called Laminates) — Part 2: Determination of properties
ISO 4586‐3, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(Usually called Laminates) — Part 3: Classification and specifications for laminates less than 2 mm thick
and intended for bonding to supporting substrates
ISO 4586‐4, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(Usually called Laminates) — Part 4: Classification and specifications for compact laminates of thickness 2
mm and greater
ISO 4586‐5, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(Usually called Laminates) — Part 5: Classification and specifications for flooring grade laminates less
than 2 mm thick intended for bonding to supporting substrates
ISO 4586‐6, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(Usually called Laminates) — Part 6: Classification and specifications for exterior-grade compact
laminates of thickness 2 mm and greater
ISO 4586‐7, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(Usually called Laminates) — Part 7: Classification and specifications for design laminates
ISO 4586‐8, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(Usually called Laminates) — Part 8: Classification and specifications for alternative core laminates
EN 13329, Laminate floor coverings — Specifications, requirements and test methods
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
© ISO 2016 – All rights reserved
1
---------------------- Page: 4 ----------------------
ISO 4586-1:2018(E) Deleted: /PRF
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
high-pressure decorative laminate
HPL
HPDL
sheet consisting of layers of cellulosic fibrous material (normally paper) impregnated with
thermosetting resins and bonded together by the high-pressure process (3.2)
Note 1 to entry: This is a general definition of high‐pressure decorative laminate(s). More specific product
definitions can be found in ISO 4586‐3 to ISO 4586‐8.
3.2
high-pressure process
simultaneous application of heat (temperature ≥120 °C) and high specific pressure (≥5 MPa), to provide
flowing and subsequent curing of the thermosetting resins to obtain a homogeneous non‐porous
3
material with increased density (≥1,35 g/cm), and with the required surface finish
3.3
surface layer
upper decorative layer consisting in one or more sheets of fibrous material (usually paper)
impregnated with aminoplastic thermosetting resins (usually melamine based resins) or other curable
resins or other decorative design surfaces such as metal foils, wood‐veneers, and textiles, etc. which are
not necessarily treated with thermosetting resin
3.4
core layer
fibrous material (usually paper) impregnated with thermosetting resins (usually phenolic based resins)
or other curable resins, possibly reinforced by metal layer(s) or metal mesh(es) and others which are
not necessarily treated with thermosetting resin
4 Guidance in the use of the ISO 4586 series
4.1 Description of parts
ISO 4586‐2 describes the methods of test that shall be used to determine the performance of HPL
products in their various internal and external application fields, e.g. construction, transport, furniture,
flooring, etc. The test methods have been specifically developed for testing HPL.
It should be noted that not all test methods apply to all types of HPL. For example Test 12, resistance to
abrasion, applies only to flooring grade laminates; while Test 11, resistance to surface wear, applies to
all types of HPL except flooring grade laminates. It is therefore important to read the scope of the test
method to determine whether it is applicable to a particular HPL product.
ISO 4586‐3 to ISO 4586‐8 specify the performance requirements for different types of high‐pressure
decorative laminates. Each of these parts is independent of the others, and only requires reference to
ISO 4586‐2 for details of the appropriate test methods.
ISO 4586‐3 applies to laminates less than 2 mm thick intended for bonding to supporting substrates to
produce HPL composite panels. Classification systems and performance requirements are specified for
© ISO 2016 – All rights reserved
2
---------------------- Page: 5 ----------------------
ISO 4586-1:2018(E) Deleted:
...
INTERNATIONAL ISO
STANDARD 4586-1
Seventh edition
2018-07
High-pressure decorative laminates
(HPL, HPDL) — Sheets based on
thermosetting resins (usually called
laminates) —
Part 1:
Introduction and general information
Stratifiés décoratifs haute pression (HPL, HPDL) — Plaques à base de
résines thermodurcissables (communément appelées stratifiés) —
Partie 1: Introduction et informations générales
Reference number
ISO 4586-1:2018(E)
©
ISO 2018
---------------------- Page: 1 ----------------------
ISO 4586-1:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 4586-1:2018(E)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Guidance in the use of the ISO 4586 series . 2
4.1 Description of parts .2
4.2 Applications . 3
5 Product classification systems . 3
Annex A (informative) Addendum relating to hygienic, health and safety information for
laminates intended for interior use . 5
Bibliography . 7
© ISO 2018 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 4586-1:2018(E)

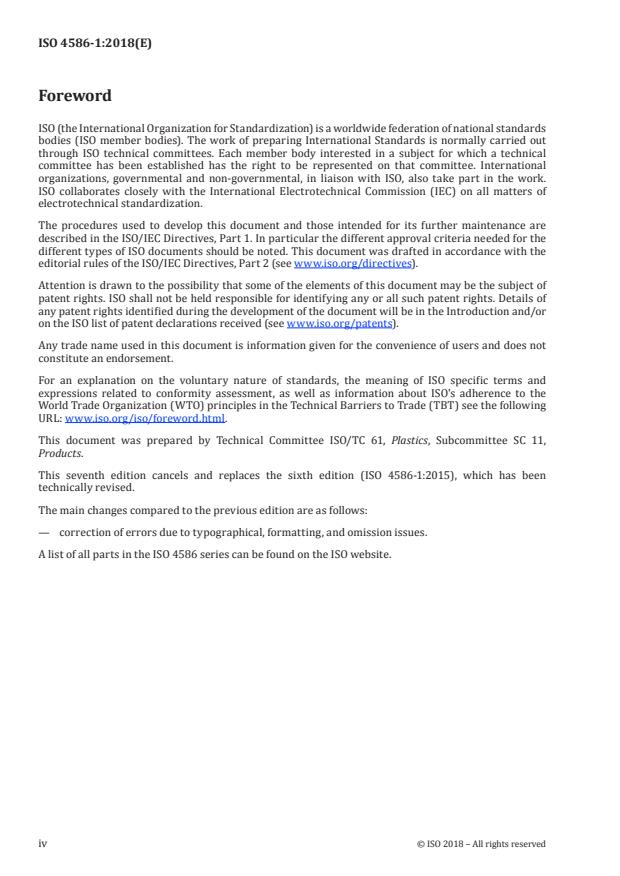

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 11,
Products.
This seventh edition cancels and replaces the sixth edition (ISO 4586-1:2015), which has been
technically revised.
The main changes compared to the previous edition are as follows:
— correction of errors due to typographical, formatting, and omission issues.
A list of all parts in the ISO 4586 series can be found on the ISO website.
iv © ISO 2018 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 4586-1:2018(E)
Introduction
This document has been harmonized with EN 438-1 whenever possible.
© ISO 2018 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 4586-1:2018(E)
High-pressure decorative laminates (HPL, HPDL) —
Sheets based on thermosetting resins (usually called
laminates) —
Part 1:
Introduction and general information
1 Scope
This document is applicable to high-pressure decorative laminates (HPL, HPDL) as defined in Clause 3.
This document gives an overview of the ISO 4586 series, and provides guidance in the selection and
application of test methods and specifications contained in ISO 4586-2 to ISO 4586-8.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 4586-2, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(usually called laminates) — Part 2: Determination of properties
ISO 4586-3, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(usually called laminates) — Part 3: Classification and specifications for laminates less than 2 mm thick and
intended for bonding to supporting substrates
ISO 4586-4, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(usually called laminates) — Part 4: Classification and specifications for compact laminates of thickness 2
mm and greater
ISO 4586-5, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(usually called laminates) — Part 5: Classification and specifications for flooring grade laminates less than
2 mm thick intended for bonding to supporting substrates
ISO 4586-6, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(usually called laminates) — Part 6: Classification and specifications for exterior-grade compact laminates
of thickness 2 mm and greater
ISO 4586-7, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(usually called laminates) — Part 7: Classification and specifications for design laminates
ISO 4586-8, High-pressure decorative laminates (HPL, HPDL) — Sheets based on thermosetting resins
(usually called laminates) — Part 8: Classification and specifications for alternative core laminates
EN 13329, Laminate floor coverings — Specifications, requirements and test methods
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
© ISO 2018 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 4586-1:2018(E)
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
3.1
high-pressure decorative laminate
HPL
HPDL
sheet consisting of layers of cellulosic fibrous material (normally paper) impregnated with
thermosetting resins and bonded together by the high-pressure process (3.2)
Note 1 to entry: This is a general definition of high-pressure decorative laminate(s). More specific product
definitions can be found in ISO 4586-3 to ISO 4586-8.
3.2
high-pressure process
simultaneous application of heat (temperature ≥120 °C) and high specific pressure (≥5 MPa), to provide
flowing and subsequent curing of the thermosetting resins to obtain a homogeneous non-porous
3
material with increased density (≥1,35 g/cm ), and with the required surface finish
3.3
surface layer
upper decorative layer consisting in one or more sheets of fibrous material (usually paper) impregnated
with aminoplastic thermosetting resins (usually melamine based resins) or other curable resins or
other decorative design surfaces such as metal foils, wood-veneers, and textiles, etc. which are not
necessarily treated with thermosetting resin
3.4
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
