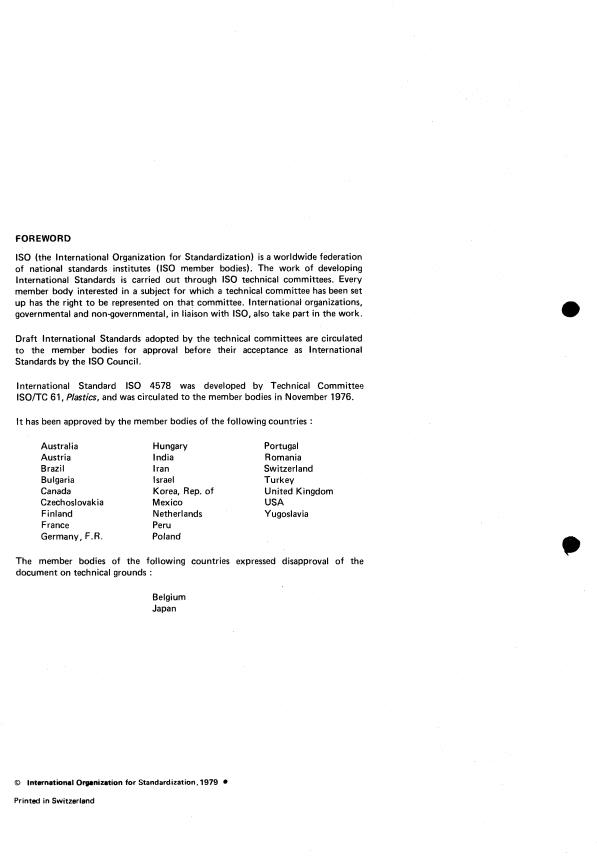

FOREWORD
IS0 (the International Organization for Standardization) is a worldwide federation
of national standards institutes (IS0 member bodies). The work of developing
International Standards is carried out through IS0 technical committees. Every
member body interested in a subject for which a technical committee has been set
up has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the technical committees are circulated
to the member bodies for approval before their acceptance as International
Standards by the IS0 Council.
International Standard IS0 4578 was developed by Technical Committee
iSO/TC 61, Plastics, and was circulated to the member bodies in November 1976.
It has been approved by the member bodies of the following countries :
Australia Hungary Portugal
Austria India Romania
Brazil I ran Switzerland
Bulgaria Israel Turkey
Canada Korea, Rep. of United Kingdom
Czechoslovakia Mexico USA
Finland Netherlands Yugoslavia
France Peru
Germany, F.R. Poland
The member bodies of the following countries expressed disapproval of the
document on technical grounds :
Belgium
Japan
$
/
O International Oqaniution for Standardization, 1979
Printed in Switzerland
---------------------- Page: 2 ----------------------
~~
IS0 4578-1979 (E)
INTERNATIONAL STANDARD
Adhesives - Determination of peel resistance of high-
strength adhesive bonds - Floating roller method
1 SCOPE AND FIELD OF APPLICATION
4.2 Peel test fixture, for supporting the test specimen (see
figure I). The fixture shall be attached to one of the cross-
This International Standard specifies a floating roller
arms of the testing machine (4.1). The 25 mm diameter
method for the determination of the peel resistance of
rollers on the test fixture shall roll freely. The angle deter-
high-strength adhesive bonds between one rigid metallic
mined by the rollers and the use of dual roller bearings
adherend and one flexible metallic adherend when tested
are critical and shall be maintained.
under specified conditions of preparation and testing. The
use of the floating roller produces more constant numerical
data than other peel methods, but it should not be expected
5 TEST SPECIMENS
that the flexible adherend will conform to the surface of
the roller.
5.1 Test specimens of the dimensions shown in figure 2
may be prepared individually or cut from bonded panels.
Laminated test panels, or individual test specimens, shall
2 REFERENCE
consist of two adherends properly prepared and bonded
IS0 291, Plastics - Standard atmospheres for conditioning together.
and testing.
5.2 Surface treatment shall be such as to obtain optimum
strength in the bonded assembly. The preparation of the
3 DEFINITION
surface shall be in accordance with either the manu-
facturer's instructions or an appropriate International
peel resistance : The average force per unit width of bond
Standard.'
line required to separate progressively the two metallic
members of a bonded test specimen over the adhered
The adhesive shall be applied according to the manu-
surfaces under the specified conditions of test. It is
facturer's recommendations to obtain an optimum bond
expressed in kilonewtons per metre of width.
with a minimum of variations.
Other conditions may be used if agreed between the
4 APPARATUS
interested parties.
0
4.1 Tensile testing machine, capable of maintaining a NOTE - Direct comparison of different adhesives can be made only
when test specimen construction, adherend materials and dimensions,
constant crosshead rate of 100 mm/min unless otherwise
and test conditions are identical.
specified. It shall be provided with a suitable self-aligning
test specimen. The jaws of this grip shall
grip to hold the
5.3 The thickness of the flexible adherend shall be
firmly engage the outer 25 mm of the end of the flexible
0,5 0,02 mm and that of the rigid adherend shall be
adherend. The grip and attachments shall be so constructed
1,6 * 0,l mm.
that they will move into alignment with the test specimen
as soon as the force is applied, so that the flexible member
of the test specimen will coincide with the direction of the 5.4 Test specimens of width 25 mm shall be cut from the
applied pull through
...
INTERNATIONAL ORGANIZATION FOR STANOAROIZATION *MEEnYHAPOnHAR OPiAHMJAUlllI no CI'AH~APTMSALIHH .ORGANISATION INTERNATIONALE DE NORMALISATION
I
Adhésifs - Détermination de la résistance au pelage des
0
assemblages à forte cohésion - Méthode des galets
mobiles
Adhesives - Determination of peel resistance of high-strength adhesive bonds - Floating roller method
I
Première édition - 1979-04-01
Réf. no : IS0 4578-1979 (FI
CDU 665-93 : 620.17
- G
R
Descripteurs : matière plastique, adhésif, joint collé, essai, essai d'adhérence, essai d'écaillage.
sn
2
s3
O
v,
Prix basé sur 3 pages
---------------------- Page: 1 ----------------------

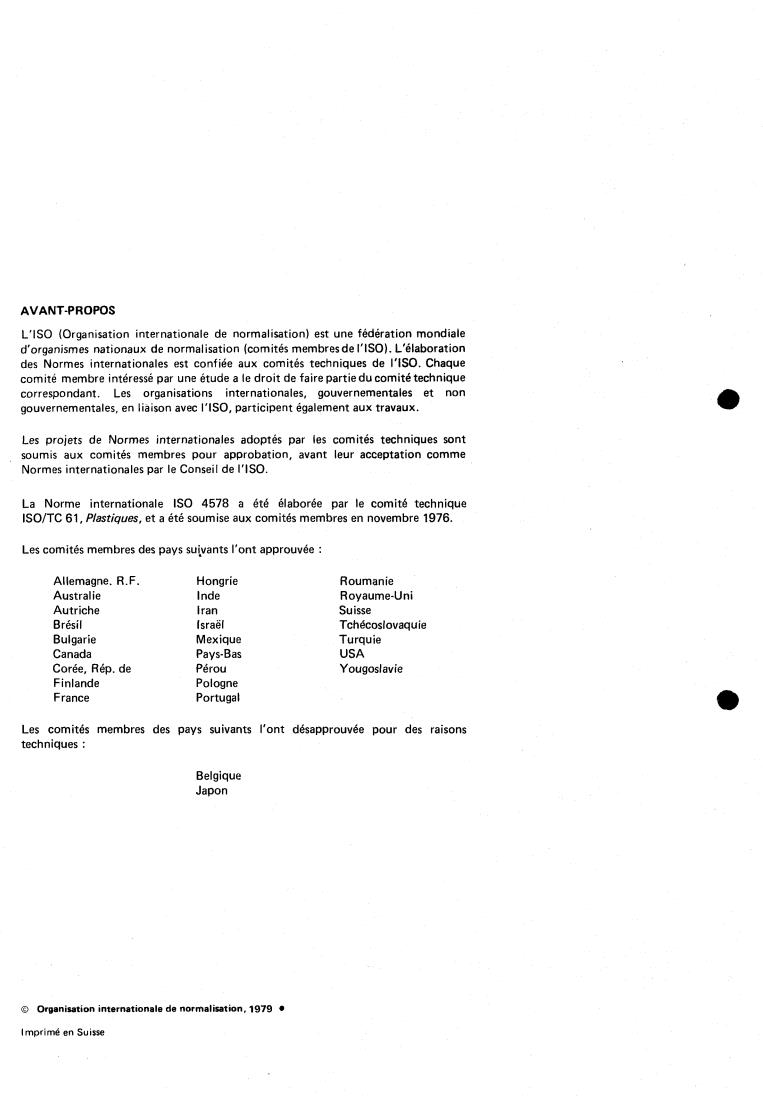

AVANT-PROPOS
L'ISO (Organisation internationale de normalisation) est une fédération mondiale
I'ISO). L'élaboration
d'organismes nationaux de normalisation (comités membres de
des Normes internationales est confiée aux comités techniques de I'ISO. Chaque
comité membre intéressé par une étude a le droit de faire partie du comité technique
correspondant. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec I'ISO, participent également aux travaux.
Les projets de Normes internationales adoptés par les comités techniques sont
soumis aux comités membres pour approbation, avant leur acceptation comme
Normes internationales par le Conseil de I'ISO.
La Norme internationale IS0 4578 a été élaborée par le comité technique
ISO/TC 61, P/astiques, et a été soumise aux comités membres en novembre 1976.
Les comités membres des pays suivants l'ont approuvée :
Allemagne. R.F Hongrie Roumanie
Australie Inde Royaume-Uni
Autriche I ran Suisse
Brésil Israël Tchécoslovaquie
Bulgarie Mexique Turquie
Canada Pays-Bas USA
Corée, Rép. de Pérou Yougoslavie
Fin lande Pologne
France Portugal
Les comités membres des pays suivants l'ont désapprouvée pour des raisons
techniques :
Belgique
Japon
O Organisation internationale de normalisation, 1979
Imprimé en Suisse
---------------------- Page: 2 ----------------------
NORME INTERNATIONALE
IS0 4578-1979 (F)
Adhésifs - Détermination de la résistance au pelage des
assemblages à forte cohésion - Méthode des galets
mobiles
1 OBJET ET DOMAINE D'APPLICATION
La machine doit permettre le mesurage et l'enregistrement
de la force appliquée avec une précision de I2 %.
La présente Norme internationale spécifie une méthode
de détermination de la résistance relative au pelage, d'assem-
4.2 Dispositif destiné à supporter l'éprouvette (voir
blages à forte cohésion réalisés entre un support métallique
figure 1). II doit être fixé à l'une des extrémités du dispo-
rigide et un support métallique flexible, dans des conditions
sitif de traction de la machine (4.1). Les rouleaux de
définies de préparation et d'essai. L'emploi de galets mo-
@
25 mm de diamètre de ce dispositif doivent tourner libre-
biles permet l'obtention de valeurs numériques plus
ment. L'angle déterminé par les rouleaux et l'utilisation
constantes qu'avec d'al-itres méthodes de pelage, mais il
de doubles rouleaux d'appui sont déterminants et doivent
faut admettre que le support flexible ne s'applique pas
être maintenus.
rigoureusement et en tous points sur la surface du galet
sur lequel il prend appui.
5 ÉPROUVETTES
2 RËFËRENCE
5.1 Les éprouvettes doivent être préparées individuelle-
IS0 291, Plastiques - Atmosphères normales de condition-
ment ou à partir de panneaux, aux dimensions indiquées
nement et d'essai.
par la figure 2. Les panneaux ou éprouvettes individuelles
doivent être constitués de deux supports convenablement
3 DÉFINITION
préparés et collés ensemble.
résistance au pelage : Moyenne de la force de décollage,
5.2 Le traitement de surface doit permettre d'obtenir la
par unité de largeur, nécessaire pour séparer progressive-
résistance optimale de l'assemblage collé. La préparation
ment les deux supports métalliques d'une éprouvette collée,
de la surface doit être effectuée conformément aux
dans des conditions d'essai spécifiées. Elle s'exprime en
instructions des fabricants ou selon la Norme internationale
kilonewtons par mètre de largeur.
appropriée.' )
L'adhésif doit être appliqué selon les recommandations du
* 4 APPAREILLAGE
fabricant pour obtenir une liaison optimale avec un mini-
mum de variations.
4.1 Machine de traction, capable de maintenir une vitesse
de déplacement de la mâchoire mobile de 100 mm/min,
D'autres conditions peuvent être utilisées, selon accord
sauf spécification contraire. Elle doit être pourvue d'un
entre les parties intéressées.
dispositif autocentreur de fixation de l'éprouvette. L'extré-
mité libre du support flexible doit pouvoir s'engager de
NOTE - Une comparaison directe de différents adhésifs ne peut
25 mm dans la mâchoire et y être fermement maintenue. être effectuée que si la constitution des éprouvettes, la nature et
les dimensions des supports et les conditions d'essai sont identiques.
L'ensemble de ce dispositif doit être conçu de telle manière
que ses divers éléments se déplacent en parfait alignement
avec l'éprouvette dès que celle-ci est soumise à un effort 5.3 L'épaisseur du support flexible doit être de
et qu'ainsi la partie flexible de l'éprouvette puisse coïncider 0,5 * 0.02 mm, et celle du support rigide de 1.6 * 0,l mm.
avec le sens d'application de la force et l'axe de symétrie
du dispositif de fixation. La machine doit comporter un
5.4 Les panneaux collés doivent être découpés en éprou-
enregistreur, donnant un graphique ayant pour coordonnées
vettes de 25 mm de largeur (voir figure 2) par des métho
...
