ISO 2964:2025

Aerospace - Tubing outside diameters and thicknesses - Metric dimensions

This document specifies the outside diameters and thicknesses of tubes, for all metallic materials, to be selected for all uses in aircraft structural and system design.

Titre manque

La présente Norme internationale fixe les diamètres extérieurs et les épaisseurs des tubes, pour tous matériaux métalliques, choisis pour être utilisés dans la construction des structures et des systèmes d'aéronefs.

General Information

• Status: Published
• Publication Date: 06-Apr-2025
• ICS: 49.080 - Aerospace fluid systems and components
• Technical Committee: ISO/TC 20/SC 10 - Aerospace fluid systems and components
• Drafting Committee: ISO/TC 20/SC 10 - Aerospace fluid systems and components
• Current Stage: 6060 - International Standard published
• Start Date: 07-Apr-2025
• Due Date: 18-Nov-2025
• Completion Date: 07-Apr-2025

Relations

• Revises: ISO 2964:1985 - Aerospace - Tubing - Outside diameters and thicknesses - Metric dimensions
• Effective Date: 19-Nov-2022

Overview

ISO 2964:2025 - "Aerospace - Tubing outside diameters and thicknesses - Metric dimensions" establishes a standard set of metric outside diameters and wall thicknesses for metallic tubing used in aircraft structural and system design. The third edition updates and expands the series of standard tube sizes for aerospace use and is intended as a selection table for designers, manufacturers and procurement specialists.

Key topics and technical requirements

• Scope: Defines outside diameters and thicknesses of tubes for all metallic materials intended for any use in aircraft structures and systems.
• Standardized sizes: Table 1 provides the authorised metric outside diameters (ranging from about 1.6 mm up to 100 mm) and a selectable set of wall thicknesses (column headers show thickness options from 0.25 mm to 10 mm).
• Tolerances: Tolerances for dimensions are specified in the relevant material- and application-specific standards and are listed in Table 1; ISO 2964 itself does not introduce separate normative reference documents.
• Edition notes: This third edition cancels and replaces ISO 2964:1985 and adds a revised standard series of diameters and thicknesses for aircraft use.
• Standards context: Prepared by ISO/TC 20/SC 10 (Aerospace fluid systems and components); no additional normative references or terms/definitions are included in the document.

Practical applications

ISO 2964:2025 is a practical selection tool and reference for:

• Aerospace designers and structural engineers specifying tubing for primary and secondary airframe structures and onboard systems.
• Fluid system and hydraulic designers selecting compatible metallic tube sizes for pipelines, actuator lines and fittings.
• Manufacturers and tube suppliers standardizing production runs and inventory using aerospace-accepted diameters and wall thicknesses.
• Procurement, quality and maintenance teams ensuring interchangeability, traceability and compliance with aerospace dimensional expectations.

Using ISO 2964 helps reduce design iteration, improve supplier compatibility, and streamline spare-part management by aligning tubing choices with an internationally recognized size series.

Related information

• Table 1 of ISO 2964 lists the agreed metric outside diameters and wall thickness combinations for aircraft use.
• Tolerance details should be cross-checked against material-specific and application-specific standards (as noted in ISO 2964).
• For terminology and additional standardization context see the ISO Online Browsing Platform and IEC Electropedia.

Keywords: ISO 2964:2025, aerospace tubing, tubing outside diameters, tube thicknesses, metric dimensions, aircraft tubing standards, tubing tolerances, aerospace fluid systems.

Standards Content (Sample)

International
Standard
ISO 2964
Third edition
Aerospace — Tubing outside
2025-04
diameters and thicknesses — Metric
dimensions
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Dimensions . 1
5 Tolerances . 1

iii

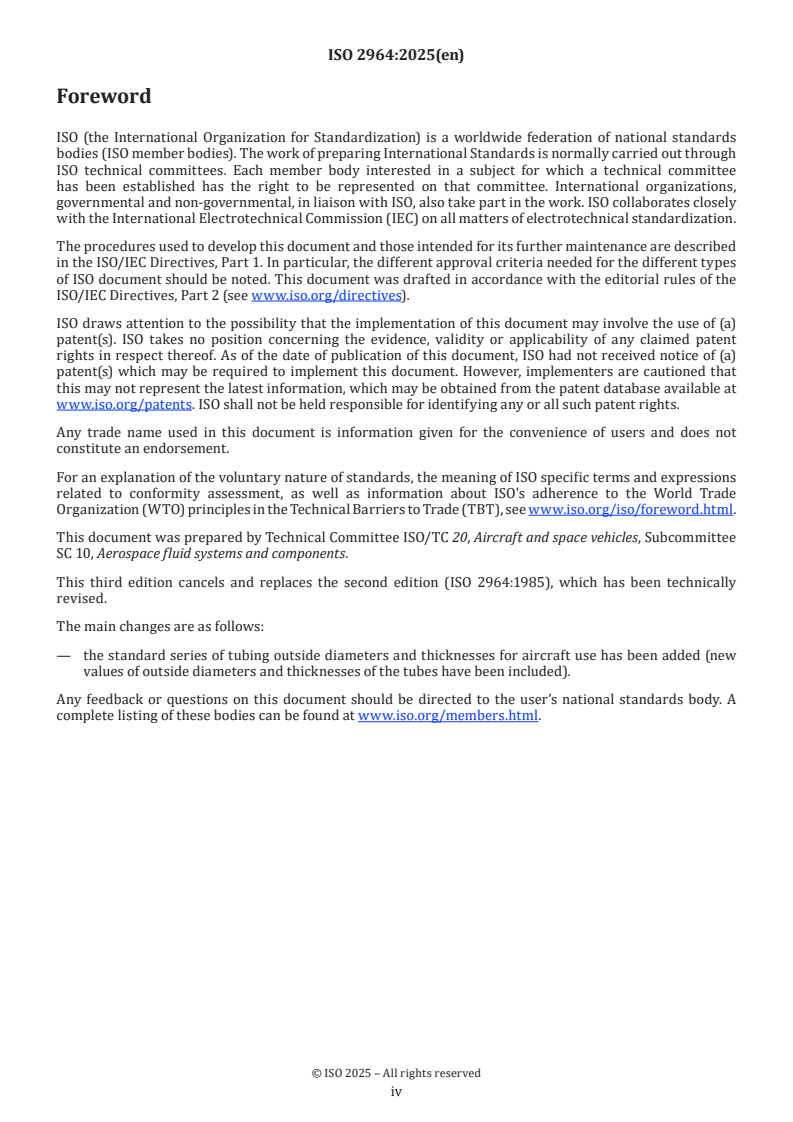

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's ad
...
