Information technology -- 12,7mm 128-track magnetic tape cartridge for information interchange -- Parallel serpentine format

This International Standard specifies the physical and magnetic characteristics of a magnetic tape cartridge, using a magnetic tape 12,7 mm wide, so as to provide physical interchange of such cartridges between drives. It also specifies the quality of the recorded signals, the recording method and the recorded format known as Parallel Serpentine, thereby allowing data interchange between drives by means of such cartridges. The format supports variable length Logical Records, high speed search, and the use of the algorithm for data compression specified in International Standard ISO/IEC 15200. Information interchange between systems also requires, at a minimum, agreement between the interchange parties upon the interchange code(s) and the specification of the structure and labelling of the information on the interchanged cartridge. Together with a standard for volume and file structure, e.g. International Standard ISO 1001, this International Standard provides for full data interchange between data processing systems.

Technologies de l'information -- Cartouches de bande magnétique de 12,7mm, 128 pistes pour l'échange d'information -- Format serpentant parallèle

General Information

Status
Published
Publication Date
21-Jun-2000
Current Stage
9093 - International Standard confirmed
Start Date
21-Aug-2020
Ref Project

Buy Standard

Standard
ISO/IEC 17913:2000 - Information technology -- 12,7mm 128-track magnetic tape cartridge for information interchange -- Parallel serpentine format
English language
75 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO/IEC
STANDARD 17913
First edition
2000-06-15
Information technology — 12,7 mm
128-track magnetic tape cartridge for
information interchange — Parallel
serpentine format
Technologies de l'information — Cartouches de bande magnétique de
12,7 mm, 128 pistes pour l'échange d'information — Format serpentant
parallèle
Reference number
ISO/IEC 17913:2000(E)
ISO/IEC 2000
---------------------- Page: 1 ----------------------

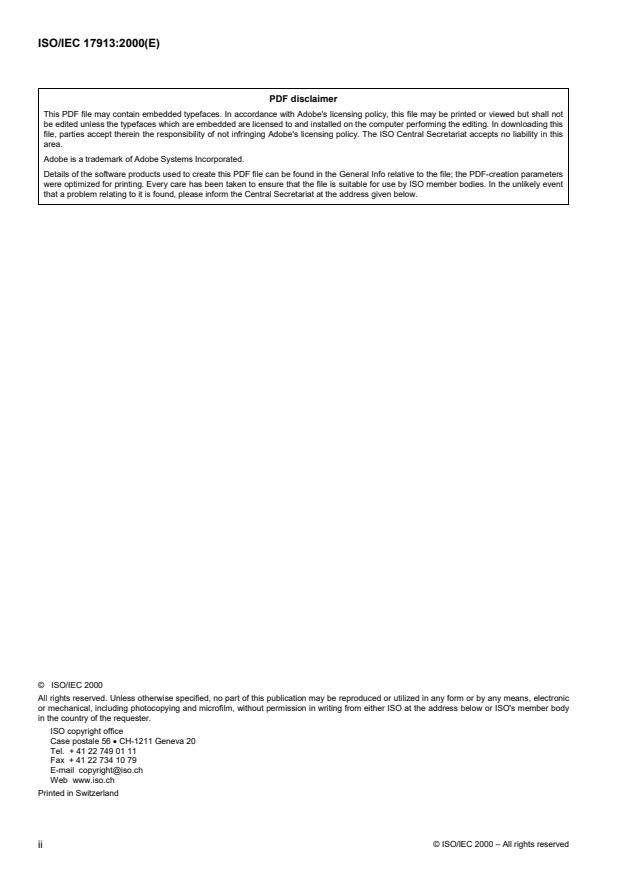

ISO/IEC 17913:2000(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not

be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this

file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this

area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters

were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event

that a problem relating to it is found, please inform the Central Secretariat at the address given below.

© ISO/IEC 2000

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic

or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body

in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 734 10 79
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
© ISO/IEC 2000 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 17913:2000(E)
Contents Page
Section 1 - General 1
1 Scope 1
2 Conformance 1
2.1 Magnetic tape cartridge 1
2.2 Generating system 1
2.3 Receiving system 1
3 Normative references 1
4 Definitions 1
4.1 algorithm 1
4.2 anhysteretic erase 1
4.3 average signal amplitude 2
4.4 azimuth 2
4.5 back surface 2
4.6 beginning of partition (BOP) 2
4.7 beginning of tape (BOT) 2
4.8 cartridge 2
4.9 cyclic redundancy check (CRC) character 2
4.10 end of tape (EOT) 2
4.11 error-correcting code (ECC) 2
4.12 error-detecting code (EDC) 2
4.13 File Mark 2
4.14 flux transition position 2
4.15 flux transition spacing 2
4.16 half-wrap 2
4.17 logical block 2
4.18 logical forward 2
4.19 logical reverse 2
4.20 magnetic tape 2
4.21 mark tach count 2
4.22 Master Standard Reference Tape 2
4.23 physical recording density 2
4.24 pre-record condition 2
4.25 recorded element 2
4.26 Reference Field 2
4.27 resync character 2
4.28 SDM set 2
4.29 Secondary Standard Reference Tape (SSRT) 2
4.30 servo track 3
4.31 Standard Reference Amplitude (SRA) 3
4.32 Standard Reference Current (I ) 3
4.33 Test Recording Current (I ) 3
4.34 track 3
4.35 track group 3
4.36 trailer 3
4.37 Typical Field 3
4.38 write equalisation 3
© ISO/IEC 2000 – All rights reserved iii
---------------------- Page: 3 ----------------------

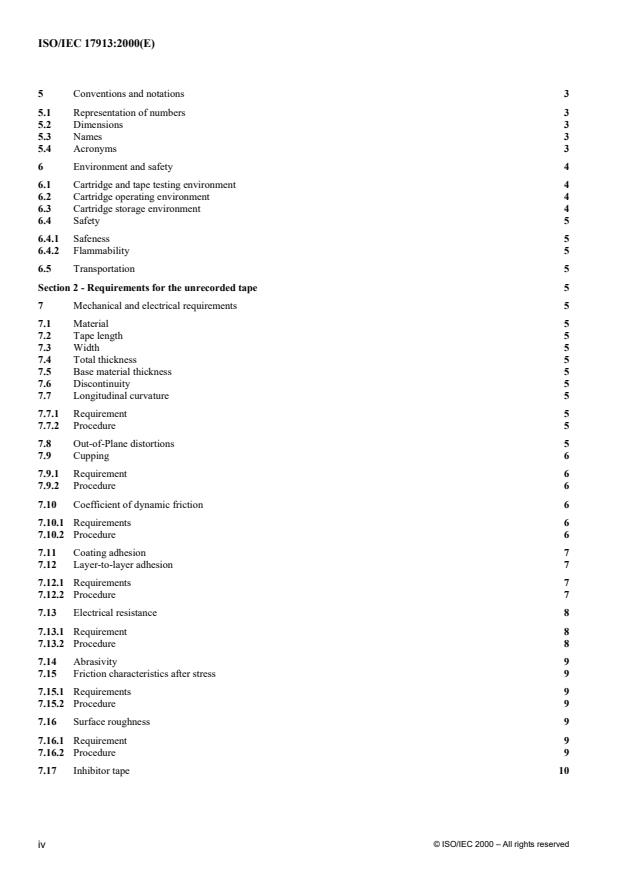

ISO/IEC 17913:2000(E)
5 Conventions and notations 3
5.1 Representation of numbers 3
5.2 Dimensions 3
5.3 Names 3
5.4 Acronyms 3
6 Environment and safety 4
6.1 Cartridge and tape testing environment 4
6.2 Cartridge operating environment 4
6.3 Cartridge storage environment 4
6.4 Safety 5
6.4.1 Safeness 5
6.4.2 Flammability 5
6.5 Transportation 5
Section 2 - Requirements for the unrecorded tape 5
7 Mechanical and electrical requirements 5
7.1 Material 5
7.2 Tape length 5
7.3 Width 5
7.4 Total thickness 5
7.5 Base material thickness 5
7.6 Discontinuity 5
7.7 Longitudinal curvature 5
7.7.1 Requirement 5
7.7.2 Procedure 5
7.8 Out-of-Plane distortions 5
7.9 Cupping 6
7.9.1 Requirement 6
7.9.2 Procedure 6
7.10 Coefficient of dynamic friction 6
7.10.1 Requirements 6
7.10.2 Procedure 6
7.11 Coating adhesion 7
7.12 Layer-to-layer adhesion 7
7.12.1 Requirements 7
7.12.2 Procedure 7
7.13 Electrical resistance 8
7.13.1 Requirement 8
7.13.2 Procedure 8
7.14 Abrasivity 9
7.15 Friction characteristics after stress 9
7.15.1 Requirements 9
7.15.2 Procedure 9
7.16 Surface roughness 9
7.16.1 Requirement 9
7.16.2 Procedure 9
7.17 Inhibitor tape 10
iv © ISO/IEC 2000 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 17913:2000(E)
8 Magnetic recording characteristics 10
8.1 Typical Field 10
8.2 Signal amplitude 10
8.3 Resolution 10
8.4 Broad-band signal-to-noise ratio (BBSNR) 10
8.4.1 Requirement 10
8.4.2 Procedure 10
9 Tape quality 11
9.1 Missing pulse 11
9.1.1 Requirement 11
9.1.2 Procedure 11
9.2 Coincident missing pulse 11
9.2.1 Requirement 11
9.2.2 Procedure 11
9.3 Missing pulse density 12
9.3.1 Requirement 12
9.3.2 Procedure 12
9.4 Tape durability 12
Section 3 - Mechanical specifications of the tape cartridge 12
10 General 12
10.1 Overall dimensions 13
10.2 Write-inhibit mechanism 13
10.3 Label areas of the rear side 13
10.4 Label area on the top side 14
10.5 Case opening 14
10.6 Locating notches 14
10.7 Locating areas 15
10.8 Inside configuration of the case around the case opening 15
10.9 Other external dimensions of the case 15
10.10 Central window 15
10.11 Stacking ribs 16
10.12 Recessed area 16
10.13 Flexibility of the case 16
10.13.1 Requirements 16
10.13.2 Procedure 17
10.14 Tape reel 17
10.14.1 Locking mechanism 17
10.14.2 Axis of rotation of the reel 17
10.14.3 Metallic insert 17
10.14.4 Toothed rim 17
10.14.5 Hub of the reel 18
10.14.6 Relative positions 18
10.14.7 Characteristics of the toothed rim 19
10.15 Leader block 19
10.16 Attachment of the tape to the leader block 20
10.17 Latching mechanism 20
10.18 Tape wind 20
10.19 Wind tension 20
10.20 Circumference of the tape reel 20
10.21 Moment of inertia 21
10.22 Material 21
© ISO/IEC 2000 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/IEC 17913:2000(E)
10.23 Cartridge identification notches 21
10.24 Finger slot 21
Section 4 - Requirements for an interchanged tape 31
11 Method of recording 31
11.1 Physical recording density 31
11.2 Bit cell length 31
11.3 Average bit cell length 31
11.3.1 Long-term average RLL bit cell length 31
11.3.2 Short-term average RLL bit cell length 31
11.4 Rate of change of the short-term average RLL bit cell length 31
11.5 Bit shift 31
11.6 Total character skew 31
11.7 Missing zero-crossing zones 32
11.8 Coincident missing zero-crossing zones 32
12 Servo tracks 32
12.1 Locations of the servo tracks 32
12.2 Physical width of the servo tracks 33
12.3 Format of the servo tracks 33
12.4 Servo requirements 34
12.4.1 Servo amplitude 34
12.4.2 Servo azimuth 34
12.4.3 Servo errors 34
12.4.4 Servo edge spacing 35
12.5 Procedure 35
13 Data track format 35
13.1 Number of data tracks 35
13.2 Track positions 35
13.3 Track width 37
13.4 Data azimuth 37
13.5 Half-wraps 37
14 Tape format 37
14.1 General 37
14.2 Recording area 37
14.3 Tach count 39
14.4 Physical blocks 39
14.5 Servo acquisition region 40
14.6 Volume control region 40
14.7 Data region 40
14.8 Data entities 40
15 Packet format 42
15.1 Packet header 43
15.2 Packet data 45
15.3 Packet trailer 45
16 Device blocks 45
16.1 Data device blocks 45
16.2 Mark device blocks 45
16.3 File Mark 45
16.4 Void mark 46
16.5 Beginning of half-wrap mark 46
16.6 End of half-wrap mark 46
16.7 BOP mark 46
vi © ISO/IEC 2000 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/IEC 17913:2000(E)
16.8 EOD mark 46
16.9 SDM mark 46
16.10 FID mark 47
16.11 DBM mark 48
16.11.1 DBM general information packet 48
16.11.2 DBM wrap region packet 49
16.11.3 DBM partitions packet 49
16.11.4 DBM servo demark packet 50
16.11.5 DBM File Mark packet 50
16.12 SARS mark 51
16.13 DBM checked out mark 51
16.14 DBM valid mark 51
17 Device block format 51
17.1 Device block header 51
17.1.1 Device block control 52
17.1.2 Device block sequence control 54
17.1.3 Vendor identification code 54
17.2 Device block data 54
17.3 Device block trailer 54
18 ECC 54
18.1 CRC 54
18.2 Code block 55
18.3 ECC encoded code block 55
18.4 Codeword correction code generation 56
18.5 MIE pointer code generation 57
18.6 ECC encoded interleave unit 57
18.7 Short error correction code generation 57
19 Recording of bytes on tape 59
19.1 Synchronisation format 59
19.2 Interblock gap formatting 62
19.3 RLL byte translation 63
19.4 Write equalisation bit translation 63
19.5 Writing bits on tape 63
Annexes
A- Tape abrasivity measurement procedure 64
B- Mediatypelabel 66
C- Measurement of bit shift 70
D- Vendor Identification Code 72
E- Recommendations for transportation 73
F- Inhibitor tape 74
G- Tape durability 75
© ISO/IEC 2000 – All rights reserved vii
---------------------- Page: 7 ----------------------
ISO/IEC 17913:2000(E)
Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission) form the

specialized system for worldwide standardization. National bodies that are members of ISO or IEC participate in the

development of International Standards through technical committees established by the respective organization to deal with

particular fields of technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other

international organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.

In the field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1. Draft

International Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the national bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of patent rights.

ISO and IEC shall not be held responsible for identifying any or all such patent rights.

International Standard ISO/IEC 117913 was prepared by ECMA (as ECMA-278) and was adopted, under a special “fast-track

procedure”, by Joint Technical Committee ISO/IEC JTC 1, Information technology, in parallel with its approval by national

bodies of ISO and IEC.

Annexes A, B, C and D form a normative part of this International Standard. Annexes E to G are for information only.

viii © ISO/IEC 2000 – All rights reserved
---------------------- Page: 8 ----------------------
INTERNATIONAL STANDARD ISO/IEC 17913:2000(E)
Information technology — 12,7 mm 128-track magnetic tape cartridge for
information interchange — Parallel serpentine format
Section 1 - General
1Scope

This International Standard specifies the physical and magnetic characteristics of a magnetic tape cartridge, using a magnetic

tape 12,7 mm wide, so as to provide physical interchange of such cartridges between drives. It also specifies the quality of the

recorded signals, the recording method and the recorded format known as Parallel Serpentine, thereby allowing data

interchange between drives by means of such cartridges. The format supports variable length Logical Records, high speed

search, and the use of the algorithm for data compression specified in International Standard ISO/IEC 15200.

Information interchange between systems also requires, at a minimum, agreement between the interchange parties upon the

interchange code(s) and the specification of the structure and labelling of the information on the interchanged cartridge.

Together with a standard for volume and file structure, e.g. International Standard ISO 1001, this International Standard

provides for full data interchange between data processing systems.
2 Conformance
2.1 Magnetic tape cartridge

A tape cartridge shall be in conformance with this International Standard if it meets all the mandatory requirements specified

herein. The tape requirements shall be satisfied throughout the extent of the tape.

2.2 Generating system

A generating system shall be in conformance with this International Standard if it generates a tape according to 2.1.

2.3 Receiving system

A receiving system shall be in conformance with this International Standard if it can read all tapes according to 2.1.

3 Normative references

The following normative documents contain provisions which, through reference in this text, constitute provisions of this

International Standard. For dated references, subsequent amendments to, or revisions of, any of these publications do not

apply. However, parties to agreements based on this International Standard are encouraged to investigate the possibility of

applying the most recent editions of the normative documents indicated below. For undated references, the latest edition of the

normative document referred to applies. Members of ISO and IEC maintain registers of currently valid International Standards.

ISO 1001: 1986, Information processing — File structure and labelling of magnetic tapes for information interchange.

IEC 60950:1999, Safety of information technology equipment.

ISO/IEC 15200:1996, Information technology— Adaptive Lossless Data Compression algorithm (ALDC).

ISO/R 527:1966, Plastics — Determination of tensile properties.

ISO/IEC 646:1991, Information technology — ISO 7-bit coded character set for information interchange.

ISO 683-13:1986, Heat-treatable steels, alloy steels and free-cutting steels — Part 13: Wrought stainless steels.

ANSI MH10.8M-1993, Materials Handling — Unit Loads and Transport Packages — Bar Code Symbols.

4 Terms and definitions

For the purposes of this International Standard, the following terms and definitions apply.

4.1 algorithm: A set of rules for transforming the logical representation of data.

4.2 anhysteretic erase: A process of erasure utilising an alternating magnetic field of decaying level.

© ISO/IEC 2000 – All rights reserved 1
---------------------- Page: 9 ----------------------
ISO/IEC 17913:2000(E)

4.3 average signal amplitude: The average peak-to-peak value of the signal output measured over a minimum

of 25,4 mm, exclusive of missing pulses.

4.4 azimuth: The angle, in minutes of arc, of the mean flux transition line of a track from a line normal to the

tape Reference Edge.
4.5 back surface: The surface of the tape opposite the recording surface.

4.6 beginning of partition (BOP): The point along the length of the tape where recording in any partition

begins.

4.7 beginning of tape (BOT): The point along the length of the magnetic tape, indicated by the start of

recorded information.

4.8 cartridge: A container holding a single supply reel of magnetic tape with an attached leader block at the

BOT end.

4.9 cyclic redundancy check (CRC) character: A four-byte character used for error detection.

4.10 end of tape (EOT): The point on a track farthest from BOT up to which recording is allowed.

4.11 error-correcting code (ECC): An algorithm yielding bytes used for error detection and correction.

4.12 error-detecting code (EDC): An algorithm yielding bytes used for error detection.

4.13 File Mark: A recorded element requested by a host that marks the end of a host data file or aggregate.

4.14 flux transition position: The point on the magnetic tape that exhibits the maximum free-space flux density

normal to the tape surface.

4.15 flux transition spacing: The distance along a track between successive flux transitions.

4.16 half-wrap: A track group recorded in the physical forward or physical reverse direction.

4.17 logical block: User data or a File Mark that is received as input by the system or that is sent as output from

the system.

4.18 logical forward: The direction of tape motion that results in finding an ascending order of device block

identifiers.

4.19 logical reverse: The direction of tape motion that results in finding a descending order of device block

identifiers.

4.20 magnetic tape: A tape that accepts and retains magnetic signals intended for input, output, and storage of

data for information processing.

4.21 mark tach count: The value of the tach counter that exists at the starting point of an Interblock Gap prior

to the first device block of a mark.

4.22 Master Standard Reference Tape: A tape selected as the standard for Reference Field, signal amplitude,

resolution, and broad-band signal-to-noise ratio.

Note - A Master Standard Reference Tape has been established at Imation Corporation.

4.23 physical recording density: The number of recorded flux transitions per unit length of track expressed in

flux transitions per millimetre (ftpmm).

4.24 pre-record condition: The condition of the magnetic tape in preparation for data recording that has been

anhysteretically erased and subsequently servo written.
4.25 recorded element: A File Mark or a logical block.
4.26 Reference Field: The Typical Field of the Master Standard Reference Tape.

4.27 resync character: A control character identifying format resynchronisation points in a track. It is intended

that read-back circuits be capable of resynchronising operations when such characters are sensed.

4.28 SDM set: The group of SDM marks delineated by the beginning and end SDM marks, containing any

number of included middle SDM marks including zero middle SDM marks.

4.29 Secondary Standard Reference Tape (SSRT): A tape, the performance of which is known and stated in

relation to that of the Master Standard Reference Tape.

Note - Secondary Standard Reference Tapes can be ordered from the Imation Corporation, 1 Imation Place, Oakdale, MN 55128-

3414 under Part Number 84-9802-4185-9. In principle such tapes will be available for a period of 10 years from the publication of

2 © ISO/IEC 2000 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/IEC 17913:2000(E)

this International Standard. However, by agreement between ECMA and Imation Corporation, this period may be shortened or

extended to take account of demands for such SSRTs.

It is intended that these SSRTs be used for calibrating tertiary reference tapes for use in routine calibration.

4.30 servo track: A pre-recorded non-data track that is used by the drive to locate the data recording head at

precise locations for recording data.

4.31 Standard Reference Amplitude (SRA): The average signal amplitude from the Master Standard

Reference Tape when it is recorded with the Test Recording Current at 2 550 ftpmm. Traceability to the

Standard Reference Amplitude is provided by the calibration factors supplied with each Secondary

Standard Reference Tape.

4.32 Standard Reference Current (I ): The current that produces the Reference Field.

4.33 Test Recording Current (I ): A current whose value is 1,5 times the Standard Reference Current (I =

m m
1,5xI ).

4.34 track: A longitudinal area on the tape along which a series of magnetic signals can be recorded.

4.35 track group: The set of tracks recorded simultaneously.

4.36 trailer: Data appended to a data entity to provide identification and checking.

4.37 Typical Field: The minimum recording field which, when applied to a magnetic tape, will cause an average

signal amplitude equal to 85 % of the maximum average signal amplitude at 2 550 ftpmm recording

density.

4.38 write equalisation: An algorithm that linearly transforms an input binary sequence into another binary

sequence.
5 Conventions and notations
5.1 Representation of numbers

The following conventions and notations apply in this International Standard, unless otherwise stated.

� A measured value is rounded off to the least significant digit of the corresponding specified value. It implies that a

specified value of 1,26 with a positive tolerance +0,01, and a negative tolerance -0,02 allows a range of measured values

from 1,235 to 1,275.

� In each block and in each field the bytes shall be arranged with Byte 0, the most significant, first. Within each byte the

bits shall be arranged with Bit 0, the most significant, first and Bit 7, the least significant bit, last. This order applies to the

data, and to the input and output of the error-detecting and error-correcting codes, and to the cyclic redundancy characters.

� Letters and digits in parentheses represent numbers in hexadecimal notation.
� The setting of bits is denoted by ZERO or ONE.

� Numbers in binary notation and bit patterns are represented by strings of digits 0 and 1 shown with the most significant bit

to the left.
5.2 Dimensions

The dimensions in figures 1 to 3 are nominal dimensions. Unless otherwise stated, the dimensions in figures 4 to 21 are in

millimetres with a tolerance of ± 50 mm.
5.3 Names

The names of basic elements, e.g. specific fields, are written with a capital initial letter.

5.4 Acronyms
BOP Beginning of Partition
BOT Beginning of Tape
BOW Beginning of half-Wrap mark
BVCR Beginning of Volume Control Region
CRC Cyclic Redundancy Check character
DBM Device Block Map
ECC Error-Correcting Code
EDC Error-Detecting Code
© ISO/IEC 2000 – All rights reserved 3
---------------------- Page: 11 ----------------------
ISO/IEC 17913:2000(E)
EEIU ECC encoded interleave unit
ELEOP Early Logical End of Partition
EOD End of Data mark
EOP End of Partition
EOT End of Tape
EOV End of Volume
EOW End of half-Wrap mark
EVCR End of Volume Control Region
FID Format Identification
IBG Interblock Gap
LEOP Logical End of Partition
LP1 Logical Point 1
LP2 Logical Point 2
LP3 Logical Point 3
MIE Minimum Interleave Element
MIU Minimum Interleave Unit
MSRT Master Standard Reference Tape
RLL Run Length Limited
SAQ Servo Acquisition Region
SARS Statistical Analysis and Reporting
SDM Servo Demark
SECC Short Error Correction Code
SRA Standard Reference Amplitude
SSRT Secondary Standard Reference Tape
VCR Volume Control Region
6 Environment and safety

Unless otherwise stated, the conditions specified below refer to the ambient conditions in the test or computer room and not to

those within the tape drive.
6.1 Cartridge and tape testing environment.

Unless otherwise stated, tests and measurements made on the cartridge and tape to check the requirements of this International

Standard shall be carried out under the following conditions:
� temperature: 23 °C�2°C
� relative humidity: 40 % to 60 %
� conditioning before testing: 24 h min.
6.2 Cartridge operating environment

Cartridges used for data interchange shall be capable of operating under the following conditions:

� temperature: 16 °C to 32 °C
� relative humidity: 20 % to 80 %
� wet bulb temperature: 26 °C max.
Note - Localised tape temperatures in excess of 48 °C may cause tape damage.

If during storage and/or transportation a cartridge has been exposed to conditions outside the above values, it shall be

conditioned before use by exposure to the operating environment for a time equal to, or greater than, the time away from the

operating environment up to a maximum of 24 h. There shall be no deposit of moisture on or in the cartridge.

6.3 Cartridge storage environment
Cartridges shall be stored under the following conditions:
� temperature: 5 °C to 32 °C
� relative humidity: 5 % to 80 %
� wet bulb temperature: 26 °C max.

The stray magnetic field at any point on the tape shall not exceed 4 000 A/m. There shall be no deposit of moisture on or in the

cartridge.
4 © ISO/IEC 2000 – All rights reserved
---------------------- Page: 12 ----------------------
ISO/IEC 17913:2000(E)
6.4 Safety
6.4.1 Safeness

The cartridge and its components shall not constitute any safety or health hazard when used in the intended manner, or through

any foreseeable misuse in an information processing system.
6.4.2 Flammability

The cartridge and its components shall be made from materials which, if ignited from a match flame, and when so ignited do

not continue to burn in a still carbon dioxide atmosphere.
6.5 Transportation

This International Standard does not specify parameters for the environment in which cartridges should be transported.

Annex E gives some recommendations for transportation.
Section 2 - Requirements for the unrecorded tape
7 Mechanical and electrical requirements
7.1 Material

The tape shall consist of a base material (oriented polyethylene terephthalate film or its equivalent) coated on one surface with

a strong yet flexible layer of ferromagnetic material dispersed in a suitable binder. The other surface of the tape may be coated

to enhance electrical conduction, tape handling and mechanical properties.
7.2 Tape length
The length of the tape shall be 320 m ± 5 m.
7.3 Width
The width of the tape shall be 12,650 mm ± 0,025 mm.

The width shall be measured across the tape from edge to edge when the tape is under a tension of less than 0,28 N.

7.4 Total thickness
The total thickness of the magnetic tape at any point shall be 17,0�m± 1,0�m.
7.5 Base material thickness
The thickness of the base material shall be 14,2�m± 0,7 �m.
7.6 Discontinuity

There shall be no discontinuities in the tape such as those produced by tape splicing or perforations.

7.7 Longitudinal curvature

The longitudinal curvature is measured as the departure of the Reference Edge of the tape from a straight line along the

longitudinal dimension of the tape in the plane of the tape surface.
7.7.1 Requirement
The radius of curvature of the edge of the tape shall be greater than 33,75 m.
7.7.2 Procedure

Allow a 1 m length of tape to unroll and measure its natural curvature on a flat, smooth surface. Measure the deviation from a 1

m chord. The deviation shall not be greater than 3,0 mm within a span of 900 mm. This corresponds to the minimum radius of

curvature of 33,75 m when measured over an arc of circle.
7.8 Out-of-Plane distortions

Out-of-plane distortions are local deformations which cause portions of the tape to deviate from the plane of the surface of the

tape. Out-of-plane distortions are most readily observed when the tape is lying on a flat surface under no tension.

There shall be no visual evidence of out-of-plane distortion when the tape is subjected to a uniform tension of 0,4 N.

© ISO/IEC 2000 – All rights reserved 5
---------------------- Page: 13 ----------------------
ISO/IEC 17913:2000(E)
7.9 Cupping

Cupping is the departure across the width of the tape (transverse to motion) from a flat surface.

7.9.1 Requirement

There shall be no cupping toward the recording surface of the tape. Cupping away from the recording surface shall be 0,4 mm

max.
7.9.2 Procedure
i. Cut a tape sample at least 1,0 m in length.

ii. Condition the sample by hanging it so that the coated surface is freely exposed to the test environment for a minimum

of 3 h.
iii. From the centre portion of the tape, cut a sample 0,5 m ± 0,1 m in length.

iv. Install the tape sample on a fixture that uses a clamping bar to hold one end of the sample and a 3,5 g tensioning

weight to pull the other end of the tape sample across a roller. There shall be a minimum distance of 200 mm between

the roller and the clam.

v. Place the fixture on a 40X microscope stage so that the centre of the fixture is under the microscope. Adjust the

microscope to focus on the first edge of the tape, and record the vertical positioning of the focusing adjustment. The

microscope focusing adjustment shall be known to 1 μm.

vi. While positioning the tape laterally under the microscope, use the focusing adjustment to find the point of maximum

departure of the tape surface from the reference edge height. Note the vertical height and determine the difference

between the first reference of step v and the departed surface height.

vii. Move the tape under the microscope to view the other reference edge. Adjust the microscope focus and note the

focused vertical scope position.

viii. Calculate cupping as the average of the height departures from the two reference edges determined in steps vi and vii.

No individual measurement shall exceed the allowed maximum.
7.10 Coefficient of dynamic friction

The dynamic friction between the recording surface and the back surface is the resistance to motion between the recording

surface and the back surface of the tape.
7.10.1 Requirements

The coefficient of dynamic friction between the magnetic surface and the back surface shall be greater than 0,28.

7.10.2 Procedure

i. Wrap a first piece of tape around a cylinder of diameter 25,4 mm and wrap it with a total wrap angle of more than 90 °

with the back surface outwards.

ii. Wrap a second test piece, with the magnetic surface inwards, around the first test piece with a total wrap angle of 90 °.

iii. Exert on one end of the outer test piece a force of F =0,64N.
iv. Attach the other end to a force gauge mounted on a linear slide.
v. Drive the slide at a speed of 1 mm/s, measure the force F required.
vi. Calculate the coefficient of dynamic friction � from the equation
� �
1 F
��� ln� �
� F
� �
where� is the value of the wrap angle in radians.
6 © ISO/IEC 2000 – All rights reserved
---------------------- Page: 14 ----------------------
ISO/IEC 17913:2000(E)
7.11 Coating adhesion

The force required to peel any part of the coating from the tape base material shall not be less than 0,44 N.

Procedure

i. Take a test piece of the tape approximately 380 mm long and scribe a line through the recording coating across the

width of the tape 125 mm from one end.

ii. Using a double-sided pressure sensitive tape, attach the full width of the test piece to a smooth metal plate, with the

magnetic coating (recording surface) facing the plate, as shown in figure 1.

iii. Fold the test piece over 180 °, adjacent to, and parallel with, the scribed line. Attach the metal plate and the free end

of the test piece to the jaws of a universal testing machine and set the speed of the jaw separation to 254 mm per min.

iv. Note the force at which any part of the coating first separates from the base material. If this is

...
