ISO/IEC 16382:2000
(Main)Information technology — Data interchange on 12,7 mm 208-track magnetic tape cartridges — DLT 6 format
Information technology — Data interchange on 12,7 mm 208-track magnetic tape cartridges — DLT 6 format
This International Standard specifies the physical and magnetic characteristics of a 12,7 mm wide, 208-track magnetic tape cartridge, to enable physical interchangeability of such cartridges between drives. It also specifies the quality of the recorded signals, a format - called Digital Linear Tape 6 (DLT 6) - and a recording method, thereby allowing data interchange between drives. Together with a labelling standard, for instance International Standard ISO 1001 for Magnetic Tape Labelling, it allows full data interchange by means of such magnetic tape cartridges.
Technologies de l'information — Échange de données sur cartouches de bande magnétique de 12,7 mm à 208 pistes — Format DLT 6
General Information
Standards Content (Sample)
INTERNATIONAL ISO/IEC
STANDARD 16382
First edition
2000-05-15
Information technology — Data
interchange on 12,7 mm 208-track
magnetic tape cartridges — DLT 6 format
Technologies de l'information — Échange de données sur cartouches
de bande magnétique de 12,7 mm à 208 pistes — Format DLT 6
Reference number
ISO/IEC 16382:2000(E)
©
ISO/IEC 2000
---------------------- Page: 1 ----------------------
ISO/IEC 16382:2000(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO/IEC 2000
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 734 10 79
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO/IEC 2000 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 16382:2000(E)
Contents
Section 1 - General 1
1 Scope 1
2 Conformance 1
2.1 Magnetic tape cartridges 1
2.2 Generating systems 1
2.3 Receiving systems 1
3 Normative references 1
4 Terms and definitions 1
4.1 Average Signal Amplitude 1
4.2 azimuth 2
4.3 back surface 2
4.4 Beginning-Of-Tape marker (BOT) 2
4.5 block 2
4.6 byte 2
4.7 cartridge 2
4.8 Cyclic Redundancy Check (CRC) character 2
4.9 Early Warning (EW) 2
4.10 Error-Detecting Code (EDC) 2
4.11 End-Of-Tape marker (EOT) 2
4.12 Entity 2
4.13 Error-Correcting Code (ECC) 2
4.14 Envelope 2
4.15 Envelope size 2
4.16 flux transition position 2
4.17 flux transition spacing 2
4.18 Group Record 2
4.19 logical track 2
4.20 magnetic tape 2
4.21 Master Standard Reference Tape 2
4.22 object 2
4.23 page 2
4.24 physical recording density 2
4.25 physical track 2
4.26 Record 2
4.27 Reference Edge 2
4.28 Reference Field 2
4.29 Secondary Standard Reference Tape 2
4.30 Standard Reference Amplitude (SRA) 3
4.31 Standard Reference Current 3
4.32 Test Recording Current 3
4.33 Typical Field 3
5 Conventions and notations 3
5.1 Representation of numbers 3
5.2 Dimensions 3
5.3 Names 3
5.4 Acronyms 3
© ISO/IEC 2000 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 16382:2000(E)

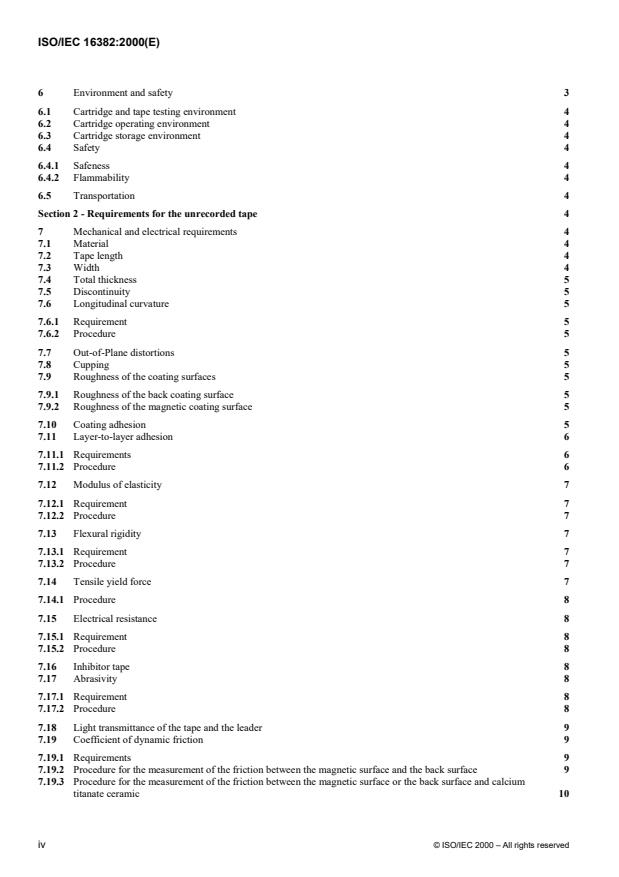

6 Environment and safety 3
6.1 Cartridge and tape testing environment 4
6.2 Cartridge operating environment 4
6.3 Cartridge storage environment 4
6.4 Safety 4
6.4.1 Safeness 4
6.4.2 Flammability 4
6.5 Transportation 4
Section 2 - Requirements for the unrecorded tape 4
7 Mechanical and electrical requirements 4
7.1 Material 4
7.2 Tape length 4
7.3 Width 4
7.4 Total thickness 5
7.5 Discontinuity 5
7.6 Longitudinal curvature 5
7.6.1 Requirement 5
7.6.2 Procedure 5
7.7 Out-of-Plane distortions 5
7.8 Cupping 5
7.9 Roughness of the coating surfaces 5
7.9.1 Roughness of the back coating surface 5
7.9.2 Roughness of the magnetic coating surface 5
7.10 Coating adhesion 5
7.11 Layer-to-layer adhesion 6
7.11.1 Requirements 6
7.11.2 Procedure 6
7.12 Modulus of elasticity 7
7.12.1 Requirement 7
7.12.2 Procedure 7
7.13 Flexural rigidity 7
7.13.1 Requirement 7
7.13.2 Procedure 7
7.14 Tensile yield force 7
7.14.1 Procedure 8
7.15 Electrical resistance 8
7.15.1 Requirement 8
7.15.2 Procedure 8
7.16 Inhibitor tape 8
7.17 Abrasivity 8
7.17.1 Requirement 8
7.17.2 Procedure 8
7.18 Light transmittance of the tape and the leader 9
7.19 Coefficient of dynamic friction 9
7.19.1 Requirements 9
7.19.2 Procedure for the measurement of the friction between the magnetic surface and the back surface 9
7.19.3 Procedure for the measurement of the friction between the magnetic surface or the back surface and calcium
titanate ceramic 10
iv © ISO/IEC 2000 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 16382:2000(E)
8 Magnetic recording characteristics 10
8.1 Typical Field 10
8.2 Signal amplitude 11
8.3 Resolution 11
8.4 Overwrite 11
8.4.1 Requirement 11
8.5 Peak shift 11
8.5.1 Requirement 11
8.5.2 Procedure 11
9 Tape quality 12
9.1 Missing pulses 12
9.1.1 Requirement 12
9.2 Missing pulse zone 12
9.2.1 Requirement 12
9.3 Tape durability 12
Section 3 - Mechanical specifications of the tape cartridge 12
10 General 12
10.1 Bottom side and right side 13
10.2 Back side and left side 14
10.3 Tape reel 14
10.4 Tape leader 15
10.5 Front side 16
10.6 Operation of the cartridge 16
10.7 Tape winding 17
10.8 Moment of inertia 17
10.9 Material 18
Section 4 - Requirements for an interchanged tape 27
11 Method of recording 27
11.1 Physical recording density 27
11.2 Channel bit cell length 27
11.2.1 Average Channel bit cell length 27
11.2.2 Long-term average Channel bit cell length 27
11.2.3 Short-term average Channel bit cell length 27
11.3 Flux transition spacing 27
11.4 Read signal amplitude 27
11.5 Azimuth 28
11.6 Channel skew 28
12 Tape format 28
12.1 Reference Edge 28
12.2 Direction of recording 28
12.3 Tape layout 28
12.4 Calibration and Directory Area 28
12.4.1 Scratch Area 29
12.4.2 Guard Area G1 29
12.4.3 Calibration Tracks Area 29
12.4.4 Guard Area G2 30
12.4.5 Directory Area 30
12.4.6 Guard Area G3 30
12.5 Data Area 30
12.5.1 Physical tracks 31
12.5.2 Logical tracks 32
© ISO/IEC 2000 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/IEC 16382:2000(E)
13 Data format 34
13.1 Data Bytes 34
13.2 Data Blocks 34
13.3 Types of Blocks 34
13.4 Entities 34
13.5 Envelopes 34
13.6 Block format 34
13.6.1 Preamble 35
13.6.2 Sync 35
13.6.3 Data Field 35
13.6.4 EDC 36
13.6.5 Control Field 1 (CF1) 37
13.6.6 Control Field 2 (CF2) 38
13.6.7 CRC 39
13.6.8 Postamble 39
14 Use of blocks 39
14.1 Data Blocks 39
14.2 Filler Blocks 39
14.3 End of Track Blocks (EOTR) 39
14.4 End of Data Blocks (EOD) 40
14.5 ECC Blocks 40
15 Format of Entities 40
16 Format of Envelopes 40
17 Error handling 40
Annexes
A - Measurement of light transmittance 41
B - Generation of the Data Block CRCs 44
C - ECC generation 45
D - Generation of page CRCs 48
E - Format of MAP entries 49
F - Format of Control Field 1 50
G - Format of Control Field 2 51
H - Recommendations for transportation 52
J - Inhibitor tape 53
K - Recommendations on tape durability 54
L - Handling guidelines 55
vi © ISO/IEC 2000 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/IEC 16382:2000(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission) form the
specialized system for worldwide standardization. National bodies that are members of ISO or IEC participate in the
development of International Standards through technical committees established by the respective organization to deal with
particular fields of technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
In the field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1. Draft
International Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of patent rights.
ISO and IEC shall not be held responsible for identifying any or all such patent rights.
This International Standard was prepared by ECMA (as Standard ECMA-286) and was adopted, under a special “fast-track
procedure”, by Joint Technical Committee ISO/IEC JTC 1, Information technology, in parallel with its approval by national
bodies of ISO and IEC.
Annexes A to G form a normative part of this International Standard. Annexes H to L are for information only.
© ISO/IEC 2000 – All rights reserved vii
---------------------- Page: 7 ----------------------
INTERNATIONAL STANDARD ISO/IEC 16382:2000(E)
Information technology — Data interchange on 12,7 mm 208-track magnetic tape
cartridges — DLT 6 format
Section 1 - General
1Scope
This International Standard specifies the physical and magnetic characteristics of a 12,7 mm wide, 208-track magnetic tape
cartridge, to enable physical interchangeability of such cartridges between drives. It also specifies the quality of the recorded
signals, a format - called Digital Linear Tape 6 (DLT 6) - and a recording method, thereby allowing data interchange between
drives. Together with a labelling standard, for instance International Standard ISO 1001 for Magnetic Tape Labelling, it allows
full data interchange by means of such magnetic tape cartridges.
2 Conformance
2.1 Magnetic tape cartridges
A magnetic tape cartridge shall be in conformance with this International Standard if it satisfies all mandatory requirements of
this Standard. The tape requirements shall be satisfied throughout the extent of the tape.
2.2 Generating systems
A system generating a magnetic tape cartridge for interchange shall be in conformance with this International Standard if all
the recordings that it makes on a tape according to 2.1 meet the mandatory requirements of this International Standard.
In addition, a claim of conformance shall state
— whether or not one, or more registered algorithm(s) are implemented within the system, and are able to compress data
received from the host prior to collecting the data into blocks, and
— the registered identification number(s) of the implemented compression algorithm(s).
2.3 Receiving systems
A system receiving a magnetic tape cartridge for interchange shall be in conformance with this International Standard if it is
able to handle any recording made on a tape according to 2.1.
In addition, it shall
— whether or not one, or more de-compression algorithm(s) are implemented within the system, and are able to be applied to
de-compress data prior to making such data available to the host,
— the registered identification number(s) of the implemented compression algorithm(s).
3 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of this
International Standard. For dated references, subsequent amendments to, or revisions of, any of these publications do not
apply. However, parties to agreements based on this International Standard are encouraged to investigate the possibility of
applying the most recent editions of the normative documents indicated below. For undated references, the latest edition of the
normative document referred to applies. Members of ISO and IEC maintain registers of currently valid International Standards.
ISO 1001:1986, Information processing — File structure and labelling of magnetic tapes for information interchange.
ISO 1302:1992, Technical drawings — Method of indicating surface texture.
ISO/IEC 11576:1994, Information technology — Procedure for the registration of algorithms for the lossless compression of
data.
4 Terms and definitions
For the purposes of this International Standard, the following terms and definitions apply.
4.1 Average Signal Amplitude: The average peak-to-peak value of the output signal from the read head at the physical
recording density of 2 578 ftpmm measured over a minimum length of track of 25,4 mm, exclusive of missing pulses.
© ISO/IEC 2000 – All rights reserved 1
---------------------- Page: 8 ----------------------
ISO/IEC 16382:2000(E)
4.2 azimuth: The angular deviation, in degrees of arc, of the mean flux transition line of the recording made on a track
fromalinenormaltothe ReferenceEdge.
4.3 back surface: The surface of the tape opposite the magnetic coating which is used to record data.
4.4 Beginning-Of-Tape marker (BOT): A hole punched on the centreline of the tape towards the end nearest to the
leader.
4.5 block: A set of contiguous bytes recorded on a physical track and considered as a unit.
4.6 byte: An ordered set of bits acted upon as a unit.
NOTE - In this International Standard, all bytes are 8-bit bytes.
4.7 cartridge: A case containing a single supply reel of 12,7 mm wide magnetic tape with a leader attached at the outer
end.
4.8 Cyclic Redundancy Check (CRC) character: A 64-bit character, generated by a mathematical computation,
used for error detection.
4.9 Early Warning (EW): A signal generated by the drive indicating the approaching end of the recording area.
4.10 Error-Detecting Code (EDC): A mathematical computation yielding check bytes used for error detection.
4.11 End-Of-Tape marker (EOT): A hole punched on the centreline of the tape towards the end farthest from the
leader.
4.12 Entity: A group of twenty blocks treated as a logical unit and recorded on a logical track, except Filler Blocks, if any.
4.13 Error-Correcting Code (ECC): A mathematical computation yielding check bytes used for the correction of
errors detected by the CRC and the EDC.
4.14 Envelope: A group of Entities.
4.15 Envelope size: The number of Entities in an Envelope.
4.16 flux transition position: The point which exhibits the maximum free-space flux density normal to the tape surface.
4.17 flux transition spacing: The distance on the magnetic tape between successive flux transitions.
4.18 Group Record: A Record consisting of a series of Records of equal size.
4.19 logical track: A group of four physical tracks that are written or read simultaneously.
4.20 magnetic tape: A tape that accepts and retains magnetic signals intended for input, output, and storage purposes on
computers and associated equipment.
4.21 Master Standard Reference Tape: A tape selected as the standard for Reference Field, signal amplitude,
resolution, peakshift, and overwrite characteristics.
NOTE - The Master Standard Reference Tape has been established by the Quantum Corporation.
4.22 object: A Record or a page of type Tape Mark.
4.23 page: A logical division of a block.
4.24 physical recording density: The number of recorded flux transitions per unit length of track, expressed in flux
transitions per millimetre (ftpmm).
4.25 physical track: A longitudinal area on the tape along which a series of magnetic signals can be recorded.
4.26 Record: A collection of User Bytes, the number of which is determined by the host.
4.27 Reference Edge: The bottom edge of the tape when viewing the magnetic coating of the tape with the BOT to the
left and the EOT to the right of the observer.
4.28 Reference Field: The Typical Field of the Master Standard Reference Tape.
4.29 Secondary Standard Reference Tape: A tape the characteristics of which are known and stated in relation to
those of the Master Standard Reference Tape.
NOTE - Secondary Standard Reference Tapes can be ordered under Reference "SSRT/DLT4"from Quantum Corporation, 333 South Street,
Shrewsbury, Mass. 01545-4195, USA. It is intended that these be used for calibrating tertiary reference tapes for routine calibration.
In principle, these Secondary Standard Reference Tapes will be available for a period of 10 years from the publication of the first version of
this International Standard. However, by agreement between ECMA and Quantum Corporation, this period may be changed to take into
account the demand for such Secondary Standard Reference Tapes.
2 © ISO/IEC 2000 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 16382:2000(E)
4.30 Standard Reference Amplitude (SRA): The Average Signal Amplitude from the Master Standard Reference
Tape when it is recorded with the Test Recording Current at 2 578 ftpmm.
4.31 Standard Reference Current: The current that produces the Reference Field.
4.32 Test Recording Current: The current that is 1,1 times the Standard Reference Current.
4.33 Typical Field: In the plot of the Average Signal Amplitude against the recording field at the physical recording
density of 2 578 ftpmm, the minimum field that causes an Average Signal Amplitude equal to 95 % of the maximum
Average Signal Amplitude.
5 Conventions and notations
5.1 Representation of numbers
The following conventions and notations apply in this International Standard, unless otherwise stated.
— A measured value is rounded off to the least significant digit of the corresponding specified value. It implies that a
specified value of 1,26 with a positive tolerance +0,01, and a negative tolerance -0,02 allows a range of measured values
from 1,235 to 1,275.
— In each block and in each field the bytes shall be arranged with Byte 1, the least significant, first. Within each byte the bits
shall be arranged with Bit 1, the least significant, first and Bit 8, the most significant bit, last. This order applies to the
data, and to the input and output of the error-detecting and error-correcting codes, and to the cyclic redundancy characters.
— Letters and digits in parentheses represent numbers in hexadecimal notation.
— The setting of bits is denoted by ZERO or ONE.
— Numbers in binary notation and bit patterns are represented by strings of 0 and 1 shown with the most significant bit to
the left.
5.2 Dimensions
The dimensions in figures 1 to 4 are nominal dimensions. Unless otherwise stated, all dimensions in figures 8 to 24 are in
millimetres with a tolerance of� 50 mm.
5.3 Names
The names of basic elements, e.g. specific fields, are written with a capital initial letter.
5.4 Acronyms
BOT Beginning of Tape
CF1 Control Field 1
CF2 Control Field 2
CRC Cyclic Redundancy Check (character)
CT1 Calibration Track 1
CT2 Calibration Track 2
ECC Error-Correcting Code
EDC Error-Detecting Code
EOD End of Data
EOT End of Tape
EOTR End of Track
EW Early Warning
RLL Run Length Limited
SRA Standard Reference Amplitude
6 Environment and safety
Unless otherwise stated, the conditions specified below refer to the ambient conditions in the test or computer room and not to
those within the tape drive.
© ISO/IEC 2000 – All rights reserved 3
---------------------- Page: 10 ----------------------
ISO/IEC 16382:2000(E)
6.1 Cartridge and tape testing environment
Unless otherwise stated, tests and measurements made on the cartridge and tape to check the requirements of this International
Standard shall be carried out under the following conditions:
— temperature: 23 °C� 2 °C
— relative humidity: 40 % to 60 %
— conditioning before testing: 24 h min.
6.2 Cartridge operating environment
Cartridges used for data interchange shall be capable of operating under the following conditions:
— temperature: 10 °Cto 40 °C
— relative humidity: 20 % to 80 %
— wet bulb temperature: 25 °Cmax.
NOTE - Localized tape temperatures in excess of 49 °C may cause tape damage.
If during storage and/or transportation a cartridge has been exposed to conditions outside the above values, it shall be
conditioned before use by exposure to the operating environment for a time equal to, or greater than, the time away from the
operating environment up to a maximum of 24 h. There shall be no deposit of moisture on or in the cartridge.
6.3 Cartridge storage environment
Cartridges shall be stored under the following conditions:
— temperature: 16 °Cto 32 °C
— relative humidity: 20 % to 80 %
The stray magnetic field at any point on the tape shall not exceed 4000 A/m. There shall be no deposit of moisture on or in the
cartridge.
6.4 Safety
6.4.1 Safeness
The cartridge and its components shall not constitute any safety or health hazard when used in the intended manner, or through
any foreseeable misuse in an information processing system.
6.4.2 Flammability
The cartridge and its components shall be made from materials which, if ignited from a match flame, and when so ignited do
not continue to burn in a still carbon dioxide atmosphere.
6.5 Transportation
This International Standard does not specify parameters for the environment in which cartridges should be transported. Annex
H gives some recommendations for transportation.
Section 2 - Requirements for the unrecorded tape
7 Mechanical and electrical requirements
7.1 Material
The tape shall consist of a base material (oriented polyethylene terephthalate film or its equivalent) coated on one surface with
a strong yet flexible layer of ferromagnetic material dispersed in a suitable binder. The back surface of the tape shall be coated
with a non-ferromagnetic conductive coating.
7.2 Tape length
The length of the tape from the leader splice to the hub shall be 557 m�5m.
7.3 Width
The width of the tape shall be 12,649 mm� 0,010 mm.
The width shall be measured across the tape from edge to edge when the tape is under a tension of less than 0,28 N.
4 © ISO/IEC 2000 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 16382:2000(E)
7.4 Total thickness
The total thickness of the magnetic tape at any point shall be between 8,3�mand 9,3�m.
7.5 Discontinuity
There shall be no discontinuities in the tape between the BOT and EOT such as those produced by tape splicing or
perforations.
7.6 Longitudinal curvature
The longitudinal curvature is measured as the departure of the Reference Edge of the tape from a straight line along the
longitudinal dimension of the tape in the plane of the tape surface.
7.6.1 Requirement
Any deviation of the Reference Edge from a straight line shall be continuous and shall not exceed 0,076 mm within any 229
mm length of tape.
7.6.2 Procedure
Measure at a tension of 1,39 N� 0,28 N in a test fixture equipped with two guides spaced at 229 mm. The two guides shall be
spring-loaded to position the Reference Edge of the tape against two edge control surfaces. Measure the maximum deviation of
the Reference Edge of the tape from the line drawn between the two control surfaces.
7.7 Out-of-Plane distortions
All visual evidence of out-of-plane distortion shall be removed when the tape is subjected to a uniform tension of 0,6 N. Out-
of-plane distortions are local deformations which cause portions of the tape to deviate from the plane of the surface of the tape.
Out-of-plane distortions are most readily observed when the tape is lying on a flat surface under no tension.
7.8 Cupping
The departure across the width of the tape from a flat surface shall not exceed 2,54 mm.
Cut a 1,0 m � 0,1 m length of tape. Condition it for a minimum of 3 h in the test environment by hanging it so that both
surfaces are freely exposed to the test environment. From the centre portion of the conditioned tape cut a test piece of
approximately 25 mm length. Stand the test piece on its end in a cylinder which is at least 25 mm high with an inside diameter
of 13,0 mm� 0,2 mm. With the cylinder standing on an optical comparator measure the cupping by aligning the edges of the
test piece to the reticle and determining the distance from the aligned edges to the corresponding surface of the test piece at its
centre.
7.9 Roughness of the coating surfaces
7.9.1 Roughness of the back coating surface
The back coating surface shall have an arithmetic average roughness R between 0,003µm and 0,018µm (ISO 1302:N 2).
a
This measurement shall be made using a contacting stylus of radius 12,5µm with a 20 mg load, and a 254µm cut-off range.
7.9.2 Roughness of the magnetic coating surface
The magnetic coating surface shall have an arithmetic average roughness R between 0,003µm and 0,008µm (ISO 1302: N
a
3). For this measurement, the contacting stylus radius shall be 12,5µm with a 20 mg load, and a 254µm cut-off range.
7.10 Coating adhesion
The force required to peel any part of the coating from the tape base material shall not be less than 0,4 N.
Procedure
i. Take a test piece of the tape approximately 380 mm long and scribe a line through the recording coating across the width
of the tape 125 mm from one end.
ii. Using a double-sided pressure sensitive tape, attach the full width of the test piece to a smooth metal plate, with the
magnetic coating (recording surface) facing the plate, as shown in figure 1.
iii. Fold the test piece over 180°, adjacent to, and parallel with, the scribed line. Attach the metal plate and the free end of the
test piece to the jaws of a universal testing machine and set the speed of the jaw separation to 254 mm per min.
iv. Note the force at which any part of the coating first separates from the base material. If this is less than 0,4 N, the tape has
failed the test. If the test piece peels away from the double-sided pressure sensitive tape before the force exceeds 0,2 N, an
alternative type of double-sided pressure sensitive tape shall be used.
v. Repeat i) to iv) for the back coating.
© ISO/IEC 2000 – All rights reserved 5
---------------------- Page: 12 ----------------------
ISO/IEC 16382:2000(E)
Figure 1 — Measurement of the coating adhesion
7.11 Layer-to-layer adhesion
Layer-to-layer adhesion refers to the tendency of a layer, when held in close proximity to the adjacent layer, to bond itself to an
adjacent layer so that free and smooth separation of the layers is difficult.
7.11.1 Requirements
There shall be no evidence of delamination or other damage to the coatings.
7.11.2 Procedure
i. Fasten one end of a 914 mm length of tape, magnetic coating inwards, to a horizontally mounted stainless steel cylinder
with a low cold-flow adhesive material.
ii. The dimensions of the cylinder shall be:
- diameter: 12,7 mm
- length: 102 mm
iii. Attach a mass of 1 000 g to the opposite end of the tape.
iv. Attach, 25,4 mm above the mass, a narrow strip of double-sided adhesive tape to the magnetic coating.
v. Slowly rotate the cylinder, so that the tape winds uniformly around it into a compact and even roll. The double-sided tape
secures the end and prevents unwinding when the mass is removed.
vi. The cylinder with the tape shall then be exposed to the following temperature and humidity cycle:
Time Temperature RH
16 hto18h 54 °C85%
4h 54 °C10%orless
1hto2h 21 °C45%
vii. Open the end of the roll and remove the double-sided adhesive tape.
viii. Release the free end of the tape.
ix. The outer one or two wraps shall spring loose without adhesion.
x. Hold the free end of the tape and allow the cylinder to fall, thereby unwinding the tape.
xi. The tape shall show no coating delamination, except for the 51 mm of tape nearest to the cylinder.
6 © ISO/IEC 2000 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/IEC 16382:2000(E)
2
0
1
7
,
2
1
12,7
914
25,4
strip
1000 g
Figure 2 — Measurement of layer-to-layer adhesion
7.12 Modulus of elasticity
The modulus of elasticity (Young's modulus) is the ratio of stress to strain in the longitudinal direction.
7.12.1 Requirement
2 2
The modulus of elasticity shall be between 4 900 N/mm and11700 N/mm .
7.12.2 Procedure
Clamp a test piece of tape at least 178 mm in length with an initial 102 mm separation between the jaws of a universal testing
machine with a nominal crosshead speed of 3 mm per minute. Calculate the modulus using the chord of the curve between the
force at 0 % and 1 % elongation.
7.13 Flexural rigidity
Flexural rigidity is the ability of the tape to resist bending in the longitudinal direction.
7.13.1 Requirement
-7 -7
The flexural rigidity of the tape in the longitudinal direction shall be between 2 x 10 N�mm and8x10 N�mm.
7.13.2 Procedure
Calculate the flexural rigidity D from the following equation:
3
Et
2
D��1 �
��
12
where:
E = modulus of elasticity obtained from 7.12
t = measured thickness of the tape in mm
� = Poisson's ratio, set to 0,33
7.14 Tensile yield force
The tensile yield force required to elongate the test piece by 3 % shall not be less than 9,6 N.
7.14.1 Procedure
Use a static-weighing-constant-rate-of-grip separation tester capable of indicating the load with an accuracy of 2 %. Clamp a
test piece of tape at least 178 mm long with an initial 102 mm separation between the jaws. Elongate the test piece at a rate of
© ISO/IEC 2000 – All rights reserved 7
---------------------- Page: 14 ----------------------
ISO/IEC 16382:2000(E)
51 mm per minute until a minimum elongation of 10 % is reached. The force required to produce an elongation of 3 % is the
tensile yield force.
7.15 Electrical resistance
7.15.1 Requirement
The electrical resistance of any square area of the magnetic coating shall
6
— be greater than 5 x 10 �
12
— not exceed 50 x 10 �
The electrical resistance of any square area of the back coating shall
6
— not exceed 100 x 10 �
7.15.2 Procedure
Condition a test piece of tape in the test environment for 24 h. Position the test piece over two 24-carat gold-plated, semi-
circular electrodes having a radius r = 25,4 mm and a finish of at least N4, so that the recording surface is in contact with each
electrode. These electrodes shall be placed parallel to the ground and parallel to each other at a distance d = 12,7 mm between
their centres. Apply a force F of 1,62 N to each end of the test piece. Apply a d.c. voltage of 100 V � 10 V across the
electrodes and measure the resulting current flow. From this value, determine
...
