ISO 4861:2023

Ships and marine technology - Piling barge winches

This document specifies the requirements for the design, operation, performance and acceptance test of the hydraulic or electric winches in piling barge winch systems. This document specifies the winches required to operate the pile and the pile hammer during piling of the piling barge, mainly including the suspending pile winch, hammer start winch, suspending hammer winch and suspending hose winch.

Navires et technologie maritime — Treuils pour barges de battage

General Information

• Status: Published
• Publication Date: 25-May-2023
• ICS: 47.020.50 - Deck equipment and installations
• Technical Committee: ISO/TC 8/SC 4 - Outfitting and deck machinery
• Drafting Committee: ISO/TC 8/SC 4/WG 2 - Deck machinery
• Current Stage: 6060 - International Standard published
• Start Date: 26-May-2023
• Due Date: 09-Apr-2023
• Completion Date: 26-May-2023

Overview - ISO 4861:2023 (Ships and marine technology - Piling barge winches)

ISO 4861:2023 specifies requirements for the design, operation, performance and acceptance testing of hydraulic or electric winches used in piling barge winch systems. The standard covers the winches needed to operate piles and pile hammers during piling operations, including the suspending pile winch, hammer start winch, suspending hammer winch and suspending hose winch. It is intended for use in ships and marine technology applications where safe, repeatable lifting and hauling during piling is required.

Key topics and technical requirements

• Scope & types: Defines five structural winch types - right-hand, left-hand, central model, single drum and double drum - and their orientation relative to the power source.
• Design and materials: Manufacturers are responsible for component strength. Design must conform to ISO 7825 and referenced documents.
• Strength limits: Stresses under rated load must not exceed 0.4 times the material’s lower yield strength (or the 0.2% proof strength); stresses under brake load must not exceed 0.9 times these strengths.
• Braking requirements:
  • Electric winches: automatic brake capable of holding 1.5× rated load and stopping the drum from max speed without damage.
  • Hydraulic winches: brake/hold capability of 1.25× rated load with rope movement controlled within 1.0 m/min when power is lost.
  • Drum braking device: normally closed and able to support at least 1.5× rated load for both automatic and manual use.
• Drum and rope design:
  • Design reference ropes: 6×36WS-IWRC or 6×41WS-IWRC steel‑cored ropes, 1 770 N/mm tensile wire grade (ISO 2408 referenced).
  • Minimum breaking load of rope: ≥ 5× rated load.
  • Minimum drum diameter: ≥ 18× rope diameter.
  • Drum capacity and drum design rules to ensure required rope length and proper spooling.
• Operation & controls: Operating device directions must be clearly marked; manual controls should return automatically to braking/stop position.
• Performance & tests: Includes light-load speed, expansion-clutch load, rated-load and brake-load tests plus defined acceptance test items.

Applications and intended users

ISO 4861:2023 is practical for:

• Marine equipment manufacturers and winch designers
• Shipyards, piling barge builders and naval architects
• Offshore contractors and piling operators
• Classification societies, inspectors and procurement teams
• Maintenance teams setting inspection and test regimes

Use cases include design verification, procurement specifications, factory and on-site acceptance testing, safety compliance and maintenance planning for piling operations.

Related standards

Normative references cited in ISO 4861:2023 include:

• ISO 2408:2017 (steel wire ropes)
• ISO 3828 (deck machinery vocabulary)
• ISO 4413 (hydraulic systems)
• ISO 7825 (deck machinery general requirements)
• IEC 60092 (ship electrical installations)
• IEC 60529 (IP Code - enclosure protection)

Keywords: ISO 4861:2023, piling barge winches, piling barge, hydraulic winch, electric winch, suspending pile winch, pile hammer, drum design, brake load, rated load, marine winch standard.

Standards Content (Sample)

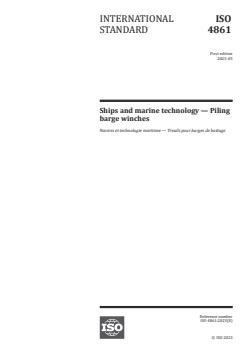

INTERNATIONAL ISO
STANDARD 4861
First edition
2023-05
Ships and marine technology — Piling
barge winches
Navires et technologie maritime — Treuils pour barges de battage
Reference number
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii

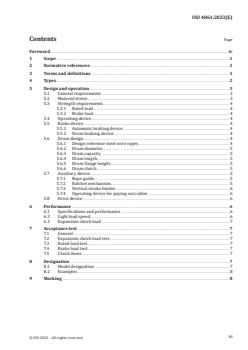

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Types . 2
5 Design and operation . 3
5.1 General requirements . 3
5.2 Material stress . 3
5.3 Strength requirements . 4
5.3.1 Rated load . 4
5.3.2 Brake load . 4
5.4 Operating device . 4
5.5 Brake device. 4
5.5.1 Automatic braking device . 4
5.5.2 Drum braking device . 4
5.6 Drum design . 4
5.6.1 Design reference steel wire ropes . 4
5.6.2 Drum diameter . . 5
5.6.3 Drum capacity . 5
5.6.4 Drum length. 5
5.6.5 Drum flange height. 5
5.6.6 Drum clutch . 5
5.7 Auxiliary device . 5
5.7.1 Rope guide . . 5
5.7.2 Ratchet mechanism . . 5
5.7.3 Vertical stroke limiter . 6
5.7.4 Operating device for paying out cables . 6
5.8 Drive device . 6
6 Performance . 6
6.1 Specifications and performance . 6
6.2 Light load speed . 6
6.3 Expansion clutch load . 7
7 Acceptance test .7
7.1 General . 7
7.2 Expansion clutch load test . 7
7.3 Rated load test . 7
7.4 Brake load test . 7
7.5 Check items . 7
8 Designation . 7
8.1 Model designation . 7
8.2 Examples . 8
9 Marking . . 8
iii

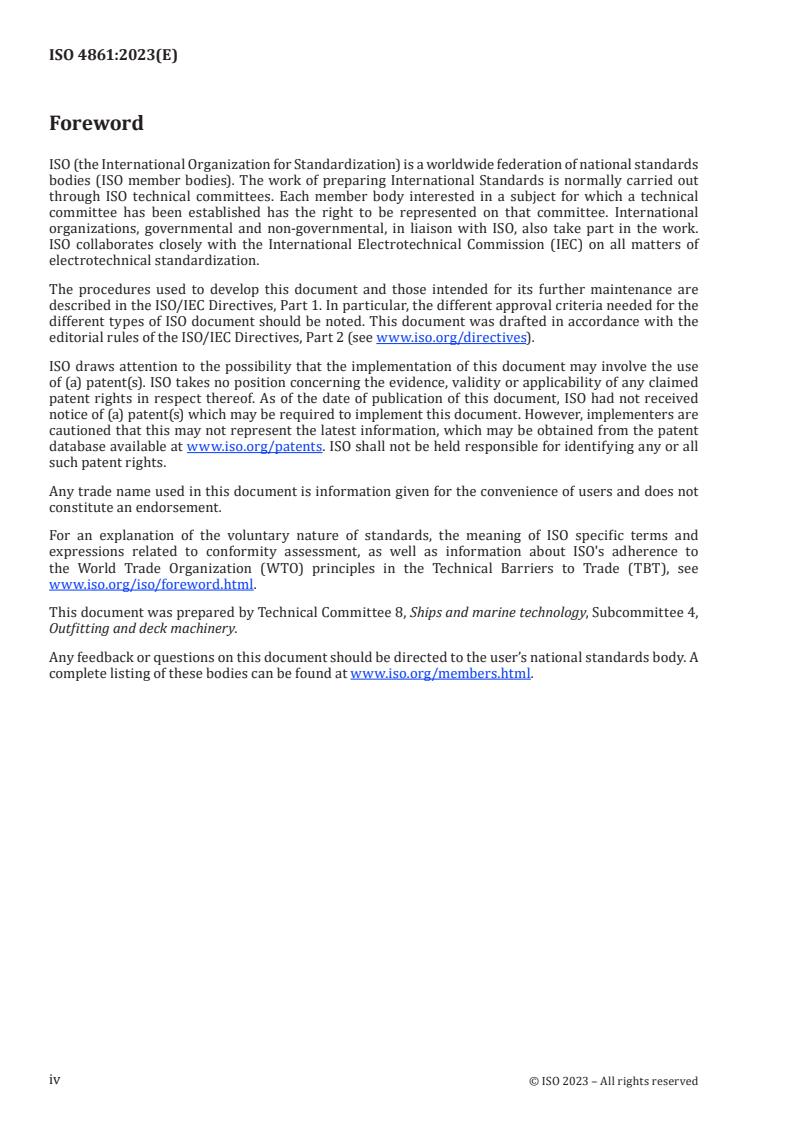

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use
of (a) patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed
patent rights in respect thereof. As of the date of publication of this document, ISO had not received
notice of (a) patent(s) which may be required to implement this document. However, implementers are
cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents. ISO shall not be held responsible for identifying any or all
such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee 8, Ships and marine technology, Subcommittee 4,
Outfitting and deck machinery.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
INTERNATIONAL STANDARD ISO 4861:2023(E)
Ships and marine technology — Piling barge winches
1 Scope
This document specifies the requirements for the design, operation, performance and acceptance test
of the hydraulic or electric winches in piling barge winch systems.
This document specifies the winches required to operate the pile and the pile hammer during piling of
the piling barge, mainly including the suspending pile winch, hammer start winch, suspending hammer
winch and suspending hose winch.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 2408:2017, Steel wire ropes — Requirements
ISO 3828, Shipbuilding and marine structures — Deck machinery — Vocabulary and symbols
ISO 4413, Hydraulic fluid power — General rules and safety requirements f
...
