ISO 17939:2015

Ships and marine technology — Oil tank hatches

ISO 17939:2015 specifies the classification, structure and main dimensions, materials, quality of manufacture, testing of watertightness and designation for oil tank hatches for application on board ships in order to ensure interchangeability of the hatches. The remaining dimensions, welding, and other details are left to the manufacturer. These hatches generally conform to the requirements of the International Convention on Load Lines 1966 (ILLC66). These structures and specifications of oil-tight hatch covers in this ISO 17939:2015 meet IACS UR S26 requirements. The possibility for application in position 1 and position 2 has to be considered for each situation and, where necessary, the hatch covers shall be provided with additional stiffening. ISO 17939:2015 is applicable to the design, manufacturing, and test of accommodation ladders, as well as accommodation ladder used specifically in combination with pilot ladder (hereinafter referred as "pilot accommodation ladder"). Users of ISO 17939:2015 should note that while observing the requirements of ISO 17939:2015, they should, at the same time, ensure compliance with such statutory requirements, rules, and regulations as may be applicable to the individual ship concerned.

Navires et technologie maritime — Huile trappe

General Information

• Status: Published
• Publication Date: 31-Aug-2015
• ICS: 47.020.10 - Hulls and their structure elements
• Technical Committee: ISO/TC 8/SC 8 - Ship design
• Drafting Committee: ISO/TC 8/SC 8 - Ship design
• Current Stage: 9093 - International Standard confirmed
• Completion Date: 06-Jan-2021

Standards Content (Sample)

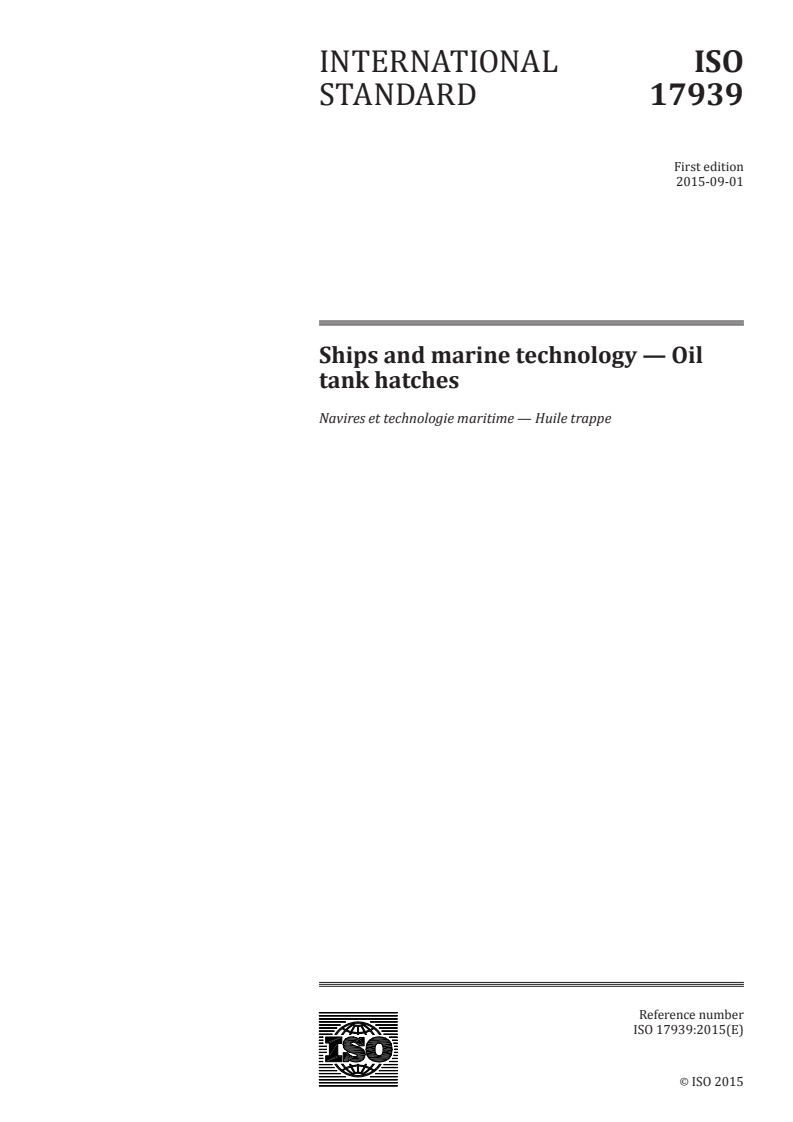

INTERNATIONAL ISO
STANDARD 17939
First edition
2015-09-01
Ships and marine technology — Oil
tank hatches
Navires et technologie maritime — Huile trappe
Reference number
ISO 17939:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO 17939:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 17939:2015(E)

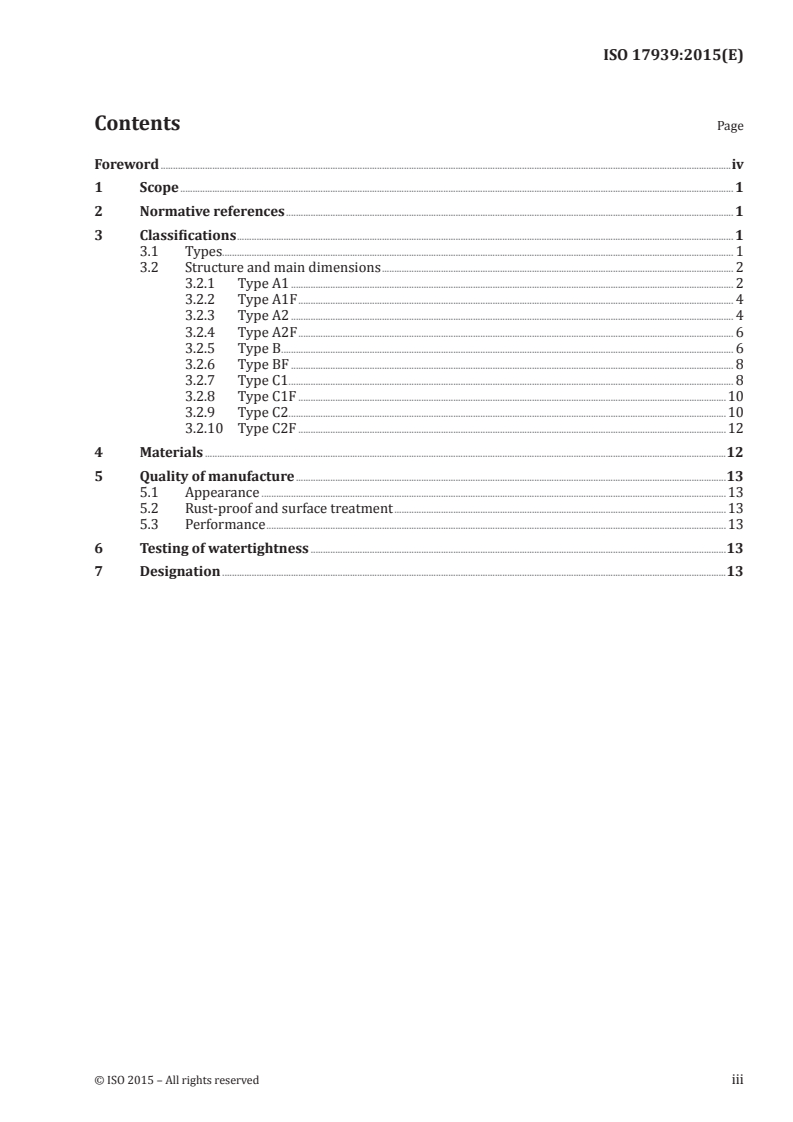

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Classifications . 1
3.1 Types. 1
3.2 Structure and main dimensions . 2
3.2.1 Type A1 . 2
3.2.2 Type A1F . 4
3.2.3 Type A2 . 4
3.2.4 Type A2F . 6
3.2.5 Type B . 6
3.2.6 Type BF . 8
3.2.7 Type C1 . 8
3.2.8 Type C1F .10
3.2.9 Type C2 .10
3.2.10 Type C2F .12
4 Materials .12
5 Quality of manufacture .13
5.1 Appearance .13
5.2 Rust-proof and surface treatment .13
5.3 Performance .13
6 Testing of watertightness .13
7 Designation .13
© ISO 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 17939:2015(E)

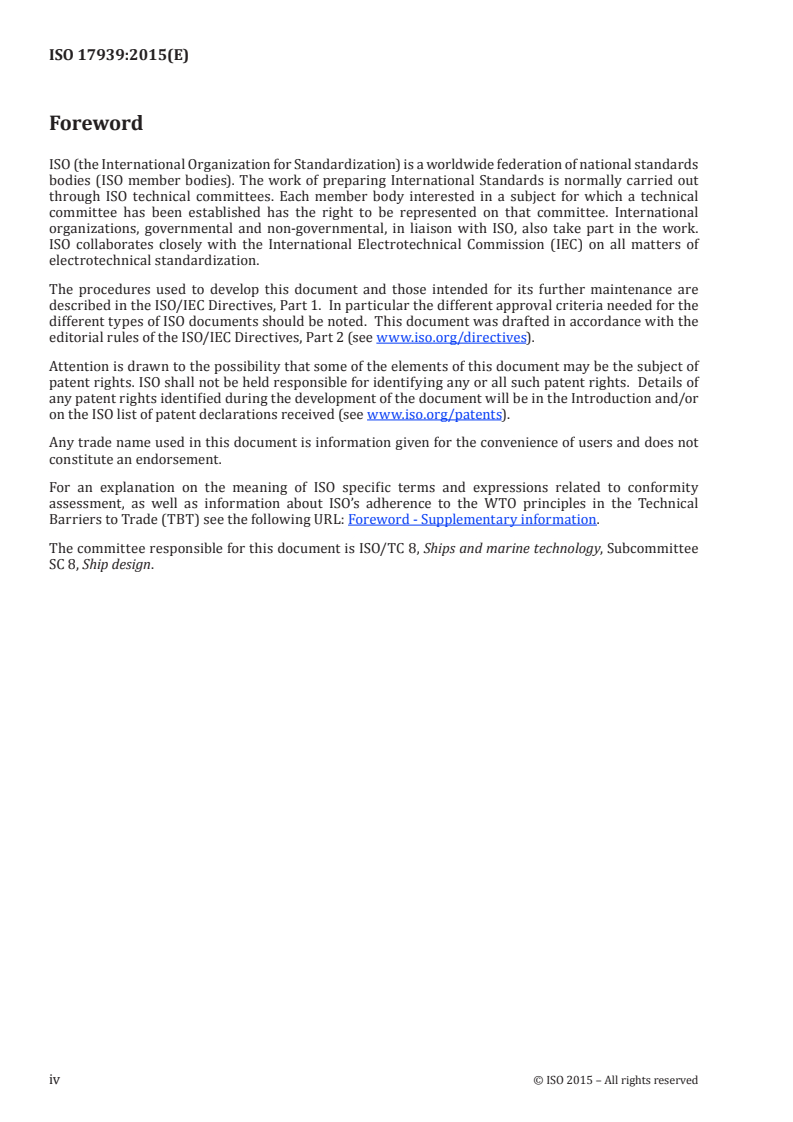

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information.
The committee responsible for this document is ISO/TC 8, Ships and marine technology, Subcommittee
SC 8, Ship design.
iv © ISO 2015 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 17939:2015(E)
Ships and marine technology — Oil tank hatches
1 Scope
This International Standard specifies the classification, structure and main dimensions, materials,
quality of manufacture, testing of watertightness and designation for oil tank hatches for application on
board ships in order to ensure interchangeability of the hatches. The remaining dimensions, welding,
and other details are left to the manufacturer.
These hatches generally conform to the requirements of the International Convention on Load Lines
1966 (ILLC66). These structures and specifications of oil-tight hatch covers in this International
Standard meet IACS UR S26 requirements. The possibility for application in position 1 and position 2
has to be considered for each situation and, where necessary, the hatch covers shall be provided with
additional stiffening.
This International Standard is applicable to the design, manufacturing, and test of accommodation
ladders, as well as accommodation ladder used specifically in combination with pilot ladder (hereinafter
referred as “pilot accommodation ladder”).
Users of this International Standard should note that while observing the requirements of this
International Standard, they should, at the same time, ensure compliance with such statutory
requirements, rules, and regulations as may be applicable to the individual ship concerned.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 8501–1, Preparation of steel substrates before application of paints and related products — Visual
assessment of surface cleanliness — Part 1: Rust grades and preparation grades of uncoated steel substrates
and of steel substrates after overall removal of previous coatings.
3 Classifications
3.1 Types
Oil tank hatches are divided into the following types, see Table 1.
© ISO 2015 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 17939:2015(E)

Table 1 — Classification of oil tank hatches
Dimensions in millimetres
Application in
accordance with
Types Definition Nominal size
ILLC66
in position (s)
A1 circular flat hatch cover 2
A1F circular flat hatch cover with stiffener 1
600, 700, 800,
A (circular)
900, 1 000, 1 200
A2 circular curve hatch cover 2
A2F circular curve hatch cover with stiffener 1
B long circular hatch cover 600 × 800, 750 × 1 200, 2
B (long circular) 750 × 1 300,
BF long circular hatch cover with stiffener 1
750 × 1 500, 850 × 1 500
flat hatch cover
C1 2
(upper circular, lower long circular)
a
750 (750 × 1 200)
flat hatch cover with stiffener
C1F a 1
C (upper circular, 750 (750 × 1 300)
(upper circular, lower long circular)
a
lower long 750 (750 × 1 500)
curve hatch cover
a
circular) 850 (850 × 1 500)
C2 2
(upper circular, lower long circular)
a
900 (900 × 1 500)
curve hatch cover with stiffener
C2F 1
(upper circular, lower long circular)
a
The data between parentheses are the size of lower long circular.
3.2 Structure and main dimensions
3.2.1 Type A1
Structure and main dimensions of type A1 hatch cover shall conform to the detail of Figure 1 and
Table 2.
2 © ISO 2015 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 17939:2015(E)

Dimensions in millimetres
4 5
6
3
7
8
2
11
1
D₁
D
13
9
10
11 12
Key
1 coaming 8 lock catch
2 bearing 9 wing clamp
3 actuator 10 stiffener
4 junction plate 11 measuring hole cover (optional)
5 cover plate 12 clamp plate
6 seal ring 13 bearing pad welded on the bracket of a toggle bolt for metal to metal contact
7 clamping ring
NOTE Thickness of coaming shall comply with the related requirements, such as the requirements of
classification societies.
Figure 1 — Structure of type A1 ha
...
