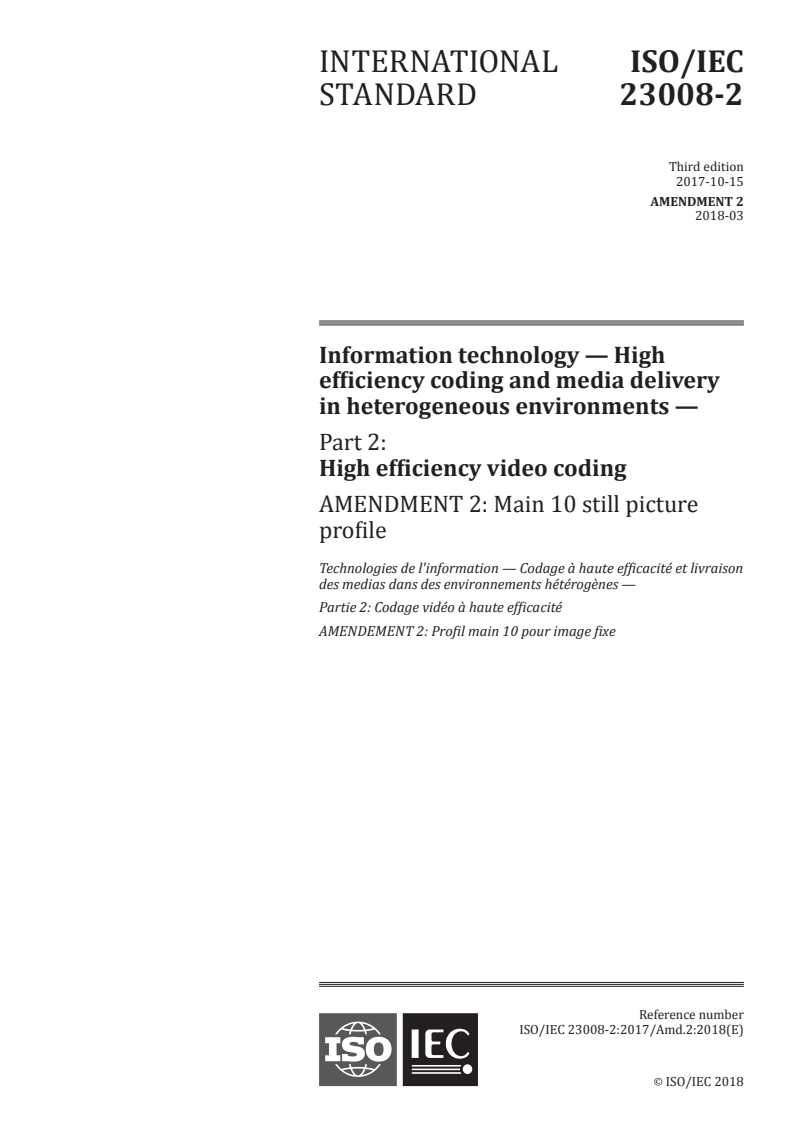

INTERNATIONAL ISO/IEC
STANDARD 23008-2
Third edition
2017-10-15
AMENDMENT 2
2018-03
Information technology — High
efficiency coding and media delivery
in heterogeneous environments —
Part 2:
High efficiency video coding
AMENDMENT 2: Main 10 still picture
profile
Technologies de l'information — Codage à haute efficacité et livraison
des medias dans des environnements hétérogènes —
Partie 2: Codage vidéo à haute efficacité
AMENDEMENT 2: Profil main 10 pour image fixe
Reference number
ISO/IEC 23008-2:2017/Amd.2:2018(E)
©
ISO/IEC 2018
---------------------- Page: 1 ----------------------
ISO/IEC 23008-2:2017/Amd.2:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2018 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 23008-2:2017/Amd.2:2018(E)

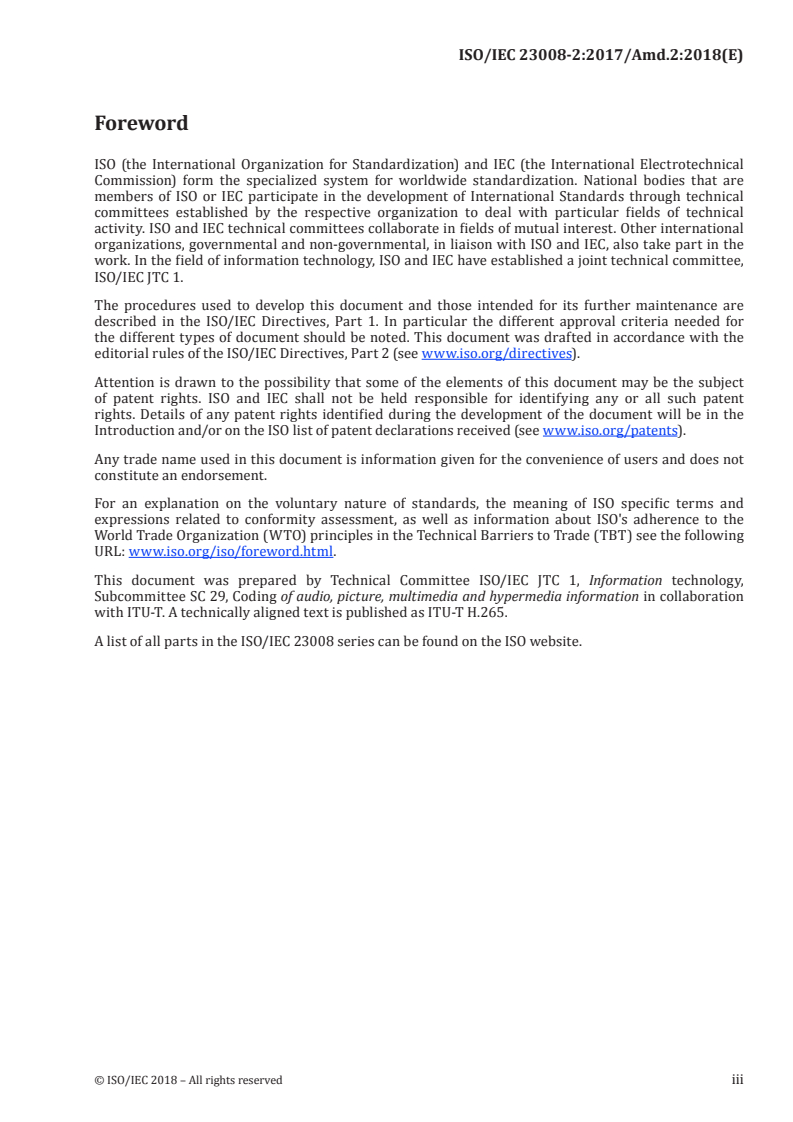

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information in collaboration
with ITU-T. A technically aligned text is published as ITU-T H.265.
A list of all parts in the ISO/IEC 23008 series can be found on the ISO website.
© ISO/IEC 2018 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 23008-2:2017/Amd.2:2018(E)
Information technology — High efficiency coding and
media delivery in heterogeneous environments —
Part 2:
High efficiency video coding
AMENDMENT 2: Main 10 still picture profile
Clause 3
Replace 3.56 with the following:
3.56
frequency index
one-dimensional or two-dimensional index associated with a transform coefficient prior to the
application of a transform in the decoding process
Delete 3.70, and renumber the current 3.71 through 3.164 as 3.70 through 3.163.
Add the following as 3.164:
3.164
transform
part of the decoding process by which a block of transform coefficients is converted to a block of spatial-
domain values
Replace 3.165 with the following:
3.165
transform block
rectangular MxN block of samples resulting from the same transform in the decoding process
Replace 3.166 with the following:
3.166
transform coefficient
scalar quantity, considered to be in a frequency domain that is associated with a particular one-
dimensional or two-dimensional frequency index in a transform in the decoding process
© ISO/IEC 2018 – All rights reserved 1
---------------------- Page: 4 ----------------------
ISO/IEC 23008-2:2017/Amd.2:2018(E)
Clause 7
Replace 7.3.3 with the following:
7.3.3 Profile, tier and level syntax
profile_tier_level( profilePresentFlag, maxNumSubLayersMinus1 ) { Descriptor
if(profilePresentFlag) {
general_profile_space u(2)
general_tier_flag u(1)
general_profile_idc u(5)
for(j = 0; j < 32; j++)
general_profile_compatibility_flag[ j ] u(1)
general_progressive_source_flag u(1)
general_interlaced_source_flag u(1)
general_non_packed_constraint_flag u(1)
general_frame_only_constraint_flag u(1)
if(general_profile_idc == 4 | | general_profile_compatibility_flag[ 4 ] | |
general_profile_idc == 5 | | general_profile_compatibility_flag[ 5 ] | |
general_profile_idc == 6 | | general_profile_compatibility_flag[ 6 ] | |
general_profile_idc == 7 | | general_profile_compatibility_flag[ 7 ] | |
general_profile_idc == 8 | | general_profile_compatibility_flag[ 8 ] | |
general_profile_idc == 9 | | general_profile_compatibility_flag[ 9 ] | |
general_profile_idc == 10 | | general_profile_compatibility_flag[ 10 ]) {
/* The number of bits in this syntax structure is not affected by this condition */
general_max_12bit_constraint_flag u(1)
general_max_10bit_constraint_flag u(1)
general_max_8bit_constraint_flag u(1)
general_max_422chroma_constraint_flag u(1)
general_max_420chroma_constraint_flag u(1)
general_max_monochrome_constraint_flag u(1)
general_intra_constraint_flag u(1)
general_one_picture_only_constraint_flag u(1)
general_lower_bit_rate_constraint_flag u(1)
if(general_profile_idc == 5 | | general_profile_compatibility_flag[ 5 ] | |
general_profile_idc == 9 | | general_profile_compatibility_flag[ 9 ] | |
general_profile_idc == 10 | | general_profile_compatibility_flag[ 10 ]) {
general_max_14bit_constraint_flag u(1)
general_reserved_zero_33bits u(33)
} else
general_reserved_zero_34bits u(34)
} else if(general_profile_idc == 2 | | general_profile_compatibility_flag[ 2 ]) {
general_reserved_zero_7bits u(7)
general_one_picture_only_constraint_flag u(1)
general_reserved_zero_35bits u(35)
} else
general_reserved_zero_43bits u(43)
2 © ISO/IEC 2018 – All rights reserved
---------------------- Page: 5 ----------------------
ISO/IEC 23008-2:2017/Amd.2:2018(E)
if((general_profile_idc >= 1 && general_profile_idc <= 5) | |
general_profile_idc == 9 | |
general_profile_compatibility_flag[ 1 ] | | general_profile_compatibility_flag[ 2 ] | |
general_profile_compatibility_flag[ 3 ] | | general_profile_compatibility_flag[ 4 ] | |
general_profile_compatibility_flag[ 5 ] | | general_profile_compatibility_flag[ 9 ])
/* The number of bits in this syntax structure is not affected by this condition */
general_inbld_flag u(1)
else
general_reserved_zero_bit u(1)
}
general_level_idc u(8)
for(i = 0; i < maxNumSubLayersMinus1; i++) {
sub_layer_profile_present_flag[ i ] u(1)
sub_layer_level_present_flag[ i ] u(1)
}
if(maxNumSubLayersMinus1 > 0)
for(i = maxNumSubLayersMinus1; i < 8; i++)
reserved_zero_2bits[ i ] u(2)
for(i = 0; i < maxNumSubLayersMinus1; i++) {
if(sub_layer_profile_present_flag[ i ]) {
sub_layer_profile_space[ i ] u(2)
sub_layer_tier_flag[ i ] u(1)
sub_layer_profile_idc[ i ] u(5)
for(j = 0; j < 32; j++)
sub_layer_profile_compatibility_flag[ i ][ j ] u(1)
sub_layer_progressive_source_flag[ i ] u(1)
sub_layer_interlaced_source_flag[ i ] u(1)
sub_layer_non_packed_constraint_flag[ i ] u(1)
sub_layer_frame_only_constraint_flag[ i ] u(1)
if(sub_layer_profile_idc[ i ] == 4 | | sub_layer_profile_compatibility_flag[ i ][ 4 ] | |
sub_layer_profile_idc[ i ] == 5 | | sub_layer_profile_compatibility_flag[ i ][ 5 ] | |
sub_layer_profile_idc[ i ] == 6 | | sub_layer_profile_compatibility_flag[ i ][ 6 ] | |
sub_layer_profile_idc[ i ] == 7 | | sub_layer_profile_compatibility_flag[ i ][ 7 ] | |
sub_layer_profile_idc[ i ] == 8 | | sub_layer_profile_compatibility_flag[ i ][ 8 ] | |
sub_layer_profile_idc[ i ] == 9 | | sub_layer_profile_compatibility_flag[ i ][ 9 ] | |
sub_layer_profile_idc[ i ] == 10 | | sub_layer_profile_compatibility_flag[ i ][ 10 ] ) {
/* The number of bits in this syntax structure is not affected by this condition */
sub_layer_max_12bit_constraint_flag[ i ] u(1)
sub_layer_max_10bit_constraint_flag[ i ] u(1)
sub_layer_max_8bit_constraint_flag[ i ] u(1)
sub_layer_max_422chroma_constraint_flag[ i ] u(1)
sub_layer_max_420chroma_constraint_flag[ i ] u(1)
sub_layer_max_monochrome_constraint_flag[ i ] u(1)
sub_layer_intra_constraint_flag[ i ] u(1)
sub_layer_one_picture_only_constraint_flag[ i ] u(1)
sub_layer_lower_bit_rate_constraint_flag[ i ] u(1)
if(sub_layer_profile_idc[ i ] == 5 | | sub_layer_profile_compatibility_flag[ i ][ 5 ]) {
© ISO/IEC 2018 – All rights reserved 3
---------------------- Page: 6 ----------------------
ISO/IEC 23008-2:2017/Amd.2:2018(E)
sub_layer_max_14bit_constraint_flag[ i ] u(1)
sub_layer_reserved_zero_33bits[ i ] u(33)
} else
sub_layer_reserved_zero_34bits[ i ] u(34)
} else if(sub_layer_profile_idc[ i ] == 2 | |
sub_layer_profile_compatibility_flag[ i ][ 2 ]) {
sub_layer_reserved_zero_7bits[ i ] u(7)
sub_layer_one_picture_only_constraint_flag[ i ] u(1)
sub_layer_reserved_zero_35bits[ i ] u(35)
} else
sub_layer_reserved_zero_43bits[ i ] u(43)
if((sub_layer_profile_idc[ i ] >= 1 && sub_layer_profile_idc[ i ] <= 5) | |
sub_layer_profile_idc[ i ] == 9 | |
sub_layer_profile_compatibility_flag[ 1 ] | |
sub_layer_profile_compatibility_flag[ 2 ] | |
sub_layer_profile_compatibility_flag[ 3 ] | |
sub_layer_profile_compatibility_flag[ 4 ] | |
sub_layer_profile_compatibility_flag[ 5 ] | |
sub_layer_profile_compatibility_flag[ 9 ])
/* The number of bits in this syntax structure is not affected by this condition */
sub_layer_inbld_flag[ i ] u(1)
else
sub_layer_reserved_zero_bit[ i ] u(1)
}
if(sub_layer_level_present_flag[ i ])
sub_layer_level_idc[ i ] u(8)
}
}
In 7.4.4, delete the two sentences:
“When profilePresentFlag is equal to 1 and one or more of these syntax elements are not present, their
values are inferred to be equal to 0. When general_profile_idc is not equal to 10 and is not in the range
of 4 to 7, inclusive, and general_profile_compatibility_flag[ 10 ] is not equal to 1 and general_profile_
compatibility_flag[ j ] is not equal to 1 for any value of j in the range of 4 to 7, inclusive, the value of each
of these syntax elements shall be equal to 0.”
In 7.4.4, after the semantics of general_reserved_zero_34bits, add the following:
general_reserved_zero_7bits, when present, shall be equal to 0 in bitstreams conforming to this
version of this Specification. Other values for general_reserved_zero_7bits are reserved for future use
by ITU-T | ISO/IEC. Decoders shall ignore the value of general_reserved_zero_7bits.
general_reserved_zero_35bits, when present, shall be equal to 0 in bitstreams conforming to this
version of this Specification. Other values for general_reserved_zero_35bits are reserved for future use
by ITU-T | ISO/IEC. Decoders shall ignore the value of general_reserved_zero_35bits.
4 © ISO/IEC 2018 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 23008-2:2017/Amd.2:2018(E)
In 7.4.4, replace the paragraph specifying the semantics of sub_layer_profile_space[ i ], sub_layer_tier_
flag[ i ], sub_layer_profile_idc[ i ], etc., with the following:
The semantics of the syntax elements sub_layer_profile_space[ i ], sub_layer_tier_flag[ i ], sub_
layer_profile_idc[ i ], sub_layer_profile_compatibility_flag[ i ][ j ], sub_layer_progressive_
source_flag[ i ], sub_layer_interlaced_source_flag[ i ], sub_layer_non_packed_constraint_
flag[ i ], sub_layer_frame_only_constraint_flag[ i ], sub_layer_max_12bit_constraint_flag[ i ],
sub_layer_max_10bit_constraint_flag[ i ], sub_layer_max_8bit_constraint_flag[ i ], sub_
layer_max_422chroma_constraint_flag[ i ], sub_layer_max_420chroma_constraint_flag[ i ],
sub_layer_max_monochrome_constraint_flag[ i ], sub_layer_intra_constraint_flag[ i ], sub_
layer_one_picture_only_constraint_flag[ i ], sub_layer_lower_bit_rate_constraint_flag[ i ], sub_
layer_max_14bit_constraint_flag, sub_layer_reserved_zero_33bits[ i ], sub_layer_reserved_
zero_34bits[ i ], sub_layer_reserved_zero_7bits[ i ], sub_layer_reserved_zero_35bits[ i ],
sub_layer_reserved_zero_43bits[ i ], sub_layer_inbld_flag[ i ], sub_layer_reserved_zero_bit[ i ],
and sub_layer_level_idc[ i ] are, apart from the specification of the inference of not present values,
the same as the syntax elements general_profile_space, general_tier_flag, general_profile_idc,
general_profile_compatibility_flag[ j ], general_progressive_source_flag, general_interlaced_
source_flag, general_non_packed_constraint_flag, general_frame_only_constraint_flag, general_
max_12bit_constraint_flag, general_max_10bit_constraint_flag, general_max_8bit_constraint_flag,
general_max_422chroma_constraint_flag, general_max_420
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
