Hydrometric determinations — Flow measurements in open channels using structures — Compound gauging structures

This International Standard specifies the methods of measurement of flow in rivers and artificial channels, using any combination of standard weirs and/or flumes in a compound structure. For guidance on the selection of weirs and/or flumes, refer to ISO 8368. All structures can be operated in the modular flow range, but only a limited number of structures can be used in the drowned (non-modular) flow range (see clause 4). Compound weirs improve the quality of discharge measurements at low stages. The characteristics of velocity distribution are described annex A. Structures standardized for operation in the drowned (non-modular) flow range and the method of computation of flow are described in annex B. Methods and examples of flow measurement calculations are given in annex C. Compound flow-measuring structures without divide piers need in situ or model calibrations and are not covered by this International Standard.

Déterminations hydrométriques — Mesure de débit des liquides dans les canaux découverts au moyen de structures — Structures de jaugeage hybrides

General Information

Status
Published
Publication Date
28-Jun-2000
Current Stage
9093 - International Standard confirmed
Completion Date
24-Jun-2022
Ref Project

Buy Standard

Standard
ISO 14139:2000 - Hydrometric determinations -- Flow measurements in open channels using structures -- Compound gauging structures
English language
41 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 14139
First edition
2000-06-15
Hydrometric determinations — Flow
measurements in open channels using
structures — Compound gauging
structures
Déterminations hydrométriques — Mesure de débit des liquides dans les
canaux découverts au moyen de structures — Structures de jaugeage
hybrides
Reference number
ISO 14139:2000(E)
©
ISO 2000

---------------------- Page: 1 ----------------------
ISO 14139:2000(E)

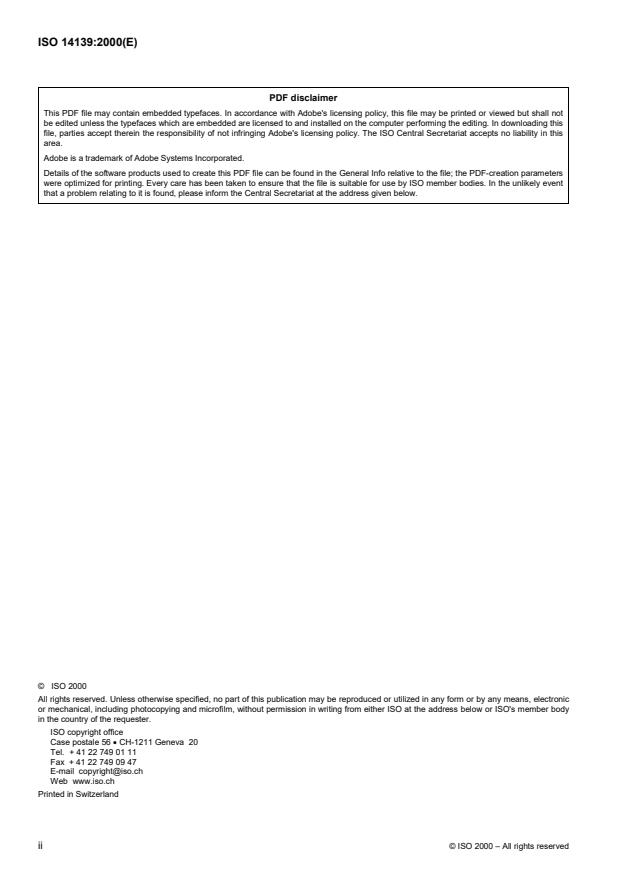

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2000
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 14139:2000(E)
Contents Page
Foreword.iv
1 Scope .1
2 Normative references .1
3 Terms, definitions and symbols.2
4 Characteristics of compound gauging structures .3
5 Installation.4
5.1 Selection of site .4
5.2 Installation conditions.5
6 Maintenance .6
7 Measurement of head.7
7.1 General.7
7.2 Stilling well .7
7.3 Zero setting .8
7.4 Location of head measurement section(s) .8
8 Computation of discharge .8
8.1 Modular flow conditions .8
8.2 Non-modular (drowned) flow conditions .9
9 Errors in flow measurement .9
9.1 General.9
9.2 Sources of error.9
9.3 Kinds of error .9
9.4 Errors in coefficient values and errors in measurement.10
9.5 Combinations of uncertainties to give overall uncertainty in total discharge .10
9.6 Presentation of results.11
Annex A (normative) Velocity distribution .12
Annex B (normative) Non-modular (drowned) flow.14
Annex C (normative) Methods of calculations.24
© ISO 2000 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 14139:2000(E)

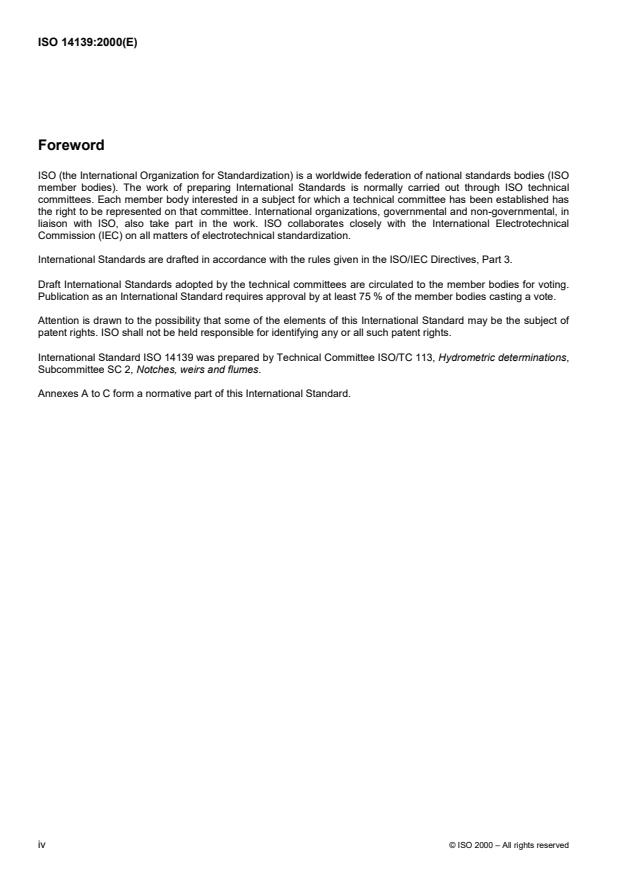

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 14139 was prepared by Technical Committee ISO/TC 113, Hydrometric determinations,
Subcommittee SC 2, Notches, weirs and flumes.
Annexes A to C form a normative part of this International Standard.
iv © ISO 2000 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 14139:2000(E)
Hydrometric determinations — Flow measurements in open
channels using structures — Compound gauging structures
1 Scope
This International Standard specifies the methods of measurement of flow in rivers and artificial channels, using
any combination of standard weirs and/or flumes in a compound structure. For guidance on the selection of weirs
and/or flumes, refer to ISO 8368. All structures can be operated in the modular flow range, but only a limited
number of structures can be used in the drowned (non-modular) flow range (see clause 4). Compound weirs
improve the quality of discharge measurements at low stages.
The characteristics of velocity distribution are described annex A.
Structures standardized for operation in the drowned (non-modular) flow range and the method of computation of
flow are described in annex B.
Methods and examples of flow measurement calculations are given in annex C.
Compound flow-measuring structures without divide piers need in situ or model calibrations and are not covered by
this International Standard.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this International Standard. For dated references, subsequent amendments to, or revisions of, any of these
publications do not apply. However, parties to agreements based on this International Standard are encouraged to
investigate the possibility of applying the most recent editions of the normative documents indicated below. For
undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC
maintain registers of currently valid International Standards.
ISO 772:1996, Hydrometric determinations — Vocabulary and symbols.
ISO 1438-1:1980, Water flow measurement in open channels using weirs and Venturi flumes — Part 1: Thin-plate
weirs.
ISO 3846:1989, Liquid flow measurement in open channels by weirs and flumes — Rectangular broad-crested
weirs.
ISO 4359:1983, Liquid flow measurement in open channels — Rectangular, trapezoidal and U-shaped flumes.
ISO 4360:1984, Liquid flow measurement in open channels by weirs and flumes — Triangular profile weirs.
ISO 4362:1999, Hydrometric determinations — Flow measurement in open channels using structures —
Trapezoidal broad-crested weirs.
ISO 4374:1990, Liquid flow measurement in open channels — Round-nose horizontal broad-crested weirs.
ISO 4377:1990, Liquid flow measurement in open channels — Flat-V weirs.
© ISO 2000 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 14139:2000(E)
ISO/TR 5168:1998, Measurement of fluid flow — Evaluation of uncertainties.
ISO 8333:1985, Liquid flow measurement in open channels by weirs and flumes — V-shaped broad-crested weirs.
ISO 8368:1999, Hydrometric determinations — Flow measurements in open channels using structures —
Guidelines for selection of structure.
ISO 9826:1992, Measurement of liquid flow in open channels — Parshall and SANIIRI flumes.
ISO 9827:1994, Measurement of liquid flow in open channels by weirs and flumes — Streamlined triangular profile
weirs.
3 Terms, definitions and symbols
For the purposes of this International Standard, the terms and definitions given in ISO 772 apply. A full list of
symbols with the corresponding units of measurement is given below.
Symbol Units of
measurement
2
A area of cross-section of flow m
b crest width m
B width of approach channel m
C coefficient of discharge non-dimensional
D
C drowned-flow reduction factor non-dimensional
dr
C coefficient of approach velocity non-dimensional
v
e uncertainty in absolute magnitude non-dimensional
2
g acceleration due to gravity m/s
h gauged head m
H total head m
h crest-tapping pressure head m
p
h velocity approach head m
v
L length of flume throat or weir crest in direction of flow m
n number of measurements in a set non-dimensional
p height of flume invert or weir crest above mean bed level m
3
Q total discharge m /s
3
Q , Q , Q individual section discharges (in general Q)m /s
1 2 3 n
3
Q total modular discharge m /s
mod
3
q discharge per unit width m /s
s standard deviation of a set of measurements of quantity y m
y
s estimated standard deviation of the mean of several readings m
y
of quantity y
v mean velocity at cross-section m/s
v mean velocity in approach channel m/s
a
X percentage uncertainty in total discharge non-dimensional
Q
2 © ISO 2000 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 14139:2000(E)
1)
X , X , X percentage uncertainty in individual section discharges non-dimensional
Q,1 Q,2 Q,3
X percentage uncertainty in estimating upstream water levels or non-dimensional
tu
upstream total head levels
X percentage uncertainty in estimating downstream water non-dimensional
td
levels or downstream total head levels
X percentage uncertainty in quantity y non-dimensional
y
� Coriolis energy coefficient non-dimensional
� difference in weir-crest levels m
� boundary layer displacement thickness m
Suffixes
1 denotes upstream value
2 denotes downstream value
Superscripts
G refers to gauging section
T refers to crest-tapping section
S refers to any other section
4 Characteristics of compound gauging structures
A compound gauging structure as covered by this International Standard comprises two or more individual
structures, operated in parallel and separated by divide piers.
The individual structures, which can be used in a compound gauging weir, are specified in ISO 1438-1, ISO 3846,
ISO 4359, ISO 4360, ISO 4362, ISO 4374, ISO 4377, ISO 8333, ISO 9826 and ISO 9827. The structures described
in ISO 4360, ISO 4362, ISO 4377, ISO 8333, ISO 9826 and ISO 9827 may be used in the drowned flow range (see
annex B.1).
In the modular flow range, discharges depend solely on upstream water levels, and a single measurement of
upstream head is required. In the drowned flow range, discharges depend on both upstream and downstream
water levels, and two independent head measurements are required. These are:
a) the upstream head; and either
b) the head measured in the crest-tapping for a triangular profile weir (two dimensional or flat-V forms);
c) the head measured within the throat of a Parshall flume; or
d) the head measured in the tailwater for the other structures.
1) In cases where the subscript of a symbol also contains a subscript, it is house style to write the second subscript on the
same line, after a comma.
Thus X is written X .
Q Q,1
1
© ISO 2000 – All rights reserved 3

---------------------- Page: 7 ----------------------
ISO 14139:2000(E)
The flow conditions considered are limited to steady or slowly changing flows. The essentially parallel flow through
the compound structure is ensured by the use of divide piers. The flow is separated by the divide piers into each
individual weir or flume. The discharge can be determined through each individual section by a single upstream
head measurement, at one section only, in the case of modular flow or by two independent head measurements, at
one section only, as required for drowned flow conditions. The summation of the discharges through each of the
sections provides the measurement of total flow within the channel.
5 Installation
5.1 Selection of site
A preliminary survey shall be made of the physical and hydraulic features of the proposed site to check that it
conforms (or may be made to conform) to the requirements necessary for measurement using the weir.
Particular attention shall be paid to the following features in selecting the site of the weir:
a) the availability of an adequate length of channel of regular cross-section;
b) the existing velocity distribution;
c) the avoidance of channels having gradients greater than 0,4 %;
d) the effects of any increased upstream water level due to the flow-measuring structure;
e) the conditions downstream, including such influences as tides, confluence with other streams, sluice-gates, mill
dams and other controlling features that might cause drowning;
f) the impermeability of the ground on which the structure is to be founded, and the necessity for piling, grouting
or other sealing in river installations;
g) the necessity for flood banks to confine the maximum discharge to the channel;
h) the stability of the banks, and the necessity for trimming and/or revetment in natural channels;
i) the clearance of rocks or boulders from the bed of the approach channel;
j) the effects of wind.
NOTE 1 Wind can have a considerable effect on the flow in a river or over a weir, especially if these latter are wide and the
head is small and the prevailing wind is in a transverse direction.
If the site does not possess the characteristics required for satisfactory measurements, it shall be rejected unless
suitable improvements are practicable.
If a survey of a stream shows that the existing velocity distribution is regular, then it should be assumed that the
velocity distribution will remain satisfactory after the weir has been built.
If the existing velocity distribution is irregular and no other site for a gauge is feasible, due consideration shall be
given to checking the distribution after the weir has been installed and to improving it, if necessary.
NOTE 2 Several methods are available for obtaining more precise indications of irregular velocity distribution: velocity rods,
floats or concentrations of dye can be used in small channels, the latter being useful in checking conditions at the bottom of the
channel. A complete and quantitative assessment of velocity distribution may be made by means of a current meter.
NOTE 3 After installation, the velocity profiles will always be improved by the increased depth of water approaching the
compound weir.
4 © ISO 2000 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 14139:2000(E)
5.2 Installation conditions
5.2.1 General
The complete measuring installation consists of an approach channel, a flow-measuring structure and a
downstream channel. The parameters of each of these three components affect the overall accuracy of the
measurements.
Installation requirements include such features as weir finish, the cross-sectional shape of the channel, channel
roughness and the influence of control devices upstream or downstream of the gauging structure.
The distribution and direction of velocity have an important influence on the performance of a weir, these factors
being determined by the features mentioned in this subclause.
5.2.2 Approach channel
For all installations, the flow in the approach channel shall be smooth, free from disturbance and shall have a
velocity distribution as normal as possible over the cross-sectional area (see annex A); this can usually be verified
by inspection or measurement. In the case of natural streams or rivers, this flow can only be attained by having a
long, straight approach channel free from projections into the flow. Unless otherwise specified in the appropriate
clauses of this International Standard, the approach channel shall comply with the general requirements outlined in
this subclause.
The altered flow conditions due to the construction of the weir may have the effect of building up shoals of debris
upstream of the structure, which in time may affect the flow conditions. The likely consequential changes in the
water level should be taken into account in the design of gauging stations.
In an artificial channel, the cross-section shall be uniform and the channel shall be straight for a length equal to at
least five times its width, and more if attainable.
In a natural stream or river, the cross-section shall be reasonably uniform and the channel shall be straight for such
a length as to ensure regular velocity distribution.
If the entry to the approach channel is through a bend or if the flow is discharged into the channel through a conduit
of smaller cross-section or at an angle, then a longer length of straight approach channel is required to achieve a
regular velocity distribution.
Baffles shall not be installed closer to the points of measurement than five times the maximum head to be
measured.
Under certain conditions, a standing wave may occur upstream of the gauging device, for example if the approach
channel is steep. Provided this wave is at a distance of no less than 30 times the maximum head upstream, flow
measurement is feasible, subject to confirmation that a regular velocity distribution exists at the gauging station.
If a standing wave occurs within this distance, the approach conditions and/or gauging device shall be modified.
Means of ensuring that the baffles are at all times free of debris both on and below the water surface should be
provided.
5.2.3 Flow-measuring structure
The structure shall be rigid, watertight and capable of withstanding flow conditions without distortion or fracture. It
shall be at right angles to the direction of flow and shall have the dimensions specified in the relevant International
Standard(s) for the type of flow-measuring structure(s) chosen.
For the purposes of this International Standard, a compound flow-measuring structure consists of a series of
individual weirs or flumes, which are disposed across the width of an open channel. The individual sections of the
© ISO 2000 – All rights reserved 5

---------------------- Page: 9 ----------------------
ISO 14139:2000(E)
compound structure shall be separated by divide piers such that each section can be treated as a simple weir or
flume, thus minimizing three-dimensional flow conditions. The computation of discharge for individual sections can
therefore be based on established discharge equations (see the references in annex B).
The divide piers that separate individual sections of the compound structure shall be at least 0,3 m thick to avoid
sharp curvatures at their upstream noses (cutwaters), which can be semi-circular or semi-elliptical.
To minimize cross flows at the cutwaters of the divide piers and subsequent flow separation, the difference in levels
between adjacent crests (weirs) or inverts (flumes) shall not exceed 0,5 m.
NOTE 1 Flow conditions at and near the cutwaters of the divide piers will be improved if the upstream bed levels bear a
similar relationship to crest or invert levels at each individual section of the compound structure (see Figure B.1). This minimizes
the variations in velocity across the width of the approach channel.
The compound flow-measuring structure shall be capable of withstanding flood flow conditions without damage
from outflanking or from downstream erosion. The structure and the immediate approach channel can be
constructed of concrete with a smooth cement finish or surfaced with a smooth non-corrodible material.
NOTE 2 In laboratory installations, the finish should be equivalent to rolled sheet metal or planed, sanded and painted
timber.
The surface finish is particularly important near the crest or throat invert, but can be relaxed a distance along the
profile of 0,5 H upstream and downstream of the crest or throat. Details of tolerances for the finish and
max
alignment of individual weirs or flumes are given in the appropriate International Standard.
A typical design for a compound flow-measuring structure is shown in Figure B.1.
NOTE 3 The lengths of the divide piers are not crucial but they should extend preferably from the upstream recording section
to the downstream limit of individual weirs or flumes.
The height of the divide piers should normally be the same as that of the vertical side walls. If less, then errors will arise in the
computation of discharge when water levels exceed the height of the divide piers. These errors will depend on the dimensions of
the compound structure and the actual height of the divide piers.
5.2.4 Downstream conditions
Conditions downstream of the structure are important in that they control the tailwater level. This level is one of the
factors that determine whether modular or drowned flow conditions will occur at the weir. It is essential, therefore,
to calculate or observe stage-discharge relations covering the full discharge range, and to make decisions
regarding the type of weir and its required geometry in the light of this evidence.
When making these calculations or observations particular care shall be taken to ensure that influences that may
be periodic or seasonal such as tides shall be taken into account.
NOTE Confluences with other streams, sluice-gates, mill dams and other features such as weed growth may also influence
tailwater levels.
If the downstream channel is erodible, the extent of protective works necessary to dissipate the additional energy
generated by the raised water level upstream of the structure shall be taken into account in the assessment of the
site.
6 Maintenance
Maintenance of the flow-measuring structure and the approach channel is important to ensure accurate continuous
measurements.
It is essential that the approach channel to weirs be kept clean and free from silt and vegetation as far as
practicable, and for at least the distance specified in 5.2.2. The stilling well and the entry from the approach
channel shall also be kept clean and free from deposits.
6 © ISO 2000 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 14139:2000(E)
The weir structure shall be kept clean and free from clinging debris and care shall be taken in the process of
cleaning to avoid damage to the crest.
NOTE The presence of divide piers between weir sections will inevitably increase maintenance requirements for the
structure, particularly if floating debris is prevalent.
7 Measurement of head
7.1 General
The head upstream of the flow-measuring structure may be measured by a hook-gauge, point-gauge or staff-gauge
where spot measurements are required, or by a recording-gauge where a continuous record is required; in many
cases it is necessary to measure head in a separate stilling well, in particular to measure the crest-tapping head.
Stilling wells also eliminate surface turbulence which is necessary for tailwater head measurement.
The discharges given by the working equation in the appropriate standard for the particular structure are volumetric
figures, and the liquid density does not affect the volumetric discharge for a given head provided that the operative
head is gauged in liquid of identical density. If the gauging is carried out in a separate well, a correction for the
difference in density may be necessary if the temperature in the well is significantly different from that of the flowing
liquid. However, it is assumed in this International Standard that the densities are equal.
7.2 Stilling well
It is usual to measure the upstream head in a stilling well to reduce the effects of water surface irregularities.
NOTE 1 When this is done, it is also desirable to measure the head in the approach channel periodically.
Where the structure is designed to operate in the drowned flow range a gauge well is required to measure the
downstream head as follows:
� for triangular profile weirs the piezometric head developed within the separation pocket immediately
downstream of the crest;
� for the other weirs the downstream water level in the downstream channel section according to the appropriate
standard.
The gauge well shall be vertical and of sufficient height and depth to cover the full range of water levels and shall
have a minimum height of 0,6 m above the maximum water level expected. The gauge well shall be connected to
the appropriate head measurement position by means of a pipe or a slot.
Both the well and the connecting pipe shall be watertight and, where the well is provided for the accommodation of
the float of a level recorder, it shall be of adequate size and depth to give clearance around and beneath the float at
all stages. The float shall be no nearer than 0,075 m to the wall of the well.
The pipe shall have its invert no less than 0,06 m below the lowest level to be gauged.
The pipe connection to the upstream head measurement position shall terminate flush with the boundary of the
approach channel and preferably at right angles thereto. The approach channel boundary shall be plain and
smooth (equivalent to carefully finished concrete) within a distance of 10 times the diameter of the pipe from the
centreline of the connection. A pipe that is oblique to the wall is acceptable only if it is fitted with a removable cap or
plate, and set flush with the wall, through which a number of holes are drilled. The edges of these holes shall not
be rounded or burred.
Where the individual section of the compound structure is a two-dimensional triangular profile weir the pipe
connection to the head measurement position for the separation pocket head shall be as given in ISO 4360.
© ISO 2000 – All rights reserved 7

---------------------- Page: 11 ----------------------
ISO 14139:2000(E)
Where the individual section of the compound structure is a flat-V weir, the pipe connection to the head
measurement position for the separation pocket head shall be as given in ISO 4377.
Adequate additional depth shall be provided in the well to avoid the danger of floats grounding either on the bottom
or on any accumulation of silt or debris.
The diameter of the connecting pipe or width of slot shall be sufficient to permit the water level in the well to follow
the rise and fall of head without appreciable delay, but shall be as small as possible, consistent with ease of
maintenance, to damp out oscillations due to short period waves.
NOTE 2 No firm rule can be laid down for determining the size of the connecting pipe, because this is dependent on the
circumstances of the particular installation, for example whether the site is exposed and thus subject to waves and whether a
large diameter well is required to house the floats of recorders.
It is preferable to make the connection too large rather than too small, because a restriction can easily be added later if short
period waves are not adequately damped out. A 100 mm diameter pipe is usually suitable for a flow measurement in the field,
as compared with the 3 mm diam
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
