Open end blind rivets with break pull mandrel and protruding head — NiCu/St or NiCu/SSt

ISO 16584 specifies dimensional and mechanical characteristics and application data for open end blind rivets with break pull mandrel, protruding head, with a nickel copper body (NiCu) and either a steel (St) or stainless steel (SSt) mandrel and with nominal diameters from 3,2 mm up to and including 6,4 mm.

Rivets aveugles à rupture de tige à corps ouvert, à tête bombée — NiCu/St ou NiCu/SSt

L'ISO 16584:2002 spécifie les caractéristiques dimensionnelles et mécaniques ainsi que les données d'application pour les rivets aveugles à rupture de tige à corps ouvert, à tête bombée, avec un corps en alliage de nickel-cuivre (NiCu) et une tige soit en acier (St), soit en acier inoxydable (SSt), de diamètre nominal compris entre 3,2 mm et 6,4 mm inclus.

General Information

Status
Published
Publication Date
21-Oct-2002
Current Stage
9093 - International Standard confirmed
Completion Date
15-Jun-2023
Ref Project

Relations

Buy Standard

Standard
ISO 16584:2002 - Open end blind rivets with break pull mandrel and protruding head -- NiCu/St or NiCu/SSt
English language
6 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 16584:2002 - Rivets aveugles a rupture de tige a corps ouvert, a tete bombée -- NiCu/St ou NiCu/SSt
French language
6 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 16584
First edition
2002-11-01


Open end blind rivets with break pull
mandrel and protruding head — NiCu/St or
NiCu/SSt
Rivets aveugles à rupture de tige à corps ouvert, à tête bombée — NiCu/St
ou NiCu/SSt




Reference number
ISO 16584:2002(E)
©
 ISO 2002

---------------------- Page: 1 ----------------------
ISO 16584:2002(E)

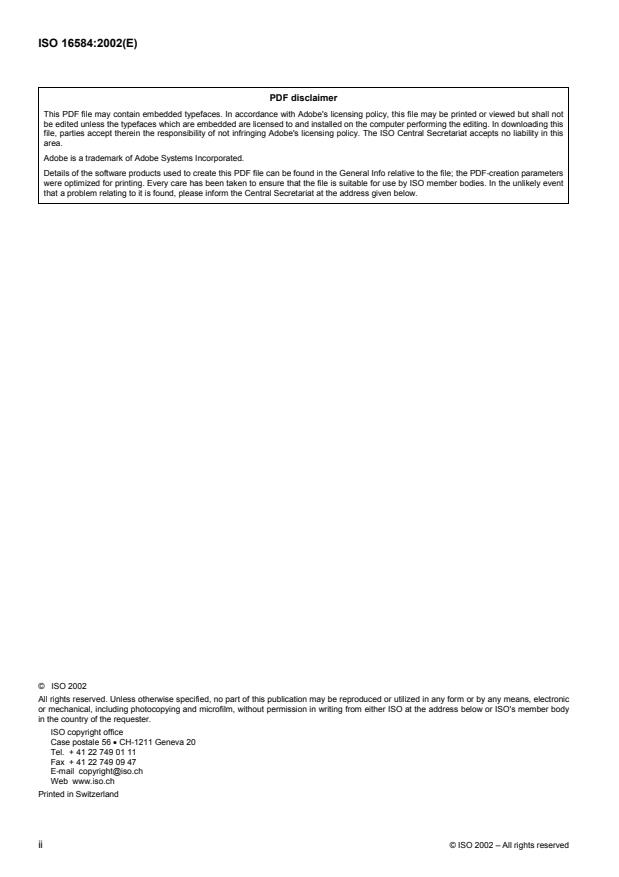

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2002
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland

ii © ISO 2002 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 16584:2002(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
The main task of technical committees is to prepare International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 16584 was prepared by Technical Committee ISO/TC 2, Fasteners.
Annex A of this International Standard is for information only.
© ISO 2002 – All rights reserved iii

---------------------- Page: 3 ----------------------
INTERNATIONAL STANDARD ISO 16584:2002(E)

Open end blind rivets with break pull mandrel and protruding
head — NiCu/St or NiCu/SSt
1 Scope
This International Standard specifies dimensional and mechanical characteristics and application data for open end
blind rivets with break pull mandrel, protruding head, with a nickel copper body (NiCu) and either a steel (St) or
stainless steel (SSt) mandrel and with nominal diameters, d, from 3,2 mm up to and including 6,4 mm.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this International Standard. For dated references, subsequent amendments to, or revisions of, any of these
publications do not apply. However, parties to agreements based on this International Standard are encouraged to
investigate the possibility of applying the most recent editions of the normative documents indicated below. For
undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC
maintain registers of currently valid International Standards.
ISO 3269:2000, Fasteners — Acceptance inspection
ISO 14588:2000, Blind rivets — Terminology and definitions
ISO 14589:2000, Blind rivets — Mechanical testing
3 Dimensions
3.1 General
Symbols and designations of dimensions are specified in ISO 14588.
3.2 Rivets dimensions
See Figure 1 and Table 1.
© ISO 2002 – All rights reserved 1

---------------------- Page: 4 ----------------------
ISO 16584:2002(E)

Figure 1 — Rivet dimensions
Table 1 — Rivet dimensions
Dimensions in millimetres
nom. 3,2 4 4,8 6,4
d max. 3,28 4,08 4,88 6,48
min. 3,05 3,85 4,65 6,25
Rivet body
max. 6,7 8,4 10,1 13,4
d
k
min. 5,8 6,9 8,3 11,6
k max. 1,3 1,7 2 2,7
d max. 2,15 2,75 3,2 3,9
m
Mandrel
p min. 25 27 27 27
Blind length b max. l + 4 l + 4 l + 4,5 l + 5,5
max ma
...

NORME ISO
INTERNATIONALE 16584
Première édition
2002-11-01


Rivets aveugles à rupture de tige à corps
ouvert, à tête bombée — NiCu/St ou
NiCu/SSt
Open end blind rivets with break pull mandrel and protruding head —
NiCu/St or NiCu/SSt




Numéro de référence
ISO 16584:2002(F)
©
 ISO 2002

---------------------- Page: 1 ----------------------
ISO 16584:2002(F)

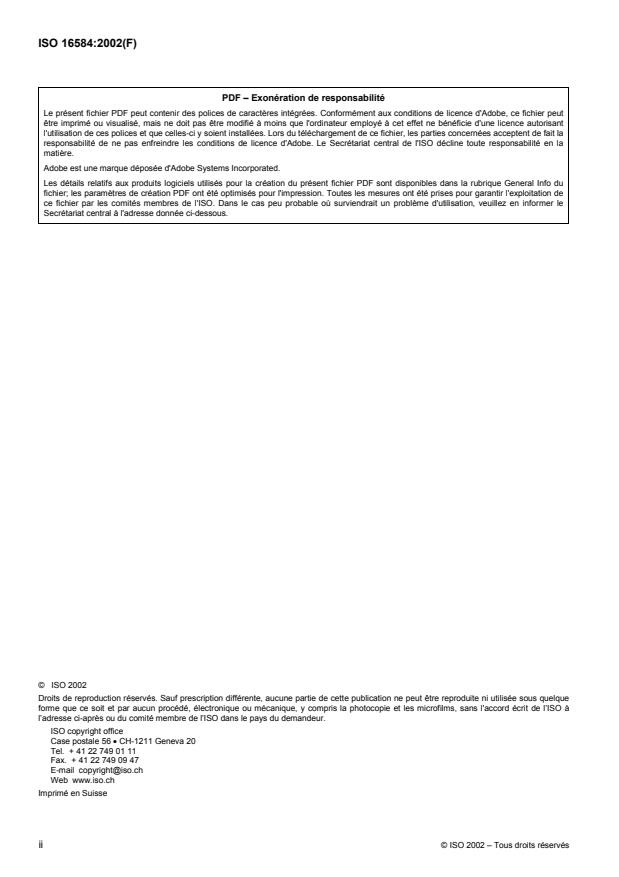

PDF – Exonération de responsabilité
Le présent fichier PDF peut contenir des polices de caractères intégrées. Conformément aux conditions de licence d'Adobe, ce fichier peut
être imprimé ou visualisé, mais ne doit pas être modifié à moins que l'ordinateur employé à cet effet ne bénéficie d'une licence autorisant
l'utilisation de ces polices et que celles-ci y soient installées. Lors du téléchargement de ce fichier, les parties concernées acceptent de fait la
responsabilité de ne pas enfreindre les conditions de licence d'Adobe. Le Secrétariat central de l'ISO décline toute responsabilité en la
matière.
Adobe est une marque déposée d'Adobe Systems Incorporated.
Les détails relatifs aux produits logiciels utilisés pour la création du présent fichier PDF sont disponibles dans la rubrique General Info du
fichier; les paramètres de création PDF ont été optimisés pour l'impression. Toutes les mesures ont été prises pour garantir l'exploitation de
ce fichier par les comités membres de l'ISO. Dans le cas peu probable où surviendrait un problème d'utilisation, veuillez en informer le
Secrétariat central à l'adresse donnée ci-dessous.


©  ISO 2002
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous quelque
forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit de l’ISO à
l’adresse ci-après ou du comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax. + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Imprimé en Suisse

ii © ISO 2002 – Tous droits réservés

---------------------- Page: 2 ----------------------
ISO 16584:2002(F)
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée aux
comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du comité
technique créé à cet effet. Les organisations internationales, gouvernementales et non gouvernementales, en
liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec la Commission
électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI,
Partie 3.
La tâche principale des comités techniques est d'élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur publication
comme Normes internationales requiert l'approbation de 75 % au moins des comités membres votants.
L'attention est appelée sur le fait que certains des éléments de la présente Norme internationale peuvent faire
l'objet de droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable de
ne pas avoir identifié de tels droits de propriété et averti de leur existence.
L'ISO 16584 a été élaborée par le comité technique ISO/TC 2, Éléments de fixation.
L’annexe A de la présente Norme internationale est donnée uniquement à titre d’information.
© ISO 2002 – Tous droits réservés iii

---------------------- Page: 3 ----------------------
NORME INTERNATIONALE ISO 16584:2002(F)

Rivets aveugles à rupture de tige à corps ouvert, à tête bombée —
NiCu/St ou NiCu/SSt
1 Domaine d'application
La présente Norme internationale spécifie les caractéristiques dimensionnelles et mécaniques ainsi que les
données d’application pour les rivets aveugles à rupture de tige à corps ouvert, à tête bombée, avec un corps en
alliage de nickel-cuivre (NiCu) et une tige soit en acier (St), soit en acier inoxydable (SSt), de diamètre nominal, d,
compris entre 3,2 mm et 6,4 mm inclus.
2 Références normatives
Les documents normatifs suivants contiennent des dispositions qui, par suite de la référence qui y est faite,
constituent des dispositions valables pour la présente Norme internationale. Pour les références datées, les
amendements ultérieurs ou les révisions de ces publications ne s’appliquent pas. Toutefois, les parties prenantes
aux accords fondés sur la présente Norme internationale sont invitées à rechercher la possibilité d'appliquer les
éditions les plus récentes des documents normatifs indiqués ci-après. Pour les références non datées, la dernière
édition du document normatif en référence s’applique. Les membres de l'ISO et de la CEI possèdent le registre des
Normes internationales en vigueur.
ISO 3269:2000, Éléments de fixation — Contrôle de réception
ISO 14588:2000, Rivets aveugles — Terminologie et définitions
ISO 14589:2000, Rivets aveugles — Essais mécaniques
3 Dimensions
3.1 Généralités
Les symboles et désignations des dimensions sont spécifiés dans l'ISO 14588.
3.2 Dimensions du rivet
Voir Figure 1 et Tableau 1.
© ISO 2002 – Tous droits réservés 1

---------------------- Page: 4 ----------------------
ISO 16584:2002(F)

Figure 1 — Dimensions du rivet
Tableau 1 — Dimensions du rivet
Dimensions en millimètres
nom. 3,2 4 4,8 6,4
d
max. 3,28 4,08 4,88 6,48
min. 3,05 3,85 4,65 6,25
Corps du rivet
max. 6,7 8,4 10,1 13,4
d
k
min. 5,8 6,9 8,3 11,6
k max. 1,3 1,7 2 2,7
d max. 2,15 2,75 3,2 3,9
m
Tige
p min. 25 27 27 27
Longueur totale
b max. l + 4 l + 4 l + 4,5 l + 5,5
max max max max
sous tête
Longueur du corps du rivet

a
l Plages de serrage recommandées
nom. = min. max.
...
