ISO 15481:1999

Cross recessed pan head drilling screws with tapping screw thread

Vis autoperceuses à tête cylindrique bombée large à empreinte cruciforme, avec filetage de vis à tôle

La présente Norme internationale spécifie les caractéristiques des vis autoperceuses à tête cylindrique bombée large à empreinte cruciforme, avec filetage de vis à tôle ST2,9 à ST6,3 inclus.

General Information

• Status: Published
• Publication Date: 01-Sep-1999
• ICS: 21.060.10 - Bolts, screws, studs
• Technical Committee: ISO/TC 2/SC 13 - Fasteners with non-metric thread
• Drafting Committee: ISO/TC 2/SC 13 - Fasteners with non-metric thread
• Current Stage: 9093 - International Standard confirmed
• Start Date: 10-Jul-2024
• Completion Date: 13-Dec-2025

Relations

• Consolidates: ISO 3189-1:1985 - Sockets for wire ropes for general purposes - Part 1: General characteristics and conditions of acceptance
• Effective Date: 06-Jun-2022

Overview

ISO 15481:1999 is an international standard published by the International Organization for Standardization (ISO) that specifies the characteristics of cross recessed pan head drilling screws with tapping screw thread designed for sheet metal applications. This standard defines essential parameters such as dimensions, thread types, head design, and mechanical properties for self-drilling screws with pan heads featuring cruciform recesses. These screws incorporate a tapping screw thread, making them suitable for drilling and fastening in thin metal sheets without pre-drilling holes.

The standard was developed by ISO Technical Committee ISO/TC 2 on Fasteners and is applicable to screws with thread sizes ranging from ST2.9 to ST6.3. ISO 15481 helps ensure consistent quality, compatibility, and performance for fastening components used in manufacturing and construction industries worldwide.

Key Topics

• Screw Type: Cross recessed pan head with a wide cylindrical dome shape suitable for self-drilling.
• Threading: Tapping screw thread specifically designed for sheet metal fastening (sizes ST2.9 to ST6.3).
• Dimensions and Tolerances: Detailed dimensional specifications including thread pitch, head dimensions, and recess depth; critical for ensuring interchangeability and proper fitting.
• Drive Types: Specifies two types of cruciform recesses (Type H and Type Z) that influence torque application and driver compatibility.
• Material and Mechanical Properties: References ISO 10666 for mechanical and functional requirements, ensuring optimal strength and durability.
• Surface Finishing: Guidelines for electroplating and other treatments as per ISO 4042 to enhance corrosion resistance.
• Quality Control: Includes acceptance inspection criteria based on ISO 3269 to maintain consistent manufacturing standards.

Applications

ISO 15481 screws are primarily used in applications requiring secure fastening in thin metal sheets where self-drilling capabilities reduce assembly time and eliminate the need for pre-drilled holes. Typical use cases include:

• Building and Construction: Securing roofing sheets, wall cladding, HVAC panels, and metal frameworks.
• Automotive and Transportation: Fastening interior and exterior vehicle panels, mounting brackets, and assemblies where sheet metal components are common.
• Electrical Equipment: Securing enclosures, equipment boxes, and components manufactured from sheet metal.
• Industrial Manufacturing: Assembly of appliances, machinery, and fabricated metal products that require reliable self-drilling fasteners.

By complying with ISO 15481, manufacturers and users ensure their screws meet stringent performance and quality benchmarks, leading to more reliable joints, reduced installation time, and improved overall safety.

Related Standards

To fully apply and understand ISO 15481, several related ISO standards are referenced and important for comprehensive implementation:

• ISO 10666: Covers mechanical and functional properties of self-drilling screws.
• ISO 1478: Details the threading specifications for sheet metal screws.
• ISO 4757: Defines characteristics of cruciform recesses for fastening screws.
• ISO 4759-1: Specifies tolerances for fasteners including screws, studs, and nuts.
• ISO 4042: Addresses electrolytic coatings for fasteners to improve corrosion resistance.
• ISO 3269: Establishes acceptance inspection procedures for fasteners.

These interconnected standards ensure that screws manufactured and used under ISO 15481 are fully compliant with industry requirements for mechanical strength, dimensional accuracy, corrosion protection, and quality assurance.

---

ISO 15481:1999 is a vital reference for engineers, manufacturers, and quality managers involved in the design, production, and use of self-drilling pan head screws with tapping threads, especially in sheet metal fabrication. Utilizing this standard supports efficient assembly processes, consistent product quality, and enhanced fastening reliability in various industrial sectors.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 15481
First edition
1999-08-01
Cross recessed pan head drilling screws
with tapping screw thread
Vis autoperceuses à tête cylindrique bombée large à empreinte cruciforme,
avec filetage de vis à tôle
A
Reference number

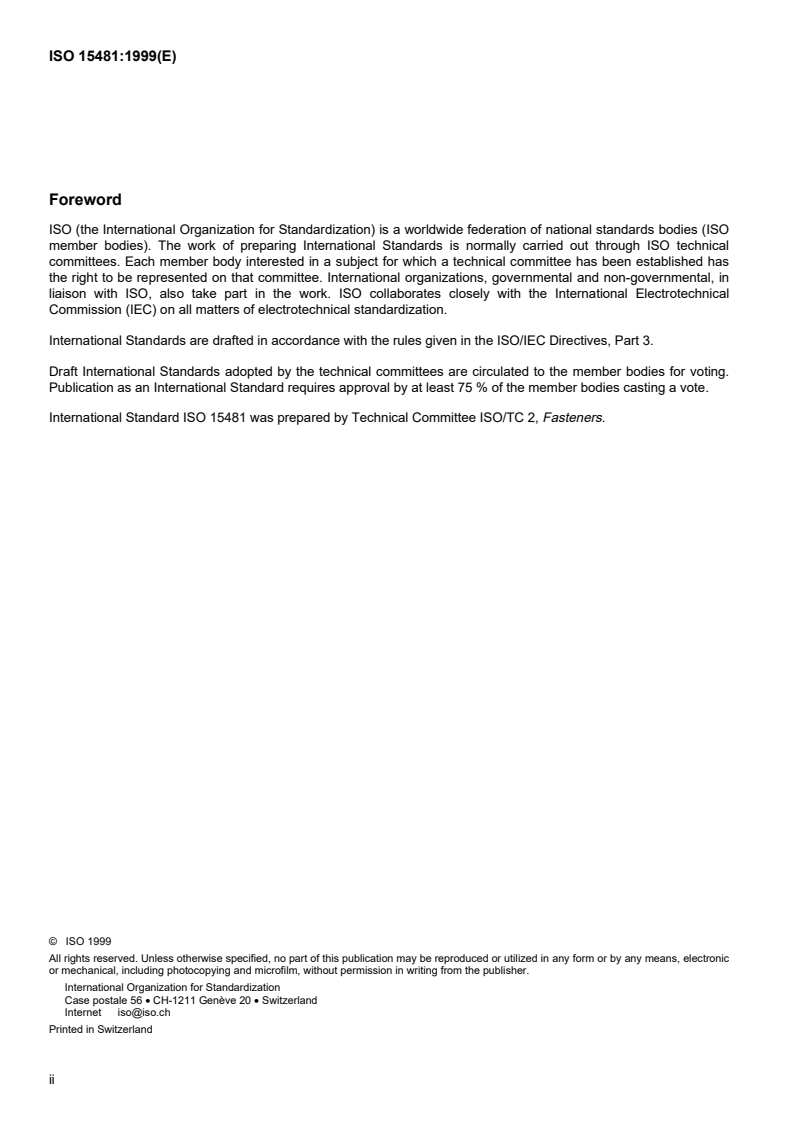

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
International Standard ISO 15481 was prepared by Technical Committee ISO/TC 2, .
Fasteners
©  ISO 1999
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet [e-mail]
Printed in Switzerland
ii
©
INTERNATIONAL STANDARD  ISO ISO 15481:1999(E)
Cross recessed pan head drilling screws with tapping screw
thread
1 Scope
This International Standard specifies the characteristics of cross recessed pan head drilling screws with tapping
screw threads from ST2,9 up to and including ST6,3.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this International Standard. For dated references, subsequent amendments to, or revisions of, any of these
publications do not apply. However, parties to agreements based on this International Standard are encouraged to
investigate the possibility of applying the most recent editions of the normative documents indicated below. For
undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC
maintain registers of currently valid International Standards.
ISO 1478:1999, Tapping screw thread.
1)
ISO 3269:— , Fasteners — Acceptance inspection.
ISO 4042:1999, Fasteners — Electroplated coatings.
ISO 4757:1983, Cross recesses for screws.
2)
ISO 4759-1:— , Tolerances for fasteners — Part 1: Bolts, screws, studs and nuts — Product grades A, B and C.
ISO 10666:1
...

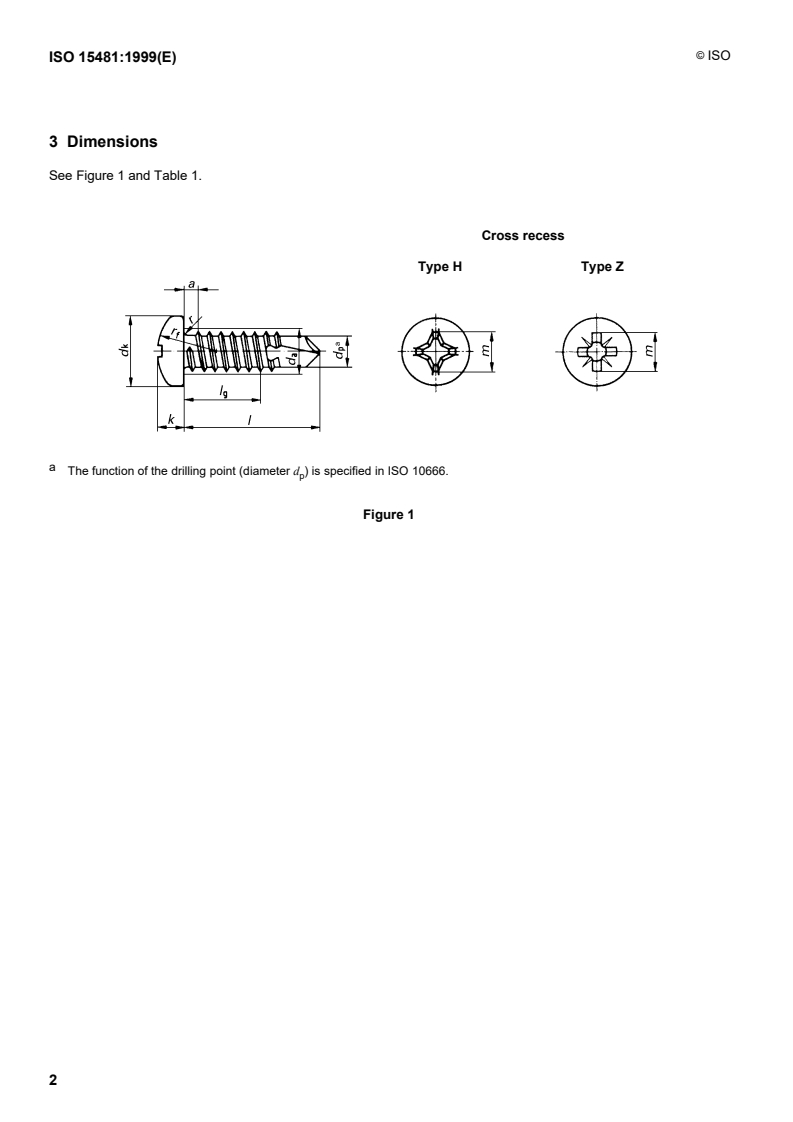

NORME ISO
INTERNATIONALE 15481
Première édition
1999-08-01
Vis autoperceuses à tête cylindrique
bombée large à empreinte cruciforme,
avec filetage de vis à tôle
Cross recessed pan head drilling screws with tapping screw thread
A
Numéro de référence

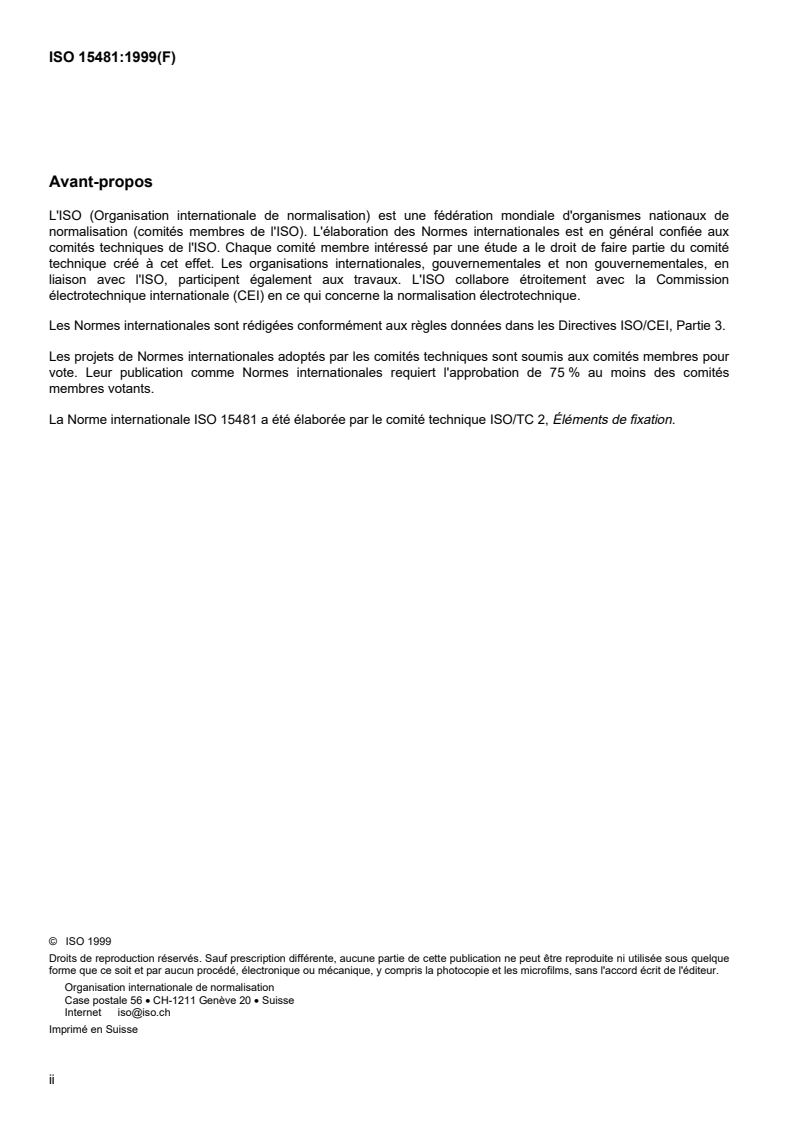

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée aux
comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du comité
technique créé à cet effet. Les organisations internationales, gouvernementales et non gouvernementales, en
liaison avec l'ISO, participent également aux travaux. L'ISO collabore étroitement avec la Commission
électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI, Partie 3.
Les projets de Normes internationales adoptés par les comités techniques sont soumis aux comités membres pour
vote. Leur publication comme Normes internationales requiert l'approbation de 75 % au moins des comités
membres votants.
La Norme internationale ISO 15481 a été élaborée par le comité technique ISO/TC 2, Éléments de fixation.
©  ISO 1999
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous quelque
forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit de l'éditeur.
Organisation internationale de normalisation
Case postale 56 • CH-1211 Genève 20 • Suisse
Internet [e-mail]
Imprimé en Suisse
ii
NORME INTERNATIONALE  © ISO ISO 15481:1999(F)
Vis autoperceuses à tête cylindrique bombée large
à empreinte cruciforme, avec filetage de vis à tôle
1 Domaine d’application
La présente Norme internationale spécifie les caractéristiques des vis autoperceuses à tête cylindrique bombée
large à empreinte cruciforme, avec filetage de vis à tôle ST2,9 à ST6,3 inclus.
2 Références normatives
Les documents normatifs suivants contiennent des dispositions qui, par suite de la référence qui en est faite,
constituent des dispositions valables pour la présente Norme internationale. Pour les références datées, les
amendements ultérieurs ou les révisions de ces publications ne s’appliquent pas. Toutefois, les parties prenantes
aux accords fondés sur la présente Norme internationale sont invitées à rechercher la possibilité d'appliquer les
éditions les plus récentes des documents normatifs indiqués ci-après. Pour les références non datées, la dernière
édition du document normatif en référence s’applique. Les membres de la CEI et de l'ISO possèdent le registre des
Normes internationales en vigueur à un moment donné.
ISO 1478:1999, Filetage de vis à tôle.
1)
ISO 3269:— , Éléments de fixation — Contrôle de réception.
ISO 4042:1999, Éléments de fixation — Revêtements électrolytique
...
