ISO 4437-3

• Abstract:

  This document specifies the characteristics of fusion fittings made from polyethylene (PE) as well as of mechanical fittings for piping systems in the field of the supply of gaseous fuels. It also specifies the test parameters for the test methods referred to in this document. In conjunction with ISO 4437-1, ISO 4437-2, ISO 4437-4 and ISO 4437-5, this document is applicable to PE pipes, fittings and valves, their joints, and joints with components of PE and other materials intended to be used under the following conditions: a) a maximum operating pressure (MOP), up to and including 10 bar[1], at a reference temperature of 20 °C for design purposes; b) an operating temperature between −20 °C and 40 °C. For operating temperatures between 20 °C and 40 °C, derating coefficients are defined in ISO 4437-5. The ISO 4437 series covers a range of maximum operating pressures and gives requirements concerning colours. It is the responsibility of the purchaser or specifier to make the appropriate selections from these aspects, taking into account their particular requirements and any relevant national regulations and installation practices or codes. This document is applicable for fittings of the following types: — electrofusion socket fittings; — electrofusion saddle fittings; — spigot end fittings (for butt fusion using heated tools and electrofusion socket fusion); — socket fusion fittings; — mechanical fittings. NOTE 1 The fittings can be, for example, in the form of couplers, saddles, equal and reduced tees, reducers, elbows, bends or end caps. NOTE 2 Fabricated fittings are normally not used for gas applications except for larger dimensions or in the absence of other solutions. Guidance can be found in ISO 4427-3:2019, Annex B. [1] 1 bar = 0,1 MPa = 105 Pa; 1 MPa = 1 N/mm2.

• Status: Not Published
• ICS: 75.200 - Petroleum products and natural gas handling equipment
• ICS: 83.140.30 - Plastics pipes and fittings for non fluid use
• Technical Committee: ISO/TC 138/SC 4 - Plastics pipes and fittings for the supply of gaseous fuels
• Drafting Committee: ISO/TC 138/SC 4/WG 3 - PE Pipe Systems
• Current Stage: 6000 - International Standard under publication
• Start Date: 18-Aug-2026
• Completion Date: 26-Sep-2026

• Revises: ISO 4437-3:2024 - Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 3: Fittings
• Effective Date: 21-Sep-2024

Overview

ISO 4437-3: Plastics piping systems for the supply of gaseous fuels - Polyethylene (PE) - Part 3: Fittings is an international standard developed by ISO. This standard defines the characteristics and requirements for polyethylene (PE) fusion fittings and mechanical fittings used in piping systems designed for the transportation and supply of gaseous fuels. It applies to a range of fittings types, including electrofusion socket fittings, electrofusion saddle fittings, spigot end fittings, socket fusion fittings, and mechanical fittings.

The standard is designed for use alongside other parts of the ISO 4437 series, ensuring that PE pipes, fittings, valves, and their connections meet stringent requirements for safety, performance, and reliability under specific operating conditions. It specifies maximum operating pressure (MOP) up to 10 bar at 20 °C and operation within a temperature range from -20 °C to 40 °C.

Key Topics

• Types of Fittings: ISO 4437-3 covers multiple types of fittings essential for constructing PE gas piping systems, including:

  • Electrofusion socket fittings
  • Electrofusion saddle fittings
  • Spigot end fittings
  • Socket fusion fittings
  • Mechanical fittings

• Material Requirements: The standard details the use of PE compounds and materials suitable for components exposed to gaseous fuels while ensuring resistance to internal pressure and compatibility with other system elements.

• Performance and Testing: It provides parameters for testing methods, such as short-term pressure and tensile tests, ensuring fittings perform safely and reliably throughout their service life.

• Operating Conditions: Defines the performance criteria for fittings under typical operating pressures and temperatures, with guidance for derating at higher temperatures.

• Marking and Identification: Specifies requirements for the clear and traceable marking of fittings, supporting proper installation and compliance.

• Connection Types and Joint Performance: Addresses fusion jointing (electrofusion, butt fusion, socket fusion) as well as mechanical joining methods, supporting various installation and maintenance needs.

Applications

ISO 4437-3 is central to the design, specification, and installation of plastic piping systems for gaseous fuels. Its practical applications include:

• Gas Distribution Networks: Ensuring safe, reliable supply lines for natural gas and related fuels in municipal and utility infrastructures.
• Industrial Gas Transport: Applied in facilities requiring robust and durable piping for fuel gases.
• Building Services: Used in the internal and external piping systems of commercial and residential properties.
• Hydrogen and Fuel Gas Mixtures: With reference to hydrogen compatibility, the standard supports the evolving needs of sustainable energy distribution, including systems designed for hydrogen or blended gases.

ISO 4437-3 assists specifying engineers, manufacturers, installers, and regulatory bodies in selecting appropriate fittings that perform under designated pressures, temperatures, and environmental conditions. The standard supports compliance with national regulations and best practices for installation and safety.

Related Standards

ISO 4437-3 is part of the comprehensive ISO 4437 series, each part addressing distinct aspects of PE piping systems for gaseous fuels:

• ISO 4437-1: General requirements for piping systems
• ISO 4437-2: Specifications for PE pipes
• ISO 4437-4: Valves and respective requirements
• ISO 4437-5: Fitness for purpose and derating guidance for operating temperatures above 20 °C

Additional related standards referenced for testing, installation, and component requirements include:

• ISO 17885: Specifications for plastic mechanical fittings in pressure piping
• ISO 13950, ISO 13951, ISO 13953: Test methods for fusion joints and assemblies
• ISO/TS 10839: Guidance for system design, handling, and installation

Aligning with these standards ensures a fully compliant, safe, and efficient gas supply system using PE piping and fittings.

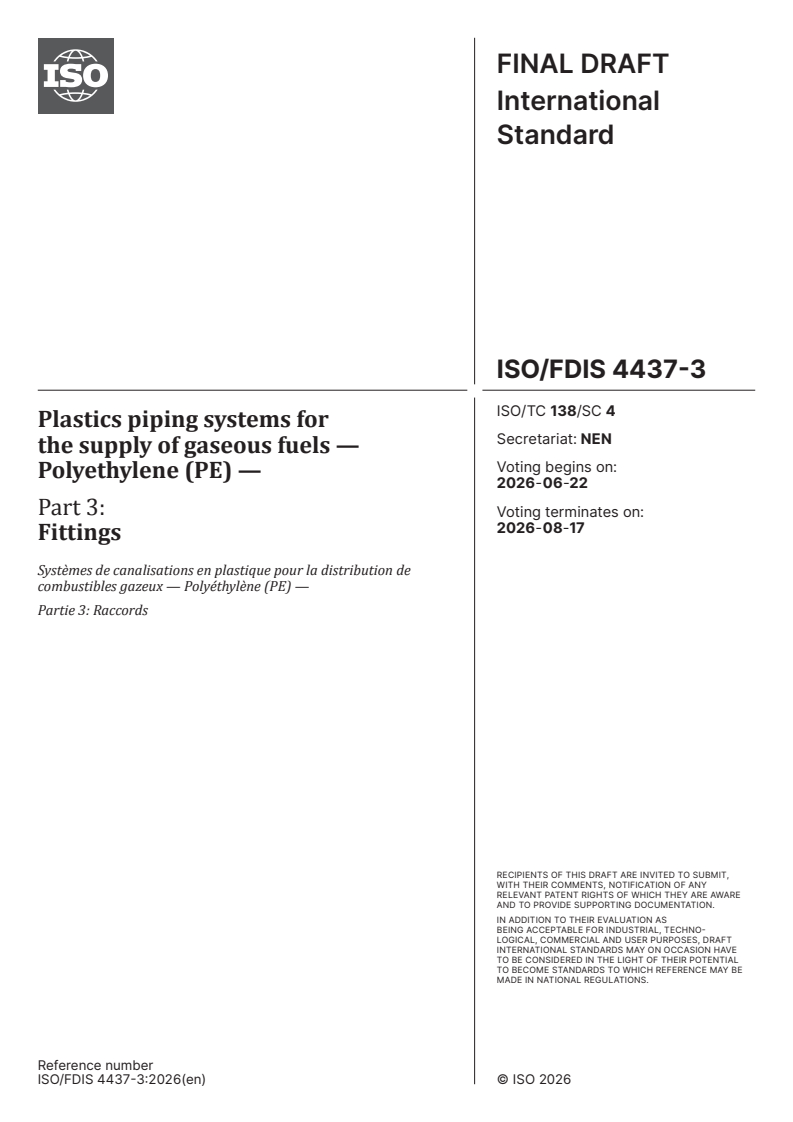

FINAL DRAFT
International
Standard
ISO/FDIS 4437-3
ISO/TC 138/SC 4
Plastics piping systems for
Secretariat: NEN
the supply of gaseous fuels —
Voting begins on:
Polyethylene (PE) —
2026-06-22
Part 3:
Voting terminates on:
2026-08-17
Fittings
Systèmes de canalisations en plastique pour la distribution de
combustibles gazeux — Polyéthylène (PE) —
Partie 3: Raccords
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
ISO/FDIS 4437-3:2026(en) © ISO 2026

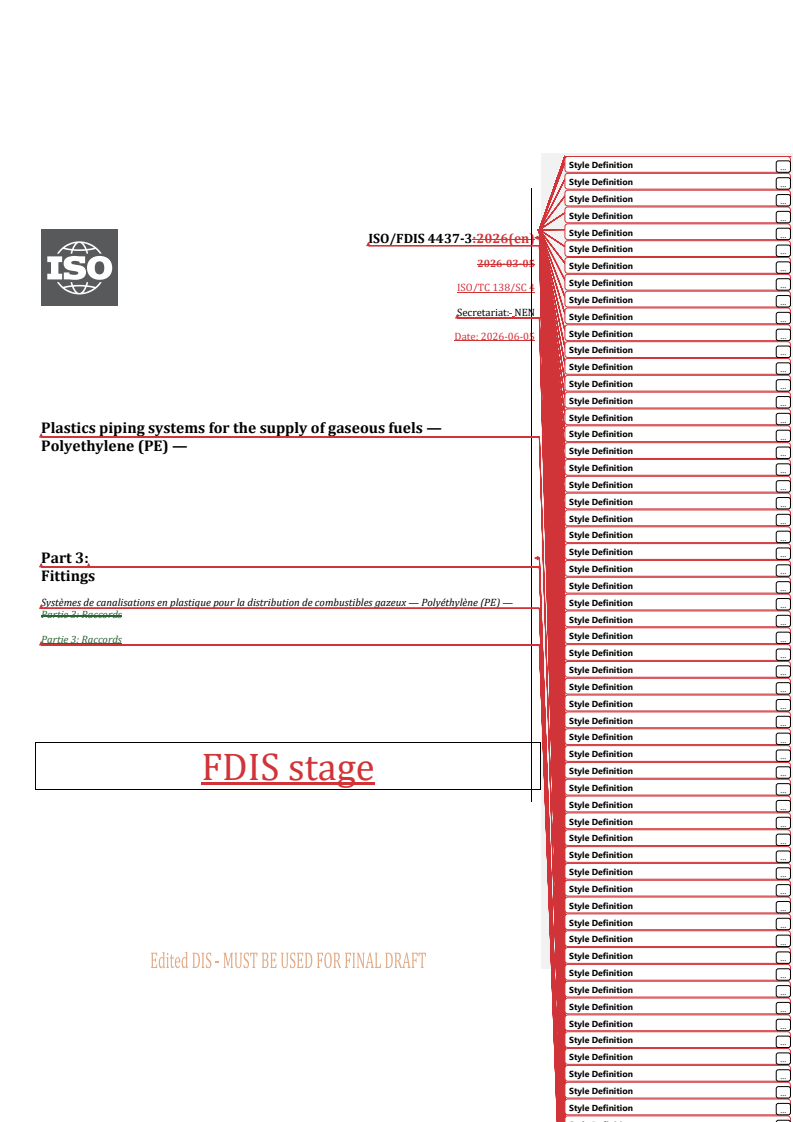

FINAL DRAFT
ISO/FDIS 4437-3:2026(en)
International
Standard
ISO/FDIS 4437-3
ISO/TC 138/SC 4
Plastics piping systems for
Secretariat: NEN
the supply of gaseous fuels —
Voting begins on:
Polyethylene (PE) —
Part 3:
Voting terminates on:
Fittings
Systèmes de canalisations en plastique pour la distribution de
combustibles gazeux — Polyéthylène (PE) —
Partie 3: Raccords
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.

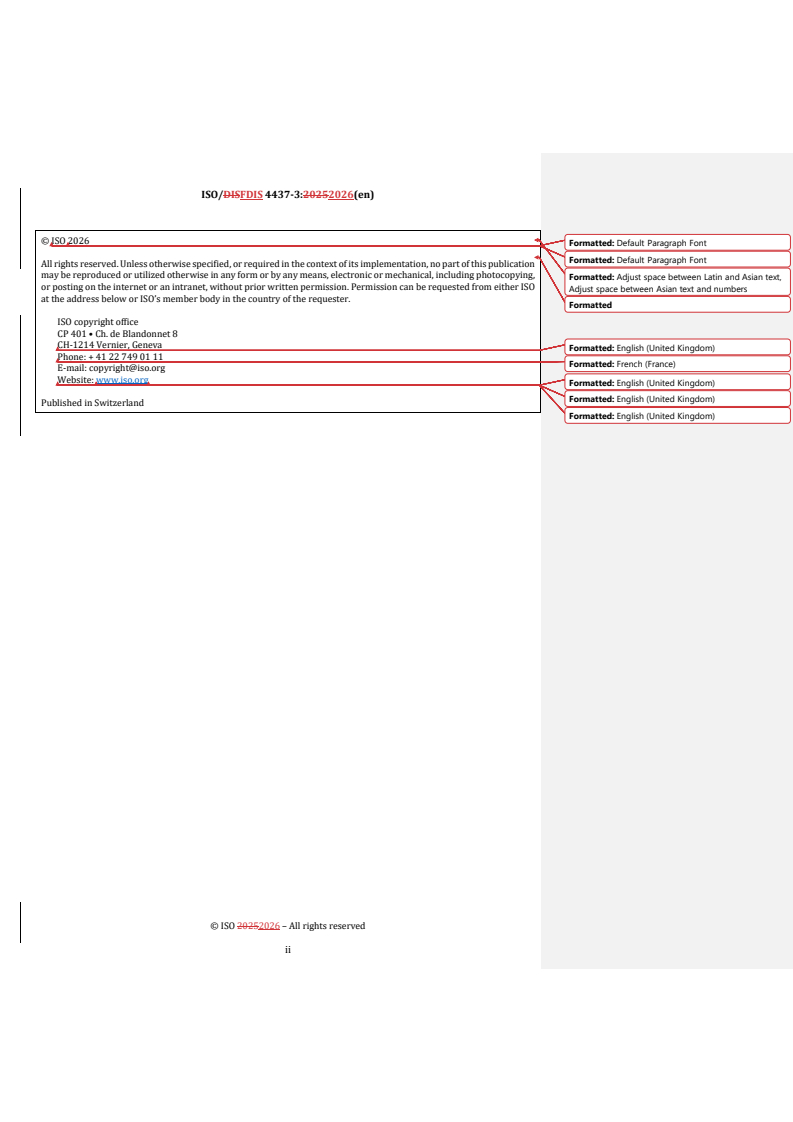

© ISO 2026
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland Reference number
ISO/FDIS 4437-3:2026(en) © ISO 2026

ii
ISO/FDIS 4437-3:2026(en)

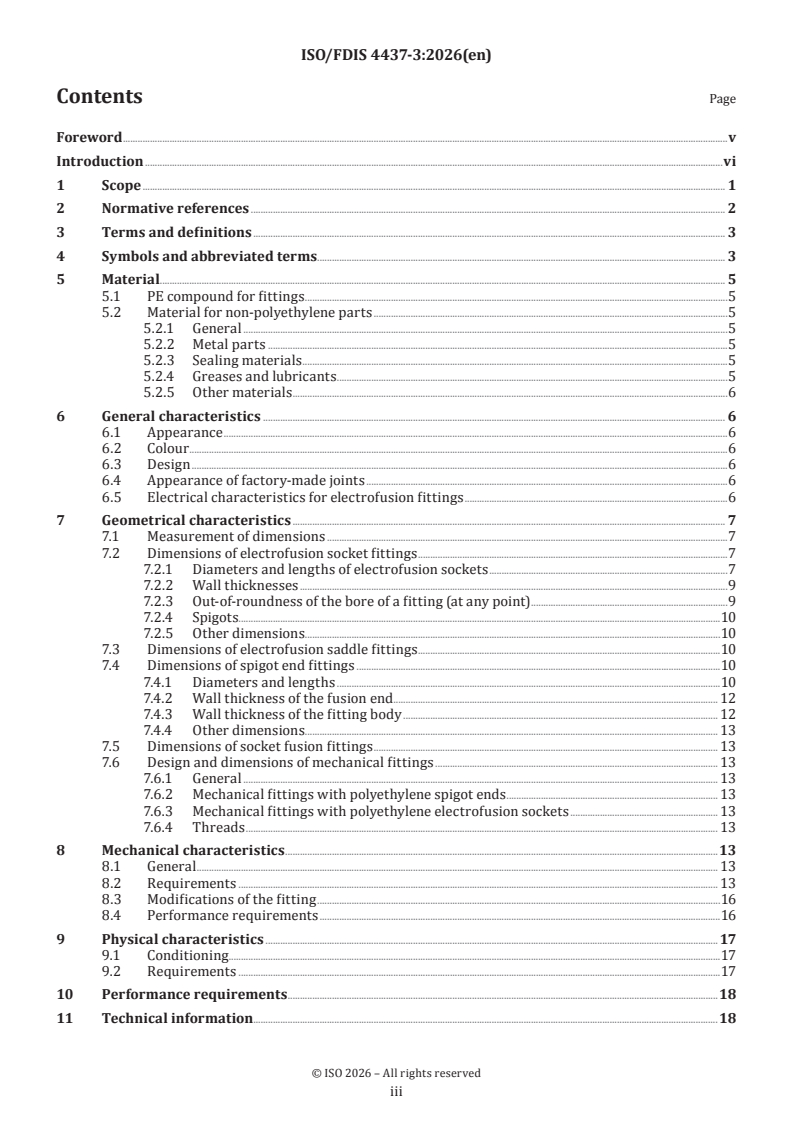

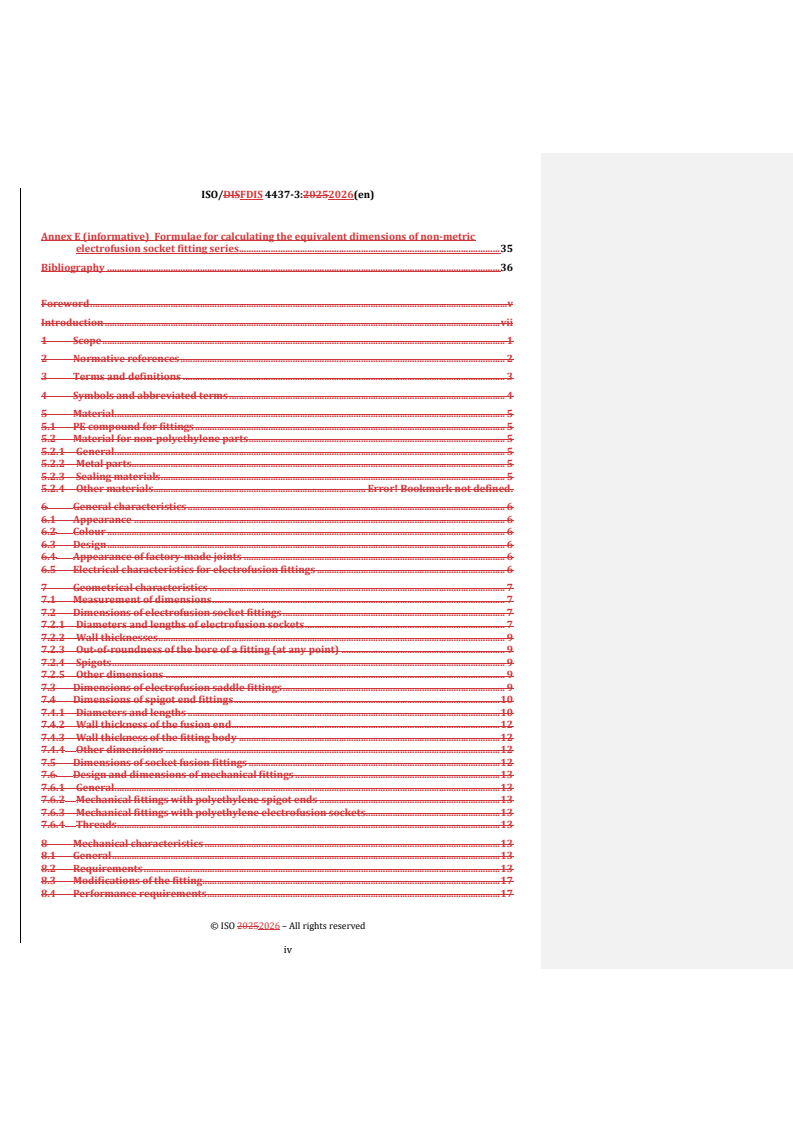

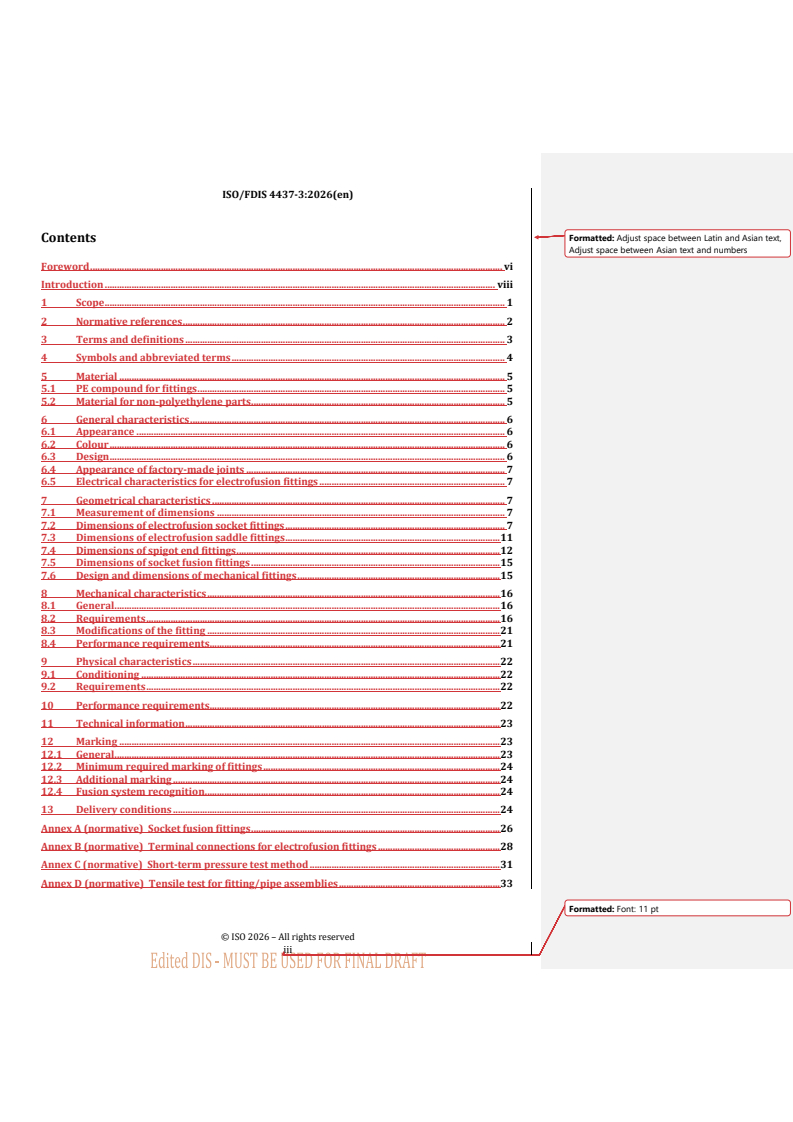

Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 3
4 Symbols and abbreviated terms. 3
5 Material. 5
5.1 PE compound for fittings .5
5.2 Material for non-polyethylene parts .5
5.2.1 General .5
5.2.2 Metal parts .5
5.2.3 Sealing materials .5
5.2.4 Greases and lubricants .5
5.2.5 Other materials .6
6 General characteristics . 6
6.1 Appearance .6
6.2 Colour .6
6.3 Design .6
6.4 Appearance of factory-made joints .6
6.5 Electrical characteristics for electrofusion fittings .6
7 Geometrical characteristics . 7
7.1 Measurement of dimensions .7
7.2 Dimensions of electrofusion socket fittings .7
7.2.1 Diameters and lengths of electrofusion sockets .7
7.2.2 Wall thicknesses .9
7.2.3 Out-of-roundness of the bore of a fitting (at any point) .9
7.2.4 Spigots.10
7.2.5 Other dimensions.10
7.3 Dimensions of electrofusion saddle fittings .10
7.4 Dimensions of spigot end fittings .10
7.4.1 Diameters and lengths .10
7.4.2 Wall thickness of the fusion end . 12
7.4.3 Wall thickness of the fitting body . 12
7.4.4 Other dimensions. 13
7.5 Dimensions of socket fusion fittings . 13
7.6 Design and dimensions of mechanical fittings . 13
7.6.1 General . 13
7.6.2 Mechanical fittings with polyethylene spigot ends . 13
7.6.3 Mechanical fittings with polyethylene electrofusion sockets . 13
7.6.4 Threads . 13
8 Mechanical characteristics .13
8.1 General . 13
8.2 Requirements . 13
8.3 Modifications of the fitting .16
8.4 Performance requirements .16
9 Physical characteristics . 17
9.1 Conditioning.17
9.2 Requirements .17
10 Performance requirements . .18
11 Technical information.18

iii
ISO/FDIS 4437-3:2026(en)

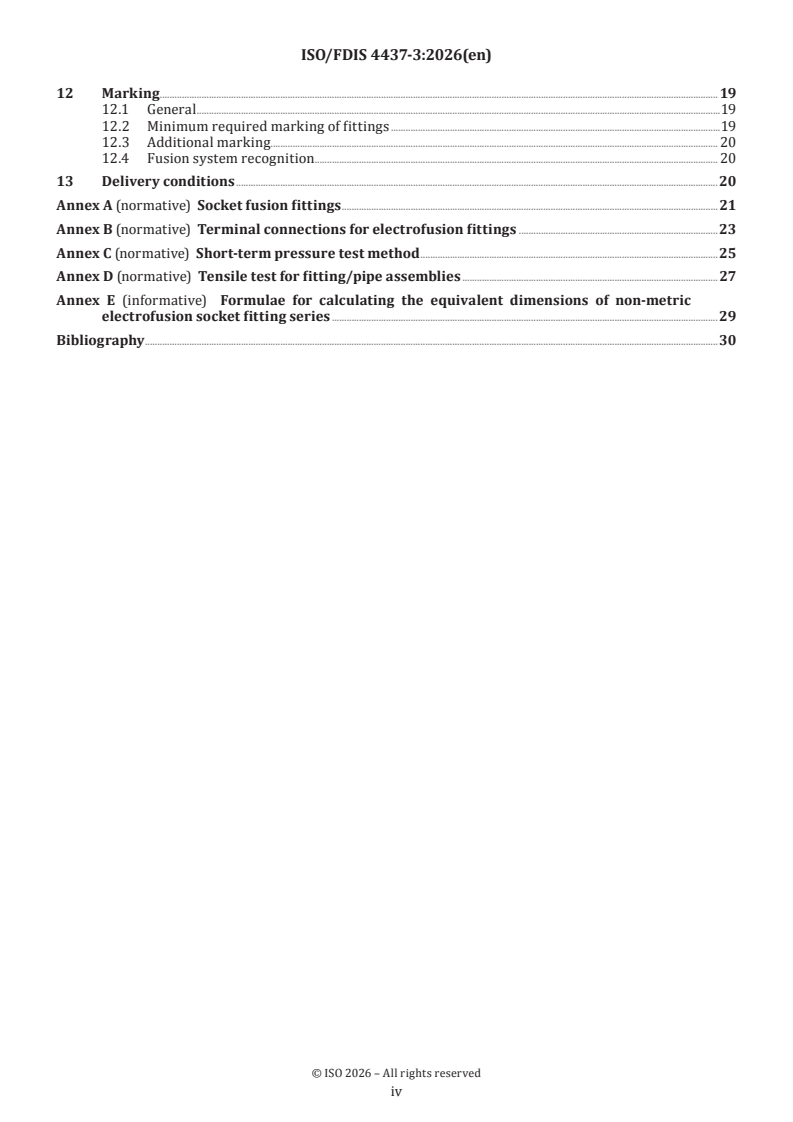

12 Marking . . 19
12.1 General .19
12.2 Minimum required marking of fittings .19
12.3 Additional marking. 20
12.4 Fusion system recognition . 20
13 Delivery conditions .20
Annex A (normative) Socket fusion fittings .21
Annex B (normative) Terminal connections for electrofusion fittings .23
Annex C (normative) Short-term pressure test method .25
Annex D (normative) Tensile test for fitting/pipe assemblies .27
Annex E (informative) Formulae for calculating the equivalent dimensions of non-metric
electrofusion socket fitting series .29
Bibliography .30

iv
ISO/FDIS 4437-3:2026(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 138, Plastics pipes, fittings and valves for the
transport of fluids, Subcommittee SC 4, Plastics pipes and fittings for the supply of gaseous fuels.
This third edition cancels and replaces the second edition (ISO 4437-3:2024), which has been technically
revised.
The main changes are as follows:
— reference to information related to the suitability of PE pipe systems for 100 % hydrogen and its
admixtures with natural gas has been made;
— terms and definitions have been distributed over ISO 4437-1, ISO 4437-2 and ISO 4437-3;
— symbols and their definitions for geometrical characteristics on electrofusion socket fittings, spigot
end fittings, socket fusion fittings and tapping tees have been harmonized with other standards in
ISO/TC 138;
— Clause 5 has been restructured;
— the minimum bore for electrofusion socket fittings have been harmonized with the minimum bore of
spigot end fittings;
— the performance requirements for joints have been mentioned more explicitly by adding Table 8.
A list of all parts in the ISO 4437 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

v
ISO/FDIS 4437-3:2026(en)
Introduction
The ISO 4437 series specifies the requirements for a piping system and its components made from
polyethylene (PE) compounds, which is intended to be used for the supply of gaseous fuels.
This document covers the characteristics of fittings.
Requirements and test methods for materials and components, other than fittings, are specified in
ISO 4437-1, ISO 4437-2 and ISO 4437-4.
Characteristics for fitness for purpose of the system are covered in ISO 4437-5. ISO/TS 4437-7 gives guidance
for assessment of conformity.
Recommended practice for design, handling and installation is given in ISO/TS 10839.
The ISO 4437 series covers a range of MOPs and gives requirements concerning colours.

vi
FINAL DRAFT International Standard ISO/FDIS 4437-3:2026(en)
Plastics piping systems for the supply of gaseous fuels —
Polyethylene (PE) —
Part 3:
Fittings
1 Scope
This document specifies the characteristics of fusion fittings made from polyethylene (PE) as well as of
mechanical fittings for piping systems in the field of the supply of gaseous fuels.
NOTE 1 Additional information related to the installation of PE 100-RC systems is given in ISO/FDIS 4437-1:2026,
Annex A.
NOTE 2 Additional information about the suitability of PE pipe systems for hydrogen and its admixtures is given in
ISO/FDIS 4437-1:2026, Annex D.
It also specifies the test parameters for the test methods referred to in this document.
In conjunction with ISO 4437-1, ISO 4437-2, ISO 4437-4 and ISO 4437-5, this document is applicable to PE
pipes, fittings and valves, their joints, and joints with components of PE and other materials intended to be
used under the following conditions:
1)
a) a maximum operating pressure, MOP, up to and including 10 bar , at a design reference temperature of
20 °C;
b) an operating temperature between −20 °C and 40 °C.
For operating temperatures between 20 °C and 40 °C, derating coefficients are specified in ISO 4437-5.
This document is applicable for fittings of the following types:
— electrofusion socket fittings;
— electrofusion saddle fittings;
— spigot end fittings (for butt fusion using heated tools and electrofusion);
— socket fusion fittings;
— mechanical fittings.
It is the responsibility of the purchaser or specifier to make the appropriate selections from these aspects,
taking into account their particular requirements and any relevant national guidance or regulations and
installation practices or codes.
NOTE 3 The fittings can be, for example, in the form of couplers, saddles, equal and reduced tees, reducers, elbows,
bends or end caps.
NOTE 4 Fabricated fittings are normally not used for gas applications except for larger dimensions or in the absence
of other solutions. Guidance can be found in ISO 4427-3:2019, Annex B.
5 2
1) 1 bar = 0,1 MPa = 10 Pa; 1 MPa = 1 N/mm .

ISO/FDIS 4437-3:2026(en)
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 7-1, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances and
designation
ISO 228-1, Pipe threads where pressure-tight joints are not made on the threads — Part 1: Dimensions, tolerances
and designation
ISO 1133-1, Plastics — Determination of the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of
thermoplastics — Part 1: Standard method
ISO 1167-1:2006, Thermoplastics pipes, fittings and assemblies for the conveyance of fluids — Determination of
the resistance to internal pressure — Part 1: General method
ISO 1167-4, Thermoplastics pipes, fittings and assemblies for the conveyance of fluids — Determination of the
resistance to internal pressure — Part 4: Preparation of assemblies
ISO 3126, Plastics piping systems — Plastics components — Determination of dimensions
ISO 4437-1:2026, Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 1: General
ISO 4437-2:2026, Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 2: Pipes
ISO 4437-5, Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 5: Fitness for
purpose of the system
ISO 11357-6, Plastics — Differential scanning calorimetry (DSC) — Part 6: Determination of oxidation induction
time (isothermal OIT) and oxidation induction temperature (dynamic OIT)
ISO 12176-5, Plastics pipes and fittings — Equipment for fusion jointing polyethylene systems — Part 5: Two-
dimensional data coding of components and data exchange format for PE piping systems
ISO 13950, Plastics pipes and fittings — Automatic recognition systems for electrofusion joints
ISO 13951, Plastics piping systems — Test method for the resistance of plastic pipe/pipe or pipe/fitting
assemblies to tensile loading
ISO 13953, Polyethylene (PE) pipes and fittings — Determination of the tensile strength and failure mode of test
pieces from a butt-fused joint
ISO 13954, Plastics pipes and fittings — Peel decohesion test for polyethylene (PE) electrofusion assemblies of
nominal outside diameter greater than or equal to 90 mm
ISO 13955, Plastics pipes and fittings — Crushing decohesion test for polyethylene (PE) electrofusion assemblies
ISO 13956, Plastics pipes and fittings — Decohesion test of polyethylene (PE) saddle fusion joints — Evaluation
of ductility of fusion joint interface by tear test
ISO 13957, Plastics pipes and fittings — Polyethylene (PE) tapping tees — Test method for impact resistance
ISO 16010, Elastomeric seals — Material requirements for seals used in pipes and fittings carrying gaseous fuels
and hydrocarbon fluids
ISO 17778, Plastics piping systems — Fittings, valves and ancillaries — Determination of gaseous flow rate/
pressure drop relationships
ISO 17885:2021, Plastics piping systems — Mechanical fittings for pressure piping systems — Specifications
ISO 18488, Polyethylene (PE) materials for piping systems — Determination of strain hardening modulus in
relation to slow crack growth — Test method

ISO/FDIS 4437-3:2026(en)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 4437-1, ISO 4437-2 and the
following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
electrofusion socket fitting
fitting which contains one or more integrated heating elements that are capable of transforming electrical
energy into heat to realize a fusion joint with a spigot end or a pipe
3.2
electrofusion saddle fitting
fitting which contains one or more integrated heating elements that are capable of transforming electrical
energy into heat to realize a fusion joint onto a pipe
3.2.1
tapping tee
electrofusion saddle fitting (3.2) (top loading or wrap round) that contains a cutter to tap through the wall of
the main pipe and remains in the body of this fitting
3.2.2
branch saddle
electrofusion saddle fitting (3.2) (top loading or wrap round) that requires an ancillary cutting tool for
drilling a hole in the adjoining main pipe
3.3
spigot end fitting
fitting where the outside diameter of the spigot end is equal to the nominal outside diameter, d , of the
n
corresponding pipe
3.4
socket fusion fitting
fitting designed to accept the insertion of a pipe or spigot end to realize a fusion joint between mating
surfaces using the socket fusion process
3.5
mechanical fitting
fitting for assembling plastics pipes with each other or with a metal pipe or fitting, that includes one or more
compression zones to provide pressure integrity, leak tightness and resistance to end loads
[SOURCE: ISO 17885:2021, 3.1.1]
4 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in ISO 4437-1, ISO 4437-2 and
the following apply.
ISO/FDIS 4437-3:2026(en)
A percentage of decohesion (area)
d
c outside diameter of the terminal shroud
c diameter of the contact area of the terminal
c internal diameter of the terminal shroud
c maximum overall diameter of the base of the contact area
D mean outside diameter of the fusion end piece
D mean inside diameter in the fusion zone measured in a plane parallel to the plane of the mouth at a
distance of L + 0,5L from that face
3 2
D bore, i.e. the minimum diameter of the flow channel through the plastic body of the fitting
D mean inside mouth diameter of the socket, i.e. the mean diameter of the circle at the intersection of
the extension of the socket with the plane of the socket mouth
D mean inside root diameter of the socket, i.e. the mean diameter of the circle in a plane parallel to the
plane of the mouth and separated from it by a distance of L which is the reference length of the socket
E fusion face wall thickness
E wall thickness (at any point) of the fitting body
h internal depth of the terminal shroud
h distance between the upper part of the terminal shroud and the contact area
h height of the contact area
H height of the saddle, i.e. the distance from the top of the main pipe to the top of the tapping tee or saddle
H height of the service pipe, i.e. the distance from the top of the main pipe to the axis of the service pipe
L depth of penetration of the pipe or spigot end fitting
L heated length within the socket, i.e. the nominal length of the fusion zone as declared by the man-
ufacturer
L distance between the mouth of the fitting and the start of the fusion zone, i.e. the nominal unheated
entrance length of the fitting as declared by the manufacturer
L cut-back length of the fusion end piece
L tubular length of the fusion end piece
L socket length, i.e. the length from mouth to shoulder, if any
L insertion depth, i.e. the depth of the heated pipe end into the socket
L heated socket length, i.e. the length of penetration of the heated tool into the socket
L reference socket length, i.e. the theoretical minimum socket length used for the purpose of calculation
L heated pipe length, i.e. the depth of penetration of the pipe end into the heated tool
L percentage of decohesion (length)
d
ISO/FDIS 4437-3:2026(en)
W width of the tapping tee, i.e. the distance between the axis of the main pipe and the plane of the
mouth of the service tee
5 Material
5.1 PE compound for fittings
The stress-bearing PE parts of injection moulded fittings or compression moulded plates, for example the
main body of the fitting, shall only be made from virgin material conforming to ISO 4437-1. The stress-
bearing PE parts of fittings made from pipe shall be made from pipe conforming to ISO 4437-2, except for the
geometrical characteristics.
Other PE materials may be used for non-stress-bearing parts, e.g. clamps for electrofusion saddle fittings
that only maintain a function during installation.
A fitting can only be designated as a PE 100-RC fitting if:
— the stress bearing part is produced from PE 100-RC materials which fulfil the requirements of
ISO 4437-1:2026, Tables 1 and 2, and are declared as PE 100-RC by the raw material producer;
— it fulfils the requirements of Table 4 of this document for PE 100-RC.
5.2 Material for non-polyethylene parts
5.2.1 General
All components shall conform to the relevant International Standards. Alternative standards may be applied
in cases where suitable International Standards do not exist.
The materials and the constituent elements used in making the fitting (including elastomers and any metal
parts used) shall be as resistant to the external and internal environments as the other elements of the
piping system.
Other materials used in fittings in contact with the PE pipe shall not adversely affect pipe performance or
initiate stress cracking.
In all cases, fitness for purpose of the system of the components shall be demonstrated.
5.2.2 Metal parts
All metal parts susceptible to corrosion shall be adequately protected, providing this is necessary for the
durability and function of the system.
When dissimilar metallic materials are used, galvanic corrosion shall be avoided.
5.2.3 Sealing materials
Elastomeric seals shall conform to ISO 16010.
Other sealing materials are permitted if proven suitable for gas supply systems.
5.2.4 Greases and lubricants
Greases or lubricants shall not exude onto fusion areas and shall not affect the long-term performance of
fitting materials.
ISO/FDIS 4437-3:2026(en)
5.2.5 Other materials
Other materials as stress bearing part of the fitting shall have an expected lifetime at least equal to that
of the PE pipes conforming to ISO 4437-2 with which they are intended to be used under the following
conditions:
a) during storage;
b) under the effect of gaseous fuels conveyed therein (see ISO 4437-1);
c) with respect to the service environment, e.g. for corrosion, mechanical resistance and material
degradation;
d) during operation.
Non-stress-bearing fitting parts, e.g. clamps for electrofusion saddle fittings that only maintain a function
during installation, may be made from other materials.
6 General characteristics
6.1 Appearance
When viewed without magnification, the internal and external surfaces of fittings shall be clean, and
shall have no scoring, cavities or other surface defects to an extent that would prevent conformity to this
document.
No component of the fitting shall show any signs of damage, scratches, pitting, bubbles, blisters, inclusions
or cracks to an extent that would prevent conformity of the fittings to the requirements of this document.
6.2 Colour
The colour of the PE parts of the fitting shall be either black, yellow or orange in accordance with ISO 4437-1.
6.3 Design
The design of the fitting shall be such that, when assembling the fitting onto the pipe or other component,
electrical coils and/or seals are not displaced.
Tapping tees may be provided with upper and lower end stops for the tapping cutter, or other means of
indicating the cutter position according to the manufacturer’s instructions.
Tapping tees may be provided with a means to prevent uncontrolled gas release during tapping.
6.4 Appearance of factory-made joints
The internal and external surfaces of the pipe and fitting after fusion jointing, examined visually without
magnification, shall be free from melt that has flowed outside the confines of the fitting, apart from that
which may be declared acceptable by the fitting manufacturer or used deliberately as a fusion marker.
There shall be no excessive creasing of the internal surfaces of the adjoining components.
6.5 Electrical characteristics for electrofusion fittings
The electrical protection that shall be provided by the fusion process depends on the voltage and the current
used and on the characteristics of the electricity power source.

ISO/FDIS 4437-3:2026(en)
For voltages greater than 25 V, direct human contact with energized parts shall not be possible when the
fitting is in the fusion cycle during assembly in accordance with the instructions of the manufacturers of the
fittings and of the assembly equipment, as applicable.
NOTE 1 Electrofusion fittings are part of an electrical circuit when connected to the control units. Definitions of
electrical circuits and applicable protections are found in the relevant IEC standards.
The tolerance on the electrical resistance of the fitting at 23 °C shall be stated by the manufacturer. The
resistance shall be between nominal resistance (−10 %) and nominal resistance [(+10 %) + 0,1 Ω].
NOTE 2 0,1 Ω is the assumed value of the contact resistance.
The surface finish of the terminal pins shall allow a minimum contact resistance in order to satisfy the
resistance tolerance requirements.
Annex B specifies electrofusion terminal connections.
7 Geometrical characteristics
7.1 Measurement of dimensions
The dimensions of the fitting shall be measured in accordance with ISO 3126 and rounded to the next
0,1 mm. In case of dispute, the measurement shall be made at least 24 h after manufacture and after being
conditioned for at least 4 h at (23 ± 2) °C.
Additionally, for spigot end fittings provided with temporary supports, dimensional measurement shall be
performed at least 1 h after removal of the supports.
Indirect measurement at the stage of production is allowed at shorter time periods, provided that evidence
is shown of correlation.
7.2 Dimensions of electrofusion socket fittings
7.2.1 Diameters and lengths of electrofusion sockets
For electrofusion sockets (see Figure 1) having a nominal diameter as given in Table 1, the socket diameter
and lengths shall be given by the manufacturer and shall conform to Table 1 with the following condition:
L ≥ 5 mm.
The value of L is not greater than half the total length of the fitting in case of coupling without stop.
ISO/FDIS 4437-3:2026(en)
Key
D mean inside diameter in the fusion zone measured in a plane parallel to the plane of the mouth at a distance
of L + 0,5L from that face
3 2
D bore, i.e. the minimum diameter of the flow channel through the plastic body of the fitting
L depth of penetration of the pipe or spigot end fitting
L heated length within the socket, i.e. the nominal length of the fusion zone as declared by the manufacturer
L distance between the mouth of the fitting and the start of the fusion zone, i.e. the nominal unheated entrance
length of the fitting as declared by the manufacturer
Figure 1 — Dimensions of electrofusion socket fittings
Table 1 — Dimensions of electrofusion socket fittings
Dimensions in millimetres
b
Nominal Bore Depth of penetration Fusion zone
diameter
d D L L
n 2 1 2
a
min. min. max. min.
16 9 25 41 10
20 13 25 41 10
25 18 25 41 10
32 25 25 44 10
40 31 25 49 10
50 39 28 55 10
63 49 31 63 11
75 59 35 70 12
90 71 40 79 13
110 87 53 82 15
125 99 58 87 16
140 111 62 92 18
160 127 68 98 20
180 143 74 105 21
200 159 80 112 23
225 179 88 120 26
250 199 95 129 33
a
An extended L value may be agreed between the end user and the manufacturer. In
this case, compatibility of such fittings is not given with components with a minimum
tubular length of spigots L according to Table 3.
b
The requirement on D is only applicable for SDR 11 or higher.
ISO/FDIS 4437-3:2026(en)
TTabablele 1 1 ((ccoonnttiinnueuedd))
b
Nominal Bore Depth of penetration Fusion zone
diameter
d D L L
n 2 1 2
a
min. min. max. min.
280 223 104 139 35
315 251 115 150 39
355 283 127 164 42
400 319 140 179 47
450 359 155 195 51
500 399 170 212 56
560 447 188 235 61
630 503 209 255 67
710 567 220 280 74
800 639 230 300 82
a
An extended L value may be agreed between the end user and the manufacturer. In
this case, compatibility of such fittings is not given with components with a minimum
tubular length of spigots L according to Table 3.
b
The requirement on D is only applicable for SDR 11 or higher.
The mean inside diameter of the fitting in the middle of the fusion zone (see D in Figure 1) shall not be less
than d .
n
In the case of a fitting having sockets of differing nominal diameters, each one shall conform to the
requirements for the nominal diameter of the corresponding component.
Information for non-metric series is given in Annex E.
7.2.2 Wall thicknesses
In order to prevent stress concentrations, any changes in wall thickness of the fitting body shall be gradual.
a) The wall thickness at any point of the fitting body, E , shall be greater than or equal to e for the
1 min
corresponding pipe at any part of the fitting located at a distance beyond a maximum of 2/3 L from all
entrance faces, if the fitting and the corresponding pipe are made from a polyethylene having the same
MRS.
If the fitting is produced from a polyethylene having an MRS that is different from that of the
corresponding pipe, the relation between the wall thickness of the fitting, E , and the pipe, e , shall be
1 min
in accordance with Table 2.
b) In the case of a wall thickness design different from that according to a), fittings and associated fusion
joints shall additionally meet the performance requirements given in 8.4.
Table 2 — Relation between fitting wall thickness,E, and pipe wall thickness,e
1 min
Pipe and fitting material
Relationship
Pipe Fitting
PE 80 PE 100 or PE 100-RC E ≥ 0,8 e
1 min
PE 100 or PE 100-RC PE 80 E ≥ 1,25 e
1 min
7.2.3 Out-of-roundness of the bore of a fitting (at any point)
When a fitting leaves the site of the manufacturer, the out-of-roundness of the bore of a fitting at any point
shall not exceed 0,015 d .
n
ISO/FDIS 4437-3:2026(en)
7.2.4 Spigots
For fittings that contain spigot outlets (e.g. electrofusion equal tee with a spigot branch), the dimensions of
the spigot shall conform to 7.4.
For technical and design reasons, the shape of the minimum bore cross-section area can be different from
that of spigot fittings as given in 7.4.
7.2.5 Other dimensions
The dimensional characteristics appropriate to each manufacturer, such as the overall dimensions or
mounting dimensions, shall be specified in a technical file.
In the case of a coupling without an internal stop or with a removable centre register, the geometry of the
fitting shall allow the penetration of the pipe through the fitting.
7.3 Dimensions of electrofusion saddle fittings
Outlets from tapping tees and branch saddles shall have spigots in accordance with 7.4 or an electrofusion
socket in accordance with 7.2. The manufacturer shall specify the overall dimensions of the fitting in a
technical file. These dimensions shall include the main pipe and outlet dimensions, maximum height of the
saddle, H, and for tapping tees the height of the service pipe, H (see Figure 2).
For technical and design reasons, the minimum bore diameter, D , may be different from that of spigot
fittings as given in 7.4.
Key
H height of the saddle, i.e. the distance from the top of the main pipe to the top of the tapping tee or saddle
H height of service pipe, i.e. the distance from the top of the main pipe to the axis of the service pipe
W width of the tapping tee, i.e. the distance between the axis of the main pipe and the plane of the mouth of the
service tee
Figure 2 — Dimensions of tapping tees (electrofusion saddle fittings)
7.4 Dimensions of spigot end fittings
7.4.1 Diameters and lengths
The dimensions of spigot end fittings (see Figure 3) shall conform to the values given in Table 3.
The mean outside diameter of the fusion end piece (D) is measured in any plane parallel to the plane of the
mouth and at a distance not greater than the tubular length of the fusion end piece (L ) from that plane.
The measurement of the bore (D ) does not include the fusion bead (if present).
ISO/FDIS 4437-3:2026(en)
The fusion face wall thickness (E) is measured at any point at a maximum distance of L (cut-back length of
the fusion end piece) from the entrance face and shall be equal to the pipe wall thickness and tolerance to
which it is intended to be butt-fused, as specified in ISO 4437-2. E is at least 3 mm.
The cut-back length of the fusion end piece (L ) comprises the initial depth of the spigot end necessary for
butt fusion or reweld and can be obtained by joining a length of pipe to the spigot end of the fitting, provided
that the wall thickness of the pipe is equal to E for its entire length.
The tubular length of the fusion end piece (L ) comprises the initial length of the fusion end piece and shall
allow the following (in any combination):
— the use of clamps required in the case of butt fusion,
— assembly with an electrofusion fitting,
— the use of a mechanical scraper.
Key
D mean outside diameter of the fusion end piece
D bore, i.e. the minimum diameter of the flow channel through the plastic body of the fitting
E fusion face wall thickness
E wall thickness (at any point) of the fitting body
L cut-back length of the fusion end piece
L tubular length of the fusion end piece
Figure 3 — Dimensions of spigot end fittings
Table 3 — Dimensions of spigot end fittings
Dimensions in millimetres
b c
Nominal Mean outside diam- Bore For electrofusion and butt fusion For socket For butt fusion only
diameter eter of the fusion fusion
end piece
Out-of- Cut-back Tubular Tubular Out-of- Cut-back Tubular
d
roundness length length length roundness length length
d D D L L L L L
n 2 4 5 5 4 5
a
min. max. min. max. min. min. min. max. min. min.
16 16,0 16,3 9 0,3 25 41 10 — — —
20 20,0 20,3 13 0,3 25 41 11 — — —
25 25,0 25,3 18 0,4 25 41 12,5 — — —
32 32,0 32,3 25 0,5 25 44 14,6 — — —
40 40,0 40,4 31 0,6 25 49 17 — — —
a
In accordance with ISO 11922-1:2018, Grade B except for d 40 and 50.
n
b
The requirement on D are only
...

Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
ISO/FDIS 4437-3:2026(en)
Style Definition
...
2026-03-05
Style Definition
...
Style Definition
...
ISO/TC 138/SC 4
Style Definition
...
Secretariat: NEN
Style Definition
...
Style Definition
Date: 2026-06-05 .
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Plastics piping systems for the supply of gaseous fuels —
Style Definition
...
Polyethylene (PE) —
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Part 3:
Style Definition
...
Fittings
Style Definition
...
Systèmes de canalisations en plastique pour la distribution de combustibles gazeux — Polyéthylène (PE) — Style Definition
...
Partie 3: Raccords
Style Definition
...
Style Definition
...
Partie 3: Raccords
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
FDIS stage
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
St l D fi iti
ISO/DISFDIS 4437-3:20252026(en)
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, Formatted: Adjust space between Latin and Asian text,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
Adjust space between Asian text and numbers
at the address below or ISO’s member body in the country of the requester.
Formatted
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Formatted: English (United Kingdom)
Phone: + 41 22 749 01 11
Formatted: French (France)
E-mail: [e-mail]
Website: www.iso.org
Formatted: English (United Kingdom)
Formatted: English (United Kingdom)
Published in Switzerland
Formatted: English (United Kingdom)

ii
ISO/FDIS 4437-3:2026(en)
Contents Formatted: Adjust space between Latin and Asian text,
Adjust space between Asian text and numbers
Foreword . vi
Introduction . viii
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 3
4 Symbols and abbreviated terms . 4
5 Material . 5
5.1 PE compound for fittings . 5
5.2 Material for non-polyethylene parts . 5
6 General characteristics . 6
6.1 Appearance . 6
6.2 Colour . 6
6.3 Design . 6
6.4 Appearance of factory-made joints . 7
6.5 Electrical characteristics for electrofusion fittings . 7
7 Geometrical characteristics . 7
7.1 Measurement of dimensions . 7
7.2 Dimensions of electrofusion socket fittings . 7
7.3 Dimensions of electrofusion saddle fittings . 11
7.4 Dimensions of spigot end fittings . 12
7.5 Dimensions of socket fusion fittings . 15
7.6 Design and dimensions of mechanical fittings . 15
8 Mechanical characteristics . 16
8.1 General . 16
8.2 Requirements . 16
8.3 Modifications of the fitting . 21
8.4 Performance requirements . 21
9 Physical characteristics . 22
9.1 Conditioning . 22
9.2 Requirements . 22
10 Performance requirements . 22
11 Technical information . 23
12 Marking . 23
12.1 General . 23
12.2 Minimum required marking of fittings . 24
12.3 Additional marking . 24
12.4 Fusion system recognition . 24
13 Delivery conditions . 24
Annex A (normative) Socket fusion fittings . 26
Annex B (normative) Terminal connections for electrofusion fittings . 28
Annex C (normative) Short-term pressure test method . 31
Annex D (normative) Tensile test for fitting/pipe assemblies . 33
Formatted: Font: 11 pt
iii
ISO/DISFDIS 4437-3:20252026(en)
Annex E (informative) Formulae for calculating the equivalent dimensions of non-metric
electrofusion socket fitting series. 35
Bibliography . 36

Foreword . v
Introduction . vii
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 3
4 Symbols and abbreviated terms . 4
5 Material . 5
5.1 PE compound for fittings . 5
5.2 Material for non-polyethylene parts . 5
5.2.1 General . 5
5.2.2 Metal parts . 5
5.2.3 Sealing materials . 5
5.2.4 Other materials . Error! Bookmark not defined.
6 General characteristics . 6
6.1 Appearance . 6
6.2 Colour . 6
6.3 Design . 6
6.4 Appearance of factory-made joints . 6
6.5 Electrical characteristics for electrofusion fittings . 6
7 Geometrical characteristics . 7
7.1 Measurement of dimensions . 7
7.2 Dimensions of electrofusion socket fittings . 7
7.2.1 Diameters and lengths of electrofusion sockets . 7
7.2.2 Wall thicknesses . 9
7.2.3 Out-of-roundness of the bore of a fitting (at any point) . 9
7.2.4 Spigots . 9
7.2.5 Other dimensions . 9
7.3 Dimensions of electrofusion saddle fittings . 9
7.4 Dimensions of spigot end fittings . 10
7.4.1 Diameters and lengths . 10
7.4.2 Wall thickness of the fusion end . 12
7.4.3 Wall thickness of the fitting body . 12
7.4.4 Other dimensions . 12
7.5 Dimensions of socket fusion fittings . 12
7.6 Design and dimensions of mechanical fittings . 13
7.6.1 General . 13
7.6.2 Mechanical fittings with polyethylene spigot ends . 13
7.6.3 Mechanical fittings with polyethylene electrofusion sockets . 13
7.6.4 Threads . 13
8 Mechanical characteristics . 13
8.1 General . 13
8.2 Requirements . 13
8.3 Modifications of the fitting . 17
8.4 Performance requirements . 17
iv
ISO/FDIS 4437-3:2026(en)
9 Physical characteristics . 17
9.1 Conditioning . 17
9.2 Requirements . 18
10 Performance requirements . 18
11 Technical information . 19
12 Marking . 19
12.1 General . 19
12.2 Minimum required marking of fittings . 19
12.3 Additional marking . 20
12.4 Fusion system recognition . 20
13 Delivery conditions . 20
Annex A (normative) Socket fusion fittings . 21
Annex B (informative) Examples of typical terminal connections for electrofusion fittings . 23
Annex C (normative) Short-term pressure test method . 25
C.1 Principle . 25
C.2 Apparatus . 25
C.3 Test piece . 25
C.4 Procedure . 25
C.5 Test report . 26
Annex D (normative) Tensile test for fitting/pipe assemblies . 27
D.1 Principle . 27
D.2 Apparatus . 27
D.3 Test piece . 27
D.4 Procedure . 27
D.5 Test report . 27
Annex E (informative) Formulae for calculating the equivalent dimensions of non-metric
electrofusion socket fitting series. 29
Bibliography . 30

Formatted: Font: 11 pt
v
ISO/DISFDIS 4437-3:20252026(en)
Foreword Formatted: Adjust space between Latin and Asian text,
Adjust space between Asian text and numbers
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO had not received notice of (a) patent(s)
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
This document was prepared by Technical Committee ISO/TC 138, Plastics pipes, fittings and valves for the
transport of fluids, Subcommittee SC 4, Plastics pipes and fittings for the supply of gaseous fuels.
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
This third edition cancels and replaces the second edition (ISO 4437-3:2024), which has been technically
Formatted: Adjust space between Latin and Asian text,
revised.
Adjust space between Asian text and numbers, Tab
stops: Not at 0.7 cm + 1.4 cm + 2.1 cm + 2.8 cm +
The main changes are as follows:
3.5 cm + 4.2 cm + 4.9 cm + 5.6 cm + 6.3 cm + 7 cm
— — reference to information related to the suitability of PE pipe systems for 100 % hydrogen and its
Formatted: Default Paragraph Font
admixtures with natural gas has been made;
Formatted: Default Paragraph Font
— — terms and definitions have been distributed over ISO 4437-1, ISO 4437-2 and ISO 4437-3; Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
— — symbols and their definitions for geometrical characteristics on electrofusion socket fittings, spigot
Formatted: Default Paragraph Font
end fittings, socket fusion fittings and tapping tees have been harmonized with other standards in
ISO/TC 138;
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
— — Clause 5Clause 5 has been restructured;
Formatted: Default Paragraph Font
— — the minimum bore for electrofusion socket fittings have been harmonized with the minimum bore of
Formatted: Default Paragraph Font
spigot end fittings;
Formatted: Default Paragraph Font
— — the performance requirements for joints have been mentioned more explicitly by adding Formatted: Default Paragraph Font
Table 8.Table 8.
Formatted: Default Paragraph Font
Formatted: Adjust space between Latin and Asian text,
A list of all parts in the ISO 4437 series can be found on the ISO website.
Adjust space between Asian text and numbers
vi
ISO/FDIS 4437-3:2026(en)
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
Formatted: Font: 11 pt
vii
ISO/DISFDIS 4437-3:20252026(en)
Introduction
The ISO 4437 series specifies the requirements for a piping system and its components made from
Formatted: Default Paragraph Font
polyethylene (PE) compounds, which is intended to be used for the supply of gaseous fuels.
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
This document covers the characteristics of fittings.
Requirements and test methods for materials and components, other than fittings, are specified in ISO 4437-
Formatted: Default Paragraph Font
1, ISO 4437-2 and ISO 4437-4.
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Characteristics for fitness for purpose of the system are covered in ISO 4437-5. ISO/TS 4437-7 gives guidance
for assessment of conformity.
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Recommended practice for design, handling and installation is given in ISO/TS 10839.
Formatted: Default Paragraph Font
The ISO 4437 series covers a range of MOPs and gives requirements concerning colours.
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font

Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
viii
ISO/FDIS 4437-3:2026(en)
FINAL DRAFT International Standard

Formatted: Main Title 2
Plastics piping systems for the supply of gaseous fuels — Polyethylene
Formatted: Adjust space between Latin and Asian text,
(PE) —
Adjust space between Asian text and numbers
Formatted: Default Paragraph Font

Formatted: Default Paragraph Font
Part 3:
Formatted: Default Paragraph Font
Fittings
Formatted: Default Paragraph Font
Formatted
...
1 Scope
Formatted: Default Paragraph Font
This document specifies the characteristics of fusion fittings made from polyethylene (PE) as well as of
Formatted: Default Paragraph Font
mechanical fittings for piping systems in the field of the supply of gaseous fuels.
Formatted: Default Paragraph Font
NOTE 1 Additional information related to the installation of PE 100-RC systems is given in ISO/DISFDIS 4437-1:2026, Formatted: Default Paragraph Font
Annex A.
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
NOTE 2 Additional information about the suitability of PE pipe systems for hydrogen and its admixtures is given in
ISO/DISFDIS 4437-1:2026, Annex D.
Formatted
...
Formatted: Default Paragraph Font
It also specifies the test parameters for the test methods referred to in this document.
Formatted: Default Paragraph Font
In conjunction with ISO 4437-1, ISO 4437-2, ISO 4437-4 and ISO 4437-5, this document is applicable to PE
Formatted: Default Paragraph Font
pipes, fittings and valves, their joints, and joints with components of PE and other materials intended to be
Formatted: Default Paragraph Font
used under the following conditions:
Formatted: Default Paragraph Font
1 1)
a) a) a maximum operating pressure, MOP, up to and including 10 bar , , at a design reference
Formatted: Default Paragraph Font
temperature of 20 °C;
Formatted: Default Paragraph Font
b) b) an operating temperature between −20 °C and 40 °C.
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
For operating temperatures between 20 °C and 40 °C, derating coefficients are specified in ISO 4437-5.
Formatted: Default Paragraph Font
The ISO 4437 series covers a range of MOPs and gives requirements concerning colours.
Formatted: Default Paragraph Font
This document is applicable for fittings of the following types: Formatted: Default Paragraph Font
Formatted
...
— — electrofusion socket fittings;
Formatted: Default Paragraph Font
— — electrofusion saddle fittings;
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
— — spigot end fittings (for butt fusion using heated tools and electrofusion);
Formatted
...
— — socket fusion fittings;
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
— — mechanical fittings.
Formatted: Default Paragraph Font

Formatted
...
1 5 2
1 bar = 0,1 MPa = 10 Pa; 1 MPa = 1 N/mm .
Formatted
1) 5 2 .
1 bar = 0,1 MPa = 10 Pa; 1 MPa = 1 N/mm .
Formatted: Font: 11 pt
ISO/DISFDIS 4437-3:20252026(en)
It is the responsibility of the purchaser or specifier to make the appropriate selections from these aspects,
Formatted: Adjust space between Latin and Asian text,
taking into account their particular requirements and any relevant national guidance or regulations and
Adjust space between Asian text and numbers
installation practices or codes.
NOTE 3 The fittings can be, for example, in the form of couplers, saddles, equal and reduced tees, reducers, elbows,
Formatted: Adjust space between Latin and Asian text,
bends or end caps.
Adjust space between Asian text and numbers, Tab
stops: Not at 0.7 cm + 1.4 cm + 2.1 cm + 2.8 cm +
NOTE 4 Fabricated fittings are normally not used for gas applications except for larger dimensions or in the absence
3.5 cm + 4.2 cm + 4.9 cm + 5.6 cm + 6.3 cm + 7 cm
of other solutions. Guidance can be found in ISO 4427-3:2019, Annex B.
Formatted: Default Paragraph Font
2 Normative references
Formatted: Adjust space between Latin and Asian text,
Adjust space between Asian text and numbers
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 7--1, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances
Formatted: Default Paragraph Font
and designation
Formatted: Default Paragraph Font
Formatted: Adjust space between Latin and Asian text,
ISO 228--1, Pipe threads where pressure-tight joints are not made on the threads — Part 1: Dimensions,
Adjust space between Asian text and numbers, Tab
tolerances and designation
stops: Not at 0.7 cm + 1.4 cm + 2.1 cm + 2.8 cm +
3.5 cm + 4.2 cm + 4.9 cm + 5.6 cm + 6.3 cm + 7 cm
ISO 1133--1, Plastics — Determination of the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of
thermoplastics — Part 1: Standard method Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
ISO 1167--1:2006, Thermoplastics pipes, fittings and assemblies for the conveyance of fluids — Determination
Formatted: Default Paragraph Font
of the resistance to internal pressure — Part 1: General method
ISO 1167--4, Thermoplastics pipes, fittings and assemblies for the conveyance of fluids — Determination of
Formatted: Default Paragraph Font
the resistance to internal pressure — Part 4: Preparation of assemblies
ISO 3126, Plastics piping systems — Plastics components — Determination of dimensions
Formatted: Default Paragraph Font
ISO 4437--1:2026, Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 1:
Formatted: Default Paragraph Font
General
ISO 4437--2:2026, Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 2: Pipes
Formatted: Default Paragraph Font
ISO 4437--5, Plastics piping systems for the supply of gaseous fuels — Polyethylene (PE) — Part 5: Fitness for
Formatted: Default Paragraph Font
purpose of the system
ISO 11357--6, Plastics — Differential scanning calorimetry (DSC) — Part 6: Determination of oxidation
Formatted: Default Paragraph Font
induction time (isothermal OIT) and oxidation induction temperature (dynamic OIT)
ISO 12176--5, Plastics pipes and fittings — Equipment for fusion jointing polyethylene systems — Part 5: Two-
Formatted: Default Paragraph Font
dimensional data coding of components and data exchange format for PE piping systems
ISO 13950, Plastics pipes and fittings — Automatic recognition systems for electrofusion joints
Formatted: Default Paragraph Font
ISO 13951, Plastics piping systems — Test method for the resistance of plastic pipe/pipe or pipe/fitting
Formatted: Default Paragraph Font
assemblies to tensile loading
ISO 13953, Polyethylene (PE) pipes and fittings — Determination of the tensile strength and failure mode of
Formatted: Default Paragraph Font
test pieces from a butt-fused joint
Formatted: FooterPageNumber
ISO/FDIS 4437-3:2026(en)
ISO 13954, Plastics pipes and fittings — Peel decohesion test for polyethylene (PE) electrofusion assemblies
Formatted: Default Paragraph Font
of nominal outside diameter greater than or equal to 90 mm
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
ISO 13955, Plastics pipes and fittings — Crushing decohesion test for polyethylene (PE) electrofusion
assemblies
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
ISO 13956, Plastics pipes and fittings — Decohesion test of polyethylene (PE) saddle fusion joints —
Evaluation of ductility of fusion joint interface by tear test Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
ISO 13957, Plastics pipes and fittings — Polyethylene (PE) tapping tees — Test method for impact resistance
Formatted: Default Paragraph Font
ISO 16010, Elastomeric seals — Material requirements for seals used in pipes and fittings carrying gaseous
Formatted: Default Paragraph Font
fuels and hydrocarbon fluids
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
ISO 17778, Plastics piping systems — Fittings, valves and ancillaries — Determination of gaseous flow
rate/pressure drop relationships
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
ISO 17885:2021, Plastics piping systems — Mechanical fittings for pressure piping systems — Specifications
Formatted: Default Paragraph Font
ISO 18488, Polyethylene (PE) materials for piping systems — Determination of Strain Hardening
Formatted: Default Paragraph Font
Modulusstrain hardening modulus in relation to slow crack growth — Test method
Formatted: Default Paragraph Font
3 Terms and definitions
Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
For the purposes of this document, the terms and definitions given in ISO 4437-1, ISO 4437-2 and the
Formatted: Default Paragraph Font
following apply.
Formatted: Default Paragraph Font
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
Formatted: Default Paragraph Font
— — ISO Online browsing platform: available at https://www.iso.org/obp Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
— — IEC Electropedia: available at https://www.electropedia.org/
Formatted: Default Paragraph Font
3.1 3.1
Formatted: Default Paragraph Font
electrofusion socket fitting
Formatted: Default Paragraph Font
fitting which contains one or more integrated heating elements that are capable of transforming electrical
Formatted: Default Paragraph Font
energy into heat to realize a fusion joint with a spigot end or a pipe
Formatted: Adjust space between Latin and Asian text,
3.2 3.2
Adjust space between Asian text and numbers
electrofusion saddle fitting
Formatted: Default Paragraph Font
fitting which contains one or more integrated heating elements that are capable of transforming electrical
energy into heat to realize a fusion joint onto a pipe Formatted: Default Paragraph Font
Formatted: Default Paragraph Font
3.2.1 3.2.1
Formatted: Default Paragraph Font
tapping tee
electrofusion saddle fitting (3.2)(3.2) (top loading or wrap round) that contains a cutter to tap through the wall
Formatted: Default Paragraph Font
of the main pipe and remains in the body of this fitting
Formatted: Default Paragraph Font
3.2.2 3.2.2
Formatted: Adjust space between Latin and Asian text,
branch saddle
Adjust space between Asian text and numbers, Tab
electrofusion saddle fitting (3.2)(3.2) (top loading or wrap round) that requires an ancillary cutting tool for stops: Not at 0.7 cm + 1.4 cm + 2.1 cm + 2.8 cm +
3.5 cm + 4.2 cm + 4.9 cm + 5.6 cm + 6.3 cm + 7 cm
drilling a hole in the adjoining main pipe
Formatted
...
Formatted: Font: 11 pt
Formatted: FooterPageNumber
ISO/DISFDIS 4437-3:20252026(en)
3.3 3.3
Formatted: Adjust space between Latin and Asian text,
spigot end fitting
Adjust space between Asian text and numbers
fitting where the outside diameter of the spigot end is equal to the nominal outside diameter, d , of the
n
Formatted: Default Paragraph Font
corresponding pipe
Formatted: Default Paragraph Font
3.4 3.4
Formatted: Default Paragraph Font
socket fusion fitting
Formatted: Default Paragraph Font
fitting designed to accept the insertion of a pipe or spigot end to realize a fusion joint between mating surfaces
Formatted: Default Paragraph Font
using the socket fusion process
Formatted: Default Paragraph Font
3.5
Formatted: Default Paragraph Font
3.5
mechanical fitting Formatted: Default Paragraph Font
fitting for assembling plastics pipes with each other or with a metal pipe or fitting, that includes one or more
Formatted: Default Paragraph Font
compression zones to provide pressure integrity, leak tightness and resistance to end loads
Formatted: Default Paragraph Font
[SOURCE: ISO 17885:2021, 3.1.1]
Formatted Table
Formatted: Table body (+), Adjust space between Latin
4 Symbols and abbreviated terms
and Asian text, Adjust space between Asian text and
numbers
For the purposes of this document, the symbols and abbreviated terms given in ISO 4437-1, ISO 4437-2 and
Formatted: Table body (+), Adjust space between Latin
the following apply.
and Asian text, Adjust space between Asian text and
numbers
A percentage of decohesion (area)
d
Formatted: Table body (+), Adjust space between Latin
c outside diameter of the terminal shroud
and Asian text, Adjust space between Asian text and
numbers
c2 diameter of the contact area of the terminal
Formatted: Table body (+), Adjust space between Latin
c internal diameter of the terminal shroud
and Asian text, Adjust space between Asian text and
numbers
c maximum overall diameter of the base of the contact area
Formatted: Font: Not Italic
D mean outside diameter of the fusion end piece
Formatted
...
D mean inside diameter in the fusion zone measured in a plane parallel to the plane of the mouth at a
distance of L + 0,5L from that face Formatted
3 2 .
Formatted
D2 bore, i.e. the minimum diameter of the flow channel through the plastic body of the fitting .
Formatted
D mean inside mouth diameter of the socket, i.e. the mean diameter of the circle at the intersection of .
the extension of the socket with the plane of the socket mouth
Formatted
...
D mean inside root diameter of the socket, i.e. the mean diameter of the circle in a plane parallel to Formatted: Font: Not Italic
the plane of the mouth and separated from it by a distance of L9 which is the reference length of the
Formatted
...
socket
Formatted: Not Superscript/ Subscript
E fusion face wall thickness
Formatted
...
E1 wall thickness (at any point) of the fitting body
Formatted: Font: Not Italic
h internal depth of the terminal shroud
Formatted
...
h distance between the upper part of the terminal shroud and the contact area
Formatted
...
h height of the contact area
2 Formatted
...
Formatted: Font: Not Italic
H height of the saddle, i.e. the distance from the top of the main pipe to the top of the tapping tee or
saddle
Formatted
...
H1 height of the service pipe, i.e. the distance from the top of the main pipe to the axis of the service
Formatted
...
pipe
Formatted: FooterPageNumber
ISO/FDIS 4437-3:2026(en)
L depth of penetration of the pipe or spigot end fitting
1 Formatted: Table body (+), Adjust space between Latin
and Asian text, Adjust space between Asian text and
L heated length within the socket, i.e. the nominal length of the fusion zone as declared by the
numbers
manufacturer
Formatted: Table body (+), Adjust space between Latin
L3 distance between the mouth of the fitting and the start of the fusion zone, i.e. the nominal unheated
and Asian text, Adjust space between Asian text and
entrance length of the fitting as declared by the manufacturer
numbers
L4 cut-back length of the fusion end piece
Formatted: Table body (+), Adjust space between Latin
and Asian text, Adjust space between Asian text and
L tubular length of the fusion end piece
numbers
L socket length, i.e. the length from mouth to shoulder, if any
Formatted: Table body (+), Adjust space between Latin
and Asian text, Adjust space between Asian text and
L insertion depth, i.e. the depth of the heated pipe end into the socket
numbers
L8 heated socket length, i.e. the length of penetration of the heated tool into the socket
Formatted: Table body (+), Adjust space between Latin
L reference socket length, i.e. the theoretical minimum socket length used for the purpose of
9 and Asian text, Adjust space between Asian text and
calculation numbers
Formatted
L heated pipe length, i.e. the depth of penetration of the pipe end into the heated tool
10 .
Formatted
L percentage of decohesion (length) .
d
Formatted
...
W width of the tapping tee, i.e. the distance between the axis of the main pipe and the plane of the
mouth of the service tee Formatted
...
Formatted
...
5 Material
Formatted
...
Formatted: Font: Not Italic
5.1 PE compound for fittings
Formatted
...
The stress-bearing PE parts of injection moulded fittings or compression moulded plates, for example the main
Formatted
...
body of the fitting, shall only be made from virgin material conforming to ISO 4437-1. The stress-bearing PE
parts of fittings made from pipe shall be made from pipe conforming to ISO 4437-2, except for the geometrical Form
...
