ISO 19044:2024
(Main)Test methods for fibre-reinforced cementitious composites — Load-displacement curve using notched specimen
Test methods for fibre-reinforced cementitious composites — Load-displacement curve using notched specimen
This document specifies the test method for the load-displacement curves of fibre-reinforced cementitious composites (FRCC) by three-point loading of notched prisms. The main purpose of this test is to evaluate the tension softening curve of FRCC. NOTE 1 Both crack mouth opening displacement (CMOD) and load point displacement (LPD) are specified as the displacement in load-displacement curves, but measurement of both might not be necessary. Either can be selected depending on the purpose of measurement. NOTE 2 Three-point bending test using notched specimen generally provides higher results than those observed in four-point bending test, in which the fracture occurs at the weakest point of the specimen.
Méthodes d'essai des composites à base de ciment renforcés par des fibres — Courbe de déplacement de charge utilisant un échantillon entaillé
General Information
Relations
Standards Content (Sample)
International
Standard
ISO 19044
Second edition
Test methods for fibre-reinforced
2024-12
cementitious composites — Load-
displacement curve using notched
specimen
Méthodes d'essai des composites à base de ciment renforcés
par des fibres — Courbe de déplacement de charge utilisant un
échantillon entaillé
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

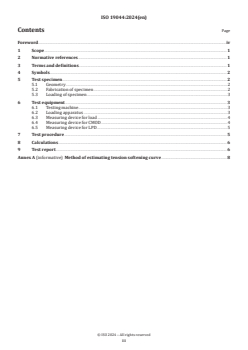

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols . 2
5 Test specimen . 2
5.1 Geometry .2
5.2 Fabrication of specimen .2
5.3 Loading of specimen .3
6 Test equipment . 3
6.1 Testing machine .3
6.2 Loading apparatus .3
6.3 Measuring device for load .4
6.4 Measuring device for CMOD .4
6.5 Measuring device for LPD .5
7 Test procedure . 5
8 Calculations . 6
9 Test report . 6
Annex A (informative) Method of estimating tension softening curve . 8
iii

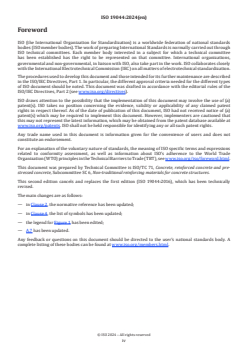

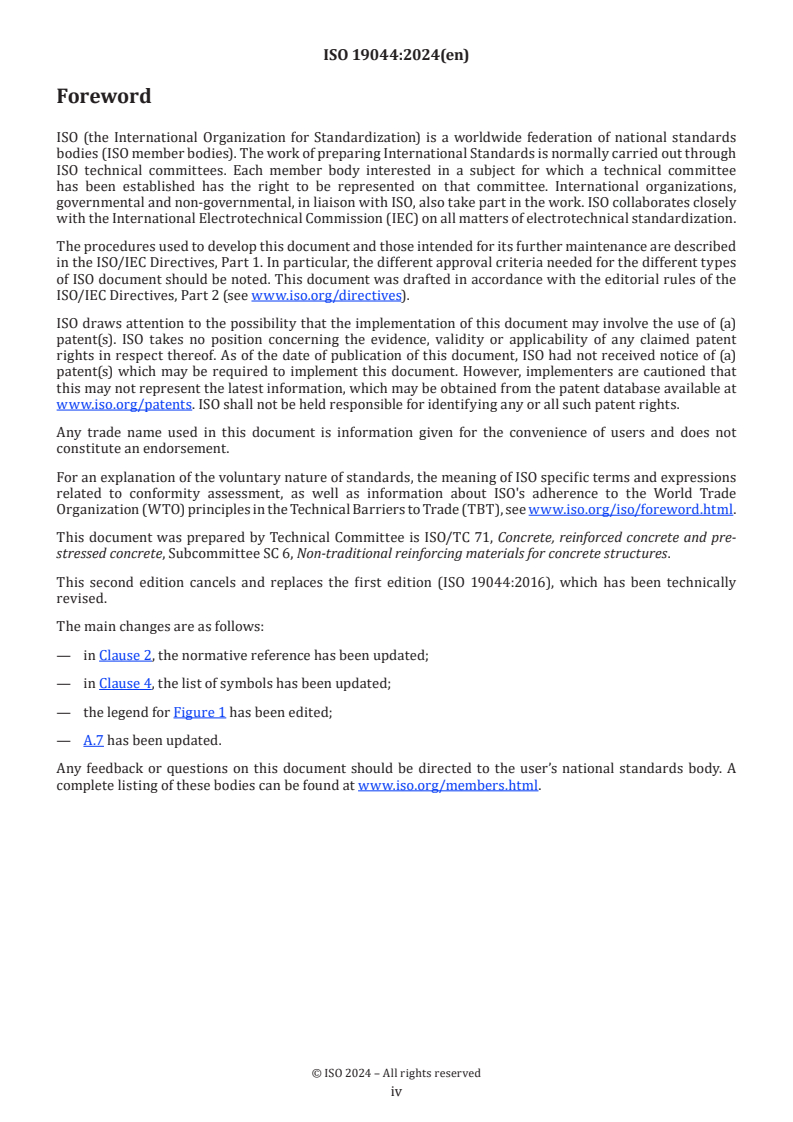

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee is ISO/TC 71, Concrete, reinforced concrete and pre-
stressed concrete, Subcommittee SC 6, Non-traditional reinforcing materials for concrete structures.
This second edition cancels and replaces the first edition (ISO 19044:2016), which has been technically
revised.
The main changes are as follows:
— in Clause 2, the normative reference has been updated;
— in Clause 4, the list of symbols has been updated;
— the legend for Figure 1 has been edited;
— A.7 has been updated.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
International Standard ISO 19044:2024(en)
Test methods for fibre-reinforced cementitious composites —
Load-displacement curve using notched specimen
1 Scope
This document specifies the test method for the load-displacement curves of fibre-reinforced cementitious
composites (FRCC) by three-point loading of notched prisms. The main purpose of this test is to evaluate the
tension softening curve of FRCC.
NOTE 1 Both crack mouth opening displacement (CMOD) and load point displacement (LPD) are specified as the
displacement in load-displacement curves, but measurement of both might not be necessary. Either can be selected
depending on the purpose of measurement.
NOTE 2 Three-point bending test using notched specimen generally provides higher results than those observed in
four-point bending test, in which the fracture occurs at the weakest point of the specimen.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 1920-3:2019, Testing of concrete — Part 3: Making and curing test specimens
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
fibre-reinforced cementitious composite
FRCC
concrete or mortar containing short discrete fibres that are distributed in matrix
Note 1 to entry: Fibres include chemical fibres (metallic fibres, inorganic fibres, synthetic fibres, and so on) and
natural fibres.
3.2
ligament
area above the notch subject to fracture
3.3
notch
cut for the initiation of fracture
4 Symbols
Symbol Unit Description Reference
a mm depth of notch 5.1
b mm width of ligament 5.1
D mm depth of cross section of specimen 5.1
h mm height of ligament 5.1
L mm overall length of specimen 5.1
n mm width of notch 5.1
S mm loading span 5.1
t mm thickness of knife-edge 6.4
k
5 Test specimen
5.1 Geometry
Specimens shall be prisms of square cross section with a notch at the mid-length as shown in Figure 1.
a) The cross sectional size of the specimen shall be fixed with two types for the ease of operating as
follows: 150 mm × 150 mm and 100 mm × 100 mm. The side length of the cross section of the specimen
shall be equal to or larger than three times the fibre length.
The specimens with different dimensions provide different test results even if the same FRCC is used.
These test results should not be compared.
b) The overall length of the specimen (L) shall not be less than 3,5 D.
c) The notch depth (a ) and notch width (n ) shall be 0,3 D and not more than 5 mm, respectively.
0 0
Key
1 The arrows show the direction of casting.
Figure 1 — Specimen
5.2 Fabrication of specimen
a) The maximum aggregate size shall not be larger than 1/4 of the side length of the cross section of the
specimen.
b) Moulds specified in ISO 1920-3:2019, 5.2.1 shall be used.
c) FRCC shall be placed in one placing sequence without joints. In case of flowable FRCC, pouring toward
the axial direction from the one side of the mould is recommended. The internal vibrator and compacting
rod/bar shall not be used.
d) The notch shall be cut using a concrete saw when the FRCC has developed sufficient strength.
The notch should be cut in one side that faced the side of the mould. The casting surface becomes vertical
one for loading. It is not necessary to cut the edges of the notch to specific forms, as the edge shape
scarcely affects the test results.
e) The number of specimens shall be not less than six. The tolerances of specimens are ±0,5 % for a side of
section.
f) The mass of each specimen shall be measured to the nearest 0,05 kg.
5.3 Loading of specimen
a) Specimens shall be subjected to testing in a condition immediately after completion of the specified
curing procedure.
b) The direction of loading shall be perpendicular to the direction of casting of the specimen.
c) The loading span, S, shall be 3 D. The tolerance of the loading span is ±2 %.
6 Test equipment
6.1 Testing machine
A testing machine capable of operating in a controlled manner, i.e. producing a constant rate of displacement
(CMOD or LPD), and with sufficient stiffness shall be used.
6.2 Loading apparatus
In order to eliminate torsional action on the specimen, the loading block and one of the supports shall be
rotatable around their axes in the direction of the specimen axis. Both supports shall be hinged with rollers
in order to avoid any restraint on the deformation until the specimen completely ruptures.
Both supports should be movable, as the horizontal movement of the specimen is restrained at the loading
block. Inserting multiple rods under both supports as shown in Figure 2 is a simple and effective solution
for a movable mechanism. In order to ensure the absence of horizontal restraint, it is advisable to press
the specimen lightly by hand before applying any load to confirm smooth movement of the specimen in the
horizontal direction.
Key
1 machine head
2 load cell
3 round bar
4 specimen
5 roller
6 round bar ϕ = 20 mm to 30 mm
Figure 2 — Loading apparatus
6.3 Measuring device for load
The load shall be measured using a load cell with an accuracy of 1 % of the estimated peak load or better.
The load cell shall be fixed to the testing machine.
6.4 Measuring device for CMOD
The CMOD shall be measured using a clip gauge with an accuracy of 1/500 mm or better. If clip gauges cannot
be directly attached to the notch, knife-edges are used. The thickness of the knife-edges (t ) to which the clip
k
gauge is attached shall be not more than 5 mm (Figure 3). If the knife-edges are used, measuring position of
CMOD shall be indicated in the test report. Also, if the inverse analysis is conducted, the measuring position
should be considered.
Knife-edges, which should be made of metal, should be attached as
...
