TECHNICAL ISO/TR
REPORT 13393
First edition
2009-07-01
Welding consumables — Hardfacing
classification — Microstructures
Produits consommables pour le soudage — Classification des
rechargements durs — Microstructures
Reference number
ISO/TR 13393:2009(E)
©
ISO 2009
---------------------- Page: 1 ----------------------
ISO/TR 13393:2009(E)

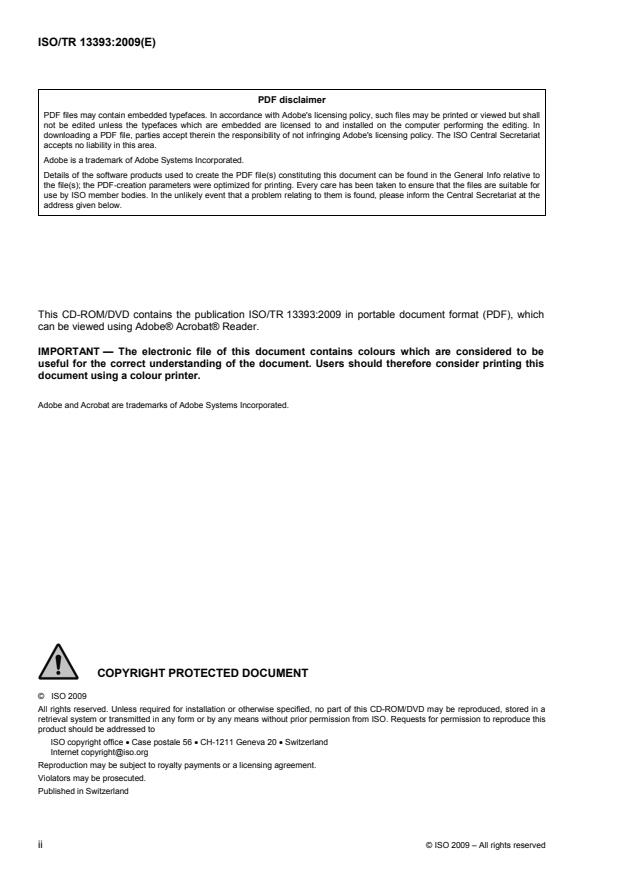

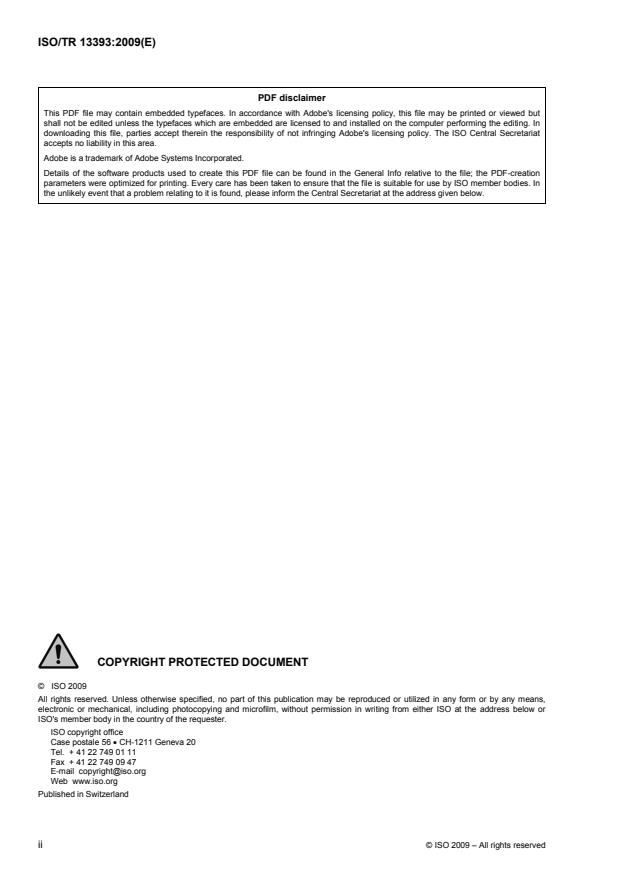

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
COPYRIGHT PROTECTED DOCUMENT
© ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 13393:2009(E)
Contents Page
Foreword. v
Introduction . vi
1 Scope . 1
2 Proposed classification/designation system. 1
3 Summary of the designators for iron-base microstructures . 1
4 Identification of iron-base alloy microstructural groups in a carbon/alloying elements
diagram . 2
5 Description of the iron-base alloys belonging to the different microstructure groups . 4
5.1 General. 4
5.2 Fe-FS Group (ferrite with second phase) . 5
5.3 Fe-M1 Group (low-alloy martensite). 7
5.4 Fe-M2 Group (tool-steel martensite) . 8
5.5 Fe-M3 Group (stainless-steel martensite) .10
5.6 Fe-M4 Group (maraging steel). 11
5.7 Fe-MA Group (martensite and austenite) . 12
5.8 Fe-MK Group (martensite with alloy carbides) . 13
5.9 Fe-MEK Group (martensite with eutectic) . 15
5.10 Fe-A Group (nominally austenitic stainless steel) . 17
5.11 Fe-AF Group (ferritic-austenitic stainless steel) . 18
5.12 Fe-AM Group (austenitic manganese steel). 19
5.13 Fe-AMC Group (austenitic chromium-manganese steel) . 20
5.14 Fe-AK Group (austenitic manganese steel containing alloy carbides). 21
5.15 Fe-PAE Group (primary austenite with eutectic). 22
5.16 Fe-NE Group (near eutectic) . 23
5.17 Fe-PKE Group (primary carbides with eutectic). 24
5.18 Fe-KKA Group (primary carbides, alloy carbides and eutectic) . 25
6 Summary of the designators for non-ferrous hardfacing deposit types . 26
7 Description of the alloys belonging to the different non-ferrous microstructure groups
and microstructural illustrations. 27
7.1 Co-CS Group (cobalt solid-solution alloy) .27
7.2 Co-PC Group (primary cobalt solid-solution alloy with cobalt alloy/carbide eutectic). 28
7.3 Co-NE Group (near-eutectic mix of carbides and cobalt solid-solution alloy). 30
7.4 Co-PKE Group (primary carbides with eutectic) . 32
7.5 Co-LP Group (cobalt solid-solution alloy with Laves phase particles). 33
7.6 Ni-NS Group (nickel alloy solid solution). 34
7.7 Ni-B Group (nickel borides) . 35
7.8 Ni-CB Group (chromium borides in nickel alloy/boride eutectic). 36
7.9 Ni-LP Group (nickel-base alloy solid solution with Laves-phase particles). 37
7.10 Cu-BS Group (solid-solution bronzes) . 38
7.11 Cu-BT Group (two-phase bronzes) . 39
7.12 W-Fe Group (tungsten carbide in an iron matrix). 41
7.13 W-Ni Group (tungsten carbide in a nickel-base alloy matrix) . 42
Annex A (informative) Types of wear and factors governing the severity of wear phenomena. 43
Annex B (informative) General considerations on basic factors governing wear resistance. 44
Annex C (informative) Abrasive-wear-resistance test methods. 45
Annex D (informative) Practical guidance . 48
© ISO 2009 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TR 13393:2009(E)

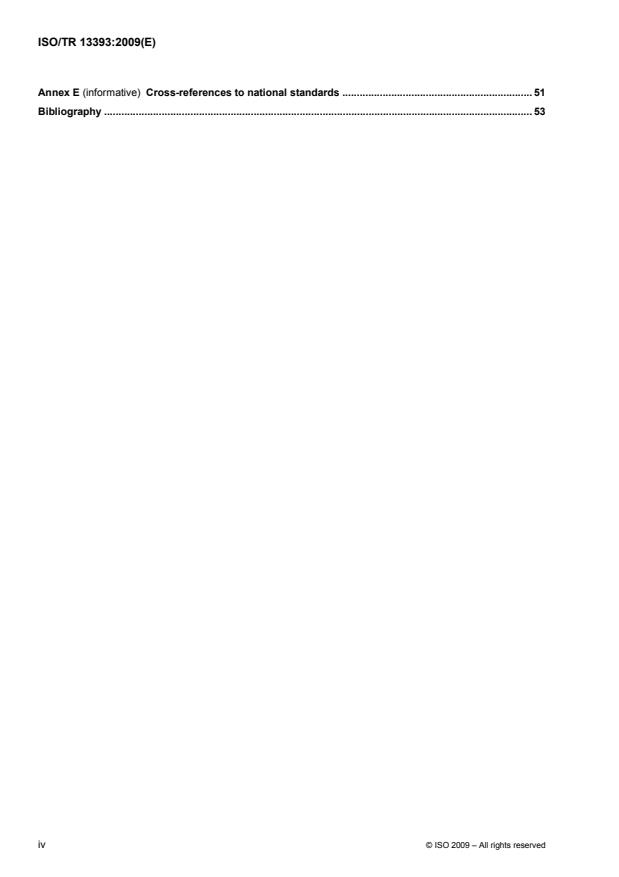

Annex E (informative) Cross-references to national standards . 51
Bibliography . 53
iv © ISO 2009 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TR 13393:2009(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from that
which is normally published as an International Standard (“state of the art”, for example), it may decide by a
simple majority vote of its participating members to publish a Technical Report. A Technical Report is entirely
informative in nature and does not have to be reviewed until the data it provides are considered to be no
longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 13393 was prepared by the International Institute of Welding, Commission II, Arc Welding and Filler
Metals, which has been approved as an international standardizing body in the field of welding in accordance
with Council Resolution 42/1999.
Requests for official interpretations of any aspect of this International Standard should be directed to the ISO
Central Secretariat, who will forward them to the IIW Secretariat for an official response.
© ISO 2009 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/TR 13393:2009(E)
Introduction
Hardfacing is the deposition of a given type of alloy onto a substrate, in view of protecting this substrate
against various types of degradation known under the name of wear. The science that deals with wear and
wear mechanisms is called “tribology.”
In this sense, this Technical Report does not cover the surfacing processes and alloys that are commonly
known under the name of “cladding technologies”, which more specifically address the protection of
substrates against corrosion.
Hardfacing can be carried out by means of a large variety of alloys.
The selection of the optimum alloy to resist a given combination of wear factors is not necessarily an easy
task. This task can, however, be facilitated by giving consideration to those attributes of alloys that are
dominant in determining their behaviour and their properties.
In this sense, the microstructure of the alloys, which itself is determined by a composition and a thermo-
mechanical history, certainly can be accepted as an attribute of major importance and significance.
It is the purpose of this Technical Report to propose a classification system of hardfacing alloys based on
compositions and microstructures.
Since most of these alloys exist under the form of consumables that can be used with a variety of welding
processes, no specific reference is made to these processes in the rest of this Technical Report.
vi © ISO 2009 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL REPORT ISO/TR 13393:2009(E)
Welding consumables — Hardfacing classification —
Microstructures
IMPORTANT — The electronic file of this document contains colours which are considered to be
useful for the correct understanding of the document. Users should therefore consider printing this
document using a colour printer.
1 Scope
This Technical Report proposes a system for classifying hardfacing microstructures deposited by fusion
welding processes.
2 Proposed classification/designation system
The designation system indicates the type of consumable (electrode; tubular cored electrode, wire or rod;
solid wire or rod; or powder), the use of the consumable for hardfacing, the alloy base (iron, nickel, copper,
cobalt, or tungsten carbide), and the microstructure type. Designations of microstructure types for the various
alloy bases are given in Clauses 3 and 6. Definitions and examples of the microstructure types are given in
Clauses 5 and 7. The designation scheme for a hardfacing deposit is given below:
E H XX XXX
Electrode Hardfacing type Alloy base Microstructure
T = tubular-cored electrode Fe = iron base
S = solid wire or rod Ni = nickel base
P = powder Cu = copper base
Co = cobalt base
W = tungsten carbide base
3 Summary of the designators for iron-base microstructures
Most of the currently known Fe-based hardfacing alloys fall into one of about 17 typical microstructural
categories. These types of microstructure are listed in Table 1, which also gives the proposed corresponding
designators for covered electrodes. For convenience, only the E (electrode) form is shown, but it is
understood that T (tubular-cored electrode), S (solid wire or rod), or P (powder) may be substituted for E.
© ISO 2009 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/TR 13393:2009(E)
Table 1 — Iron-base hardfacing deposit microstructure types
Hardfacing deposit
Microstructure type
designation
E-H-Fe-FS Mostly ferritic steel with second phase
E-H-Fe-M1 Low-alloy martensitic steel
E-H-Fe-M2 Tool steel martensite with secondary hardening
E-H-Fe-M3 Stainless steel martensite
E-H-Fe-M4 Maraging steel martensite
E-H-Fe-MA Approximately equal amounts of martensite and austenite
E-H-Fe-MK Martensite with alloy carbides
E-H-Fe-MEK Martensite with austenite-carbide eutectic
E-H-Fe-A Austenitic stainless steel with little or no ferrite
E-H-Fe-AF Austenitic stainless steel with more than 30 FN
E-H-Fe-AM Austenitic manganese steel with low or no chromium
E-H-Fe-AMC Austenitic manganese steel with chromium nearly equal to manganese
E-H-Fe-AK Austenitic manganese steel containing alloy carbides
E-H-Fe-PAE Primary austenite with austenite-carbide eutectic
E-H-Fe-NE Near-eutectic austenite-carbide iron
E-H-Fe-PKE Primary chromium carbides with austenite-carbide eutectic
E-H-Fe-KKA Primary chromium carbides with alloy carbides and austenite-carbide eutectic
4 Identification of iron-base alloy microstructural groups in a carbon/alloying
elements diagram
A convenient and systematic way to correlate composition and microstructures of hardfacing alloys consists in
using a diagram such as that given in Figure 1. On the ordinate, the mass fraction of carbon is plotted as a
percentage using a logarithmic scale. On the abscissa, the total amount of alloying elements, also plotted as a
percentage, is represented. Alloying elements include Cr, Mn, Si, Mo, Ni, Nb, V, W and Ti. These are the most
commonly encountered alloy elements in Fe-based hardfacing alloys. In this diagram, based on compositional
ranges and corresponding microstructures that are known for most of the alloys currently being used in
practice, the domains which correspond to the types of microstructure listed in Table 1 have been delineated.
It should be noted that these delineations are to be taken as guidelines, not absolutes. Transitions from one
type to another type of microstructure are often progressive, and therefore, at least with alloys that are
characterized by borderline compositions, a certain degree of overlap is to be expected in practice. Note that
composition ranges for microstructure types A, AF and M4 are not included in Figure 1 because their mass
fraction of carbon is below 0,1 %.
2 © ISO 2009 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TR 13393:2009(E)
Key
X alloy, percent
Y carbon, percent
Figure 1 — Map of composition ranges for hardfacing microstructures
© ISO 2009 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/TR 13393:2009(E)
5 Description of the iron-base alloys belonging to the different microstructure
groups
5.1 General
For each group, the following pages contain some general information as to the following topics:
⎯ typical chemical composition ranges;
⎯ as-welded microstructure;
⎯ typical as-welded hardness range;
⎯ typical response to post-weld heat treatment;
⎯ impact resistance (as a qualitative judgment);
⎯ metal-to-metal wear resistance (as a qualitative judgment);
⎯ resistance against abrasive wear;
⎯ corrosion resistance;
⎯ high-temperature resistance;
⎯ machineability;
⎯ typical applications;
⎯ typical microstructure illustrations.
4 © ISO 2009 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TR 13393:2009(E)
5.2 Fe-FS Group (ferrite with second phase)
See Table 2.
Table 2 — Fe-FS Group
Typical composition:
⎯ Up to 0,3 % C
⎯ Up to 6 % alloying elements
Microstructure: Predominantly ferrite with small amounts of pearlite, bainite, martensite
Main characteristics:
⎯ Hardness (as deposited): Generally expressed in HB, ranging from 200 HB to 400 HB, function of mass fraction
of C
⎯ Machineable in the as-welded condition, PWHT improves machineability
⎯ Excellent impact resistance
⎯ Good metal-to-metal wear resistance
⎯ Low to moderate abrasion resistance (function of hardness)
⎯ Hardness drops if heat treated
⎯ Deposits rust
⎯ Typical example: 0,25 % C, 3 % Cr
Applications: Build-up to return worn parts to original size, metal-to-metal wear as in pulleys, idlers, gears
Deposit made with preheating at 200 °C, cooled slowly, resulting in a hardness of 20 R .
C
Microstructure is primarily ferrite with a little second phase.
Photomicrograph provided by The Lincoln Electric Company, USA.
Microstructure of Type FS Deposit, ×650, 2 % Nital (alcoholic nitric acid) etch
(continued)
© ISO 2009 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/TR 13393:2009(E)
Table 2 (continued)
Deposit made without preheating, and allowed to cool rapidly, resulting in a hardness of 35 R .
C
Microstructure is heavily bainitic.
Photomicrograph provided by The Lincoln Electric Company, USA.
Microstructure of Type FS Deposit (same electrode as above), ×650, Nital etch
6 © ISO 2009 – All rights reserved
---------------------- Page: 12 ----------------------
ISO/TR 13393:2009(E)
5.3 Fe-M1 Group (low-alloy martensite)
See Table 3.
Table 3 — Fe-M1 Group
Typical composition:
⎯ 0,3 % to 0,8 % C
⎯ Up to 6 % alloying elements
Microstructure: Predominantly martensitic
Main characteristics:
⎯ Hardness: 450 HB to 600 HB, 45 R to 60 R , function of mass fraction of C
C C
⎯ Generally not machineable as-welded, grinding only. PWHT can soften enough to make deposit easily
machineable
⎯ Good impact resistance
⎯ Excellent metal-to-metal wear resistance
⎯ Improved abrasion resistance compared with FS group, function of hardness
⎯ Hardness drops if heat treated
⎯ Deposits rust
⎯ Typical example: 0,5 % C, 5 % Cr, 0,5 % Mo
Applications: Metal-to-metal wear, as in transfer rolls or guides
Microstructure is predominantly blocky martensite, with white retained austenite around the former grain boundaries.
Photomicrograph provided by The Lincoln Electric Company, USA.
Microstructure of Type M1 Deposit, ×650, 2 % Nital
© ISO 2009 – All rights reserved 7
---------------------- Page: 13 ----------------------
ISO/TR 13393:2009(E)
5.4 Fe-M2 Group (tool-steel martensite)
See Table 4.
Table 4 — Fe-M2 Group
Typical composition:
⎯ 0,2 % to 1,5 % C
⎯ 7 % to 20 % alloying elements, essentially Mo, W, Cr, V
Microstructure: High-alloyed martensite with complex alloy carbides
Main characteristics:
⎯ Hardness: Ranging from 45 R to 60 R (as deposited)
C C
⎯ Generally not machineable as-welded, grinding only. PWHT can soften enough to make deposit easily
machineable
⎯ Fair impact resistance, decreases with increasing mass fraction of carbon
⎯ Good abrasion resistance
⎯ Maintain or even increase the hardness after heat treatment at temperatures up to 550 °C or higher
⎯ Maintain the hardness at high service temperature
⎯ Good thermal shock and thermal cycling resistance
⎯ Deposits rust
⎯ Typical example: 0,7 % C, 3,75 % Cr, 6,0 % Mo, 1,8 % W, 1,1 % V
Applications: Tool steels for hot/cold shears and dies, hot metal-to-metal wear, work rolls in the metals-processing
industries
SEM Image, ×1 000 SEM Image, ×5 000
Photomicrographs provided by The Lincoln Electric Company, USA.
(continued)
8 © ISO 2009 – All rights reserved
---------------------- Page: 14 ----------------------
ISO/TR 13393:2009(E)
Table 4 (continued)
SEM Image, Mo Distribution, ×5 000 SEM Image, V Distribution, ×5 000
Photomicrographs provided by The Lincoln Electric Company, USA.
© ISO 2009 – All rights reserved 9
---------------------- Page: 15 ----------------------
ISO/TR 13393:2009(E)
5.5 Fe-M3 Group (stainless-steel martensite)
See Table 5.
Table 5 — Fe-M3 Group
Typical composition:
⎯ 0,05 % to 0,6 % C
⎯ 10 % to 20 % alloying elements, mainly chromium
Microstructure: Essentially martensitic
Main characteristics:
⎯ Hardness: ranging from 30 R to 55 R (as deposited), function of mass fraction of C
C C
⎯ Lower carbon deposits are machineable as-welded. Deposits above about 40 R usually require PWHT to
C
soften for machining
⎯ Fair to good impact resistance
⎯ Good corrosion/oxidation resistance, function of the mass fraction of Cr
⎯ Good metal-to-metal wear resistance
⎯ Low to fair abrasion resistance
⎯ Hardness drops if heat treated above about 480 °C
⎯ Deposits do not rust
⎯ Typical example: 0,17 % C, 1,3 % Mn, 13,6 % Cr, 4,2 % Ni, 0,6 % Mo, 0,6 % Nb, 0,2 % V
Applications: Continuous caster rolls in steel mills
×200 ×500
The microstructure is predominantly tempered martensite, with about 1,3 % ferrite (dark etching phase).
Photomicrographs provided by The Lincoln Electric Company, USA.
Microstructure of Type M3 Deposit, Kalling's etch, as-welded condition
10 © ISO 2009 – All rights reserved
---------------------- Page: 16 ----------------------
ISO/TR 13393:2009(E)
5.6 Fe-M4 Group (maraging steel)
See Table 6.
Table 6 — Fe-M4 Group
Typical composition:
⎯ 0,02 % C
⎯ 17 % Ni, 4 % Mo, 9 % Co, 0,5 % Ti + V
Microstructure:
⎯ low-carbon martensite as-deposited
⎯ martensite with age-hardening precipitates and traces of austenite after PWHT of 450 °C to 480 °C
Main characteristics:
⎯ Hardness: 30 R to 40 R as deposited
C C
⎯ 50 R to 55 R after PWHT
C C
⎯ PWHT at 450 °C to 480 °C is essential to developing full hardness
⎯ Readily machineable in the as-deposited condition, much more difficult to machine after PWHT
⎯ High impact resistance
⎯ Low corrosion resistance
⎯ High resistance to thermal shock, but service temperatures limited to 400 °C as higher temperatures over-age
the material
Applications: Mill rolls, cutting and stamping dies, die-casting molds for aluminium alloys
Photomicrograph provided by The Lincoln Electric Company USA from a sample provided by Metrode Products Ltd.,
United Kingdom.
Microstructure of Type M4 Deposit, ×500, Kallings etch
© ISO 2009 – All rights reserved 11
---------------------- Page: 17 ----------------------
ISO/TR 13393:2009(E)
5.7 Fe-MA Group (martensite and austenite)
See Table 7
Table 7 — Fe-MA Group
Typical composition:
⎯ 0,8 % to 1,5 % C
⎯ 5 % to 15 % alloying elements, mainly Mn, Cr, Si
Microstructure: Martensite and austenite in nearly equal amounts
Main characteristics:
⎯ Hardness: 45 R to 60 R , work hardens to a limited extent in service
C C
⎯ Generally not machineable as-welded, PWHT tends to reform fresh martensite and does not improve
machineability
⎯ Good impact resistance
⎯ Fairly good metal-to-metal wear resistance
⎯ Fairly good abrasion resistance, especially to soft materials such as limestone
⎯ Moderate corrosion resistance
⎯ Tendency to check crack in multiple layers
⎯ Deposits rust
⎯ Typical example: 1 % C, 9 % Cr, 3 % Si alloy
Applications: Agricultural implements in soft soils
Martensite appears as islands that were dendrite cores. Austenite appears as the continuous matrix around the
martensite islands.
Photomicrograph provided by The Lincoln Electric Company, USA.
Microstructure of Type MA Deposit, ×670, Vilella's etch
12 © ISO 2009 – All rights reserved
---------------------- Page: 18 ----------------------
ISO/TR 13393:2009(E)
5.8 Fe-MK Group (martensite with alloy carbides)
See Table 8.
Table 8 — Fe-MK Group
Typical composition:
⎯ 1 % to 3 % C
⎯ Up to 13 % alloying elements, essentially Cr, Mo, W and a carbide former such as Ti, V, Nb
Microstructure: Medium-alloyed martensite with precipitated carbides
Main characteristics:
⎯ Hardness: 50 R to 55 R
C C
⎯ Not machineable as-welded, nor after PWHT; grinding only
⎯ Good impact resistance combined with good abrasion resistance, function of amount and type of carbides
⎯ Heat treatment softens matrix, but not carbides
⎯ Deposits rust
⎯ Typical example: Top – 2 % C, 8 % Cr, 1,5 % Mo, 6 % Ti; Bottom – 3 % C, 6 % Cr, 5 % V, 5 % Ti
Applications: Metal-to-metal wear with abrasion, high stress (crushing) abrasion
Photomicrograph provided by The Stoody Company (a division of Thermadyne Industries).
Microstructure of Type Fe-MK consisting of TiC carbides in a matrix that is predominately martensite
(continued)
© ISO 2009 – All rights reserved 13
---------------------- Page: 19 ----------------------
ISO/TR 13393:2009(E)
Table 8 (continued)
Photomicrograph provided by ESAB AB, Sweden.
Microstructure of Type Fe-MK consisting of TiC/VC carbides in a matrix that is predominately martensite
14 © ISO 2009 – All rights reserved
---------------------- Page: 20 ----------------------
ISO/TR 13393:2009(E)
5.9 Fe-MEK Group (martensite with eutectic)
See Table 9.
Table 9 — Fe-MEK Group
Typical composition:
⎯ 2 % to 3 % C
⎯ 6 % to 15 % alloying elements, predominantly Cr and Mn
Microstructure: Martensite with austenite-carbide eutectic
Main characteristics:
⎯ Hardness: 45 R to 60 R (as deposited)
C C
⎯ Not machineable as-welded, nor after PWHT; grinding only
⎯ Good metal-to-metal wear resistance
⎯ Fair impact resistance
⎯ Moderate abrasion resistance, increases with increasing mass fraction of carbon
⎯ Tendency to check crack in multiple layers
⎯ Deposits rust
⎯ Typical example: 2,2 % C, 7 % Cr
Applications: Cover layer on hammer-mill hammers, metal transfer guides
SEM photomicrograph, ×1 000
Photomicrograph provided by The Lincoln Electric Company, USA.
Microstructure of Type Fe-MEK consisting of martensite, retained austenite and eutectic carbides
(continued)
© ISO 2009 – All rights reserved 15
---------------------- Page: 21 ----------------------
ISO/TR 13393:2009(E)
Table 9 (continued)
Cr distribution
Photomicrograph provided by The Lincoln Electric Company, USA.
16 © ISO 2009 – All rights reserved
---------------------- Page: 22 ----------------------
ISO/TR 13393:2009(E)
5.10 Fe-A Group (nominally austenitic stainless steel)
See Table 10.
Table 10 — Fe-A Group
Typical composition:
⎯ 0,02 % to 0,15 % C
⎯ Up to 40 % alloying elements, essentially Cr, Ni, sometimes Mo
Microstructure: Austenite with ferrite below 30 FN
Main characteristics:
⎯ Hardness: typically 180 HB to 250 HB, not relevant
⎯ Readily machineable with sharp tooling and rigid machinery
⎯ High ductility and impact resistance
⎯ Excellent corrosion resistance
⎯ Fair to good metal-to-metal wear resistance, some tendency to gall under high pressure
⎯ Poor abrasion resistance
⎯ Work hardenable
⎯ Due to ferrite-to-sigma phase transformation, the higher ferrite grades become somewhat embrittled when
subjected to heat treatment
⎯ Deposits do not rust
⎯ Typical examples: 307 (0,1 % C, 4 % Mn, 20 % Cr, 10 % Ni, 1 % Mo), 309 (0,04 % C, 24 % Cr, 13 % Ni),
309 Mo (0,04 % C, 23 % Cr, 13 % Ni, 2,5 % Mo), 310 (0,15 % C, 25 % Cr, 21 % Ni) stainless-steel types
Applications: Buffer layers, joining austenitic manganese plates
The ferrite is the darker, lacy phase. The austenite is the lighter phase. Some deposits (e.g. 307 or 310) may contain little
or no ferrite.
Photomicrograph provided by The Lincoln Electric Company, USA.
Microstructure of Type A Deposit, ×500, Kalling's etch
© ISO 2009 – All rights reserved 17
---------------------- Page: 23 ----------------------
ISO/TR 13393:2009(E)
5.11 Fe-AF Group (ferritic-austenitic stainless steel)
See Table 11.
Table 11 — Fe-AF Group
Typical composition:
⎯ 0,05 % to 0,15 % C
⎯ Up to 40 % alloying elements, essentially Cr, Ni
Microstructure: Austenite with ferrite above 30 FN
Main characteristics:
⎯ Hardness: typically 200 HB to 280 HB, not relevant
⎯ Readily machineable
⎯ High ductility and impact resistance
⎯ Excellent corrosion resist
...
TECHNICAL ISO/TR
REPORT 13393
First edition
2009-07-01
Welding consumables — Hardfacing
classification — Microstructures
Produits consommables pour le soudage — Classification des
rechargements durs — Microstructures
Reference number
ISO/TR 13393:2009(E)
©
ISO 2009
---------------------- Page: 1 ----------------------
ISO/TR 13393:2009(E)
PDF disclaimer
PDF files may contain embedded typefaces. In accordance with Adobe's licensing policy, such files may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading a PDF file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create the PDF file(s) constituting this document can be found in the General Info relative to
the file(s); the PDF-creation parameters were optimized for printing. Every care has been taken to ensure that the files are suitable for
use by ISO member bodies. In the unlikely event that a problem relating to them is found, please inform the Central Secretariat at the
address given below.
This CD-ROM/DVD contains the publication ISO/TR 13393:2009 in portable document format (PDF), which
can be viewed using Adobe® Acrobat® Reader.
IMPORTANT — The electronic file of this document contains colours which are considered to be
useful for the correct understanding of the document. Users should therefore consider printing this
document using a colour printer.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
COPYRIGHT PROTECTED DOCUMENT
© ISO 2009
All rights reserved. Unless required for installation or otherwise specified, no part of this CD-ROM/DVD may be reproduced, stored in a
retrieval system or transmitted in any form or by any means without prior permission from ISO. Requests for permission to reproduce this
product should be address
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
