ISO 15500-15:2015

Road vehicles — Compressed natural gas (CNG) fuel system components — Part 15: Gas-tight housing and ventilation hose

ISO 15500-15:2015 specifies tests and requirements for the gas-tight housing and ventilation hose, compressed natural gas fuel system components intended for use on the types of motor vehicles defined in ISO 3833. This part of ISO 15500 is applicable to vehicles using natural gas in accordance with ISO 15403‑1 (mono-fuel, bi-fuel, or dual-fuel applications). It is not applicable to the following: a) liquefied natural gas (LNG) fuel system components located upstream of, and including, the vaporizer; b) fuel containers; c) stationary gas engines; d) container mounting hardware; e) electronic fuel management; f) refuelling receptacles. NOTE 1 It is recognized that miscellaneous components not specifically covered herein can be examined to meet the criteria of this part of ISO 15500 and tested according to the appropriate functional tests. NOTE 2 All references to pressure in this part of ISO 15500 are to be considered gauge pressures unless otherwise specified. NOTE 3 This part of ISO 15500 is based upon a service pressure for natural gas as a fuel of 20 MPa (200 bar[1]) settled at 15 °C. Other service pressures can be accommodated by adjusting the pressure by the appropriate factor (ratio). For example, a 25 MPa (250 bar) service pressure system will require pressures to be multiplied by 1,25. [1] 1 bar = 0,1 MPa = 105 Pa; 1 MPa = 1 N/mm2.

Véhicules routiers — Composants des systèmes de combustible gaz naturel comprimé (GNC) — Partie 15: Compartiment étanche pour gaz et tuyaux de ventilation

General Information

• Status: Published
• Publication Date: 18-Oct-2015
• ICS: 43.060.40 - Fuel systems
• Technical Committee: ISO/TC 22/SC 41 - Specific aspects for gaseous fuels
• Drafting Committee: ISO/TC 22/SC 41/WG 3 - Fuel system components and refuelling connector for vehicles propelled by gaseous fuel
• Current Stage: 9092 - International Standard to be revised
• Completion Date: 14-Feb-2023

Relations

• Revises: ISO 15500-15:2001 - Road vehicles — Compressed natural gas (CNG) fuel system components — Part 15: Gas-tight housing and ventilation hose
• Effective Date: 25-Oct-2014

Standards Content (Sample)

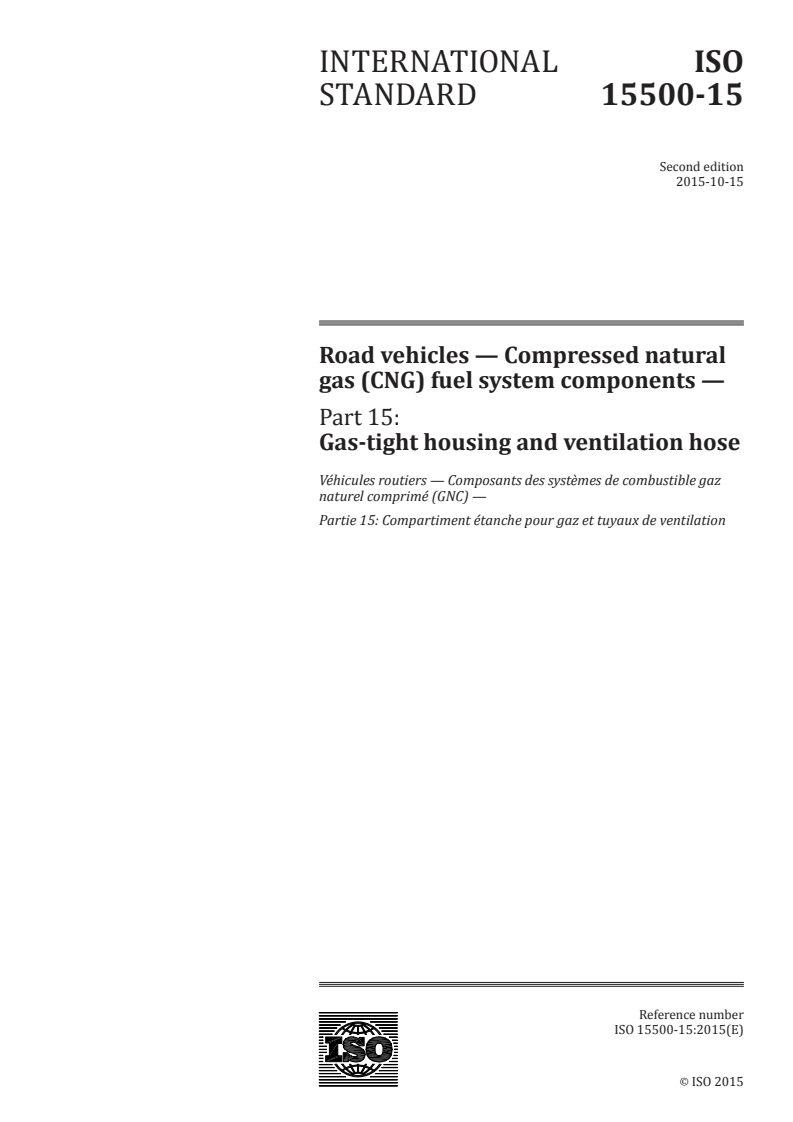

INTERNATIONAL ISO
STANDARD 15500-15
Second edition
2015-10-15
Road vehicles — Compressed natural
gas (CNG) fuel system components —
Part 15:
Gas-tight housing and ventilation hose
Véhicules routiers — Composants des systèmes de combustible gaz
naturel comprimé (GNC) —
Partie 15: Compartiment étanche pour gaz et tuyaux de ventilation
Reference number
ISO 15500-15:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO 15500-15:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 15500-15:2015(E)

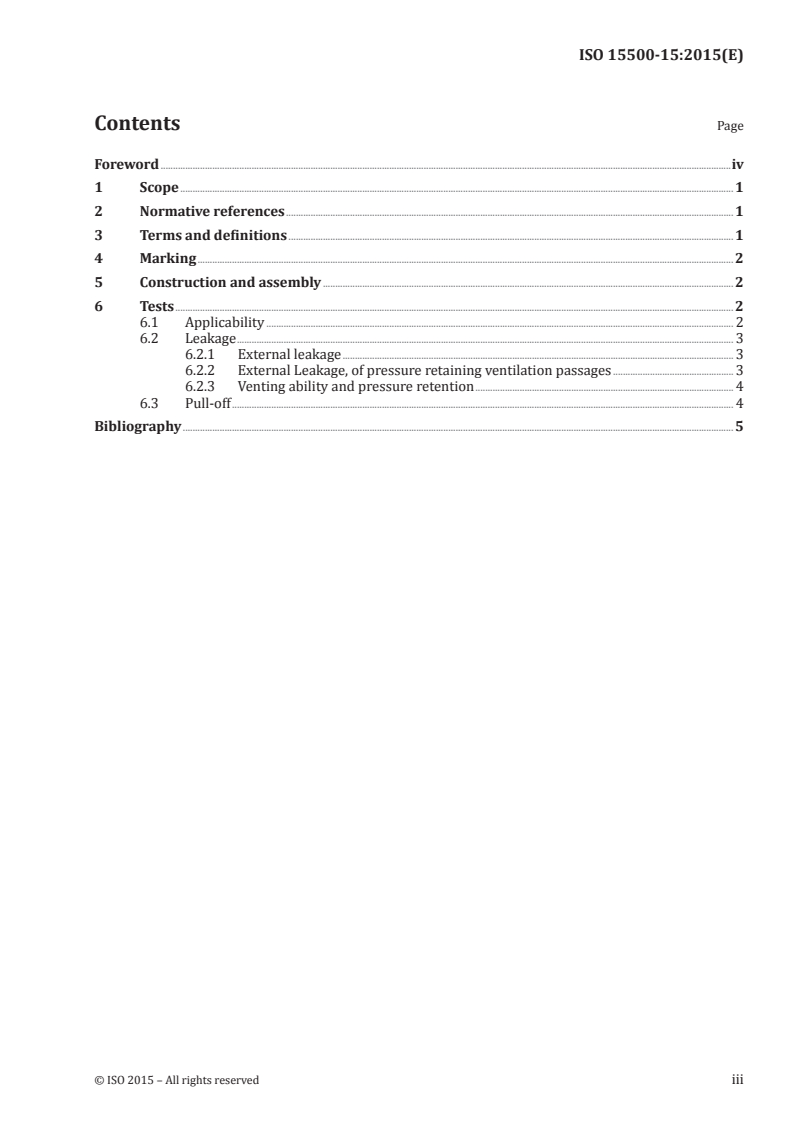

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Marking . 2
5 Construction and assembly . 2
6 Tests . 2
6.1 Applicability . 2
6.2 Leakage . 3
6.2.1 External leakage . 3
6.2.2 External Leakage, of pressure retaining ventilation passages . 3
6.2.3 Venting ability and pressure retention . 4
6.3 Pull-off . 4
Bibliography . 5
© ISO 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 15500-15:2015(E)

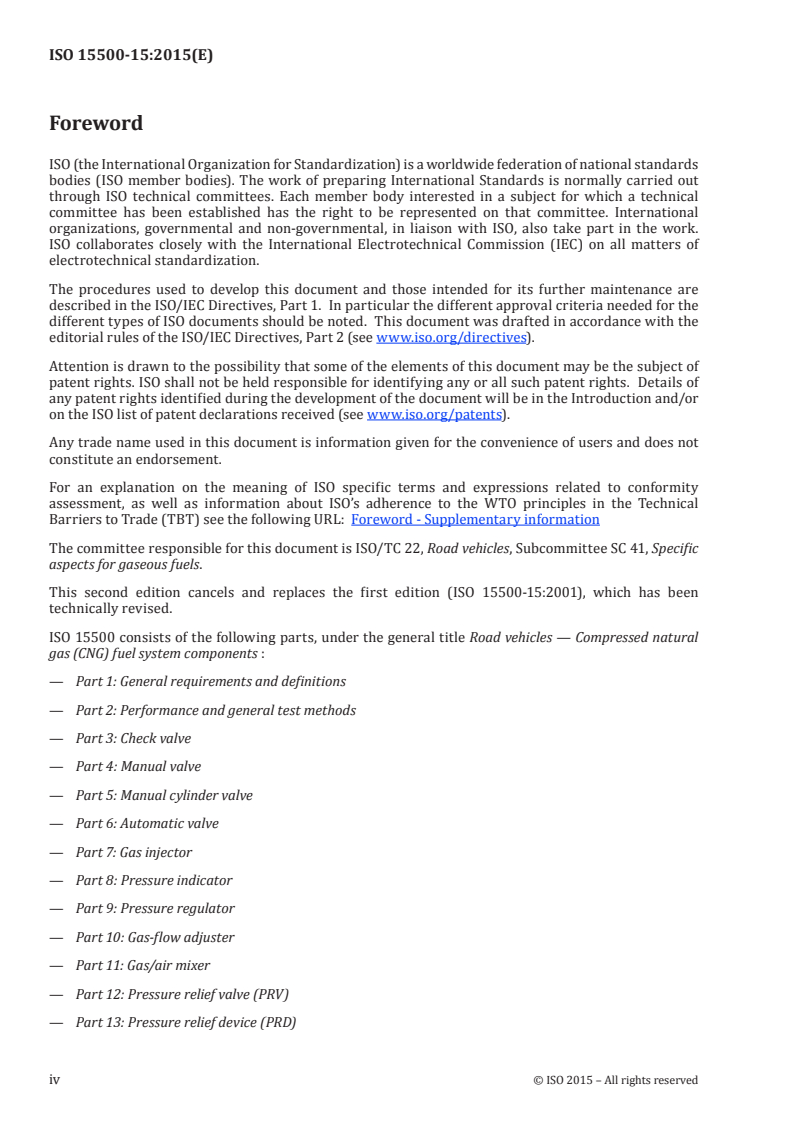

Foreword
