Standards Content (sample)

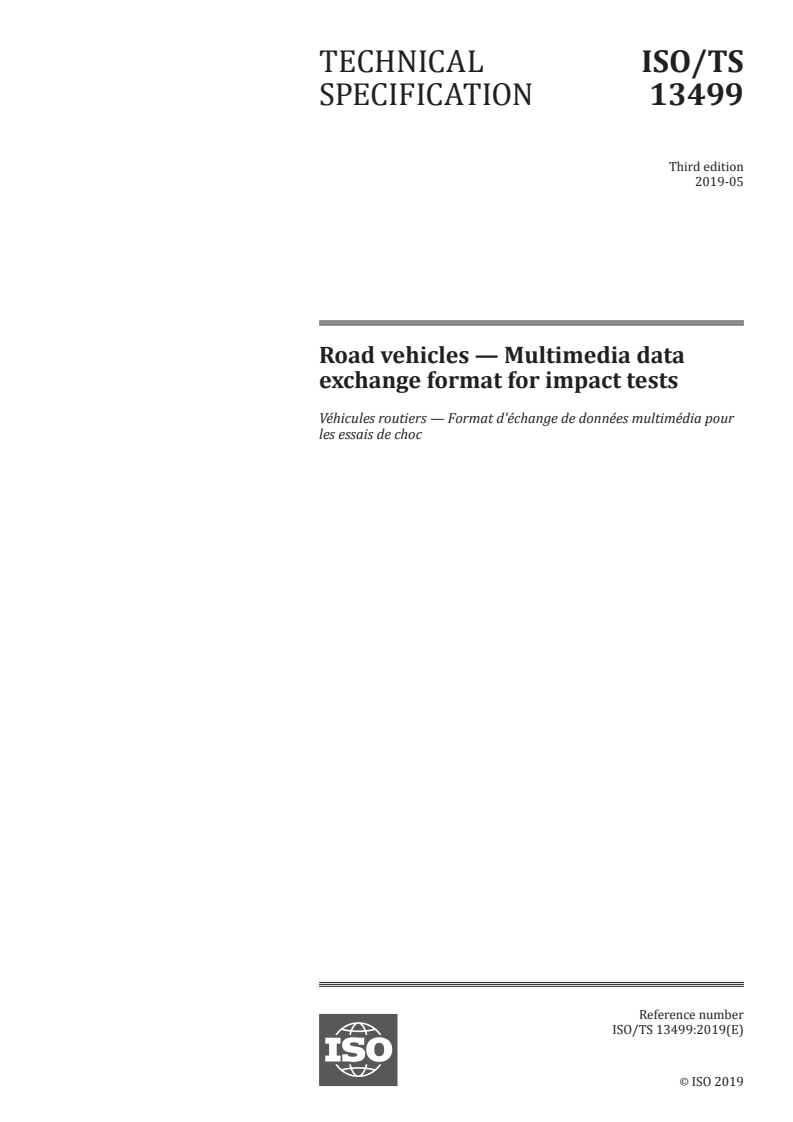

TECHNICAL ISO/TS
SPECIFICATION 13499
Third edition
2019-05
Road vehicles — Multimedia data
exchange format for impact tests
Véhicules routiers — Format d'échange de données multimédia pour
les essais de choc
Reference number
ISO/TS 13499:2019(E)
ISO 2019
---------------------- Page: 1 ----------------------
ISO/TS 13499:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TS 13499:2019(E)

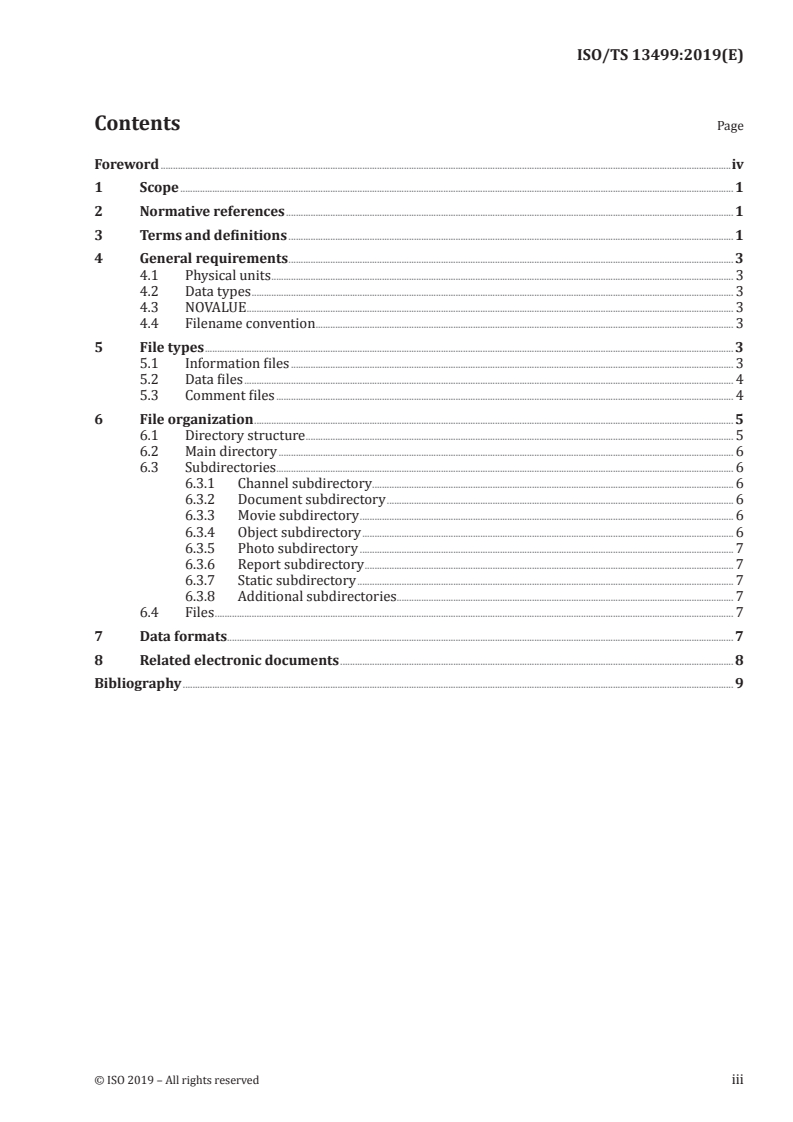

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 General requirements ..................................................................................................................................................................................... 3

4.1 Physical units ............................................................................................................................................................................................ 3

4.2 Data types .................................................................................................................................................................................................... 3

4.3 NOVALUE ...................................................................................................................................................................................................... 3

4.4 Filename convention .......................................................................................................................................................................... 3

5 File types ....................................................................................................................................................................................................................... 3

5.1 Information files .................................................................................................................................................................................... 3

5.2 Data files ....................................................................................................................................................................................................... 4

5.3 Comment files .......................................................................................................................................................................................... 4

6 File organization ................................................................................................................................................................................................... 5

6.1 Directory structure .............................................................................................................................................................................. 5

6.2 Main directory ......................................................................................................................................................................................... 6

6.3 Subdirectories .......................................................................................................................................................................................... 6

6.3.1 Channel subdirectory ........................................................................................................................................... ........ 6

6.3.2 Document subdirectory ............................................................................................................................................. 6

6.3.3 Movie subdirectory ........................................................................................................................................................ 6

6.3.4 Object subdirectory ....................................................................................................................................................... 6

6.3.5 Photo subdirectory ........................................................................................................................................................ 7

6.3.6 Report subdirectory ...................................................................................................................................................... 7

6.3.7 Static subdirectory ......................................................................................................................................................... 7

6.3.8 Additional subdirectories......................................................................................................................................... 7

6.4 Files ................................................................................................................................................................................................................... 7

7 Data formats .............................................................................................................................................................................................................. 7

8 Related electronic documents ................................................................................................................................................................ 8

Bibliography ................................................................................................................................................................................................................................ 9

© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TS 13499:2019(E)

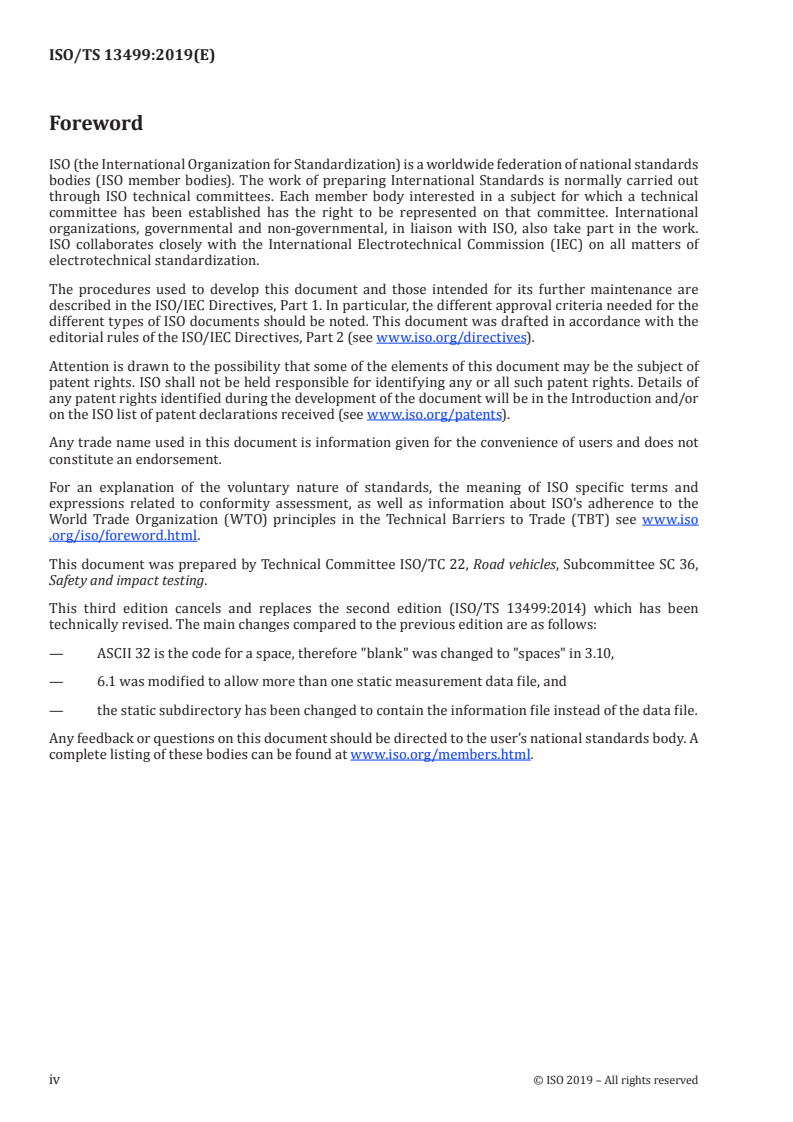

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso

.org/iso/foreword .html.

This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 36,

Safety and impact testing.

This third edition cancels and replaces the second edition (ISO/TS 13499:2014) which has been

technically revised. The main changes compared to the previous edition are as follows:

— ASCII 32 is the code for a space, therefore "blank" was changed to "spaces" in 3.10,

— 6.1 was modified to allow more than one static measurement data file, and

— the static subdirectory has been changed to contain the information file instead of the data file.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
TECHNICAL SPECIFICATION ISO/TS 13499:2019(E)
Road vehicles — Multimedia data exchange format for
impact tests
1 Scope

This document presents a simple means for the exchange of multimedia data on impact tests between

different laboratories. A format has been developed which defines a directory structure and the

exchange information as ASCII files. Related electronic documents are available on the ISO website.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 80000-1, Quantities and units — Part 1: General

ISO/IEC 8859-1, Information technology — 8-bit single-byte coded graphic character sets — Part 1: Latin

alphabet No. 1
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
test number
code specific to the test

Note 1 to entry: In this document and all related electronic documents it is referenced as .

3.2
test object

group of components with the same initial state (e.g. speed, direction of movement) at impact time

Note 1 to entry: In this document and all related electronic documents it is referenced as .

3.3
channel code

code consisting of 16 characters, composed of a sequence of codes with a fixed length and specific order,

defining test object, position, main location, fine locations, physical dimension, direction and filter class

Note 1 to entry: This document and all related electronic documents the complete channel code is referenced as

.
© ISO 2019 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO/TS 13499:2019(E)
EXAMPLE 1 1 HEAD LE 00 H3 AC X A
Meaning: Test object = 1 Vehicle no. 1 referenced as
Position = 1 Front left referenced as
Main location = HEAD Dummy head referenced as
Fine location 1 = LE Left
Fine location 2 = 00 Undefined
Fine location 3 = H3 H III dummy
Dimension = AC Acceleration
Direction = X X-direction
Filter class = A CFC 1000 see ISO 6487
3.4
reference system

three-dimensional coordinate system which belongs to a test rig, a test object or a part of a test object

Note 1 to entry: For each used reference system a specific identifier shall be defined.

3.5
channel code extension

distinguishable data from different data sources or within different reference systems for the same

measurement position described by a specific

Note 1 to entry: For this reason and for future purposes an extension of the is necessary. In this

document and all related electronic documents this extension is referenced as . For details, see

4.4, 5.2 and the related electronic document A.
3.6
media type

multimedia data of vehicle safety tests which is from the same type is grouped to media types

EXAMPLE Photo, movie and channel.

Note 1 to entry: In this document and all related electronic documents this is referenced as .

3.7
quaternion

ambiguities of trigonometric functions avoidable when a rotation matrix with algebraic functions is used

Note 1 to entry: Three independent rotations are described by four algebraic parameters: qw, qx, qy and qz.

Note 2 to entry: For details see the related electronic document A.
3.8
descriptor
text with a maximum length of 28 characters identifying specific information

Note 1 to entry: Tabulation stops (ASCII 9) are not allowed. Case sensitivity is not required.

3.9
line delimiter
“carriage return” (A
...
