Standards Content (sample)

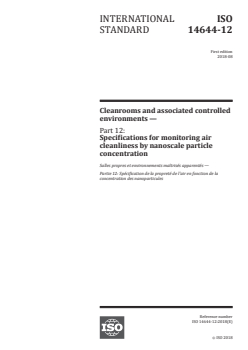

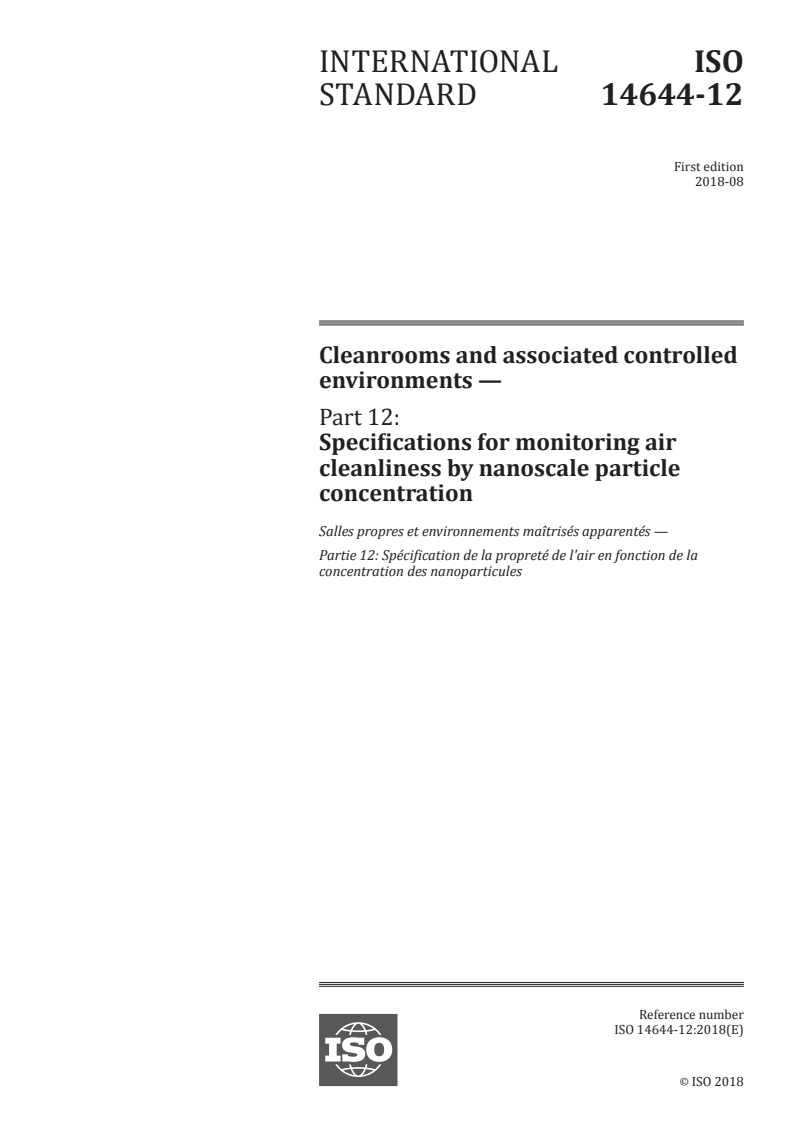

INTERNATIONAL ISO
STANDARD 14644-12
First edition
2018-08
Cleanrooms and associated controlled
environments —
Part 12:
Specifications for monitoring air
cleanliness by nanoscale particle
concentration
Salles propres et environnements maîtrisés apparentés —
Partie 12: Spécification de la propreté de l'air en fonction de la
concentration des nanoparticules
Reference number
ISO 14644-12:2018(E)
ISO 2018
---------------------- Page: 1 ----------------------
ISO 14644-12:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2018

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 14644-12:2018(E)

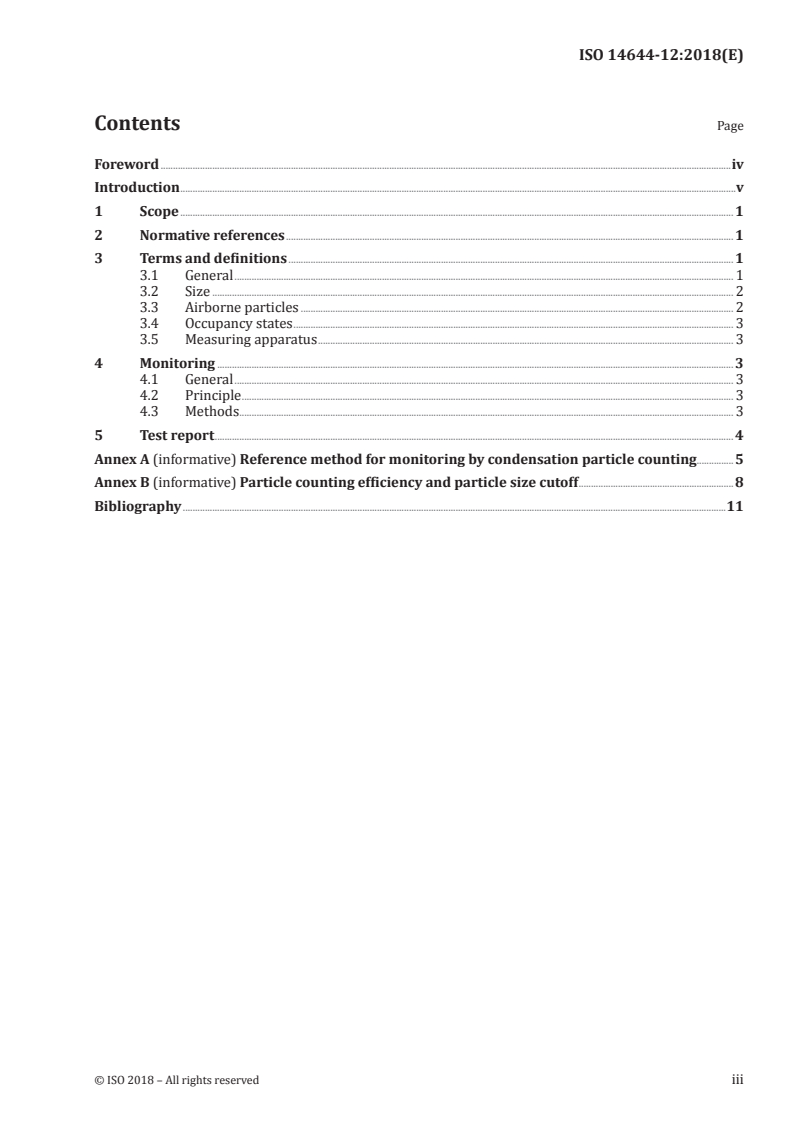

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

3.1 General ........................................................................................................................................................................................................... 1

3.2 Size .................................................................................................................................................................................................................... 2

3.3 Airborne particles ................................................................................................................................................................................ 2

3.4 Occupancy states ................................................................................................................................................................................... 3

3.5 Measuring apparatus ......................................................................................................................................................................... 3

4 Monitoring .................................................................................................................................................................................................................. 3

4.1 General ........................................................................................................................................................................................................... 3

4.2 Principle ........................................................................................................................................................................................................ 3

4.3 Methods ......................................................................................................................................................................................................... 3

5 Test report ................................................................................................................................................................................................................... 4

Annex A (informative) Reference method for monitoring by condensation particle counting...............5

Annex B (informative) Particle counting efficiency and particle size cutoff ...............................................................8

Bibliography .............................................................................................................................................................................................................................11

© ISO 2018 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 14644-12:2018(E)

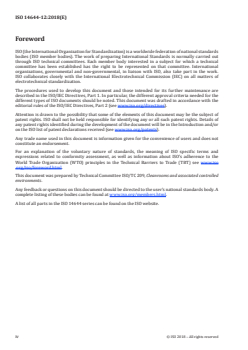

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso

.org/iso/foreword .html.

This document was prepared by Technical Committee ISO/TC 209, Cleanrooms and associated controlled

environments.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
A list of all parts in the ISO 14644 series can be found on the ISO website.
iv © ISO 2018 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 14644-12:2018(E)
Introduction

Cleanrooms and associated controlled environments provide the control of contamination to levels

appropriate for accomplishing contamination-sensitive activities. Products and processes that benefit

from the control of contamination include those in such industries as aerospace, microelectronics,

pharmaceuticals, medical devices, healthcare and food.

The normative requirements in the first editions of ISO 14644-1 and ISO 14644-3 were limited to

classification of particles greater than 100 nm. However, informative material was included in both

documents for airborne particles smaller than 100 nm. At the time these documents were written;

particles smaller than 100 nm were called ultrafine particles rather than the more recent term,

nanoparticles.

In the second editions of ISO 14644-1 and ISO 14644-3 , sections on ultrafine particles have been

removed and these are incorporated, in modified form, in this document. Supporting information has

also been drawn from documents developed elsewhere, for example by ISO/TC 229, Nanotechnologies.

Nanotechnology typically deals with material in the size range of approximately 1 nm to 100 nm.

As part of the long-term trend of manufacturing products with ever smaller feature size to improve

performance, many industries utilizing cleanrooms (such as microelectronics and those related to

health) now have products in the nanoscale.

Nanoparticles are man-made. Other particles in the nanoscale size range can originate as incidental by-

product emissions from industrial process or additionally as naturally occurring particles. A cleanroom

with a nanotechnology-based process can contain nanoscale particles from all three sources.

Nanoparticles or ultrafine particles differ from sub-micron and macro-particles in origin, chemical

properties and transport behaviour. Most sub-micron and macro particles in cleanrooms can be related

to human activity. Nanoparticles are generated by electrostatic discharge, chemical reactions, such

as oxidation, and gas phase nucleation. Material properties of nanoparticles are expected to differ

from bulk properties with potentially greater reactivity and sometimes enhanced toxicity. Transport

of nanoparticles is dominated by air flow, just like sub-micron particles. However, diffusion of

nanoparticles and mobility in electrical fields increases rapidly with decreasing size. As a consequence,

nanoparticles have higher coagulation rates in the air and deposition rates on surfaces are higher

than larger sized particles. Therefore, it is not expected that the classification curves as described in

ISO 14644-1 can be simply extrapolated to smaller particles than the stated lower limit.

Ultra Low Particulate Air (ULPA) filters remove nanoparticles with high efficiency, preventing

penetration from the atmosphere and recirculated air. Therefore, the majority of the nanoparticles

in cleanrooms are process related. For many cleanrooms, the composition of sub-micron and macro

particles is comparable. For nanoparticles, each cleanroom has nanoparticles corresponding to the

specific process. Therefore, measurement of the nanoparticle concentration is only suitable when the

cleanroom is in an “operational” state. In the “as-built” or “at-rest” state, the lack of process related

particles leads to data that do not correlate to the realistic conditions.

See Bibliography references [1] to [18] for background information on particle size characteristics/

properties.
1) Under preparation. (Stage at the time of publication: ISO/DIS 14644-3.)
© ISO 2018 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 14644-12:2018(E)
Cleanrooms and associated controlled environments —
Part 12:
Specifications for monitoring air cleanliness by nanoscale
particle concentration
1 Scope

This document covers the monitoring of air cleanliness by particles in terms of concentration of

airborne nanoscale particles.

For monitoring purposes, only populations of particles with a lower size limit of 0.1 microns (100 nm)

or less – “nanoscale” – are considered.
The monitoring given in this document is for use mainly in “operational” states.

NOTE 1 For the purposes of this document, reference is made to “nanoscale particles”, which means all nano-

objects having one (nanoplate), two (nanofibre) or three (nanoparticle) dimensions in the nanoscale.

NOTE 2 As a consequence, the specifications for monitoring air cleanliness by nanoscale particle

concentration of the cleanroom in operational state also considers process specifics, e.g., used equipment,

personnel behaviour, etc.
NOTE 3 Health and safety considerations are excluded from this document.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at https: //www .electropedia .org/
3.1 General
3.1.1
cleanroom

room within which the number concentration of airborne particles is controlled and classified, and

which is designed, constructed and operated in a manner to control the introduction, generation and

retention of particles inside the room
Note 1 to entry: The class of airborne particle concentration is specified.

Note 2 to entry: Levels of other cleanliness attributes such as chemical, viable or nanoscale (3.2.1) concentrations

in the air, and also surface cleanliness in terms of particle, nanoscale, chemical and viable concentrations might

also be specified and controlled.
© ISO 2018 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 14644-12:2018(E)

Note 3 to entry: Other relevant physical parameters might also be controlled as required, e.g. temperature,

humidity, pressure, vibration and electrostatic.
[SOURCE: ISO 14644-1:2015, 3.1.1]
3.1.2
clean zone

defined space within which the number concentration of airborne particles is controlled and classified,

and which is constructed and operated in a manner to control the introduction, generation and retention

of contaminants inside the space
Note 1 to entry: The class of airborne particle concentration is specified.

Note 2 to entry: Levels of other cleanliness attributes such as chemical, viable or nanoscale (3.2.1) concentrations

in the air, and also surface cleanliness in terms of particle, nanoscale, chemical and viable concentrations might

also be specified and controlled.

Note 3 to entry: A clean zone(s) can be a defined space within a cleanroom (3.1.1) or might be achieved by a

separative device. Such a device can be located inside or outside a cleanroom.

Note 4 to entry: Other relevant physical parameters might also be controlled as required, e.g. temperature,

humidity, pressure, vibration and electrostatic.
[SOURCE: ISO 14644-1:2015, 3.1.2]
3.2 Size
3.2.1
nanoscale
length range approximately from 1 nm to 100 nm

Note 1 to entry: Properties that are not extrapolations from a larger size are predominantly exhibited in this

length range.
[SOURCE: ISO/TS 80004-2:2015, 2.1]
3.2.2
particle size cutoff
particle size at which the counting efficiency is 50 %
Note 1 to entry: See Annex B for an explanation of counting efficiency.
3.3 Airborne particles
3.3.1
nanoparticle

nano-object (3.2.2) with all external dimensions in the nanoscale (3.2.1) where the lengths of the longest

and the shortest axes of the nano-object do not differ significantly

Note 1 to entry: If the dimensions differ significantly (typically by more than 3 times), terms such as nanofibre or

nanoplate may be preferred to the term nanoparticle
[SOURCE: ISO/TS 80004-2:2015, 4.4]
3.3.2
particle size distribution
cumulative distribution of particle concentration as a function of particle size
[SOURCE: ISO 14644-1:2015, 3.2.4]
2 © ISO 2018 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 14644-12:2018(E)
3.3.3
aerosol
system of solid or liquid particles suspended in gas
[SOURCE: ISO 15900:2009, 2.1]
3.4 Occupancy states
3.4.1
operational

agreed condition where the cleanroom (3.1.1) or clean zone (3.1.2) is functioning in the specified

manner, with equipment operating and with the specified number of personnel present

[SOURCE: ISO 14644-1:2015, 3.3.3]
3.5 Measuring apparatus
3.5.1
condensation particle counter
CPC
instrument that measures the particle number concentration of an aerosol (3.3.3)

Note 1 to entry: The sizes of particles detected are usually smaller than several hundred nanometres and larger

than a few nanometres.
Note 2 to entry: A CPC is one possible detector for use with a DEMC.

Note 3 to entry: In some cases, a condensation particle counter may be called a condensation nucleus counter (CNC).

[SOURCE: ISO 15900:2009, 2.5]
3.5.2
counting efficiency

ratio of the reported concentration of particles in a given size range to the actual concentration of such

particles
[SOURCE: ISO 14644-3:2005, 3.6.5]
4 Monitoring
4.1 General

For measurement purposes, the only important particle characteristic is its “equivalent diameter”.

4.2 Principle

The monitoring limits and requirements specified by the customer are verified by performing

specified testing procedures and by providing documentation of the results and conditions of testing,

as agreed upon by the customer and the supplier. See ISO 14644-2:2015, Annex A which specifies the

requirements of a monitoring plan based on the risk assessment of the intended use. The data obtained

provide evidence of
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
