ISO 16301:2017

Rubber and plastics hoses and hose assemblies, wire- or textile-reinforced, for manually operated hydraulic jacks — Specification

ISO 16301 specifies the requirements for three classes of wire- or textile-reinforced hydraulic hoses and hose assemblies of nominal sizes ranging from 5 to 25. The hoses and hose assemblies are used in hydraulic jack applications with manually operated hand pumps. They are suitable for use with hydraulic fluids HH, HL, HM, HR and HV at temperature ranging from −40 °C to +55 °C. For tools that require heavy duty services such as a rescue tool, ISO 19718[3] applies. ISO 16301 does not include requirements for the connection ends. It is limited to the performance of hoses and hose assemblies. The maximum working pressure of hose assemblies is regulated by the lowest maximum working pressure of the components. NOTE 1 It is the responsibility of the user, in consultation with the hose manufacturer, to establish the compatibility of the hose with the fluid to be used. NOTE 2 There are two International Standards for hoses for hydraulic jacks and tool applications, i.e. ISO 16301 and ISO 19718. The comparison table is given in Annex A. NOTE 3 The classification of HH, HL, HM, HR and HV is found in ISO 6743-4[2].

Tuyaux et flexibles en caoutchouc et en plastique, à armature textile ou métallique, pour vérin hydrauliques — Spécifications

General Information

• Status: Published
• Publication Date: 02-Oct-2017
• ICS: 83.140.40 - Hoses
• Technical Committee: ISO/TC 45/SC 1 - Rubber and plastics hoses and hose assemblies
• Drafting Committee: ISO/TC 45/SC 1/WG 3 - Hydraulic hoses
• Current Stage: 9093 - International Standard confirmed
• Start Date: 17-Jan-2023
• Completion Date: 14-Feb-2026

Overview

ISO 16301:2017 sets out the international requirements for rubber and plastics hoses and hose assemblies, specifically designed for use with manually operated hydraulic jacks. Covering both wire-reinforced and textile-reinforced hoses, this standard applies to hose assemblies with nominal sizes from 5 to 25 and is focused on ensuring performance safety and reliability in critical hydraulic jack applications. ISO 16301 is established by the International Organization for Standardization (ISO) and is critical for manufacturers, suppliers, and users of hydraulic equipment who require consistent product quality and safety assurance.

Key Topics

• Scope and Applicability: Specifies three classes of hose and hose assemblies for manual hydraulic hand pump jacks, covering nominal sizes 5 to 25.
• Types of Reinforcement: Covers hoses reinforced with either steel wire or textile materials, suitable for a range of hydraulic fluid types (HH, HL, HM, HR, HV) and operational temperatures from −40 °C to +55 °C.
• Performance Criteria: Defines key performance requirements such as maximum working pressure, proof pressure, minimum burst pressure, change in length, bend radius, and resistance to oil, ozone, and cold bending.
• Hazard Management: Addresses hazards related to bursting, leaking, connector failure, operator error, and sudden changes in hose assembly length to promote occupational health and safety.
• Classification and Grades: Outlines three classes based on maximum working pressure, and grades based on electrical conductivity requirements.
• Testing and Quality Control: Specifies type tests, routine tests, and recommended production test frequencies for dimensions, material composition, performance, and marking.
• Marking: Requires clear, standardized marking of hoses and hose assemblies for identification, traceability, and compliance with ISO 16301.
• Packaging and Storage: Recommends proper packaging and storage practices to preserve hose integrity and performance.

Applications

• Hydraulic Jacks: Essential for manually operated hydraulic hand pumps used in automotive, industrial, and equipment maintenance operations.
• Light-duty Hydraulic Equipment: Suitable for applications requiring reliable fluid transfer under high pressure, such as hydraulic presses and torque wrenches.
• Safety-focused Operations: Provides guidelines ensuring hoses and assemblies are resistant to oil, weather, abrasion, and temperature fluctuations, supporting safe use in demanding environments.
• Manufacturing and Quality Assurance: Used by hose manufacturers and suppliers in product design, batch testing, and certification processes to meet international standards and customer requirements.

Related Standards

• ISO 19718 - Specification for hoses and hose assemblies for heavy-duty hydraulic tool applications (e.g., rescue tools).
• ISO 6743-4 - Classification of hydraulic fluids (HH, HL, HM, HR, HV).
• ISO 1402 - Hydrostatic testing of rubber and plastics hoses and hose assemblies.
• ISO 1817 - Determination of the effect of liquids on rubber, vulcanized or thermoplastic.
• ISO 6803 - Hydraulic-pressure impulse test for hoses and assemblies.
• ISO 7326 - Assessment of ozone resistance for hoses.
• ISO 8330/ISO 8331 - Hose vocabulary and guidelines for selection, storage, and maintenance.
• ISO 10619-1/2 - Measurement of flexibility and stiffness at ambient and sub-ambient temperatures.

ISO 16301:2017 enables manufacturers, suppliers, and end users worldwide to achieve consistency, safety, and quality in wire- or textile-reinforced hydraulic hoses and assemblies for manually operated jacks. By complying with this standard, organizations can minimize the risk of failure, ensure compatibility with various hydraulic fluids, and support the safe, effective operation of critical hydraulic equipment.

Standards Content (Sample)

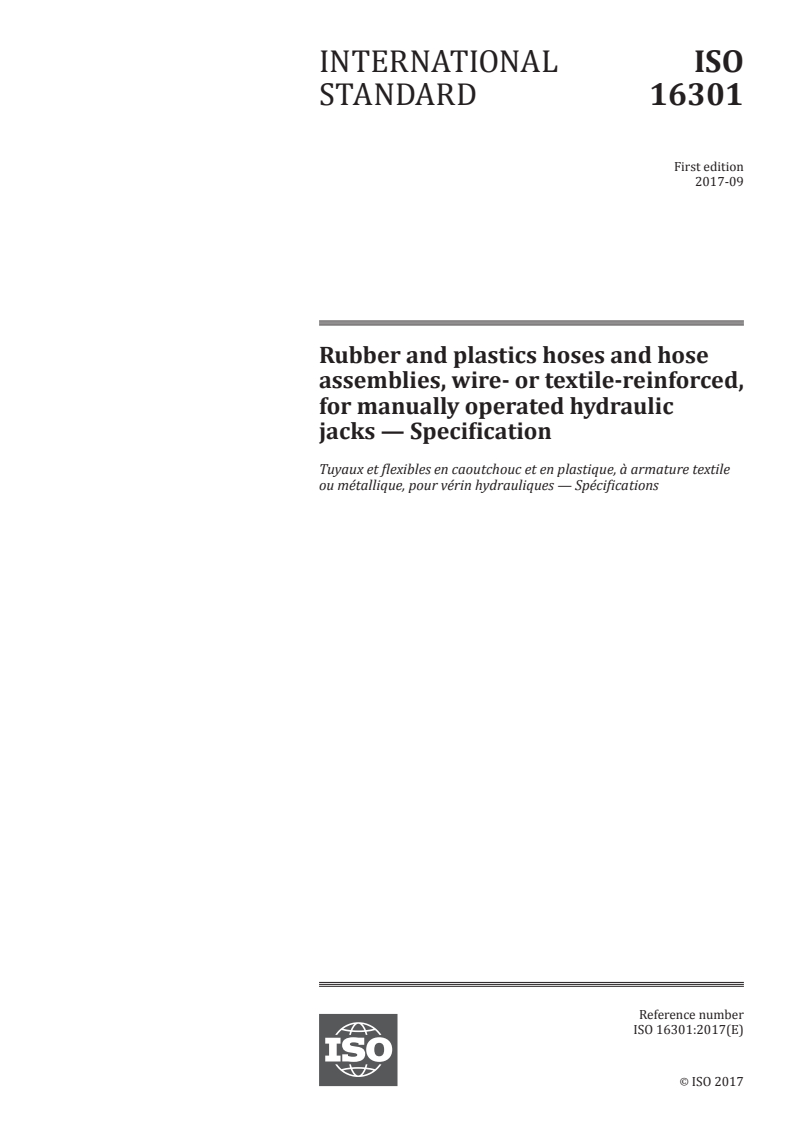

INTERNATIONAL ISO
STANDARD 16301
First edition
2017-09
Rubber and plastics hoses and hose
assemblies, wire- or textile-reinforced,
for manually operated hydraulic
jacks — Specification
Tuyaux et flexibles en caoutchouc et en plastique, à armature textile
ou métallique, pour vérin hydrauliques — Spécifications
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2017 – All rights reserved

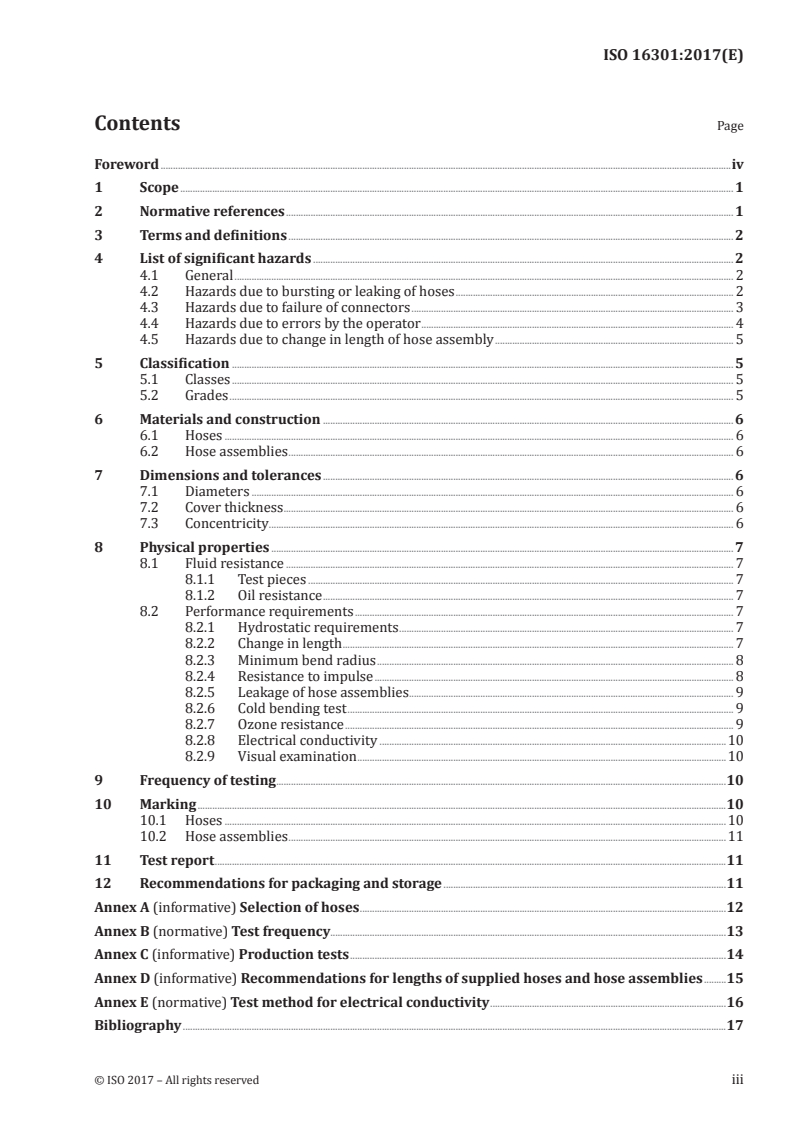

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3  Terms and definitions . 2
4  List of significant hazards . 2
4.1 General . 2
4.2 Hazards due to bursting or leaking of hoses . 2
4.3 Hazards due to failure of connectors . 3
4.4 Hazards due to errors by the operator . 4
4.5 Hazards due to change in length of hose assembly . 5
5  Classification . 5
5.1 Classes . 5
5.2 Grades . 5
6 Materials and construction . 6
6.1 Hoses . 6
6.2 Hose assemblies . 6
7 Dimensions and tolerances . 6
7.1 Diameters . 6
7.2 Cover thickness . 6
7.3 Concentricity. 6
8 Physical properties . 7
8.1 Fluid resistance . 7
8.1.1 Test pieces . 7
8.1.2 Oil resistance . 7
8.2 Performance requirements . 7
8.2.1 Hydrostatic requirements . 7
8.2.2 Change in length . 7
8.2.3 Minimum bend radius . 8
8.2.4 Resistance to impulse . 8
8.2.5 Leakage of hose assemblies . 9
8.2.6 Cold bending test . 9
8.2.7 Ozone resistance . 9
8.2.8 Electrical conductivity .10
8.2.9 Visual examination .10
9 Frequency of testing .10
10 Marking .10
10.1 Hoses .10
10.2 Hose assemblies .11
11 Test report .11
12 Recommendations for packaging and storage .11
Annex A (informative) Selection of hoses .12
Annex B (normative) Test frequency.13
Annex C (informative) Production tests .14
Annex D (informative) Recommendations for lengths of supplied hoses and hose assemblies .15
Annex E (normative) Test method for electrical conductivity .16
Bibliography .17

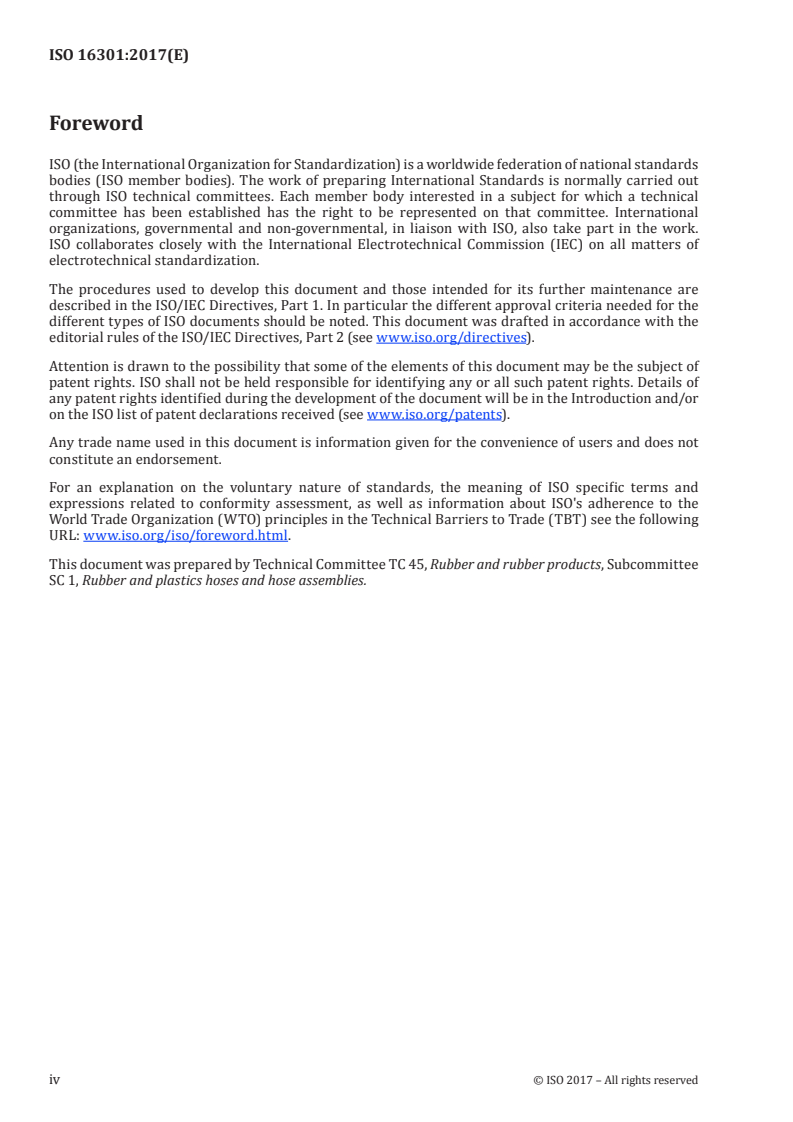

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee TC 45, Rubber and rubber products, Subcommittee
SC 1, Rubber and plastics hoses and hose assemblies.
iv © ISO 2017 – All rights reserved

INTERNATIONAL STANDARD ISO 16301:2017(E)
Rubber and plastics hoses and hose assemblies, wire- or
textile-reinforced, for manually operated hydraulic jacks —
Specification
1 Scope
This document specifies the requirements for three classes of wire- or textile-reinforced hydraulic
hoses and hose assemblies of nominal sizes ranging from 5 to 25. The hoses and hose assemblies are
used in hydraulic jack applications with manually operated hand pumps. They are suitable for use with
hydraulic fluids HH, HL, HM, HR and HV at temperature ranging from −40 °C to +55 °C. For tools that
[3]
require heavy duty services such as a rescue tool, ISO 19718 applies.
This document does not include requirements for the connection ends. It is limited to the performance
of hoses and hose assemblies. The maximum working pressure of hose assemblies is regulated by the
lowest maximum working pressure of the components.
NOTE 1 It is the responsibility of the user, in consultation with the hose manufacturer, to establish the
compatibility of the hose with the fluid to be used.
NOTE 2 There are two International Standards for hoses for hydraulic jacks and tool applications, i.e.
ISO 16301 and ISO 19718. The comparison table is given in Annex A.
[2]
NOTE 3 The classification of HH, HL, HM, HR and HV is found in ISO 6743-4 .
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1402, Rubber and plastics hoses and hose assemblies — Hydrostatic testing
ISO 1817, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids
ISO 4671, Rubber and plastics hoses and hose assemblies — Methods of measurement of the dimensions of
hoses and the lengths of hose assemblies
ISO 6743-4, Lubricants, industrial oils and related products (class L) — Classification — Part 4: Family H
(Hydraulic systems)
ISO 6803, Rubber or plastics hoses and hose assemblies — Hydraulic-pressure impulse test without flexing
ISO 7326:2016, Rubber and plastics hoses — Assessment of ozone resistance under static conditions
ISO 8330, Rubber and plastics hoses and hose assemblies — Vocabulary
ISO 8331, Rubber and plastics hoses and hose assemblies — Guidelines for selection, storage, use and
maintenance
ISO 10619-1:2011, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness —
Part 1: Bending tests at ambient temperature
ISO 10619-2:2011, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness —
Part 2: Bending tests at sub-ambient temperatures
3  Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 8330 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
4  List of significant hazards
4.1 General
This clause contains some of the significant hazards, hazardous situations and events, as far as they are
dealt with in this document, identified by risk assessment as significant for this type of machinery and
which require action to eliminate or reduce the risk.
4.2  Hazards due to bursting or leaking of hoses
Hazards can occur when a hose bursts or leaks. The escaping stream of liquid can cause personal injury
or property damage.
Figure 1 — Hazards due to bursting or leaking of hoses
2 © ISO 2017 – All rights reserved

4.3  Hazards due to failure of connectors
Hazards can occur when a connector fails. The escaping stream of liquid can cause physical damage
and also a sudden repositioning of the hose assembly in a dangerous manner (whip).
Figure 2 — Hazards due to failure of connectors
4.4  Hazards due to errors by the operator
Hazards can occur if the operator uses incompatible substances or incompatible components. Hazards
can also occur if the operator exceeds the limits of use specified by the manufacturer (e.g. too high
pressure, too high tensile stress), also pinhole caused by kink might result in a significant injury.
Figure 3 — Hazards due to errors by the operator
