Particulate materials — Sampling and sample splitting for the determination of particulate properties — Amendment 1

Matériaux particulaires — Échantillonnage et division des échantillons pour la caractérisation des propriétés particulaires — Amendement 1

General Information

Status
Published
Publication Date
14-Nov-2019
Current Stage
6060 - International Standard published
Start Date
14-Nov-2019
Due Date
17-Sep-2020
Completion Date
15-Nov-2019
Ref Project

Relations

Buy Standard

Standard
ISO 14488:2007/Amd 1:2019
English language
5 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 14488
First edition
2007-12-15
AMENDMENT 1
2019-11
Particulate materials — Sampling and
sample splitting for the determination
of particulate properties
AMENDMENT 1
Matériaux particulaires — Échantillonnage et division des
échantillons pour la caractérisation des propriétés particulaires
AMENDEMENT 1
Reference number
ISO 14488:2007/Amd.1:2019(E)
©
ISO 2019

---------------------- Page: 1 ----------------------
ISO 14488:2007/Amd.1:2019(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 14488:2007/Amd.1:2019(E)

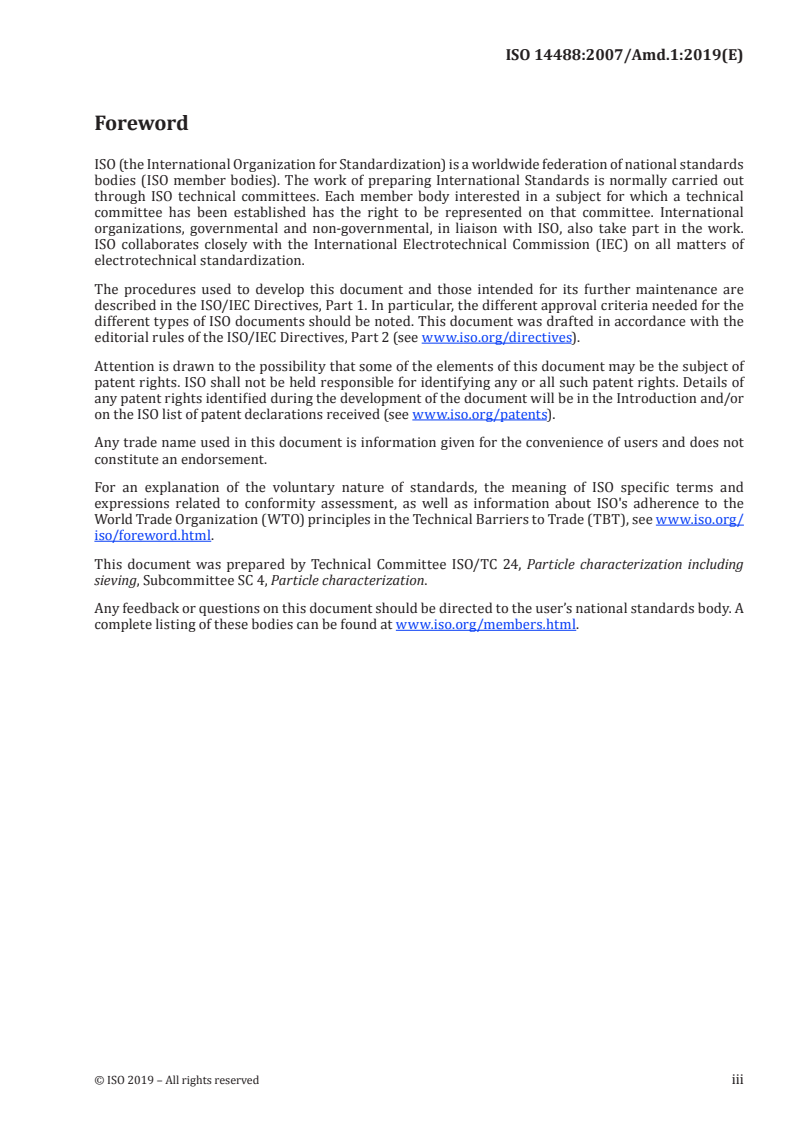

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 24, Particle characterization including
sieving, Subcommittee SC 4, Particle characterization.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2019 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 14488:2007/Amd.1:2019(E)
Particulate materials — Sampling and sample splitting for
the determination of particulate properties
AMENDMENT 1

Annex B
Add the following additional clause.
B.7  Simple approach to the calculation of the fundamental sampling error (FSE) and minimum
mass required for a specified standard error
This clause provides a method to approximately determine the magnitude (mg/g/kg) of the minimum
mass required to meet a specific standard error. The approach approximates the precise calculations
described in the document. With a knowledge or assumption of the actual mass utilized in the particle
size analysis experiment, the best standard error achievable based solely on the heterogeneity of the
material can also be estimated.
The fundamental sampling error (FSE) is one of 8 errors (implies culpability) or variables (implies
[12]
statistical variation) originally described by Pierre Gy – see Table B.3. It represents the smallest
possible variation in sample to sample reproducibility based solely on the heterogeneity of the material
or distribution involved.
Table B.3 — Old (Gy) and new notations (Pitard/Esbensen)
Errors Old term New term
Heterogeneity fluctuation error CE HFE
Quality fluctuation error QE QFE
Fundamental sampling error FE FSE
Grouping and segregation error GE GSE
Increment weighting error WE IWE
Increment delimitation error DE IDE
Increment extraction error EE IEE
Increment preparation errors PE IPE
[13][14][15]
The FSE is identical to the standard error familiar to mathematicians and statisticians . The
standard error (SE) of a parameter is the standard deviation (σ, theoretical value) or an estimate of
the standard deviation (s, absolute value coming from measurements) of a sampled distribution. If the
parameter or the statistic is the mean, it is called the standard error of the mean (SEM). It represents
how close the result gets to the ‘true’ mean with repeated samplings or an increased proportion of the
actual distribution.
In particle size distribution considerations, the FSE is inversely proportional to the square root of the
number of particles present in the distribution or part of the distribution. In the following derivations,
no assumption is made of the form of the original particle size distribution; only, that the samples
withdrawn are normally distributed (as is the standard case).
© ISO 2019 – All rights reserved 1

---------------------- Page: 4 ----------------------
ISO 14488:2007/Amd.1:2019(E)

2
SEM α 1/√n or n α 1/σ
For 1 % SEM it can be shown that:
2
n = 1/(0,01) = 10 000
Thus, 10 000 particles in total will be needed to specify the mean to 1 % SE. See also Reference [18]. The
implication is that to specify any other point of the distribution to 1 % SE, at least 10 000 particles will
be needed in the portion of the distribution above that point. The worst-case situation is considered
first; specifying the x point in the distribution to a standard error of 1 %. This requires 10 000
99
particles in the x + part of the distribution. This x + part represents only 1/100 of the total sample
99 99
mass of the entire distribution. Thus, only the mass (= volume × density) of 10 000 particles needs to be
calculated at some known or assumed x point in the distribution and multiplied by the appropriate
99
value to compute the total mass of the distribution. Using the value of the x point is more convenient
99
than attempting to use a more correct midpoint between the x and (unknown) x point. It will
99 100
slightly underestimate the minimum mass required but calculations show this to be minor.
Making two assumptions, the minimum mass of the portion M can be calculated: the particles are
Q
spherical and all particles of the portion have the minimum diameter x .
Q
3
Mn=×(/π 6)××x ρ
Qmin Q
where
n is the minimum number of particles for the specified precision;
min
(π/6) is the shape factor for a sphere;
x is the largest point in
...
