ISO 26429-3:2008 specifies the common features of the format of sound and picture tracks files for distribution of digital cinema content using the material exchange format (MXF) file format. It defines data structures for interchange at the signal interfaces of networks or storage media, but does not define internal storage formats for compliant devices or mappings for particular essence encodings. ISO 26429-3:2008 is an application specification for digital cinema applications. It is based on the SMPTE 390M OP-ATOM standard, but is further constrained to address the needs of distribution of digital cinema content to exhibition sites.
Emballage du cinéma numérique (cinéma D) — Partie 3: Fichier de la piste sonore et visuelle
General Information
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 26429-3
First edition
2008-07-15
Digital cinema (D-cinema) packaging —
Part 3:
Sound and picture track file
Emballage du cinéma numérique (cinéma D) —
Partie 3: Fichier de la piste sonore et visuelle
Reference number
ISO 26429-3:2008(E)
©
ISO 2008
---------------------- Page: 1 ----------------------
ISO 26429-3:2008(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
COPYRIGHT PROTECTED DOCUMENT
© ISO 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2008 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 26429-3:2008(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
ISO 26429-3 was prepared by the Society of Motion Picture and Television Engineers (as
SMPTE 429-3-2007) and was adopted, under a special “fast-track procedure”, by Technical Committee
ISO/TC 36, Cinematography, in parallel with its approval by the ISO member bodies.
ISO 26429 consists of the following parts, under the general title Digital cinema (D-cinema) packaging:
⎯ Part 3: Sound and picture track file
⎯ Part 4: MXF JPEG 2000 application
⎯ Part 6: MXF track file essence encryption
⎯ Part 7: Composition playlist
© ISO 2008 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 26429-3:2008(E)

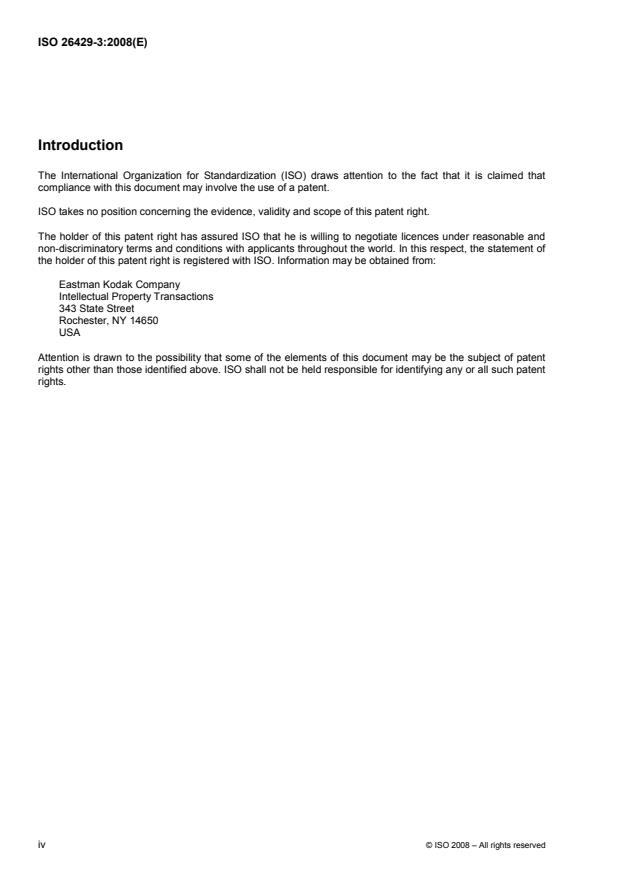

Introduction
