Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)
Harmonized European Standard (Telecommunications series)
Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Ground-based UHF radio
transmitters, receivers and transceivers for the UHF
aeronautical mobile service using amplitude modulation;
Part 2: Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive
---------------------- Page: 3 ----------------------
SIST EN 302 617-2 V1.1.1:2010
2 Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)

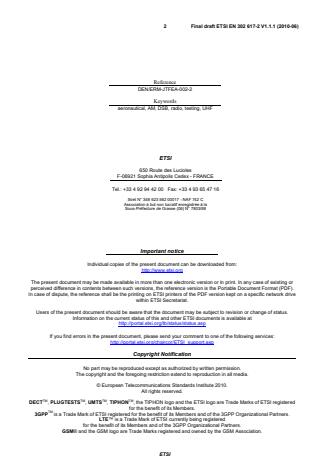

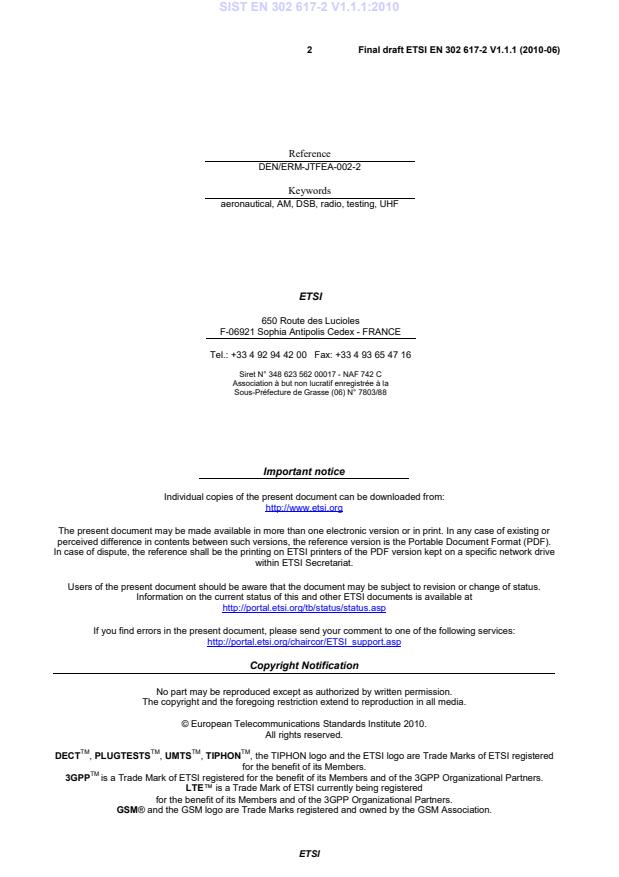

Reference
DEN/ERM-JTFEA-002-2
Keywords
aeronautical, AM, DSB, radio, testing, UHF
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 4 ----------------------
SIST EN 302 617-2 V1.1.1:2010
3 Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)

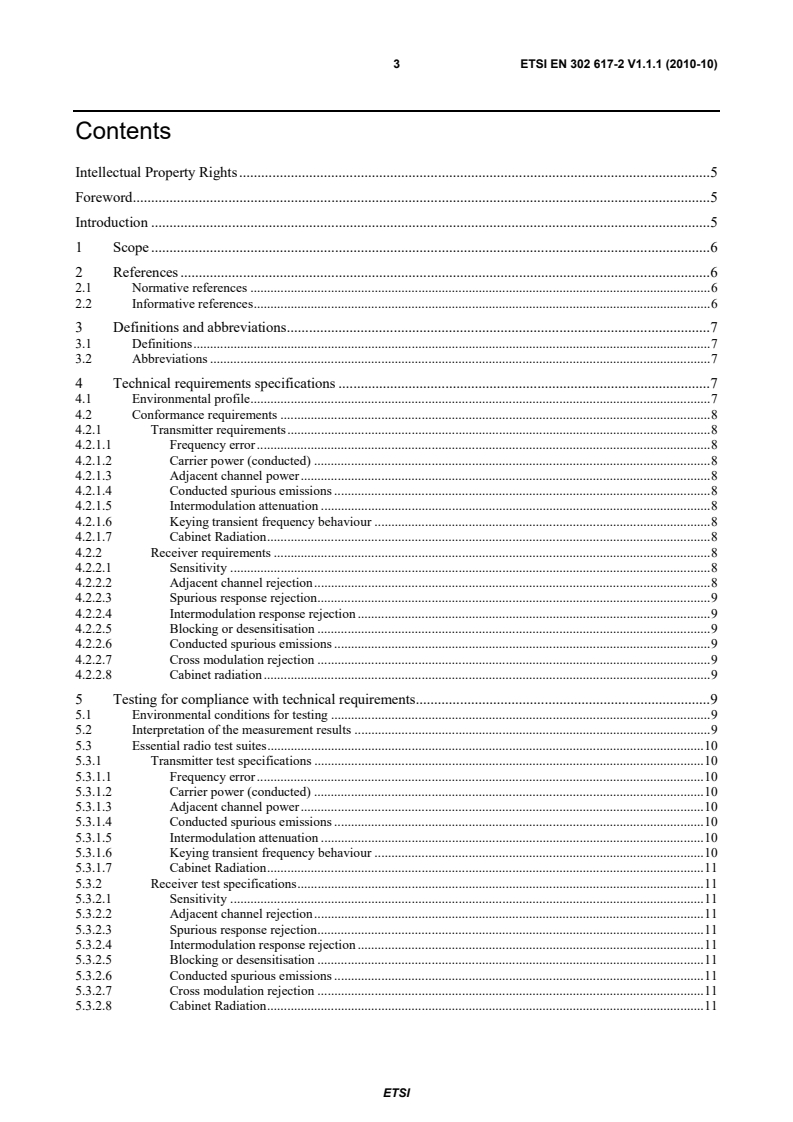

Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 7
4 Technical requirements specifications . 7
4.1 Environmental profile . 7
4.2 Conformance requirements . 8
4.2.1 Transmitter requirements . 8
4.2.1.1 Frequency error . 8
4.2.1.2 Carrier power (conducted) . 8
4.2.1.3 Adjacent channel power . 8
4.2.1.4 Conducted spurious emissions . 8
4.2.1.5 Intermodulation attenuation . 8
4.2.1.6 Keying transient frequency behaviour . 8
4.2.1.7 Cabinet Radiation . 8
4.2.2 Receiver requirements . 8
4.2.2.1 Sensitivity . 8
4.2.2.2 Adjacent channel rejection . 8
4.2.2.3 Spurious response rejection . 9
4.2.2.4 Intermodulation response rejection . 9
4.2.2.5 Blocking or desensitisation . 9
4.2.2.6 Conducted spurious emissions . 9
4.2.2.7 Cross modulation rejection . 9
4.2.2.8 Cabinet radiation . 9
5 Testing for compliance with technical requirements . 9
5.1 Environmental conditions for testing . 9
5.2 Interpretation of the measurement results . 9
5.3 Essential radio test suites . 10
5.3.1 Transmitter test specifications . 10
5.3.1.1 Frequency error . 10
5.3.1.2 Carrier power (conducted) . 10
5.3.1.3 Adjacent channel power . 10
5.3.1.4 Conducted spurious emissions . 10
5.3.1.5 Intermodulation attenuation . 10
5.3.1.6 Keying transient frequency behaviour . 10
5.3.1.7 Cabinet Radiation . 11
5.3.2 Receiver test specifications . 11
5.3.2.1 Sensitivity . 11
5.3.2.2 Adjacent channel rejection . 11
5.3.2.3 Spurious response rejection . 11
5.3.2.4 Intermodulation response rejection . 11
5.3.2.5 Blocking or desensitisation . 11
5.3.2.6 Conducted spurious emissions . 11
5.3.2.7 Cross modulation rejection . 11
5.3.2.8 Cabinet Radiation . 11
ETSI
---------------------- Page: 5 ----------------------
SIST EN 302 617-2 V1.1.1:2010
4 Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)

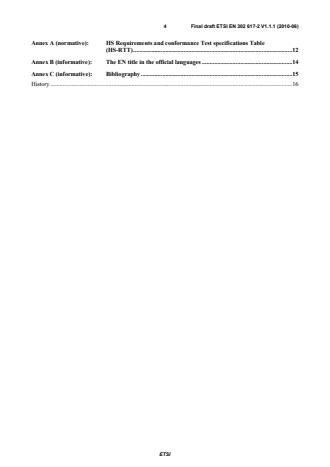

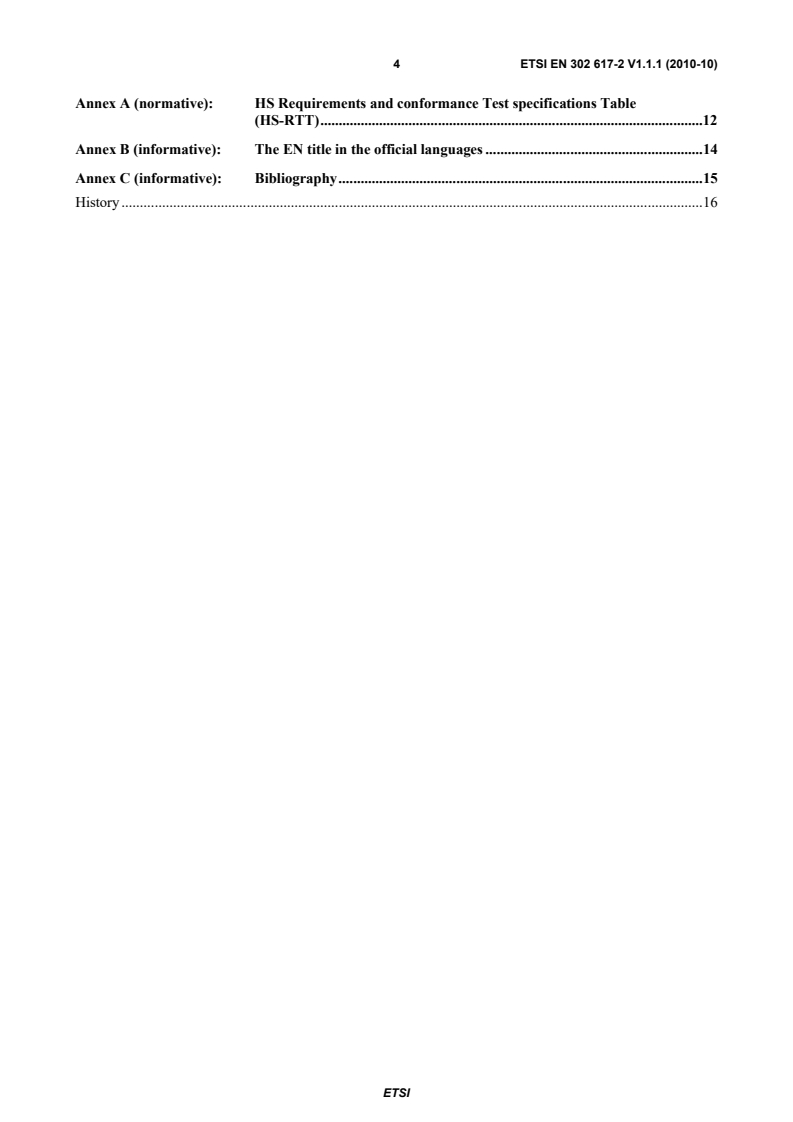

Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 12
Annex B (informative): The EN title in the official languages . 14
Annex C (informative): Bibliography . 15
History . 16
ETSI
---------------------- Page: 6 ----------------------
SIST EN 302 617-2 V1.1.1:2010
5 Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the ETSI standards
One-step Approval Procedure.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.5] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC [i.2] of the European Parliament
and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive").
The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A.
The present document is part 2 of a multi-part deliverable covering Ground-based UHF radio transmitters, receivers and
transceivers for the UHF aeronautical mobile service using amplitude modulation, as identified below:
Part 1: "Technical characteristics and methods of measurement";
Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.4].
ETSI
---------------------- Page: 7 ----------------------
SIST EN 302 617-2 V1.1.1:2010
6 Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)
1 Scope
The present document applies to DSB AM ground base stations, with channel separations of 25 kHz intended for
analogue speech. The scope of the present document is limited to ground based transmitters, receivers and transceivers.
These radio equipment types are capable of operating in all or any part of the aeronautical frequency band between
225 MHz and 399,975 MHz.
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2,
which states that ". radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive as well as essential requirements under the Single European Sky
Interoperability Regulation (as amended) [i.3] and related implementing rules may apply to equipment within the scope
of the present document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references,only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 302 617-1 (V1.1.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Ground-based UHF radio transmitters, receivers and transcei
...
Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)
Harmonized European Standard (Telecommunications series)
Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Ground-based UHF radio
transmitters, receivers and transceivers for the UHF
aeronautical mobile service using amplitude modulation;
Part 2: Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive
---------------------- Page: 1 ----------------------
2 Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)
Reference
DEN/ERM-JTFEA-002-2
Keywords
aeronautical, AM, DSB, radio, testing, UHF
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)
Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 7
4 Technical requirements specifications . 7
4.1 Environmental profile . 7
4.2 Conformance requirements . 8
4.2.1 Transmitter requirements . 8
4.2.1.1 Frequency error . 8
4.2.1.2 Carrier power (conducted) . 8
4.2.1.3 Adjacent channel power . 8
4.2.1.4 Conducted spurious emissions . 8
4.2.1.5 Intermodulation attenuation . 8
4.2.1.6 Keying transient frequency behaviour . 8
4.2.1.7 Cabinet Radiation . 8
4.2.2 Receiver requirements . 8
4.2.2.1 Sensitivity . 8
4.2.2.2 Adjacent channel rejection . 8
4.2.2.3 Spurious response rejection . 9
4.2.2.4 Intermodulation response rejection . 9
4.2.2.5 Blocking or desensitisation . 9
4.2.2.6 Conducted spurious emissions . 9
4.2.2.7 Cross modulation rejection . 9
4.2.2.8 Cabinet radiation . 9
5 Testing for compliance with technical requirements . 9
5.1 Environmental conditions for testing . 9
5.2 Interpretation of the measurement results . 9
5.3 Essential radio test suites . 10
5.3.1 Transmitter test specifications . 10
5.3.1.1 Frequency error . 10
5.3.1.2 Carrier power (conducted) . 10
5.3.1.3 Adjacent channel power . 10
5.3.1.4 Conducted spurious emissions . 10
5.3.1.5 Intermodulation attenuation . 10
5.3.1.6 Keying transient frequency behaviour . 10
5.3.1.7 Cabinet Radiation . 11
5.3.2 Receiver test specifications . 11
5.3.2.1 Sensitivity . 11
5.3.2.2 Adjacent channel rejection . 11
5.3.2.3 Spurious response rejection . 11
5.3.2.4 Intermodulation response rejection . 11
5.3.2.5 Blocking or desensitisation . 11
5.3.2.6 Conducted spurious emissions . 11
5.3.2.7 Cross modulation rejection . 11
5.3.2.8 Cabinet Radiation . 11
ETSI
---------------------- Page: 3 ----------------------
4 Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 12
Annex B (informative): The EN title in the official languages . 14
Annex C (informative): Bibliography . 15
History . 16
ETSI
---------------------- Page: 4 ----------------------
5 Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the ETSI standards
One-step Approval Procedure.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.5] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC [i.2] of the European Parliament
and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive").
The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A.
The present document is part 2 of a multi-part deliverable covering Ground-based UHF radio transmitters, receivers and
transceivers for the UHF aeronautical mobile service using amplitude modulation, as identified below:
Part 1: "Technical characteristics and methods of measurement";
Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.4].
ETSI
---------------------- Page: 5 ----------------------
6 Final draft ETSI EN 302 617-2 V1.1.1 (2010-06)
1 Scope
The present document applies to DSB AM ground base stations, with channel separations of 25 kHz intended for
analogue speech. The scope of the present document is limited to ground based transmitters, receivers and transceivers.
These radio equipment types are capable of operating in all or any part of the aeronautical frequency band between
225 MHz and 399,975 MHz.
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2,
which states that ". radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive as well as essential requirements under the Single European Sky
Interoperability Regulation (as amended) [i.3] and related implementing rules may apply to equipment within the scope
of the present document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references,only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 302 617-1 (V1.1.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Ground-based UHF radio transmitters, receivers and transceivers for the UHF aeronautical mobile
service using amplitude modulation; Part 1: Technical characteristics and methods of
measurement".
[2] ETSI EN 300 113-1 (V1.6.2): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Land mobile service; Radio equipment intended for the transmission of data (and/or speech) using
constant or non-constant envelope modulation and having an antenna connector; Part 1: Technical
characteristics and methods of measurement".
2.2 Informative references
The following refe
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
